SPINDLE
Spindle Motor:

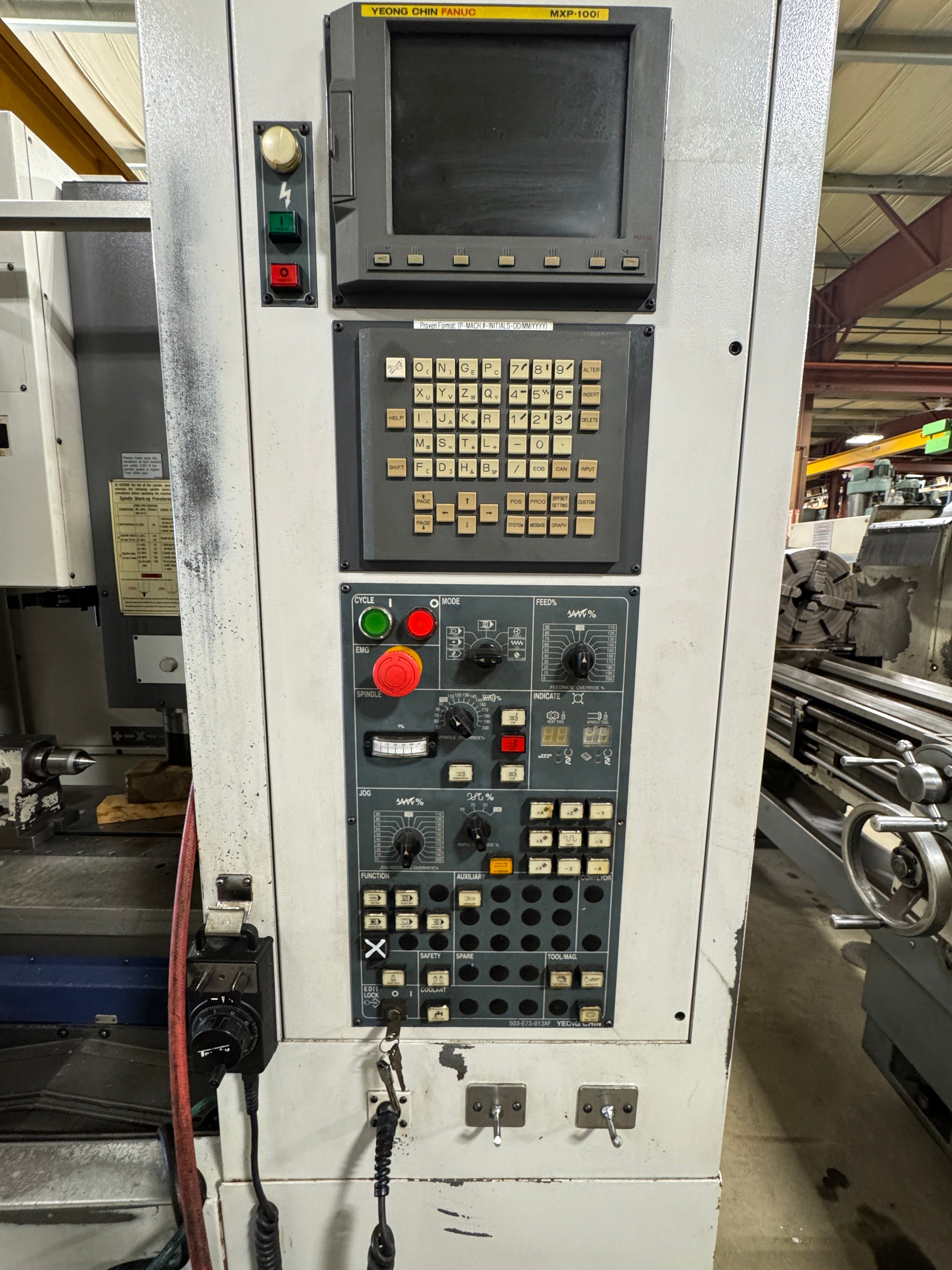

• FANUC: α6 5.5/7.5/11kW (10min) SPM-15
• MITSUBISHI: SJ-PF7.5-01 5.5/7.5kW (30min)
Spindle Taper: BT40 (CAT40)
Spindle Speed: 45–8000 rpm

TRAVEL
X-Axis Travel (Table Longitudinal): 560 mm
Y-Axis Travel (Saddle Cross): 410 mm
Z-Axis Travel (Spindle Vertical): 450 mm
Spindle Nose to Table Surface: 110–560 mm
Distance Z from Spindle Center to Cover Surface: 444 mm

TABLE
Table Size (L × W): 700 × 420 mm
T-Slots (W × No. × Distance): 14 × 3 × 100 mm
Max Loading Capacity: 300 kg

AXIAL
Rapid Feed (X, Y): 36 m/min
Rapid Feed (Z): 24 m/min
Cutting Feed: 1–10000 mm/min
Rated Thrust Force (X, Y): 285 kgf
Rated Thrust Force (Z): 575 kgf
Max Thrust Force (X, Y): 1320 kgf
Max Thrust Force (Z): 1805 kgf

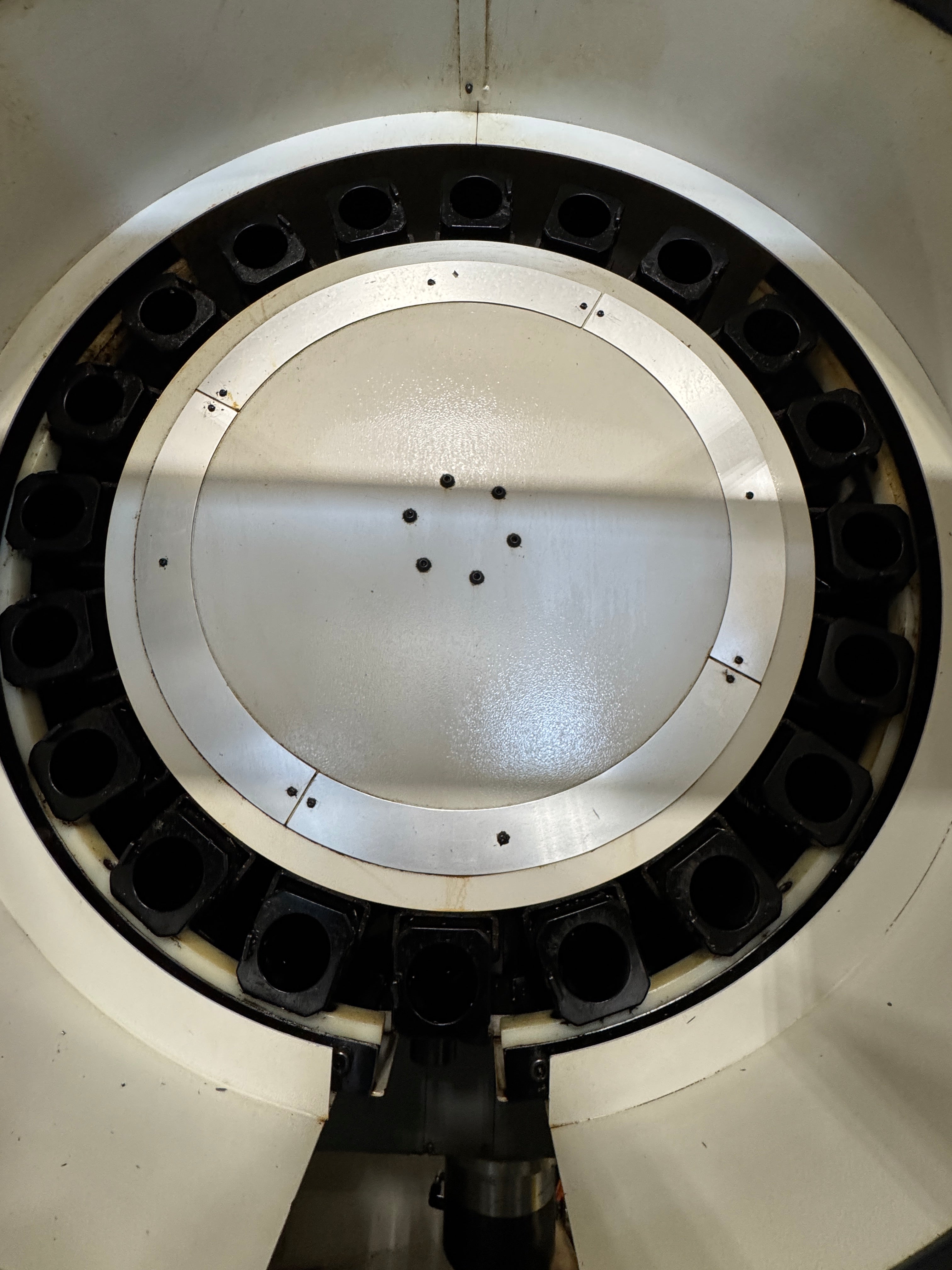

A.T.C. (Automatic Tool Changer)
Number of Tools: 20
Max Tool Weight: 6 kg/pc
Max Tool Dimension: Ø90 × 250 mm

OTHERS

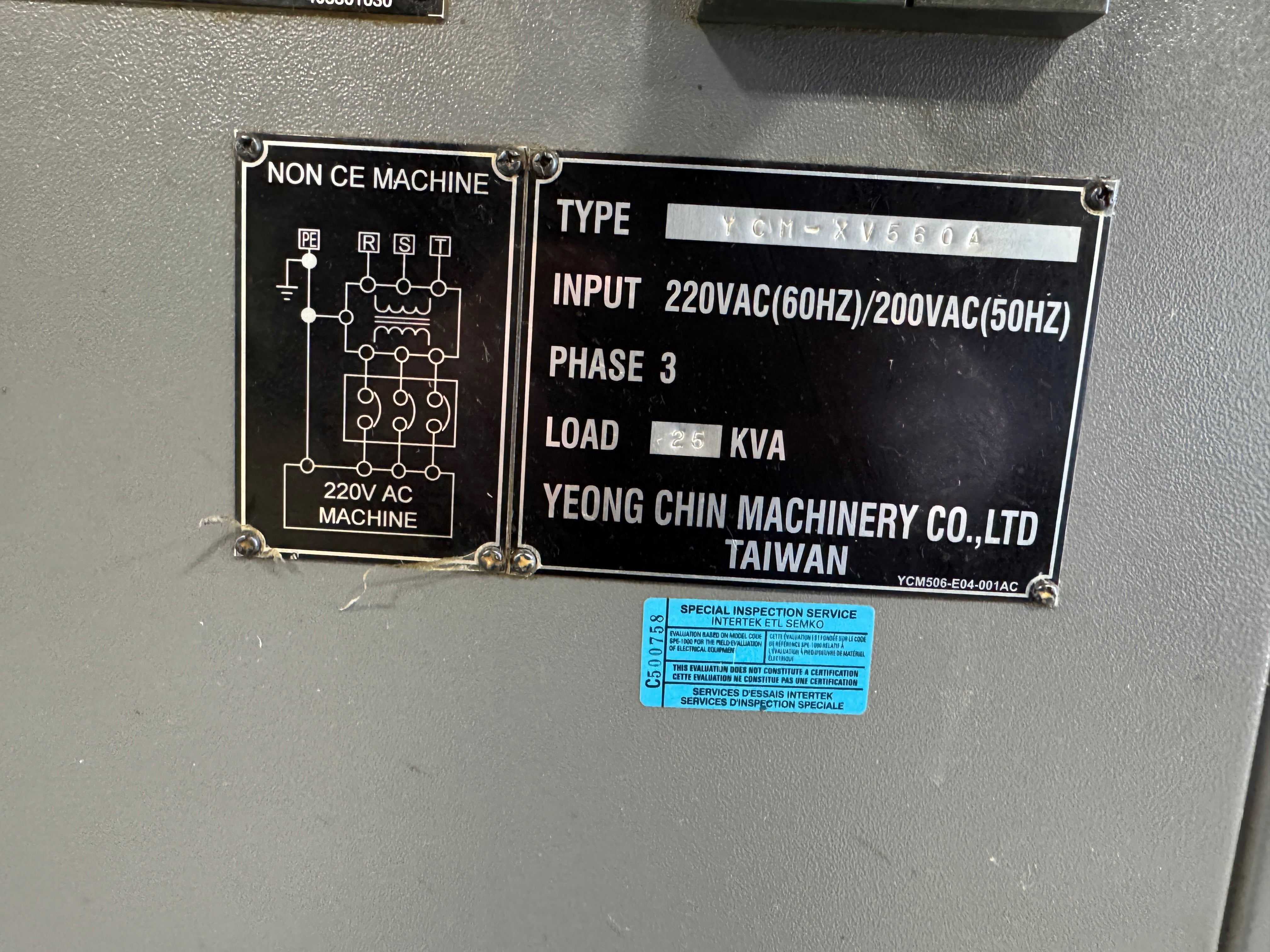

Voltage: 220V
Coolant Pump: 590 W
Lubrication Pump: 4 W
Machine Dimensions (L × W × H, with Chip Conveyor): 2500 × 1965 × 2450 mm
Coolant Tank Capacity: 180 L
Machine Weight: 3000 kg

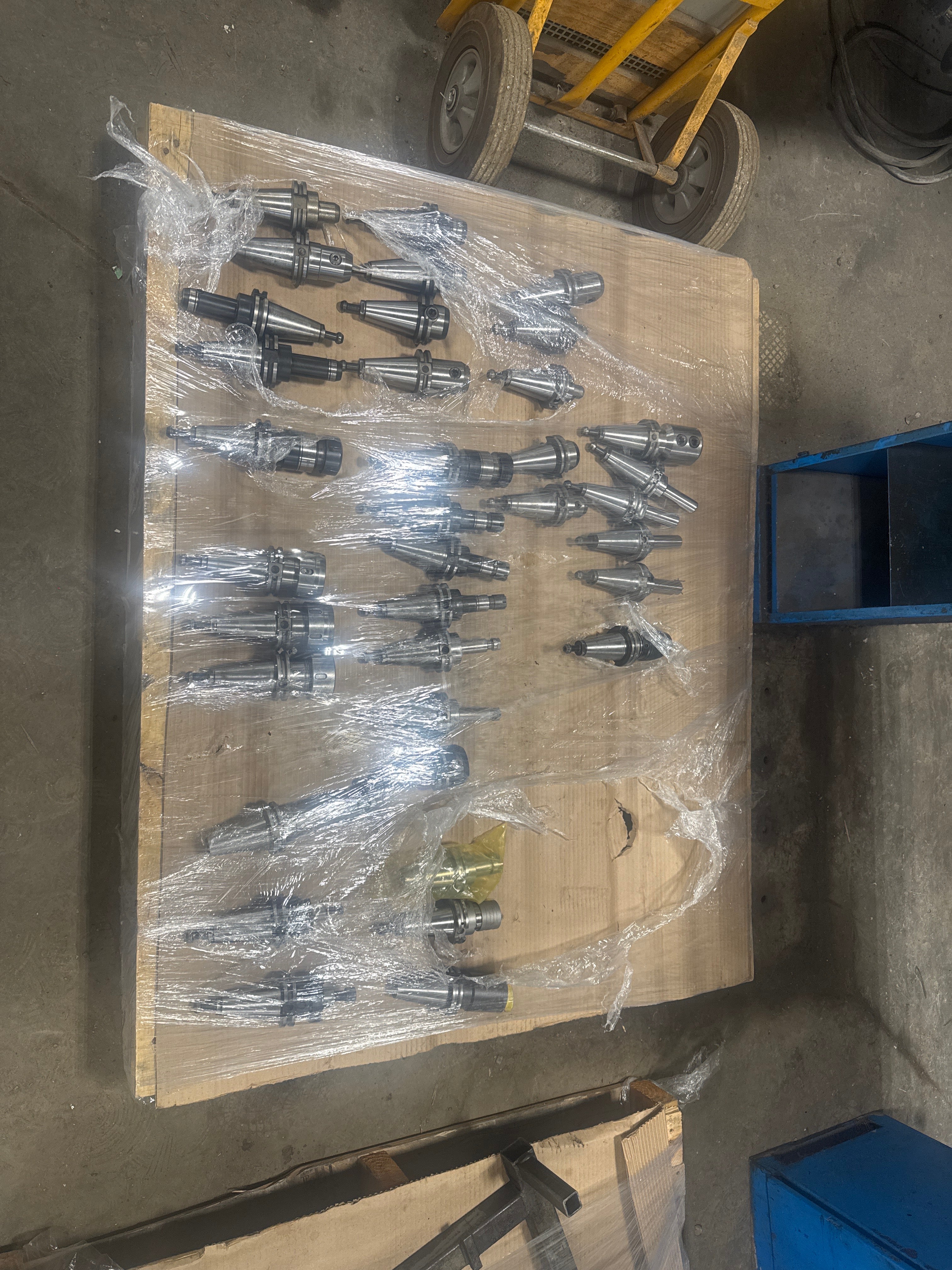

Additional accessories (Tool Holders)
