Introducing

STANKO Smart Lathe

A game-changer increasing total cutting efficiency by 400%. It operates the same as a manual lathe but can be used for automated cycles.

Use Automated Cycles

For Complicated Task

No G-Code knowledge required. High-speed thread cutting. Programmed tapers and taper threads.

Starts from $29,900 USD

Start From $32,900 USD

Starts From 34,900 USD

Stanko Smart Lathe

Base Model

Comparable price with new Manual Lathes.

Capacity

Swing Over Bed: 20"
Swing Over Cross Slide: 12"
Max. Workpiece Length: 40", 60", 80"
Width of the Bed: 15.75"

Spindle

Chuck Size: 3 Jaw, 10" Ø
No. of Speed: 3 Grade Variable Speed
Speed: 20 - 2,000 rpm
Spindle Bore: 3.15"

Carriage

Tool Post Travel: 5.52"
X-axis Travel: 10"
Tool Post: 4 Position
Tool Size: 1"

Tailstock

Type: Manual
Quill Stroke: 6"
Quill Ø: 2.95"
Quill Nose: MT5

Feed

Long. Feed Range (inch/rev): 0.002-0.242
Cross Feed Range (inch/rev): 0.001-0.121
Rapid Travel X/Z Axis (m/min): 2/4

Thread Pitch

29 Metric (mm): 0.5-0.40
54 Width worth (tpi): 1-80
26 Modules: 0.25-20
31 Diametral (dp): 2-72
X/Z Ball Screw Size (mm): Ø25x5/Ø40x6

Motor

Main Motor (kW/HP): 7.5/10
Coolant Motor (kW): 0.125
X/Z Servo Motor(kW): 1.5/2.3

General

Spindle Torque: 1085 N.m
X/Z Torque: 10/15
Dimensions: 105" x 46" x 54"
Weight: 4630 lbs

Standard Accessories

3 Jaw Chuck (in/mm): 10” / 250

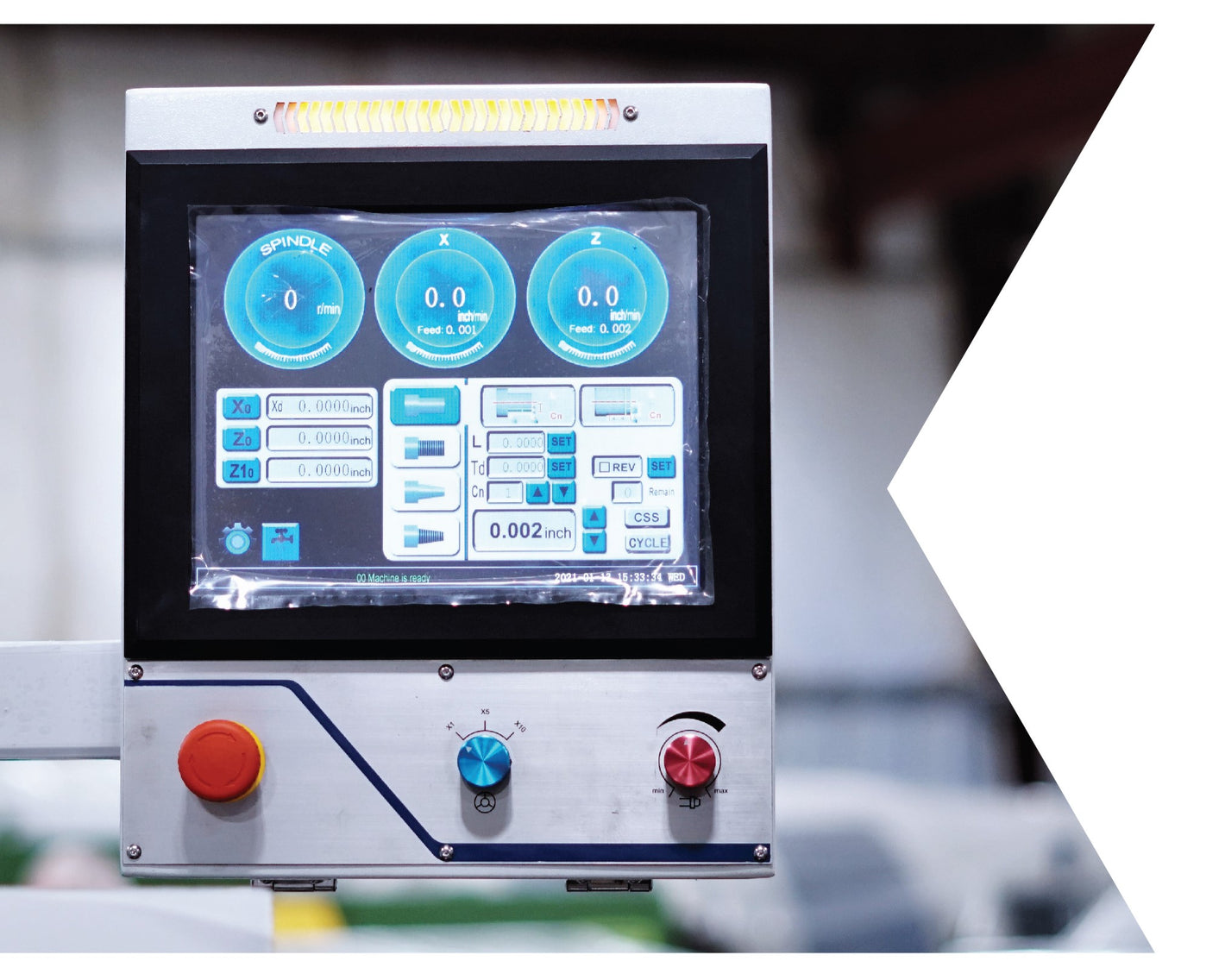

Touch Screen: 12.1"
Ball Screw for X/Z Axis
Main Inverter Motor

Servo Motor X/Z Axis
X/Z DRO Display
Auto-cycle Turning OD/ID/Threading/Taper
CSS Cutting

Variable Speed Changing for Spindle
Four Position Turret
Chip Collect Plate
Coolant Pump

Auto-lubrication Pump
LED Lighting & Chuck Cover
Dead Center
UL/CSA Electrics

Personalized Your Smart Lathe

Accessories

You can personalize your smart lathe by adding parts. We are offering additional parts with various sizes such as chucks, steady rest, and follow rest.

Smart Lathe - Follow Rest - 20mm to 80mm Ø

$450.00
Sold Out

Smart Lathe - Small Steady Rest (20mm to 125mm Ø)

$630.00
Sold Out

Smart lathe Large Steady Rest (125mm to 250mm Ø)

$1,300.00
Sold Out

Smart Lathe - 4 Jaw Chuck - 16"

$1,200.00
Sold Out

Smart Lathe - 4 Jaw Chuck - 14"

$890.00
Sold Out
