$37,900.00 Sale Save

Only 1 left in stock

Description

Specifications: 413

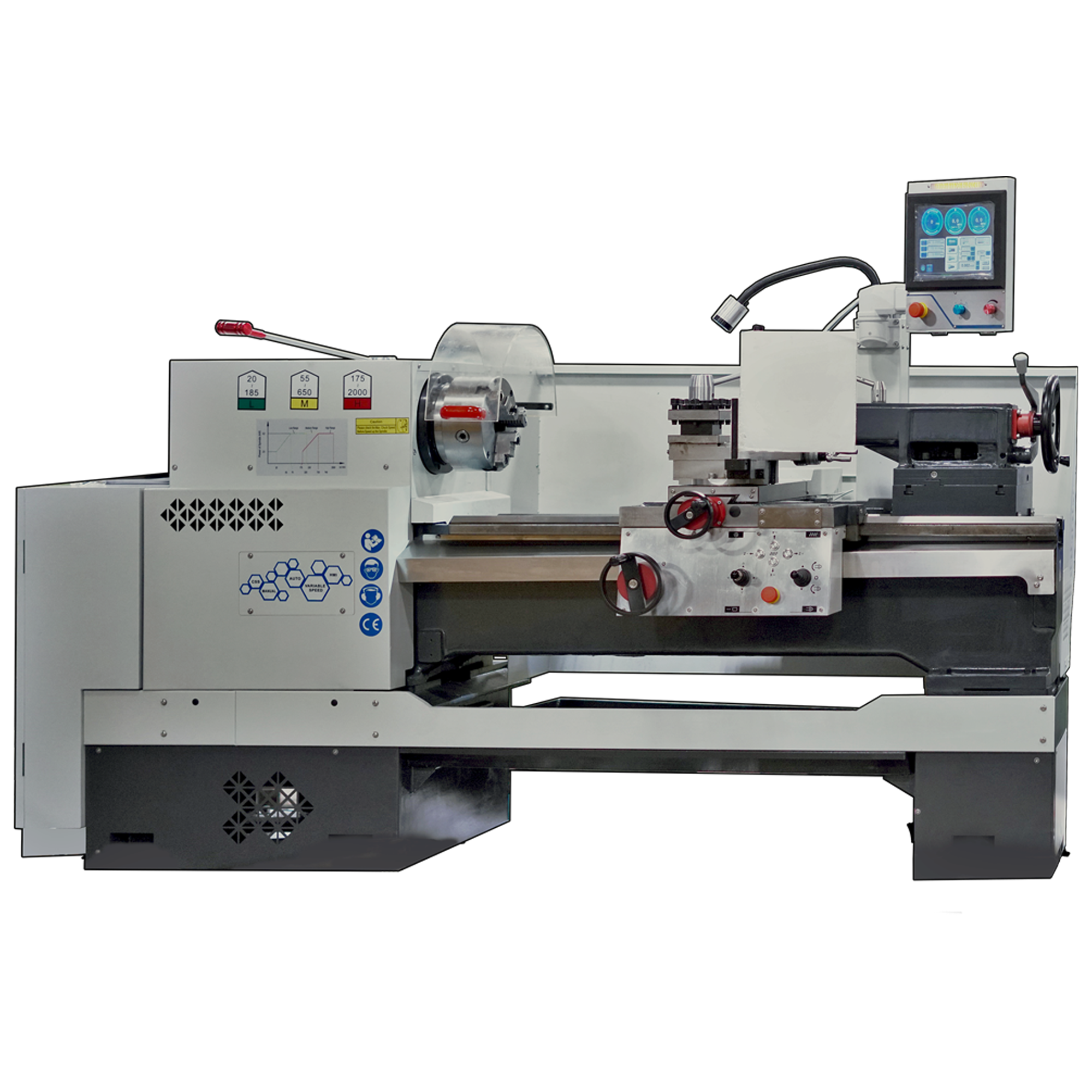

A game-changer increasing total cutting efficiency by 400%. It operates the same as a manual lathe but can be used for automated cycles.

Stan Canada's new line of machines. Stanko Smart Lathe comes in 3 types S2040, S2060 & S2080.  No G-code needed & High-speed thread cutting.

Makes your task a lot easier, faster, and less stressful.
We tested our machinists and they totally loved the new features and what this machine can do.

  • Swing Over Bed: 20"
  • Swing Over Crosslide: 12"
  • Max. Workpiece Length: 40"
  • Bed Width: 16"

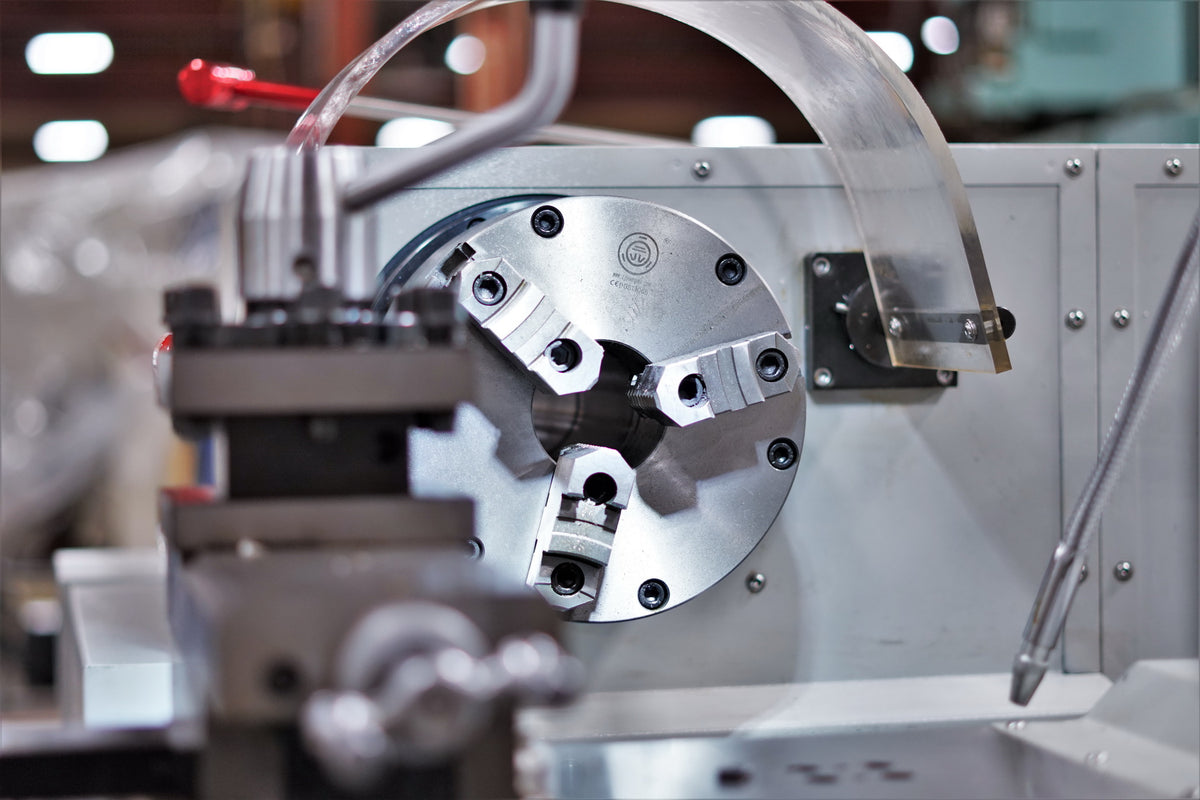

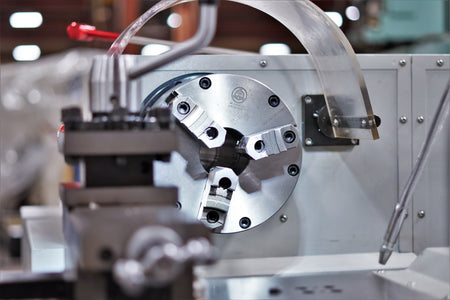

  • Spindle Chuck: 10"
  • Spindle Speed: 20 - 2000 rpm (3 Grade Stepless)
  • Spindle Bore: 3.15" - 4.10" (Optional)
  • Internal Taper: Metric 90/120
  • Spindle Nose: B/11
  • Carriage Travel (ToolPost): 5.5"
  • Carriage X-axis Travel: 10"
  • Tool Post: 4 Position (1" Size)
  • Tailstock Quill Stroke: 6"
  • Tailstock Quill Ø: 3" (MT5)
  • Rapid Traverse - All Direction (X/Z)
  • Main Motor: 10HP
  • Dimension: 105" x 46" x 54"
  • Weight: 4650 lbs
  • Price: $29,900 (USD), prices in CAD are subject to change depending on current rates.
