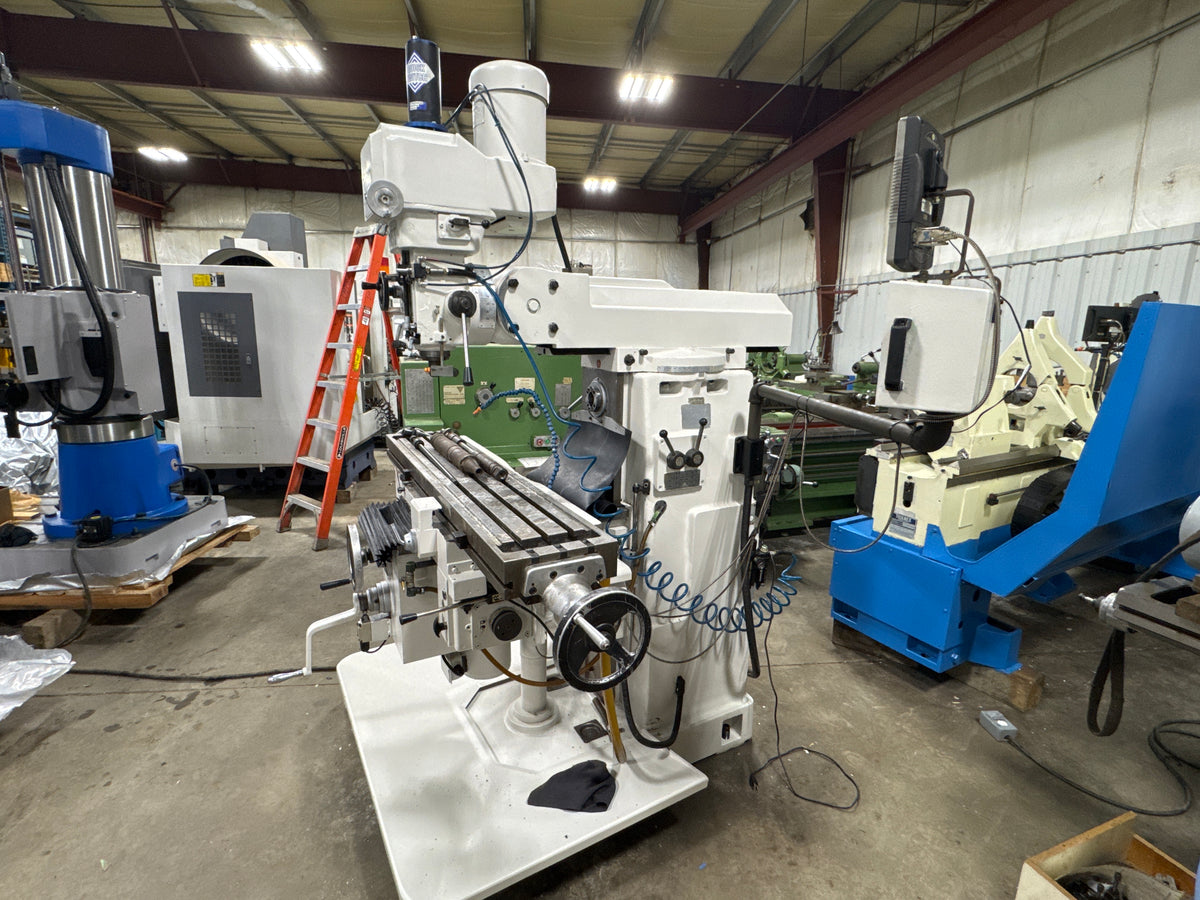

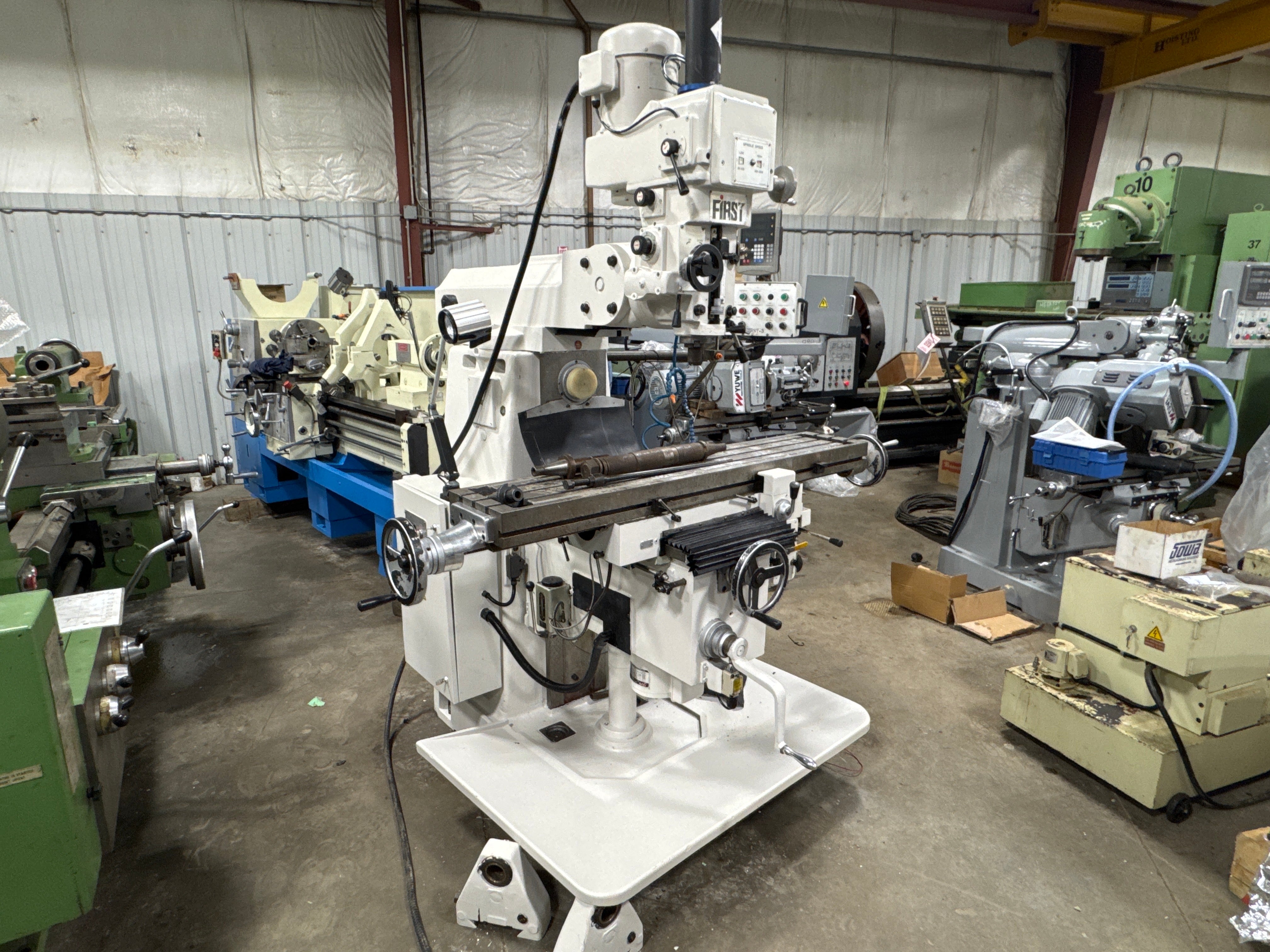

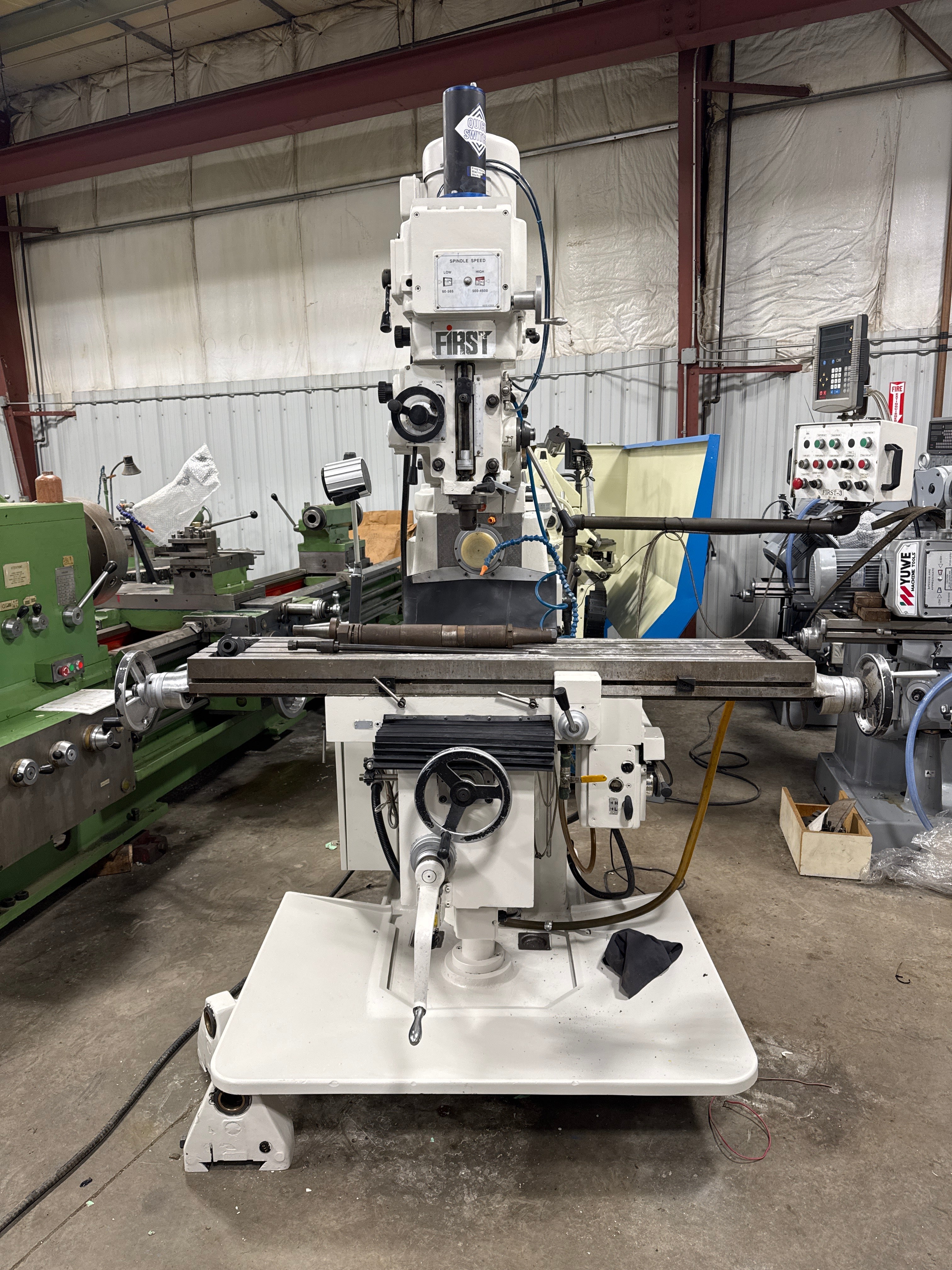

FIRST LC-20VHS is a heavy universal vertical/horizontal turret milling machine equipped with NT40 tapers on both spindles, giving solid rigidity for cutter arbors and tooling. A variable-speed vertical head with low and high ranges from 60 up to 4500 rpm covers everything from heavy roughing to fine drilling and finishing. The machine is fitted with a Newall C80 three-axis DRO for accurate positioning on the knee and table. A geared feed gearbox on the knee with high/low selection and feed dial provides convenient powered feeds, while an auxiliary 1.5 HP three-phase induction motor drives the feed system. Horizontal spindle capability with overarm support allows arbor milling and heavy slab work in addition to standard vertical head operations. Integrated coolant and control panel with clearly labeled pushbuttons make the LC-20VHS a practical production or job-shop mill. This model is a popular choice in Canada for industrial machining thanks to its universal configuration and robust build.

Specification
Machine: FIRST Universal Vertical/Horizontal Milling Machine
Model / Type: LC-20VHS Turret Mill

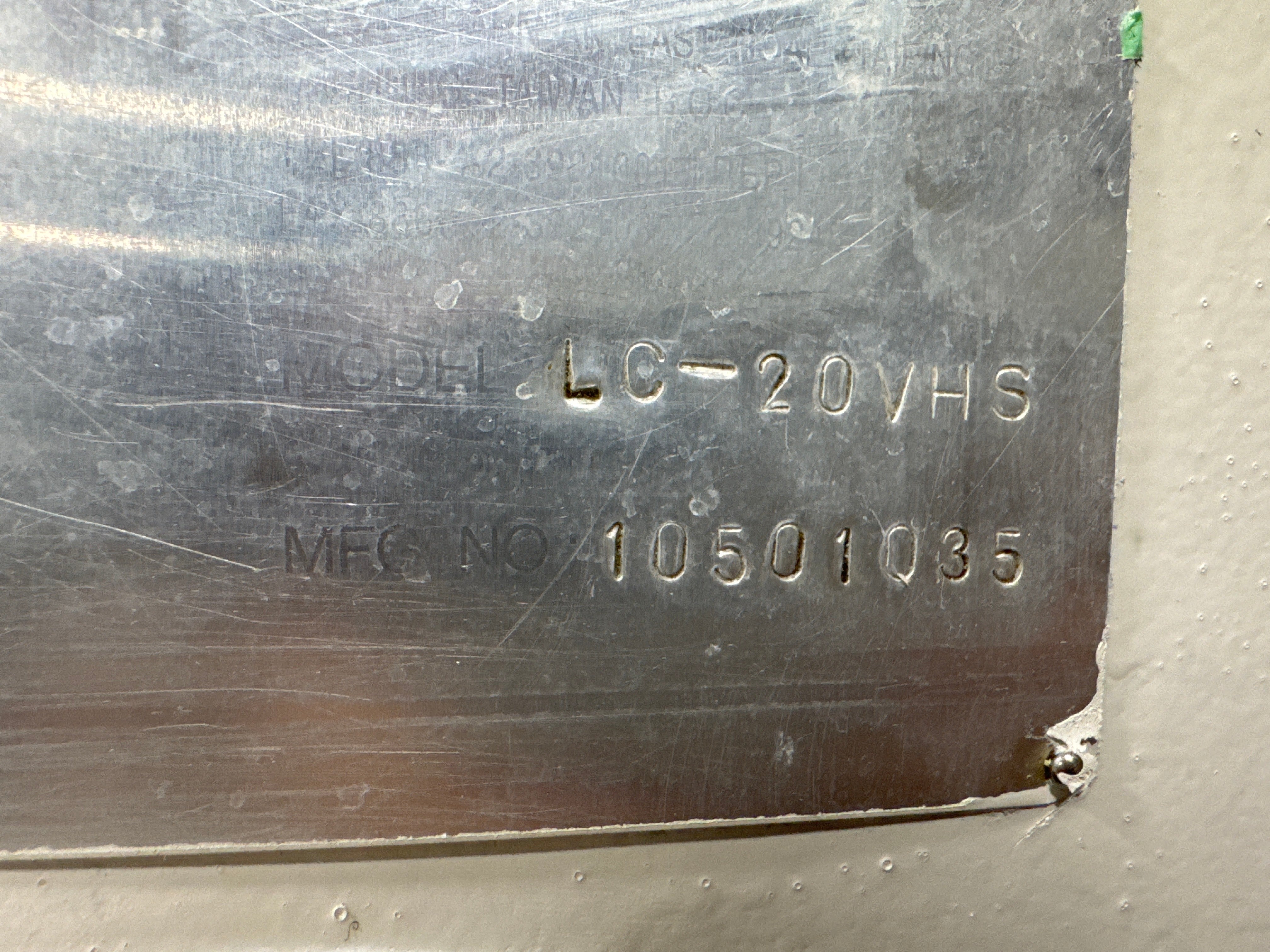

Mfg / Serial No.: 10501035

Spindle system

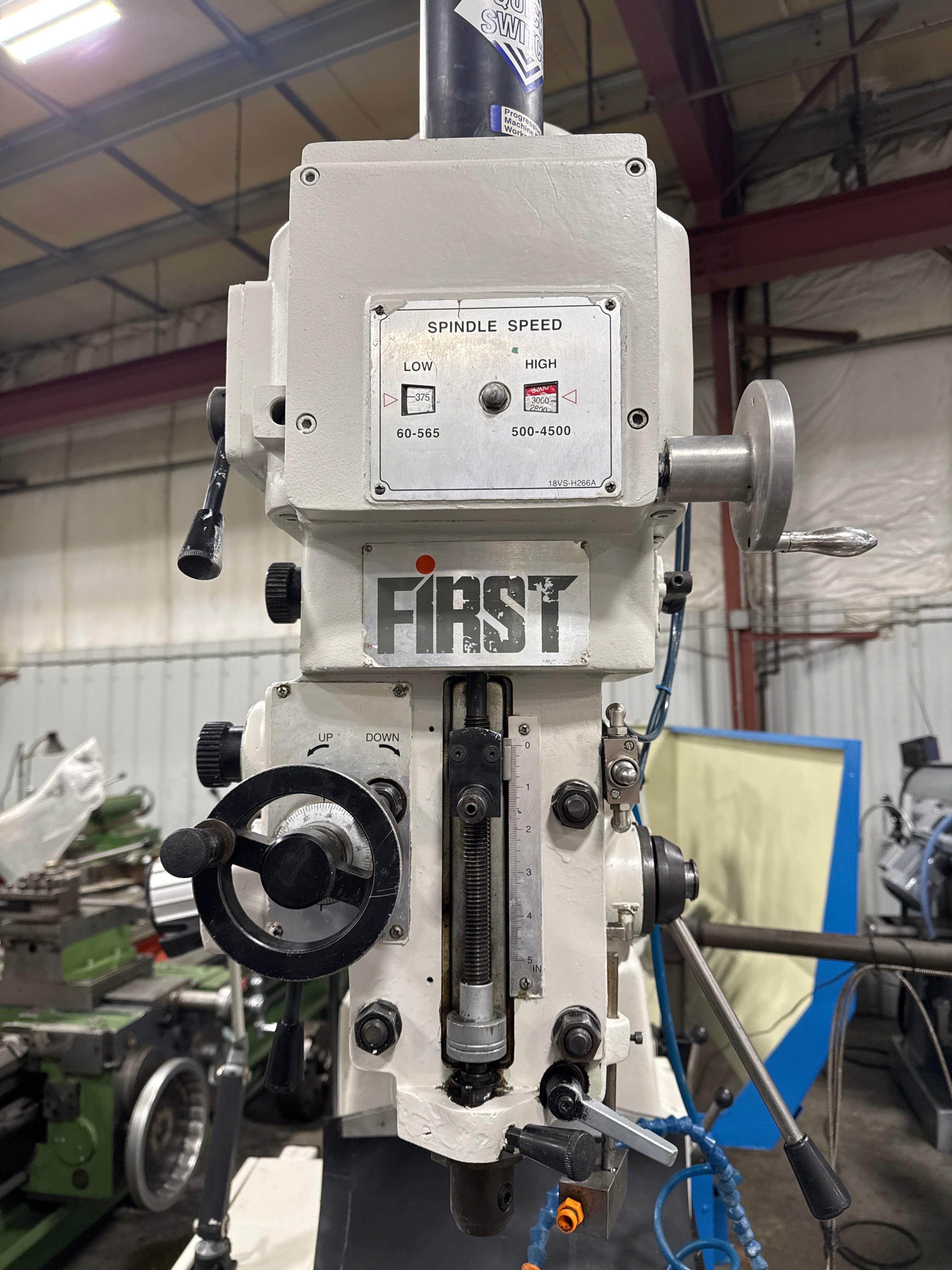

Vertical spindle configuration: Turret-type variable-speed head with low/high range
Vertical spindle speed range, low: 60–565 rpm
Vertical spindle speed range, high: 500–4500 rpm
Vertical spindle taper: NT40

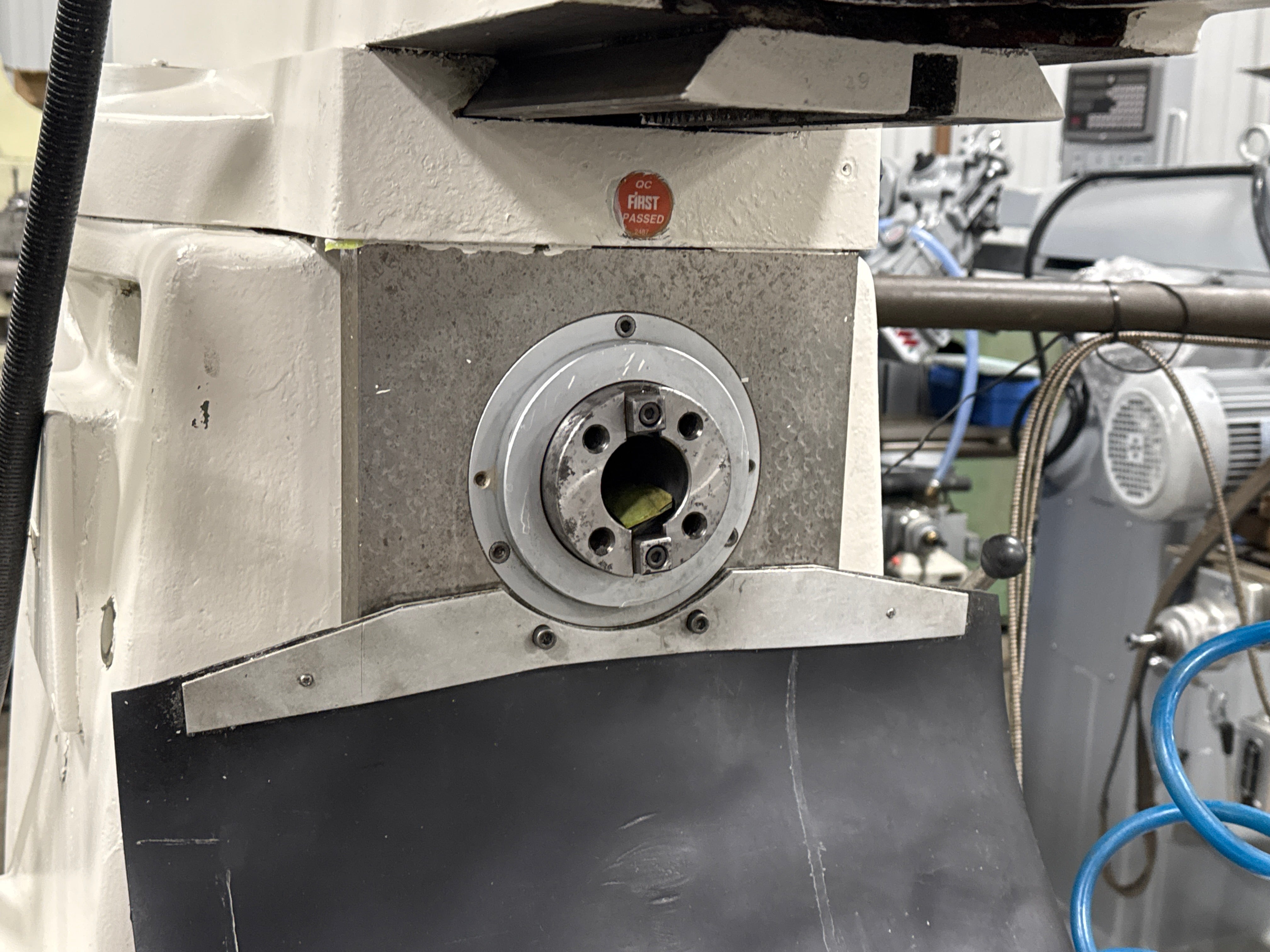

Horizontal spindle: Integral horizontal spindle in column with overarm support
Horizontal spindle taper: NT40

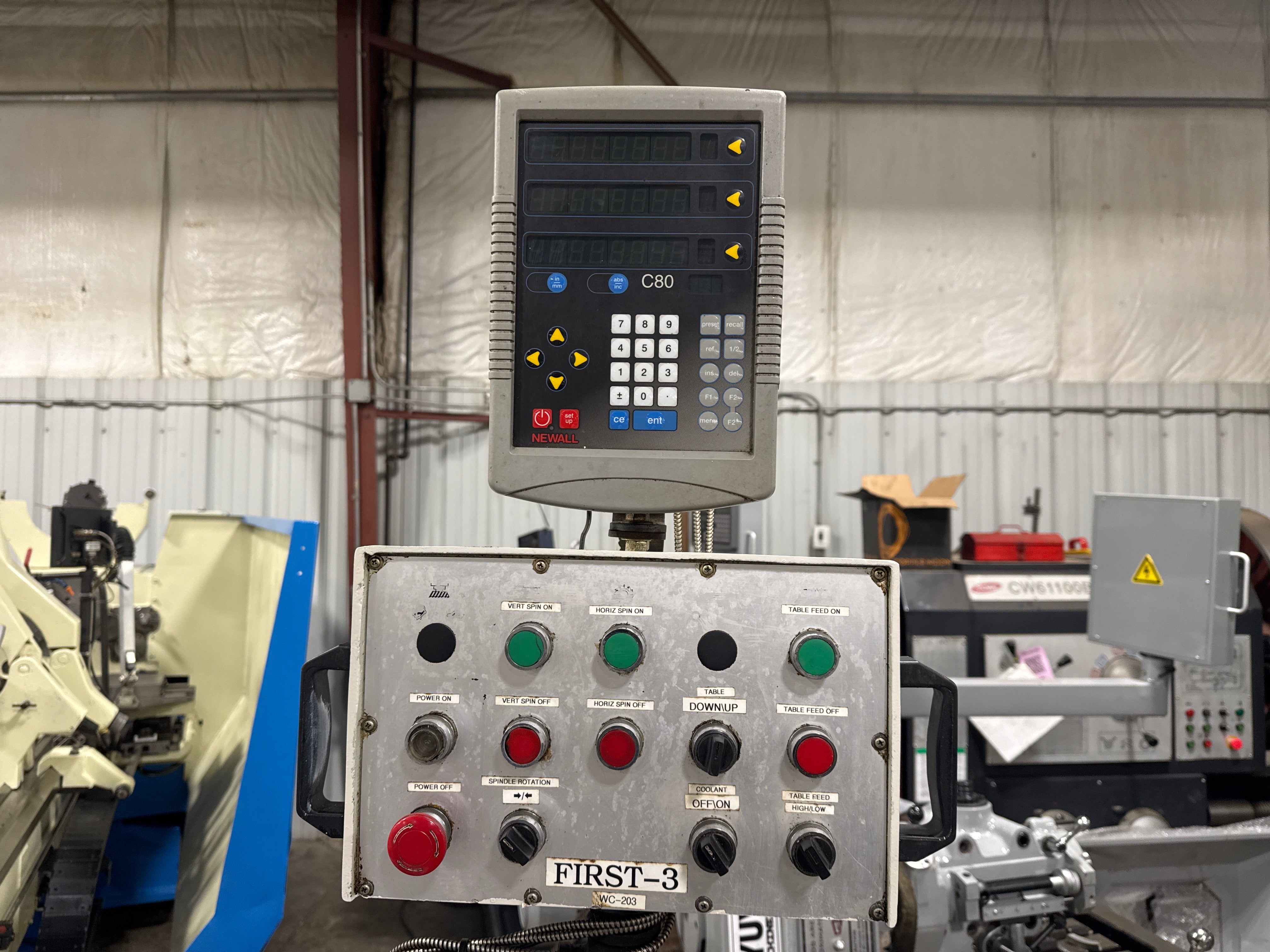

Digital readout
Brand / Model: Newall C80
Number of axes: 3-axis DRO (X, Y, Z)
Table Size: 56" x 10"

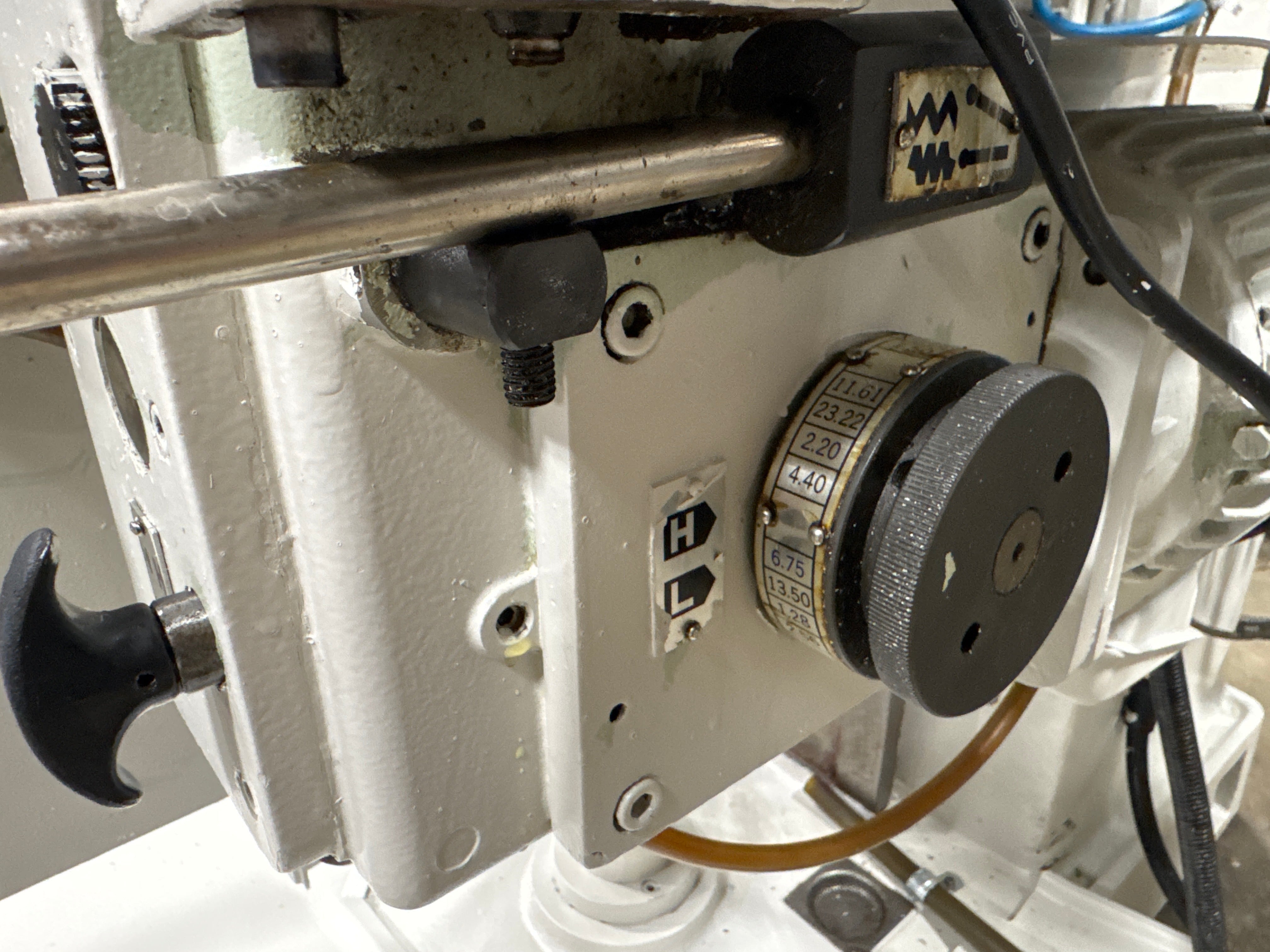

Feed gearbox and controls
Feed gearbox mounted on knee with multi-step feed dial
High/Low feed range selector on gearbox

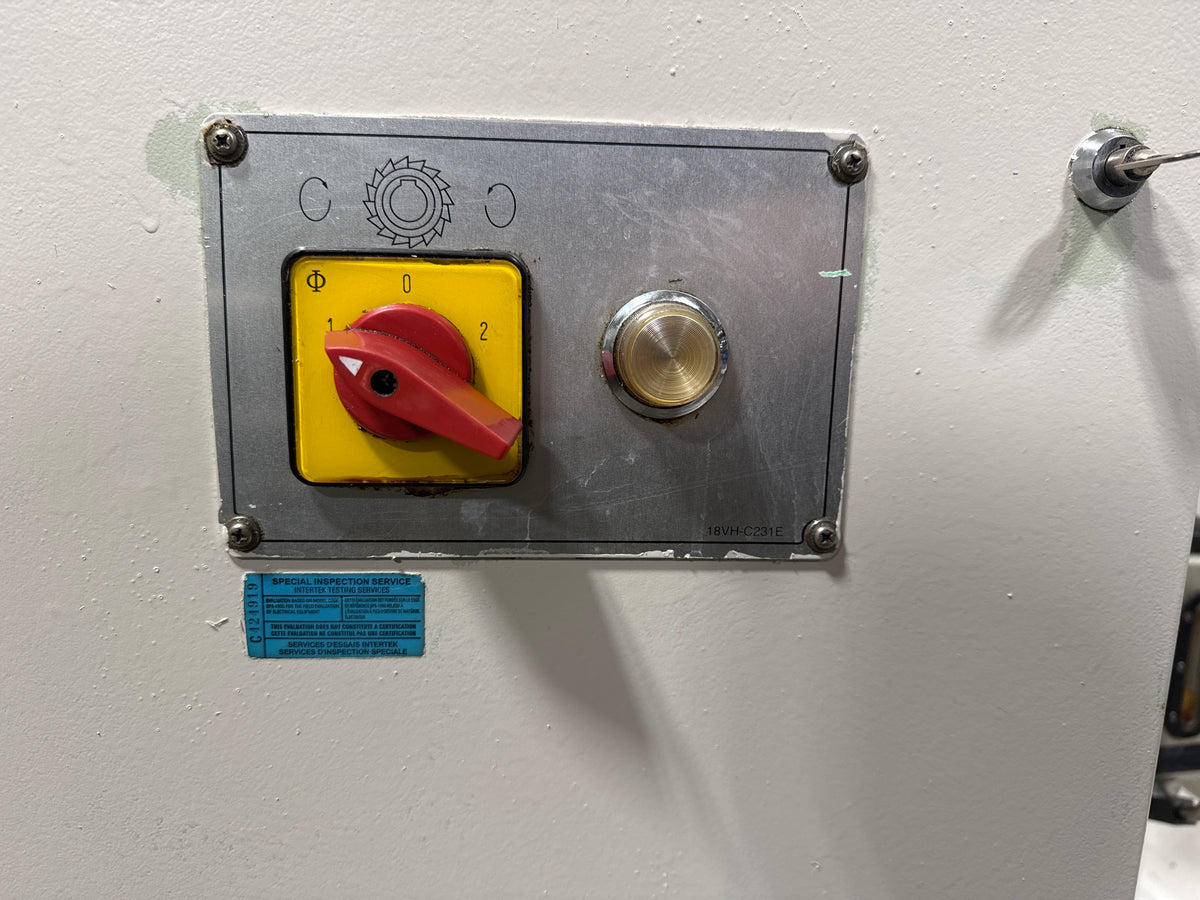

Front-mounted FIRST-3 pushbutton control panel for spindle, table feed and coolant functions

Motors

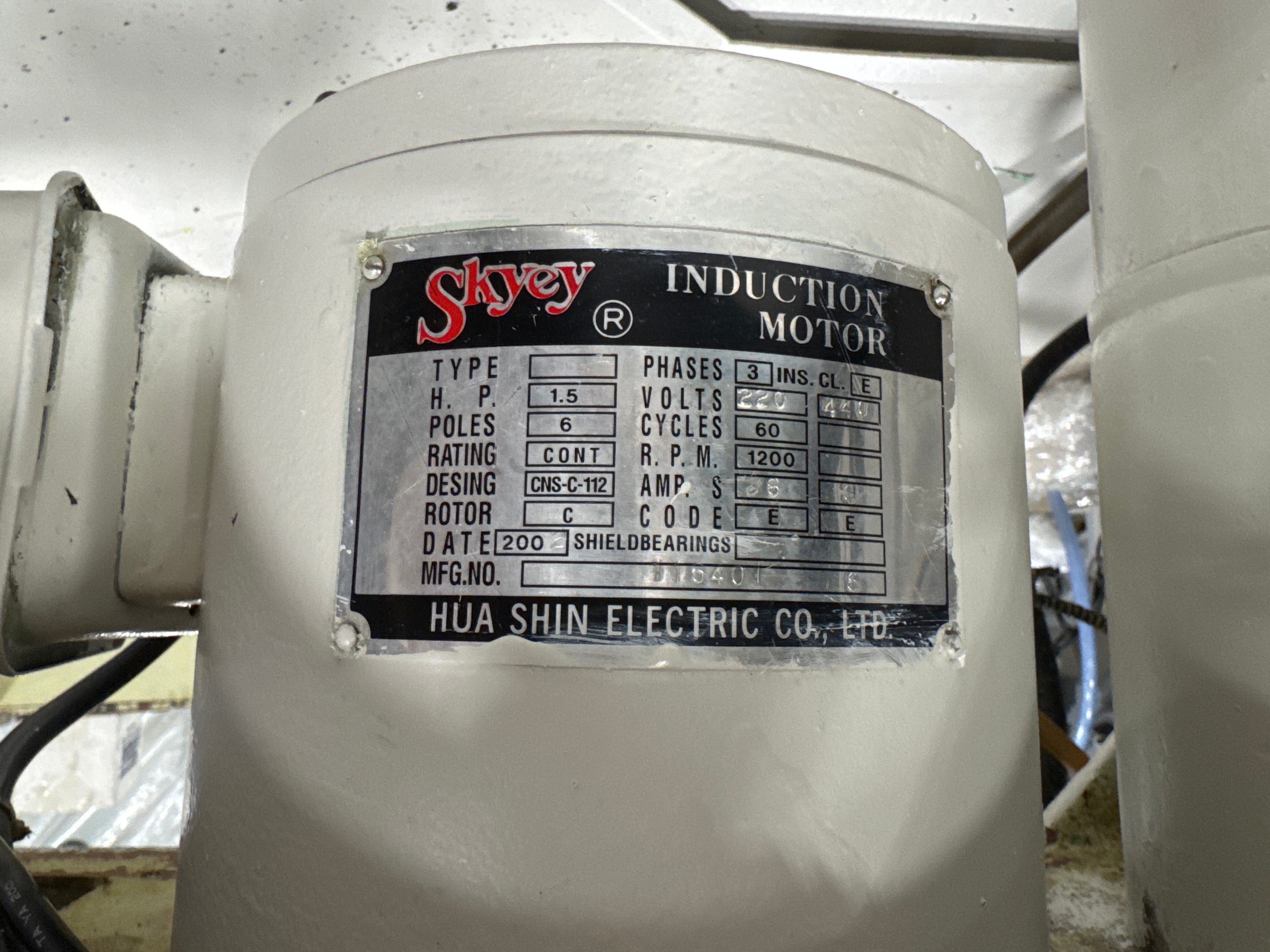

Auxiliary induction motor (mounted on machine, used for feed system)
Brand: Skvey / Hua Shin Electric Co. Ltd.
Power: 1.5 HP
Phases: 3
Voltage: 220/440 V
Frequency: 60 Hz
Speed: 1200 rpm
Poles: 6
Duty: Continuous
Insulation class: E

Other equipment and features
Universal configuration with both vertical and horizontal milling capability
Overarm and support for horizontal arbor
Quill with hand feed and fine feed handwheel on vertical head
Coolant system with hose and nozzle at the spindle area
Chip/splash guard around horizontal spindle area
Large one-piece base casting for stability

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
