Specifications

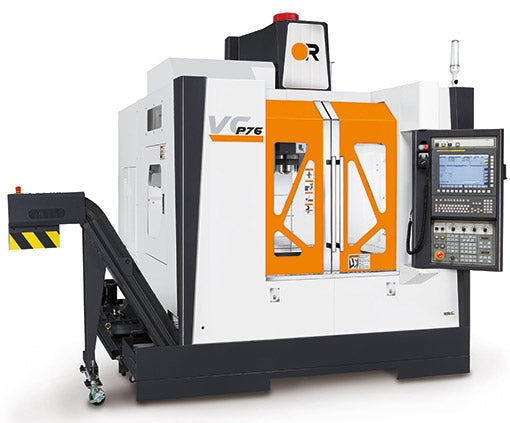

Vcenter-P76
Travel
X-axis travel: 760 mm
Y-axis travel: 500 mm
Z-axis travel: 510 mm
Distance
Spindle center to column: 565 mm
Spindle nose to table surface: 120 ~ 630 mm
Table
Table work area: 840 × 500 mm
Dimension of T-slot: 4 × 18 × 100 mm
Max. table load: 500 kg
Spindle
Spindle taper: BBT-40
Spindle motor (Fanuc) - Cont./60%/25%: 11/15/18.5 kW (w/t CTS), 7.5/11/15 kW (for CTS)
Spindle motor (Heidenhain) - Cont./40%/25%/10%: 11/16.5/20/28 kW
Spindle speed: 12,000 rpm (optional 15,000 rpm)
Feed Rate
Rapid feed rate (Fanuc) - X/Y/Z: 48 / 48 / 32 m/min
Rapid feed rate (Heidenhain) - X/Y/Z: 48 / 48 / 32 m/min
Axis acceleration - X/Y/Z: 0.7G / 0.7G / 0.5G
Axis feed motor (Fanuc) - X/Y/Z: 3 / 3 / 3 kW
Axis feed motor (Heidenhain) - X/Y/Z: 4.5 / 4.5 / 5.4 kW
Cutting feedrate by table: 20 m/min
X/Y/Z Ballscrew (Dia. × Pitch): 40 × P16 (X), 40 × P16 (Y/Z) mm
Linear guide width (X/Y/Z): 30 / 35 / 45 mm
Tools
Max. tool length: 300 mm
Max. tool weight: 7 kg
Magazine capacity: 30 (optional 40)
Max. tool diameter (without adjacent tools): 75 (150) mm
Tool exchange time: 1.8 sec (T-T), 4.3 sec (C-C)
Pull stud angle: 15° (JIS 40P)
Tool selection method: Random
Machine
Power requirement: 23 kVA (excluding CTS)
Min./Max. air pressure: 5.5 ~ 6.5 kg/cm²
Coolant tank capacity: 260 L
Standard NC controller (Fanuc): 0i-MF (10.4")
Optional NC controller (Heidenhain): TNC-620 (15")
Floor space requirement: 2818 × 2719 mm
Max. machine height: 2731 mm
Machine weight: 5500 kg
