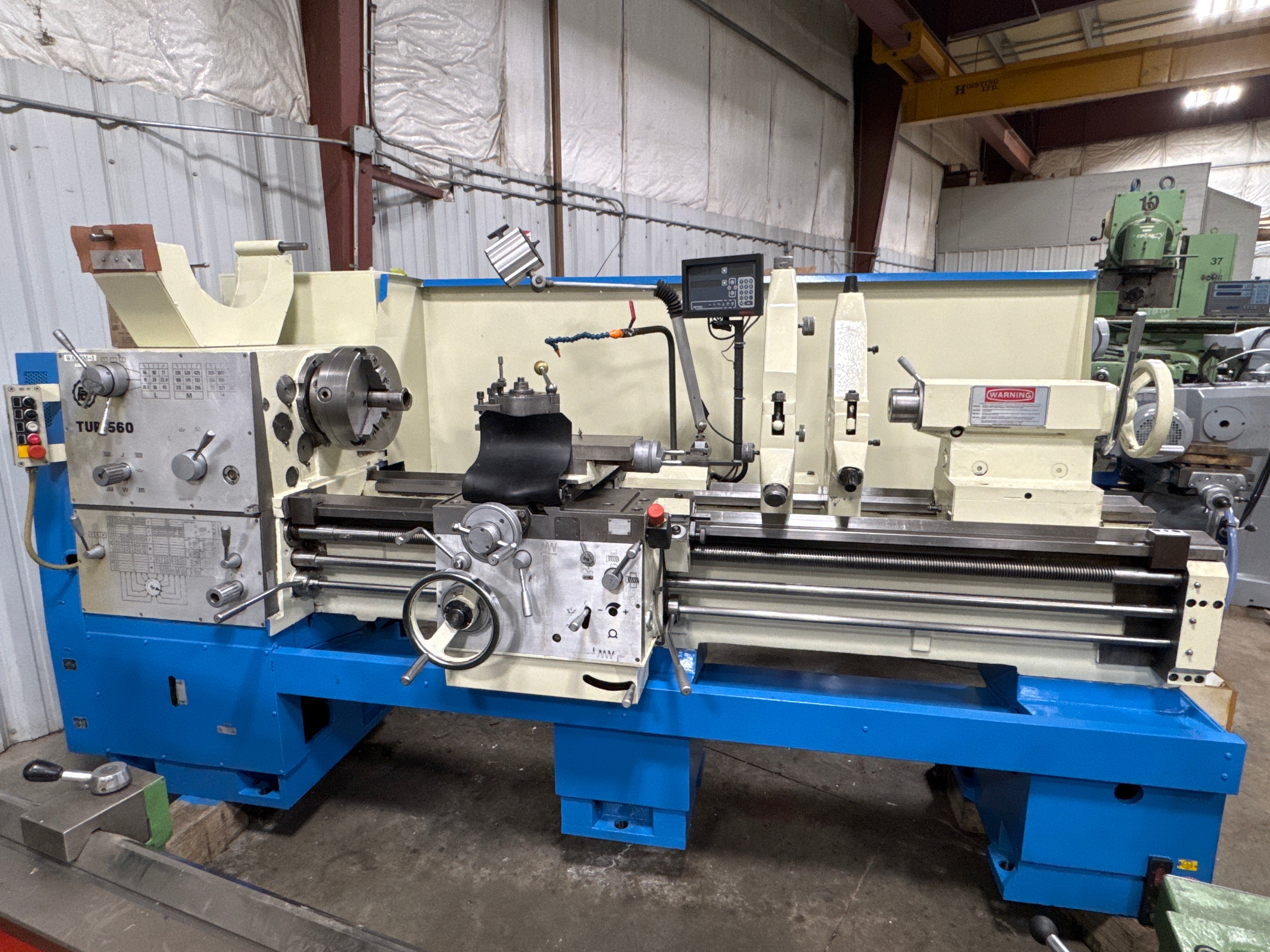

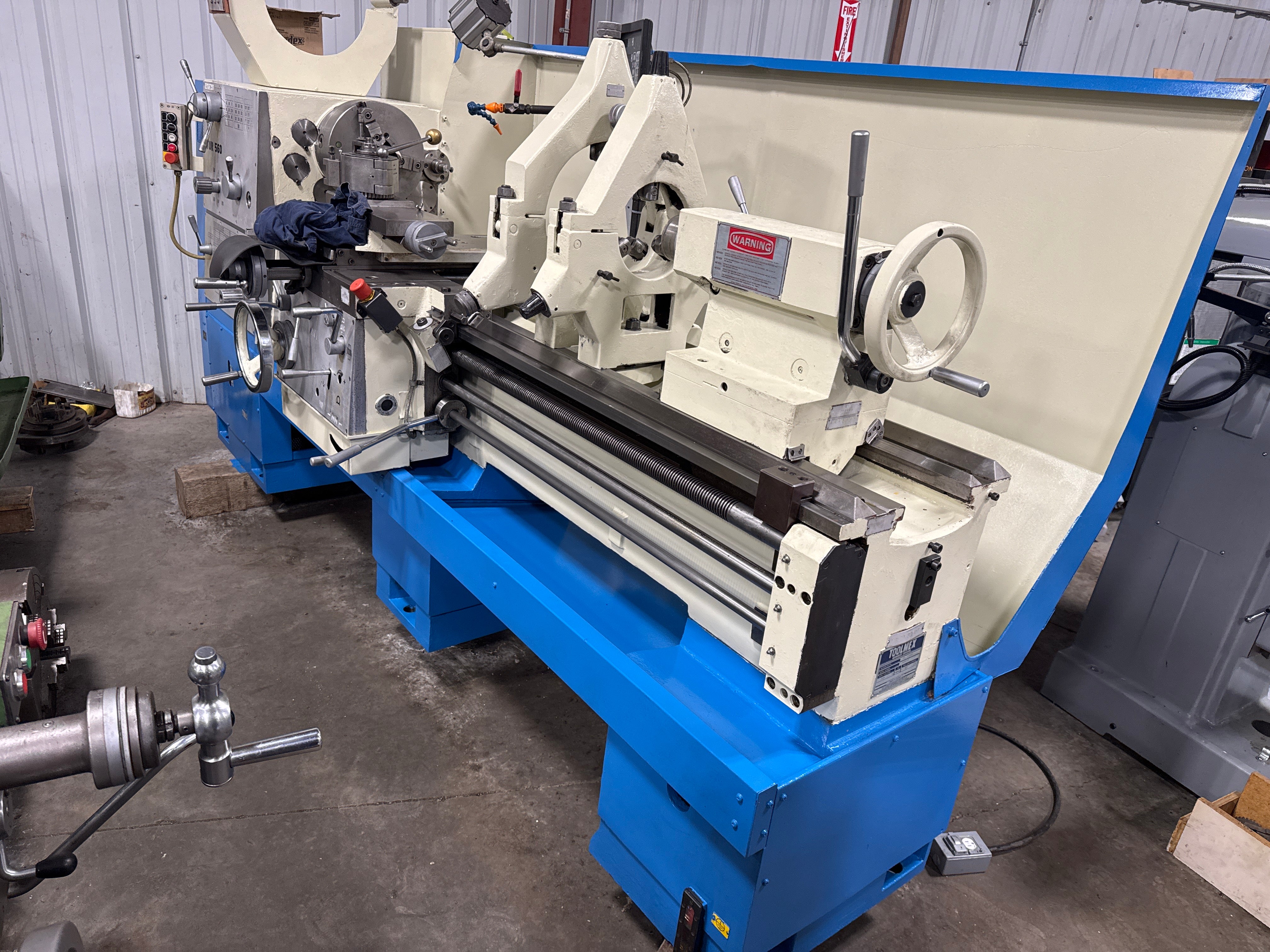

The Toolmex / FAT TUR 560 is a heavy-duty Polish engine lathe designed for serious metalworking in repair and production shops. With 560 mm (22") swing over the bed and 1500 mm between centers, it comfortably handles medium to long shafts, flanges and general jobbing work. A 3 3/4" spindle bore and camlock D1-8 spindle nose make it ideal for larger diameter pipes and bars, while the 27-speed gearbox provides a wide 18–1800 rpm range for both roughing and finishing cuts. The machine is equipped with a 13" 3-jaw Master chuck, two roller-type steady rests and a 2-axis Newall DP700 digital readout for accurate positioning on longitudinal and cross axes. Coolant system, work light, emergency stop and clear pushbutton controls round out a solid, production-ready package. This model is a popular choice in Canada for industrial machining where a robust lathe with a large spindle bore is required.

Specification
Machine: Toolmex / FAT Wafum engine lathe
Model / Type: TUR 560 engine lathe

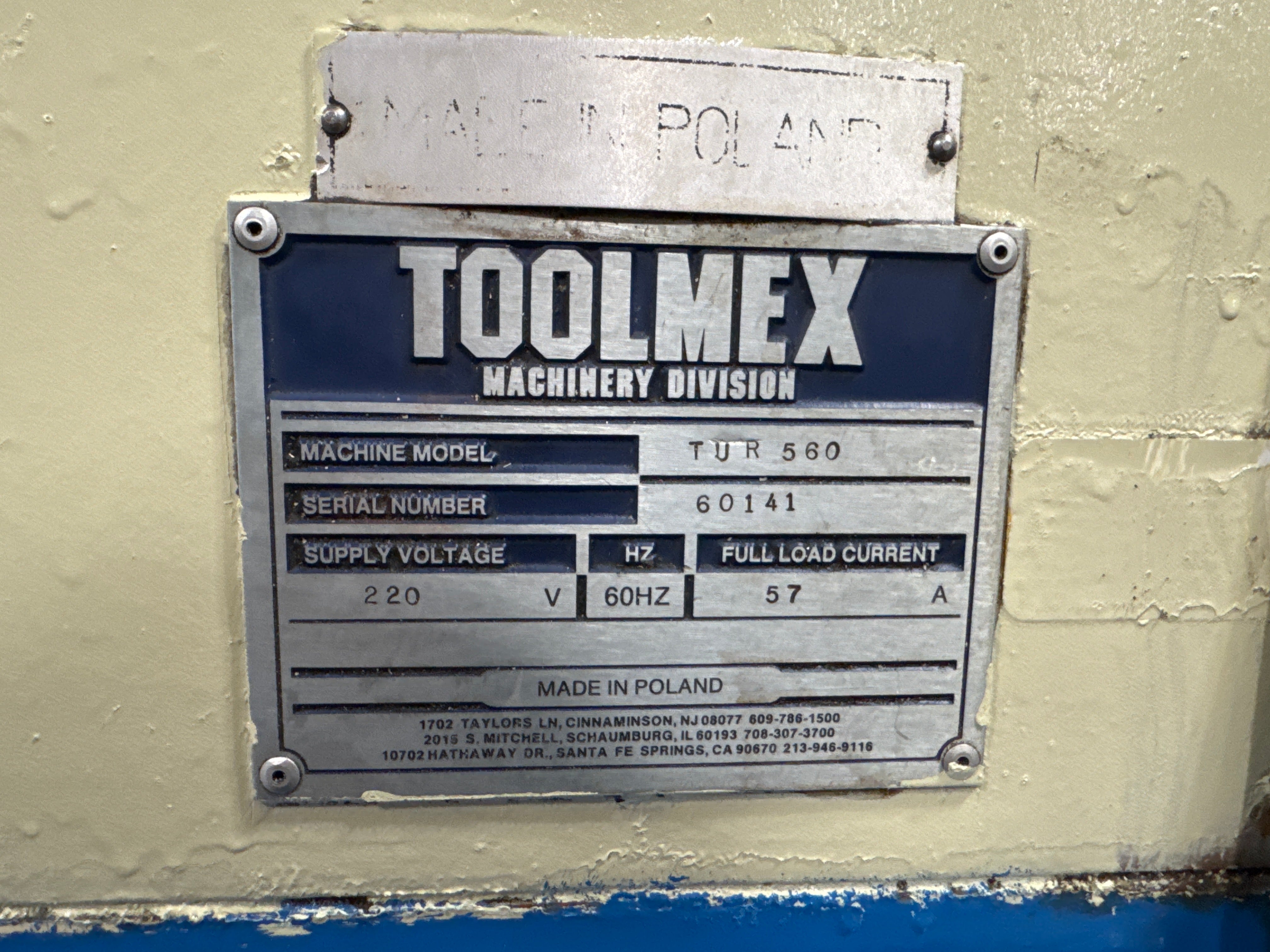

Serial number: 60141
Country of manufacture: Poland

Capacity
Swing over bed: 560 mm (22")
Swing over cross slide: 250 mm
Distance between centers: 1500 mm
Spindle bore: 3 3/4" (approx. 95 mm)

Spindle
Spindle nose: camlock D1-8

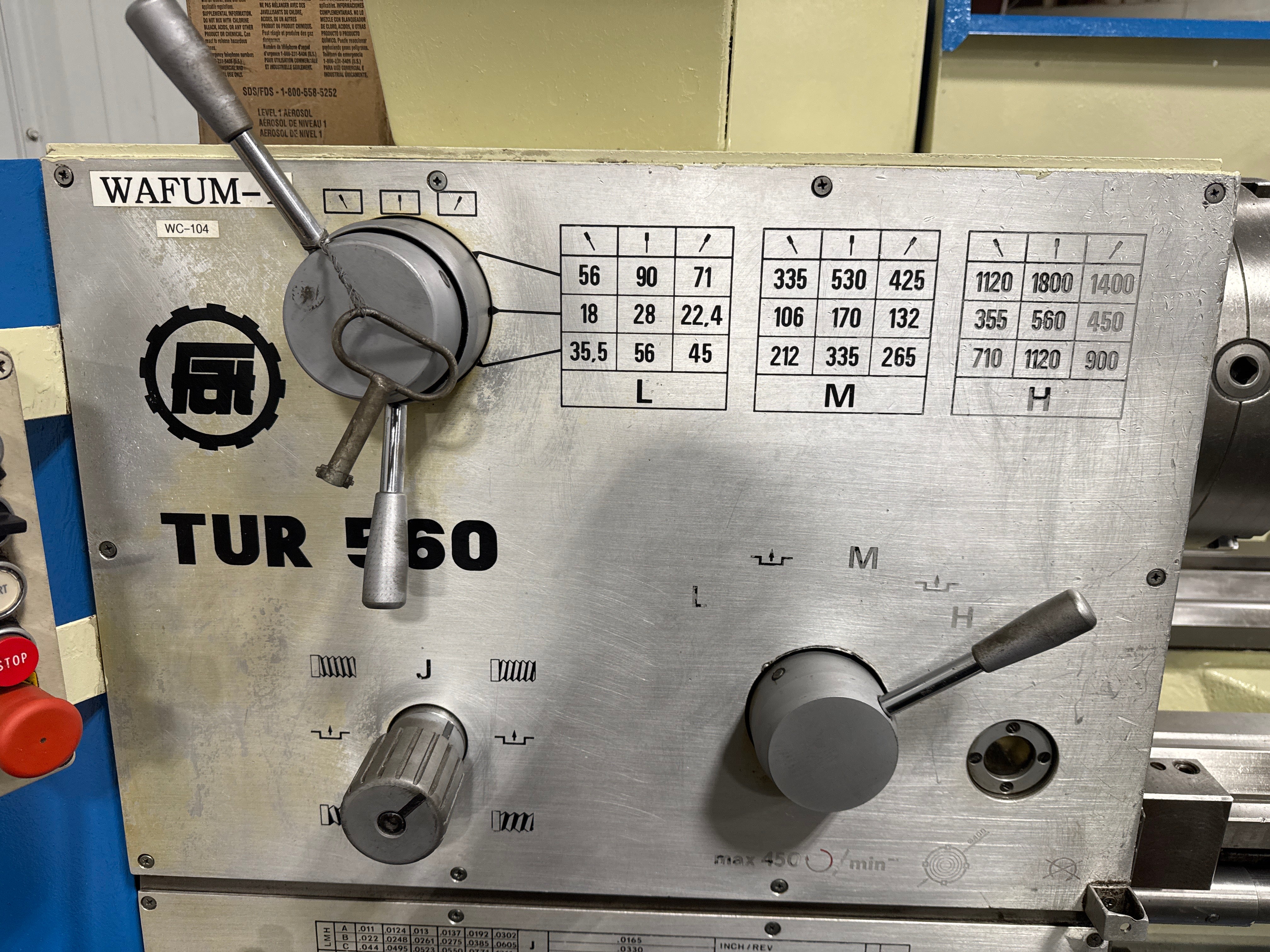

Spindle speed range: 18–1800 rpm
Number of spindle speeds: 27

Carriage / Slides
Carriage with power longitudinal feed

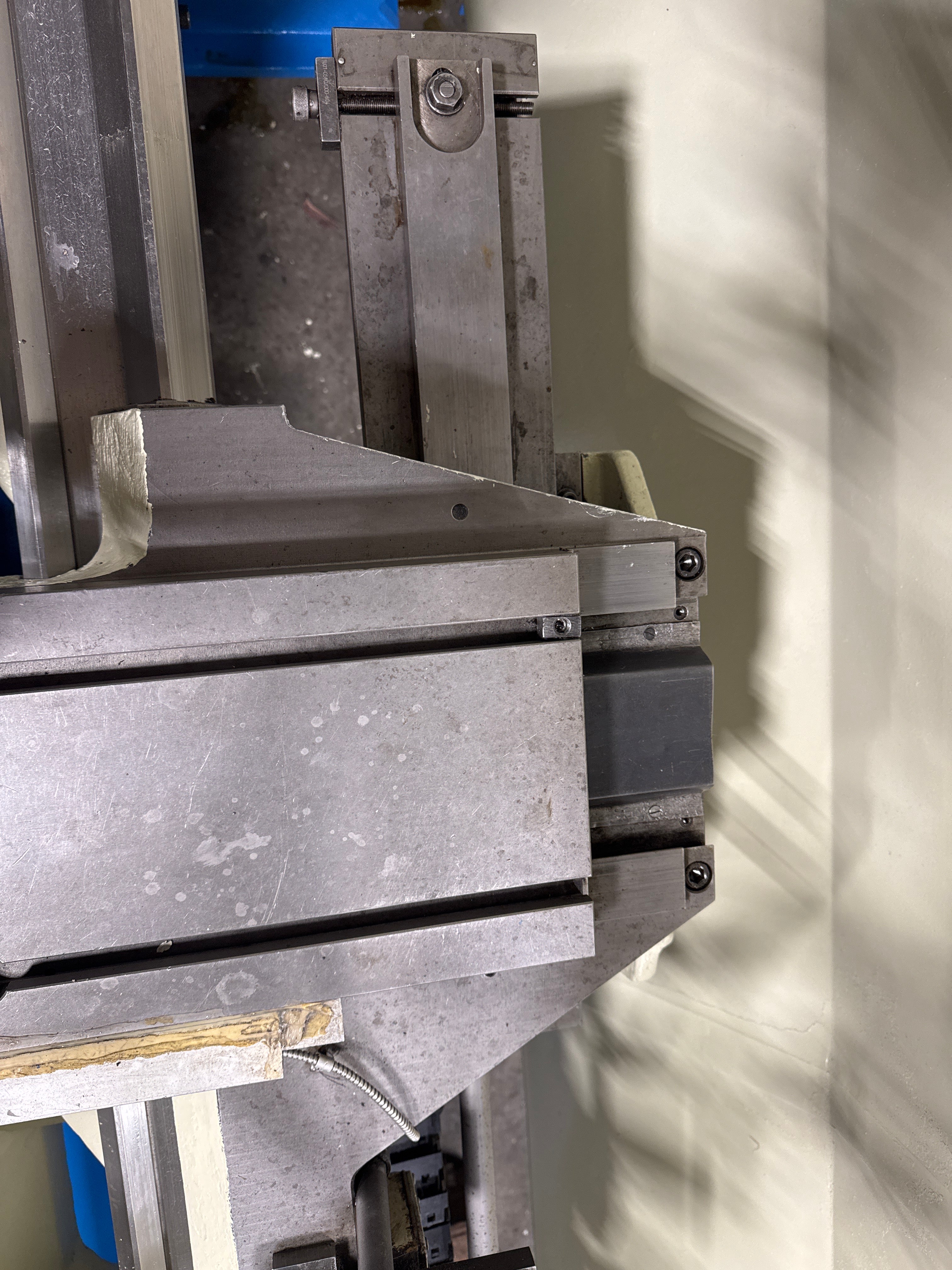

Cross slide with power cross feed
Swiveling compound rest

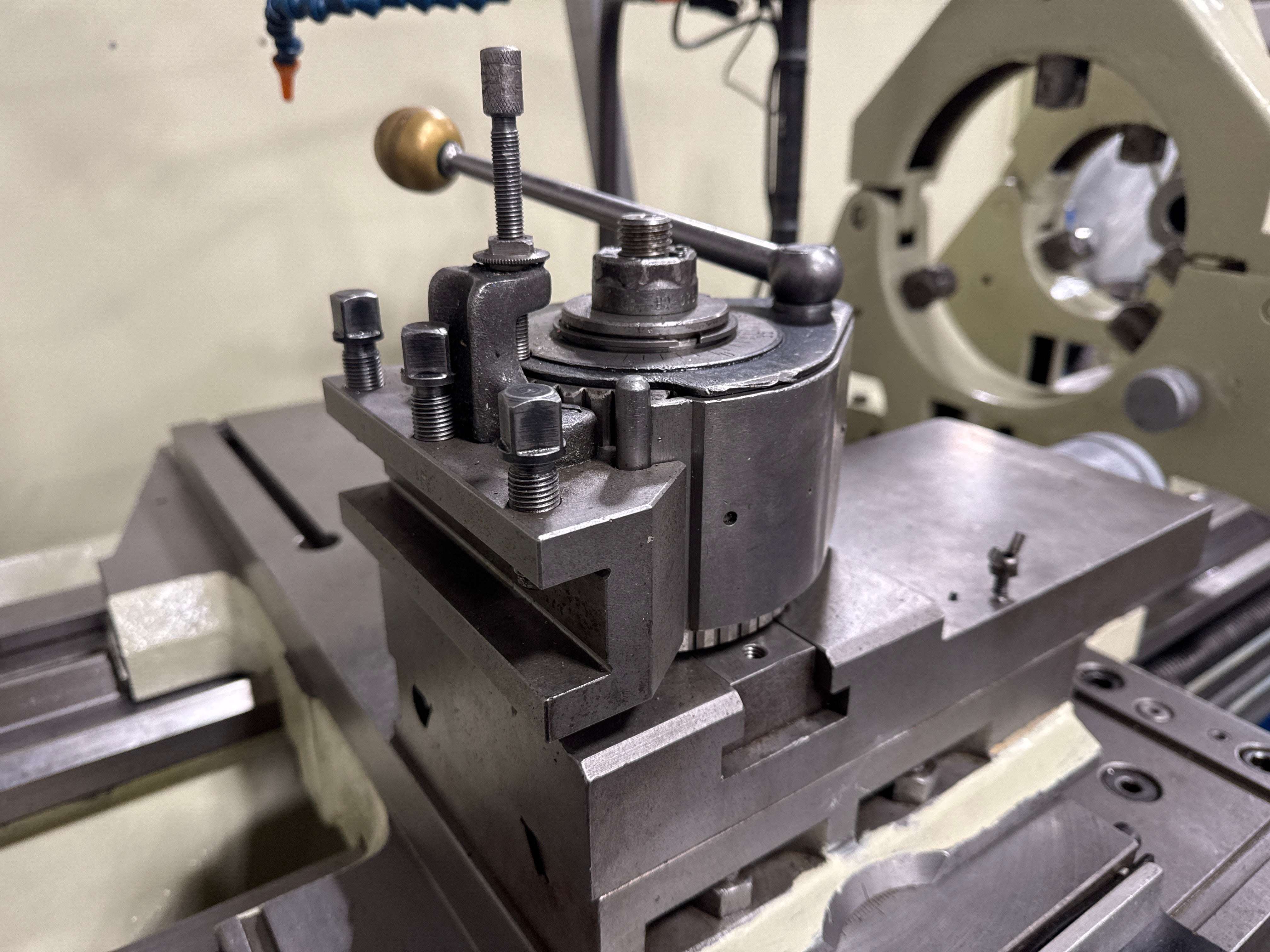

4-station manual toolpost

Tailstock
Tailstock quill taper: Morse #5
Tailstock quill travel: 200 mm

Threads and feeds

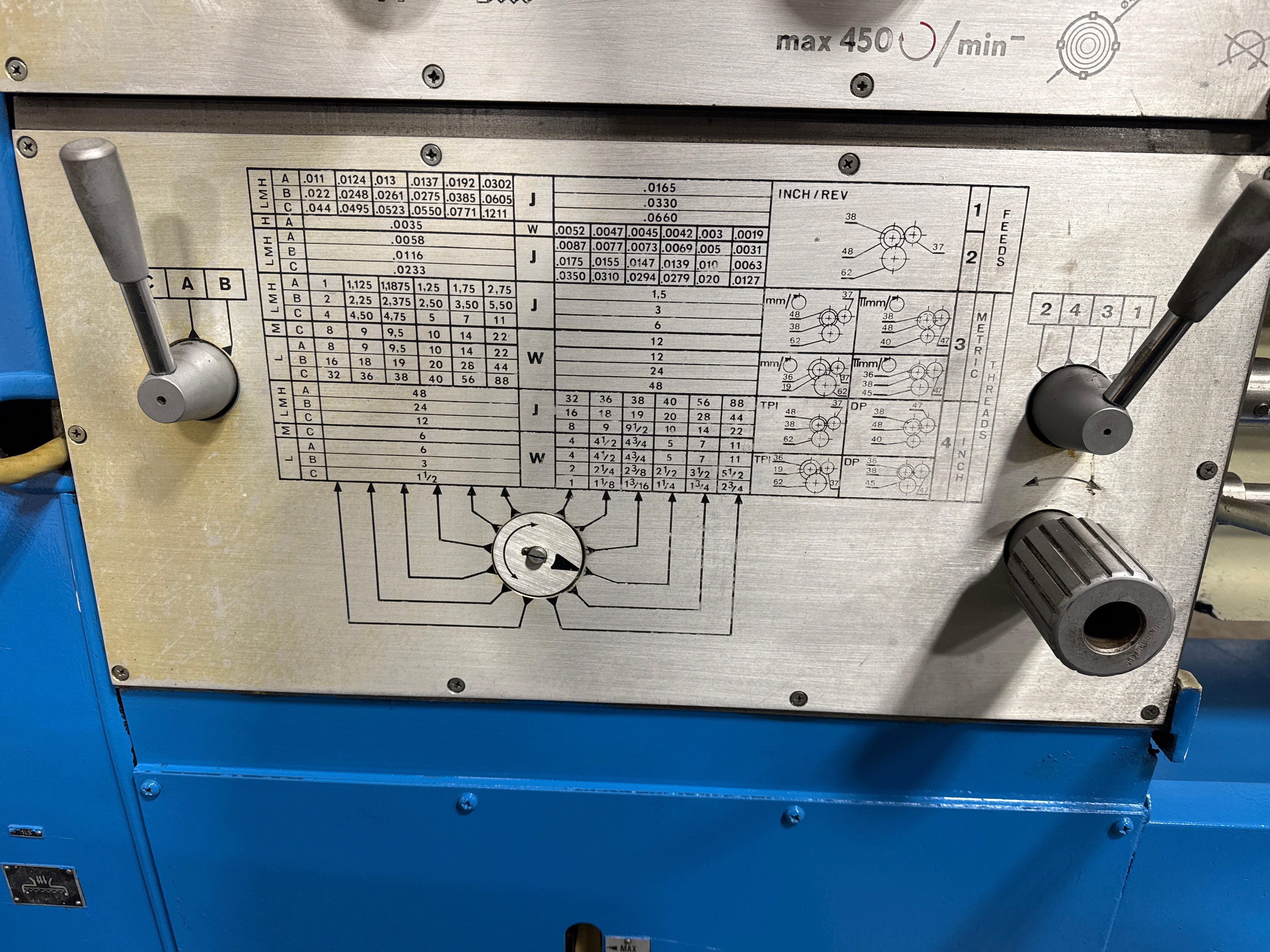

Quick-change gearbox
Metric, inch, module and DP threading (per gearbox chart)

Chuck and workholding

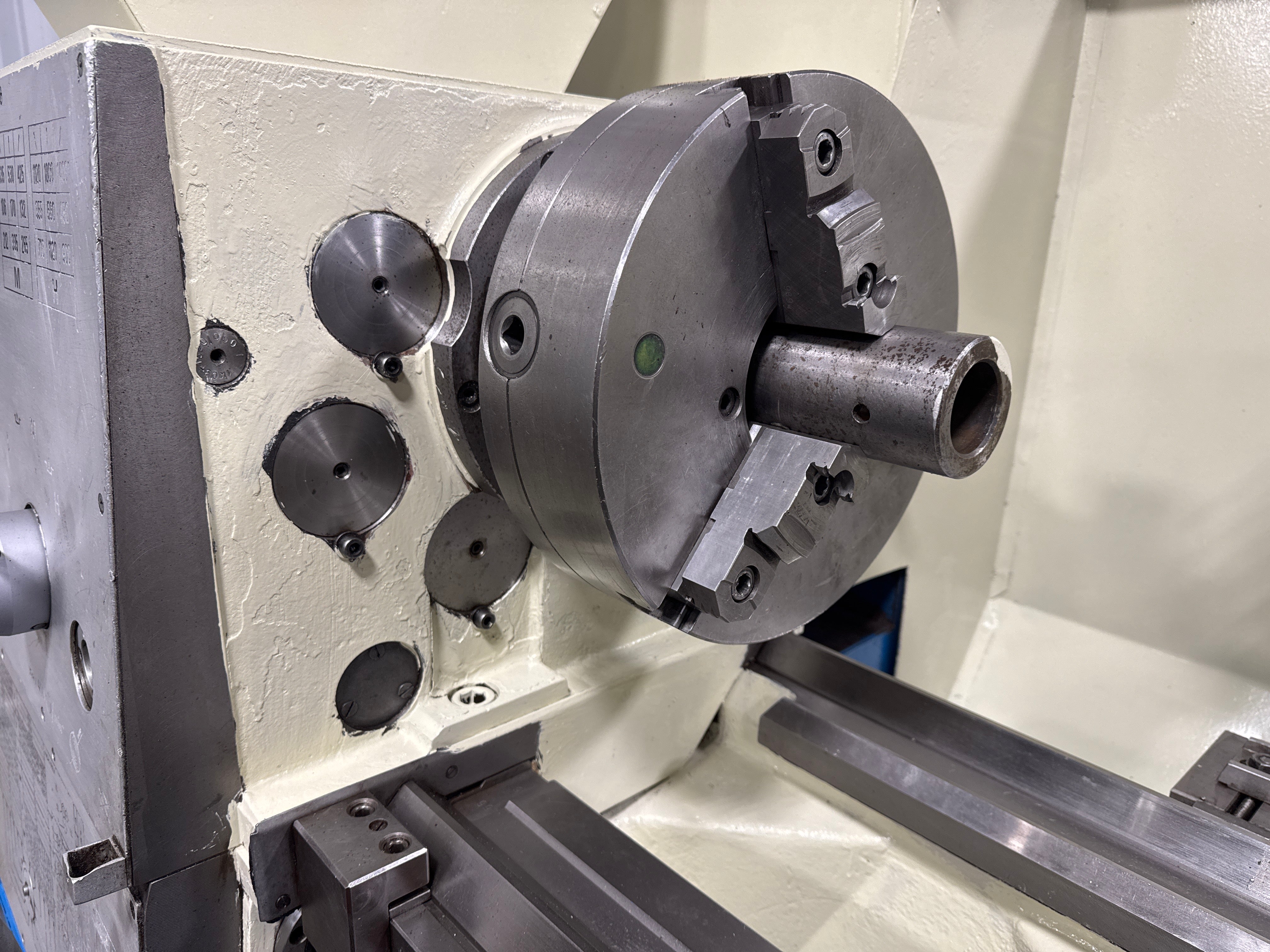

Front chuck: 3-jaw Master, 13" diameter
Steady rests: 2 steady rests with roller supports

DRO

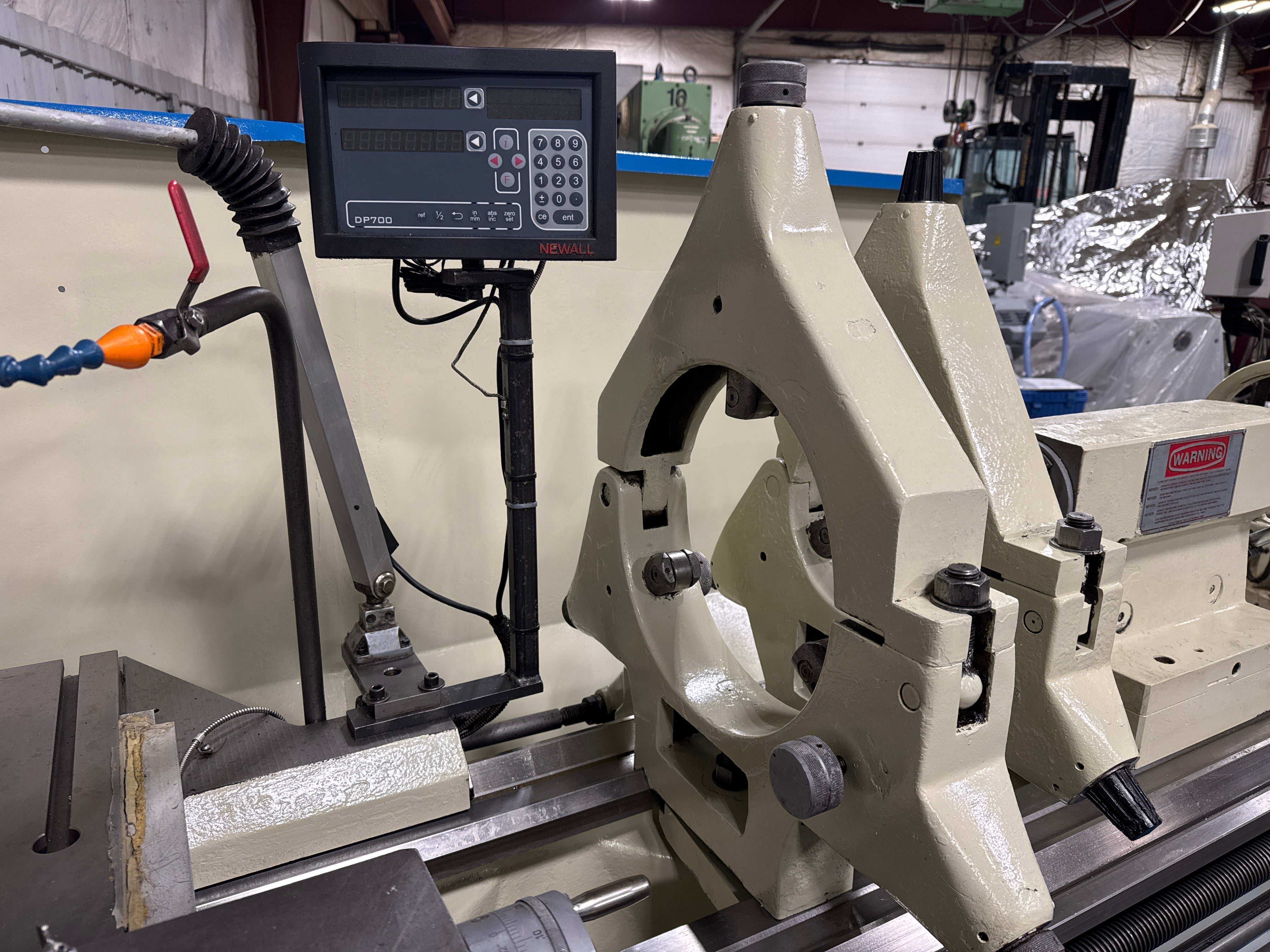

Digital readout: Newall DP700, 2-axis

Electrical
Power: 220 V, 3-phase, 60 Hz
Full load current: 57 A

Coolant and safety
Coolant system with pump and nozzle
Working light

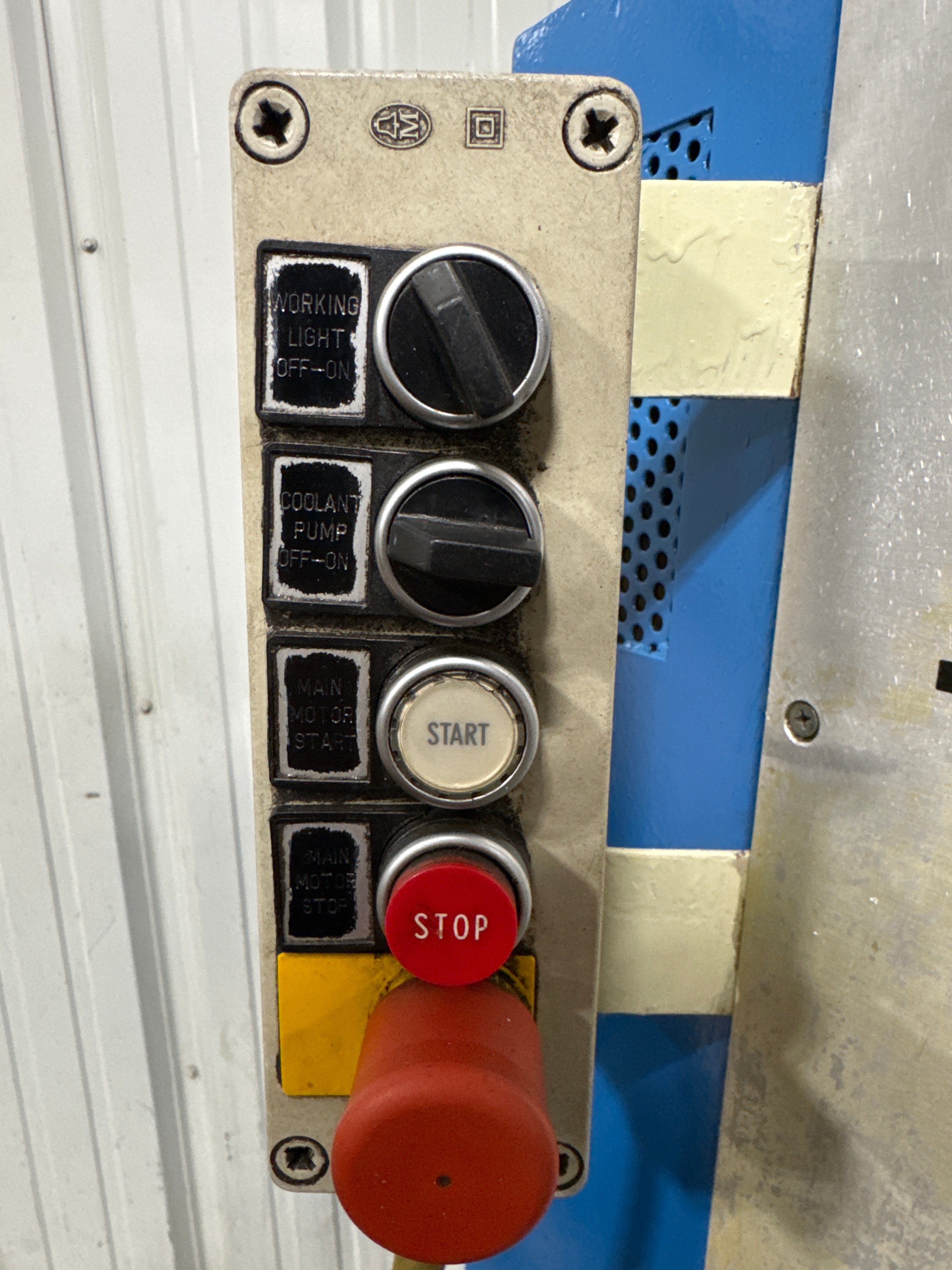

Main motor START / STOP pushbuttons
Emergency STOP mushroom

Dimensions and weight
Approx. overall dimensions (L × W × H): 3.5 m × 1.5 m × 2.0 m
Approx. machine weight: 3000–4000 kg

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
