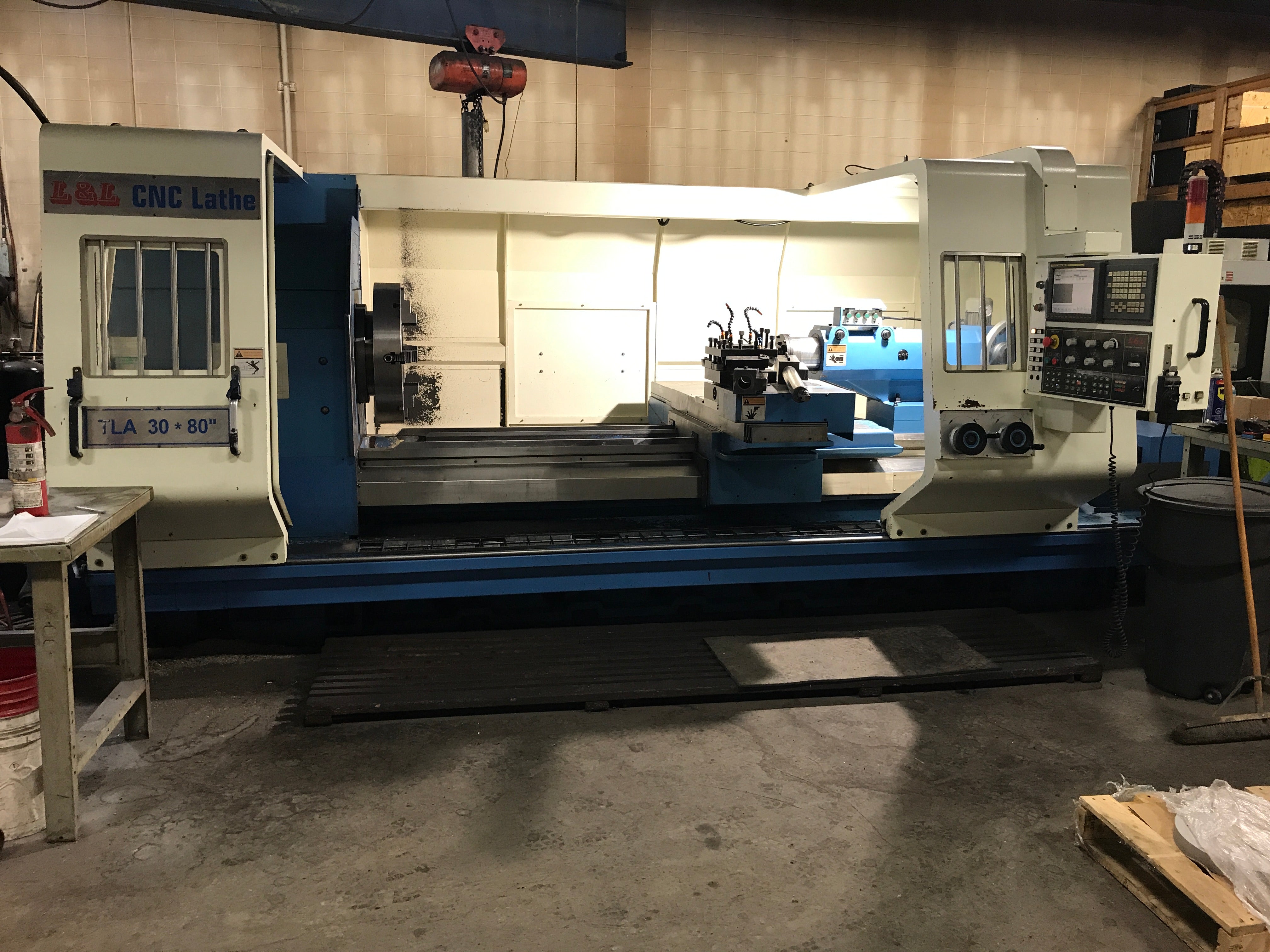

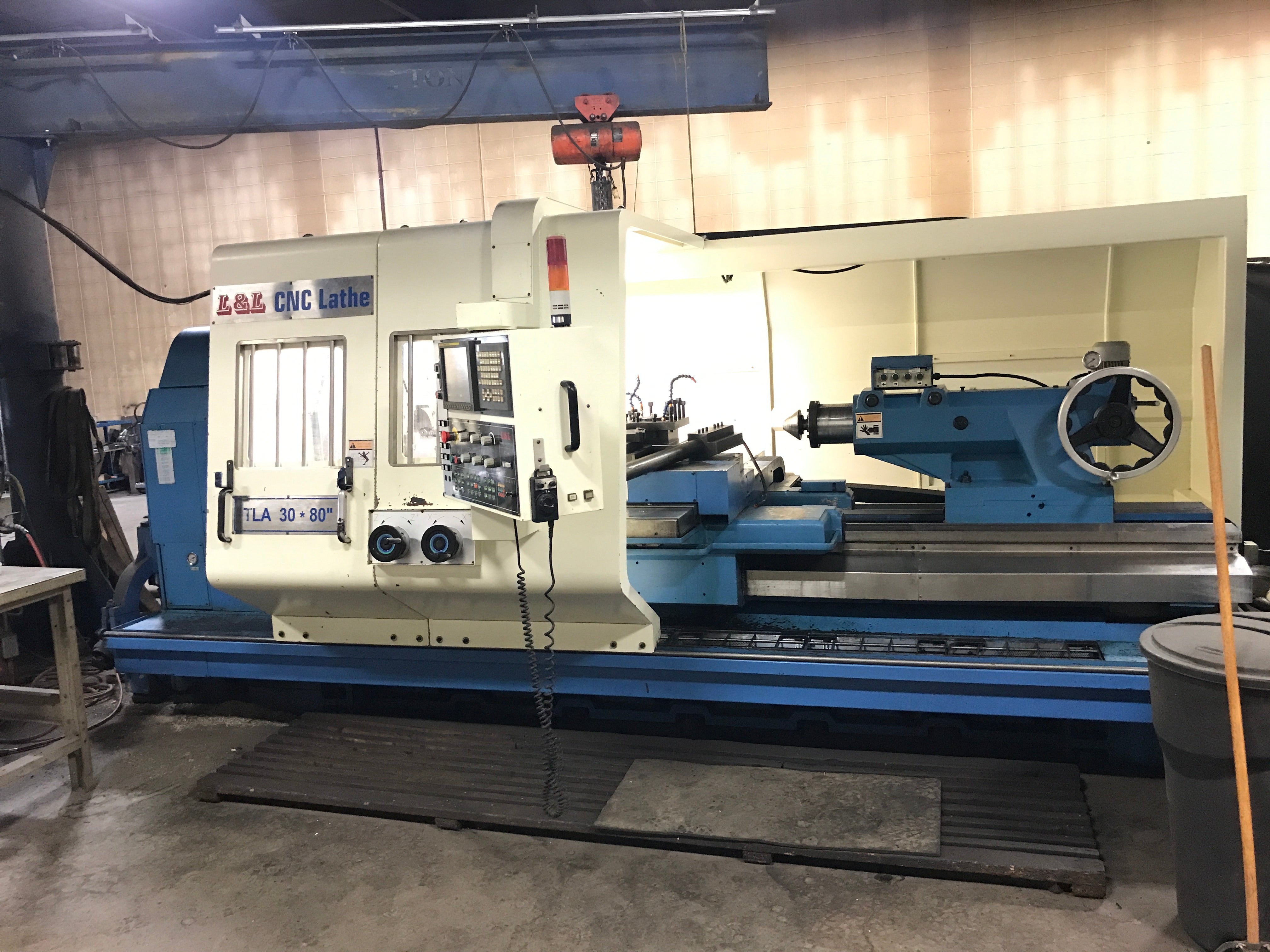

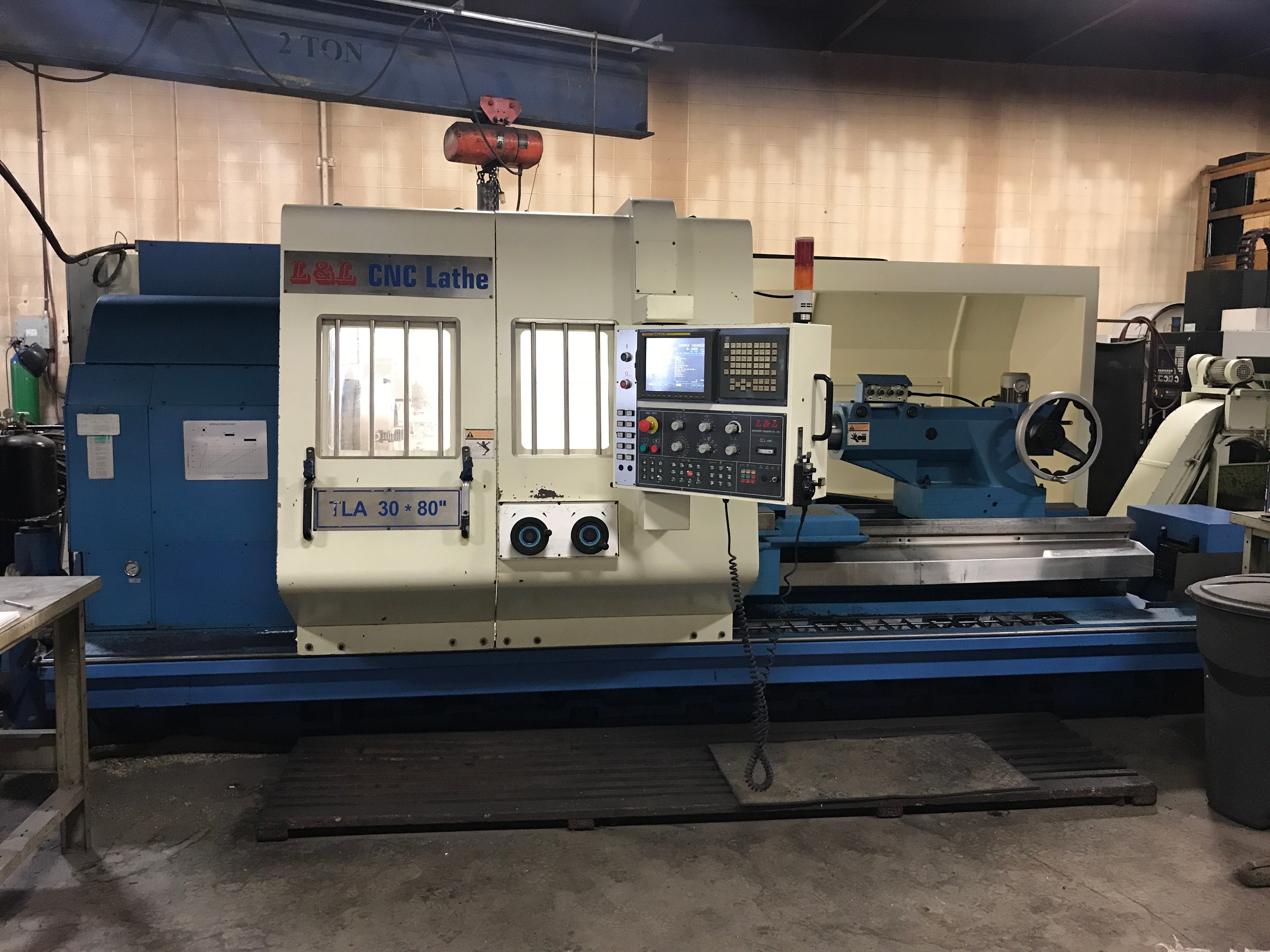

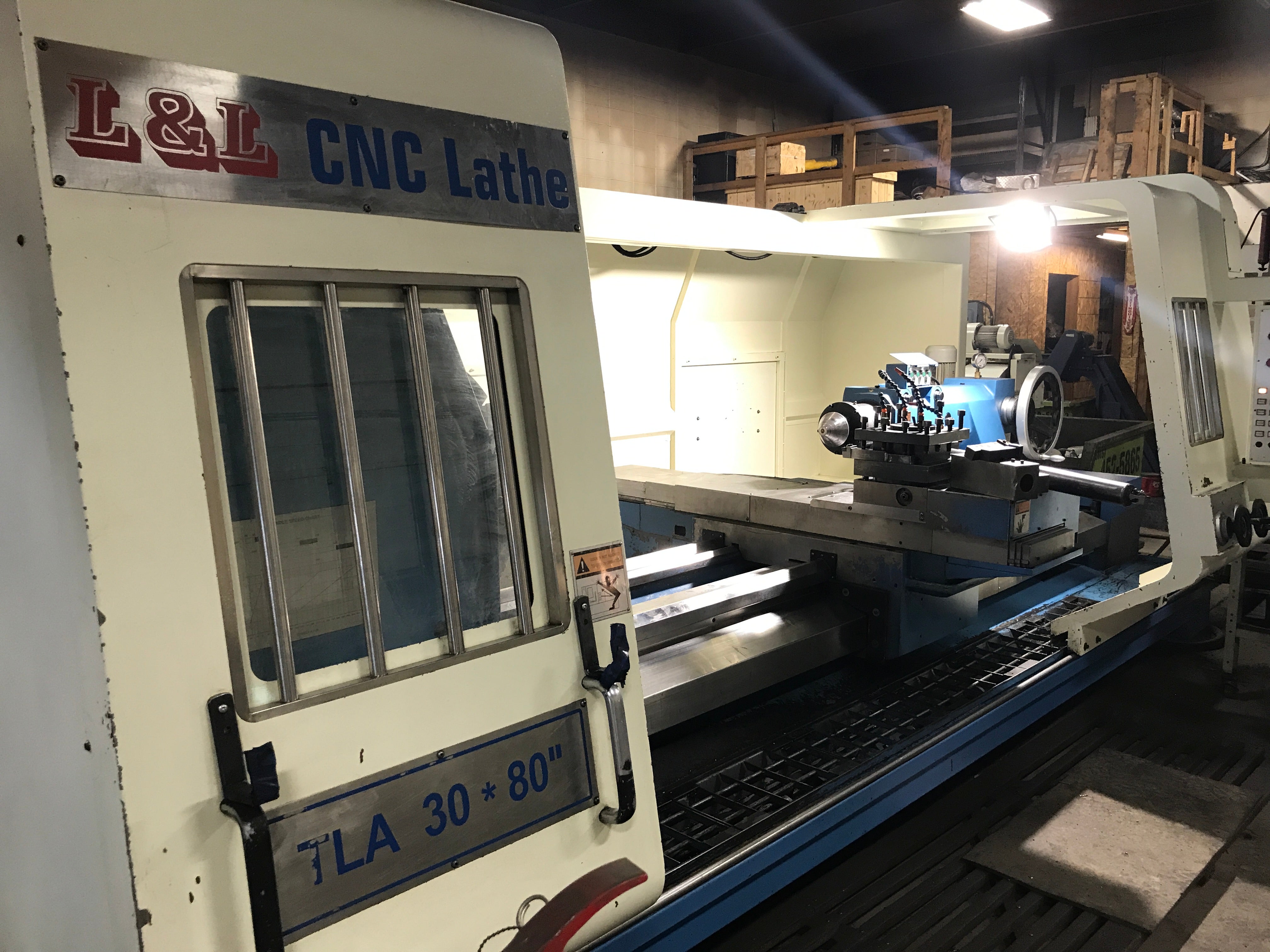

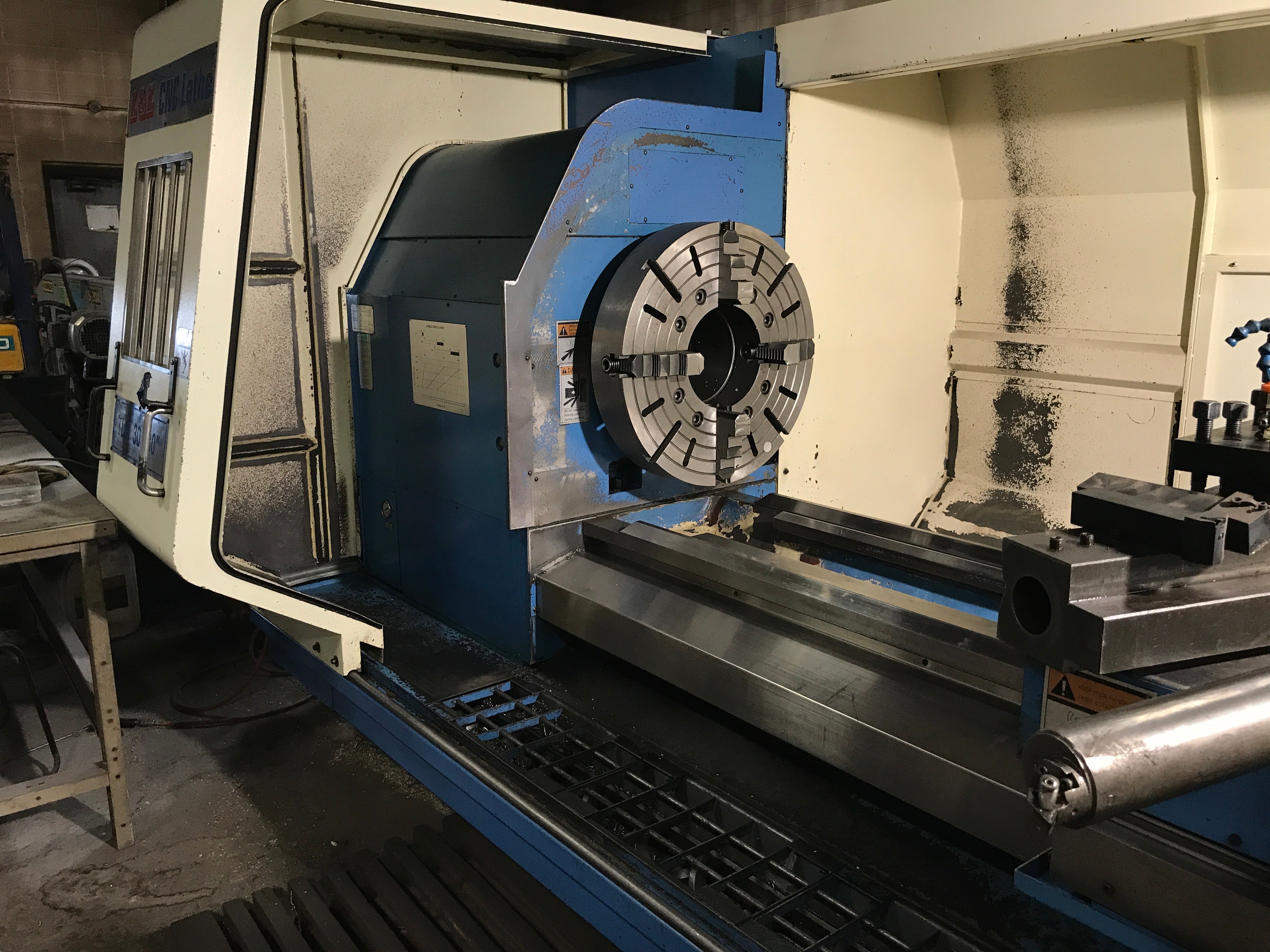

High-performance TLA30×80 CNC lathe with 30" swing, 9" spindle bore, FANUC 21i-TB controller, and hydraulic turret. Built in Taiwan for precision and power. Modern

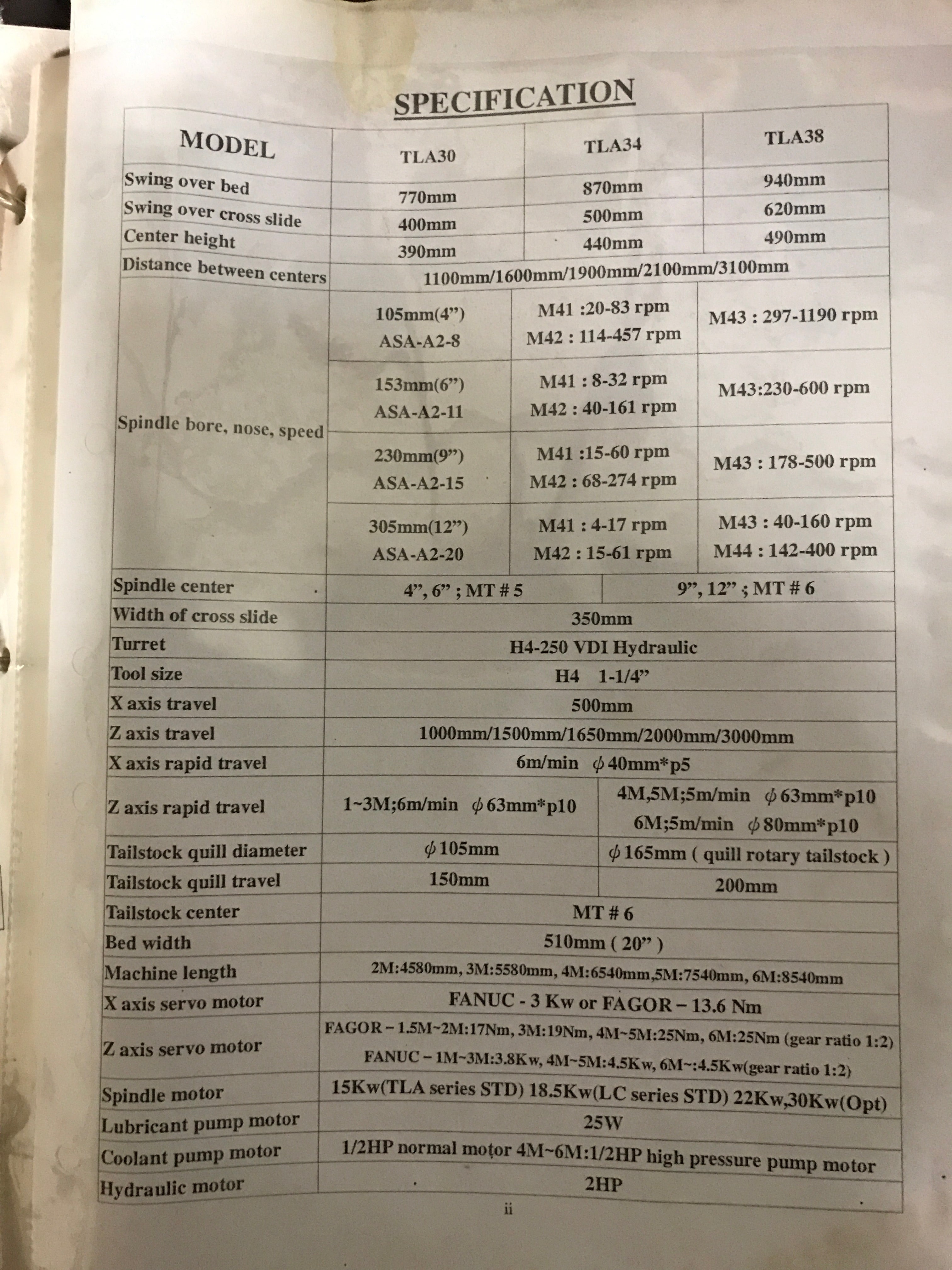

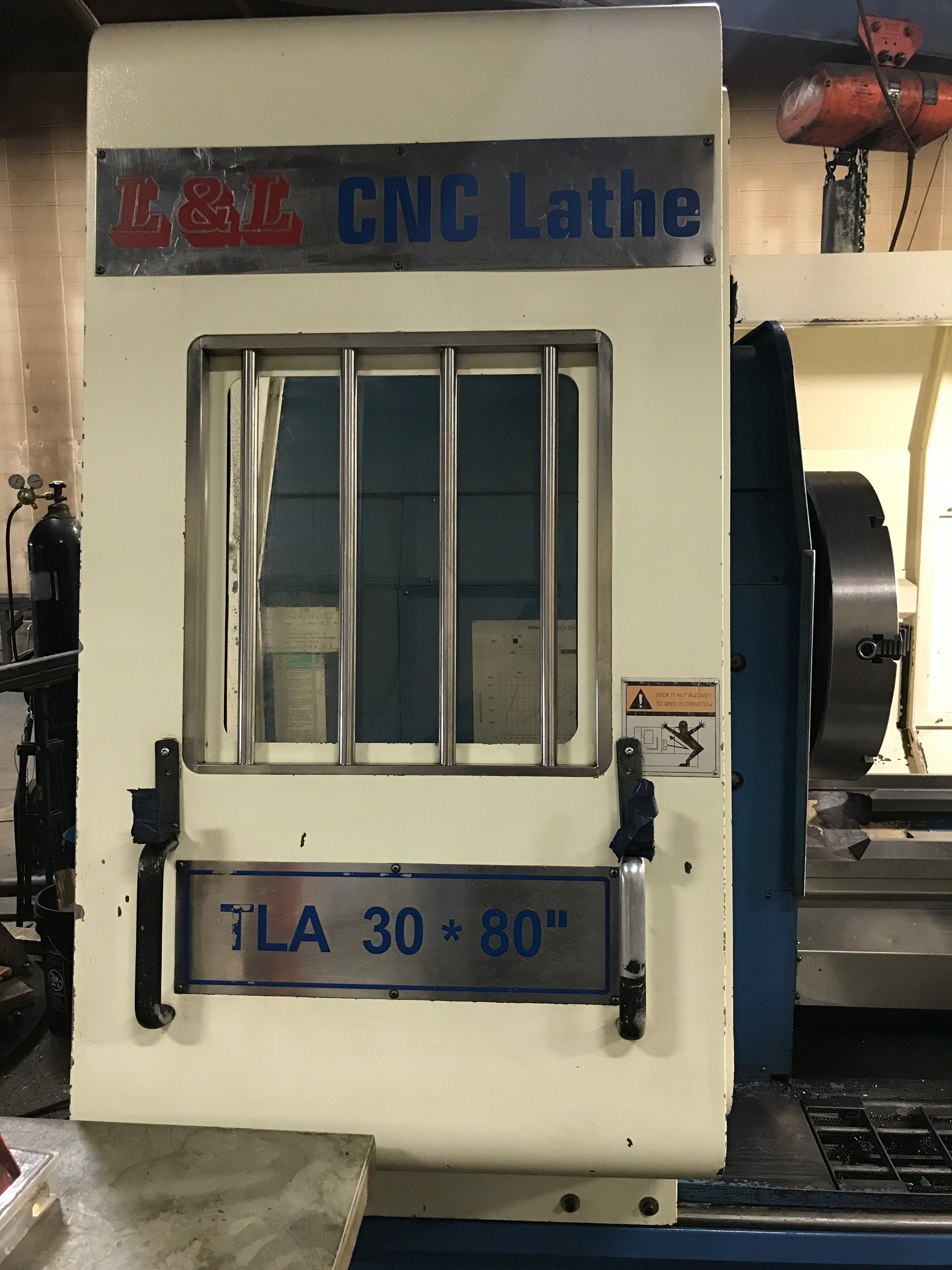

Model: TLA30×80

Swing over bed: 770mm
Swing over cross slide: 400mm
Center height: 390mm
Distance between centers: 2000mm

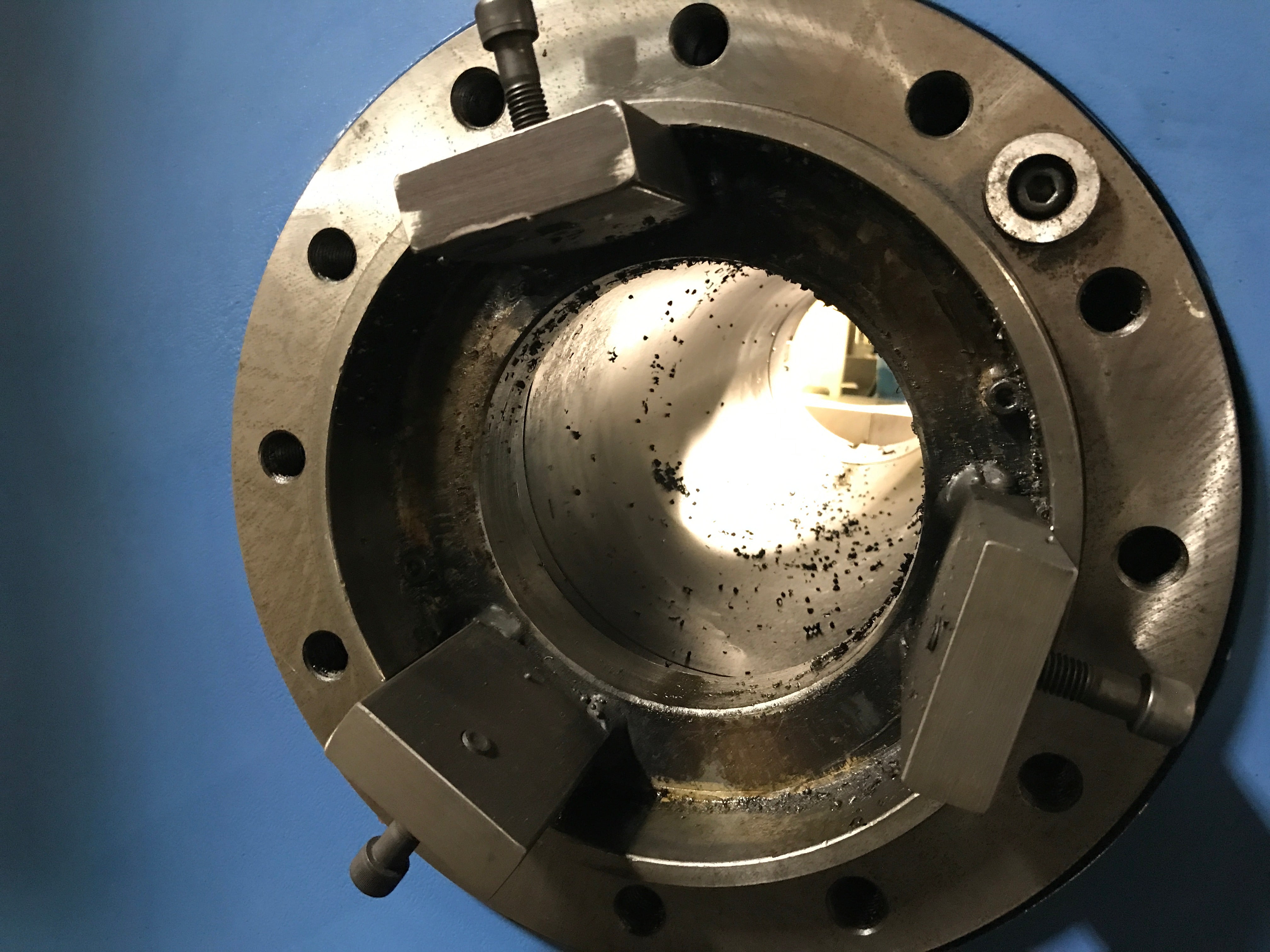

Spindle bore: 9"(230mm)
Spindle nose: ASA-A2-15

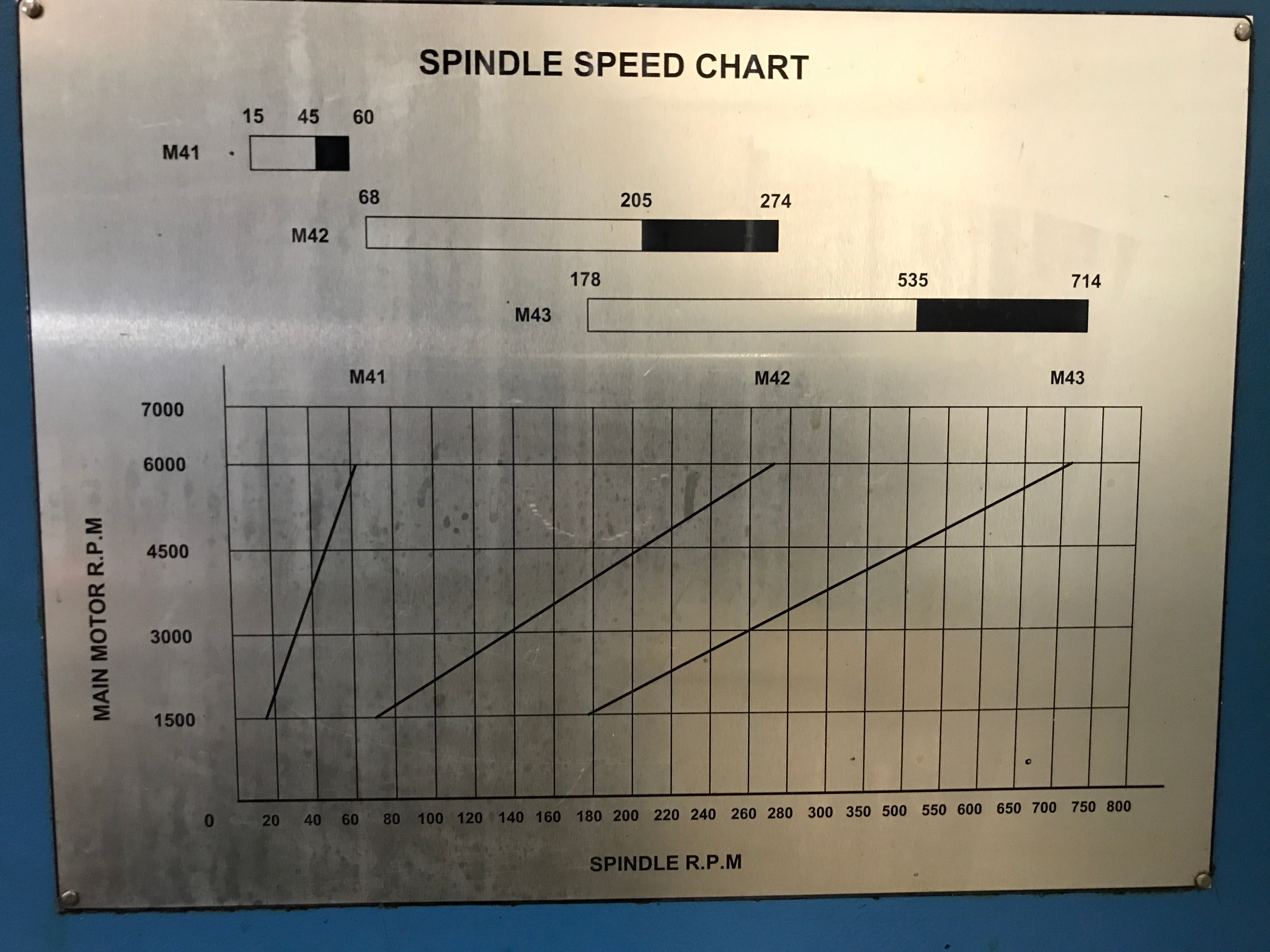

Spindle speeds: M41: 15 - 60 M42: 68-274
Spindle center: 4", 6", MT#5
Width of cross slide: 350mm

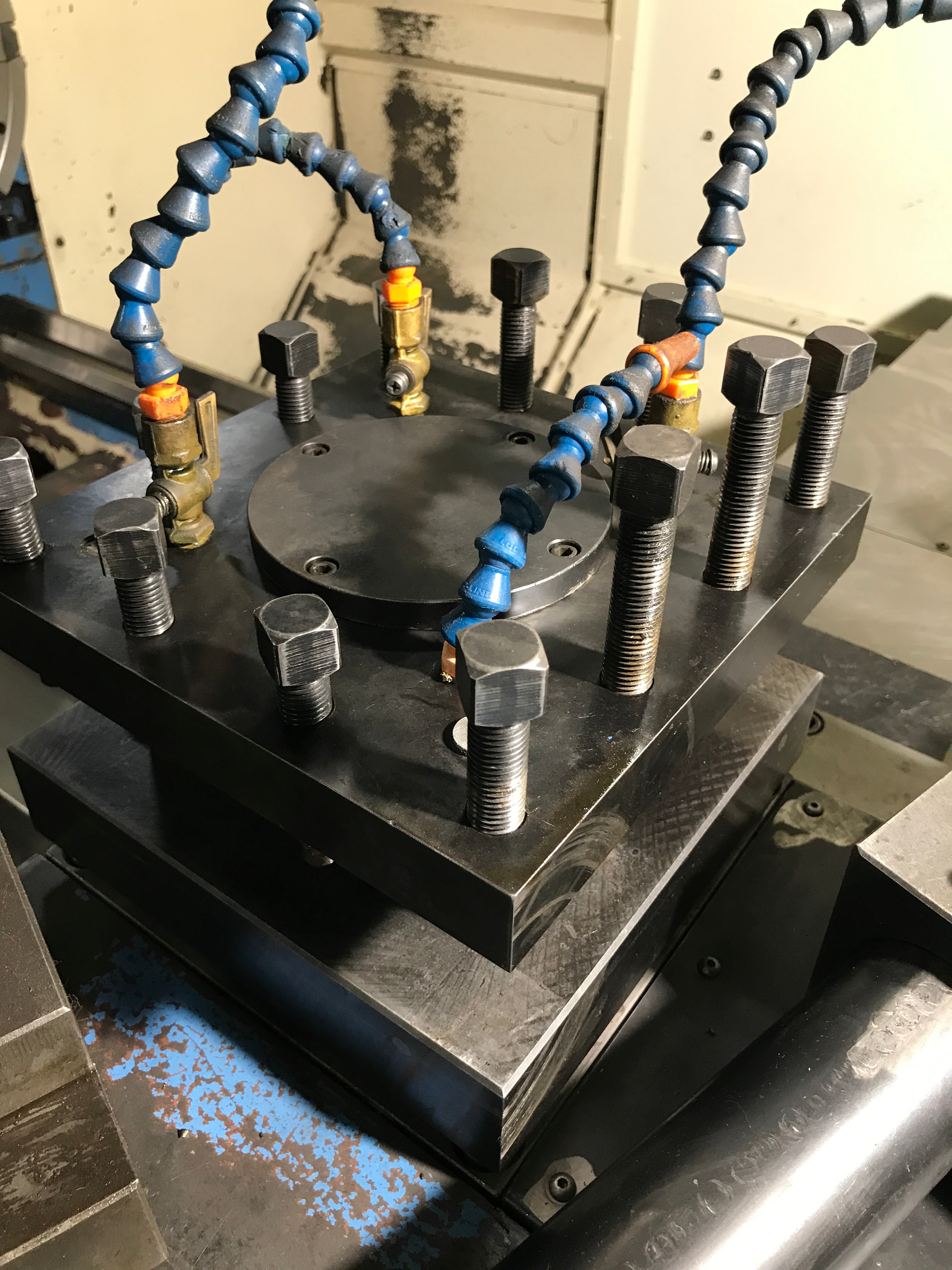

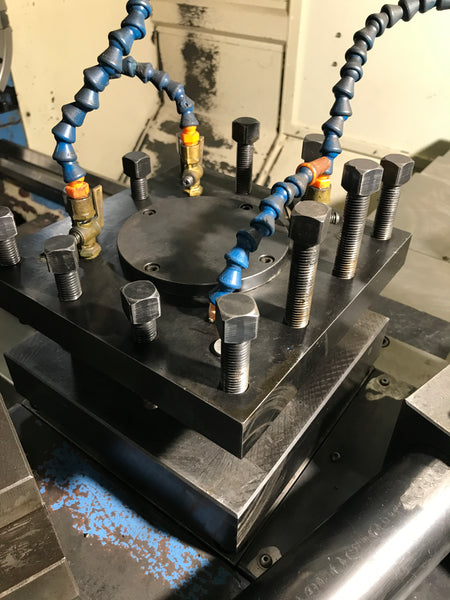

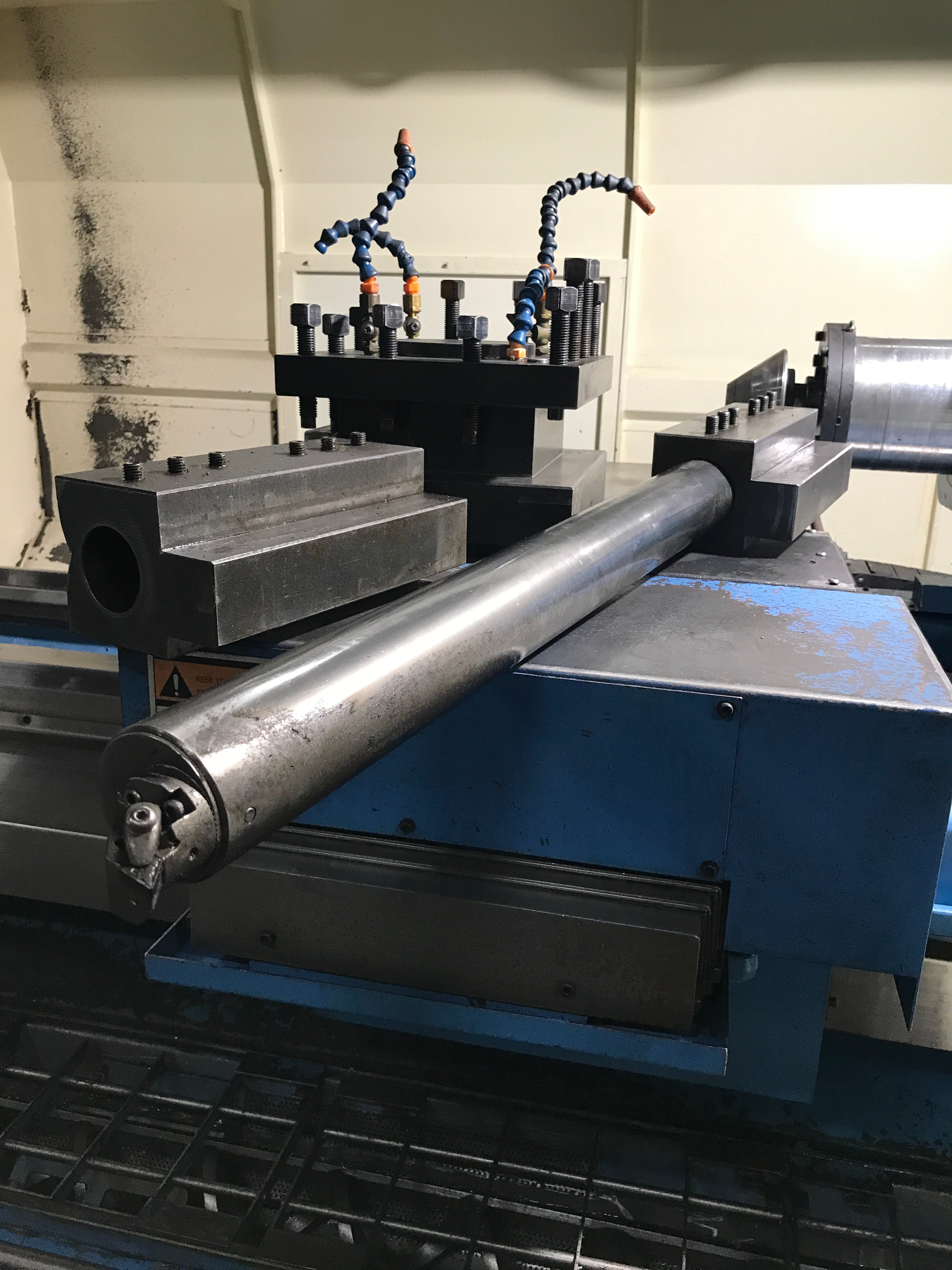

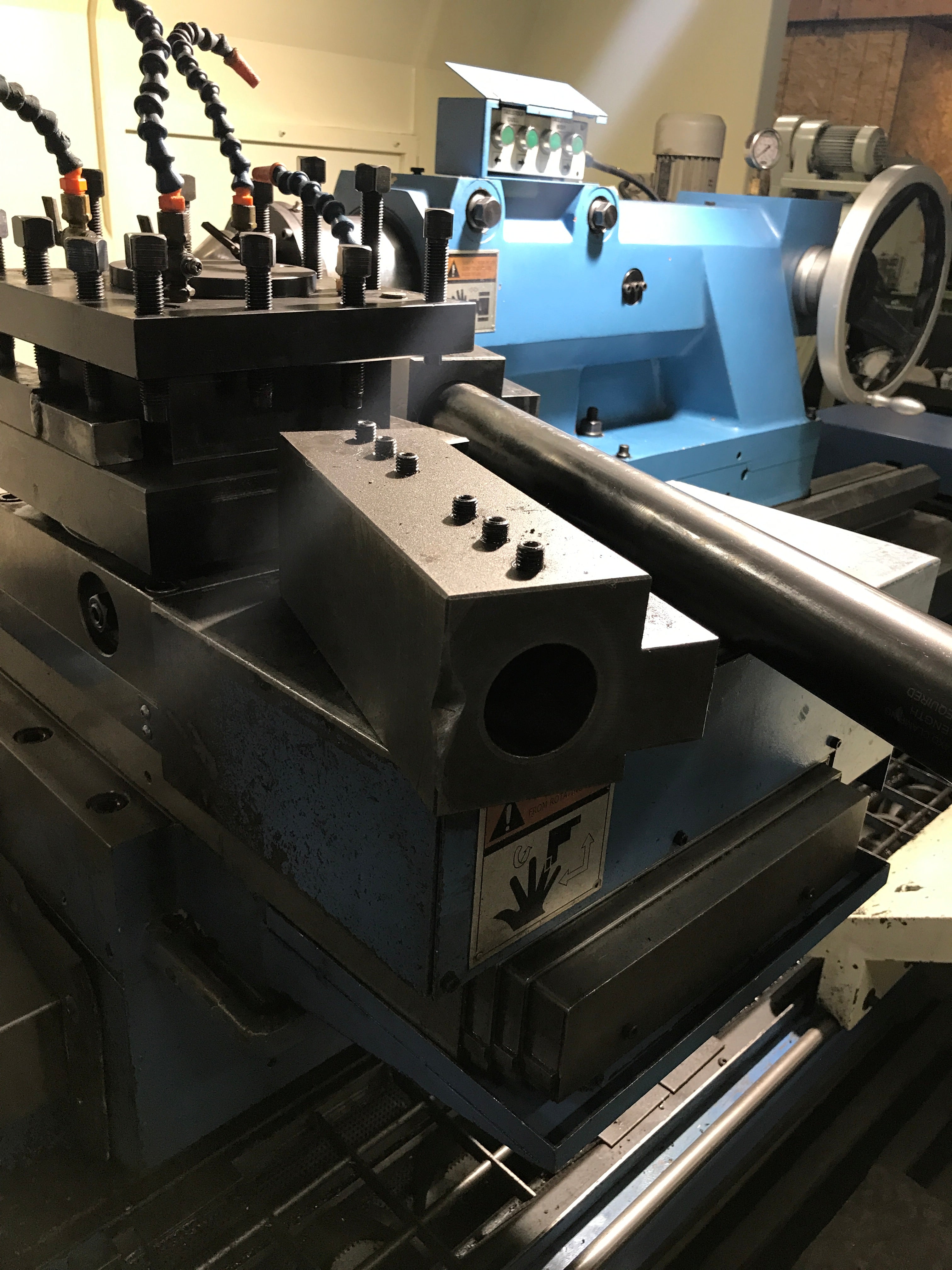

Turret: H4-250 VDI Hydraulic

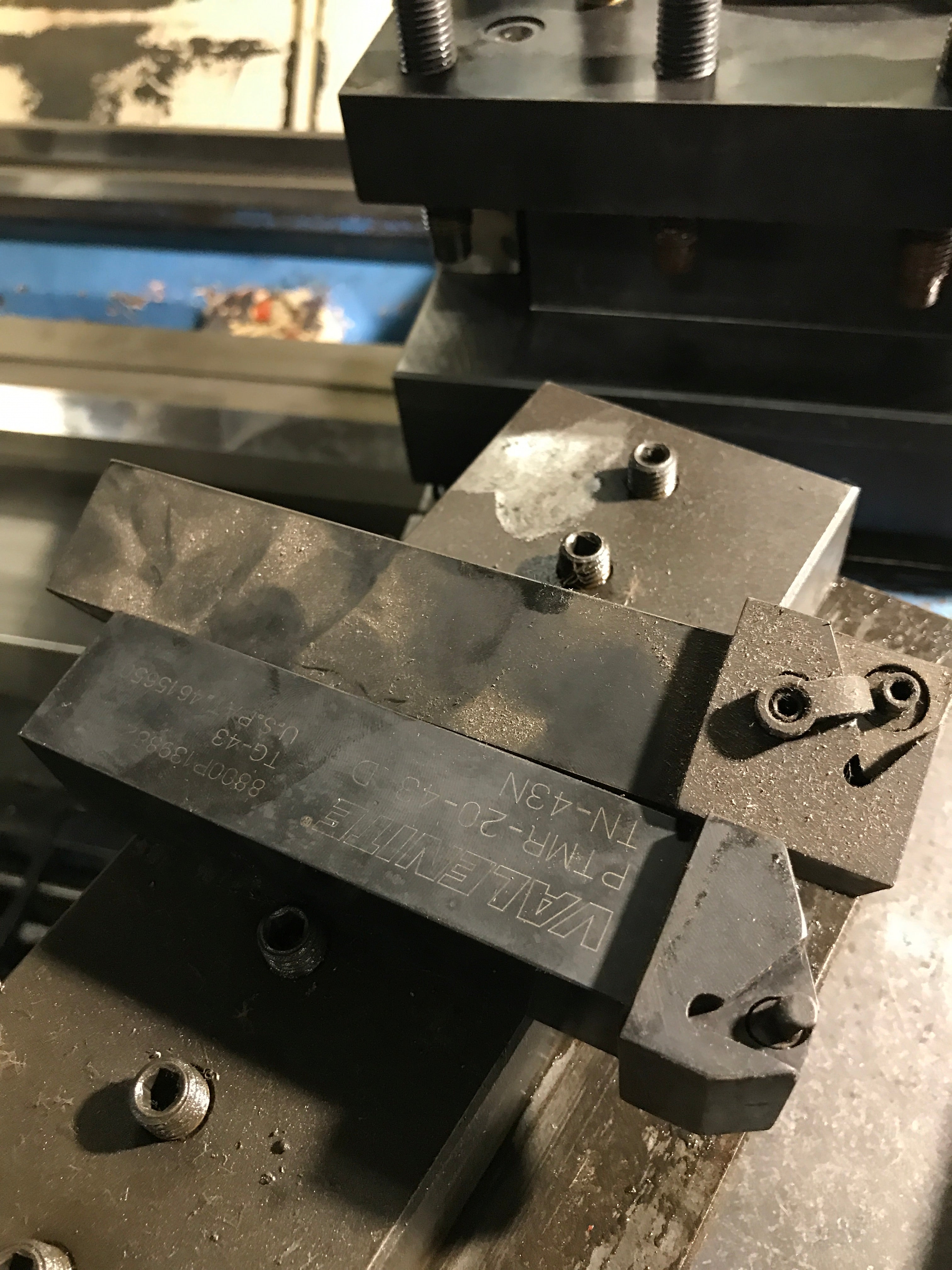

Tool size: H4 1-1/4"
X axis travel: 500mm
Z axis travel: 2000mm
X axis rapid travel: 6m/min φ40mm*p5
Z axis rapid travel: 4M: 5.5m/min φ63mm*p10

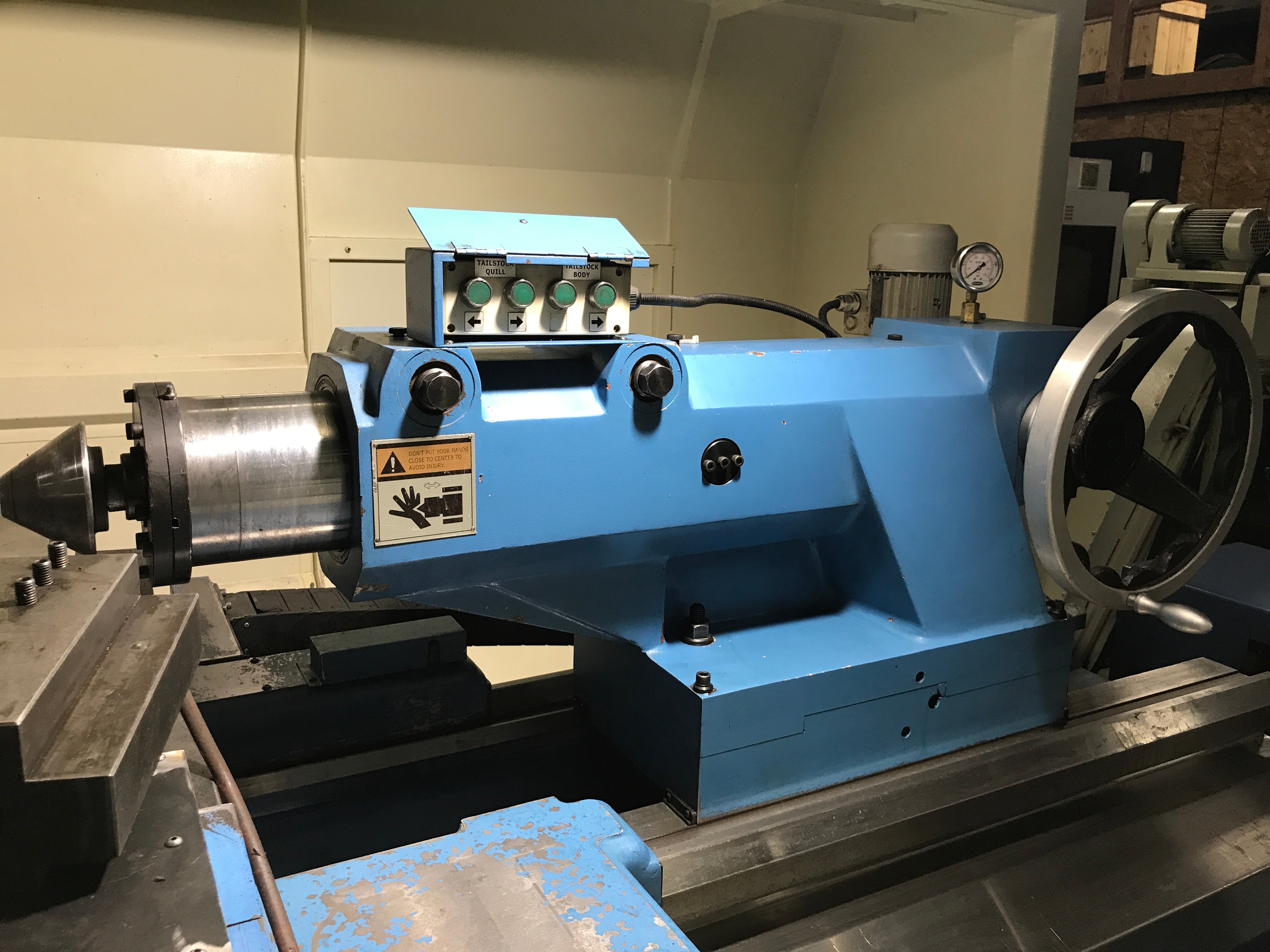

Tailstock quill diameter: φ105mm
Tailstock quill travel: 150mm
Tailstock center: MT#6

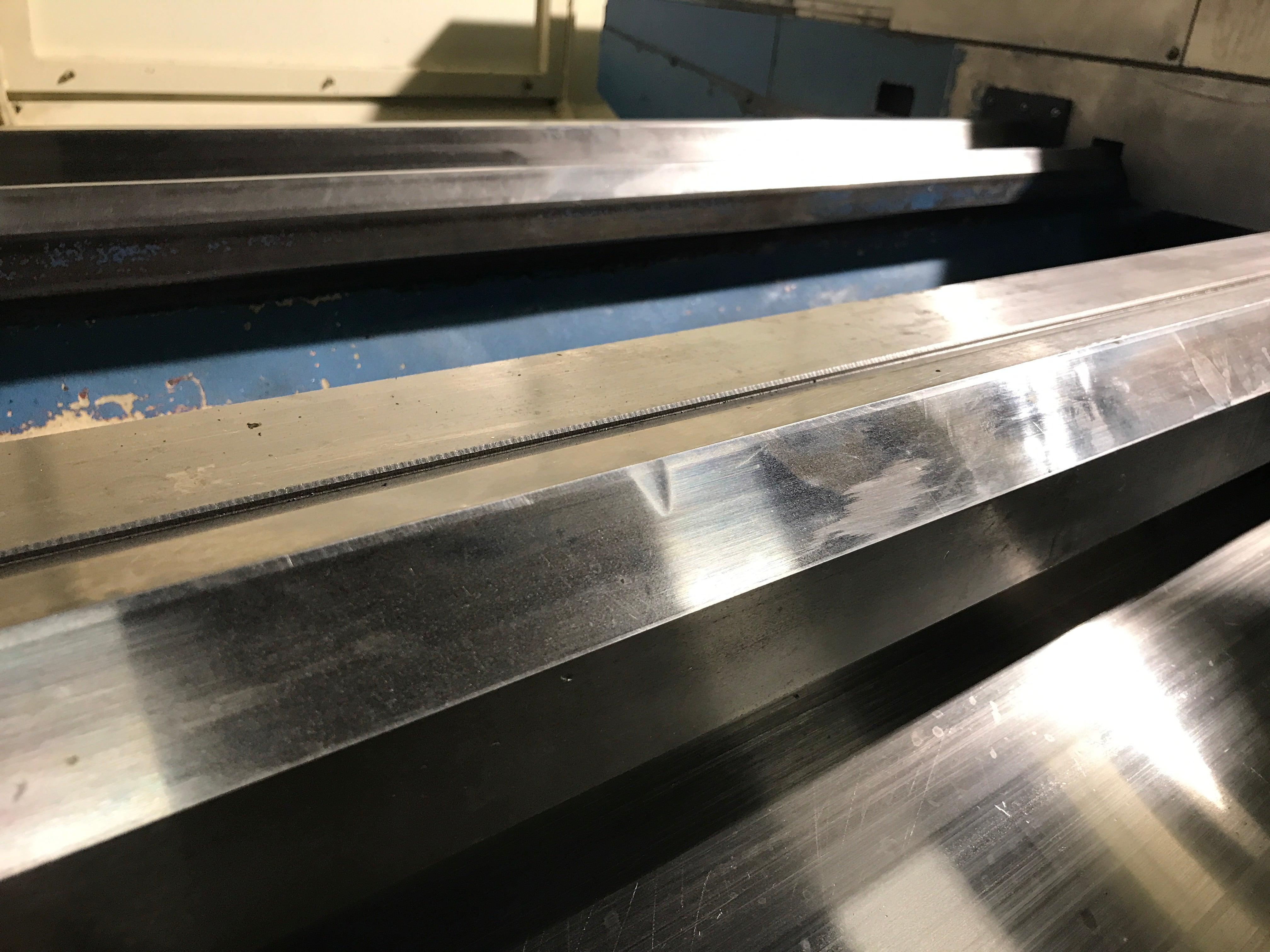

Bed width: 510mm (20")
Machine length: 6540mm
X axis servo motor: FANUC – 3Kw
Z axis servo motor: FANUC – 4.5Kw (gear ratio 2:1)
Spindle motor: 15Kw (STD)

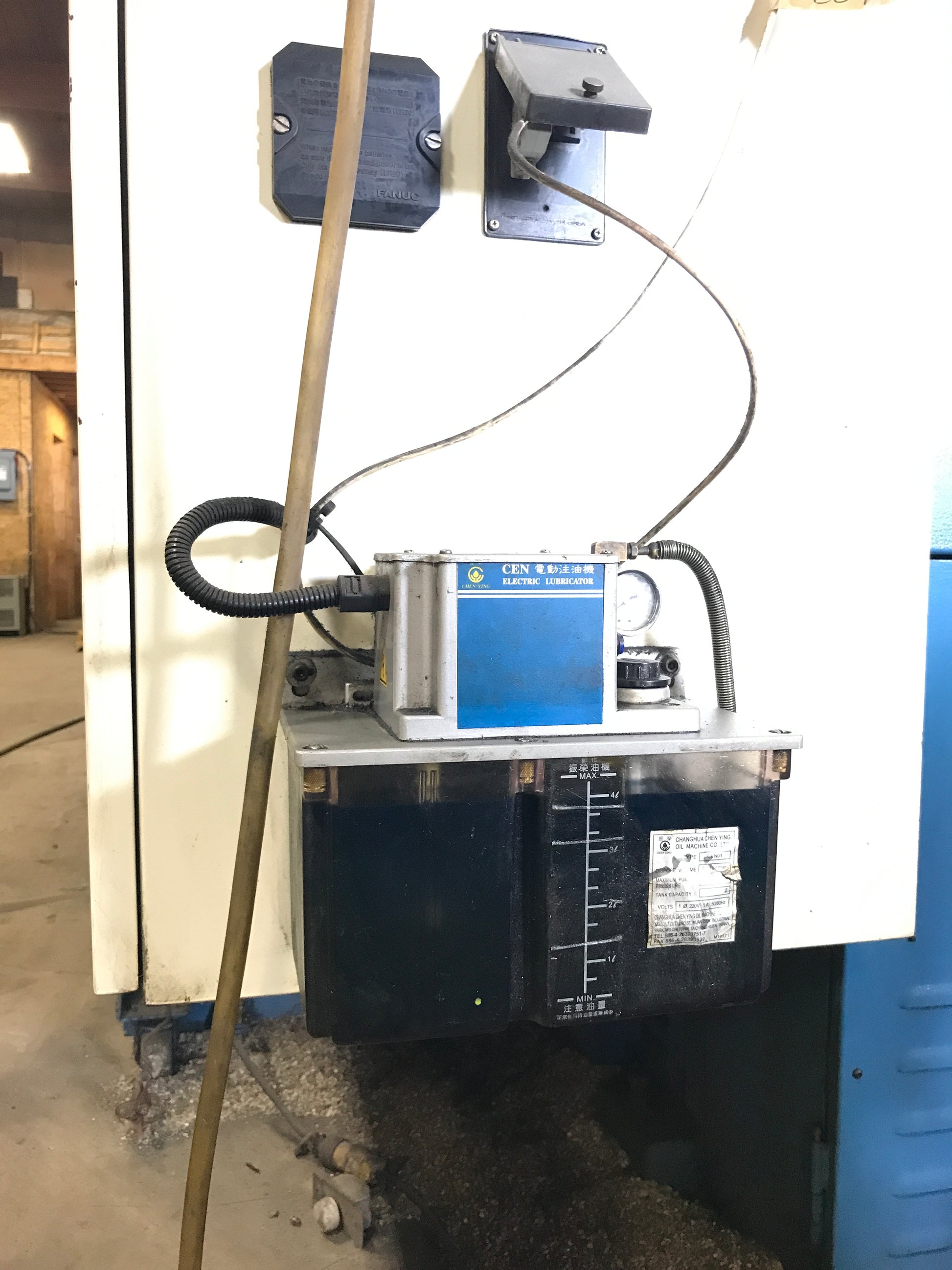

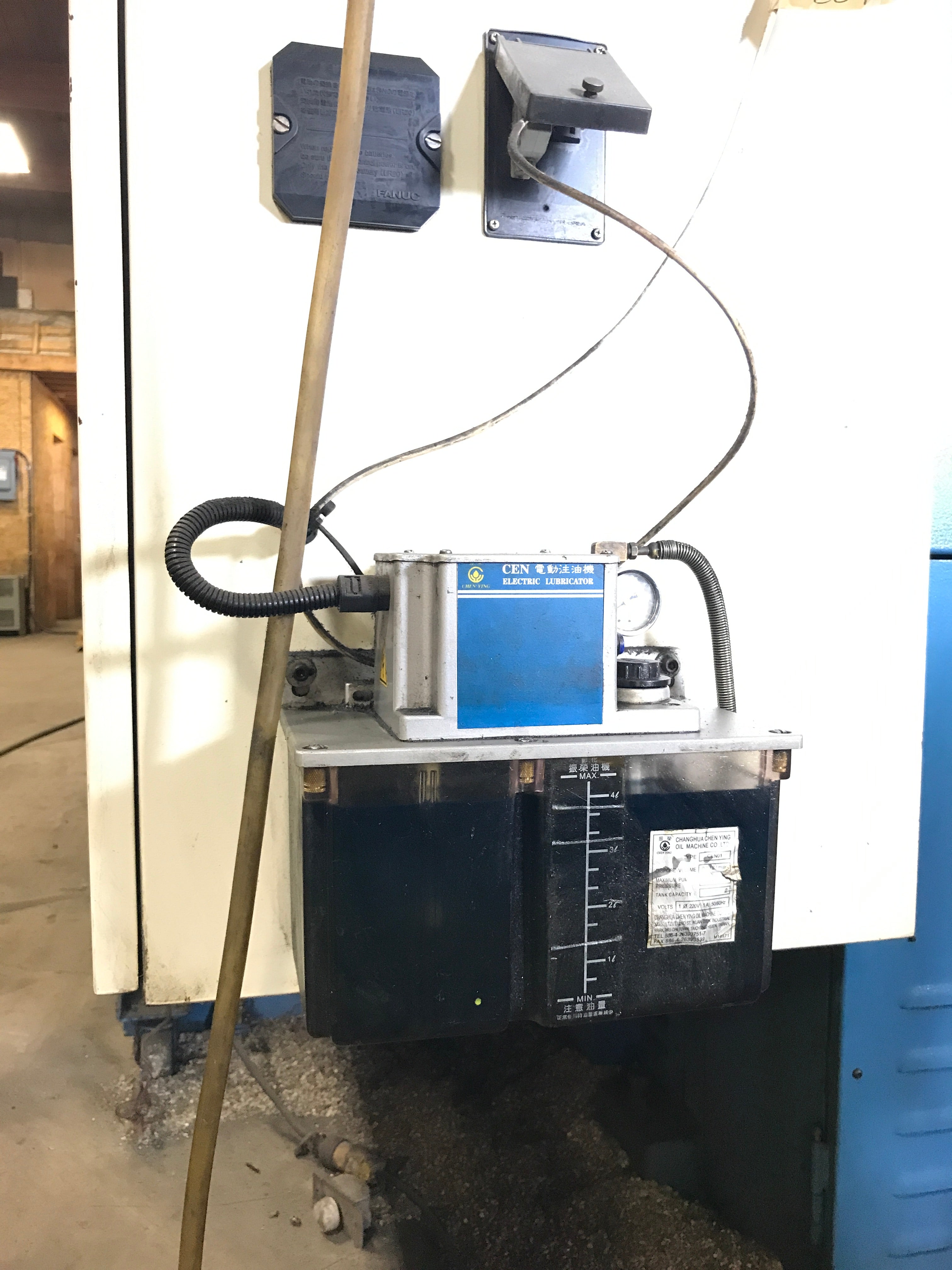

Lubricant pump motor: 25W
Coolant pump motor: 1/2HP normal motor
Hydraulic motor: 2HP
Electric: 220V / 3 Phase / 60Hz / 111A

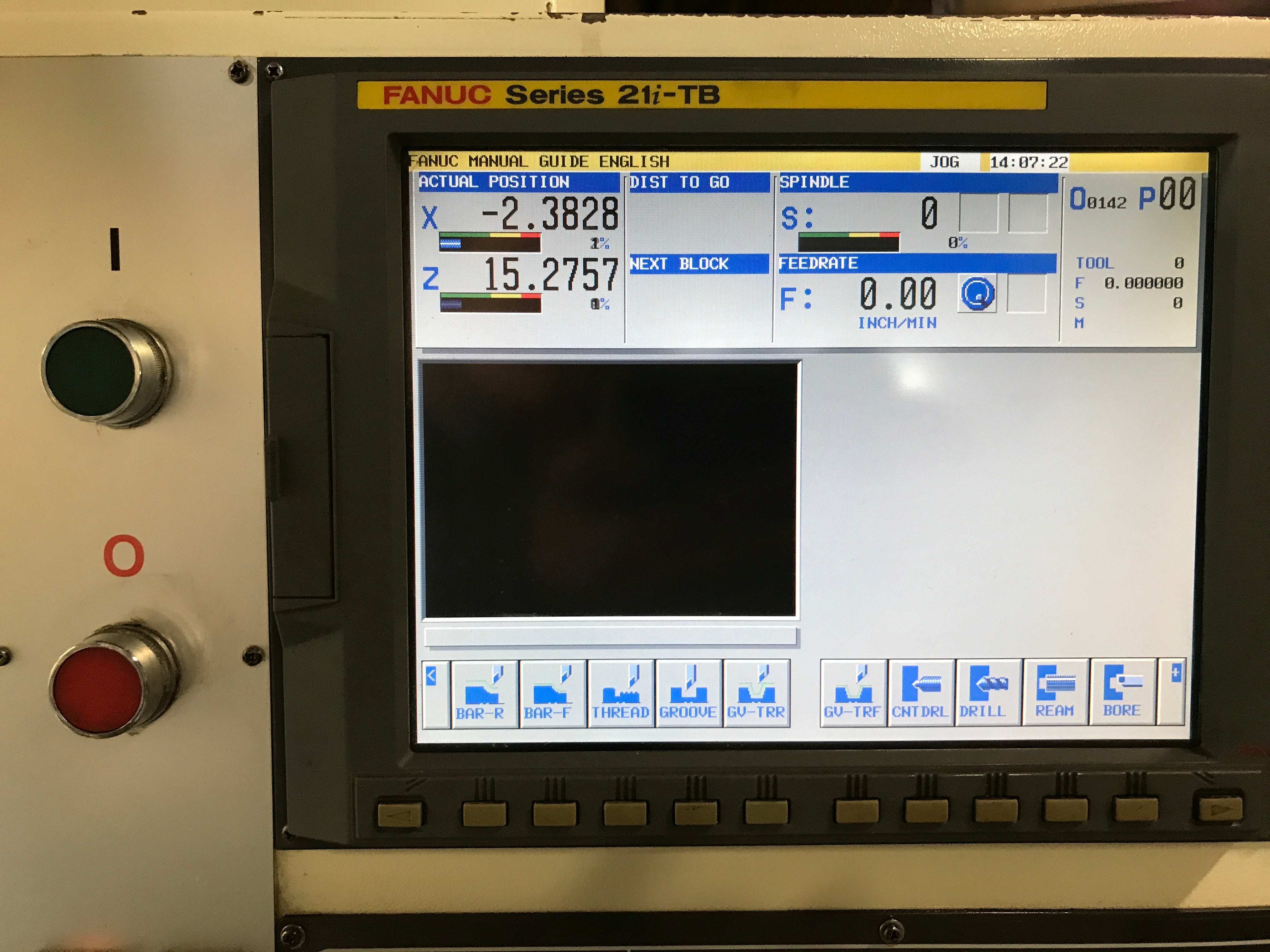

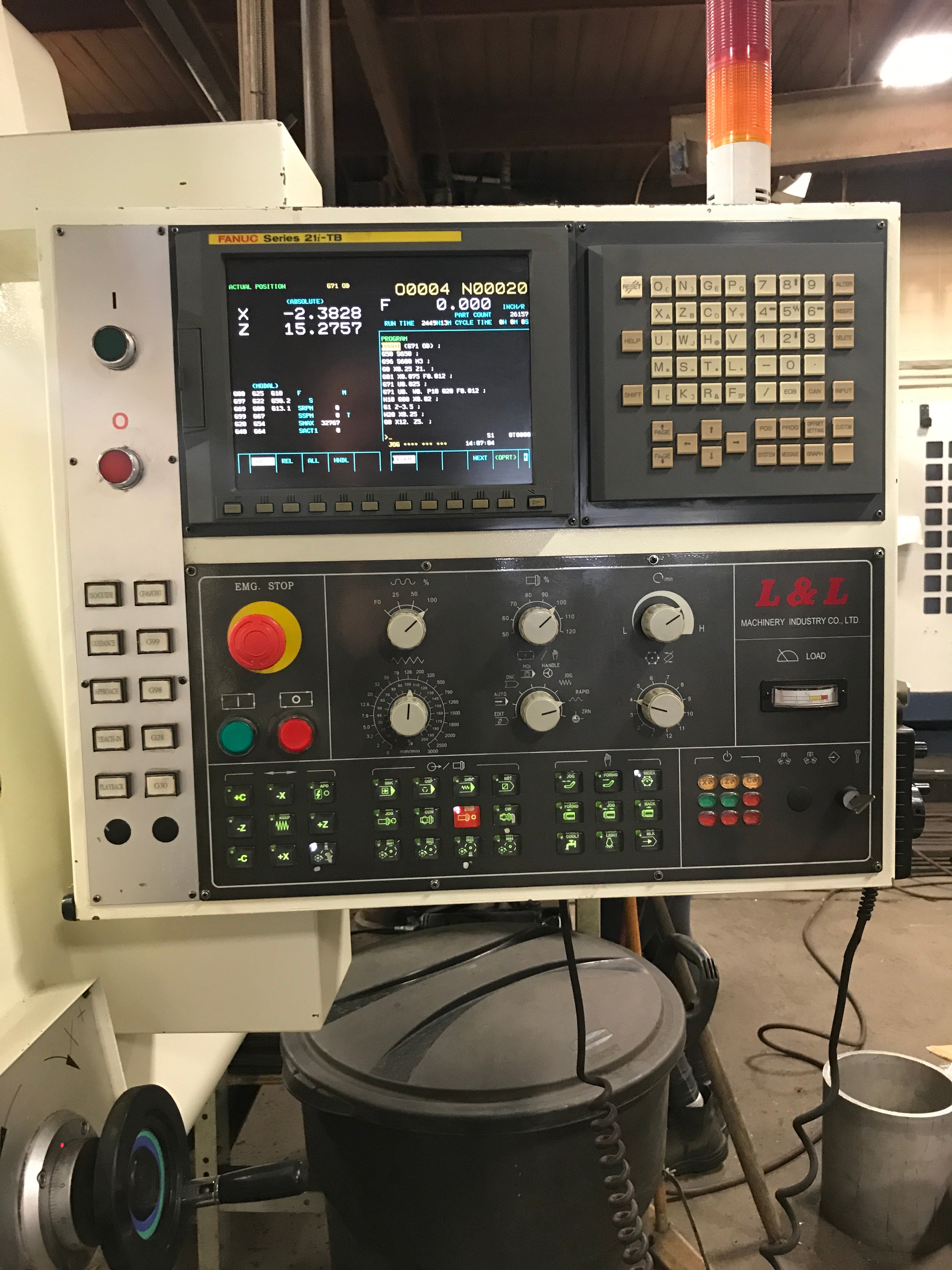

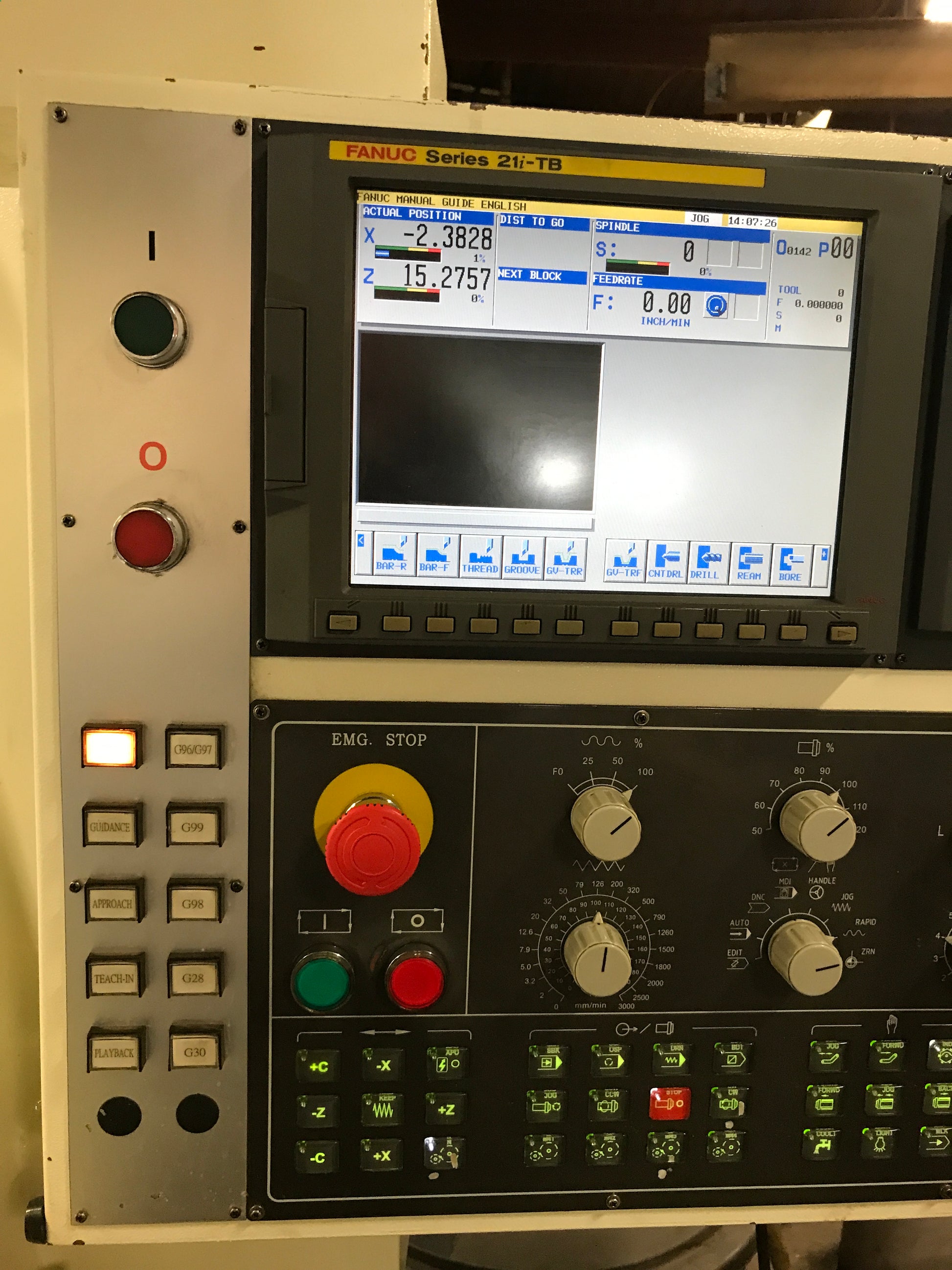

Controller: FANUC 21i-TB

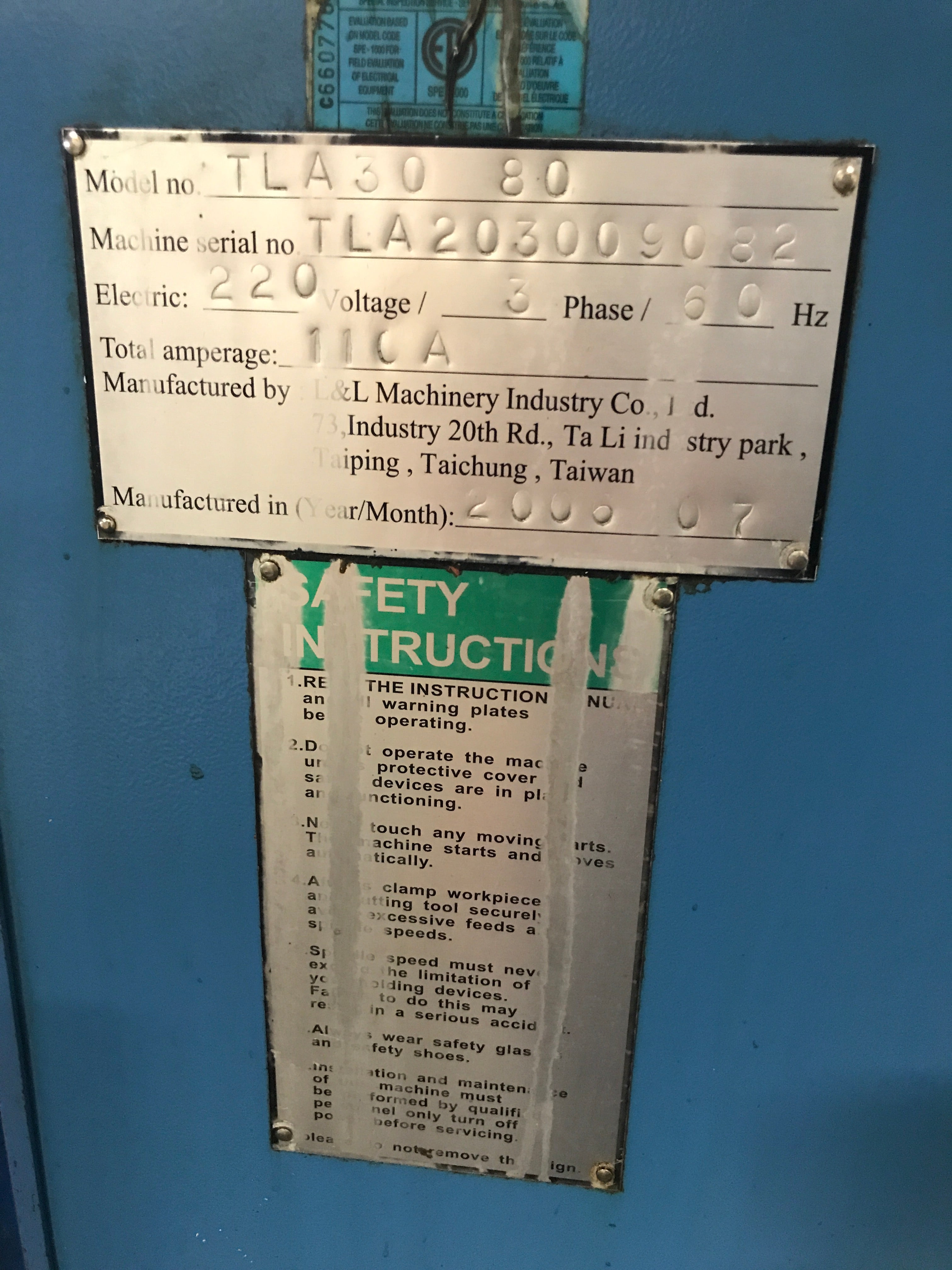

Manufacturer: L&L Machinery Industry Co., Ltd., Taichung, Taiwan
Year of manufacture: 2006/07
Weight: 22000 Lbs (approximately)
Dimensions: 230" x 85" x 110" (approximately)
