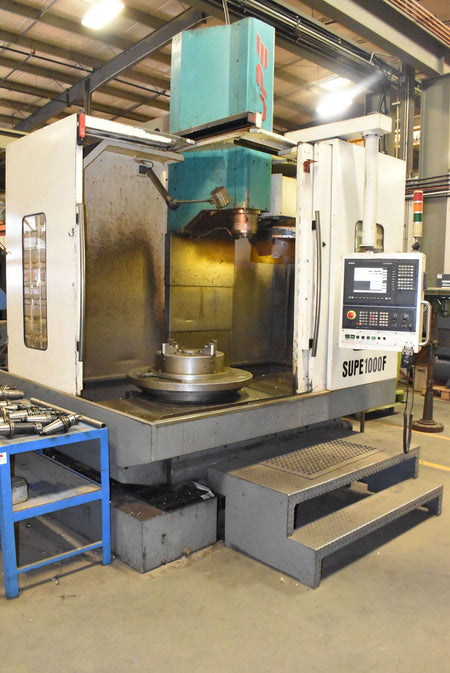

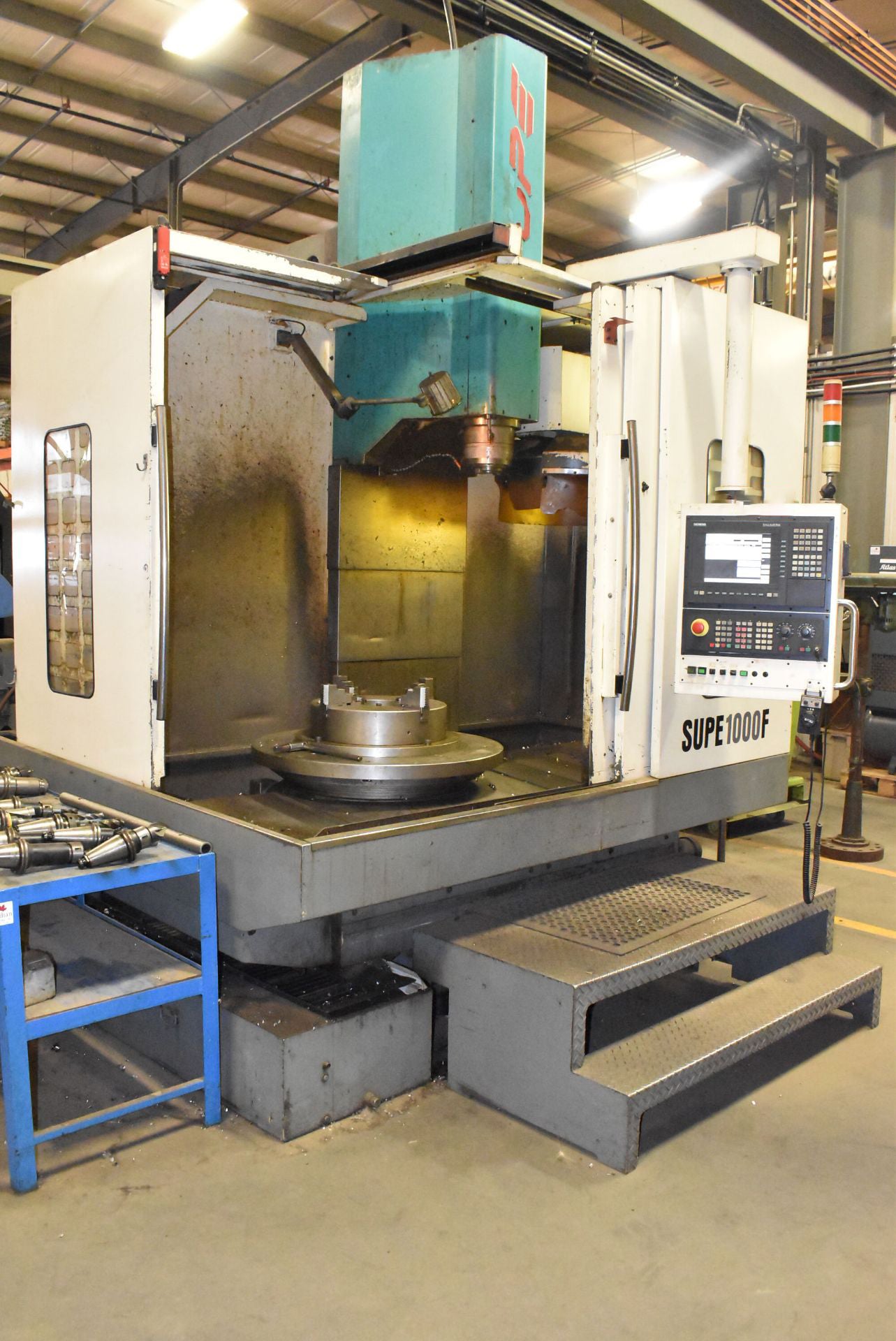

CNC Indexing High Speed Machine Center
Supe-1000F

Spindle:
Spindle Taper CAT 50
Max Spindle Speed 1500 rpm
Distance between Spindle Nose & Work Table 200 to 1200 mm
Distance between Spindle Center & Liner Guideways Surface 510 mm
Spindle Motor power 22/30 kW (30 min)
Spindle Through Type device 30 kg/cm

Feed:
Y-axis Stroke -  550 mm
Z-axis Stroke - 1000 mm
Y-axis Motor  -  3.7 kW
Z-axis Motor  -  4.8 kW
Y-axis/Z-axis Guide Structure - Linear guideway

Rotary Table:

19.5" 4 - JAW Chuck Bison
B-axis Motor  - 3.7 kW
Disk Size (diameter) 800 mm
Smallest Division Unit 0.001°
Concentricity - 0.01 mm
Maximum Load  -1000 kg
T-type Slot Width/Slot number - 18 mm /8 slots
Torque System - Oil pressure
Maximum Speed 11.1 rpm

Tool Magazine:

Max. Capacity - 12 tools
Max. Tool Diameter - 100 mm
Max. Tool Length - 300 mm
Max. Tool Weight - 15 kg
Drill Specification Ø 20~Ø50 mm

CNC Controller:

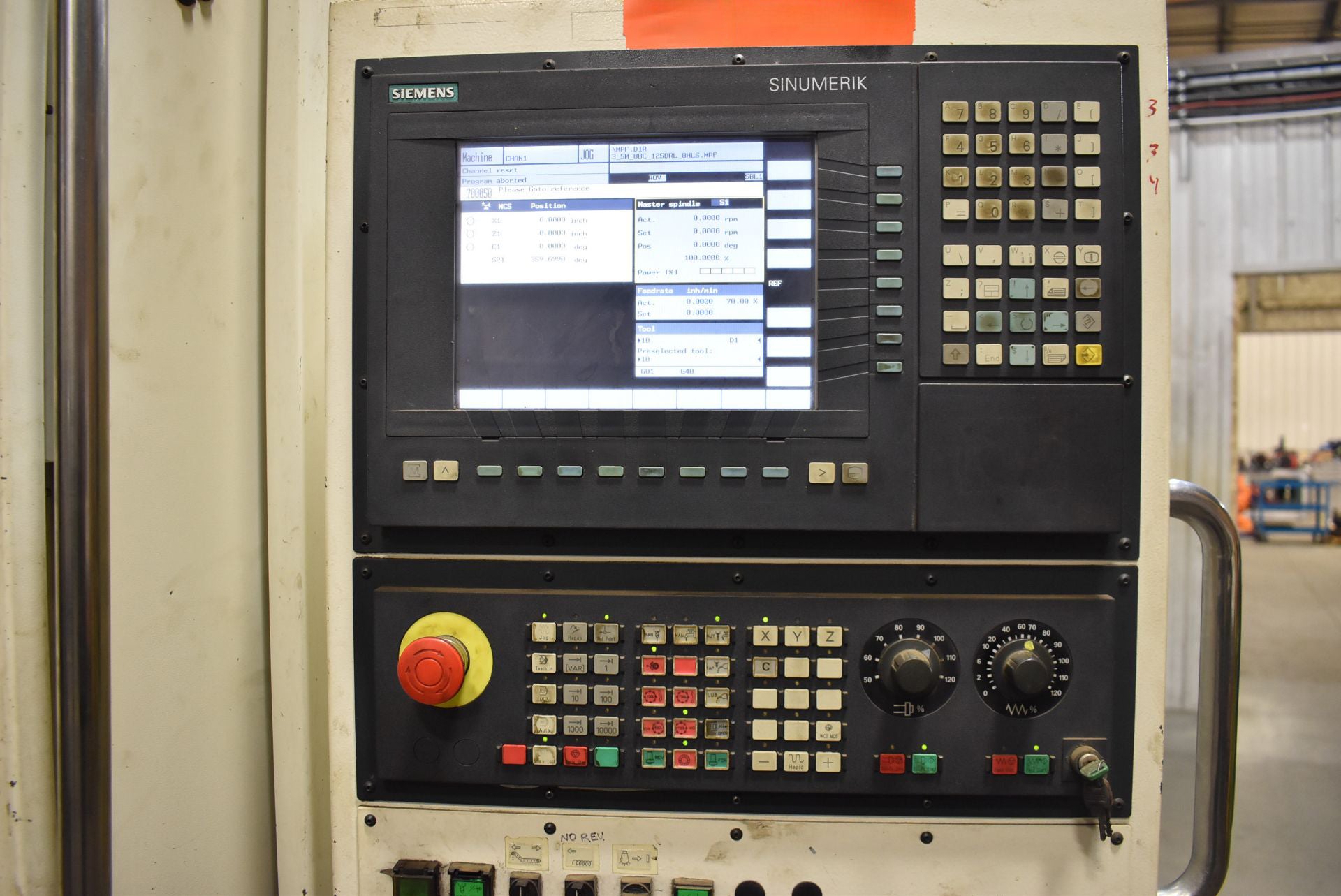

Controller Specification - SIEMENS 802D
Cutting Feed Rate - 1-8000 mm/min
Fast Feed Rate    -  10000 mm/min
Positioning Precision -±0.01/300 mm/mm
Feed Repeatability Accuracy - ±0.005 mm

Lubrication and Cooling:

Tapping Lubrication - Lubricator, oil mist
Drill Cooling - Spiral pump, high pressure
Accessories:
Chip Conveyor
2 Step Ramp to access work area
Manuals:
Operator Manual Machine
SIEMENS SINUMERIK 810D Hardware configuration Manual

Dimension:
130"x105"x110"
POWER:
480 V 3 Phase 60 Hz
S/N 100F-02
Manufactured: 2005
