SEO Intro:

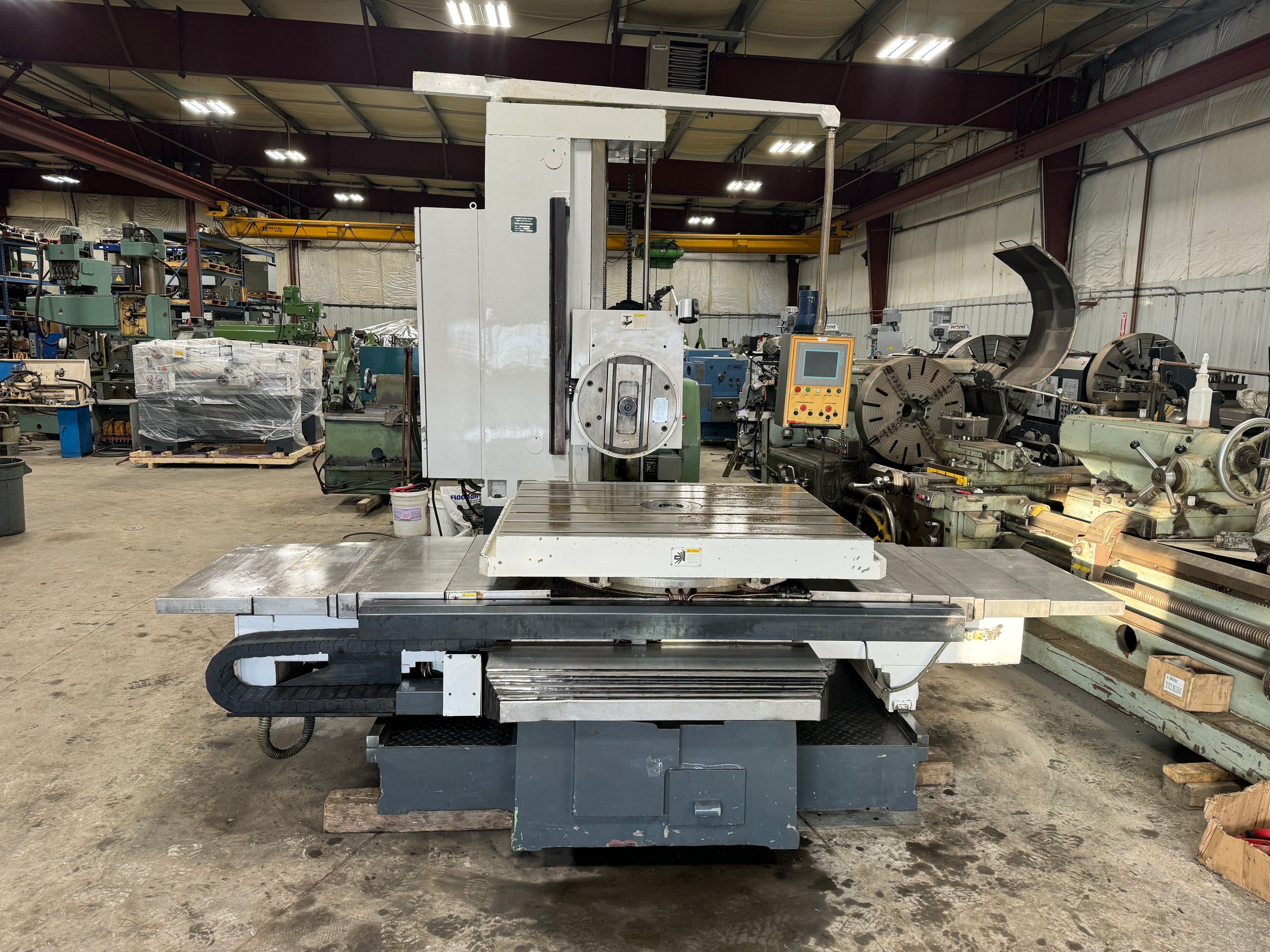

Optimize your machining precision with the SMTCL TPX611C/3 Horizontal Boring Mill. Featuring a robust 110mm spindle, ISO50 taper, extensive XYZ travels, and a large 42"x43" rotary table, this machine ensures heavy-duty, accurate boring operations.

Specifications
Brand: SMTCL
Model: TPX611C/3
Capacity: 4.3"
Rotary table size: 42" X 43"
Table load Capacity: 6,613 LBS
Facing Plate Diameter: 24.8"
Spindle Diameter: 110mm
Spindle Taper Iso: 50
Spindle Speed: 8 - 1100 RPM
Rapids Travel ( X/ Y/ Z/ W): 98.4"
Facing Head Speed: 4-200 RPM
X Axis Travel: 62.9"
Y Axis Travel: 47.2"
Z Axis Travel: 55"
W Axis Travel: 23.6"
U Axis Travel: 7"
Digital Readout: Newall
Horsepower: 20 H.P.
Tailstock
Dimensions  (W x D x H): 18' x 12' x 11'
Weight 40,000 LBS
