Capacity
Swing-over bed: 900 mm (35.4 in)
Swing-over saddle: 720 mm (28.3 in)
Recom. turning diameter: 380 mm (15.0 in)
Max. turning diameter: 650 mm (25.6 in)
Max. turning length: 992 mm (39.1 in)
Bar working diameter: 165.5 mm (6.5 in)

Carriage
Travel distance – X-axis: 362 mm (14.3 in)
Travel distance – Z-axis: 1105 mm (43.5 in)

Main Spindle
Spindle speed: 1500 r/min
Spindle nose (ASA): A1 #15
Spindle bearing diameter (Front): 240 mm (9.4 in)
Spindle through hole: 182 mm (7.1 in)
C-axis spindle index angle: 360° in 0.001°

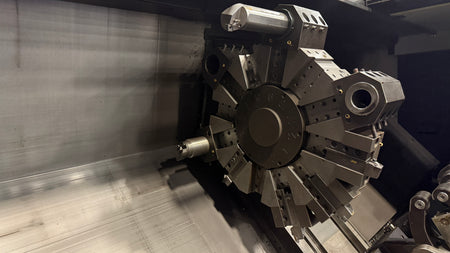

Tool Post
No. of tool stations: 10
OD tool height: 32 × 32 mm (1.3 × 1.3 in)
Boring bar diameter: ø 80.0 mm (3.1 in)
Rotary tool spindle motor: —

Feedrate
Rapid traverse – X-axis: 20 m/min (787.4 ipm)
Rapid traverse – Z-axis: 20 m/min (787.4 ipm)
Max. cutting feedrate: 10 m/min (393.7 ipm)

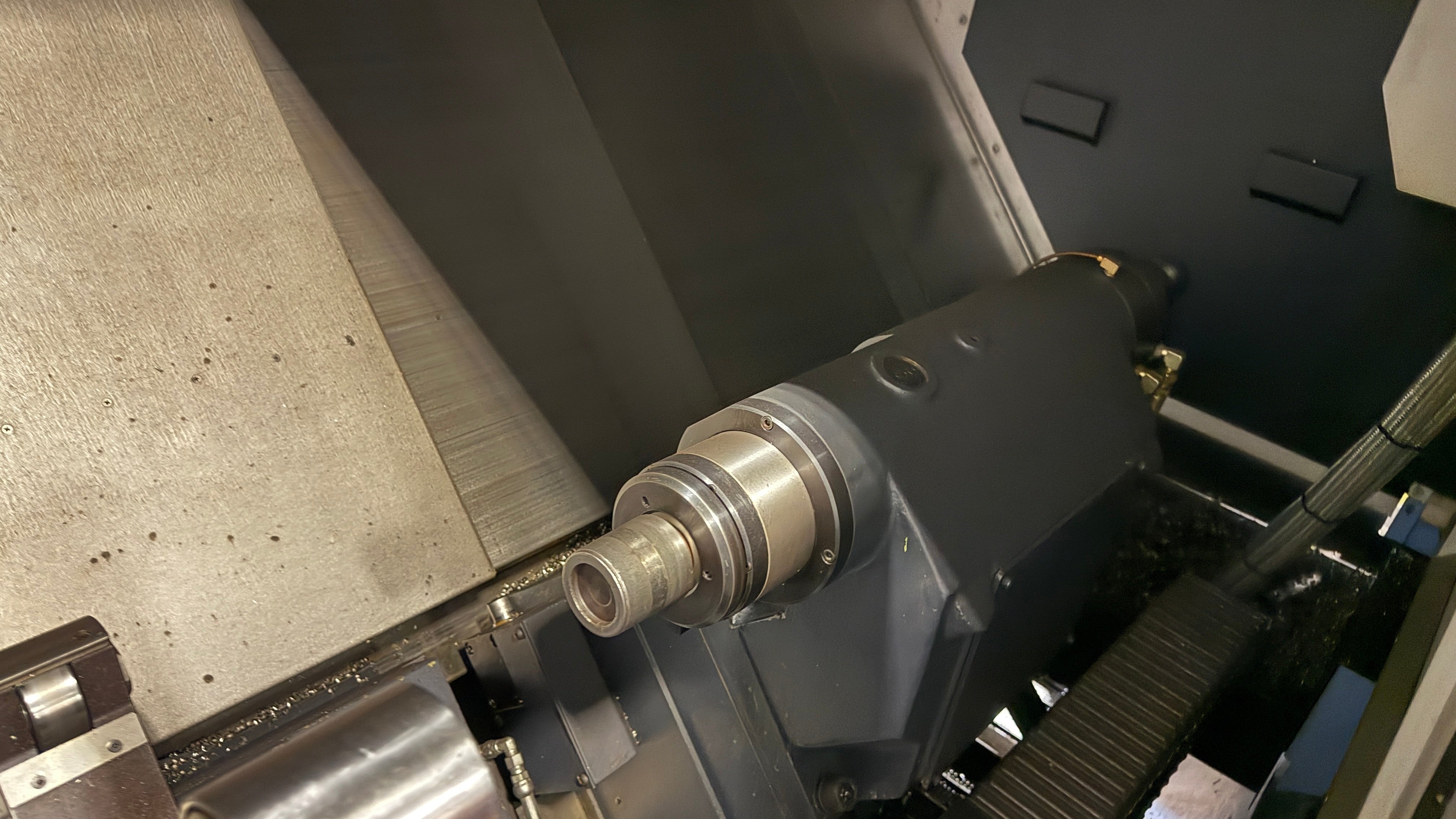

Tail Stock
Quill diameter: 150 mm (5.9 in)
Quill taper: MT#6
Quill travel: 150 mm (5.9 in)
Main spindle motor (30 min): 45 kW (60.3 hp)
Servo motor: —

Motors
X-axis: 7.0 kW (9.4 hp)
Z-axis: 7.0 kW (9.4 hp)

Tank Capacity
Coolant tank capacity (rated): 53.1 / —

Machine Size
Machine height: 2170 mm (85.4 in)
Machine dimensions (L × W):
Length: 4335 mm (170.7 in)
Width: 2650 mm (104.3 in)
Machine weight: 10600 kg (23369.5 lb)
