Distance between centers:    2000 mm
Max turning diameter:    700 mm
Swing over cross slide:    560 mm
Spindle hole diameter:    120 mm
Rapid feeds X,Z:    16.18 m/min
Speed range:    2000 rpm
Total power:    48 KVA
Approximate machine weight:    9800 kgs

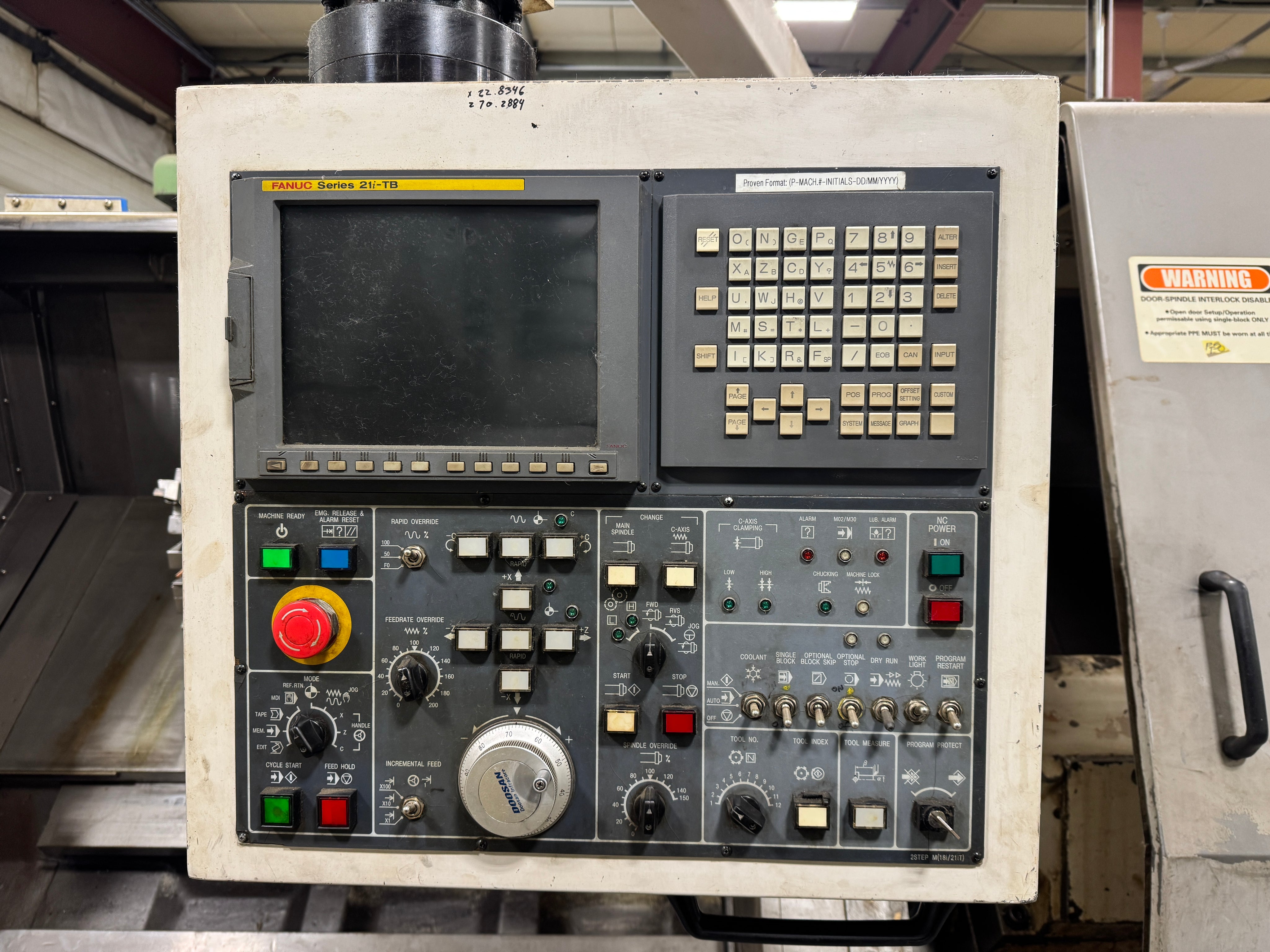

Control:    FANUC 21i-TB

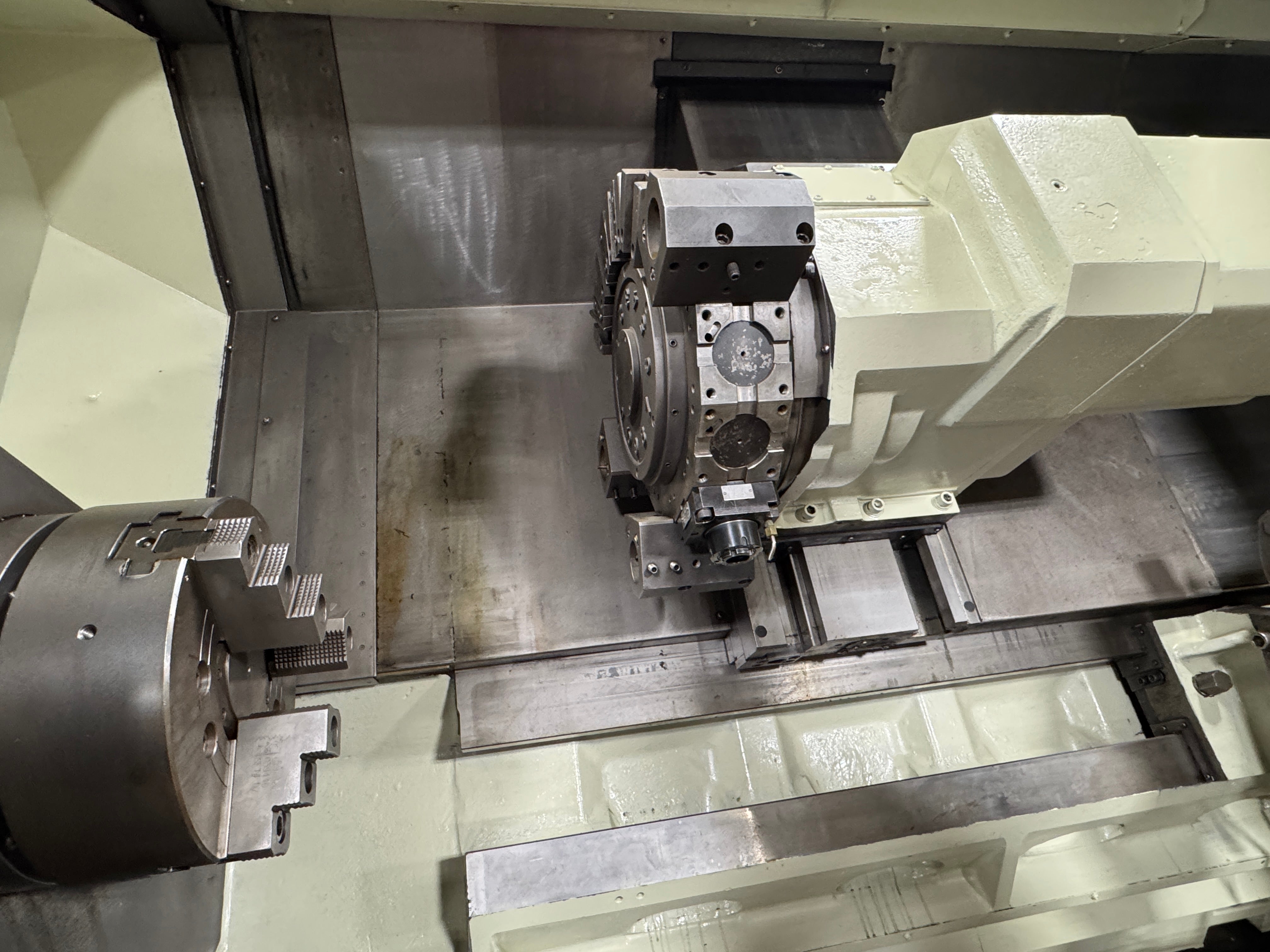

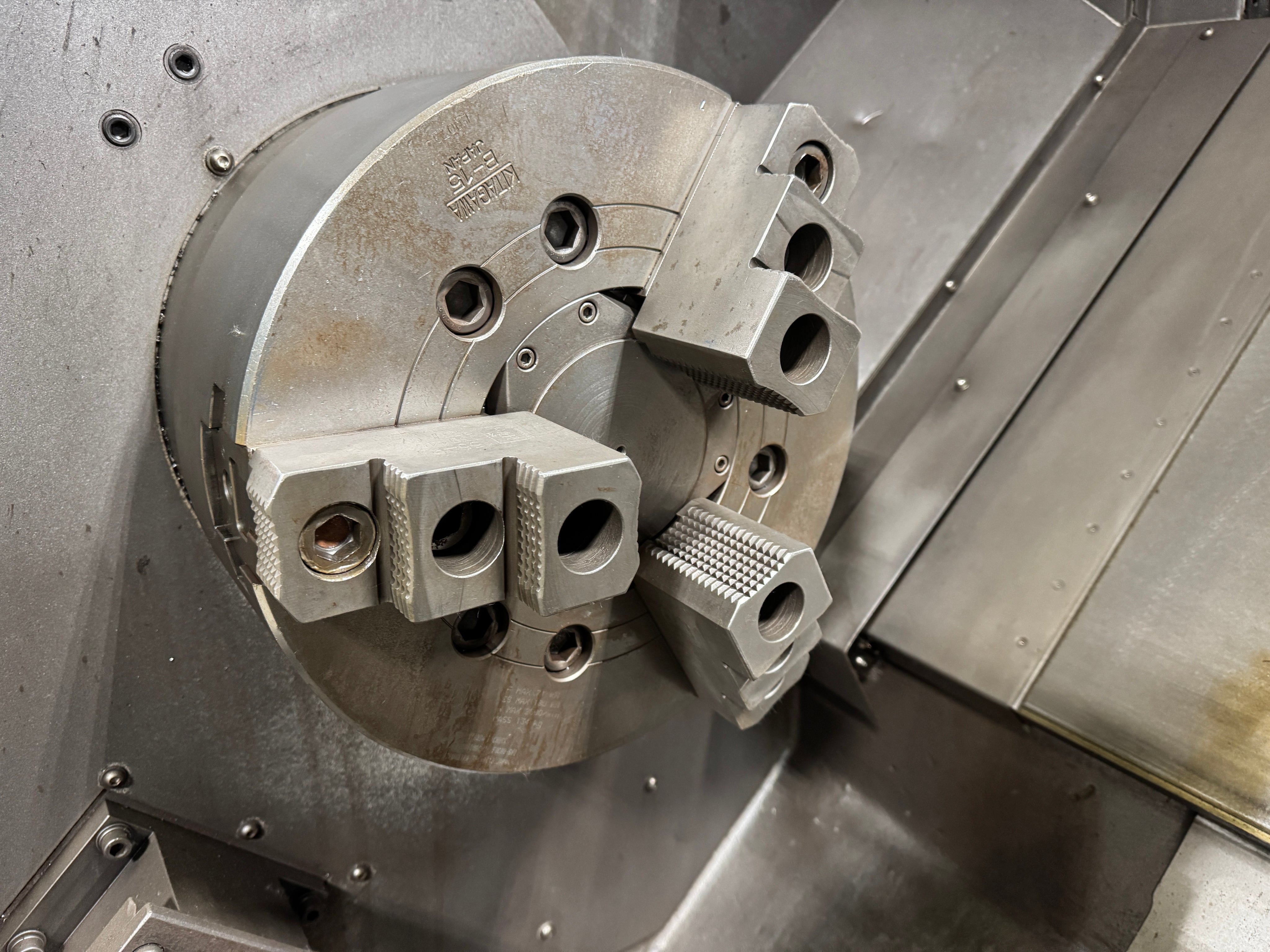

Chuck:    SMW Autoblock hydraulic Ø 380 mm

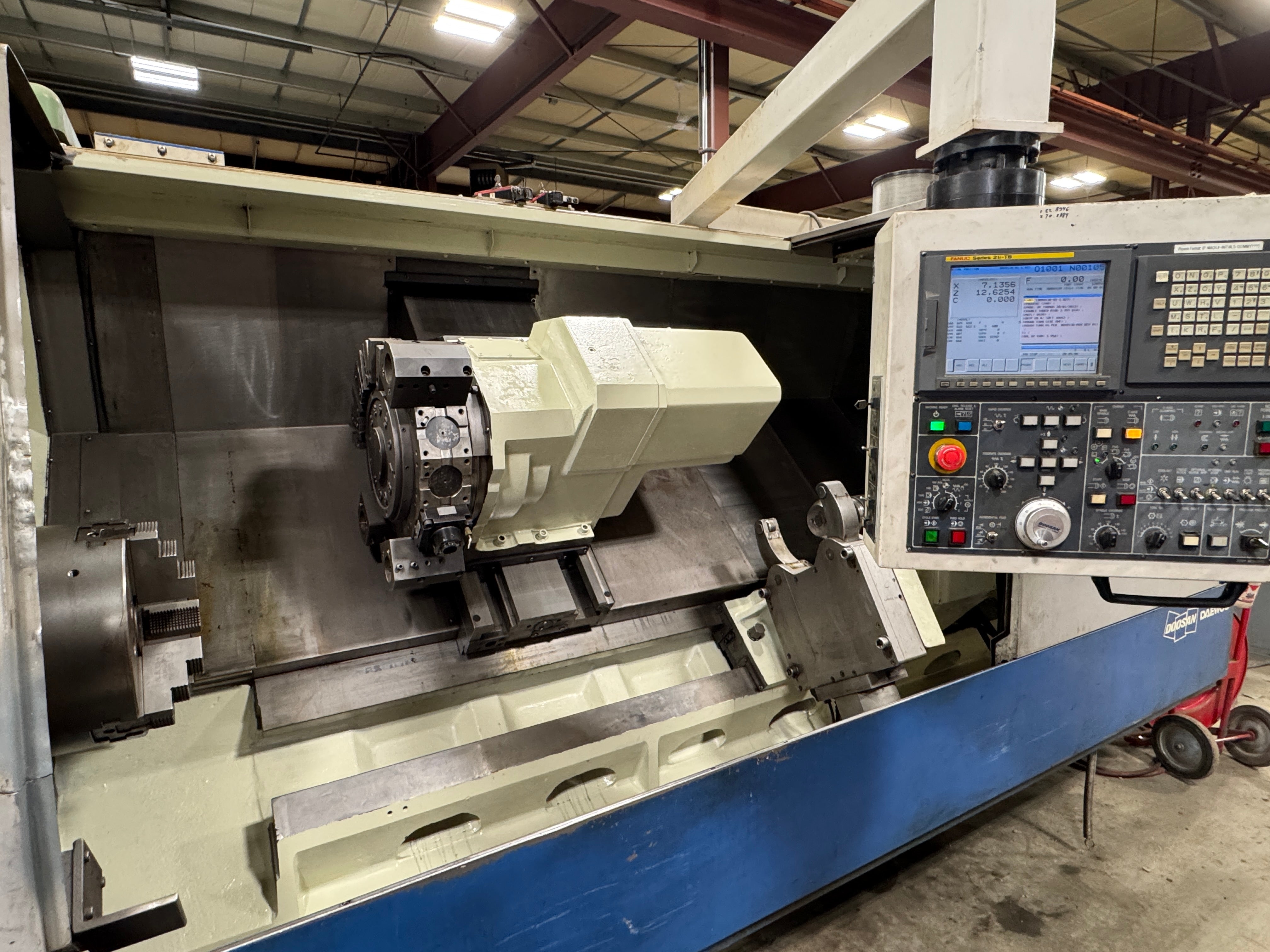

Turret:    Motorized 12 positions
3 toolholder:    1 and 2 square axial cylinder (axial and one radial 1)
C-Axis 100 1/min
Steady rest:    SMW Autoblock SLU-4 hydraulic
Coolant supply:    internal

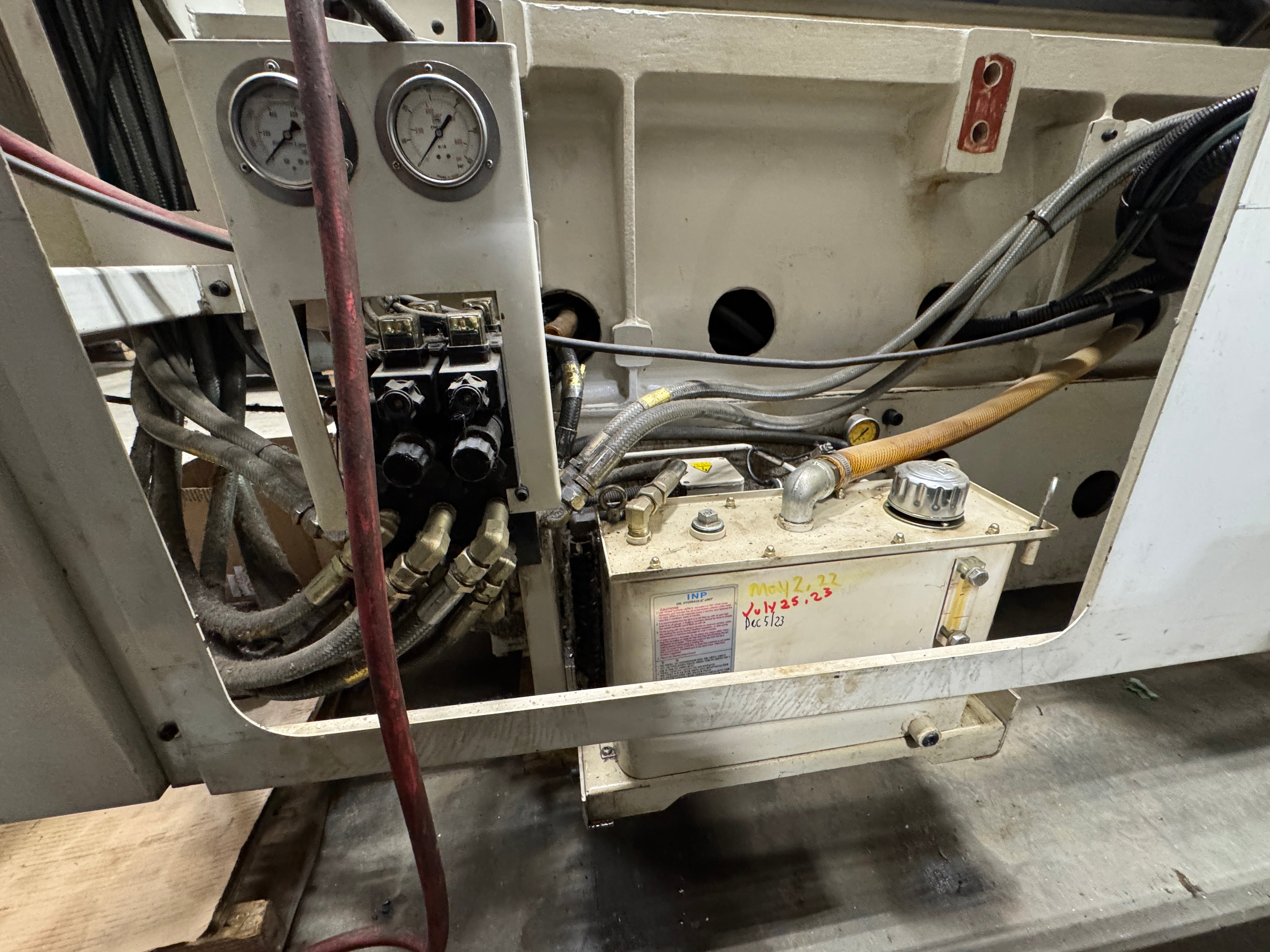

Hydraulic system:    40 bares

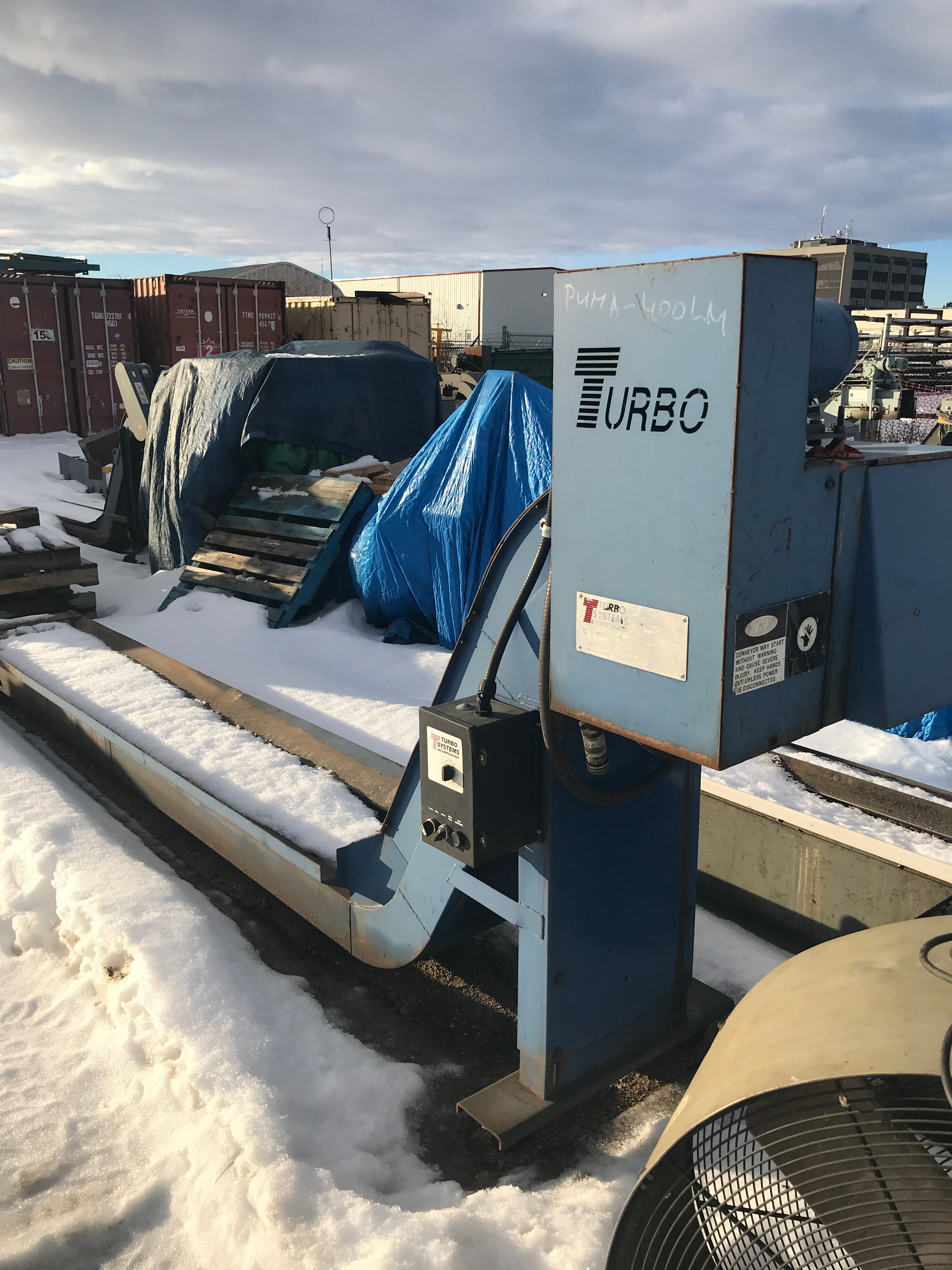

Chip conveyor:    Yes

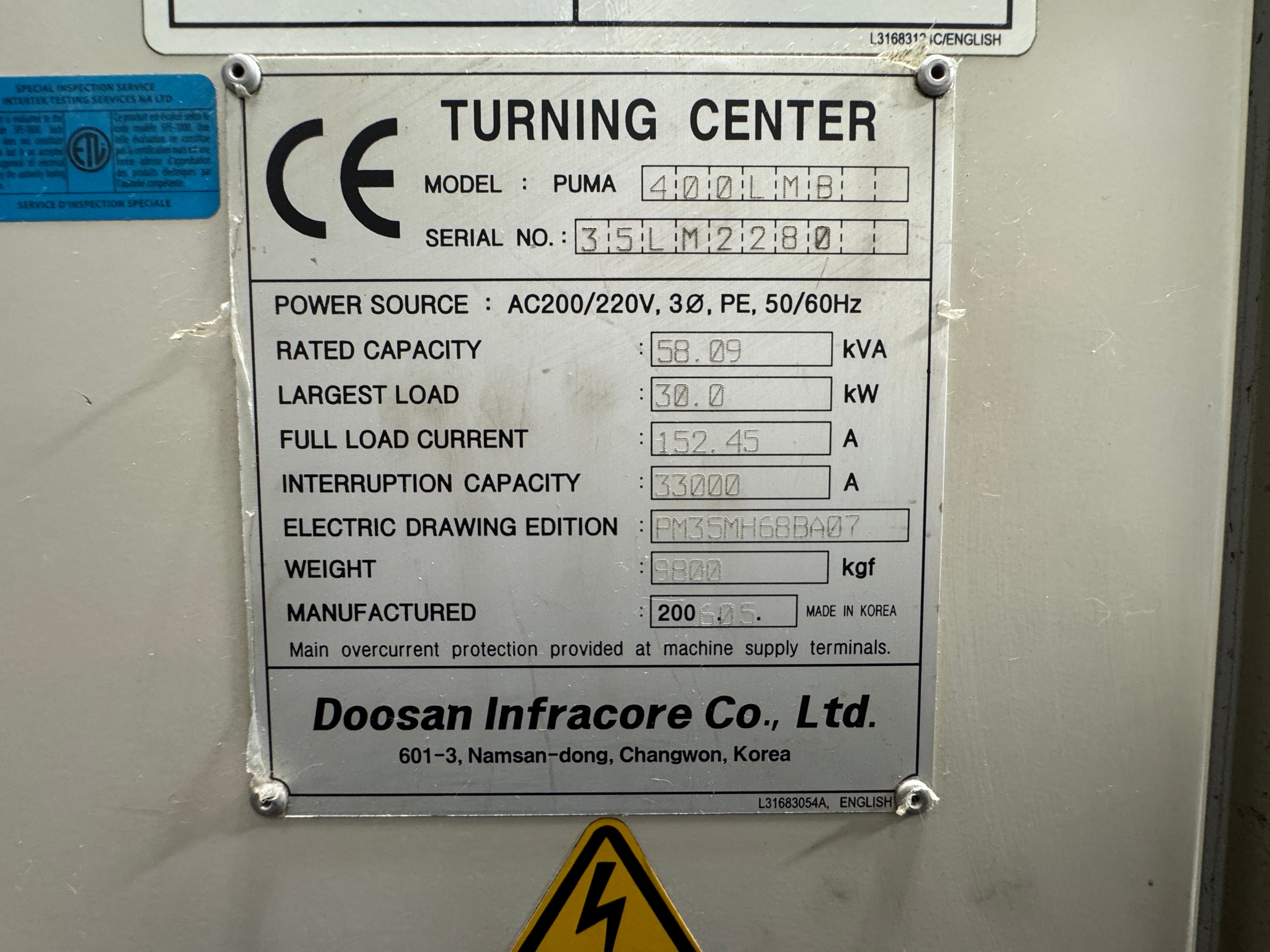

Rated Capacity: 58kVa
Largest Load: 30kW
Full load Current: 152.45
Interruption Capacity: 33000
Electric Drawing Edition: PM35MH68BA07
Weight: 9800Kg
Year:    2006
Machine dimensions:    5342x2176x2317 mm
