Machine Description

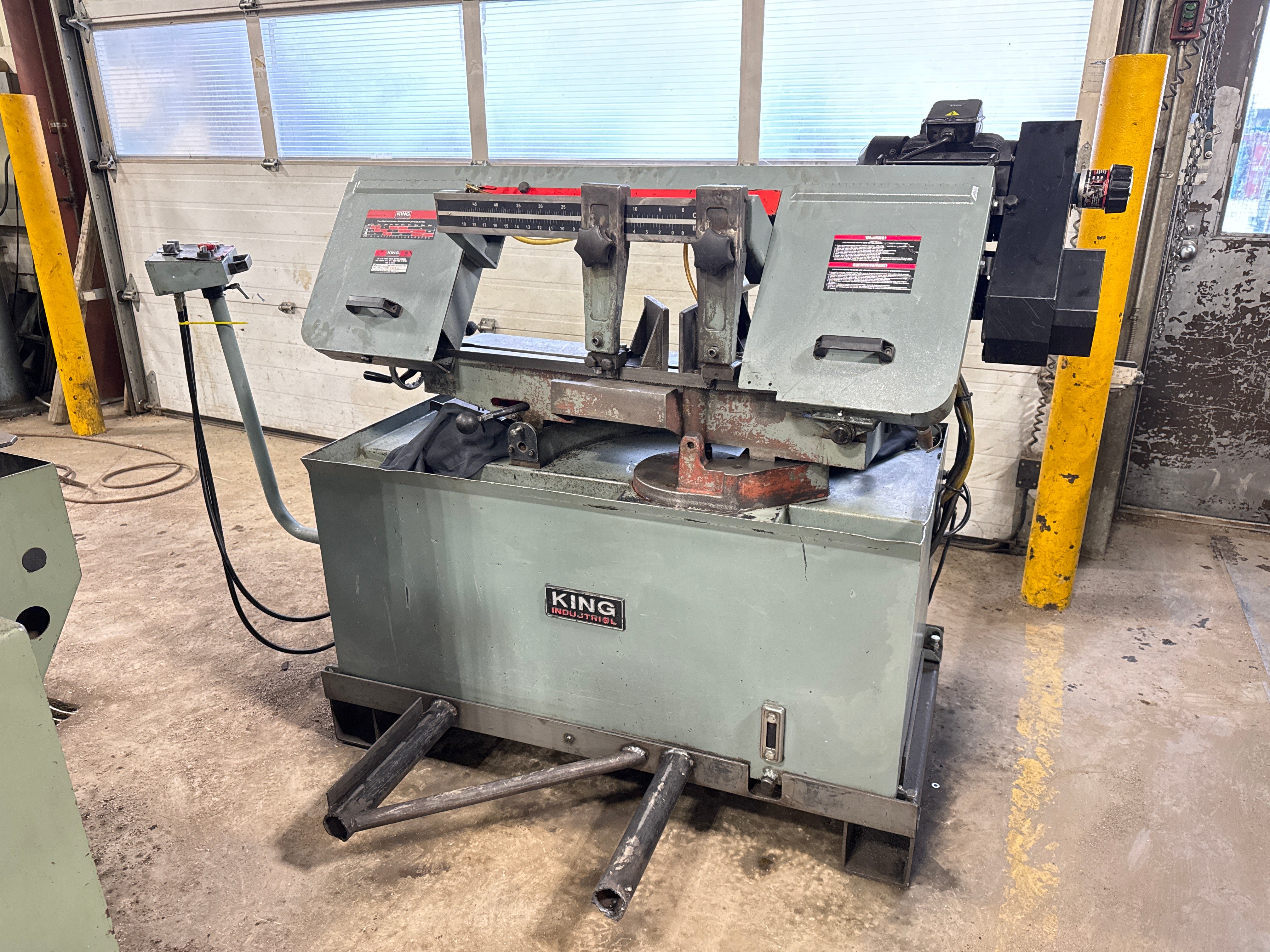

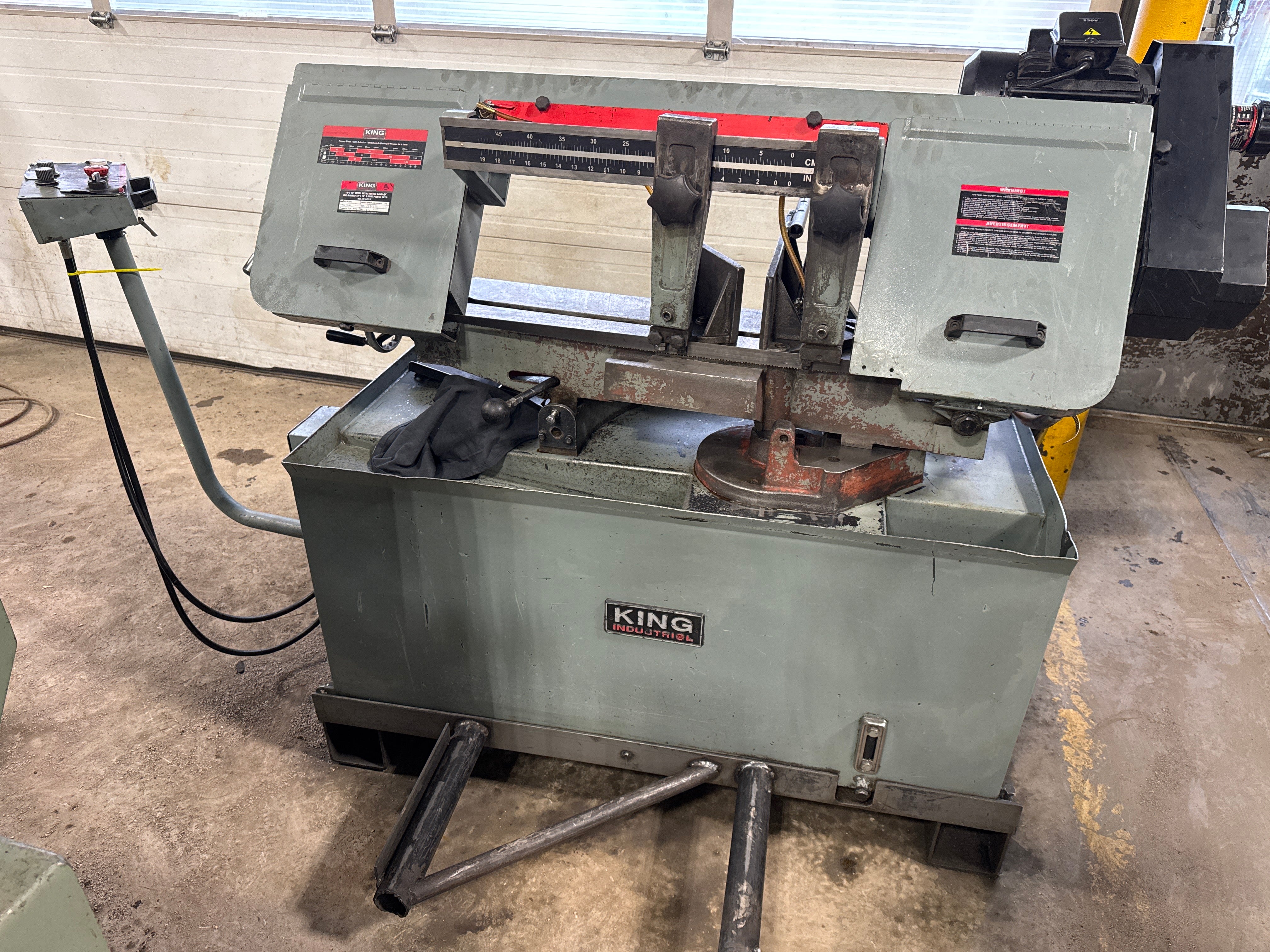

This is a KING Industrial KC-228S-V 10" x 18" swivel metal cutting bandsaw designed for production cutting of steel and other metals. The horizontal cutting frame works with a mechanical vise on a swivel base to handle straight cuts and up to 45° mitre cuts in one direction. A variable-speed blade drive and hydraulic downfeed cylinder let the operator tune cutting conditions for different materials, while the integrated coolant system improves blade life and cut quality. A separate control pendant with emergency stop, coolant and hydraulic controls keeps operation simple and safe. This model is a popular choice in Canada for industrial metal cutting and fabrication shops that need a 230 V single-phase machine.

Title: Specification

Specification
Machine: Horizontal swivel metal cutting bandsaw
Brand: KING Industrial
Model / Type: KC-228S-V

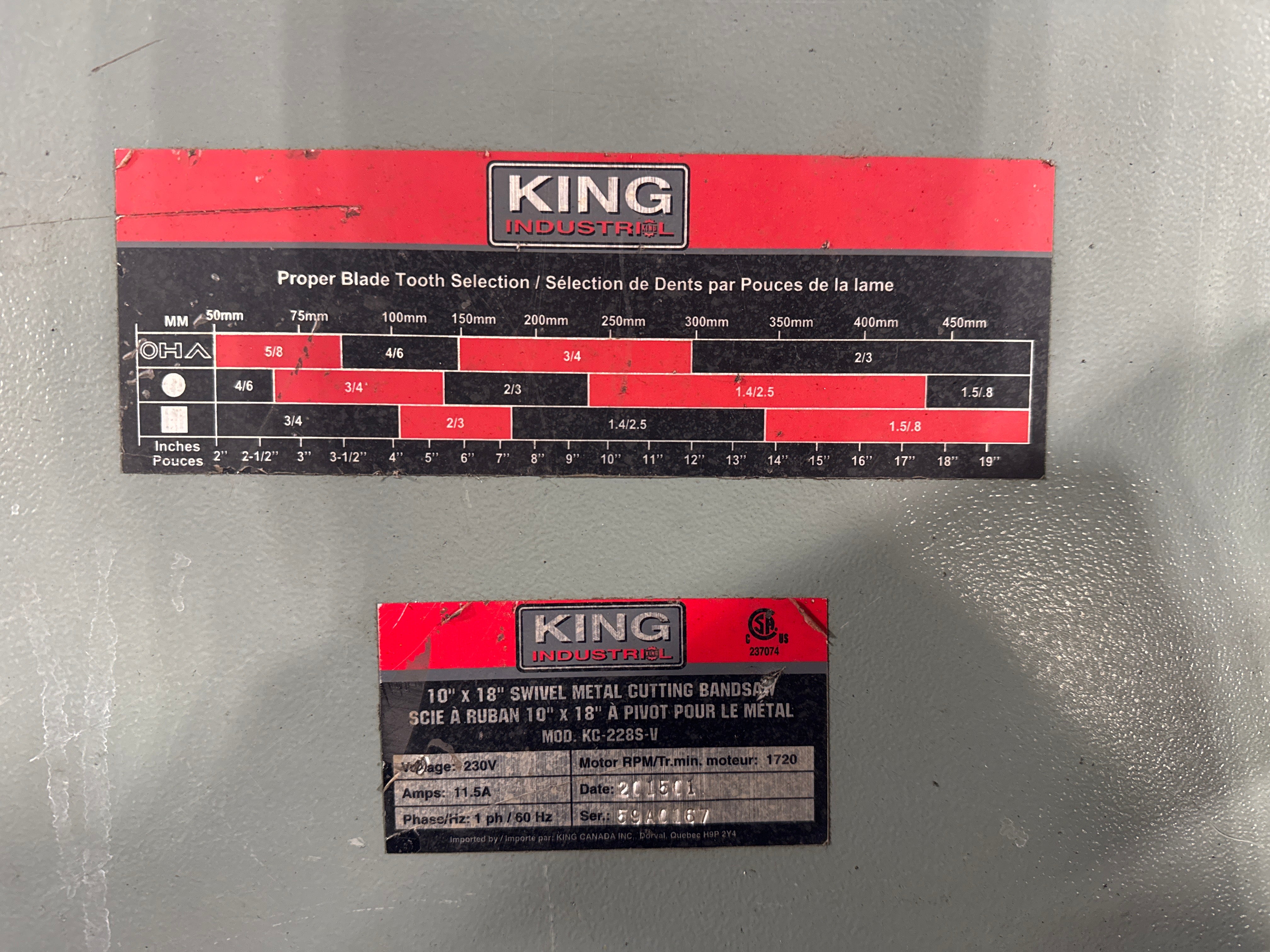

Designation on plate: 10" x 18" Swivel Metal Cutting Bandsaw

Cutting
Nominal cutting capacity at 90°: 10" x 18"
Mitre / swivel range: 0° to 45° in one direction
Vise: Mechanical vise with fixed and movable jaws on swivel base

Blade drive and feed

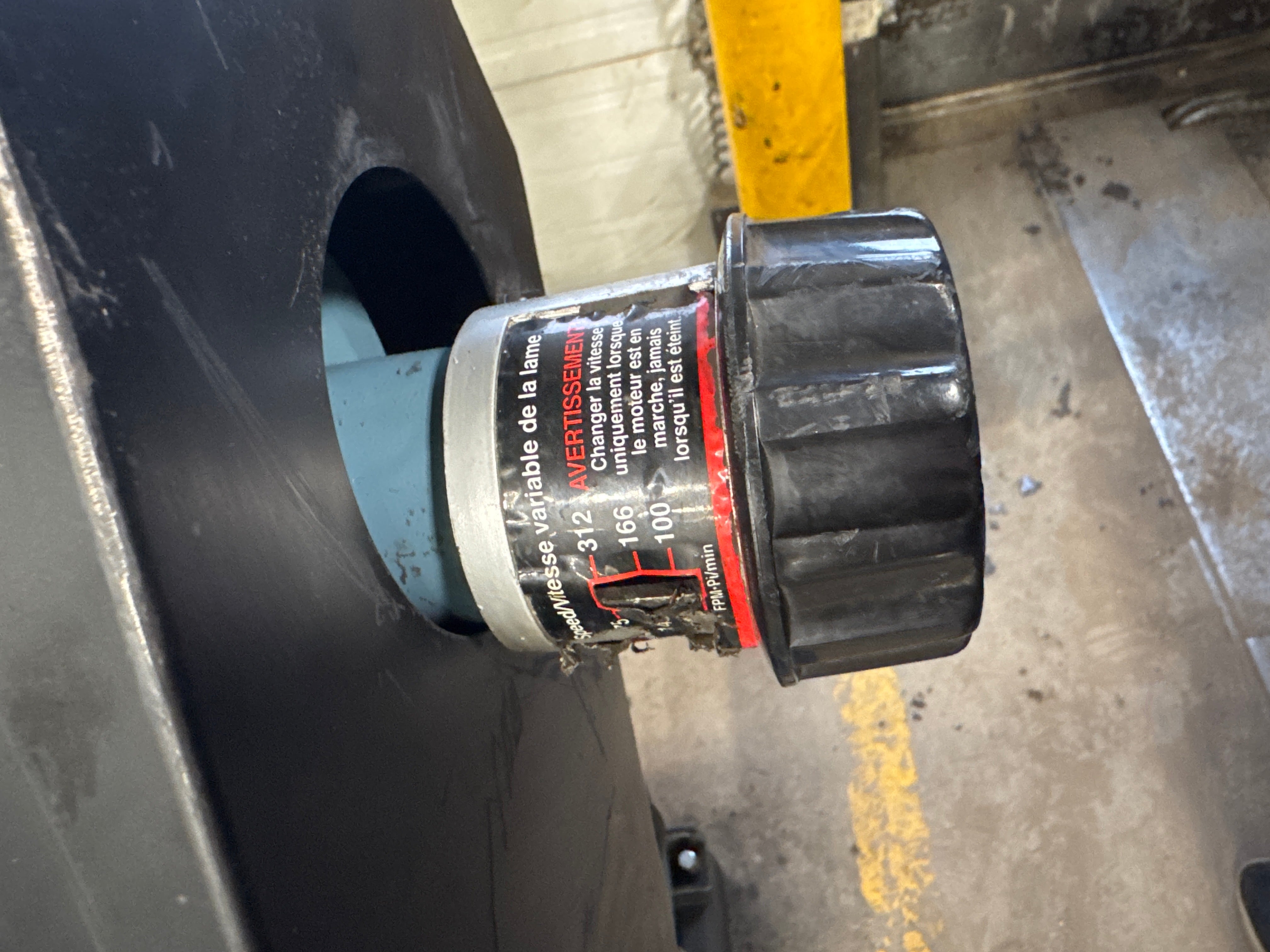

Blade drive: Variable speed (adjustable by front dial)
Downfeed: Hydraulic cylinder with adjustable feed rate
Frame type: Horizontal pivoting saw frame with gravity / hydraulic feed

Coolant system
Coolant system: Integrated coolant tank in base
Coolant pump: Electric pump, on/off controlled from pendant

Controls and features

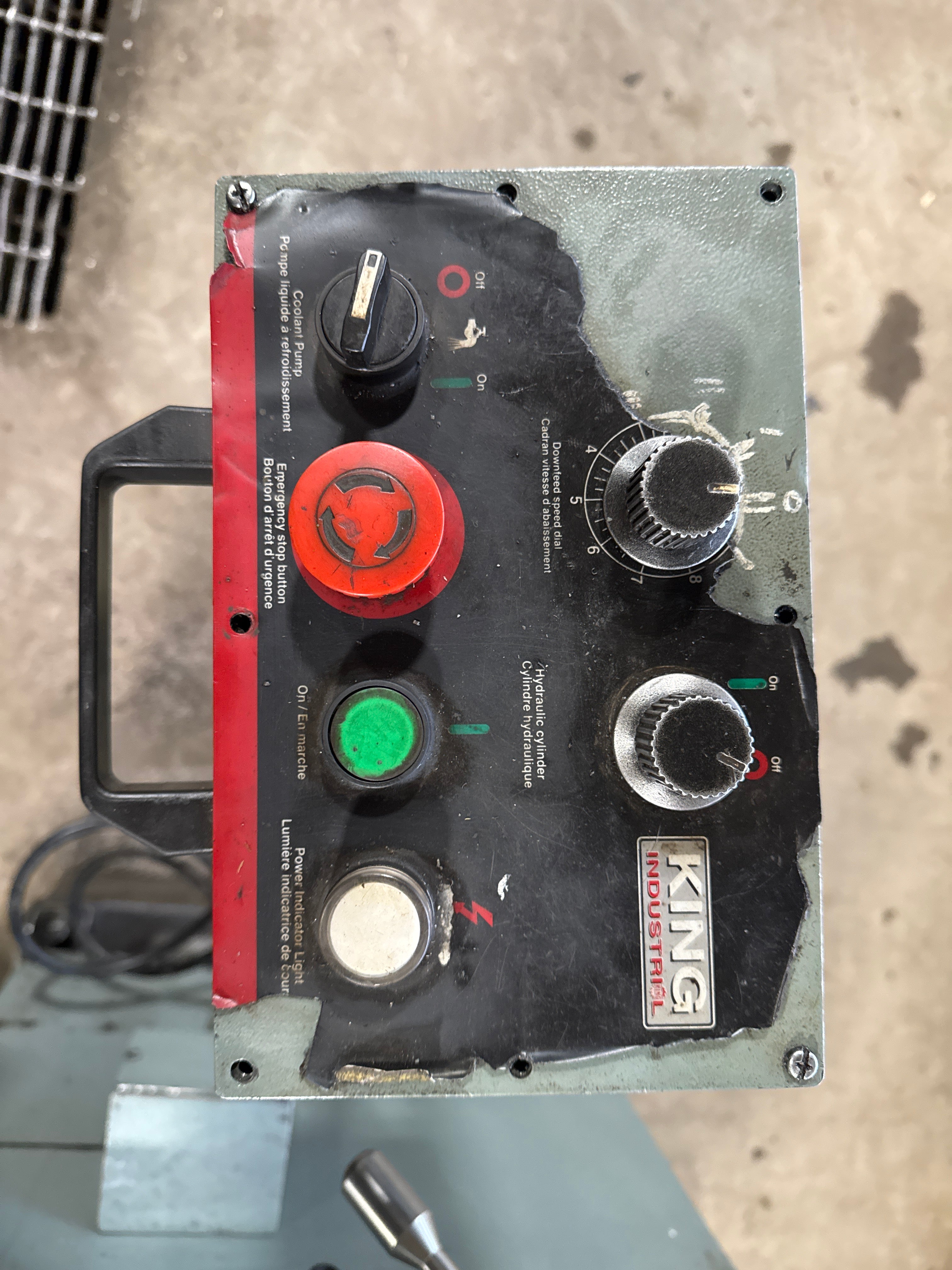

Control station: Pendant on swing arm
Controls: Emergency stop, main on/off, coolant pump on/off, hydraulic/downfeed control

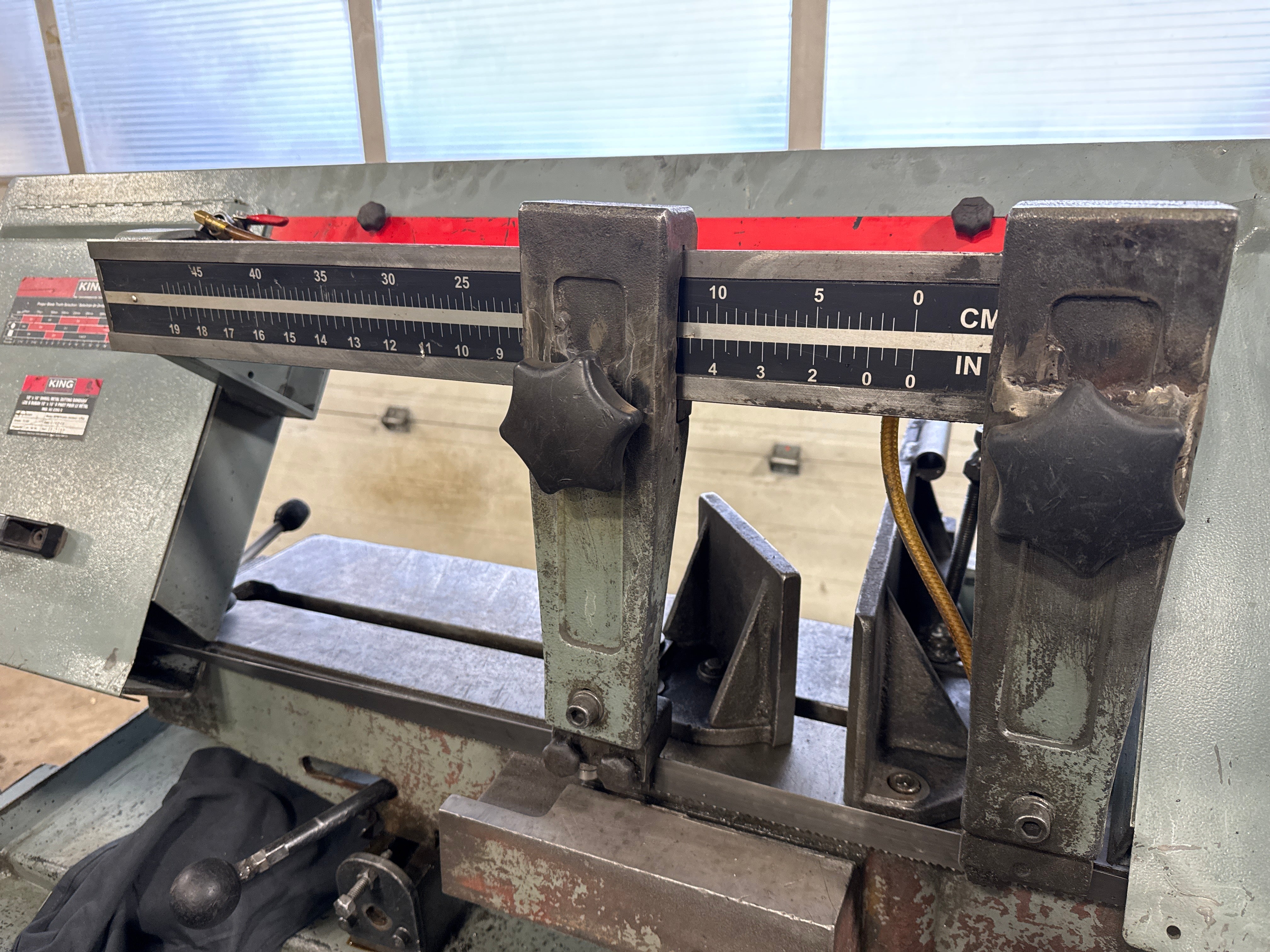

Work length scale: Dual scale (inch / metric) on top crossbar

Electrical
Power supply: 230 V
Phase: 1-phase
Frequency: 60 Hz
Full load current: 11.5 A
Main drive motor speed: 1720 RPM

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
