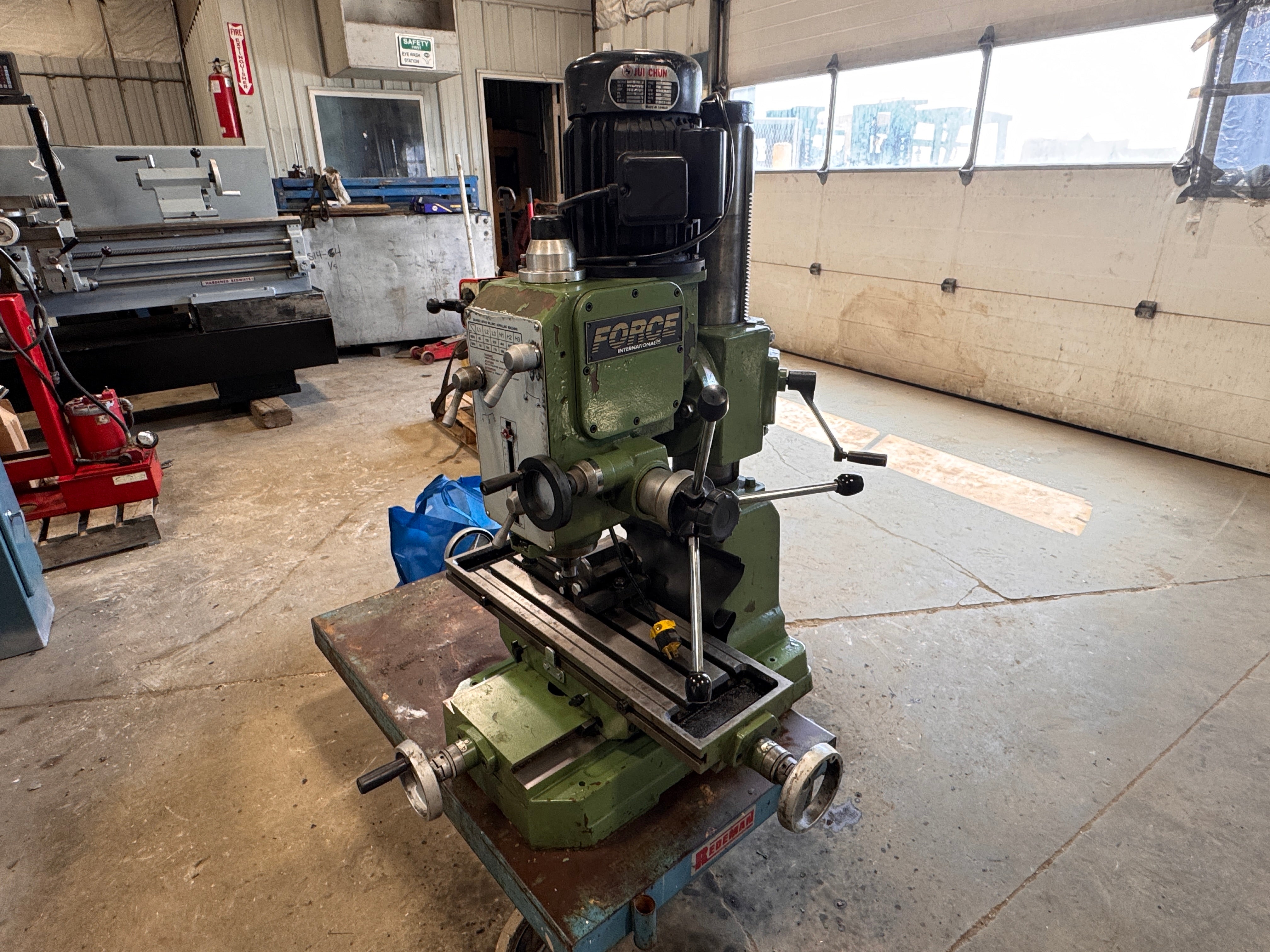

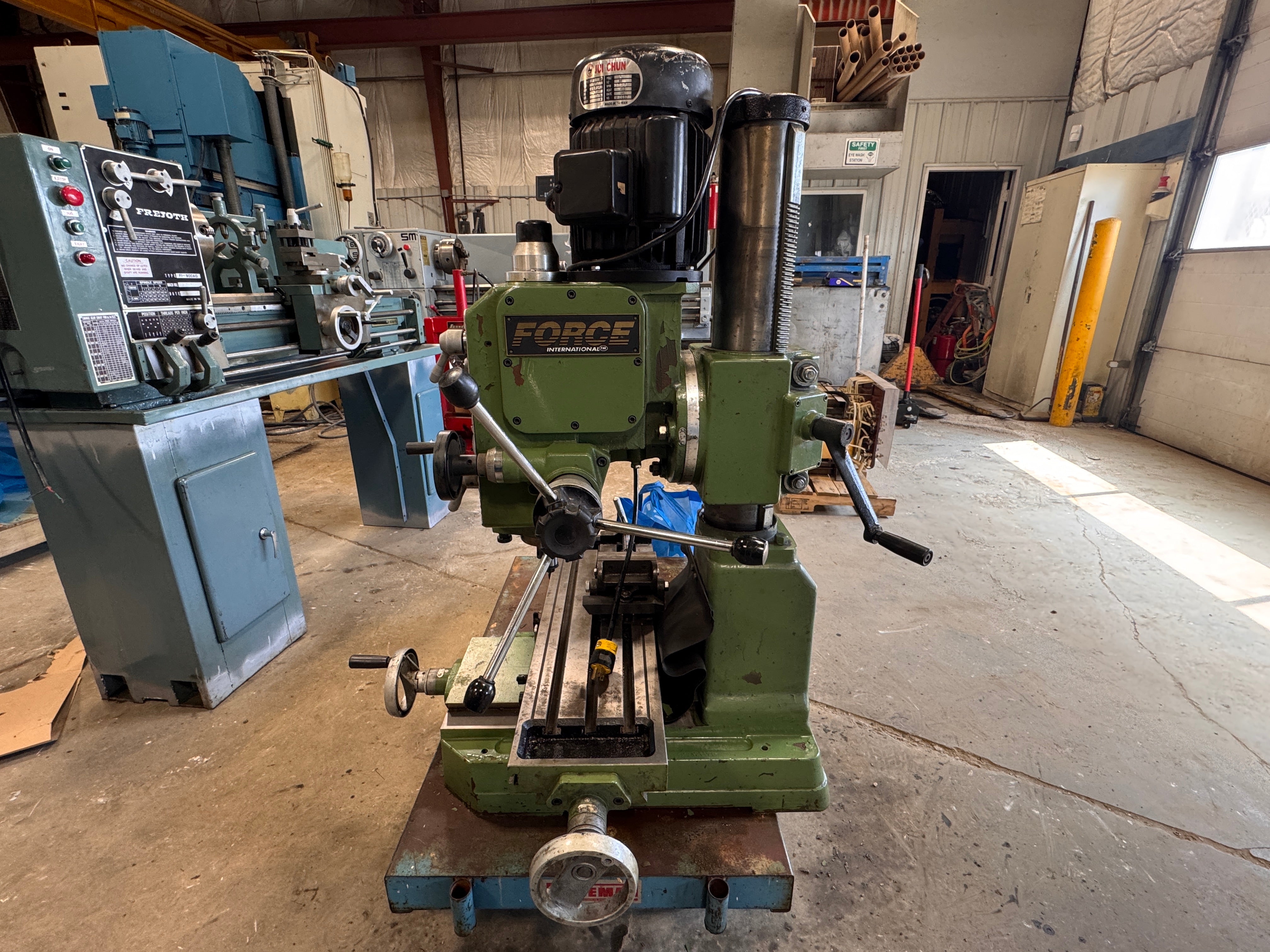

Force MD-40 geared head milling and drilling machine with MT3 spindle taper and 2 HP single-phase motor. Roller spindle bearings and a geared head provide a solid, positive drive with multiple fixed speeds at 60 Hz. The machine uses a precision T-slot table with X–Y travel and is supplied ready to mount on a customer’s bench, with no stand included. Drilling capacity is 1.5" (40 mm) in mild steel, with a motor rated at 1725 RPM and operating on 220 V, 1-phase, 60 Hz power. This Taiwanese-built mill drill is a practical choice for general-purpose work in private garages/machine shops.

Specification
Machine: Geared Head Milling & Drilling Machine

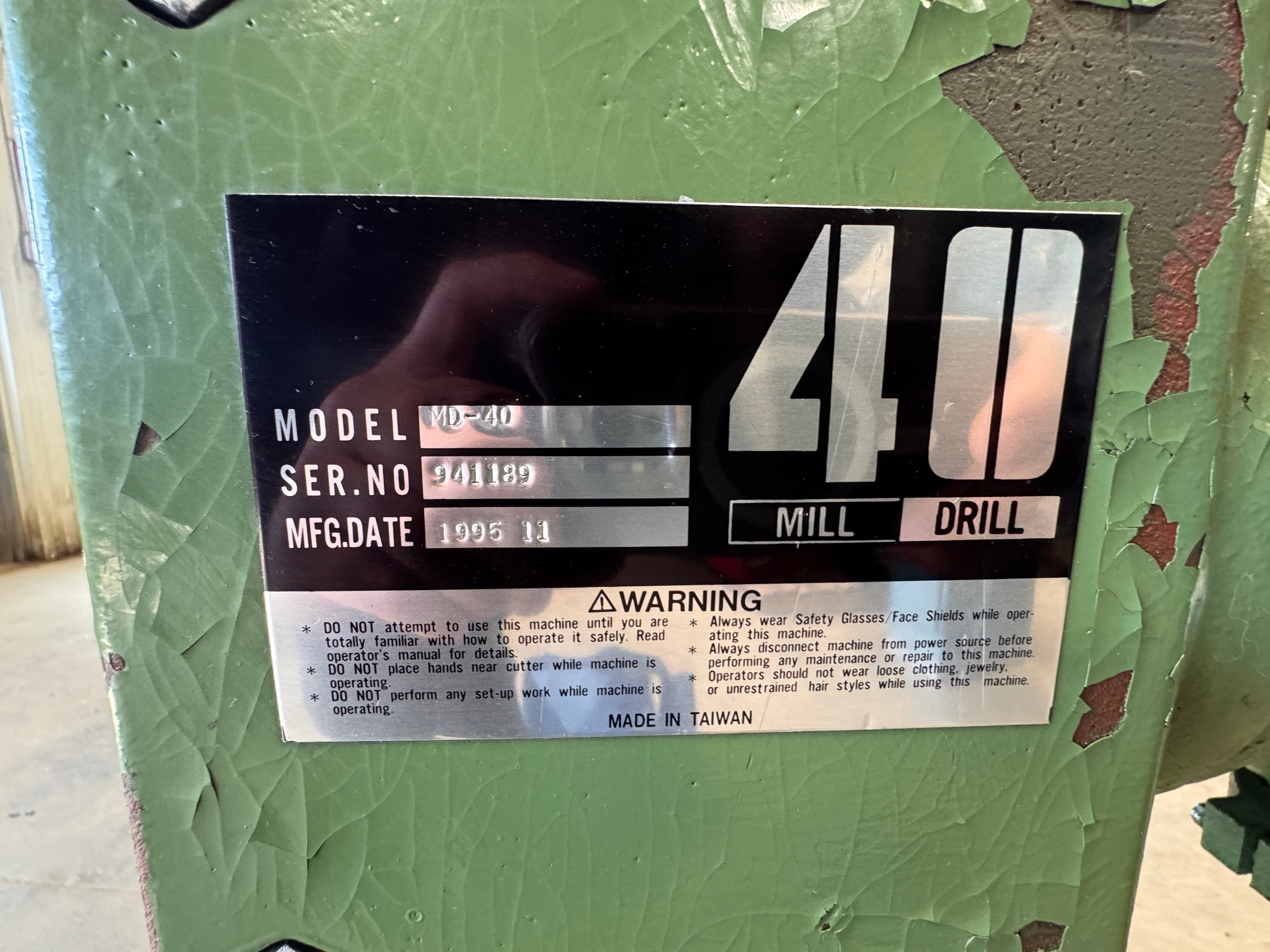

Model / Type: Force MD-40

Brand: Force
Serial Number: 941139
Country of Origin: Taiwan

Spindle

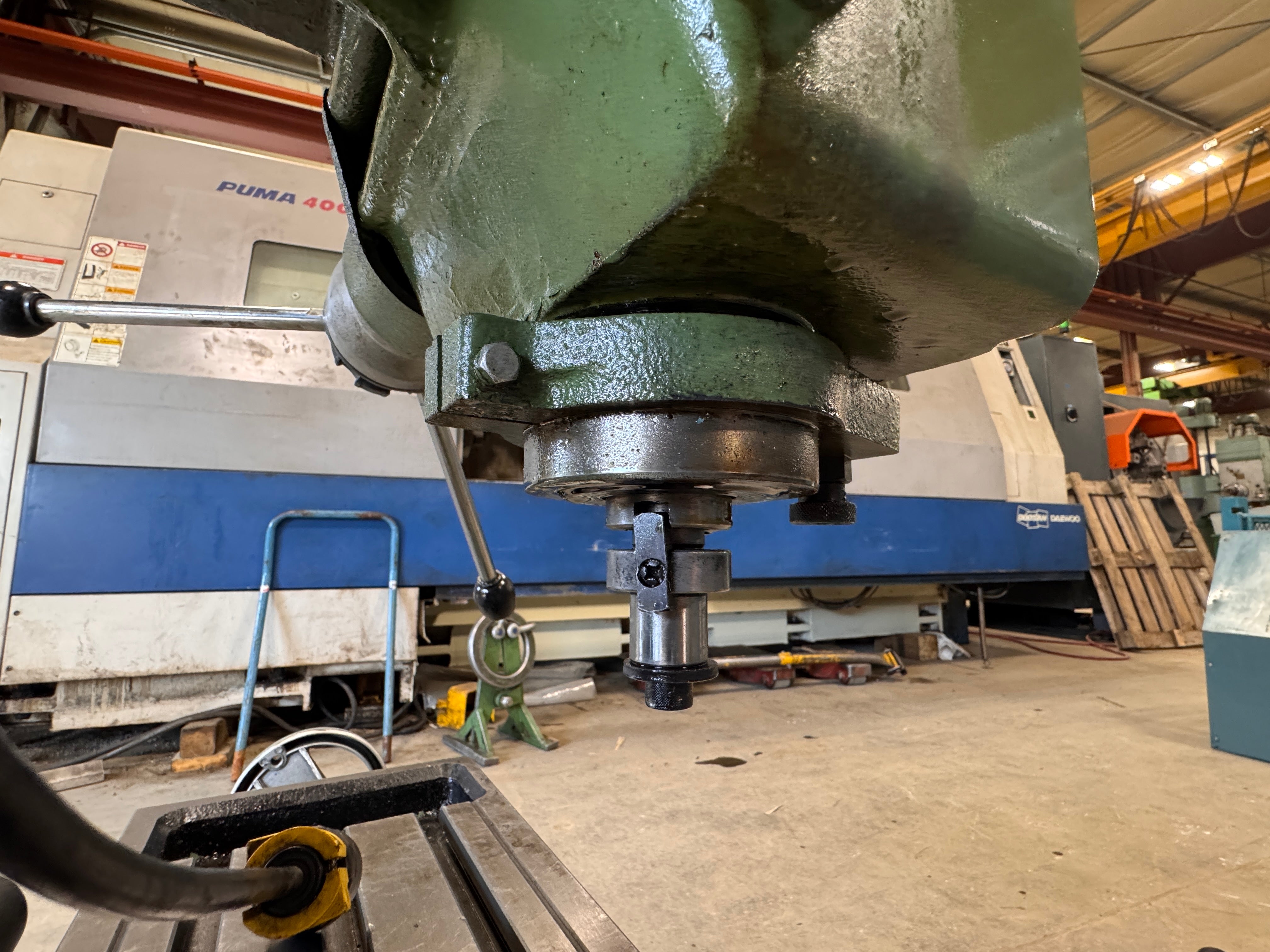

Spindle taper: MT3 (Morse Taper #3)
Drilling capacity in mild steel: 1.5" (40 mm)

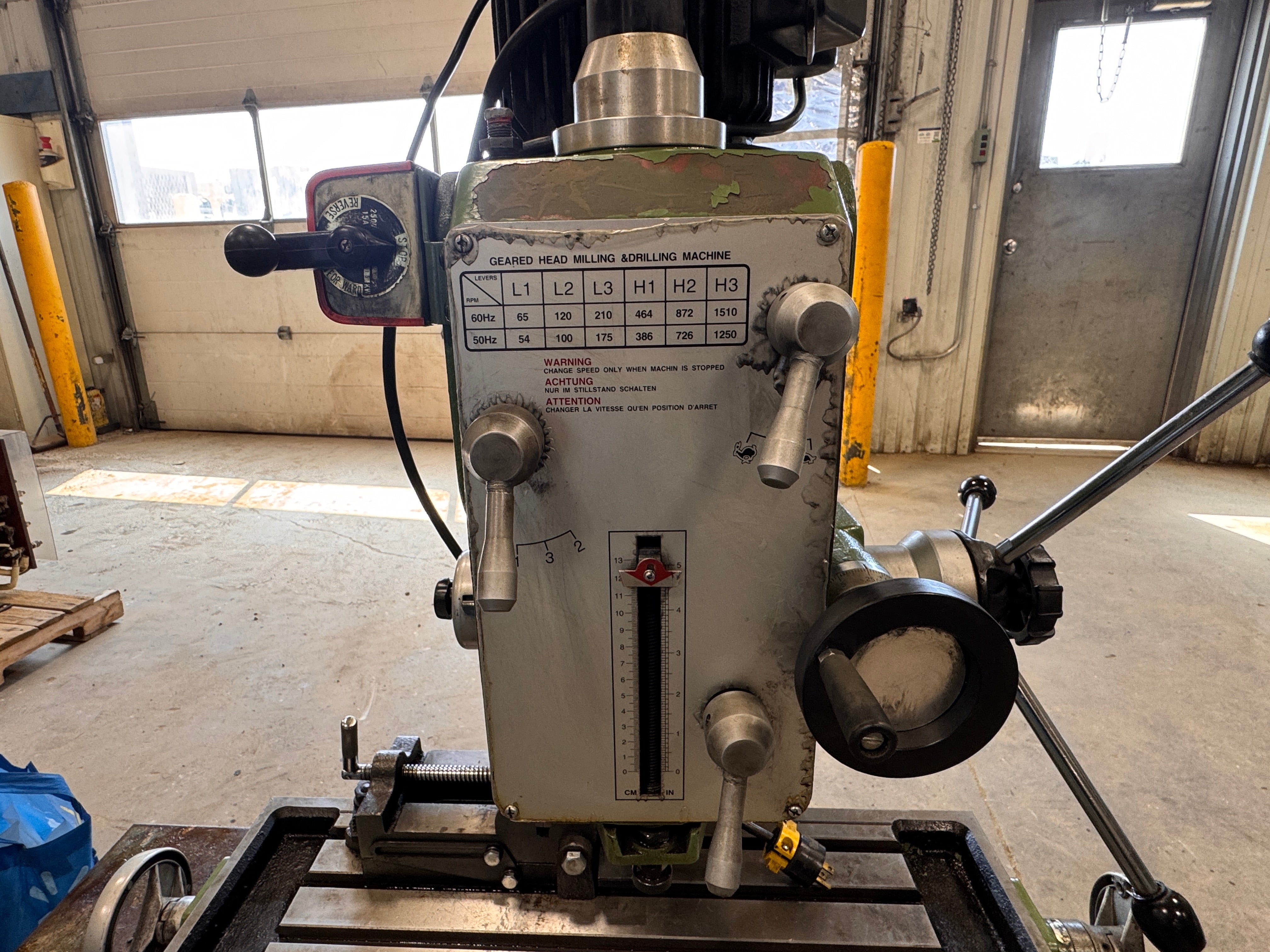

Spindle speeds at 60 Hz: 65 / 120 / 210 / 464 / 872 / 1510 RPM
Spindle speeds at 50 Hz: 54 / 100 / 175 / 386 / 726 / 1250 RPM
Spindle bearings: Roller bearings
Head type: Geared head

Motor / Drive
Motor power: 2 HP

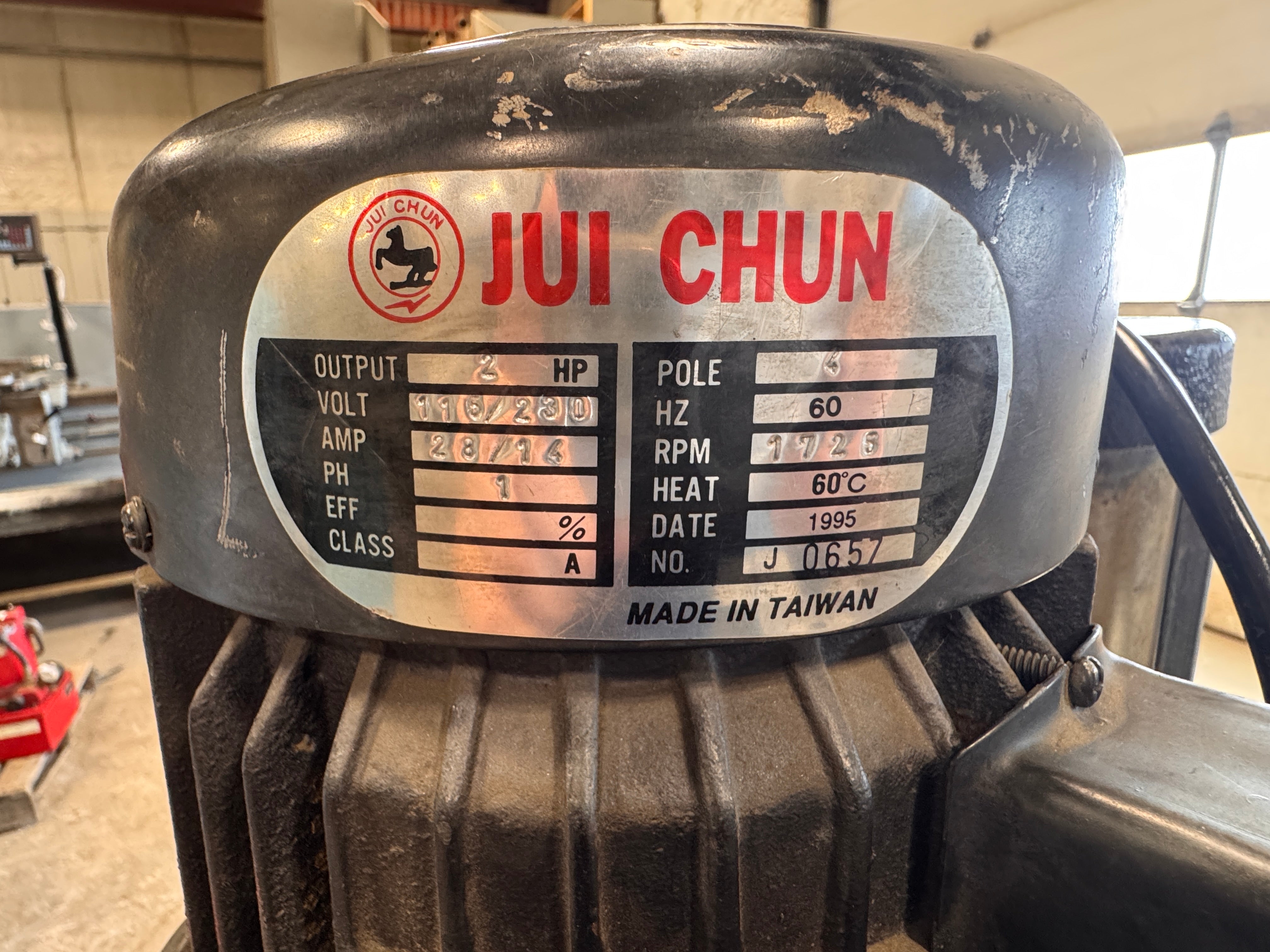

Motor brand: JIU CHUN
Motor speed: 1725 RPM

Electrical
Power: 220 V, 1-phase, 60 Hz

Table / Mounting

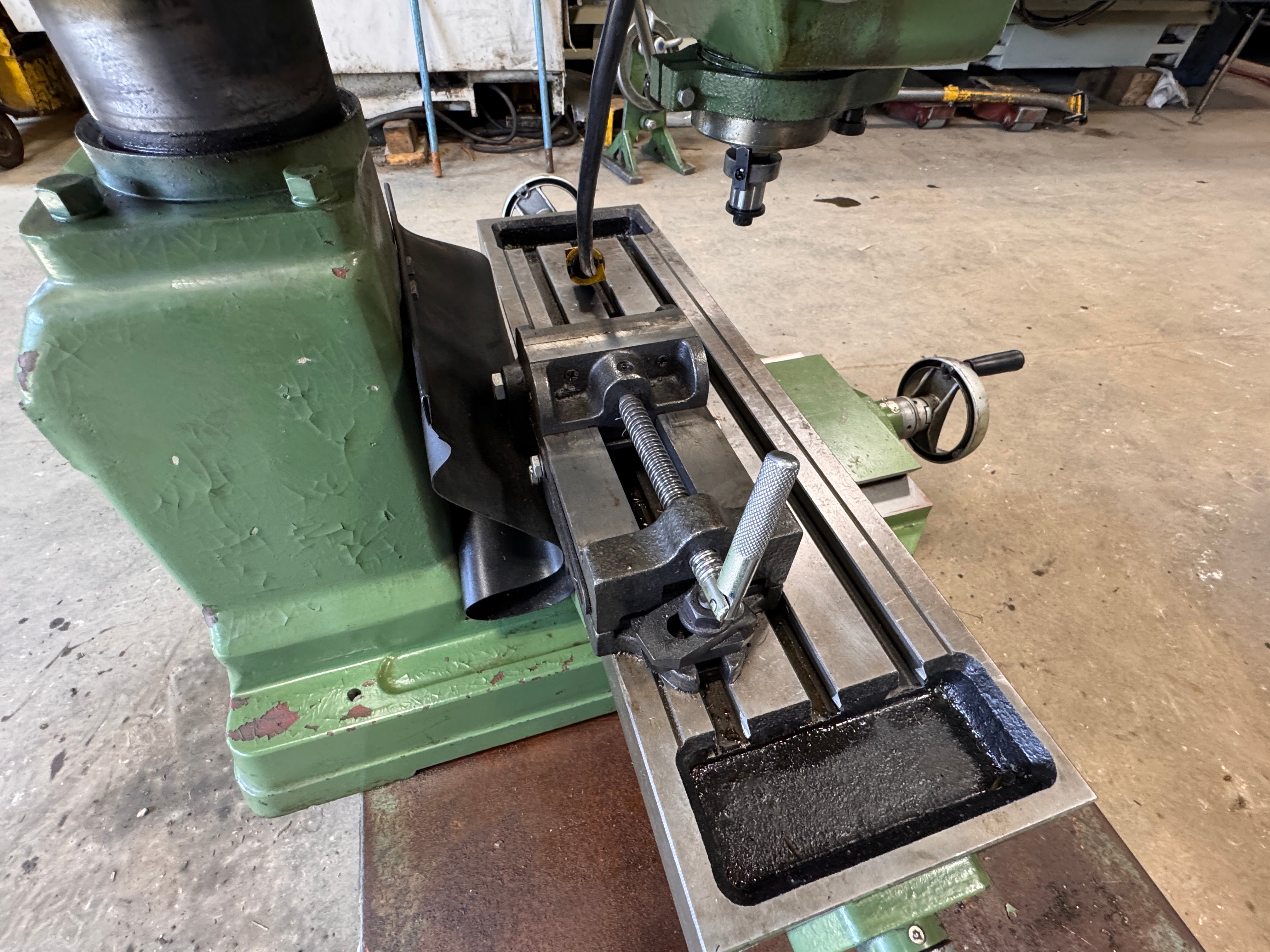

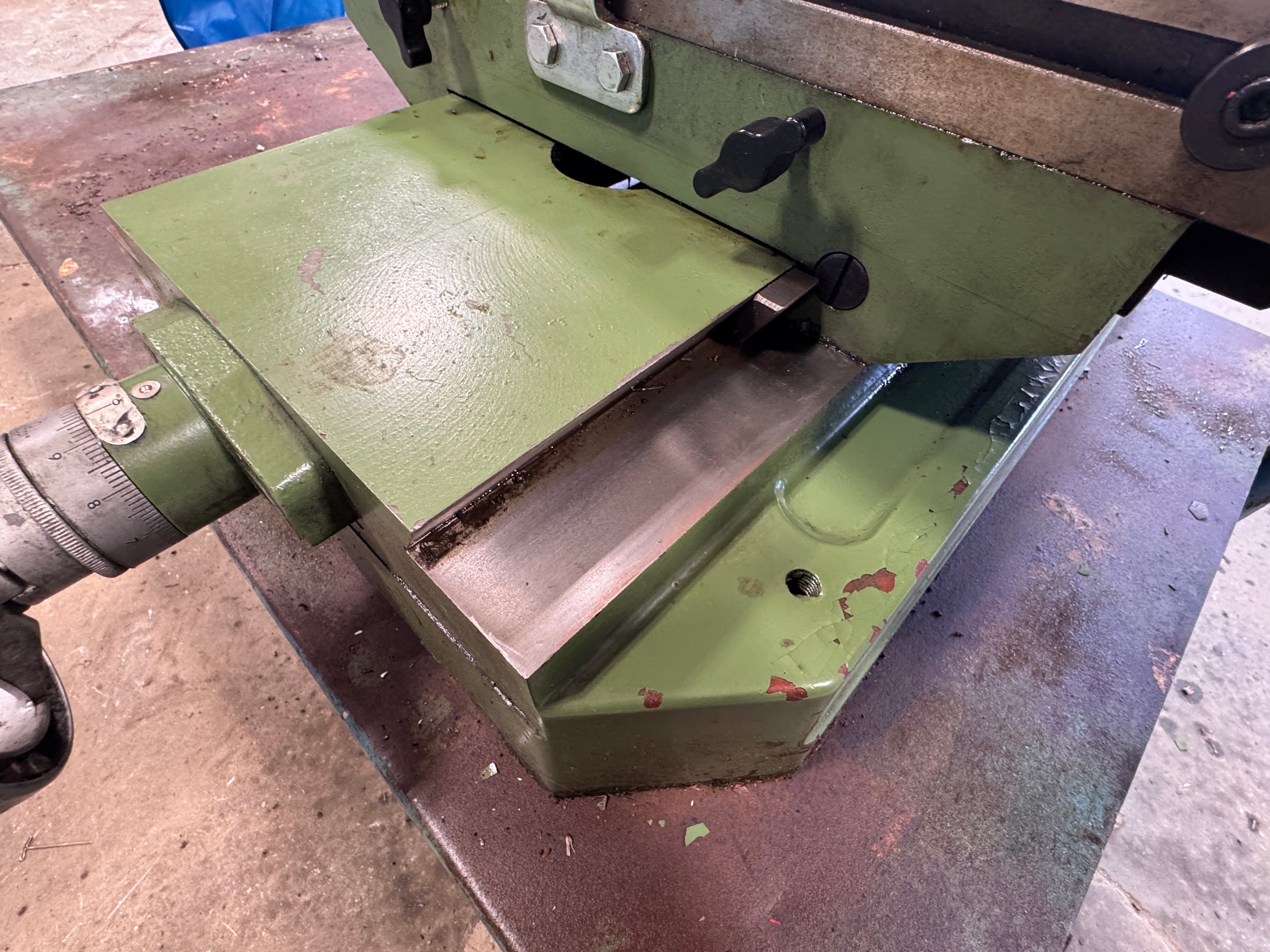

Table: Precision T-slot table with X–Y travel
Mounting: Bench-mount (no stand included)

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
