SKT400LMC - Specifications
CAPACITY
Swing on the bed: Ø725 mm (28.5")
Max. turning diameter: Ø570 mm (Ø22.4")
Max. turning length: 2,110 mm (83.1")
Bar capacity: Ø117 mm (Ø4.6")

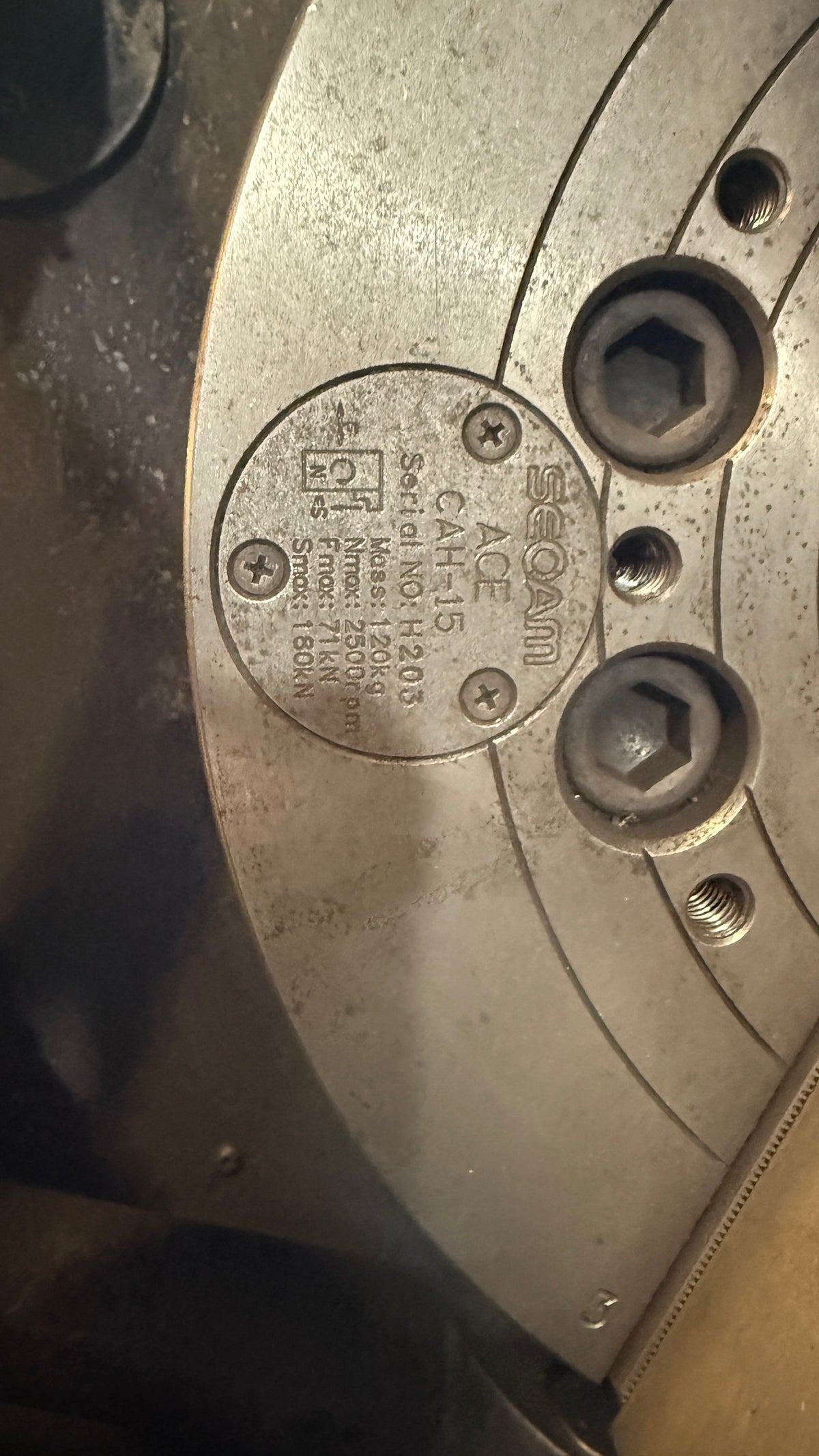

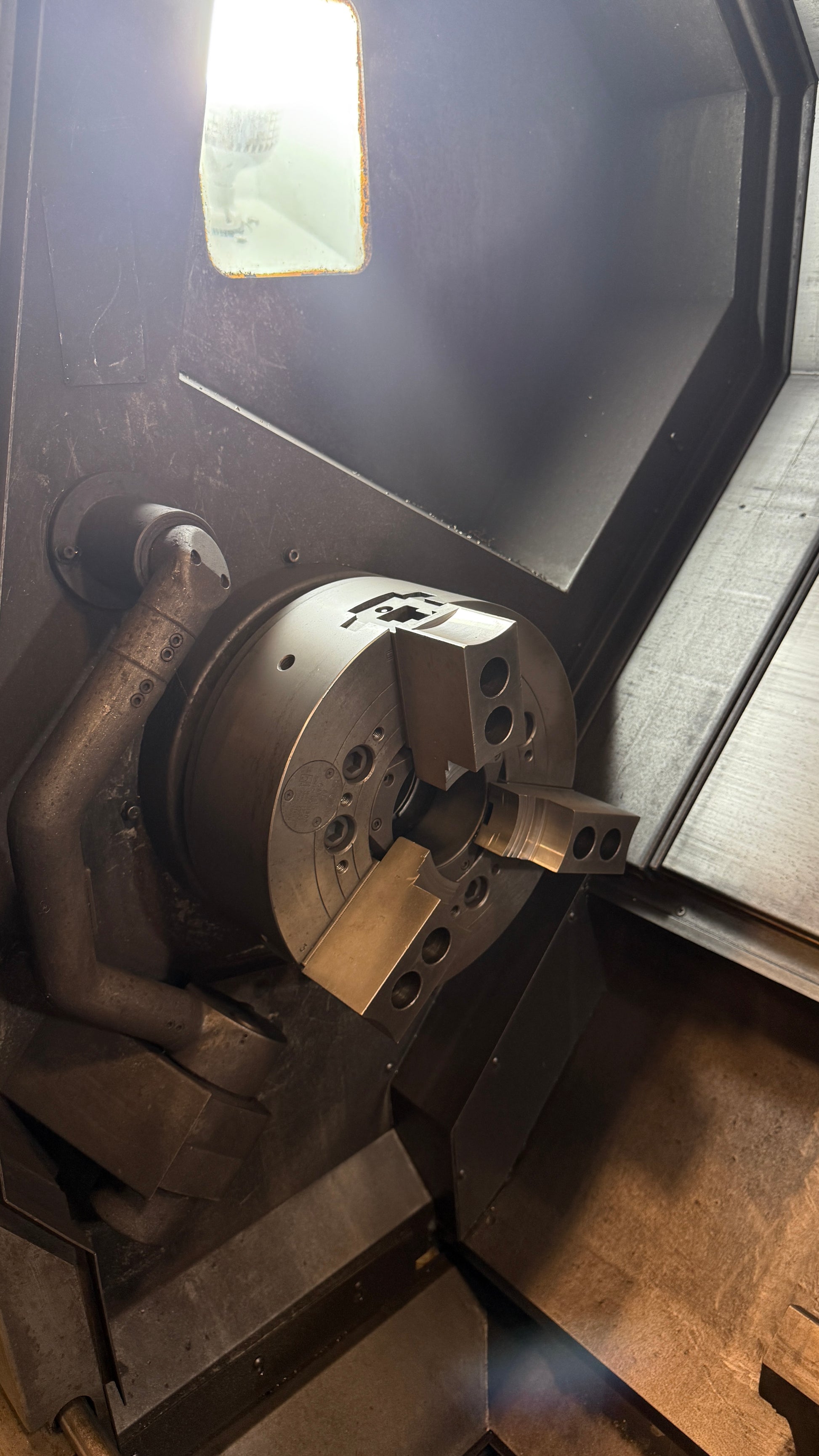

Chuck size: Ø380 mm (Ø15")

SPINDLE
Speed: 2,000 rpm
Spindle nose: A2-11
Spindle bore: Ø130 mm (Ø5.1")
C-axis indexing: 0.001°

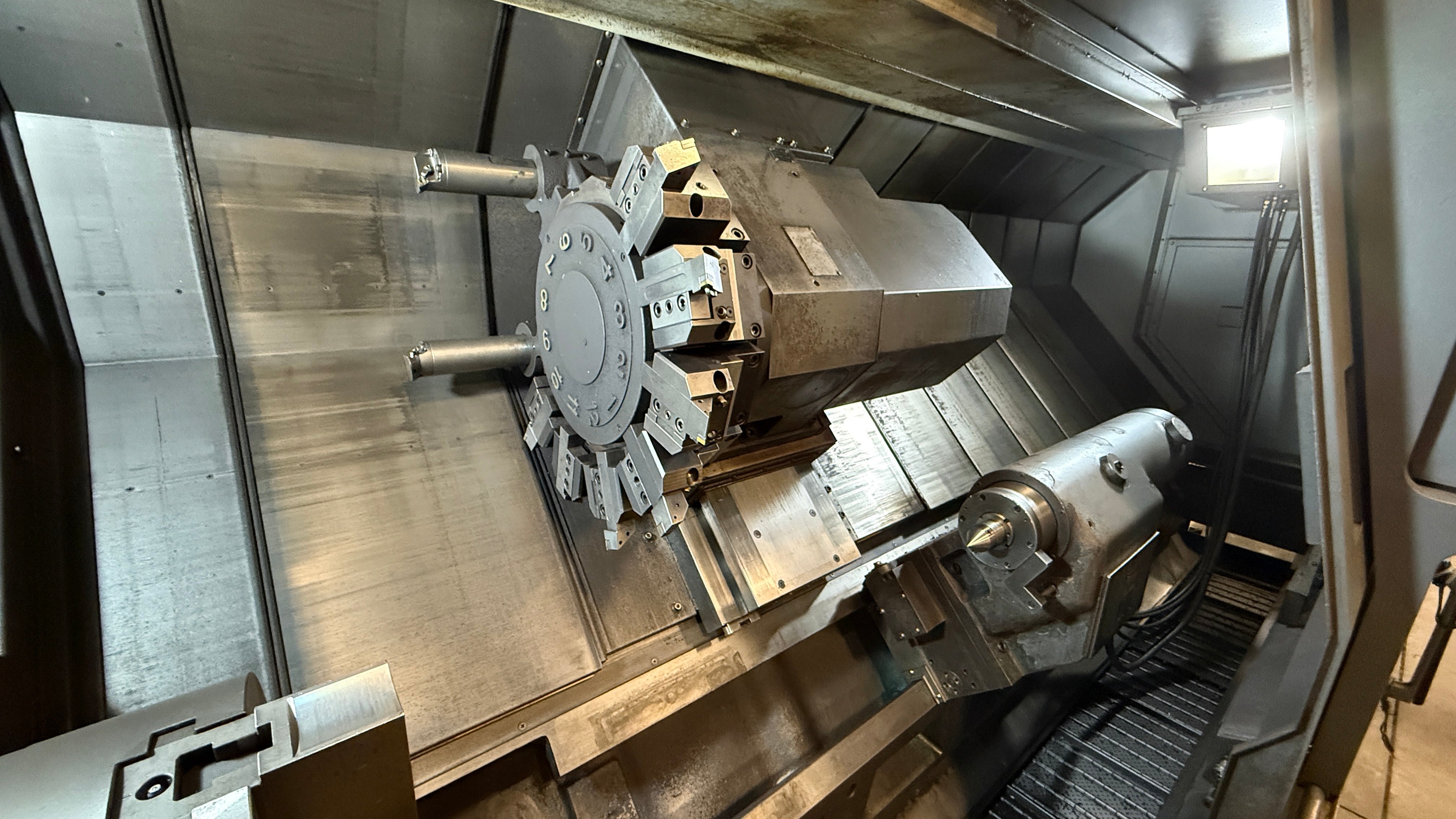

TURRET
Number of tools: 12
Tool size (OD/ID): □32 × Ø63 (□1.3" × Ø2.5")
Turret indexing time: 0.2 sec
Max. milling tool speed: 4,000 rpm
Mechanism: BMT75 (VDI60)

FEED
Travel (X/Z): 320 / 2,200 mm (12.6" / 86.6")
Rapid traverse (X/Z): 20 / 28 m/min (787 / 1,102 in/min)

TAIL STOCK
Taper: MT#5 (Built-In Type)
Diameter: 150 mm (5.9")
Quill travel: 150 mm (5.9")
Travel: 2,100 mm (82.7")

MOTOR
Spindle motor (30 min / Cont.): 37 / 30 kW (50 / 40 HP)
Feed motor (X/Z): 7.0 / 7.0 kW (9.4 / 9.4 HP)
Milling tool motor: 7.5 / 5.5 kW (10 / 7 HP)

MACHINE SIZE
Floor space (L × W): 5,340 × 2,165 mm (210.2" × 85.2")
Height: 2,228 mm (87.7")
Weight: 10,000 kg (22,046 lbs)

ELECTRIC POWER SUPPLY
35 kVA

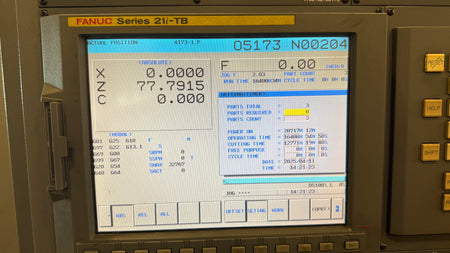

CONTROLLER
FANUC i Series (FANUC 21i-T)
