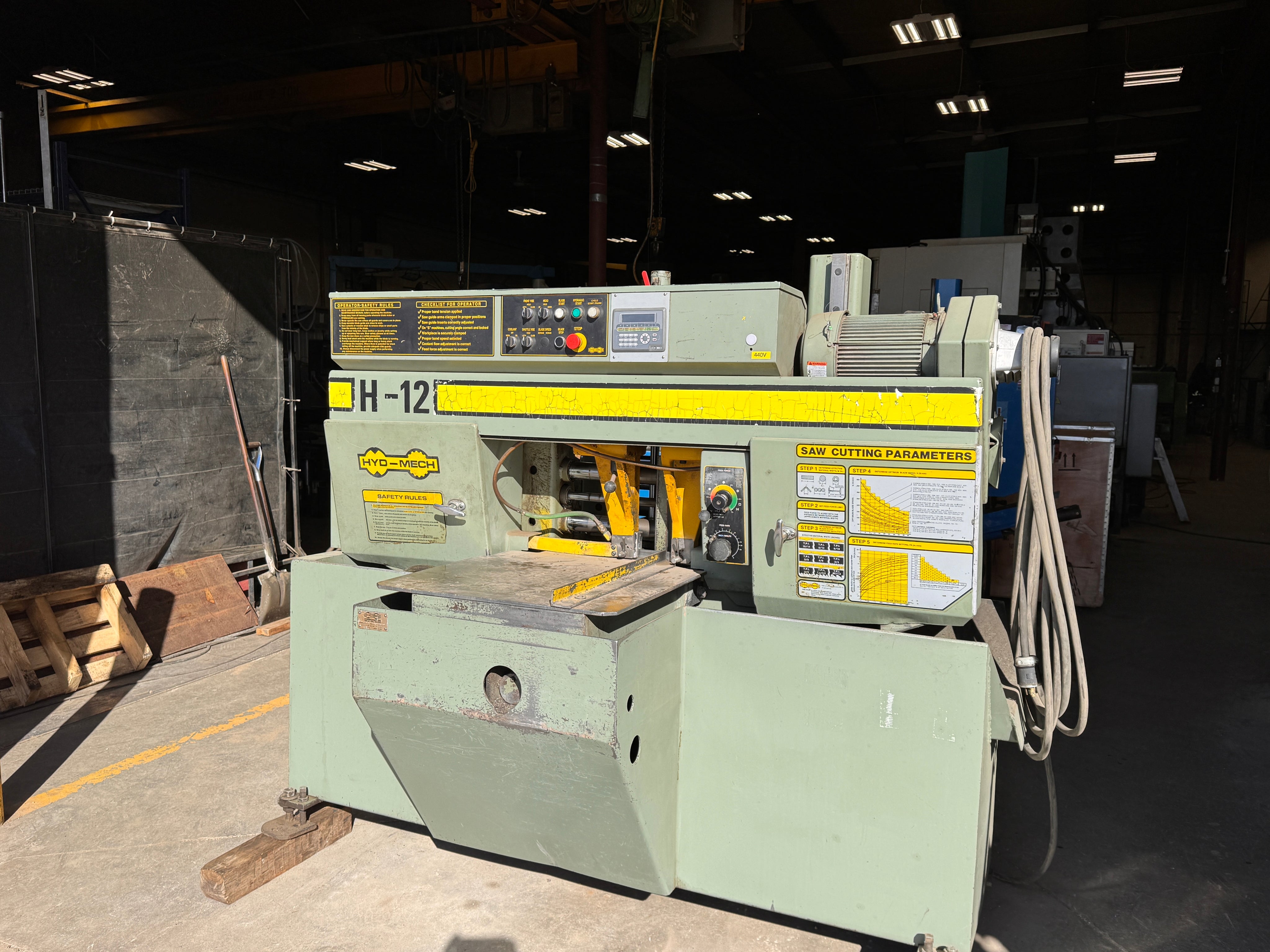

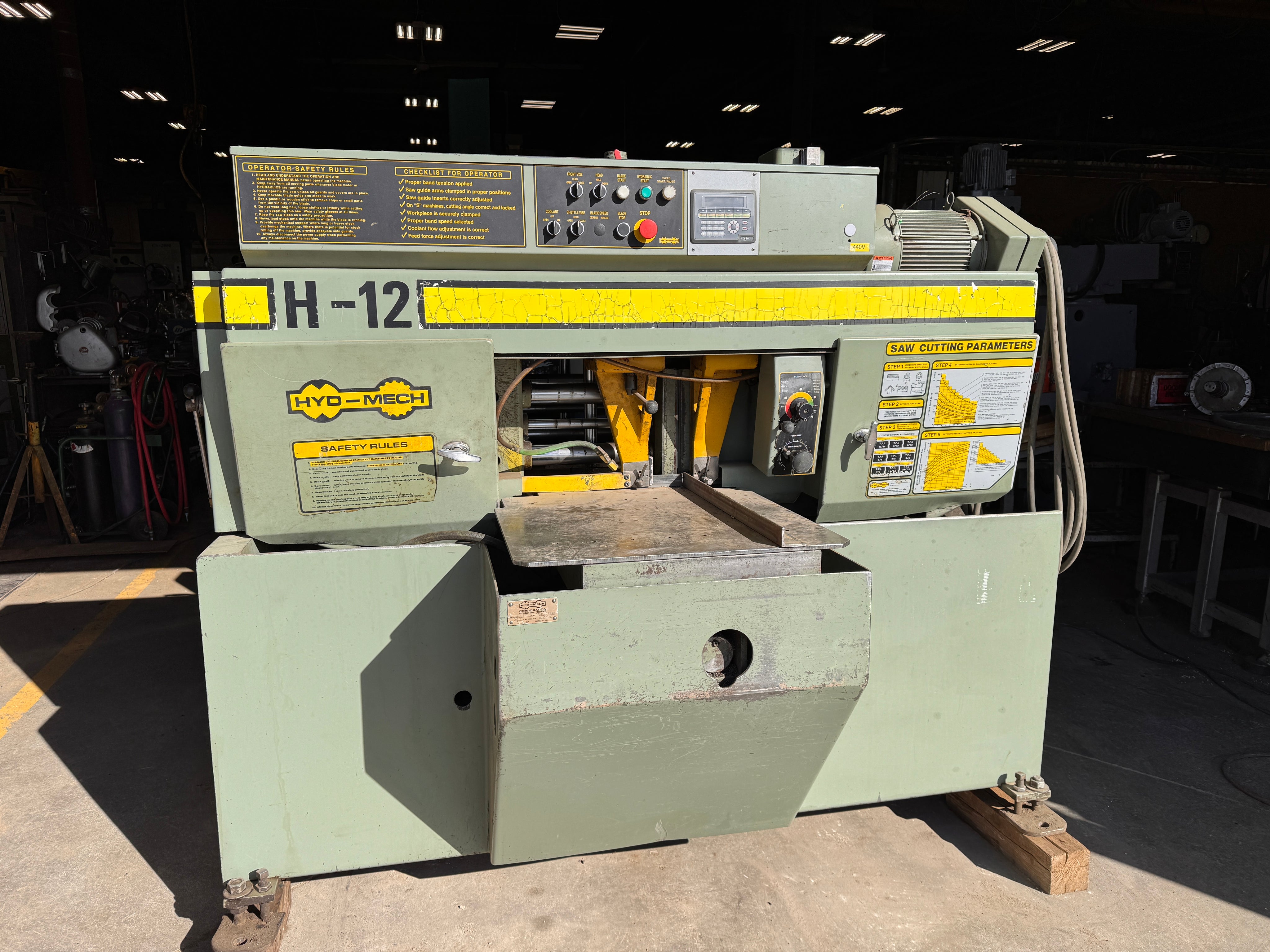

The HYD-MECH H-12 is a robust horizontal band saw designed for production cutting of solid and structural materials. With automatic operation, adjustable feed force, and optimized cutting parameters, this saw delivers consistent performance and accuracy. Ideal for steel service centers, fabrication shops, and heavy manufacturing, the H-12A is known for reliability and ease of use.

HYD-Mech H-12A Band Saw Specifications & Features
Specifications
Cutting Capacity: 12″ round / 12″ × 12″ rectangle
Blade Dimensions: Length: 162″ (13′‑6″) | Width: 1″ | Thickness: 0.035″
Blade Speed: 75–400 SFM (variable with VFD option)
Blade Guides: Carbide guides with coolant lubrication
Blade Tension: Manual, approx. 26,000 psi
Wheel Diameter: 16″

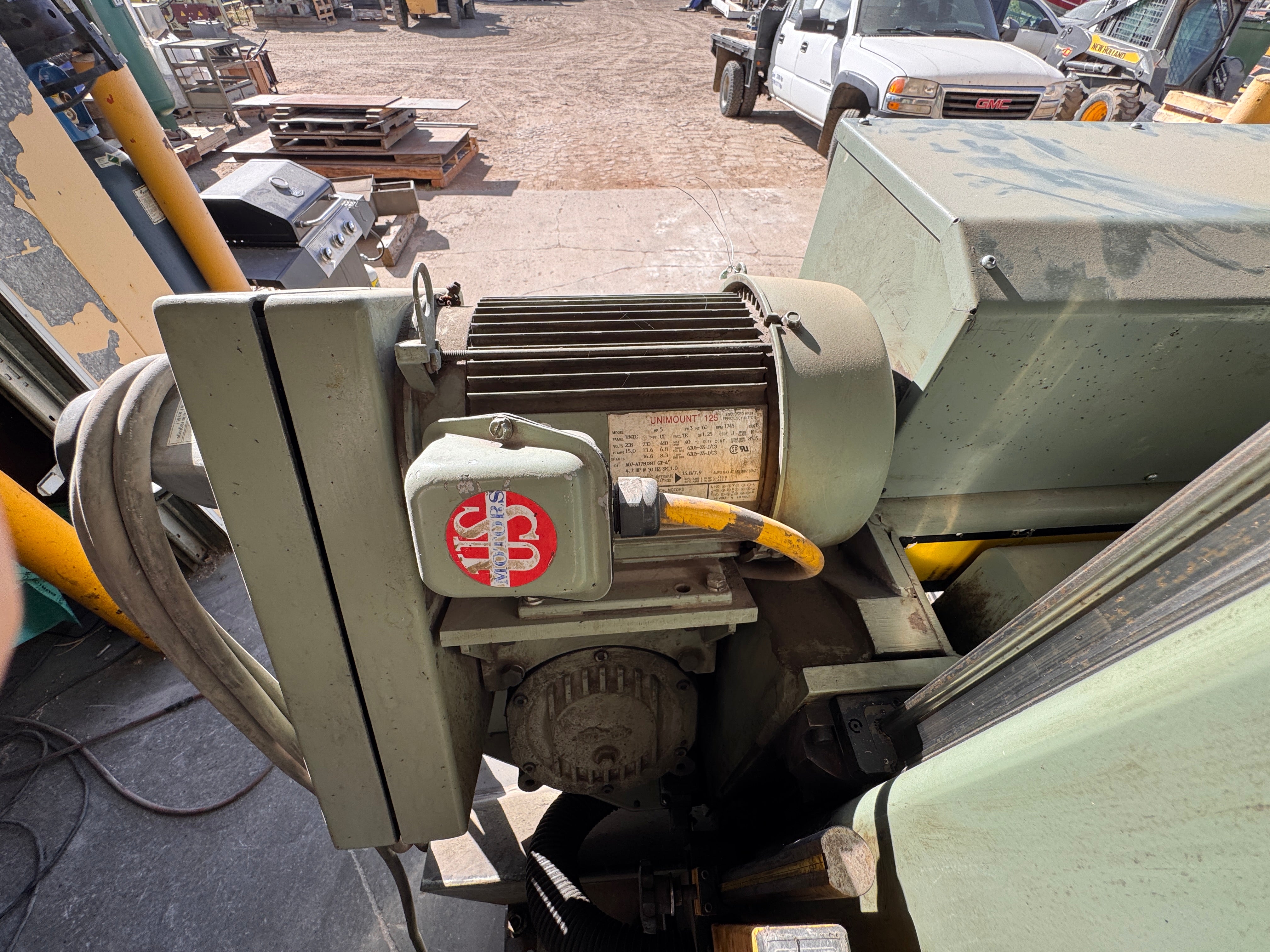

Blade Drive Motor: 5 HP
Voltage: 440v
Hydraulic System: Approx. 500 PSI, 6.5 GPM pump
Coolant System: Tank capacity ~23 gallons, pump ~3.5 GPM
Work Table Height: 31″

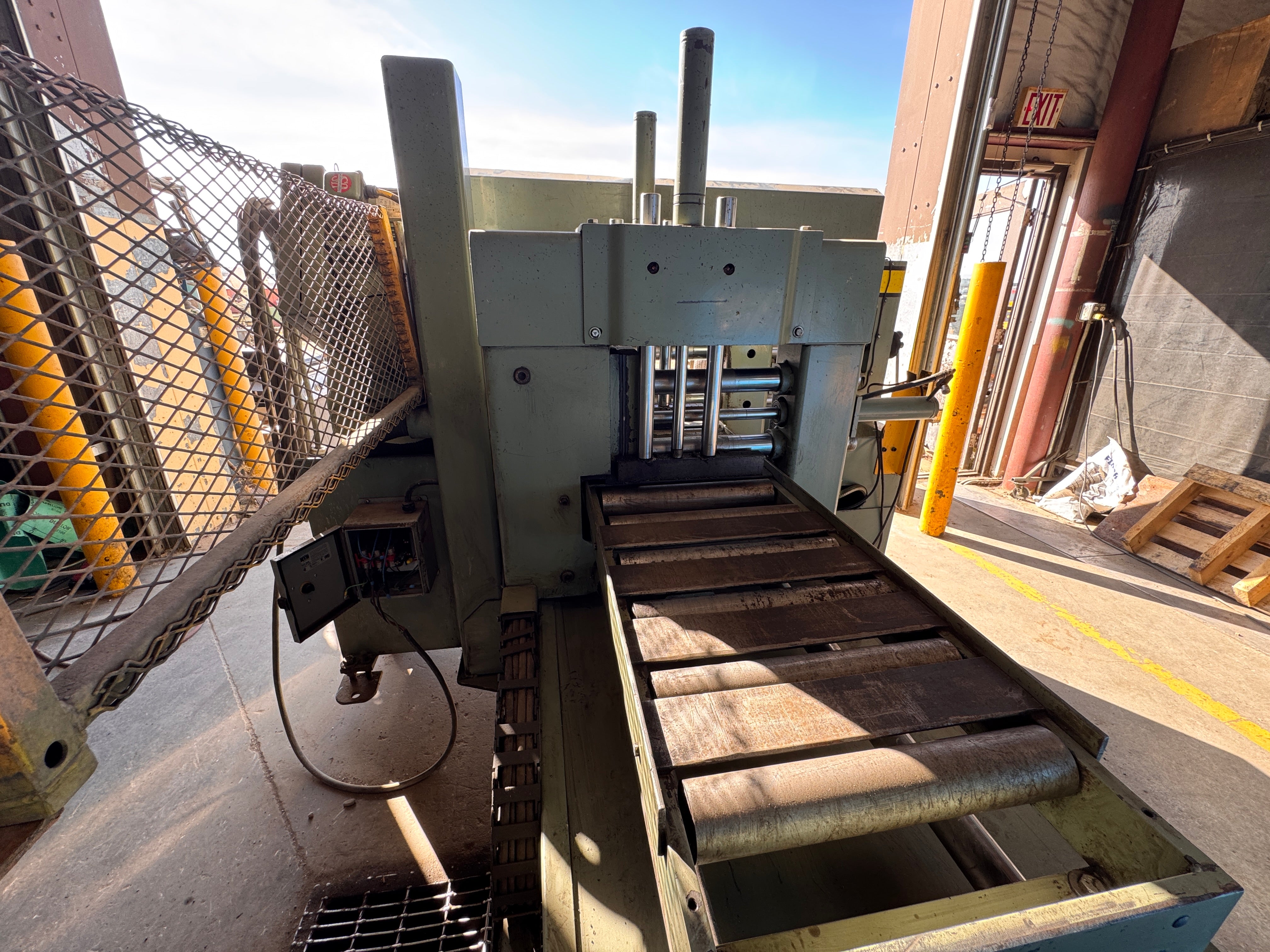

Shuttle Stroke: 0–22″ (up to 40″ on some variants)
Machine Dimensions: 88″ W × 78″ L × 68″ H
Machine Weight: Approx. 3,800 lbs
Features
- Automatic horizontal band saw design for production cutting

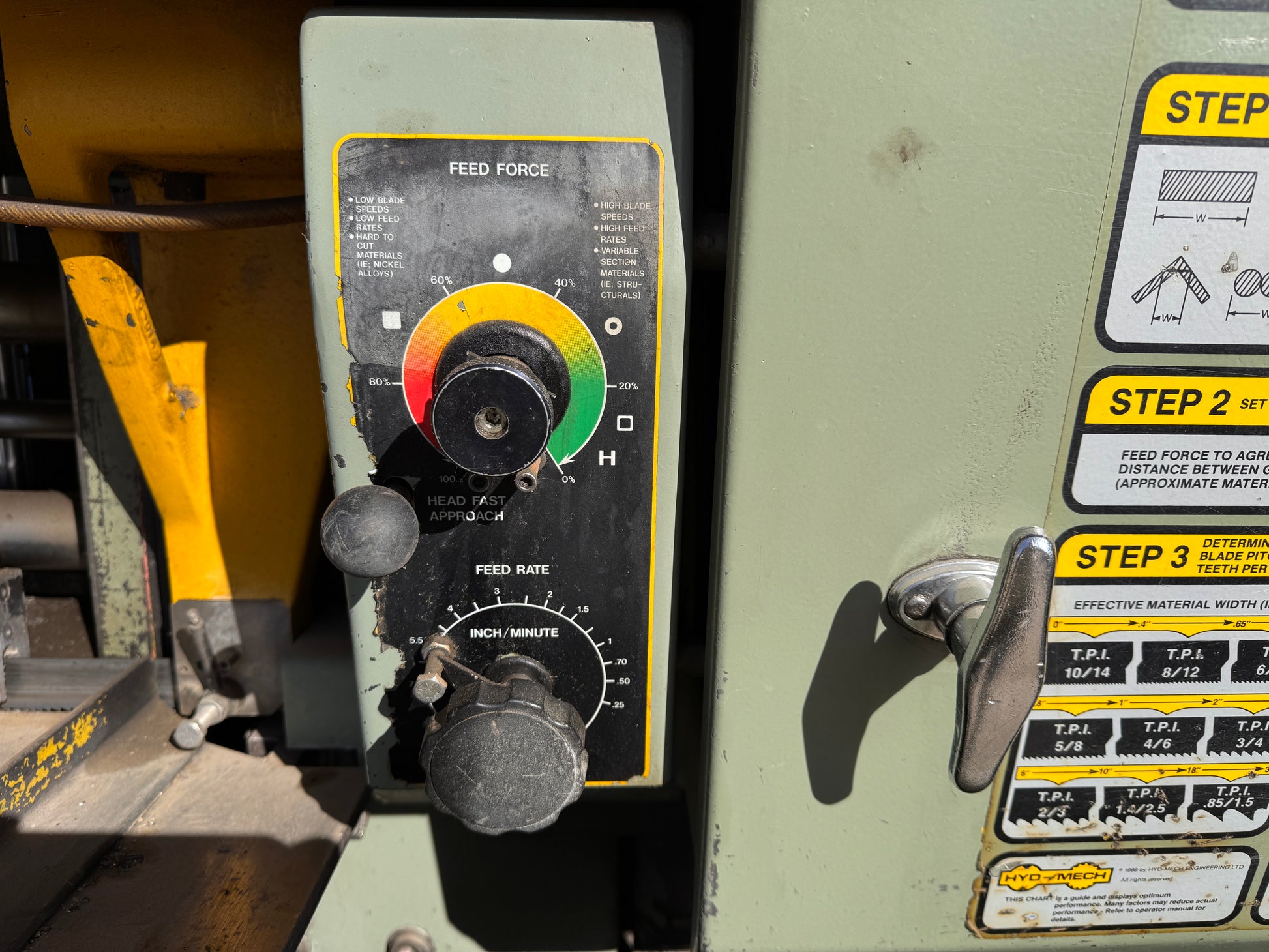

- Hydraulic shuttle vise with feed control
- PLC or control panel options for automation
- Carbide blade guides with coolant lubrication
- Adjustable blade speed with optional VFD
- Heavy-duty 16″ band wheels for durability
- Compact footprint suitable for shop floors
- Built-in coolant system with chip management
- Rigid construction for reduced vibration and accurate cutting
