Machine Description

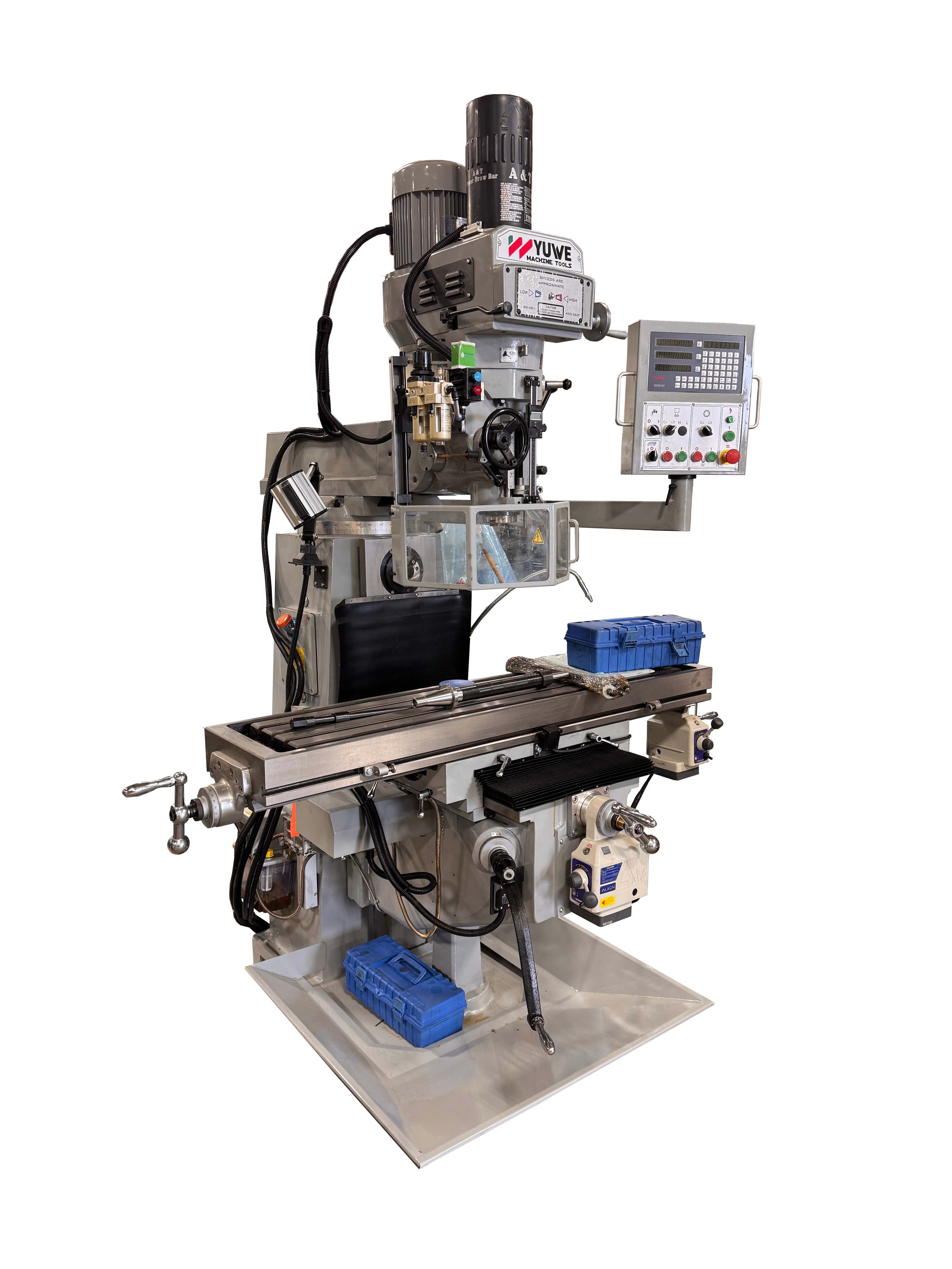

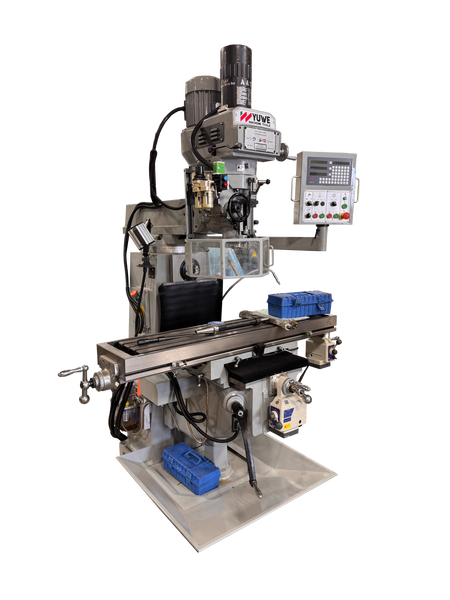

The YUWE TM330H is a universal turret milling machine combining both vertical and horizontal milling capability in one rigid package. Built in Taiwan, this 5 HP dual-spindle mill offers a 12" × 54" table, generous X/Y/Z travels and strong gearbox power feeds for heavy cutting and versatile setup. With automatic lubrication, 3-axis SINO DRO plus quill DRO, and both vertical variable-speed head and horizontal spindle, it is well suited for production, fabrication and toolroom work where accuracy and reliability are critical. This model is a popular choice in Canada for industrial machining.

Specification
Machine: YUWE Universal Turret Milling Machine
Model / Type: TM330H

Origin
Country of Manufacture: Taiwan

Electrical

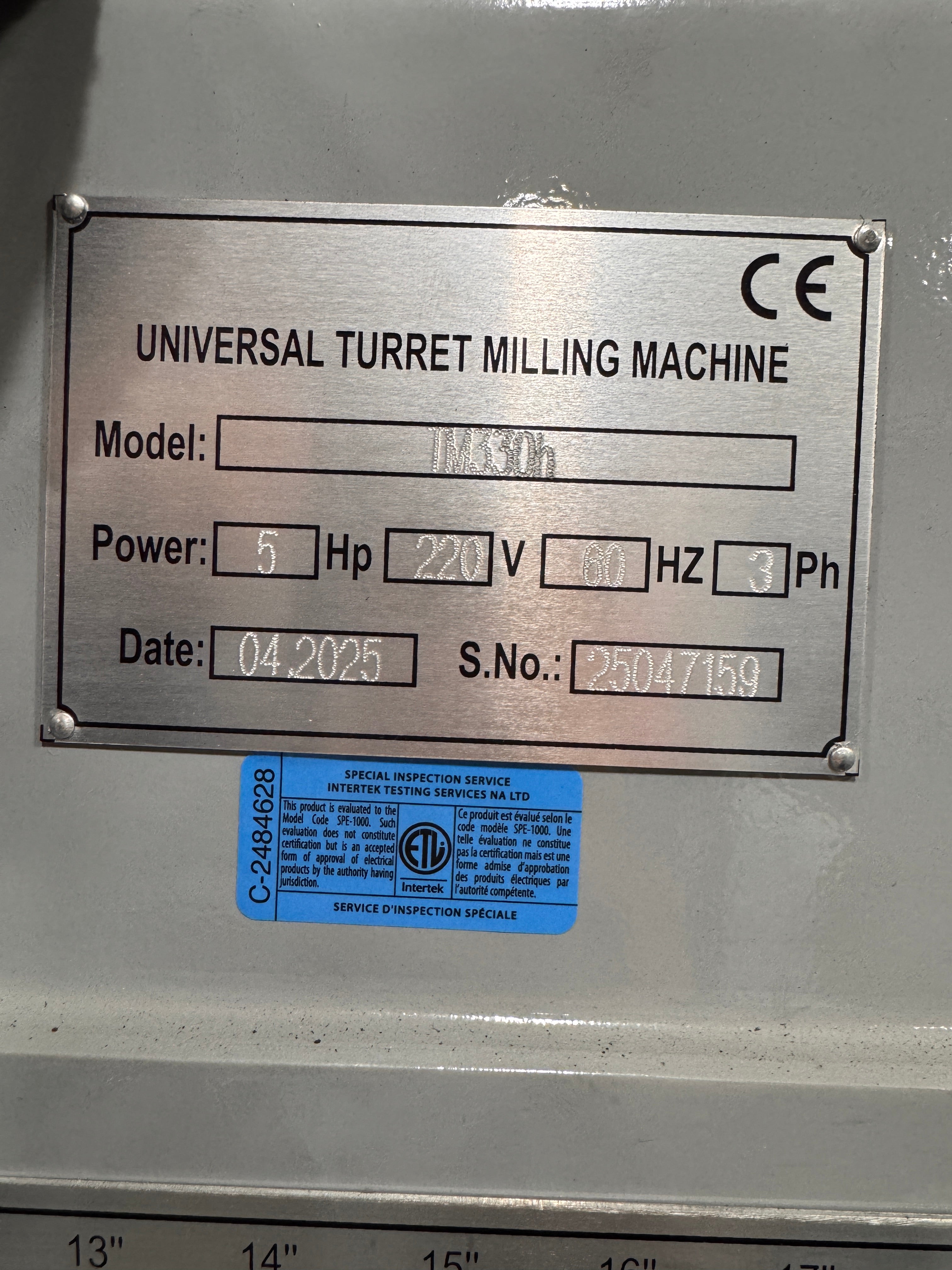

Power: 220 V, 3 Phase, 60 Hz

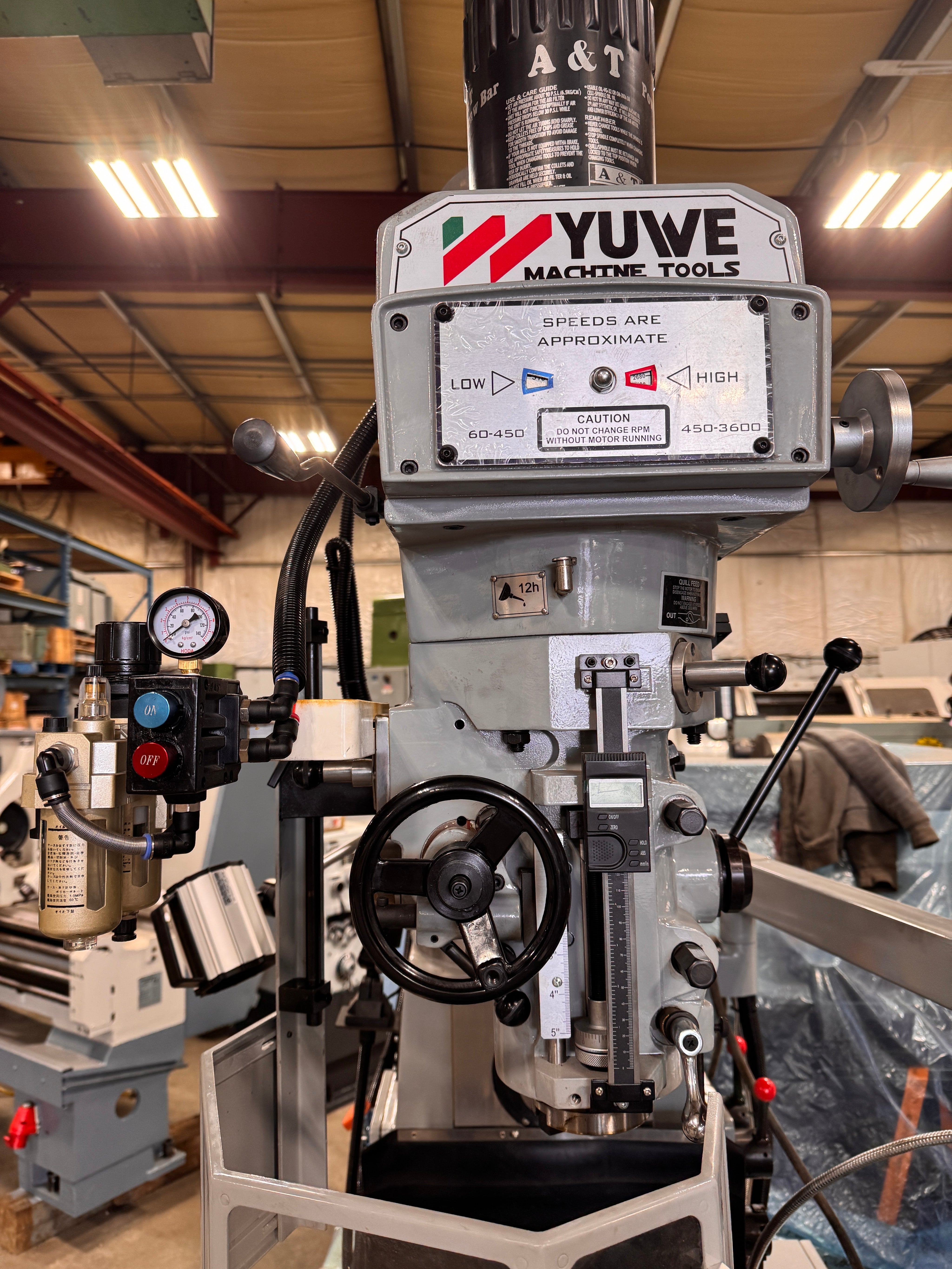

Vertical Milling Head Motor Power: 5 HP (variable speed, Taiwan head)
Horizontal Spindle Motor Power: 5 HP (12 speeds)

Capacities and Travels

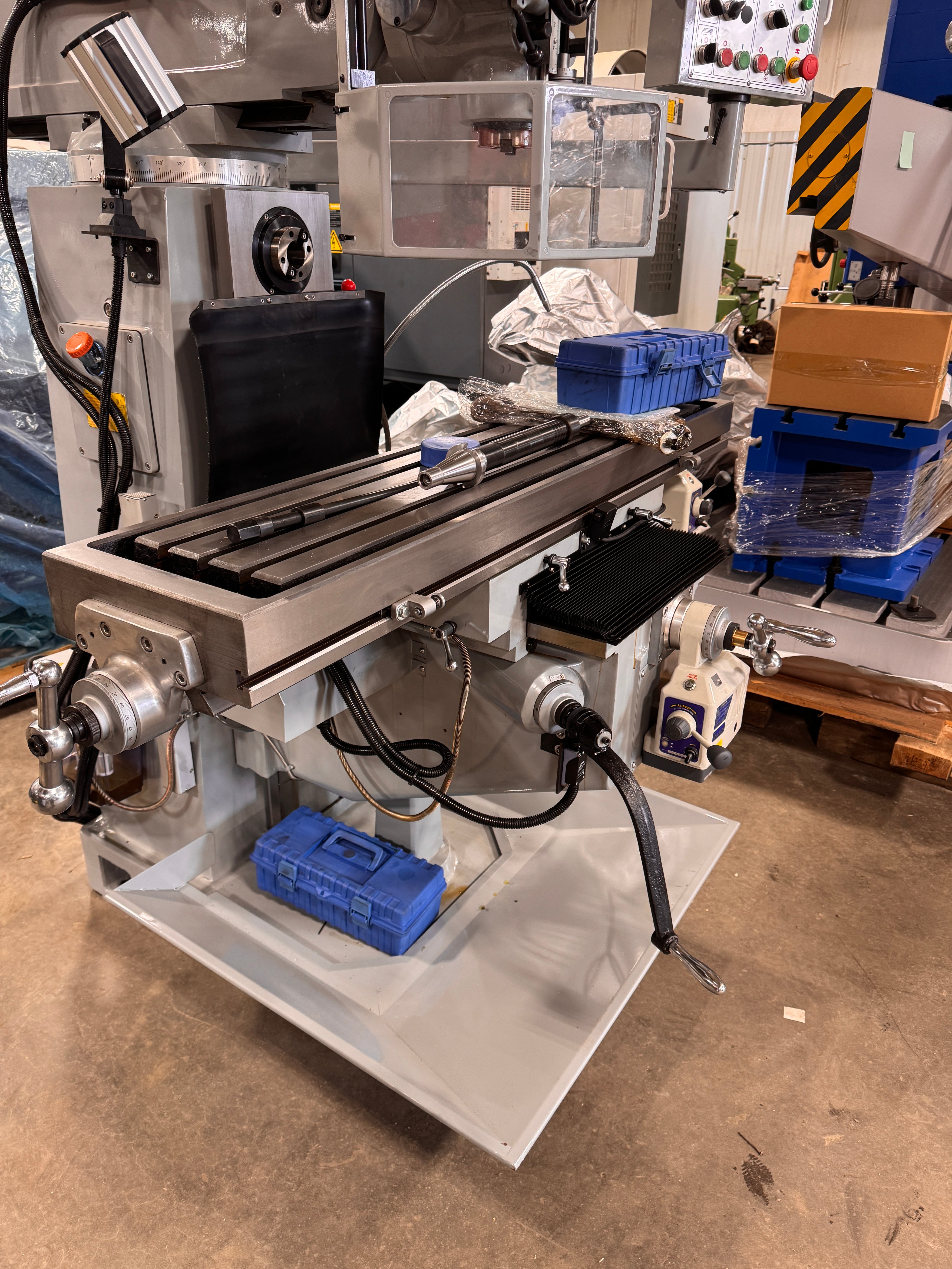

Table Size: 305 × 1370 mm (12" × 54")
Table Travel (X / Y / Z): 1000 / 380 / 435 mm (40" × 15" × 11")
Quill Travel: 127 mm (5")
Ram Cross Travel: 640 mm (25.2")
Distance Vertical Spindle Nose to Table: 0–535 mm (0"–21")

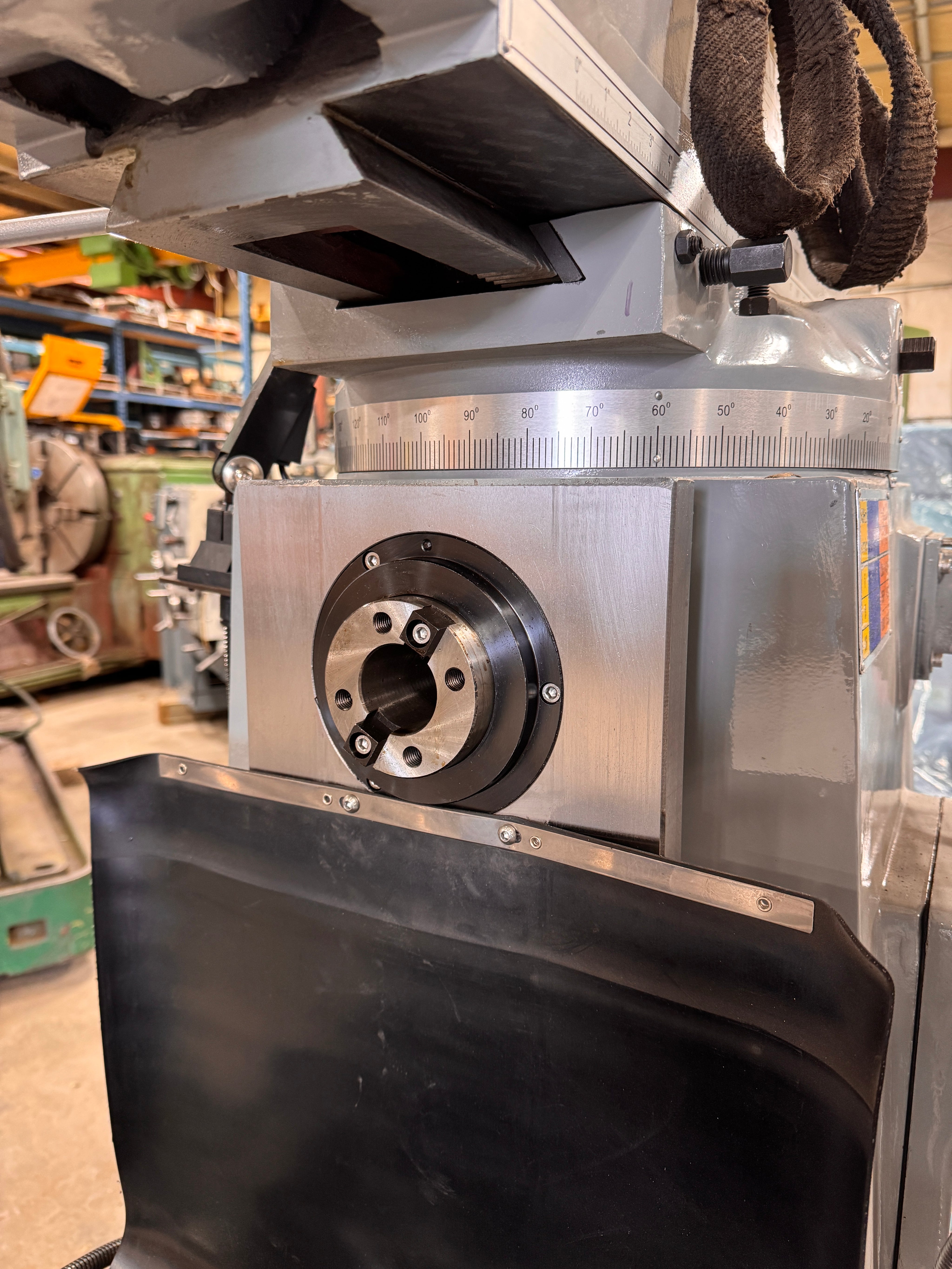

Distance Horizontal Spindle Center to Table: 50–410 mm (2"–16")
Maximum Table Load Capacity: 600 kg

Spindles
Spindle Taper (vertical and horizontal): NT40
Vertical Spindle Speed Range: 80–4200 rpm
Horizontal Spindle Speed Range: 40–1300 rpm (12 steps)

Head and Ram
Milling Head Swivel: ±90°
Milling Head Tilting: ±45°

Feeds and Systems
Standard Power Feeds: X / Y gearbox feed
Z-Axis Up/Down Motor: Included
Lubrication System: Automatic

Machine Size and Weight
Machine Weight: 2200 kg
Overall Dimensions (H × L × W): 2250 × 2150 × 1800 mm

Measurement and Control

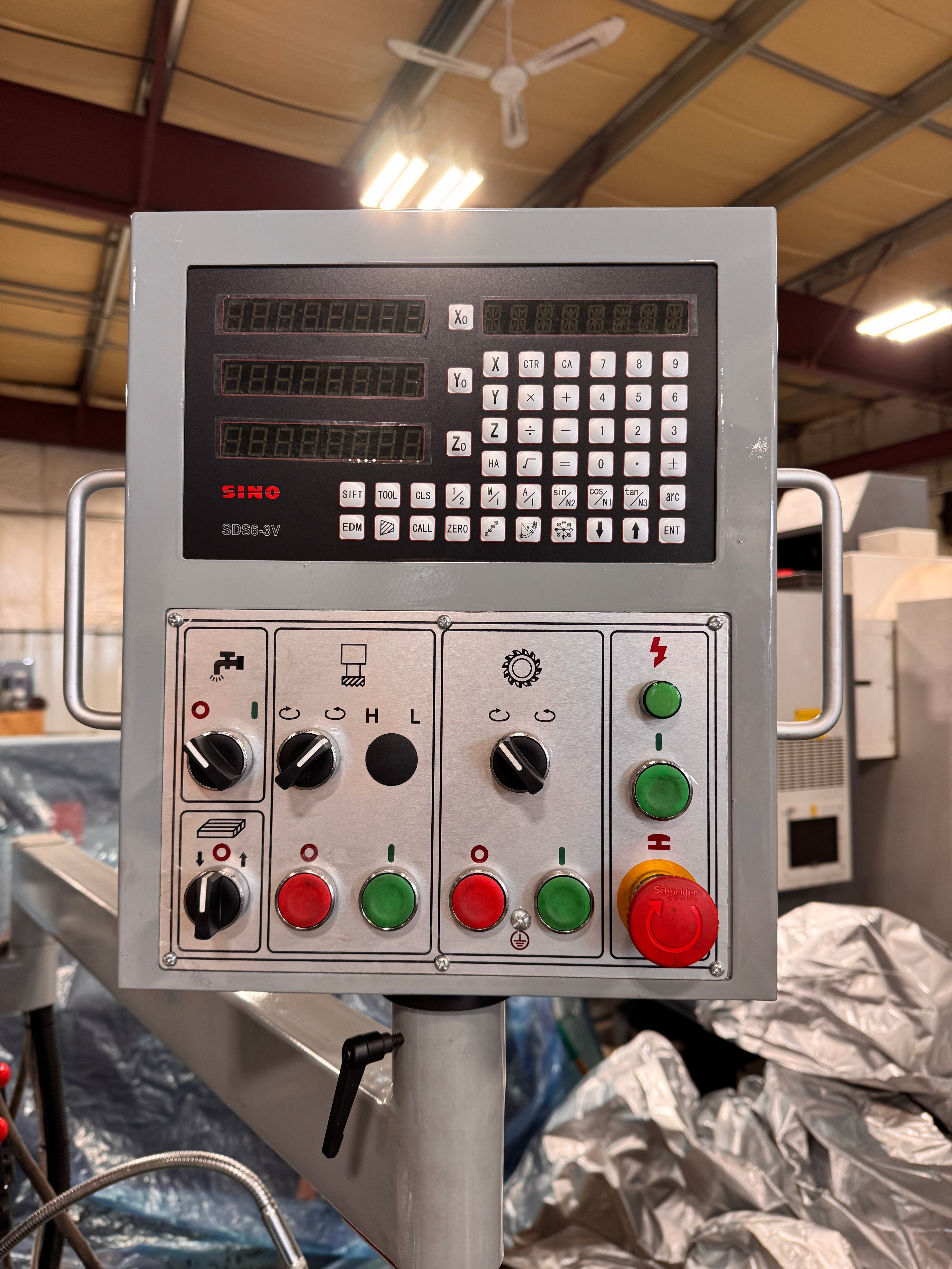

Digital Readout: 3-axis SINO DRO
Additional Readout: Quill DRO

Certification
Certification: CSA / ETL inspection approved

Standard Accessories
Draw Bar for V & H Spindle
Work Lamp
Tool Shank for Horizontal Spindle
Air Power Draw Bar
Cooling Pump and Oil Tray
YZ Axis Splash Guard
Auto Lubrication Pump
3-Axis SINO DRO
Quill DRO
Rubber Telescopic Cover
Water Plate
Tool Box with Wrenches

Optional Accessories
Clamping Kit
Dividing Head
Milling Vise 6"
Collet Set
Rotary Table
