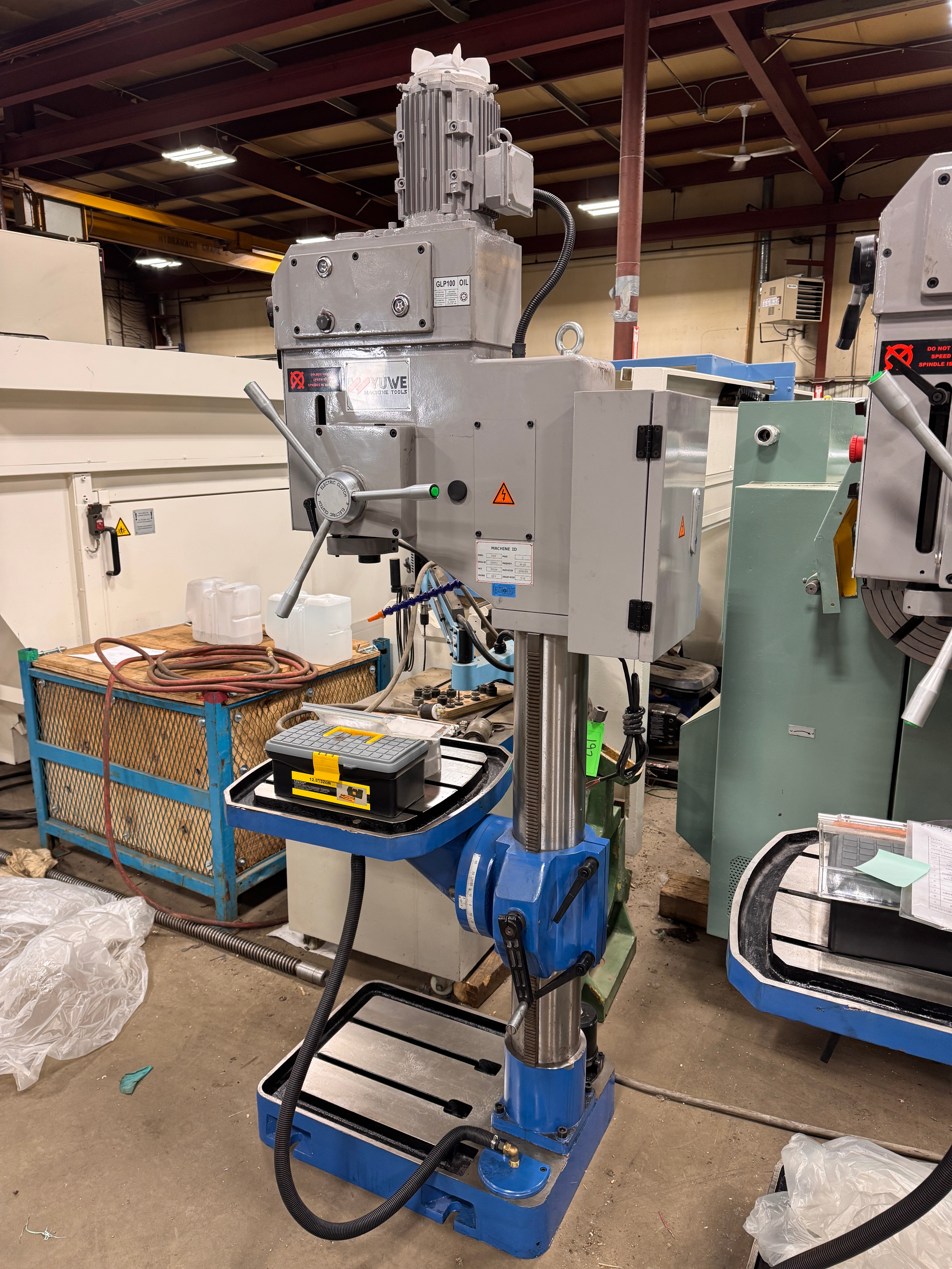

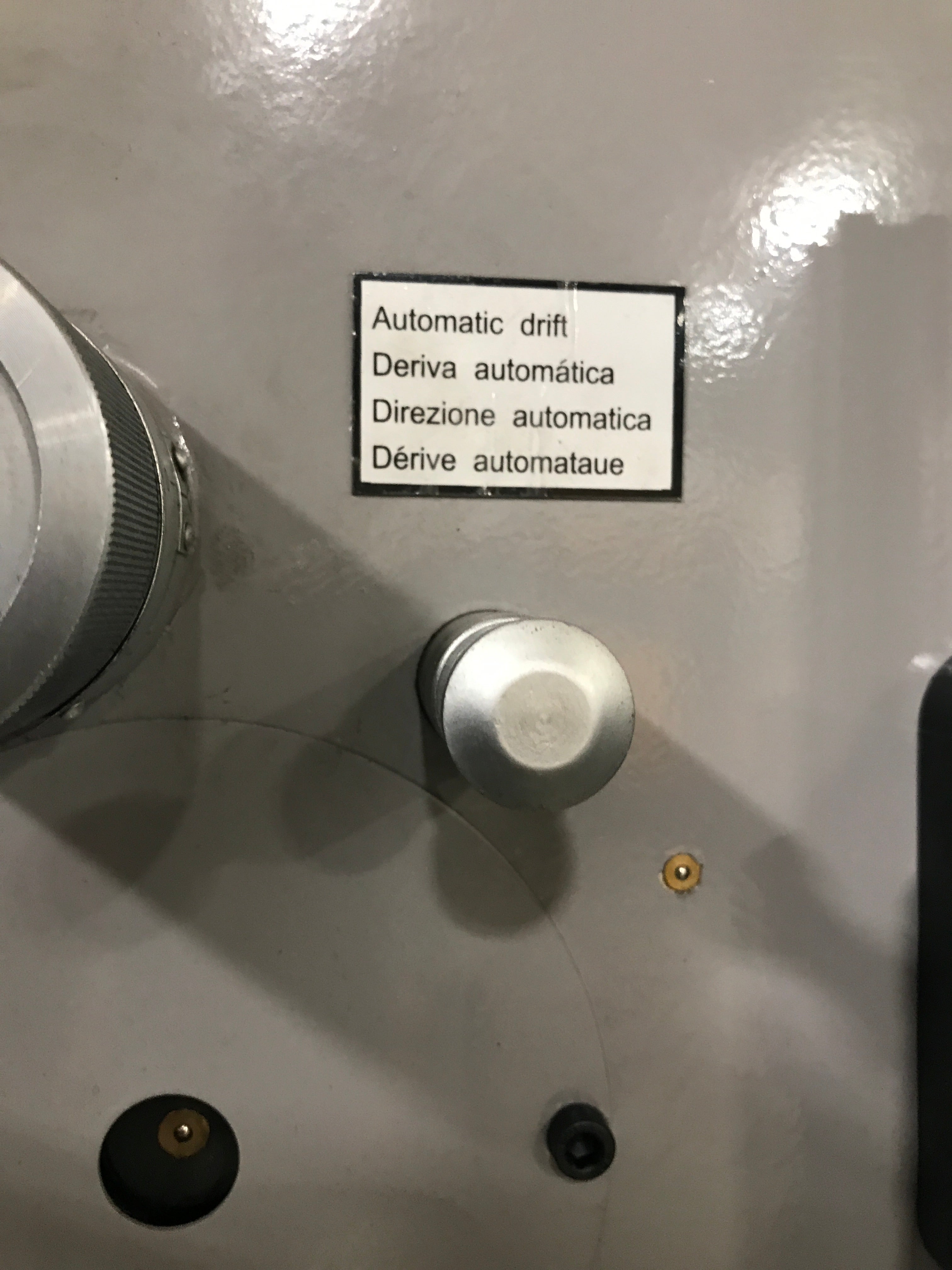

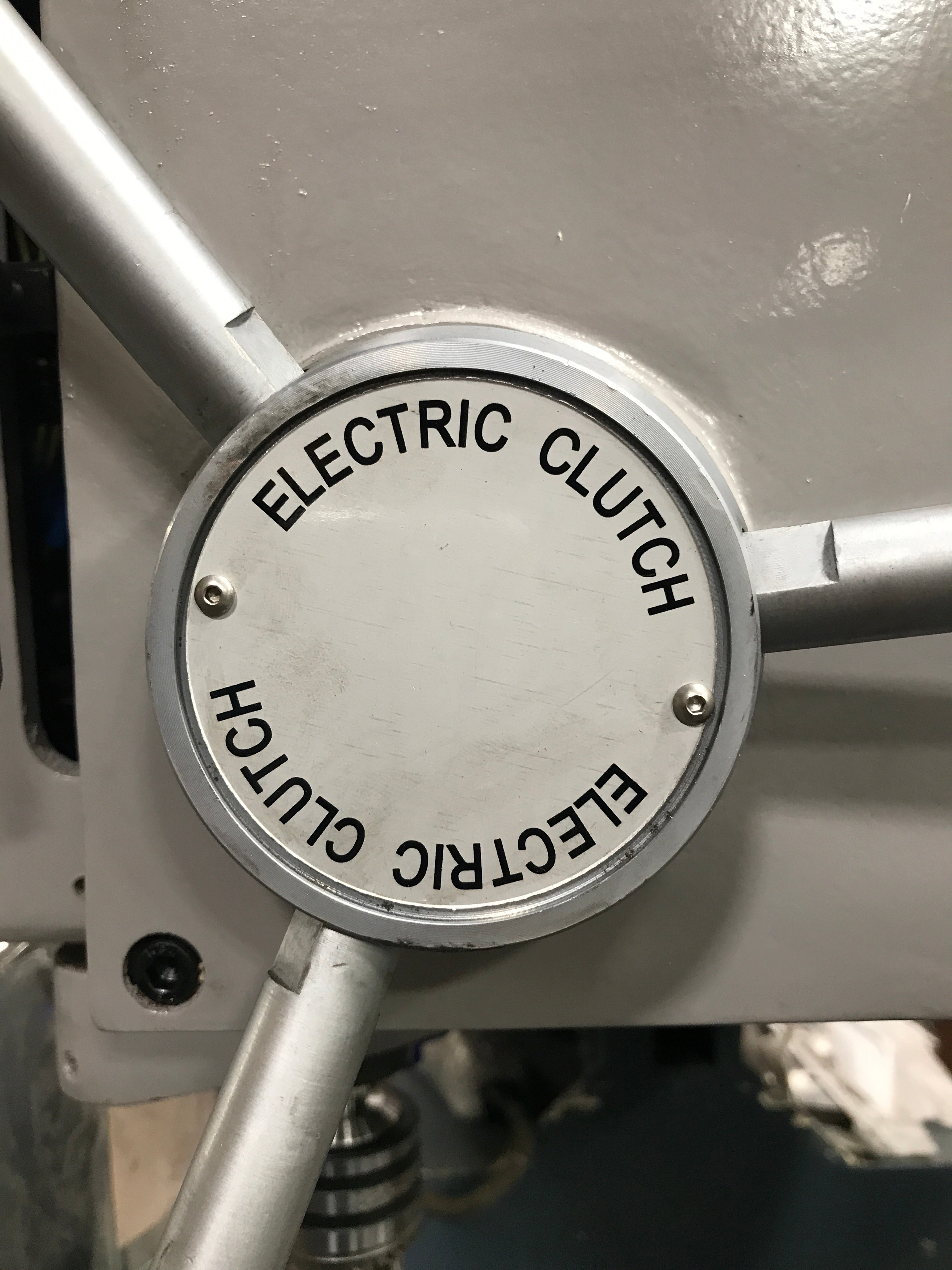

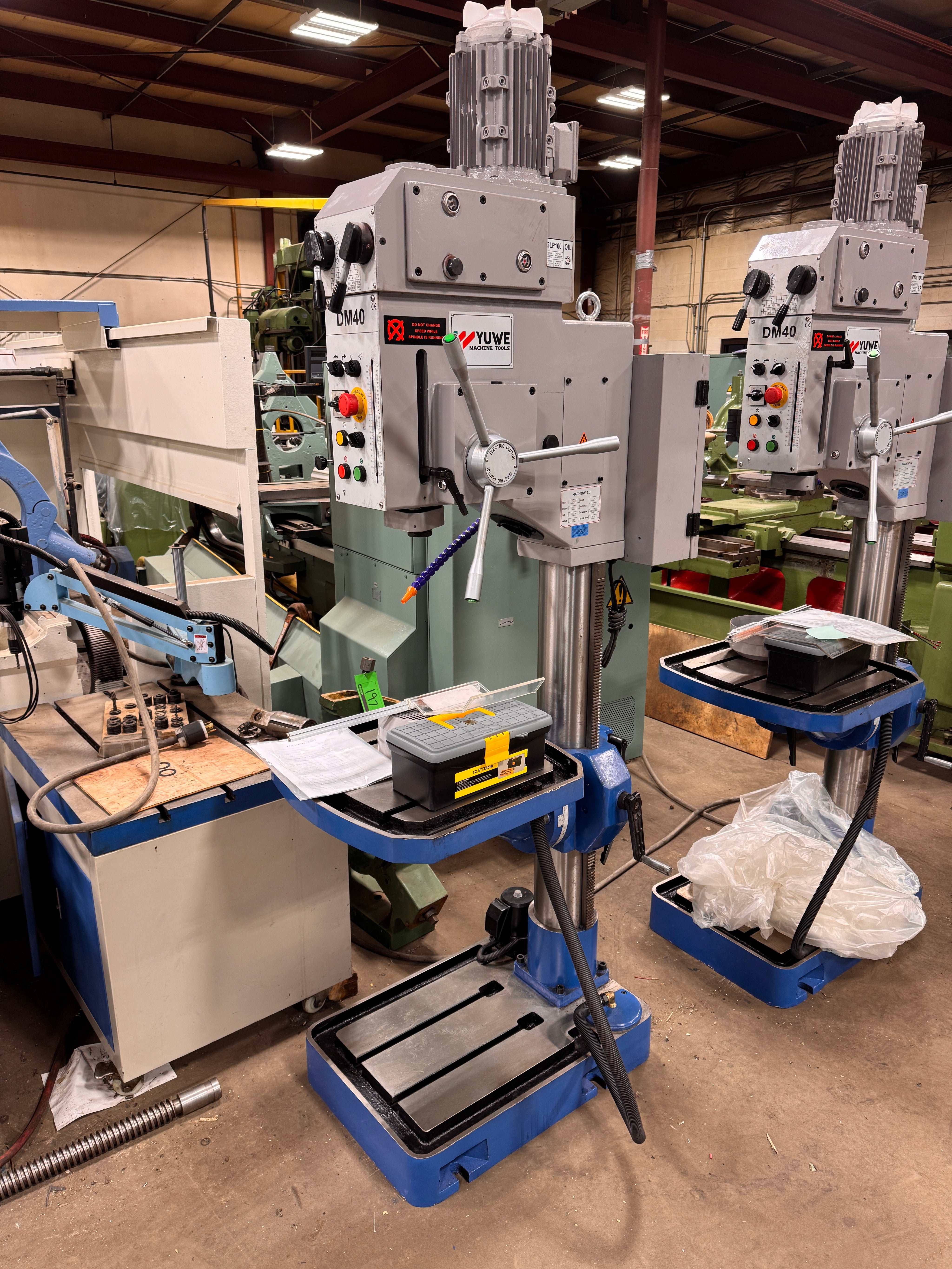

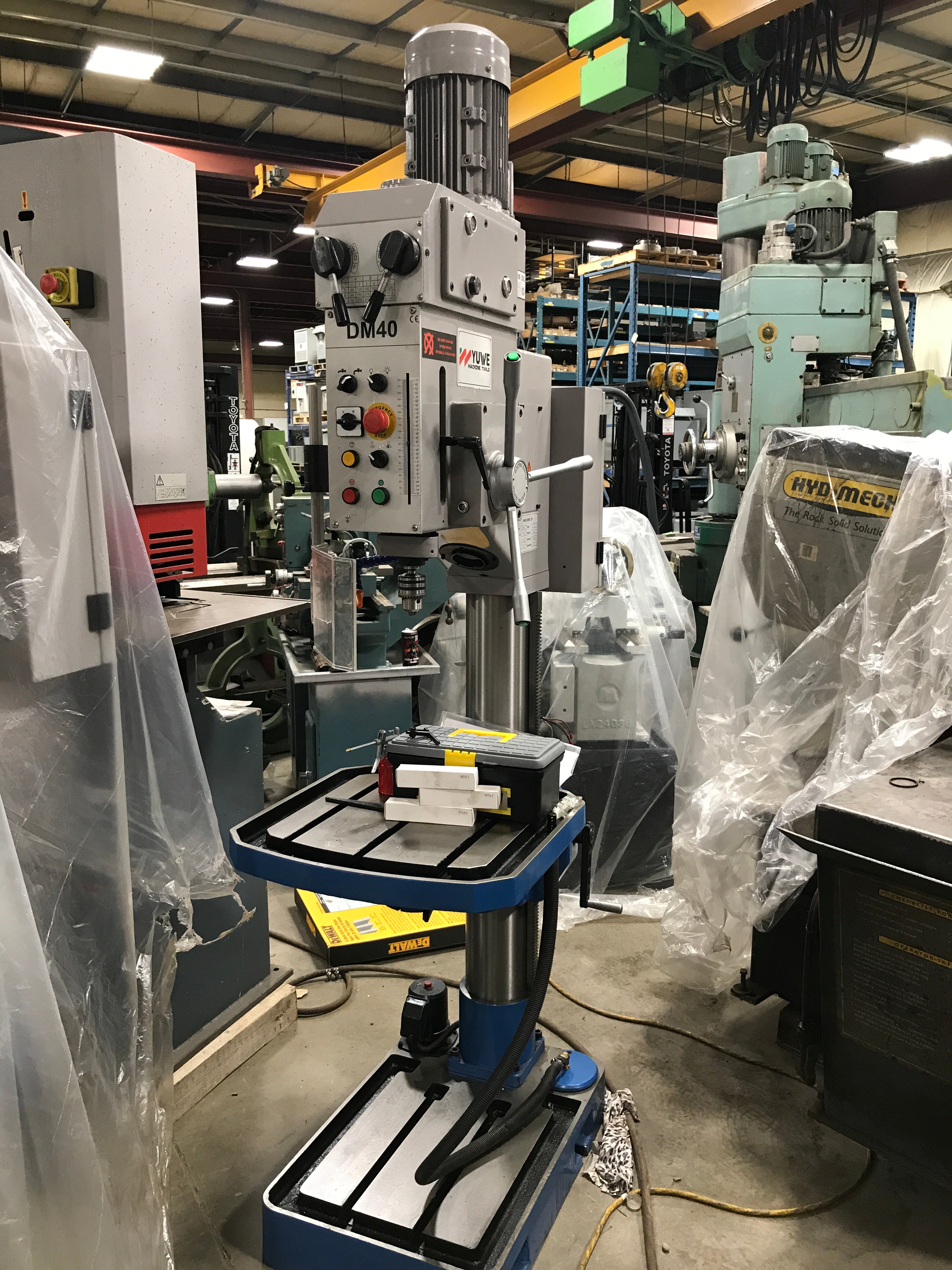

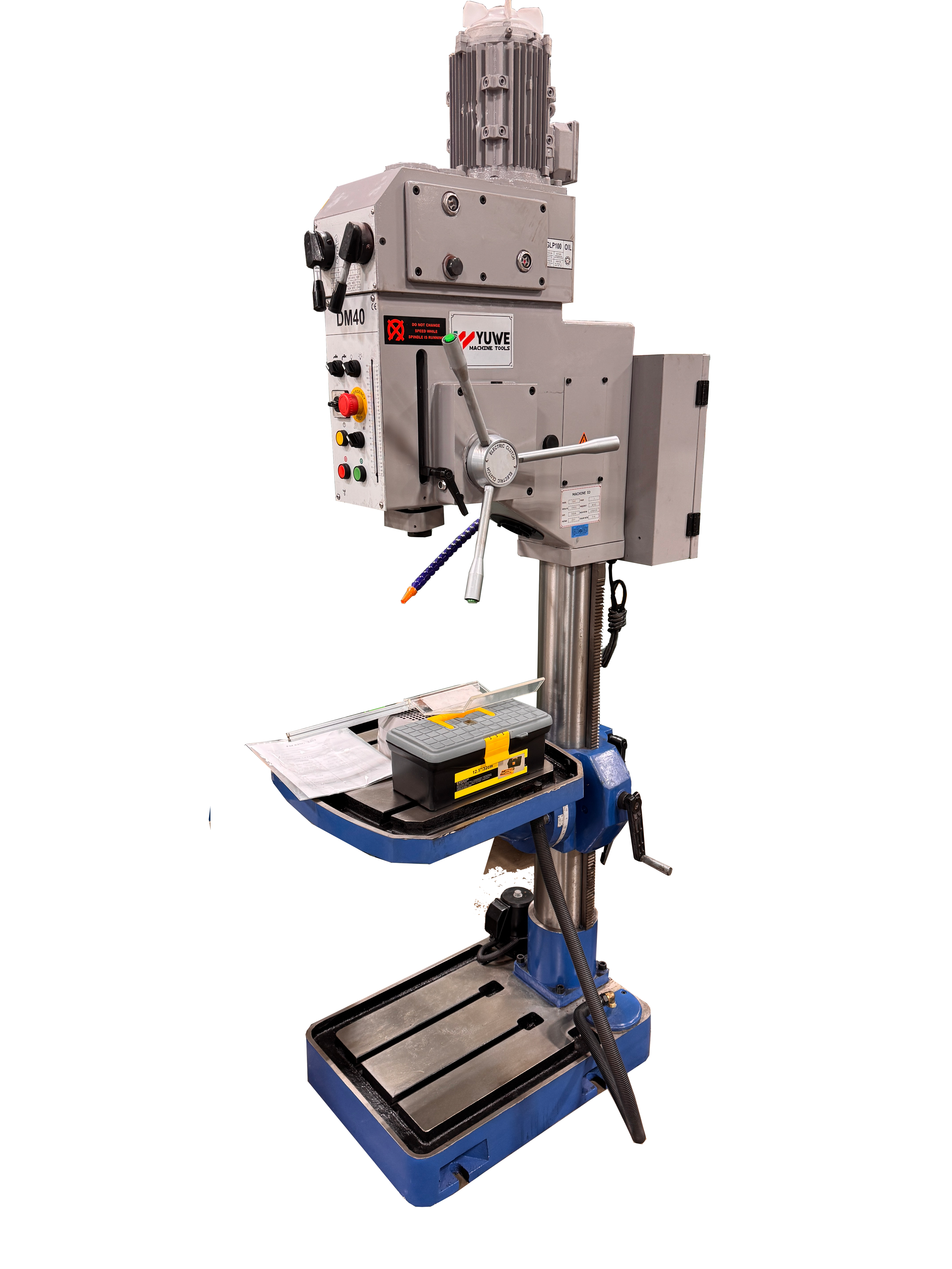

The YUWE DM40 is a precision gear head drilling machine built for heavy-duty industrial performance. With a 40mm drilling capacity, MT4 spindle taper, and a powerful 1.5kW motor, it delivers consistent torque and reliability. Equipped with an electric clutch, automatic feed, and CSA/ETL certification, the DM40 is perfect for machine shops, fabrication plants, and maintenance departments looking for long-term durability and precision control.

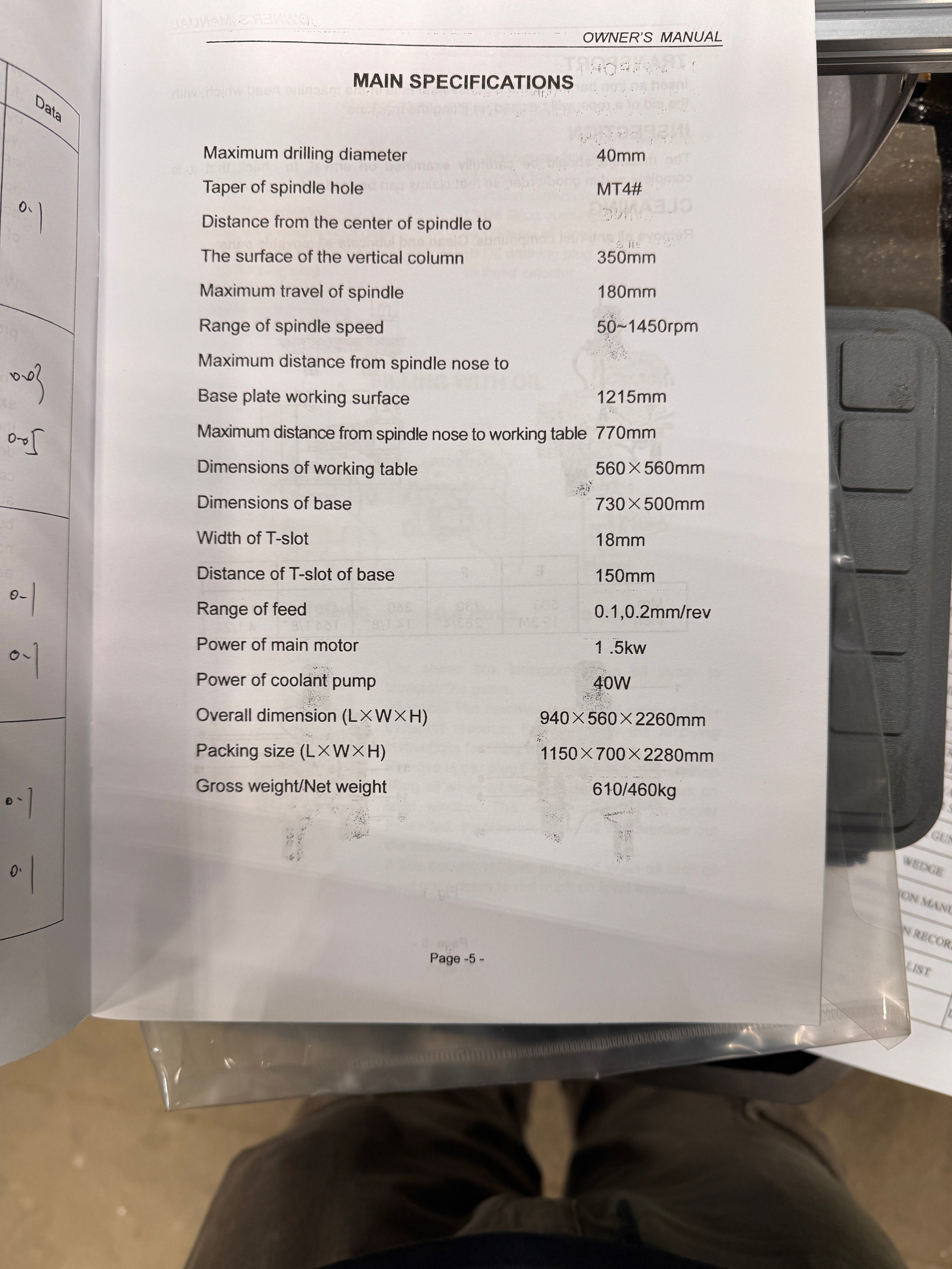

Specifications

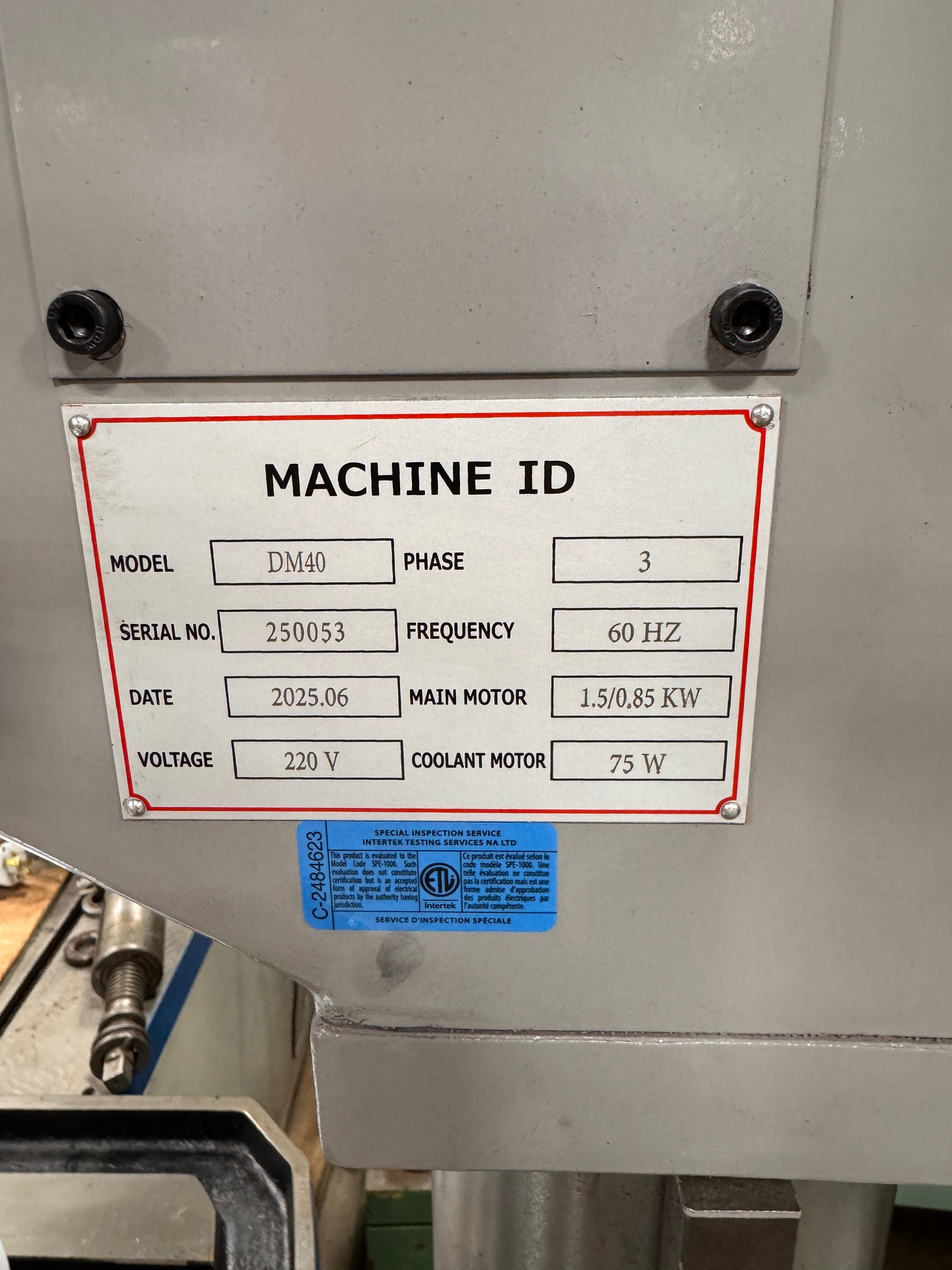

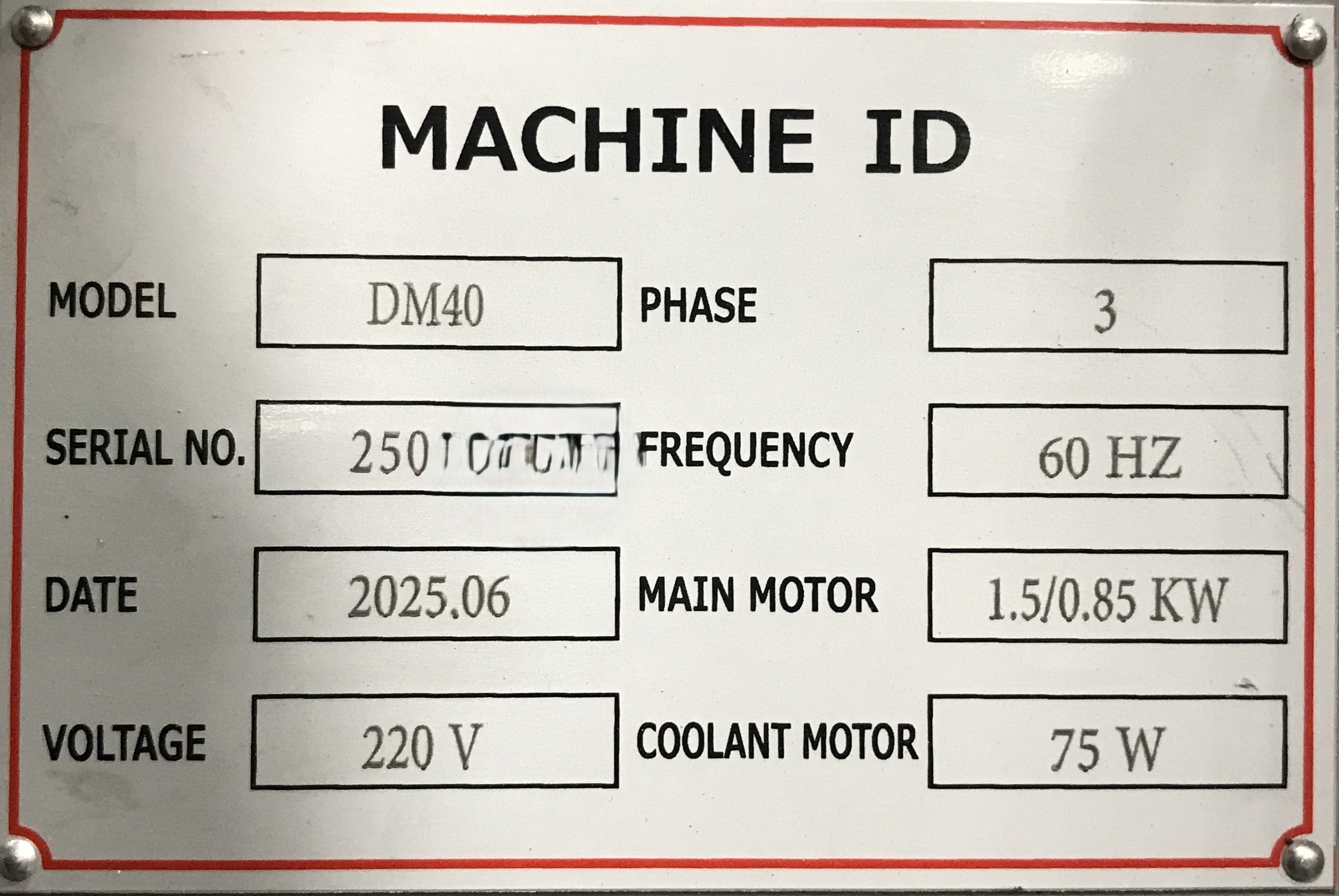

Model: YUWE DM40
Origin: Taiwan
Certification: ETL / CSA Special Inspection Approved
Voltage: 220V / 3 Phase / 60Hz

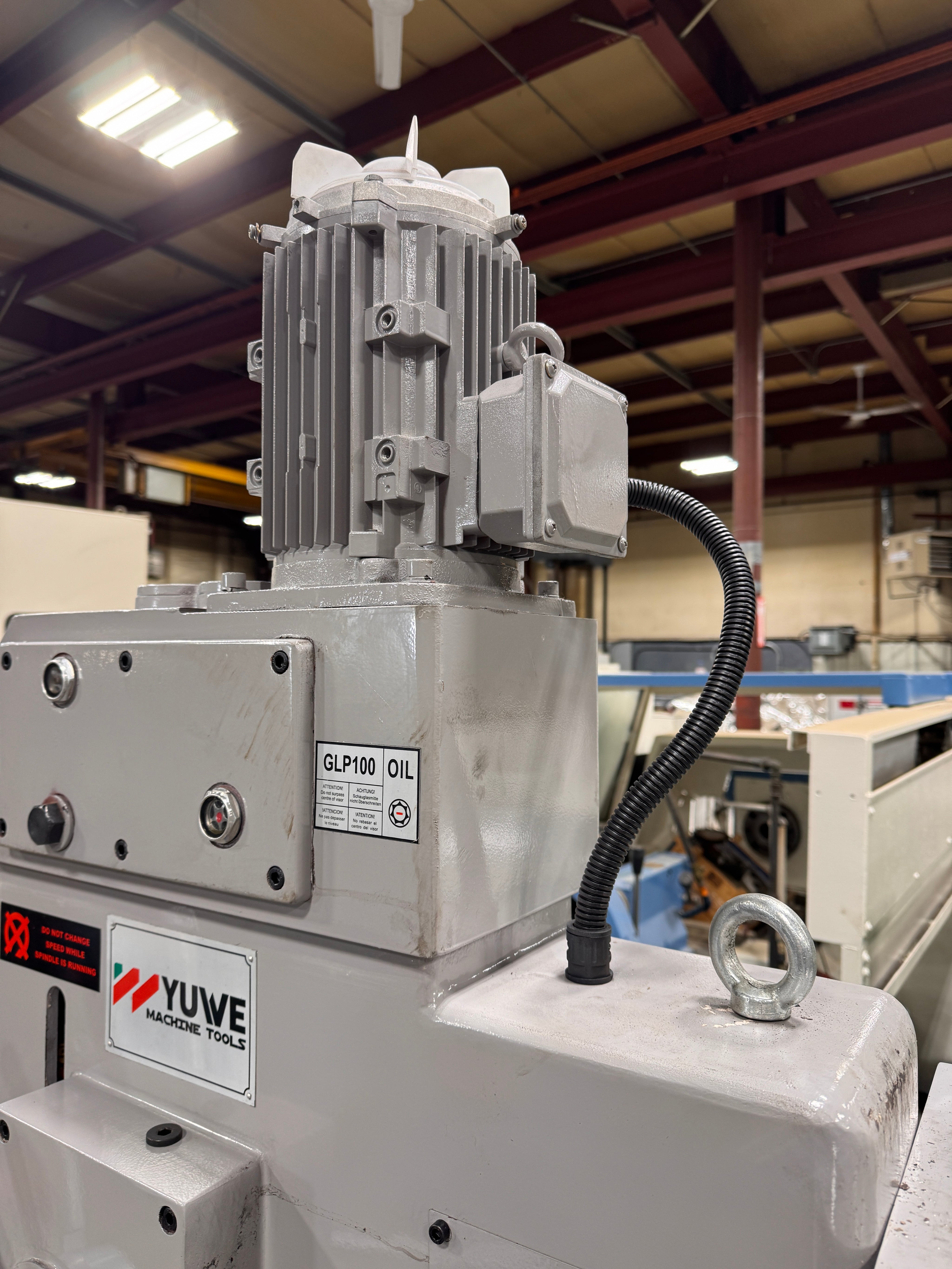

Main Motor: 1.5 / 0.85 kW
Coolant Pump Motor: 75W
Maximum Drilling Capacity: Ø40 mm (1.57")

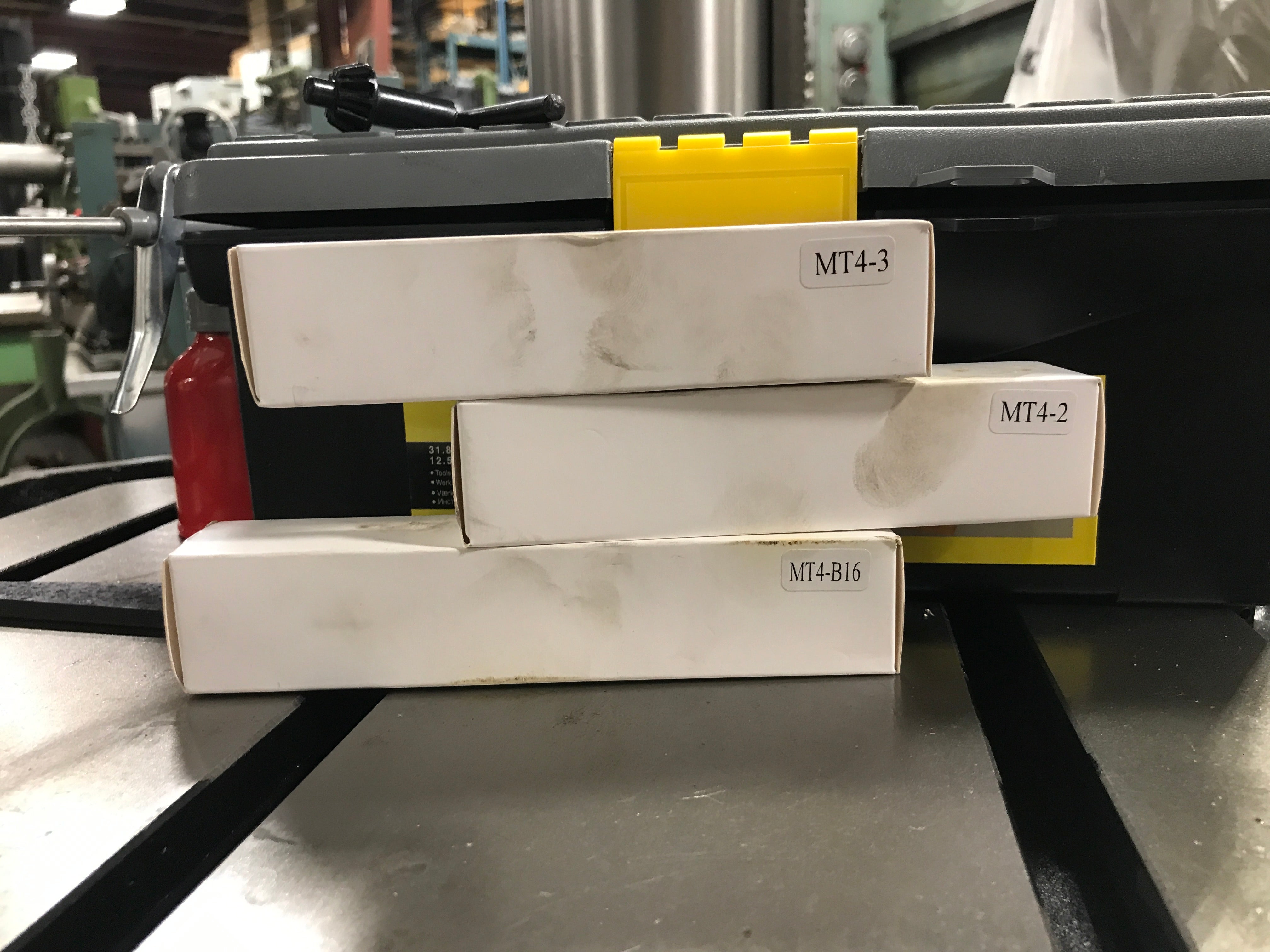

Spindle Taper: MT4
Distance from Spindle Center to Column: 350 mm (13.8")
Spindle Travel: 180 mm (7.1")
Range of Spindle Speeds: 50 – 1450 RPM (6 steps)
Maximum Distance Spindle Nose to Base: 1215 mm (47.8")
Maximum Distance Spindle Nose to Table: 770 mm (30.3")
Working Table Size: 560 × 560 mm (22" × 22")
Base Size: 730 × 500 mm (28.7" × 19.7")
T-Slot Width: 18 mm (0.7")
T-Slot Pitch on Base: 150 mm (5.9")
Feed Rate (mm/rev): 0.1 / 0.2 mm
Overall Dimensions (L×W×H): 940 × 560 × 2260 mm (37" × 22" × 89")
Packing Dimensions (L×W×H): 1150 × 700 × 2280 mm (45" × 28" × 90")
Net Weight: 460 kg (1014 lbs)
Gross Weight: 610 kg (1345 lbs)
Lubrication Type: GLP100 Oil
Equipped with Coolant System and Adjustable Working Table

SKU: 783,784,785,786
