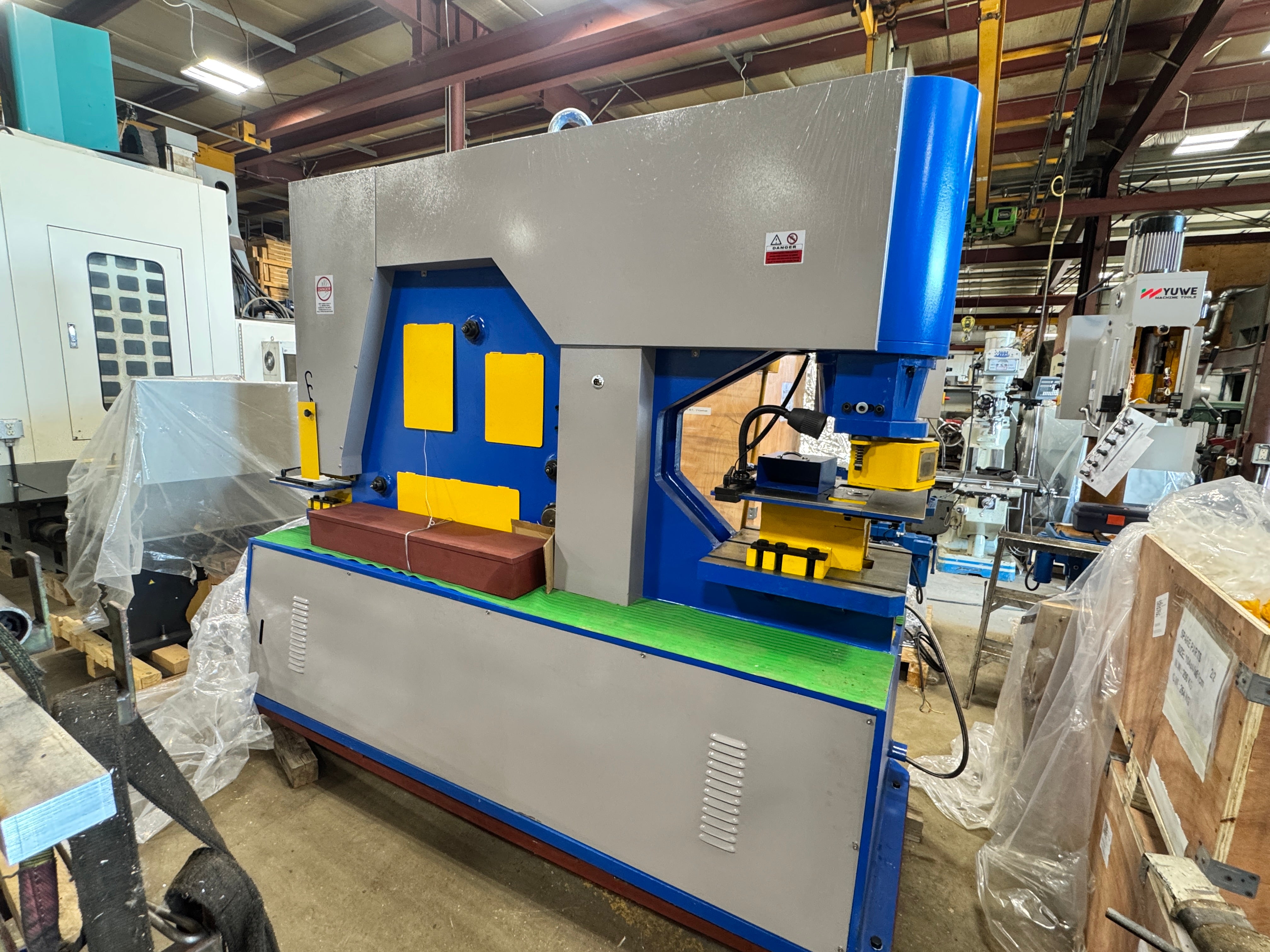

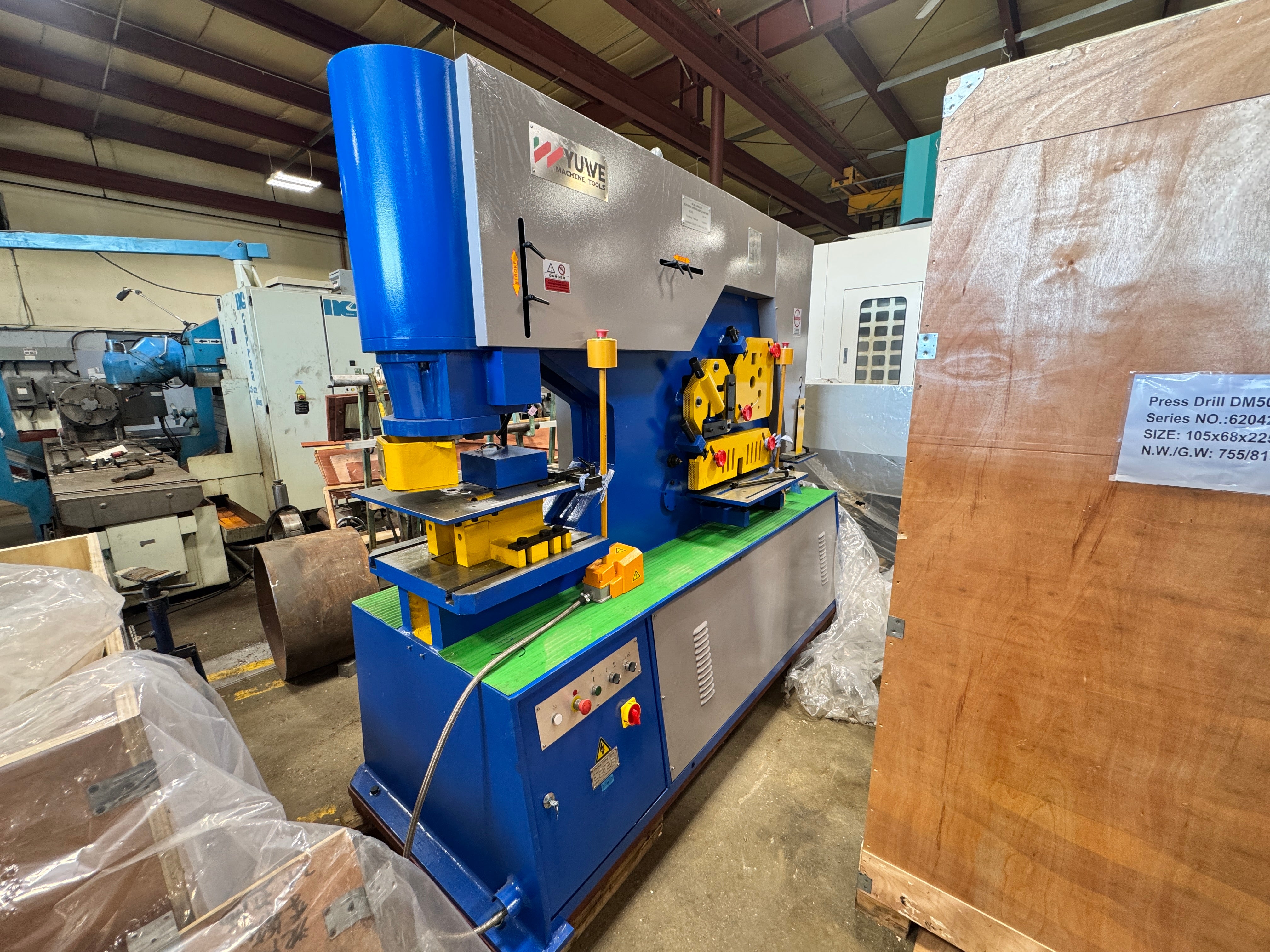

New YUWE 140 Ton Dual Hydraulic Ironworker

YUVE IW140 Dual Linkage Punching and Shearing Machine

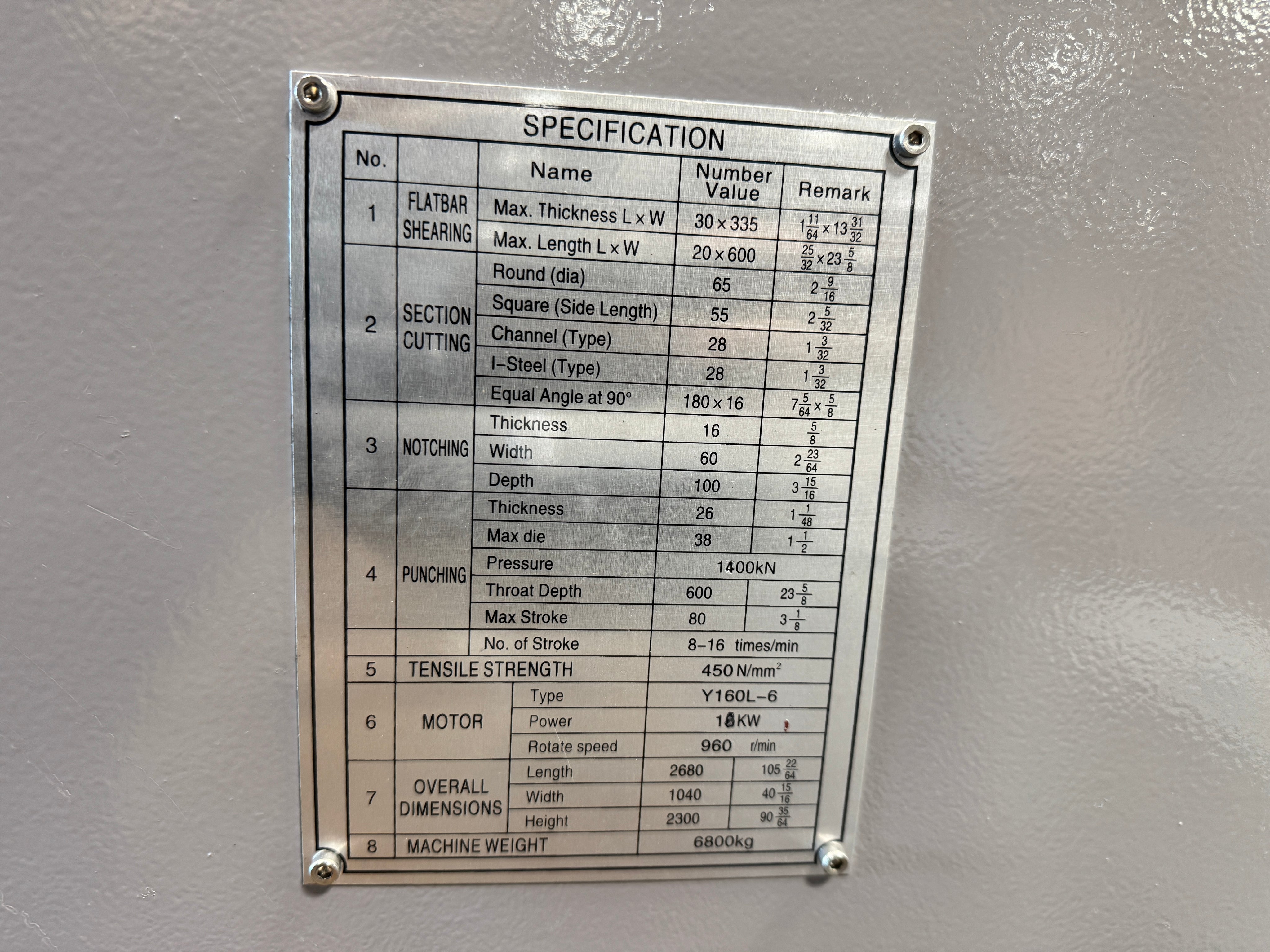

Technical Specifications

General

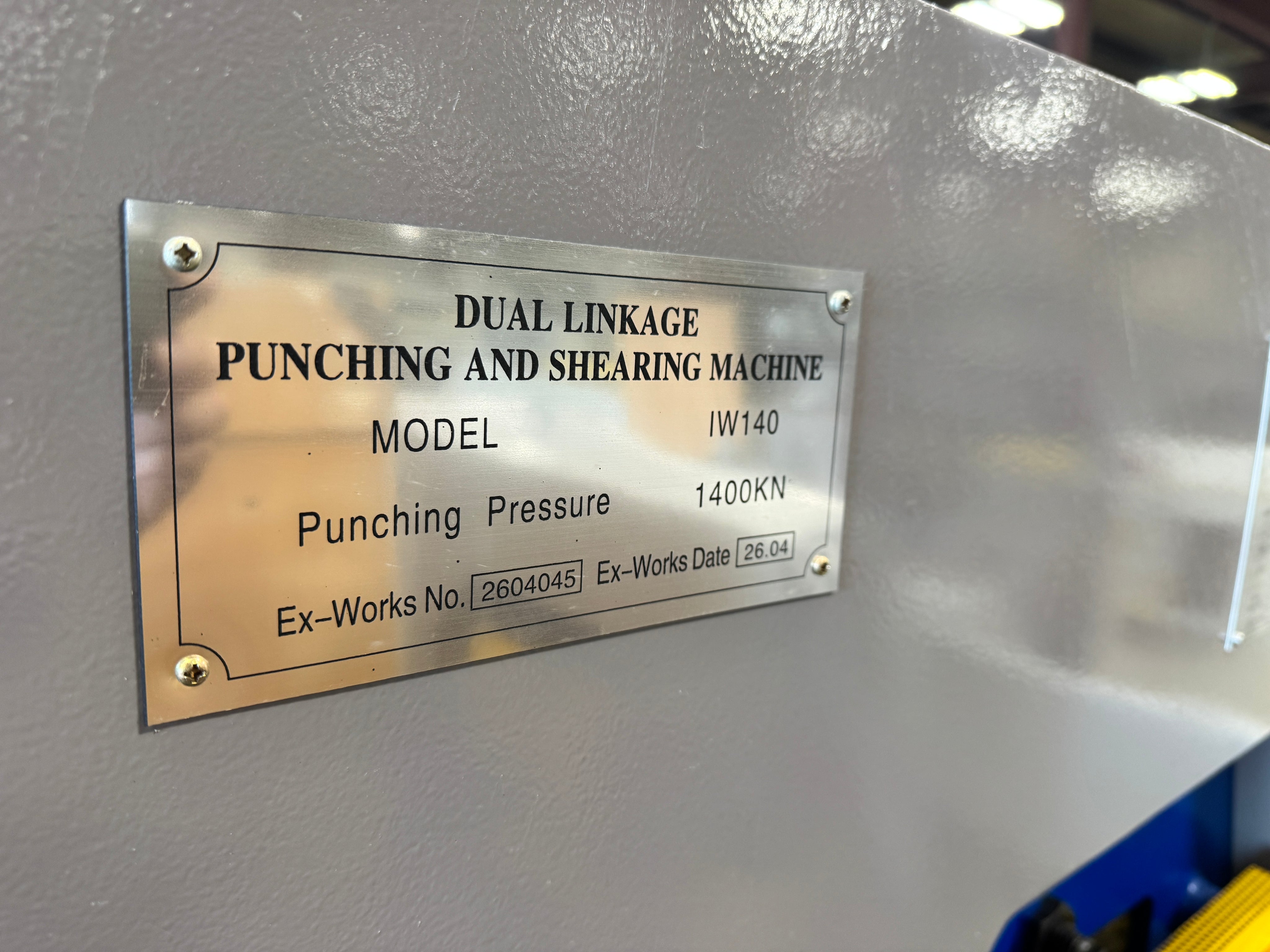

• Model: IW140
• Punching Force: 1,400 kN / 140 Ton
• Maximum Material Tensile Strength: 450 N/mm²

Flat Bar Shearing Capacity

• Maximum Thickness × Width: 30 × 335 mm (1.18 × 13.19 in.)
• Alternative Capacity: 20 × 600 mm (0.79 × 23.62 in.)

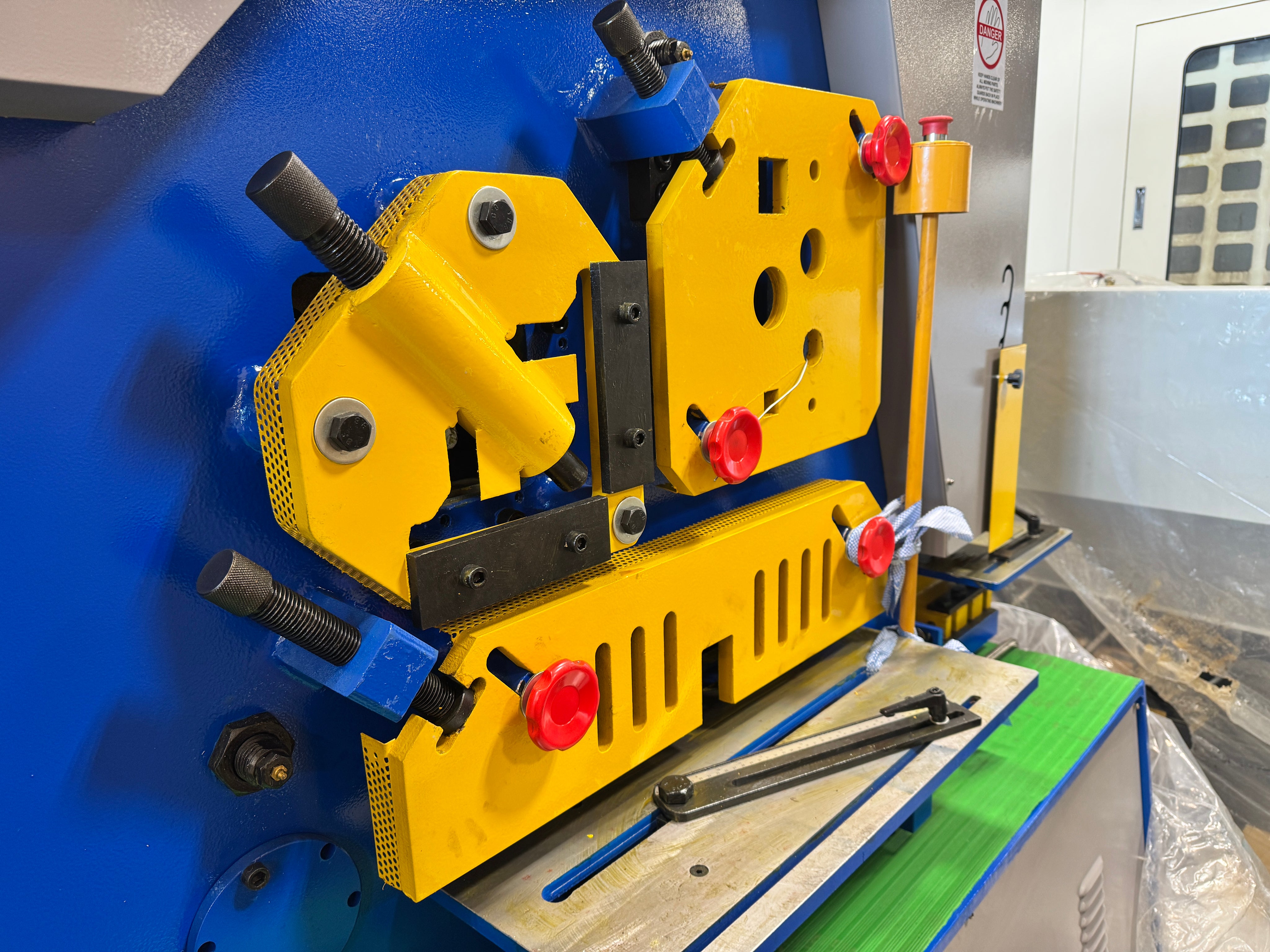

Section Cutting Capacity

• Round Bar: Ø65 mm (2.56 in.)
• Square Bar: 55 × 55 mm (2.17 × 2.17 in.)
• Channel: Size 28
• I-Beam: Size 28
• Equal Angle at 90°: 180 × 180 × 16 mm (7.09 × 7.09 × 0.63 in.)

Notching Capacity

• Maximum Thickness: 16 mm (0.63 in.)
• Notch Width: 60 mm (2.36 in.)
• Notch Depth: 100 mm (3.94 in.)

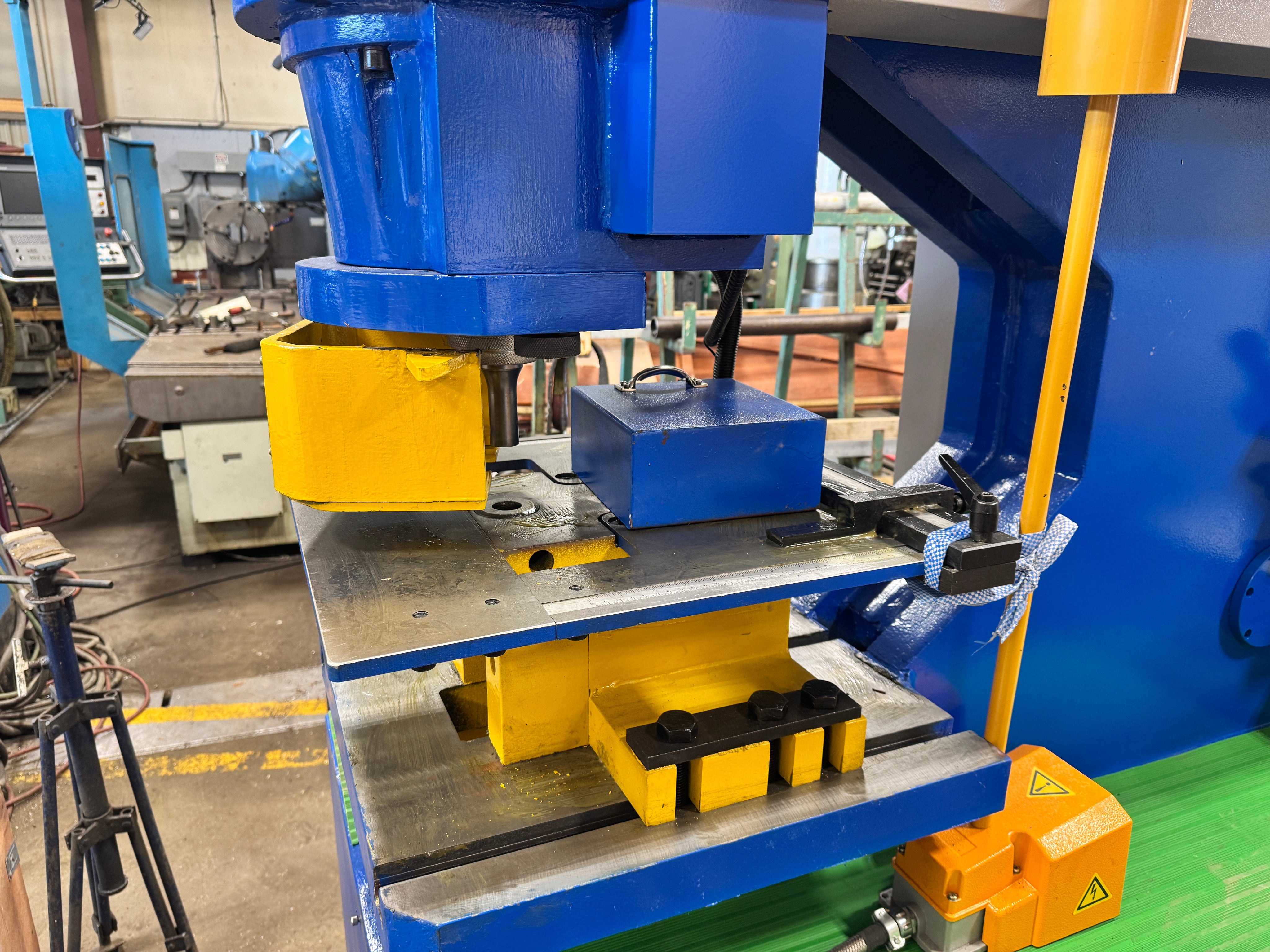

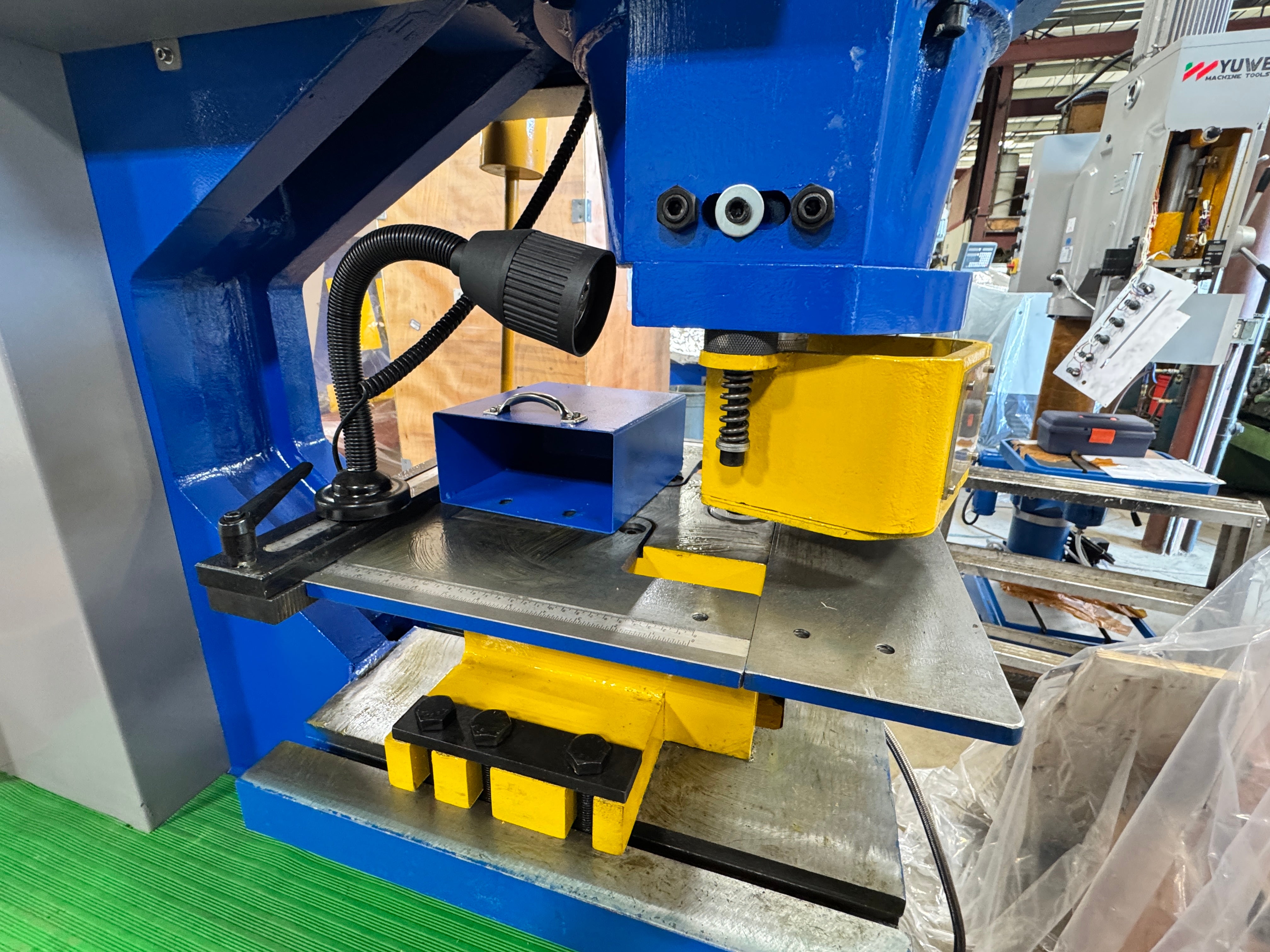

Punching Capacity

• Maximum Material Thickness: 26 mm (1.02 in.)
• Maximum Hole Diameter: Ø38 mm (1.50 in.)
• Punching Force: 1,400 kN
• Throat Depth: 600 mm (23.62 in.)
• Maximum Stroke: 80 mm (3.15 in.)
• Stroke Rate: 8–16 strokes/min

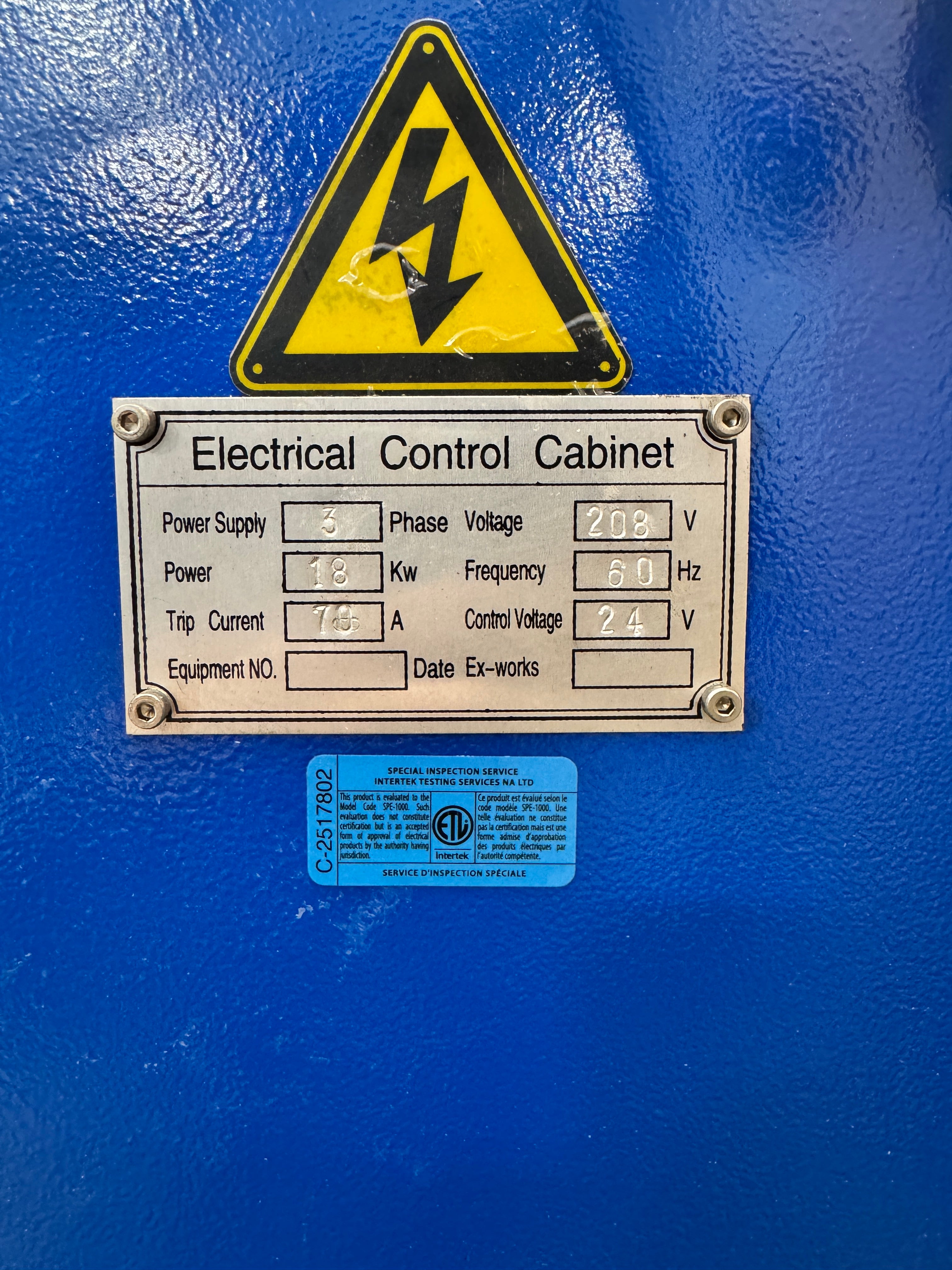

Electrical Specifications

• Voltage: 208 V
• Power Supply: 3-Phase
• Frequency: 60 Hz
• Motor Power: 18 kW (24 HP)
• Motor Type: Y160L-6
• Motor Speed: 960 rpm
• Trip Current: 76 A
• Control Voltage: 24 V

Overall Dimensions

• Length: 2,680 mm (105.5 in.)
• Width: 1,040 mm (40.9 in.)
• Height: 2,300 mm (90.6 in.)

Machine Weight

• Weight: 6,800 kg (approximately 14,990 lb)
