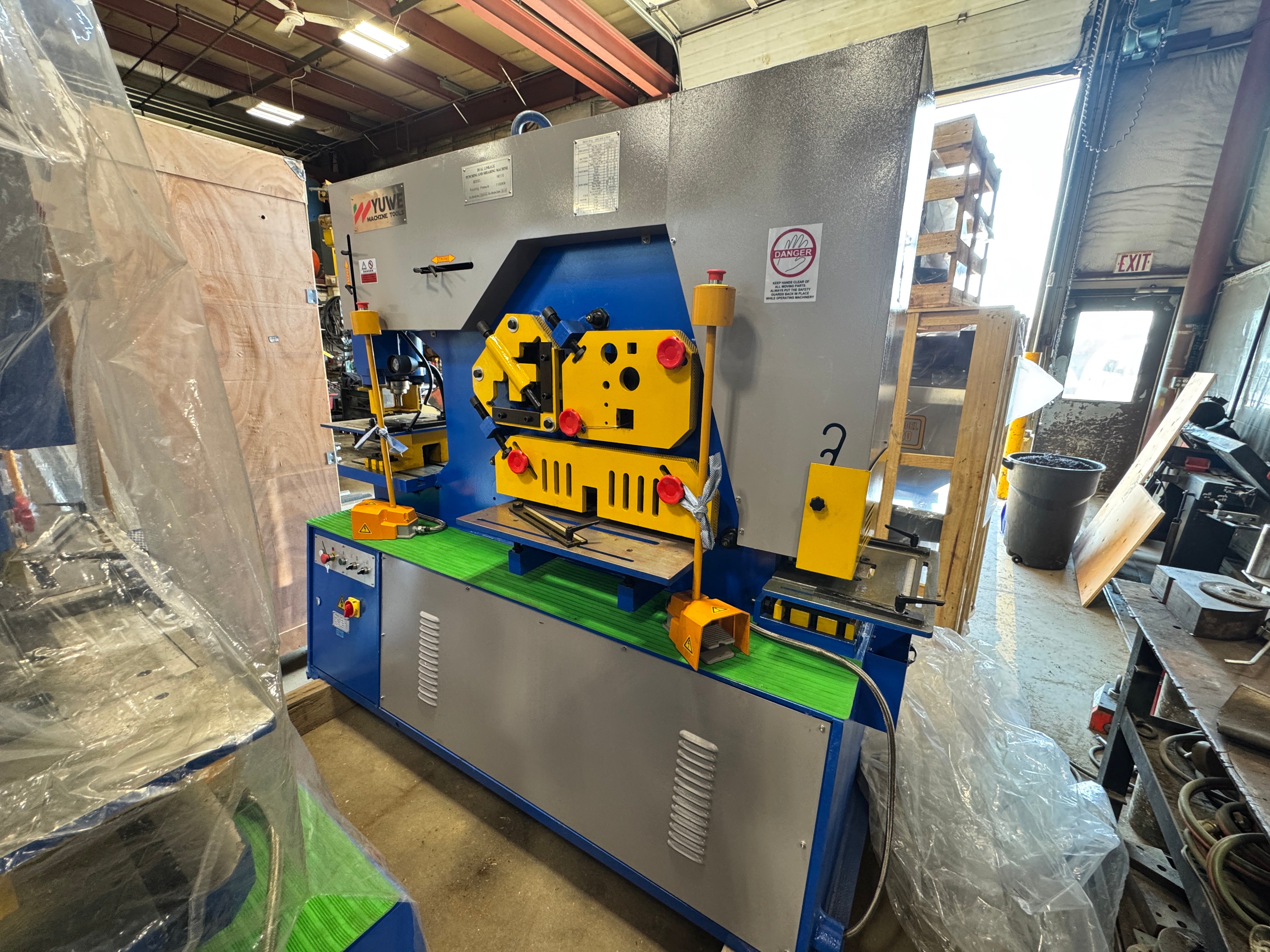

New YUWE 110 Ton Dual Hydraulic Ironworker

YUVE IW110 Dual Linkage Punching and Shearing Machine

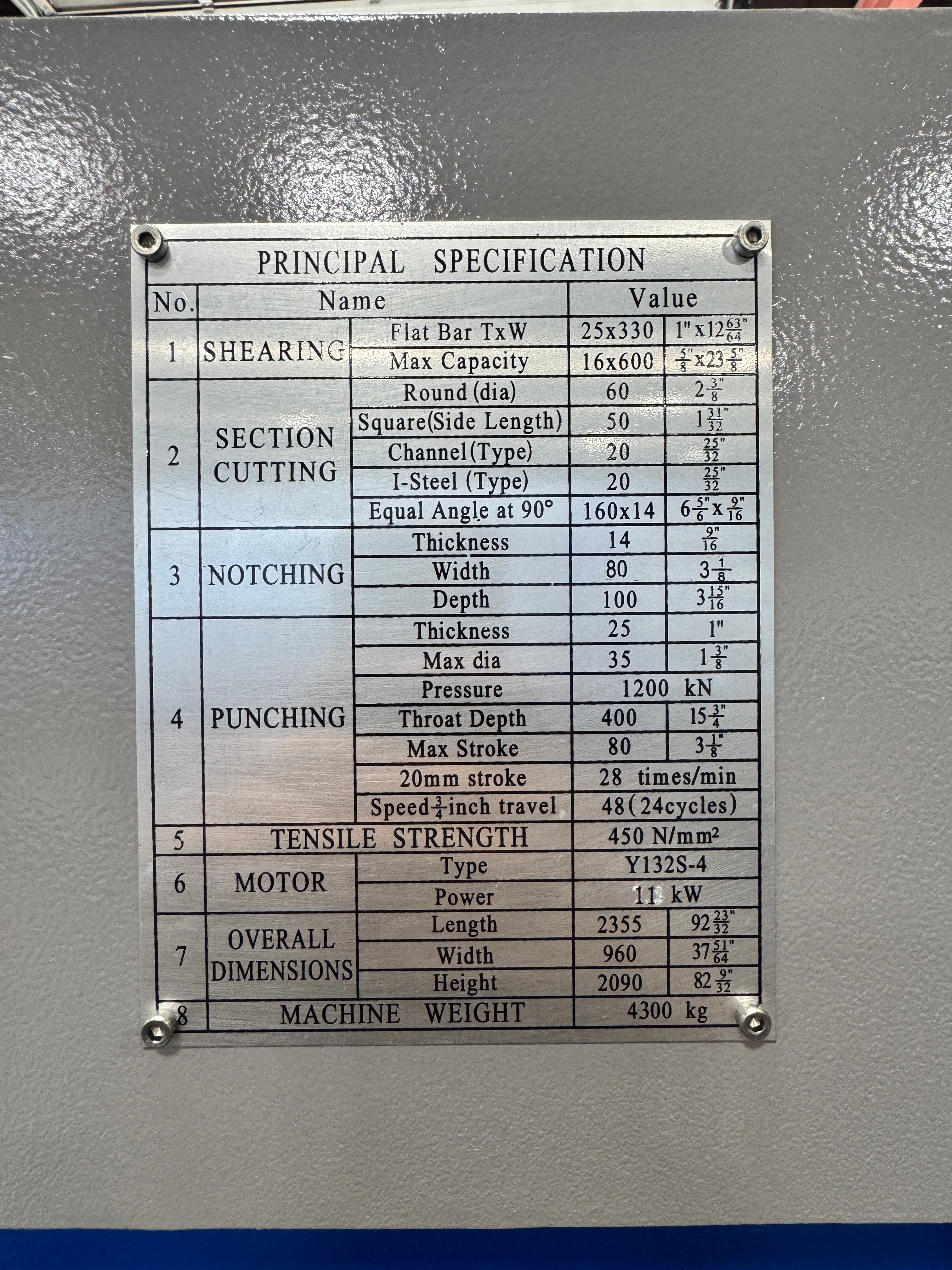

Technical Specifications

General

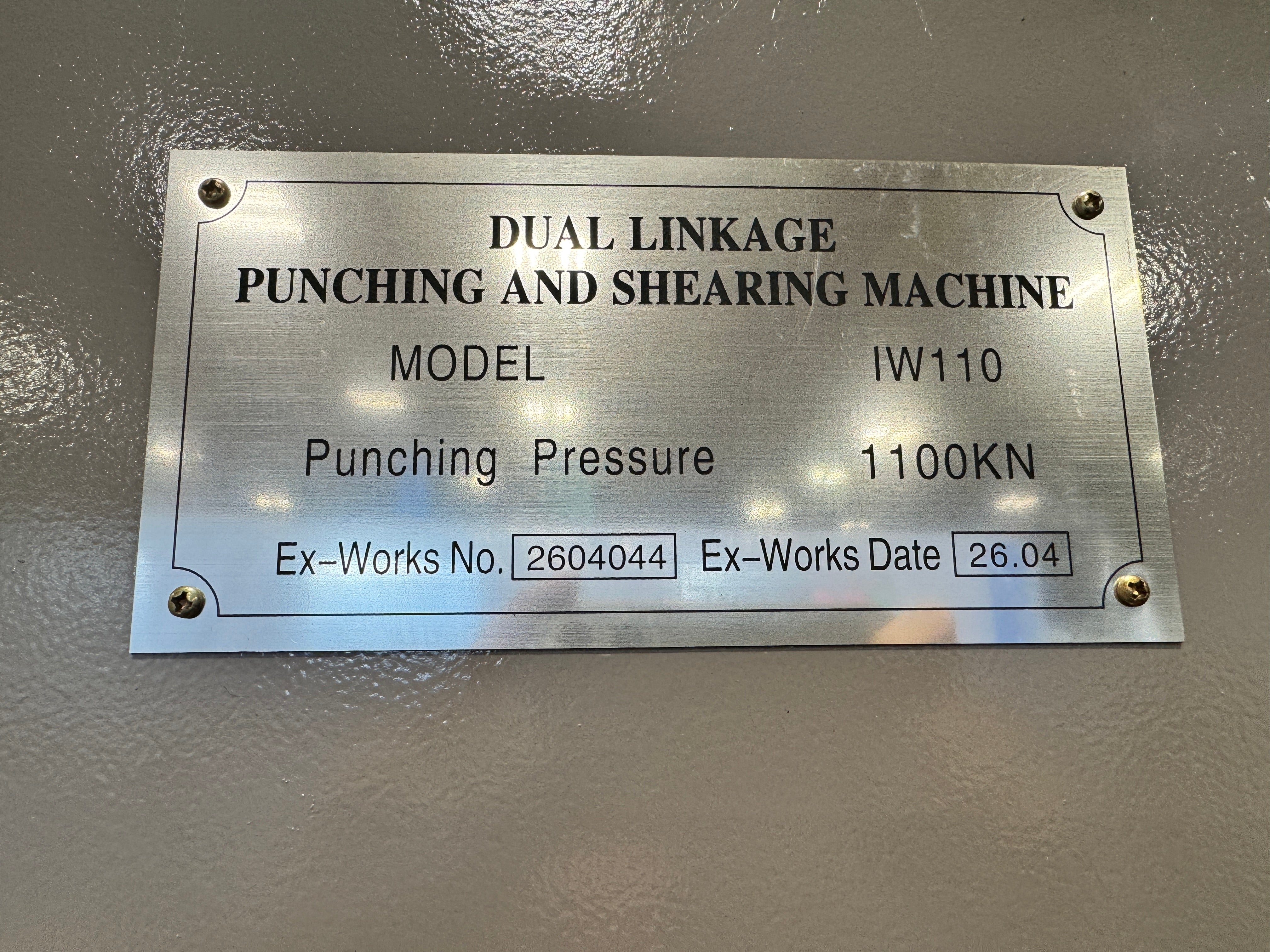

• Model: IW110
• Punching Force: 1,100 kN / 110 Ton
• Maximum Material Tensile Strength: 450 N/mm²

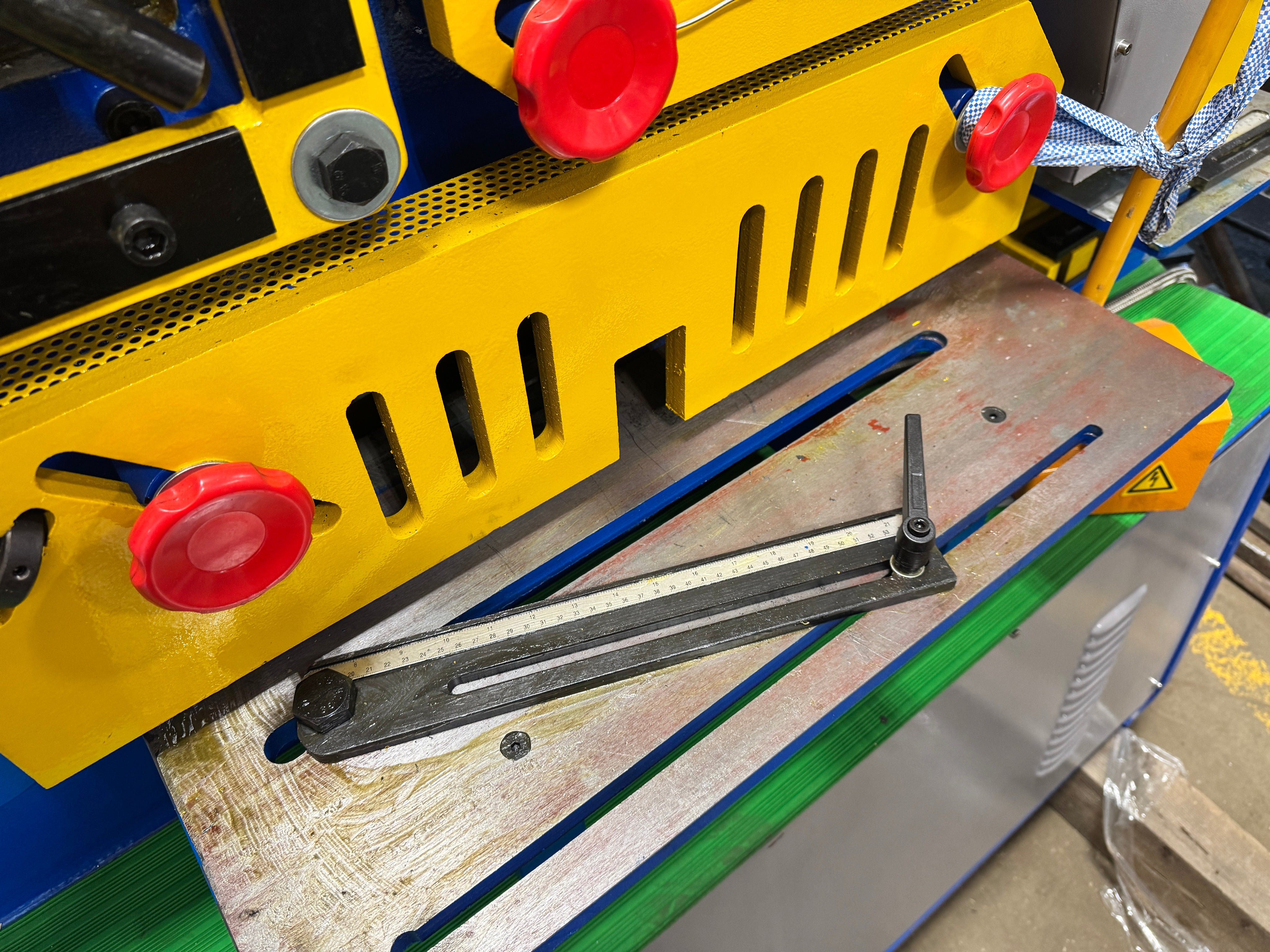

Flat Bar Shearing Capacity

• Maximum Capacity: 25 × 330 mm (1" × 12.99")
• Alternative Capacity: 16 × 600 mm (5/8" × 23.63")

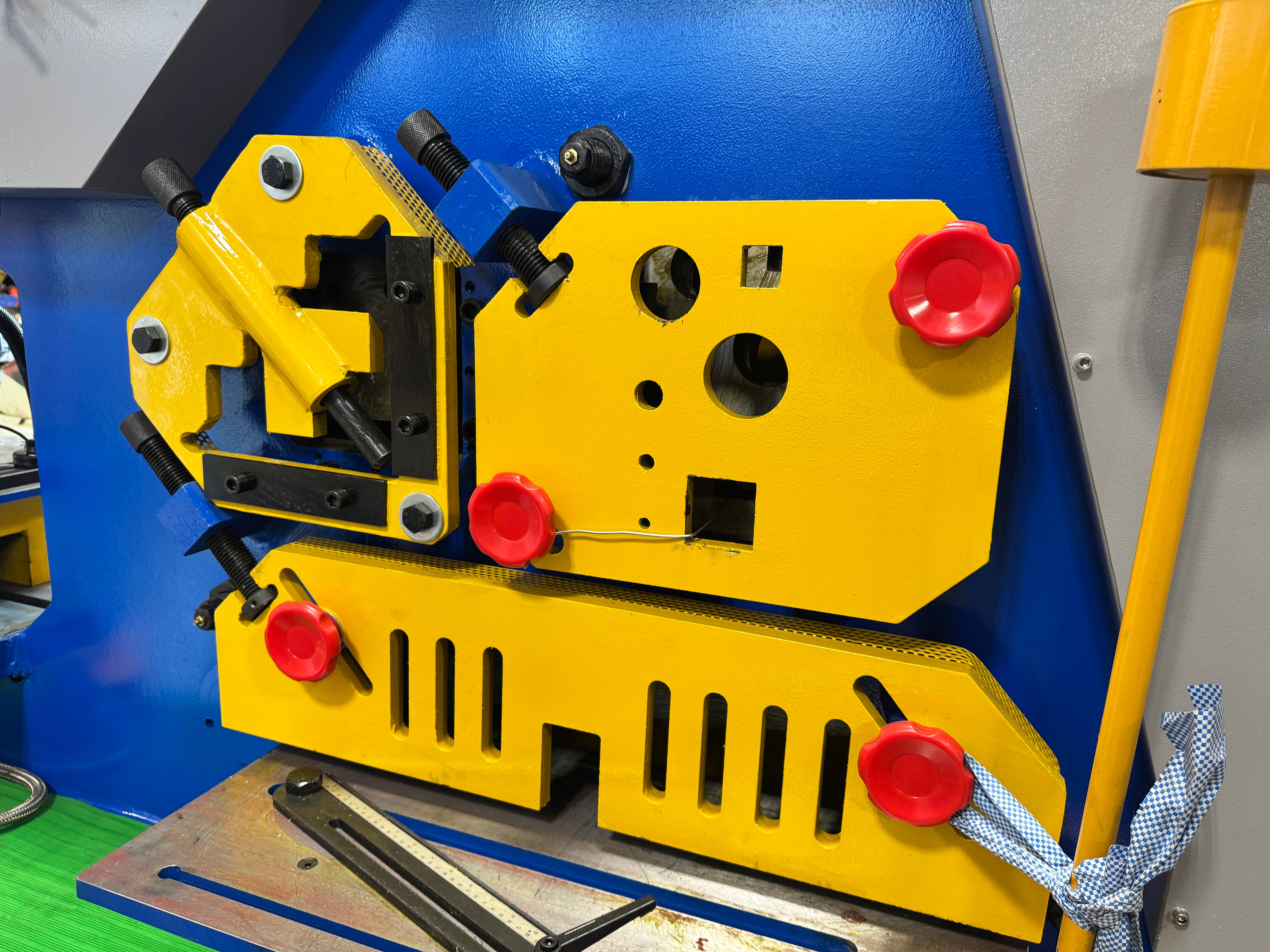

Section Cutting Capacity

• Round Bar: Ø60 mm (2.36")
• Square Bar: 50 × 50 mm (1.97" × 1.97")
• Channel: Size 20
• I-Beam: Size 20
• Equal Angle at 90°: 160 × 160 × 14 mm (6.30" × 6.30" × 0.55")

Notching Capacity

• Maximum Thickness: 14 mm (0.55")
• Notch Width: 80 mm (3.15")
• Notch Depth: 100 mm (3.94")

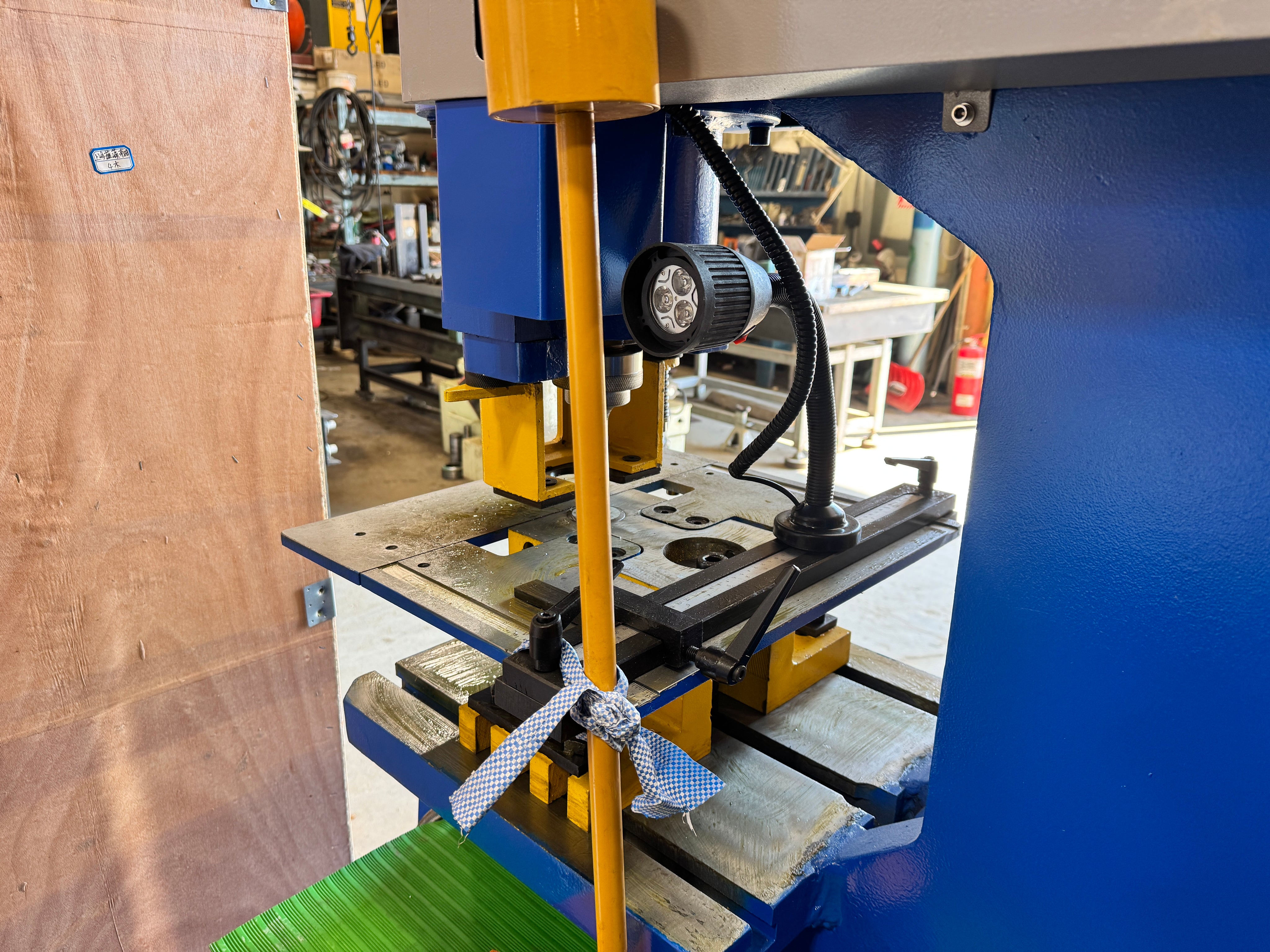

Punching Capacity

• Maximum Material Thickness: 25 mm (1.00")
• Maximum Hole Diameter: Ø35 mm (1.38")
• Punching Force: 1,200 kN
• Throat Depth: 400 mm (15.75")

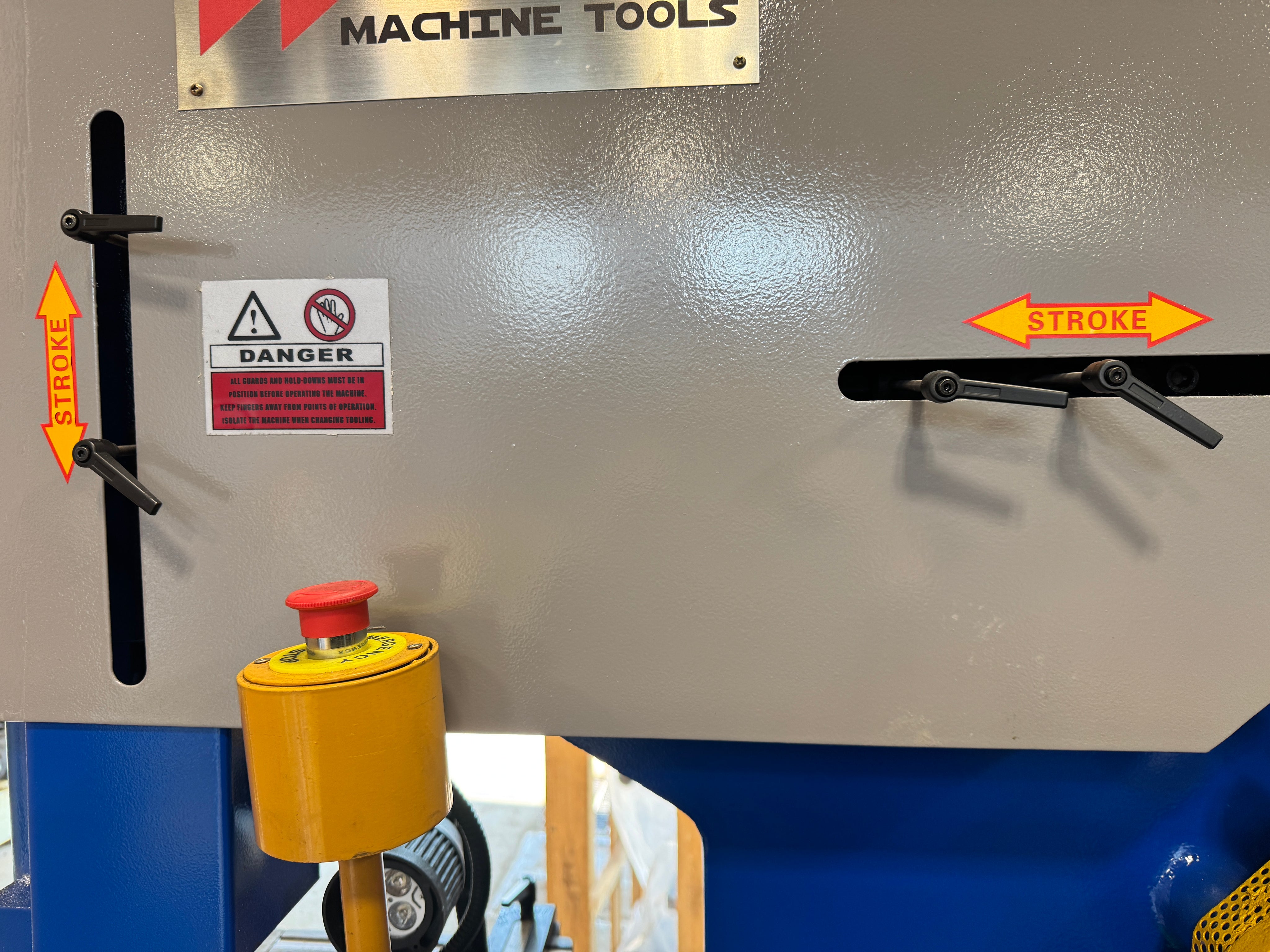

• Maximum Stroke: 80 mm (3.15")
• Stroke Rate (20 mm Stroke): 28 strokes per minute
• Speed at 3/4 in. Stroke: 48 strokes per minute / 24 cycles per minute

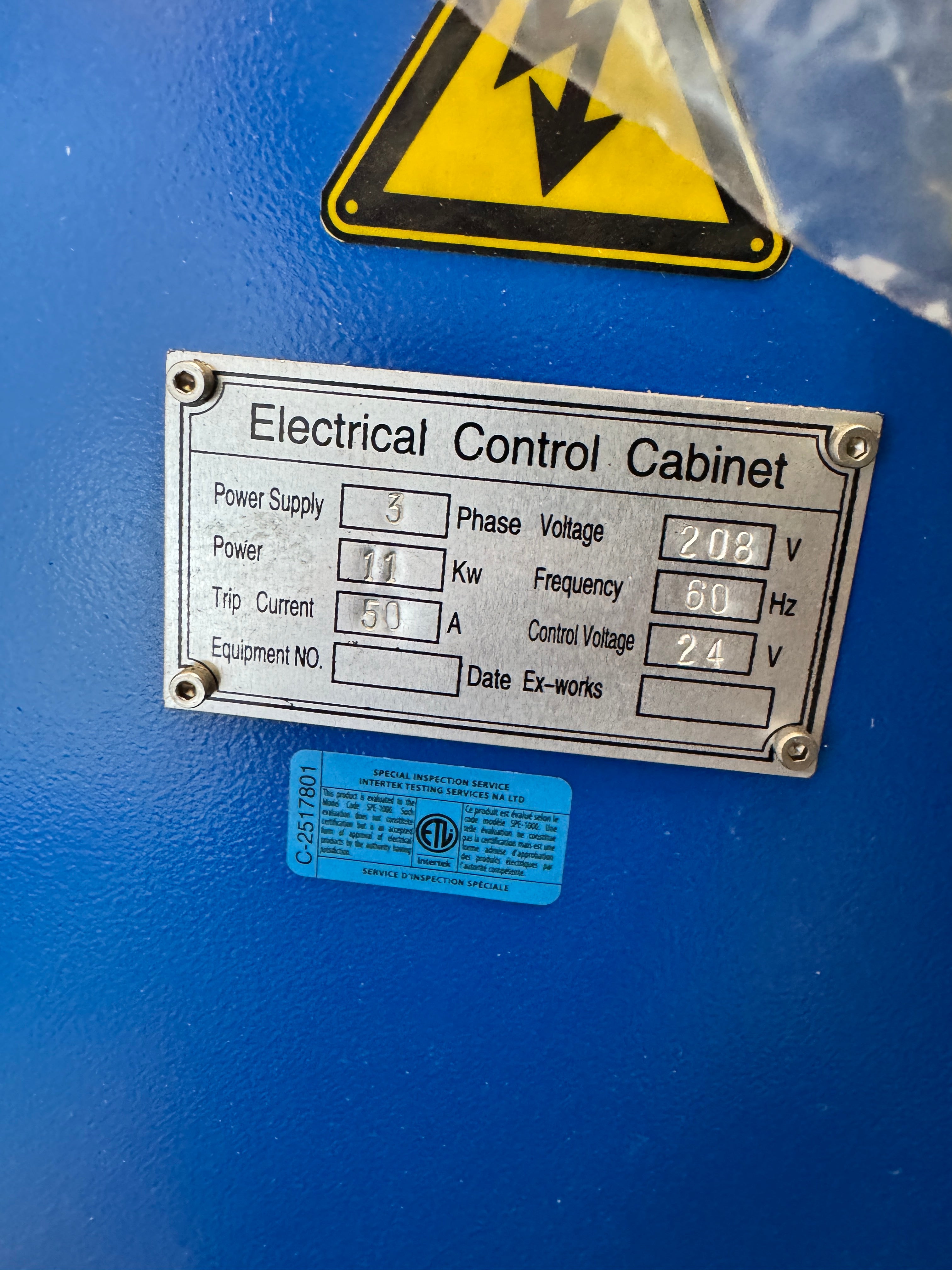

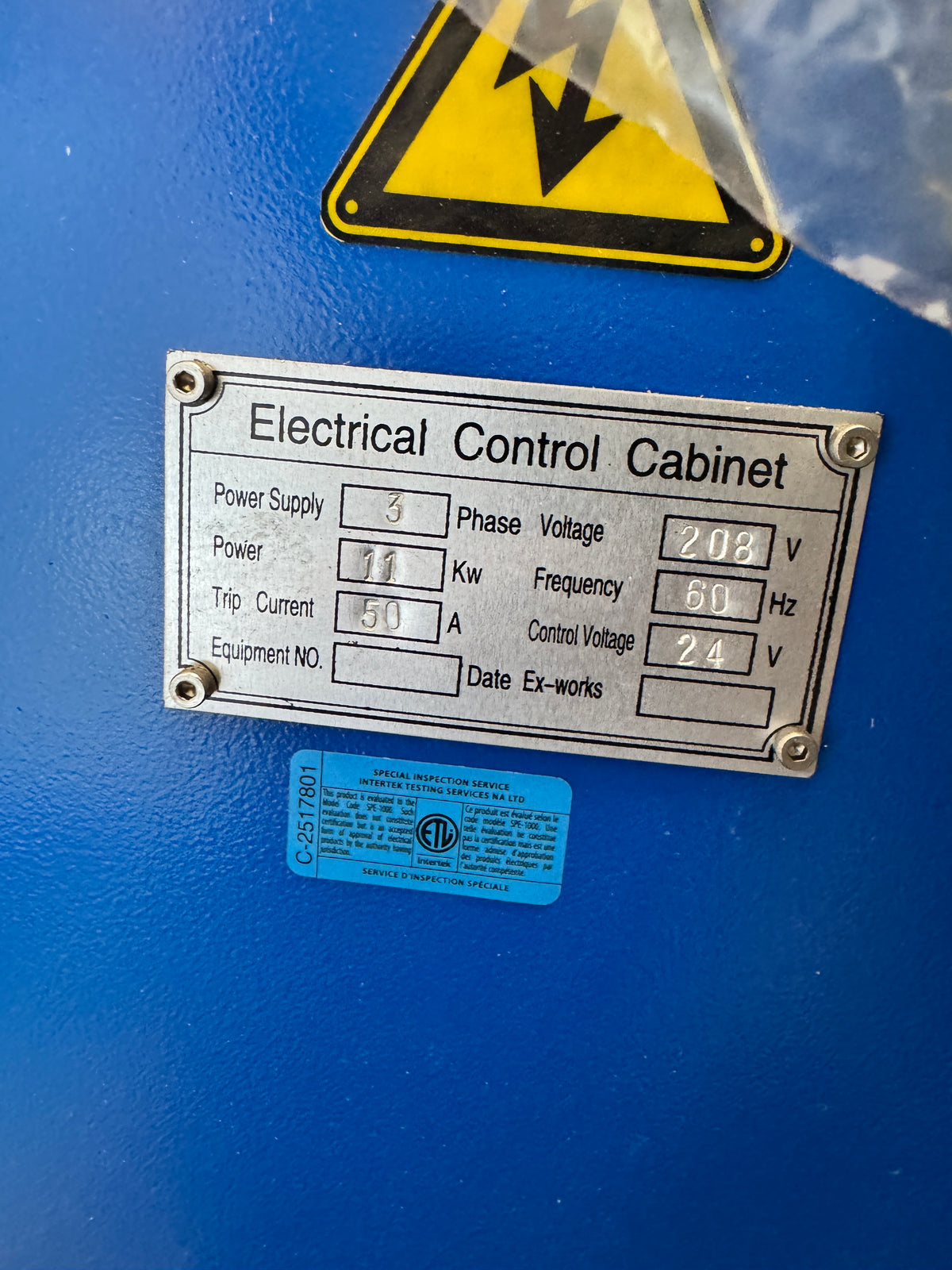

Electrical Specifications

• Voltage: 208 V
• Power Supply: 3-Phase
• Frequency: 60 Hz
• Motor Power: 11 kW (15 HP)
• Trip Current: 50 A
• Control Voltage: 24 V
• Motor Type: Y132S-4

Overall Dimensions

• Length: 2,355 mm (92.72 in.)
• Width: 960 mm (37.80 in.)
• Height: 2,090 mm (82.28 in.)

Machine Weight

• Weight: 4,300 kg (approximately 9,480 lb)
