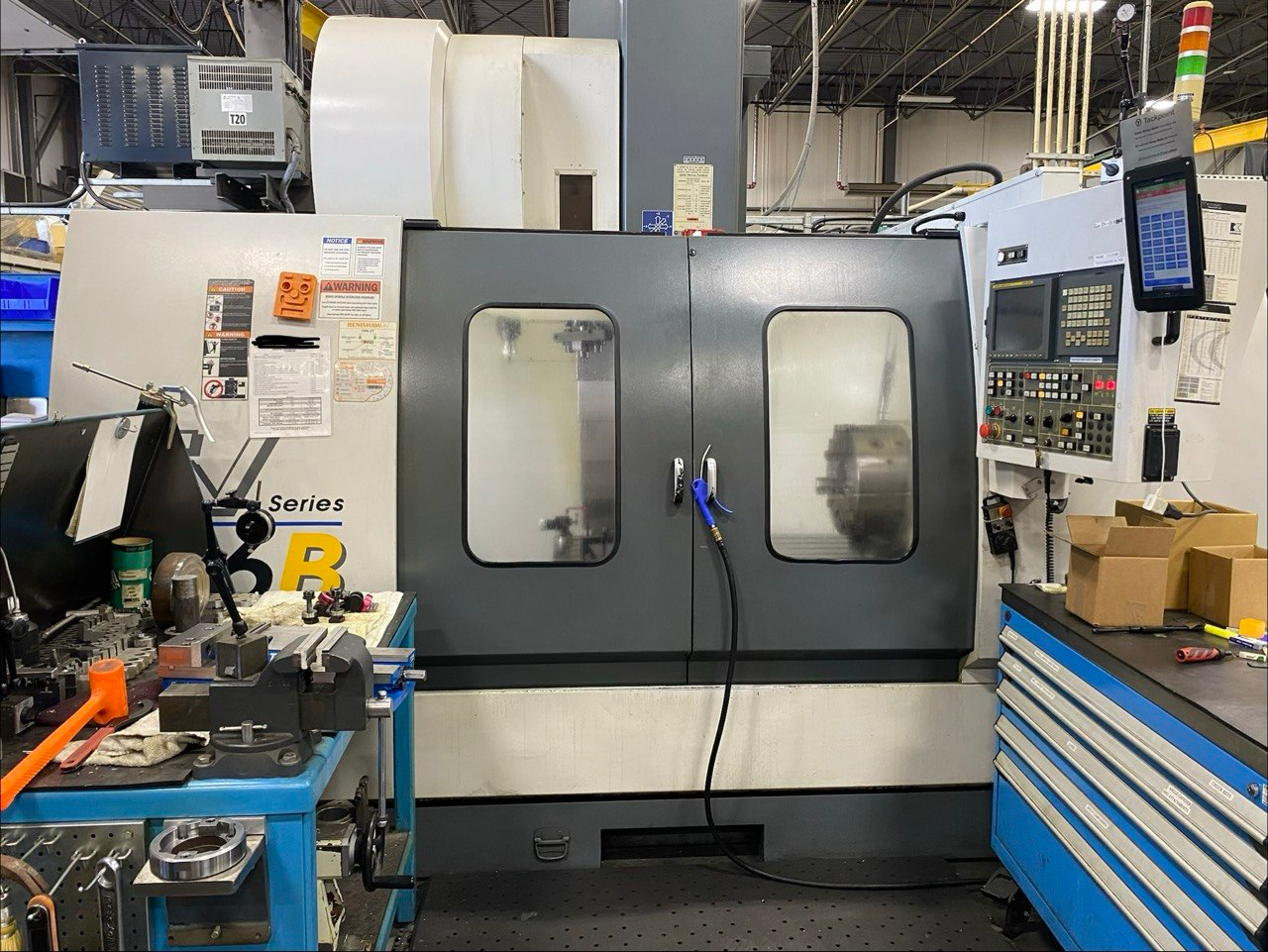

YCM TV146B CNC Vertical Machining Center

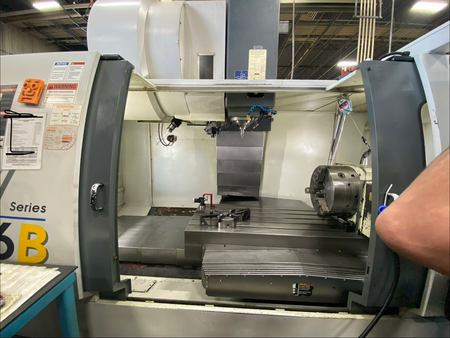

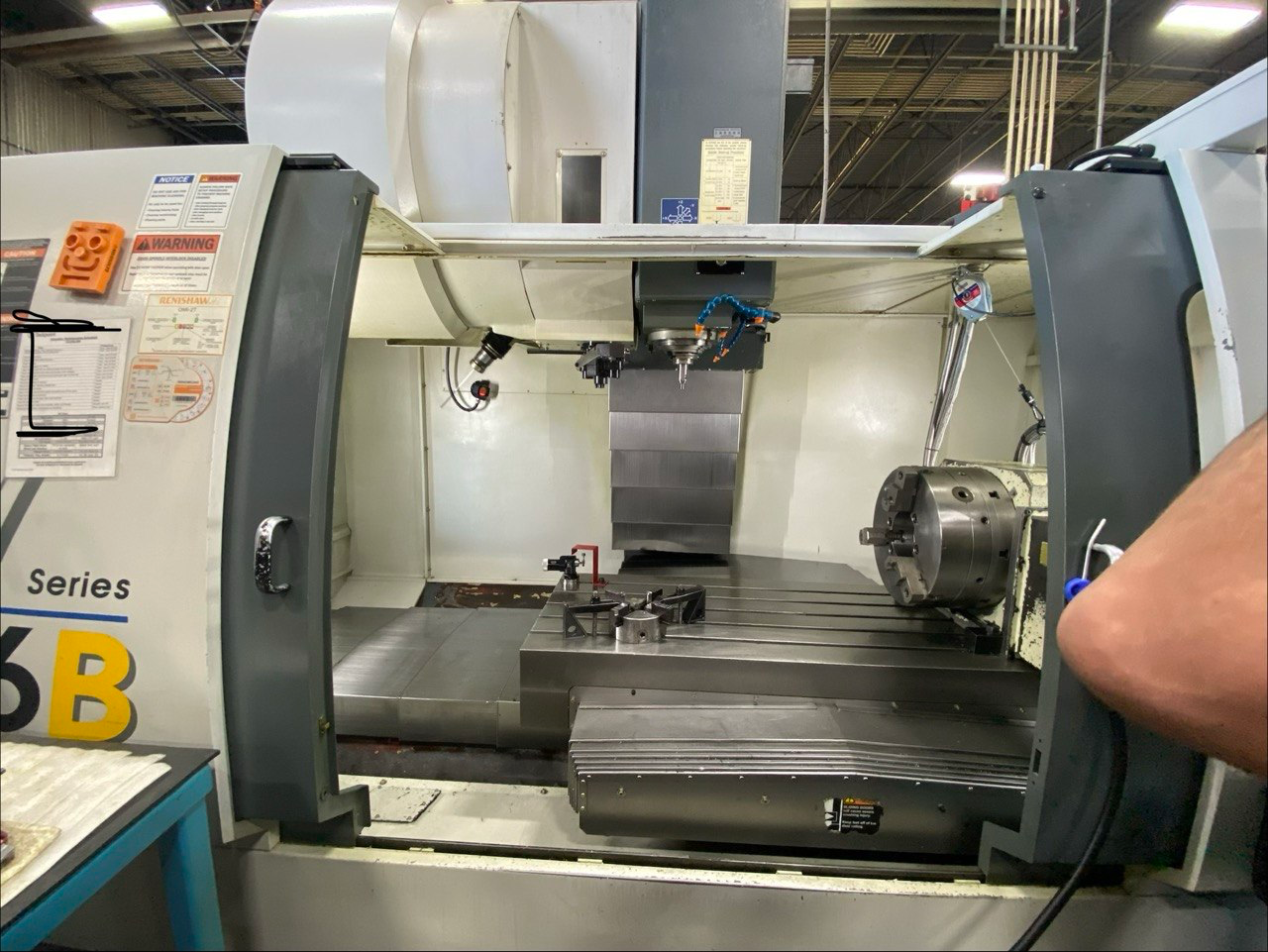

2010 YCM TV146B CNC Vertical Machining Center equipped with a FANUC MXP-200i CNC control, BT50 gear-driven spindle, 24-tool automatic tool changer, 4th axis rotary table, Renishaw probe, flood coolant system, and chip conveyor. This heavy-duty box way machining center offers 55.1" X-axis travel, 24.4" Y-axis travel, and 24.8" Z-axis travel, making it ideal for precision machining, mold & die, aerospace, automotive, and general engineering applications.

YCM TV146B CNC Vertical Machining Center

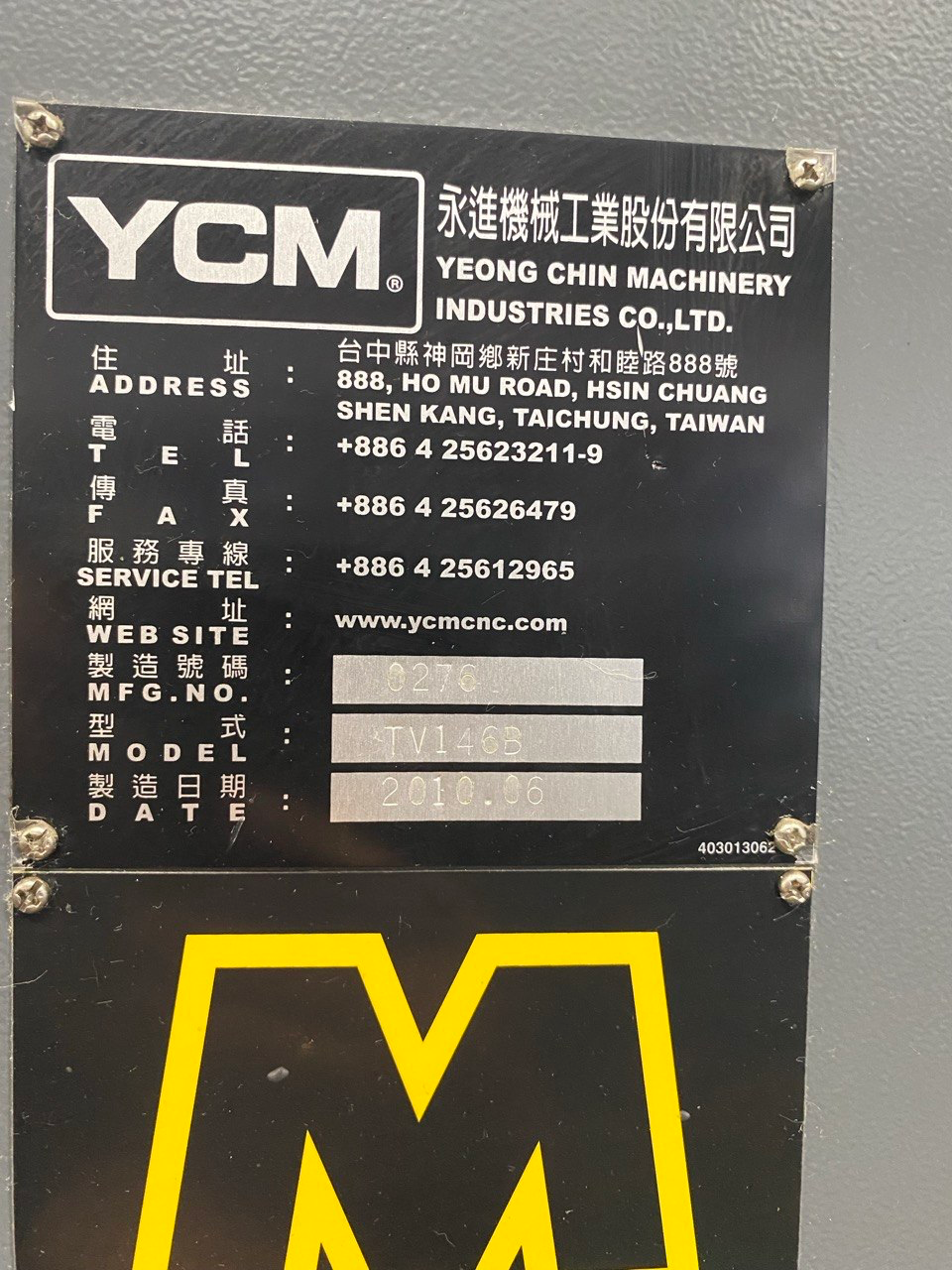

Manufacturer: Yeong Chin Machinery Industries (YCM), Taiwan
Model: TV146B
Year: 2010
Control: FANUC MXP-200i CNC
Configuration: 4-Axis Vertical Machining Center (Rotary 4th Axis Installed)
Voltage: 220V

Specifications

Travels
• X-Axis Travel: 1,400 mm (55.1")
• Y-Axis Travel: 620 mm (24.4")
• Z-Axis Travel: 630 mm (24.8")

Table
• Table Size: 1,500 × 600 mm
• Maximum Table Load: 1,500 kg
• T-Slots: 5 × 18 mm × 100 mm

Spindle
• Spindle Taper: BT50
• Spindle Speed: 6,000 RPM
• Spindle Motor: 18.5 kW (25 HP)
• Gear-Driven Spindle

Feed Rates
• Rapid Traverse (X / Y / Z): 16 m/min

Tool Changer
• Automatic Tool Changer (ATC)
• Tool Magazine Capacity: 24 Tools

Machine Construction
• Box Way Construction
• Meehanite Cast Iron Frame
• Precision Ballscrews
• Counterbalanced Z-Axis
• T-Base Machine Structure

Equipped With

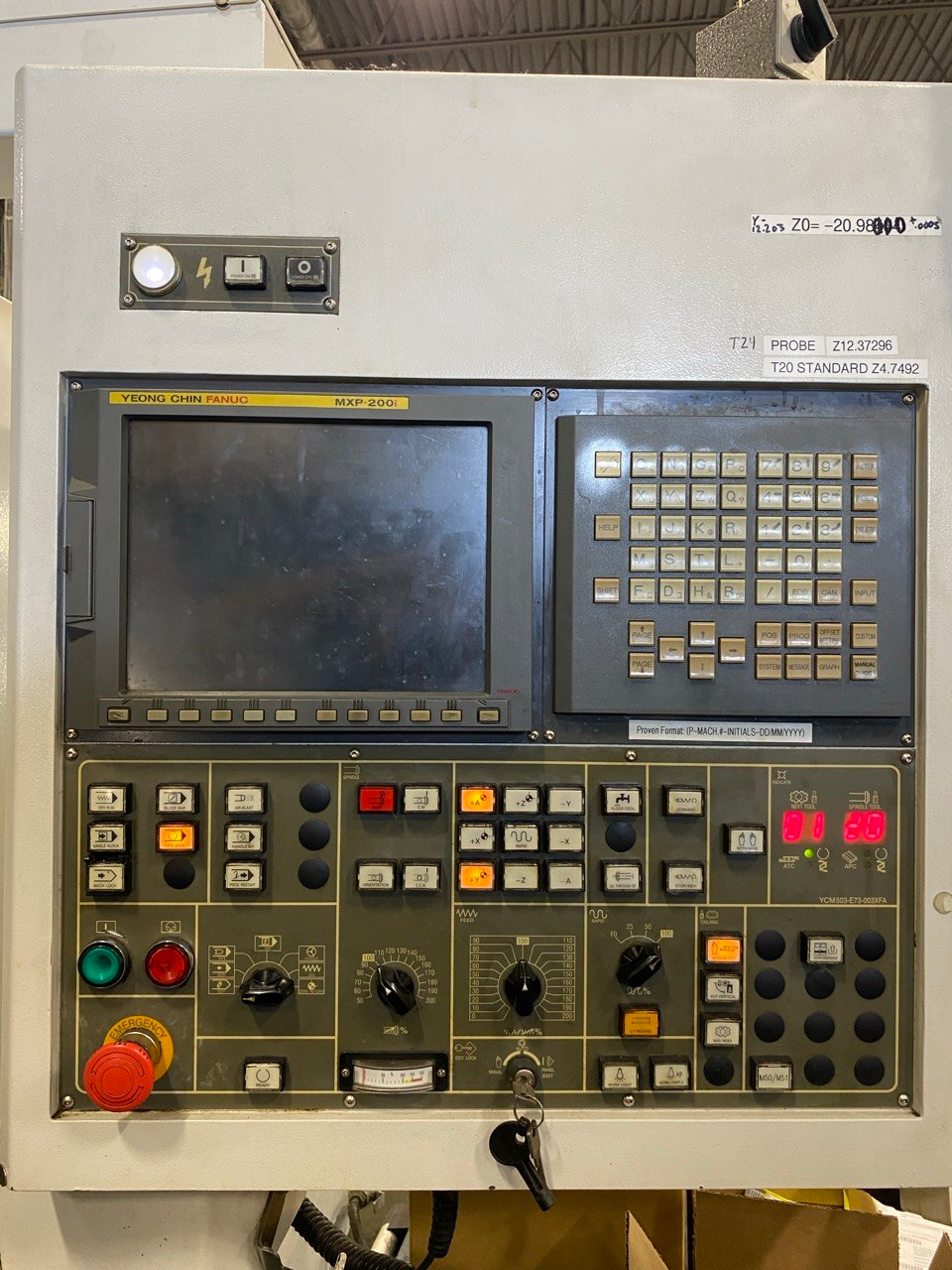

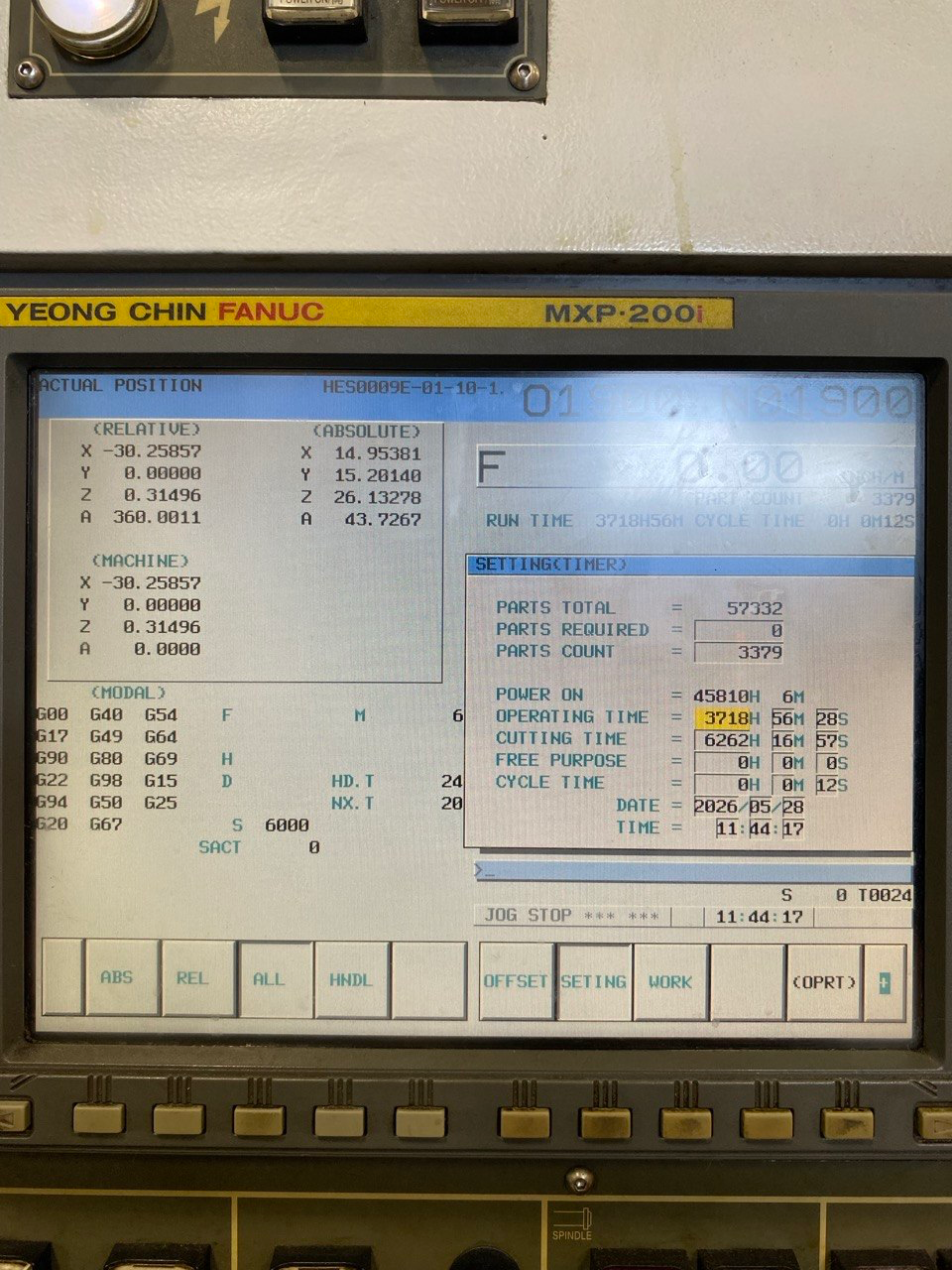

• FANUC MXP-200i CNC Control

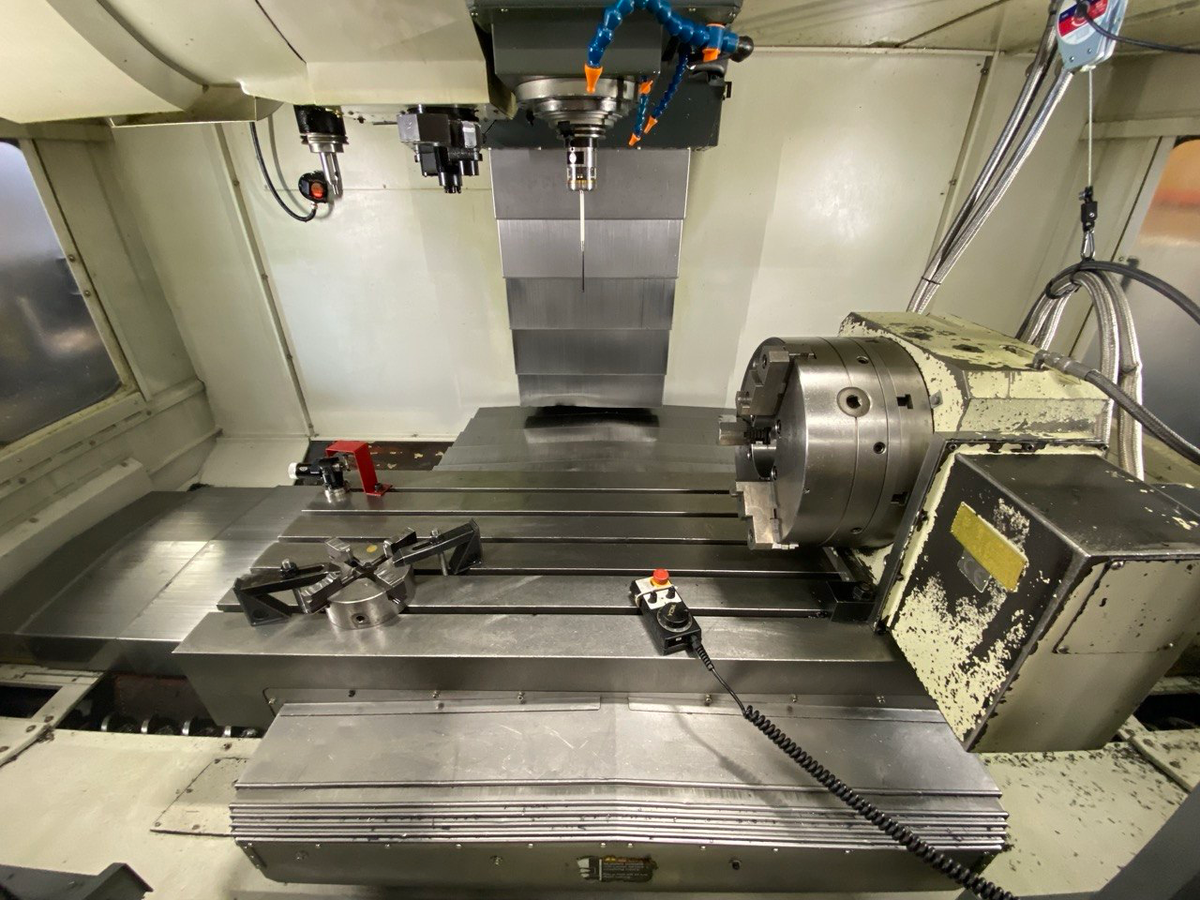

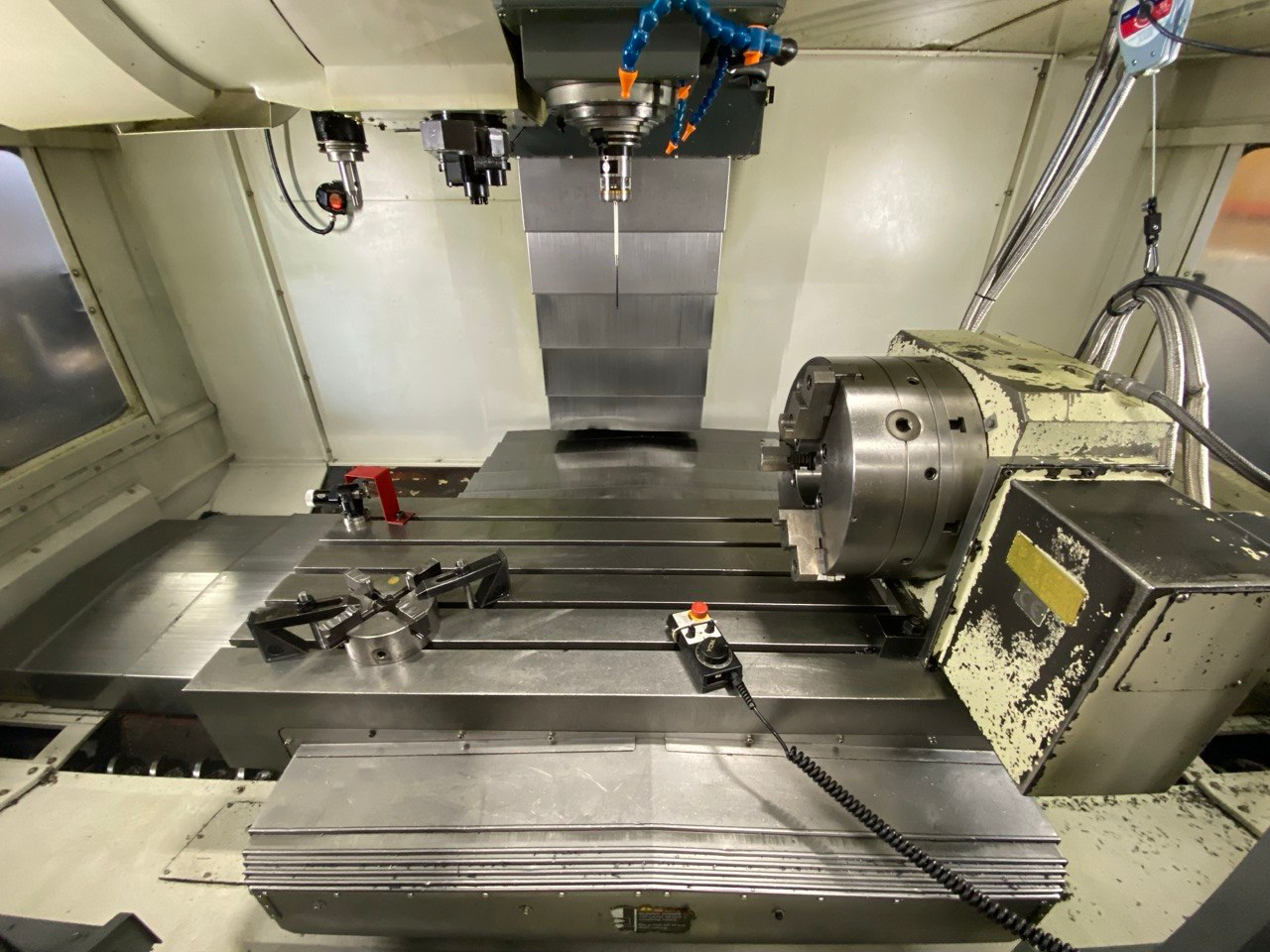

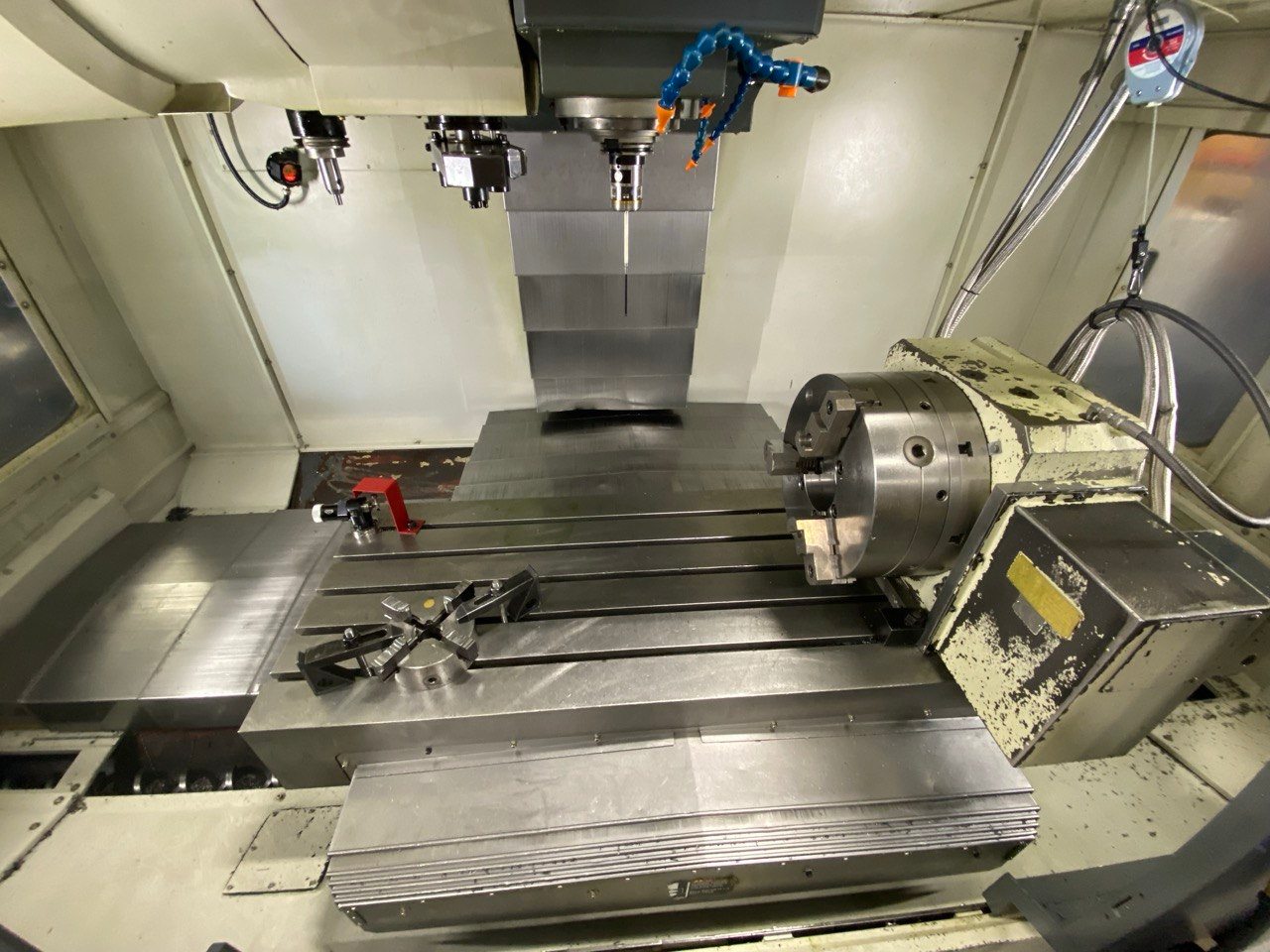

• 4th Axis Rotary Table
• Renishaw Probe
• Automatic Tool Changer
• Flood Coolant System
• Chip Conveyor
• Fully Enclosed Guarding
• Electronic Handwheel (MPG)

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
