Machine Overview

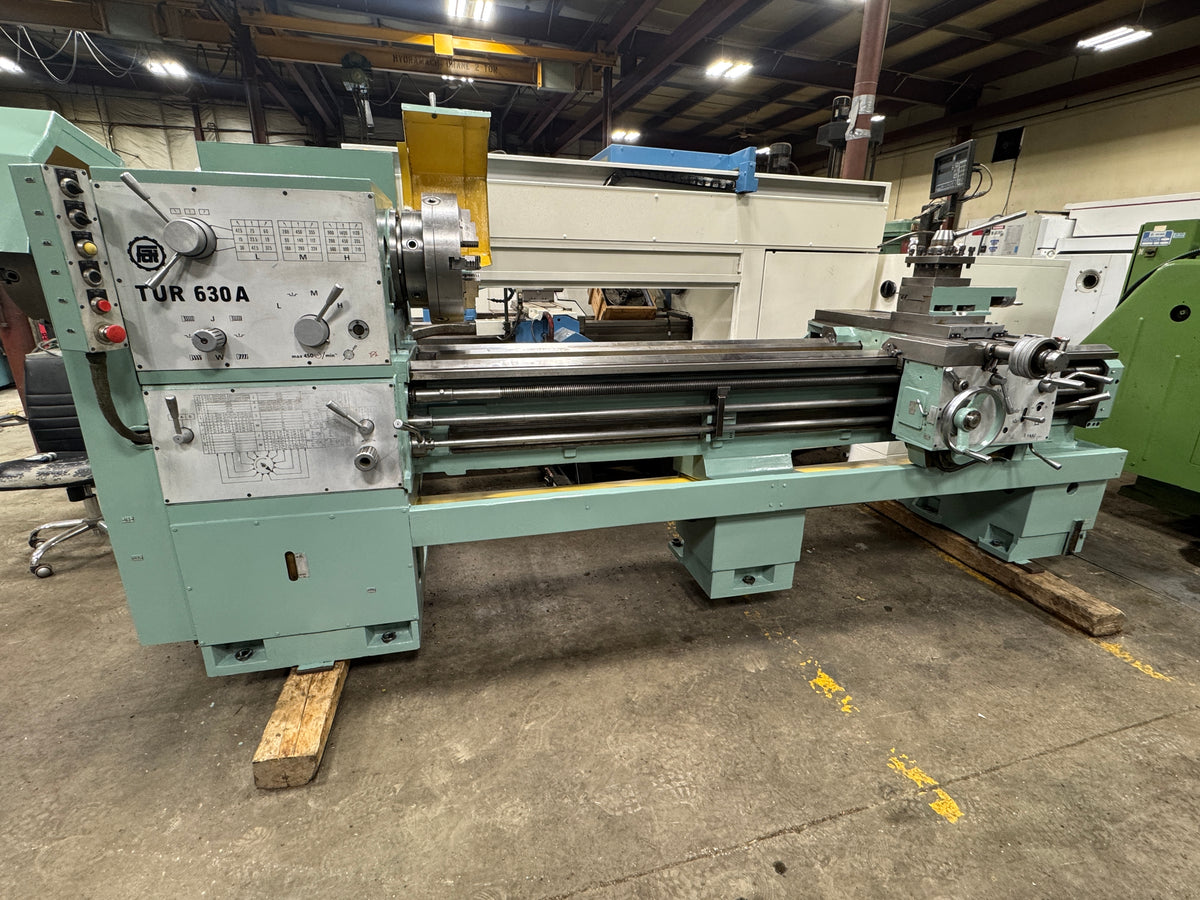

The TUR 630A × 2000 is a rigid Polish engine lathe designed for precision turning of medium-to-large workpieces. With a 630 mm (24.8") swing, 2000 mm (80") turning length, wide bed, and a robust spindle drive with a 5.5" (140 mm) spindle bore, this machine is suitable for repair shops, maintenance departments, fabrication plants, and job shops requiring consistent accuracy and reliability.

Specifications

Swing over bed: 630 mm (24.8")
Swing over cross slide: 350–400 mm (13.8"–15.7")
Swing in gap (if equipped): 800–820 mm (31.5"–32.3")
Distance between centers: 2000 mm (78.7")
Bed width: ~400 mm (15.7")
Spindle bore: 5.5" (140 mm)
Spindle nose: D1-8
Dual Chuck: front 16" 3-jaw, 2-piece; rear 16" 4-jaw; both with 5.5" (140 mm) bore
Spindle speed ranges: ~20–1400 rpm, 12–18 steps
Inch & metric threading: standard, wide-range gearbox
Feed combinations: longitudinal & cross, multiple rates
Reversing leadscrew: 4 TPI
Tool post: 4-position
Taper attachment
Thread dial
Rapid traverse
Tailstock: MT5 (Morse Taper 5)
DRO: NEWALL DP-700
Steady rests: Ø 380 mm (15.0"), Ø 180 mm (7.1")

Drives & Motors

Main motor: (20 HP)
Voltage: 230V/460V, 47,2/23,6 A, 3-phase
Connected load: 15 kW
Control voltage: 24 V

Dimensions & Floor Space

Overall Dimensions:
• Length: 4200 mm (165")
• Width: 2300 mm (90")
• Height: 1760 mm (69")

Required Floor Space (Operational):
• Length: 5000 mm (197")
• Width: 3000 mm (118")

Recommended clearance:
• Rear: 600–800 mm (23.6"–31.5")
• Front: 1000 mm (39.4")

Net weight: 3500 kg ( 7,716 lbs.)

Condition: Used, Manufactured 1993
Serial: Y **7214

Specifications are provided as general guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
