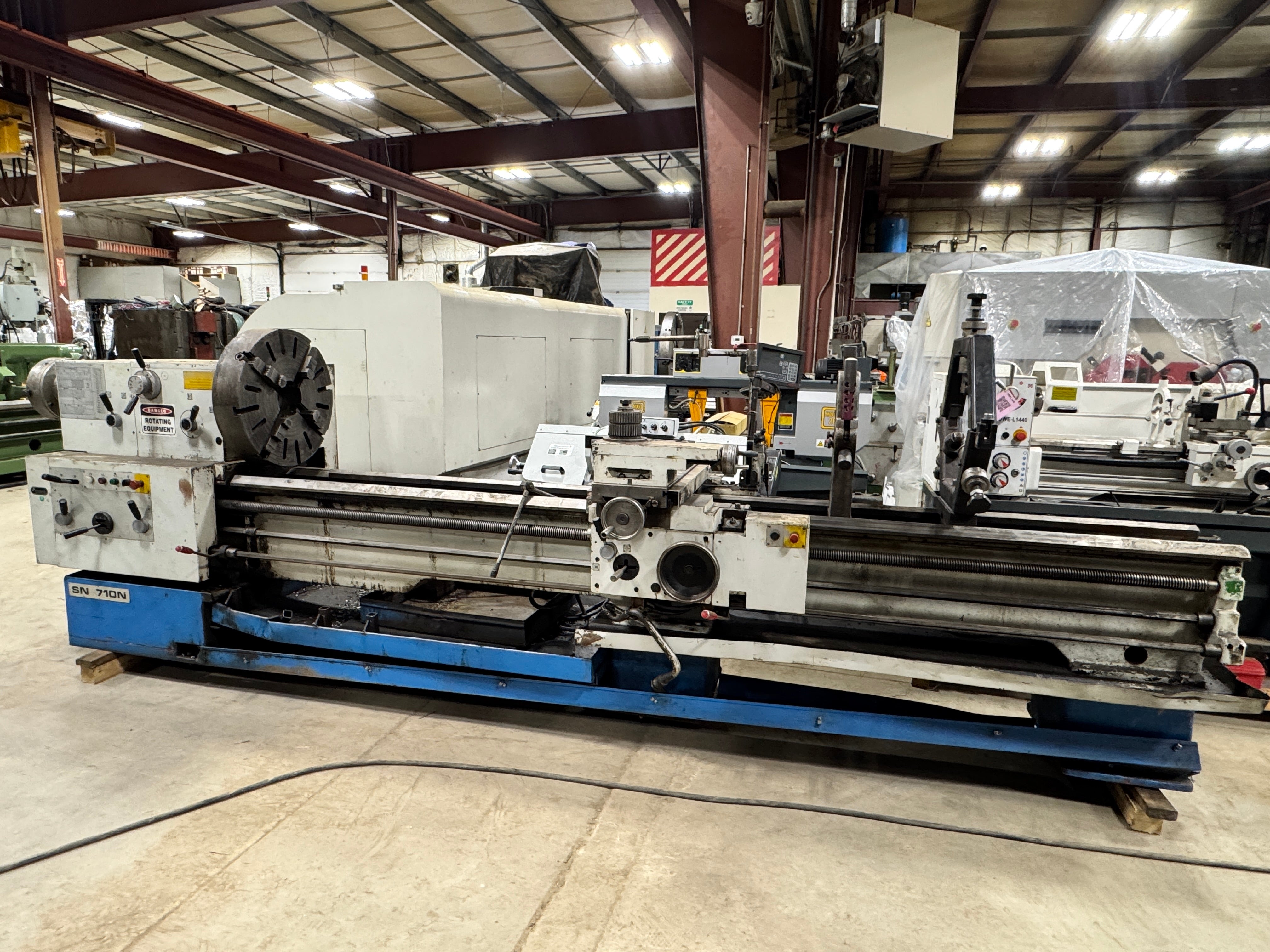

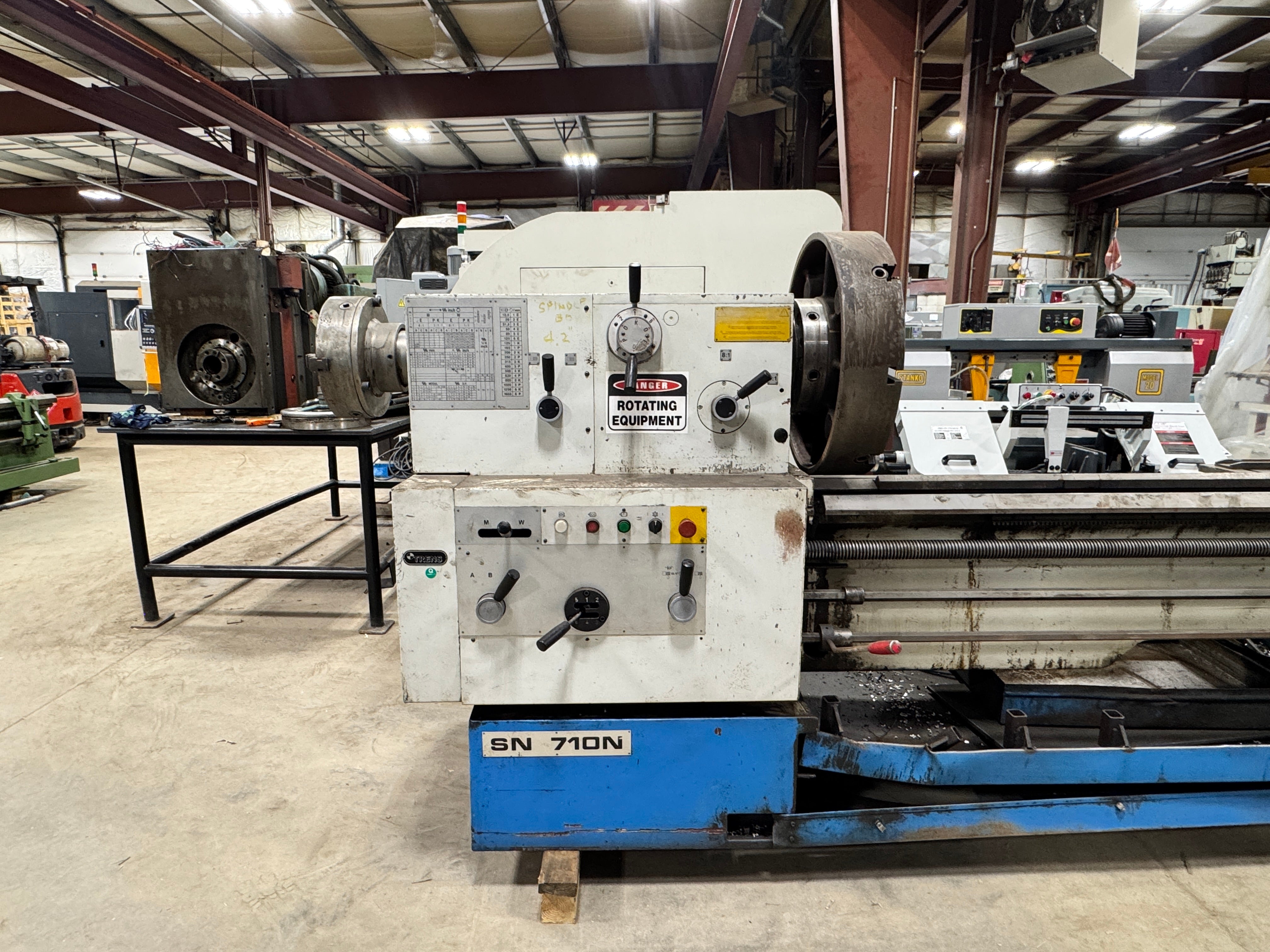

TRENS SN 710N Heavy Duty Engine Lathe 28" x 120" w/ DRO

TRENS SN 710N Heavy Duty Engine Lathe in good working condition. Large capacity European-built machine made in Slovakia and equipped with Newall DRO, taper attachment, steady rest, and large through-bore spindle setup.

TRENS SN 710 N
Heavy Duty Engine Lathe

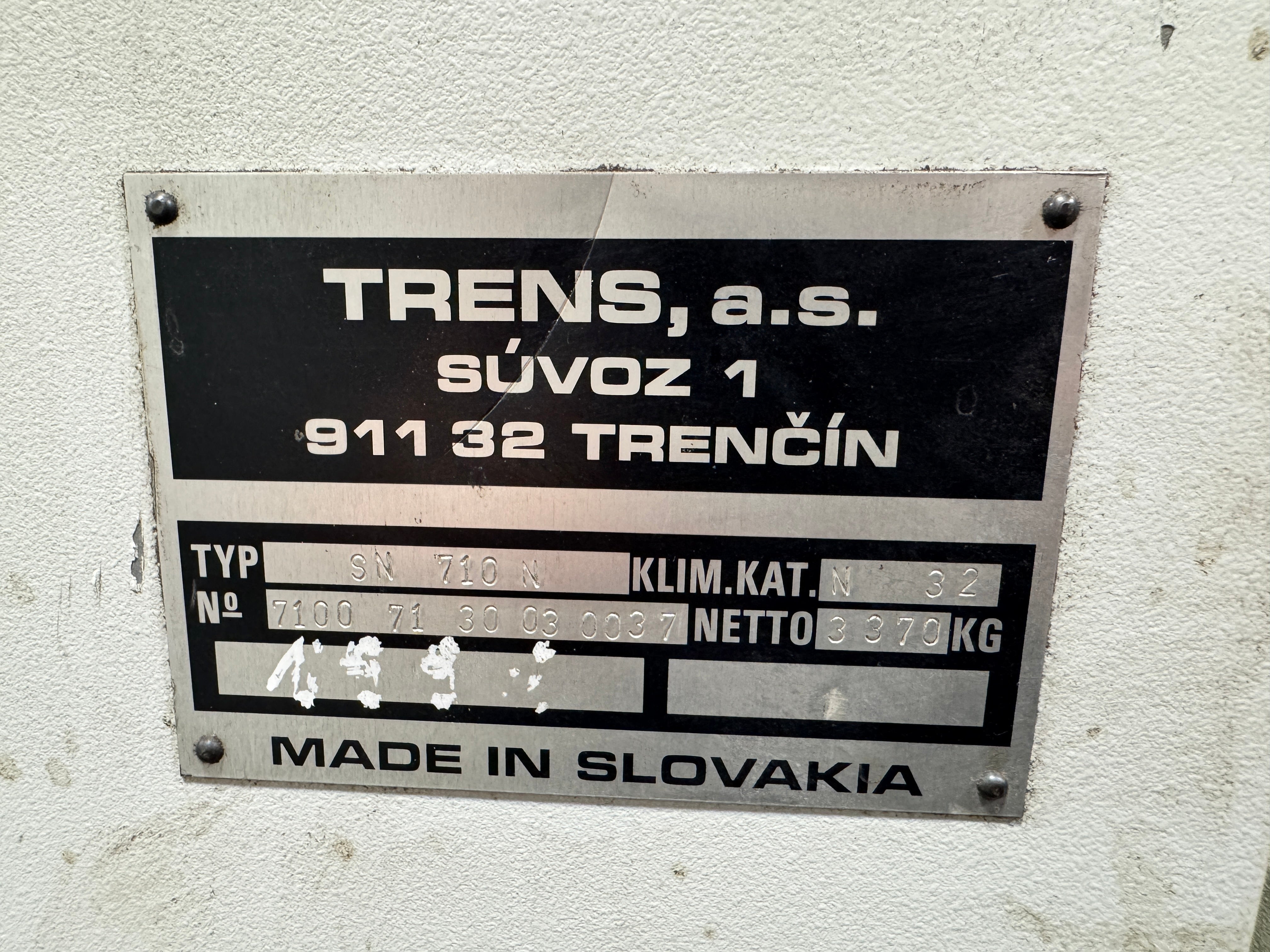

Machine Serial Number: 030037
Made in Slovakia

SPECIFICATIONS

CAPACITY

Swing over bed: 28.3" (720 mm)
Swing over cross slide: 16.9" (430 mm)
Swing in gap: 37.8" (960 mm)
Distance between centers: 120" (3000 mm)

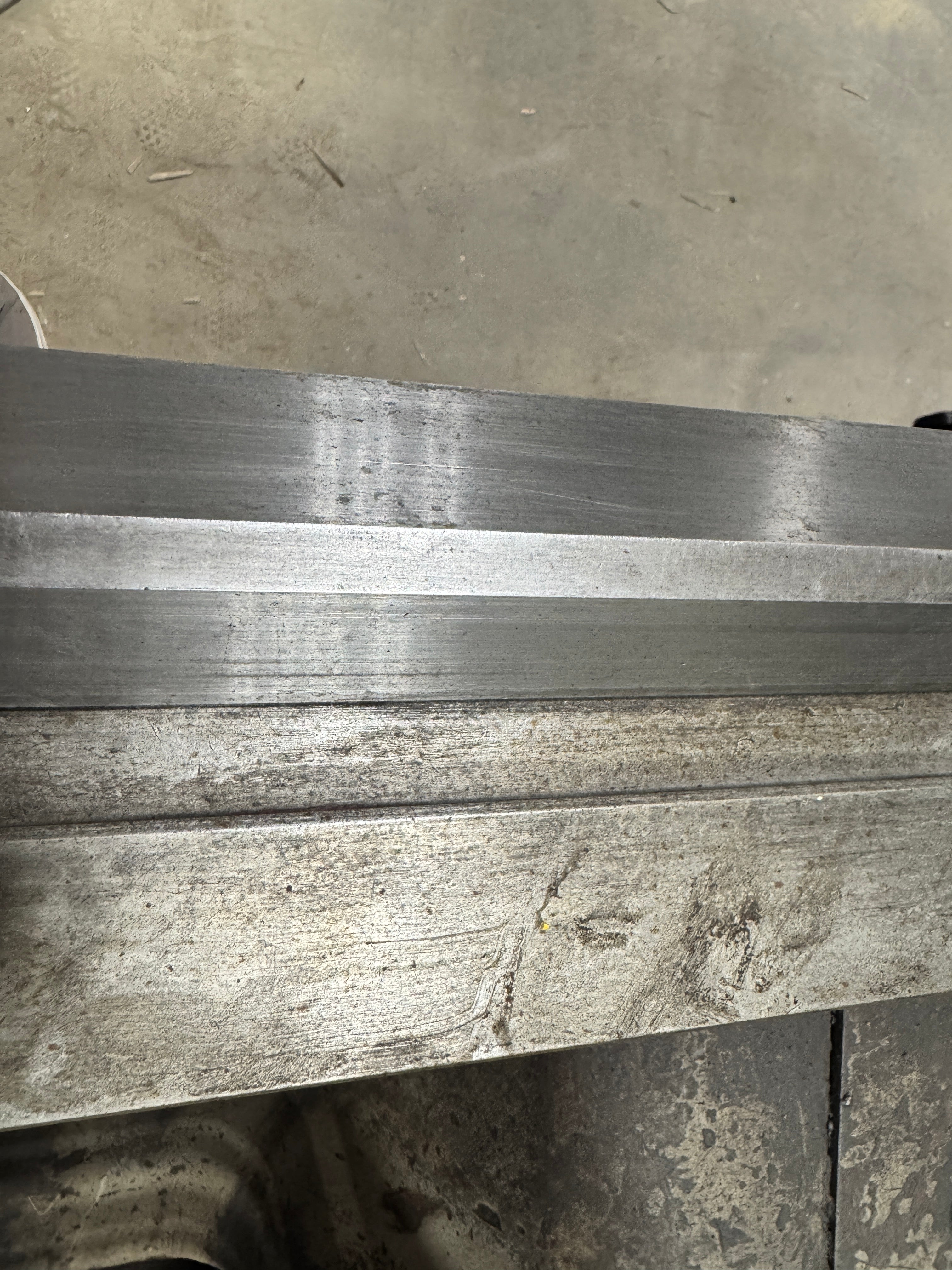

Bed width: 17.7" (450 mm)
Center height: 14" (355 mm)

SPINDLE

Spindle bore: 4.25" (108 mm approx.)
Spindle speed range: 12.5 – 1600 RPM
18 spindle speeds

CHUCKS

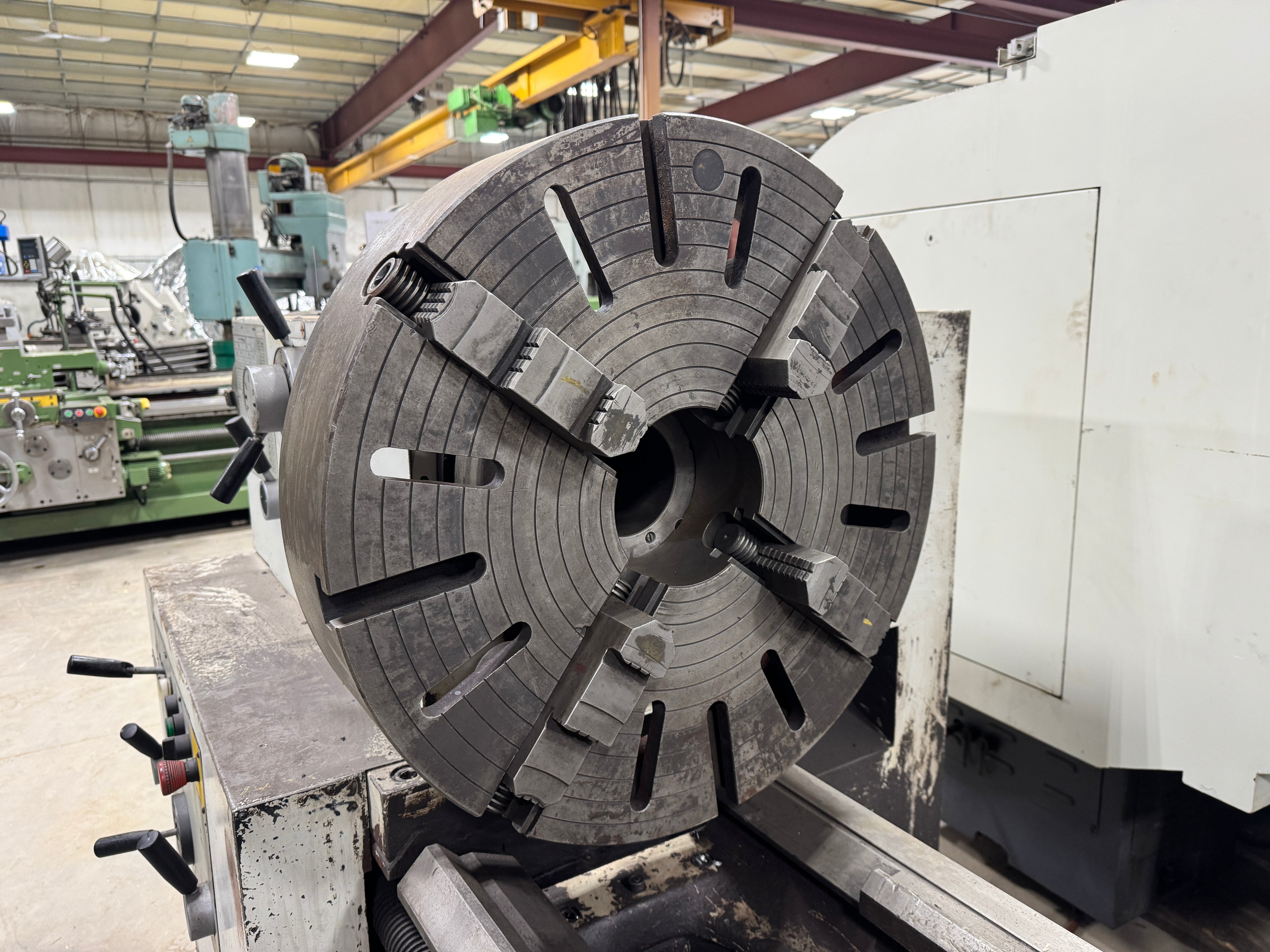

Front chuck:

25" 4-Jaw Independent Chuck
Approx. 6" through bore

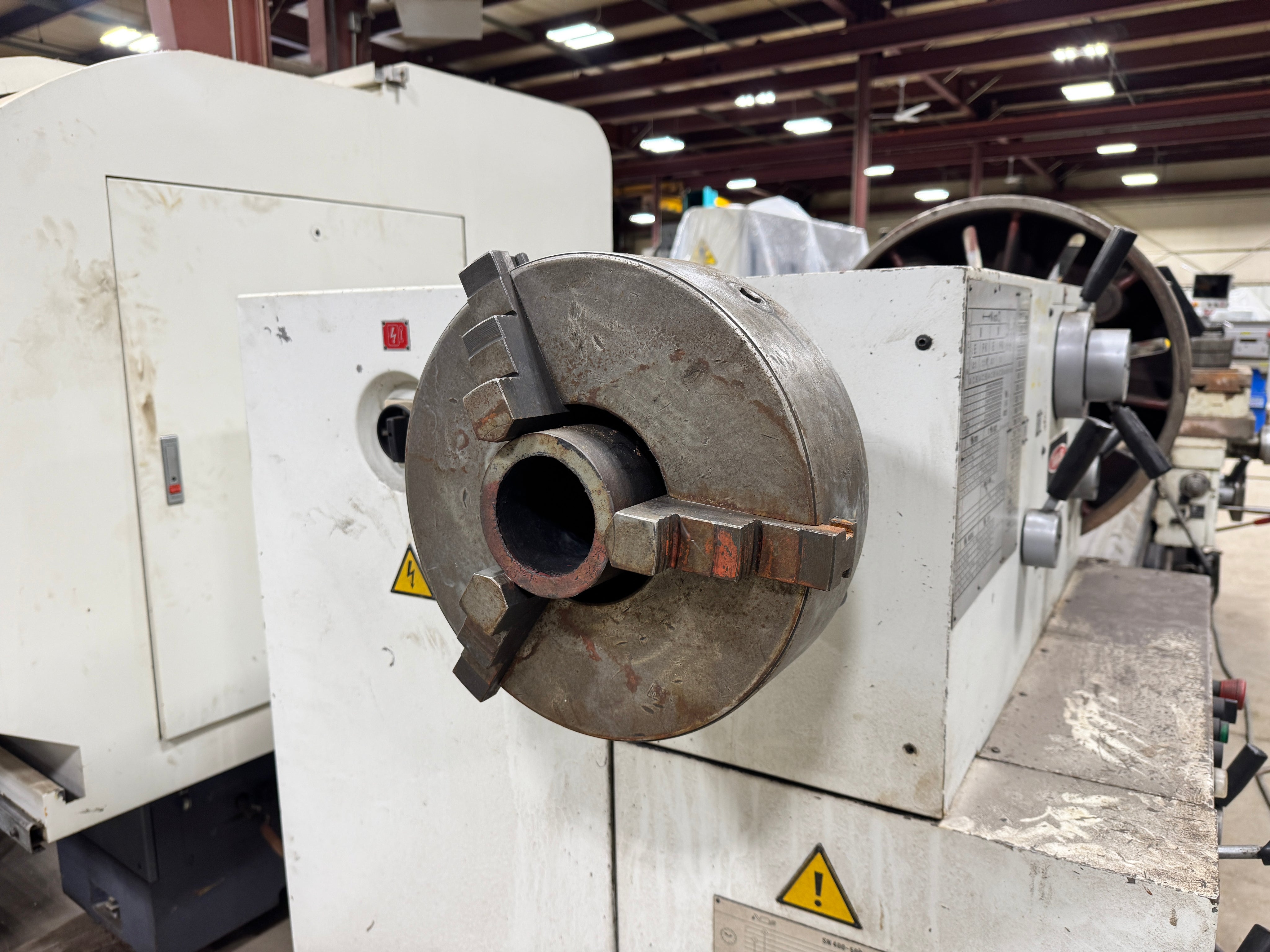

Rear chuck:

12" 3-Jaw Chuck
Approx. 4.75" bore

THREADING
Metric Threads:

0.5 – 40 mm
29 ranges

Inch Threads:

1 – 80 TPI
38 ranges

Module Threads:

0.25 – 20 MOD
26 ranges

Diametral Pitch Threads:

2 – 72 DP
31 ranges

FEEDS
Longitudinal feeds:

0.006 – 0.240 in/rev
0.039 – 4.8 mm/rev

Cross feeds:

0.003 – 0.120 in/rev
0.0195 – 2.4 mm/rev

TAILSTOCK

Morse taper: MT6
Quill diameter: 100 mm
Quill travel: 240 mm

EQUIPPED WITH

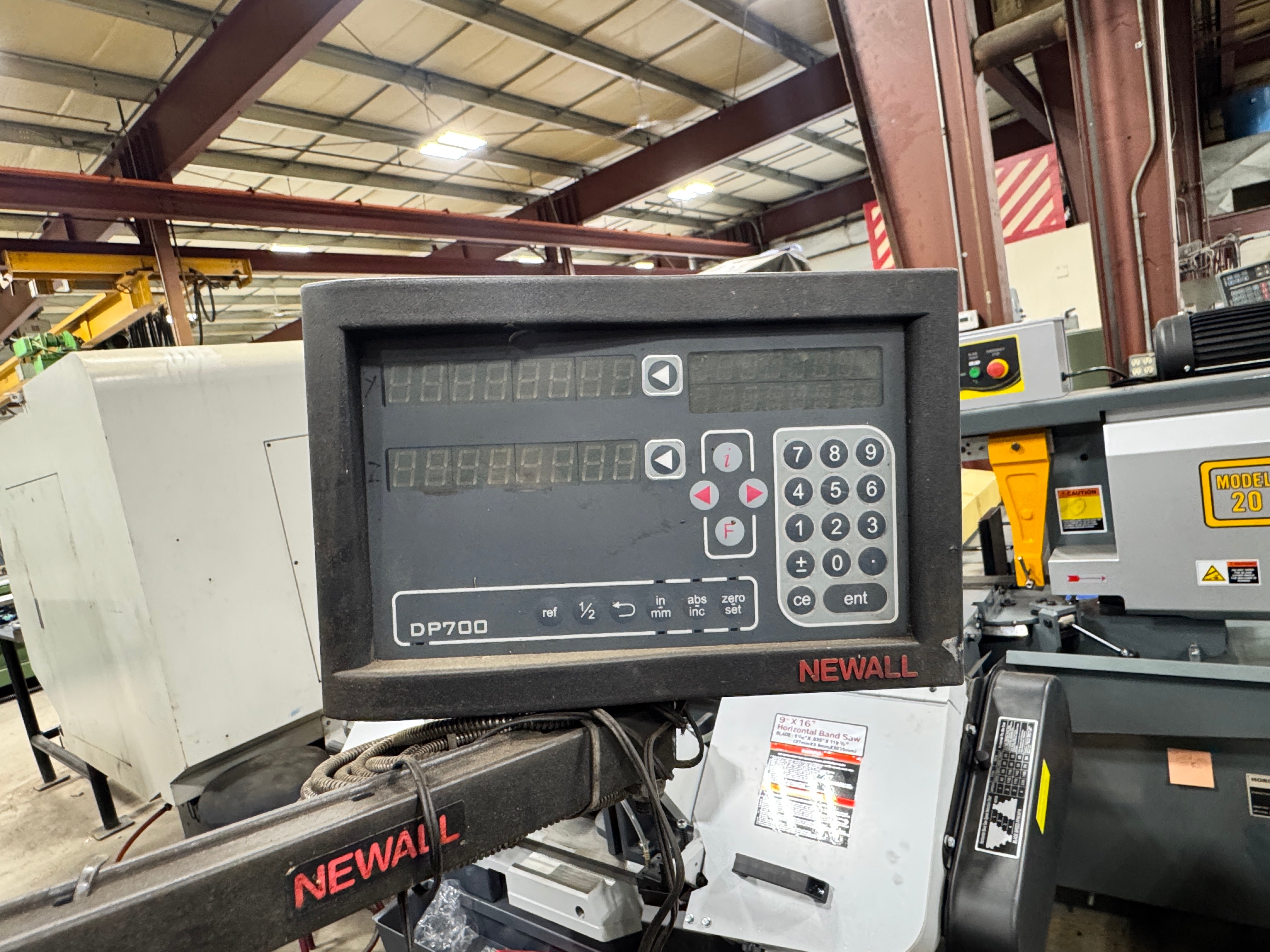

Newall DP700 DRO

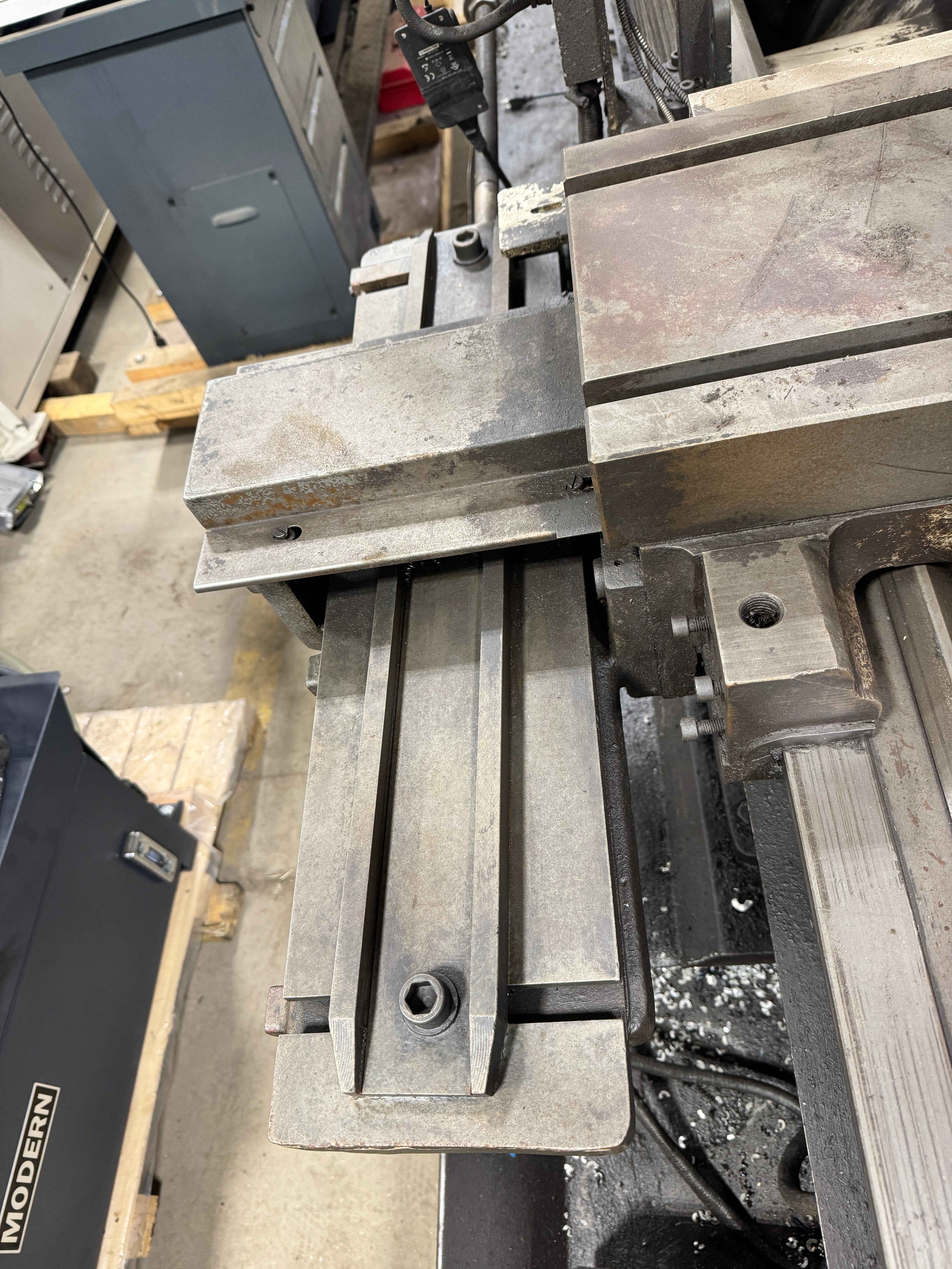

Taper attachment

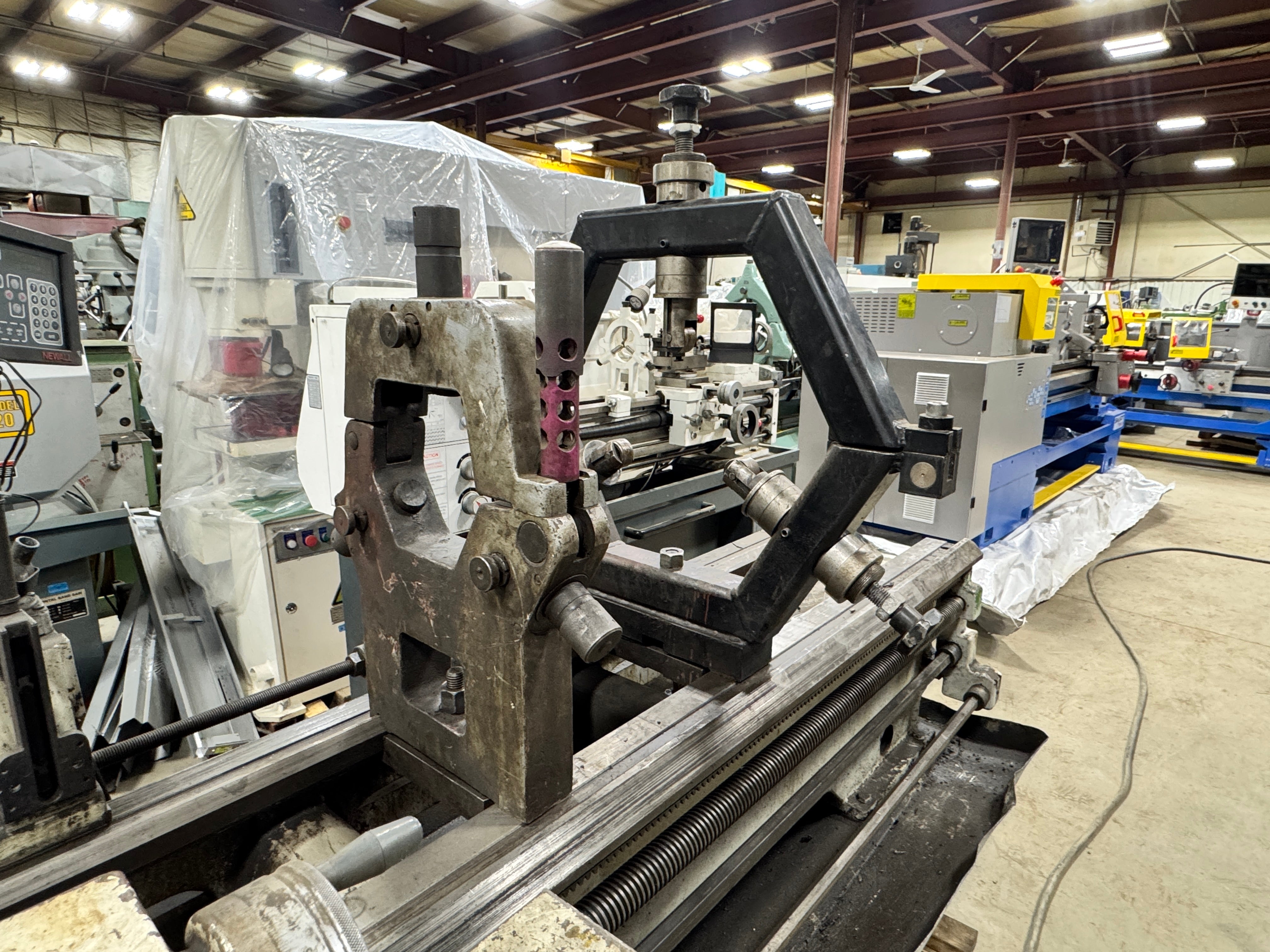

Large steady rest
Rapid traverse
Coolant system
Rear chuck setup
4-jaw independent front chuck

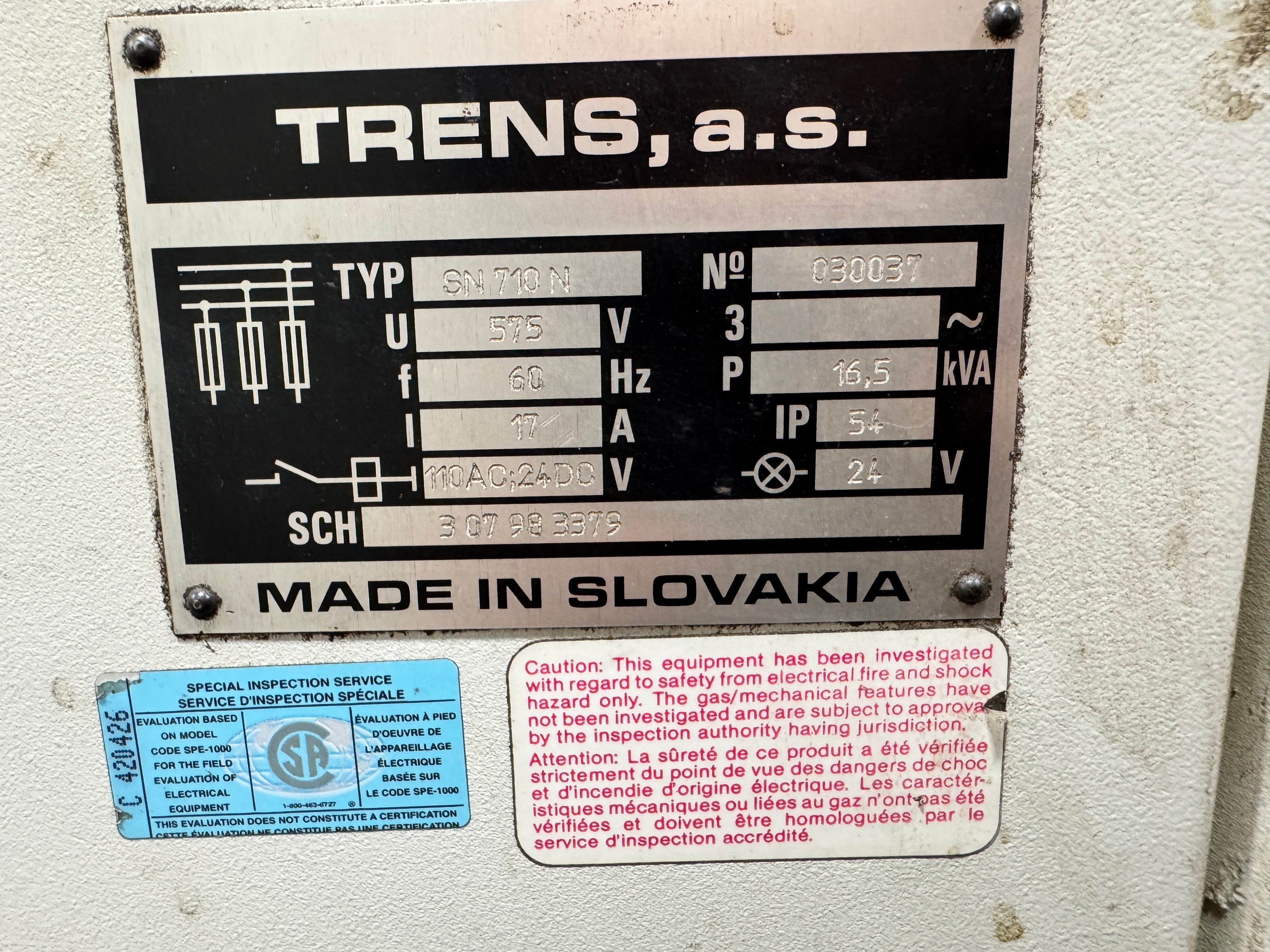

ELECTRICAL

575V / 60Hz / 3 Phase
17A
16.5 kVA
IP54
110V AC / 24V DC control voltage
24V work light

DIMENSIONS & WEIGHT

Dimensions (L x W x H): 180" x 65" x 75"
Net weight: 3370 kg

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
