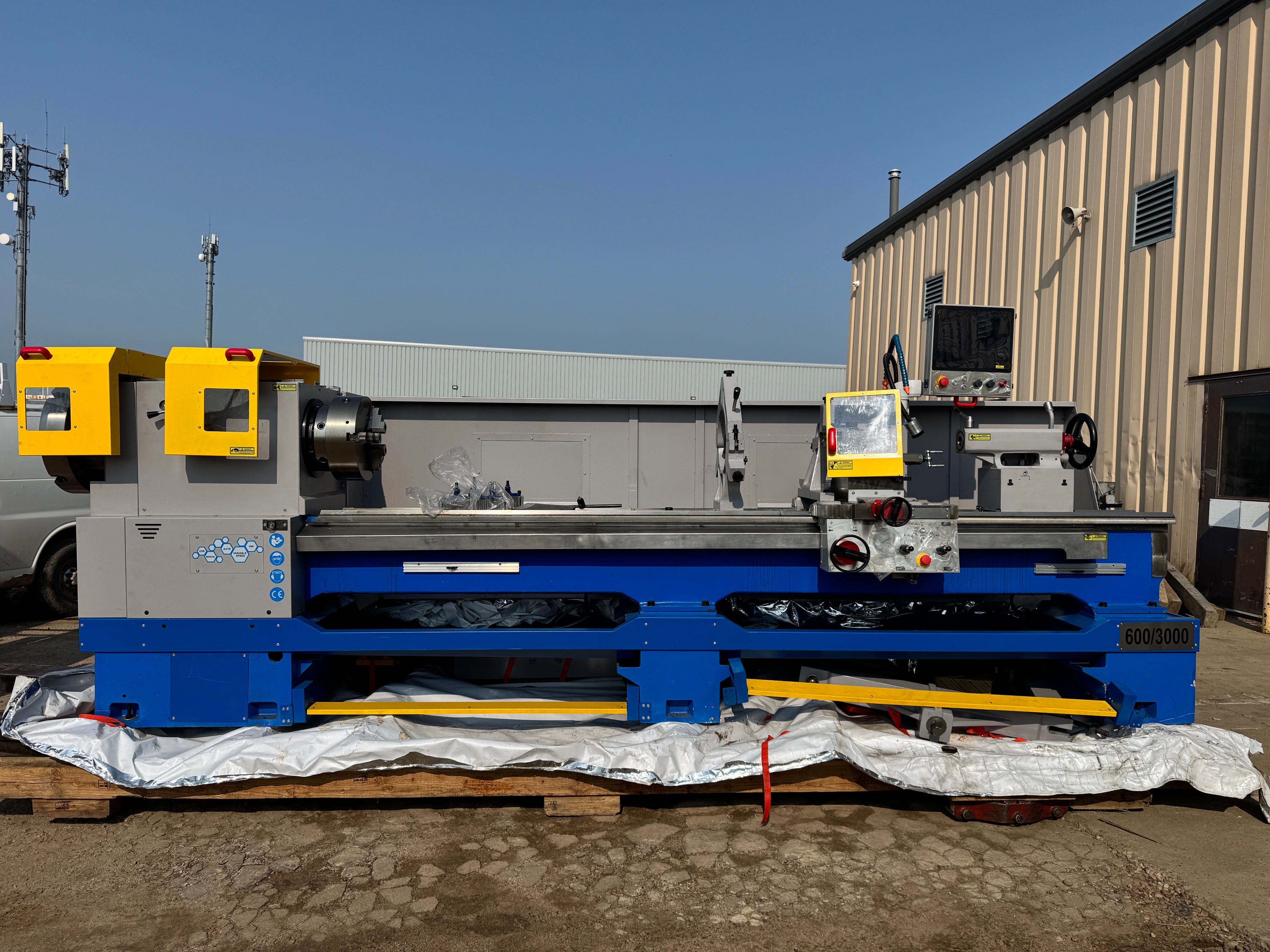

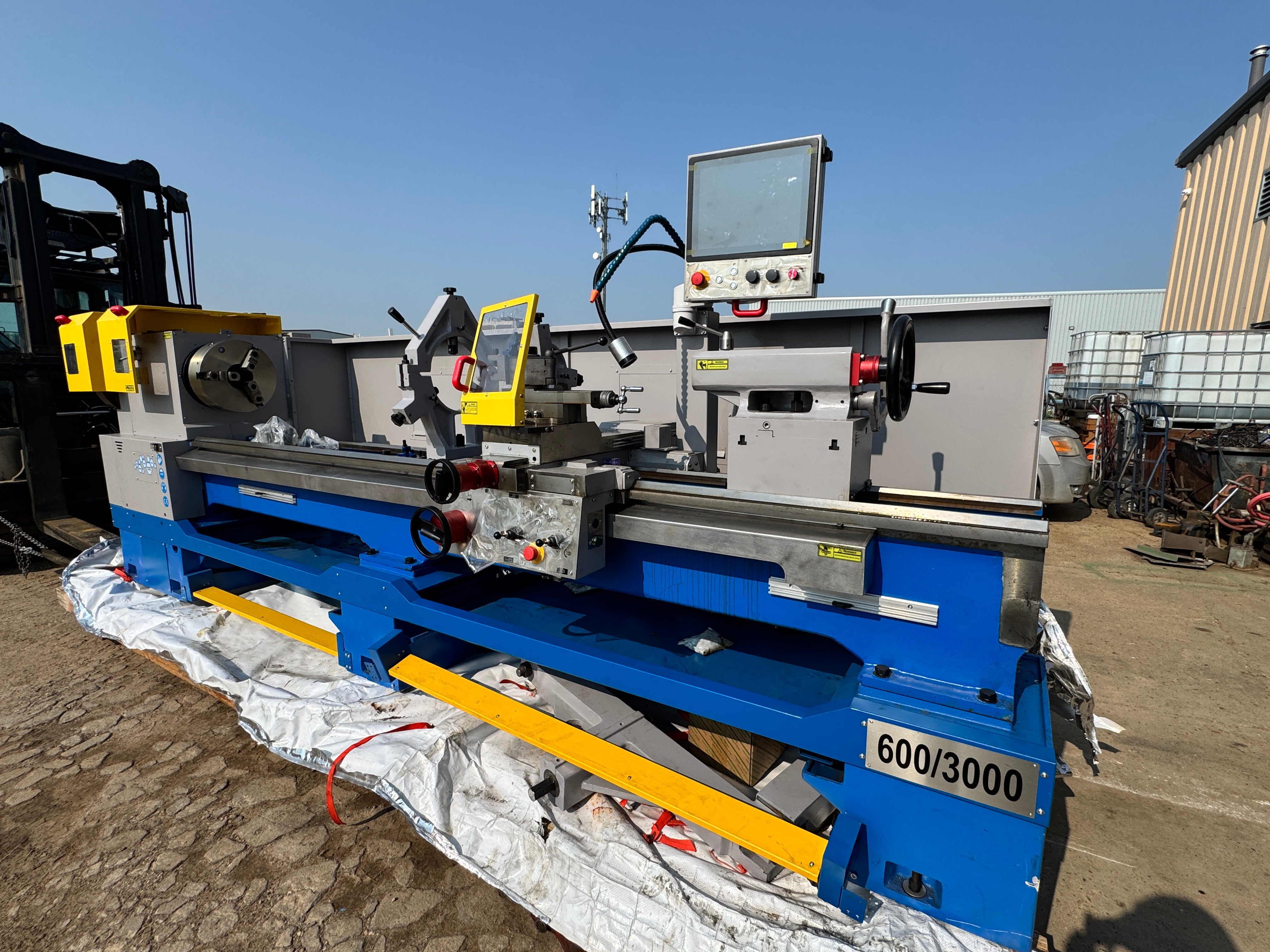

STANKO Smart Lathe S26120T

The STANKO Smart Lathe S26120T is a heavy-duty smart pipe and engine lathe designed for machining large shafts, hydraulic cylinders, rollers, and oilfield tubular components. Featuring a 650 mm (25") swing over bed, 3000 mm (120") between centers, and an extra-large 140 mm (5.5") spindle bore, the S26120T is engineered for high-torque turning of oversized workpieces.

Equipped with a 15" Smart HMI touchscreen, servo-assisted X/Z rapid traverse, variable spindle speed, and STANKO Smart Lathe Control Gen.2, the S26120T combines the flexibility of a conventional engine lathe with the productivity of a smart machining system. It is ideal for heavy fabrication shops, oil & gas service companies, mining equipment repair, steel mills, and industrial maintenance facilities.

Specifications

Capacity

• Swing over bed: 650 mm (25")
• Swing over cross slide: 380 mm (15")
• Max. turning length: 3000 mm (120")
• Bed width: 406 mm (16")

Spindle

• Front chuck: 20" Independent 4 Jaw Chuck
• Rear chuck: 14" 3 Jaw Chuck
• Spindle speed: 20 – 600 RPM

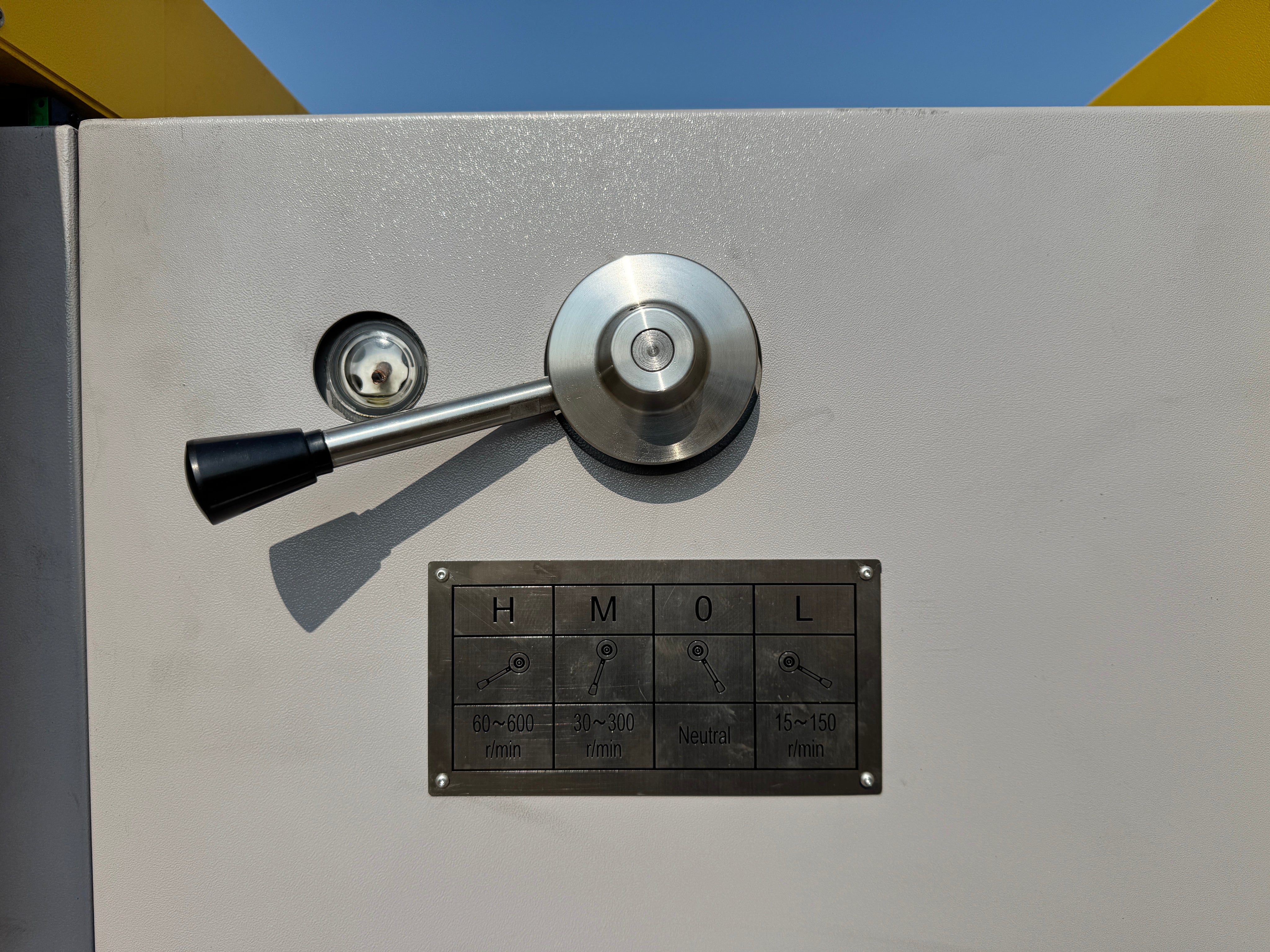

• Speed ranges: 3 (0–150 / 0–300 / 0–600 RPM)
• Variable speed drive
• Spindle bore: 140 mm (5.5")
• Spindle nose: A2-11
• Internal spindle taper: Metric 150

Carriage

• Tool post travel: 140 mm
• X-axis travel: 315 mm
• Rapid traverse: X & Z Axes

Tool Post

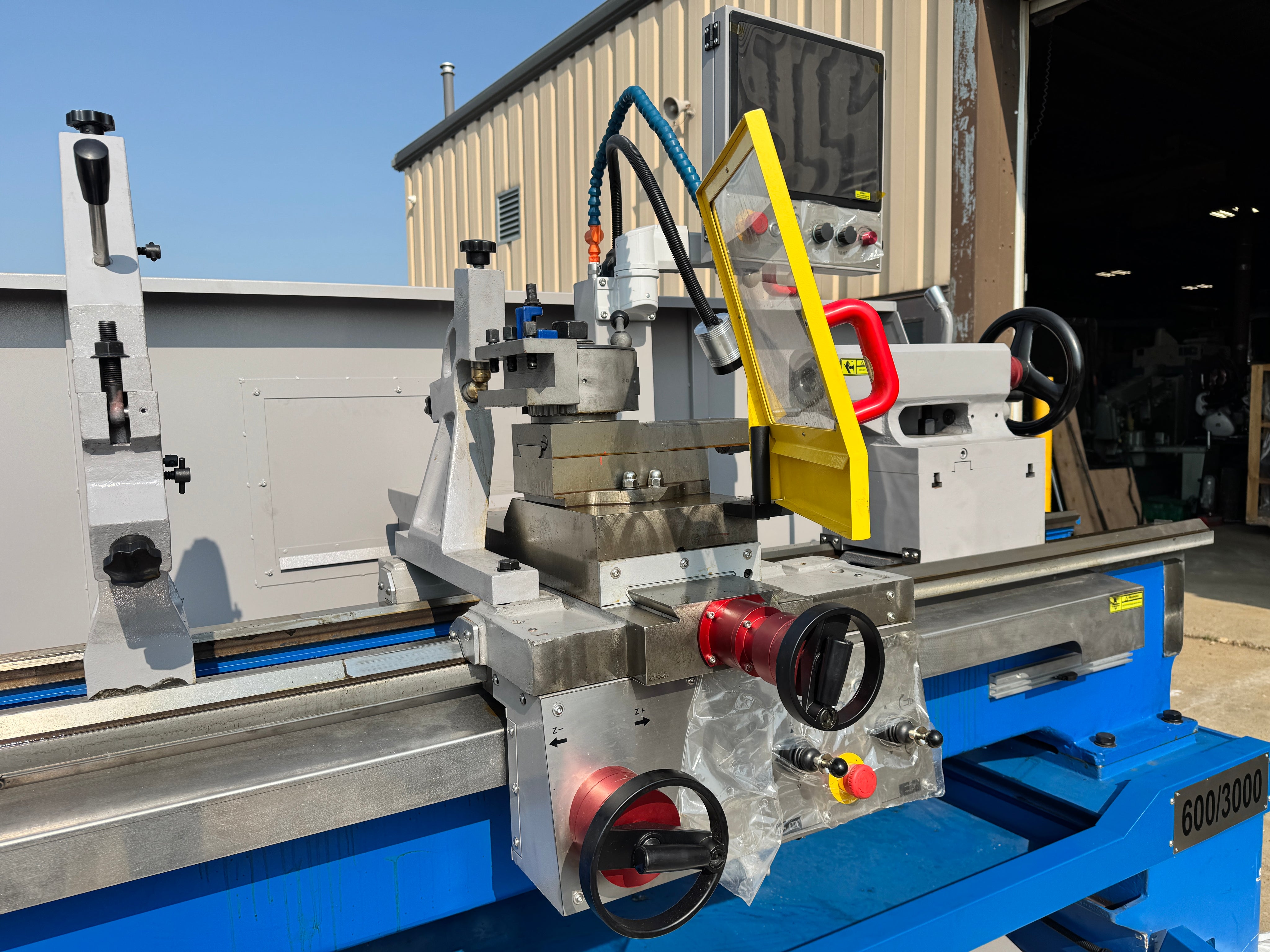

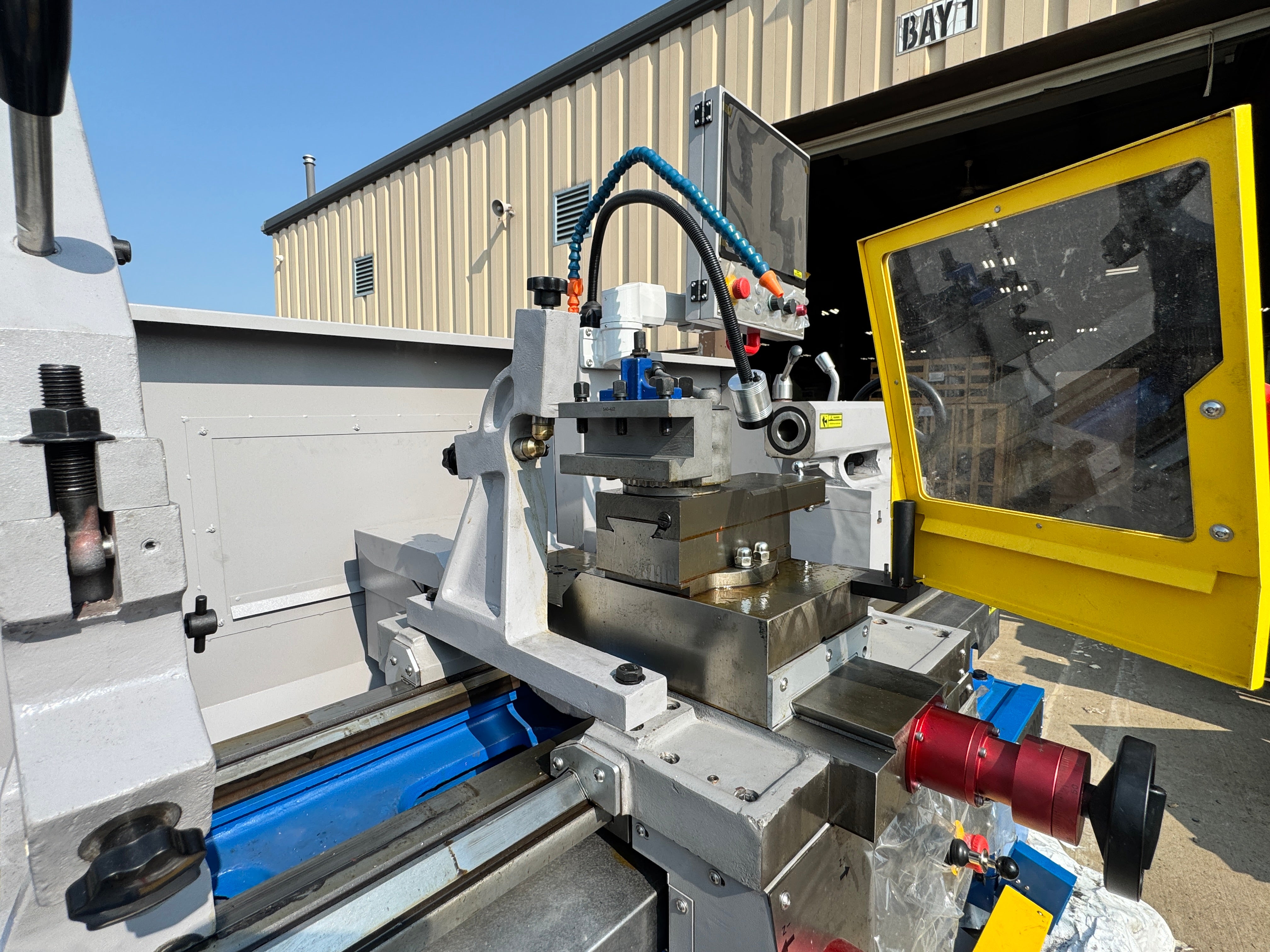

• Heavy Duty Quick Change Tool Post
• Tool holder size: 32 × 32 mm

Tailstock

• Tailstock type: Manual
• Quill stroke: 152 mm (6")
• Quill diameter: 76 mm (3")
• Quill taper: MT5

Threading

• Metric threads
• Imperial threads
• Module threads
• Diametral Pitch threads

Motor

• Main motor: 15 kW (20 HP)
• Coolant pump
• Rapid traverse drive

General

• Machine weight: 4590 kg (10,119 lbs)

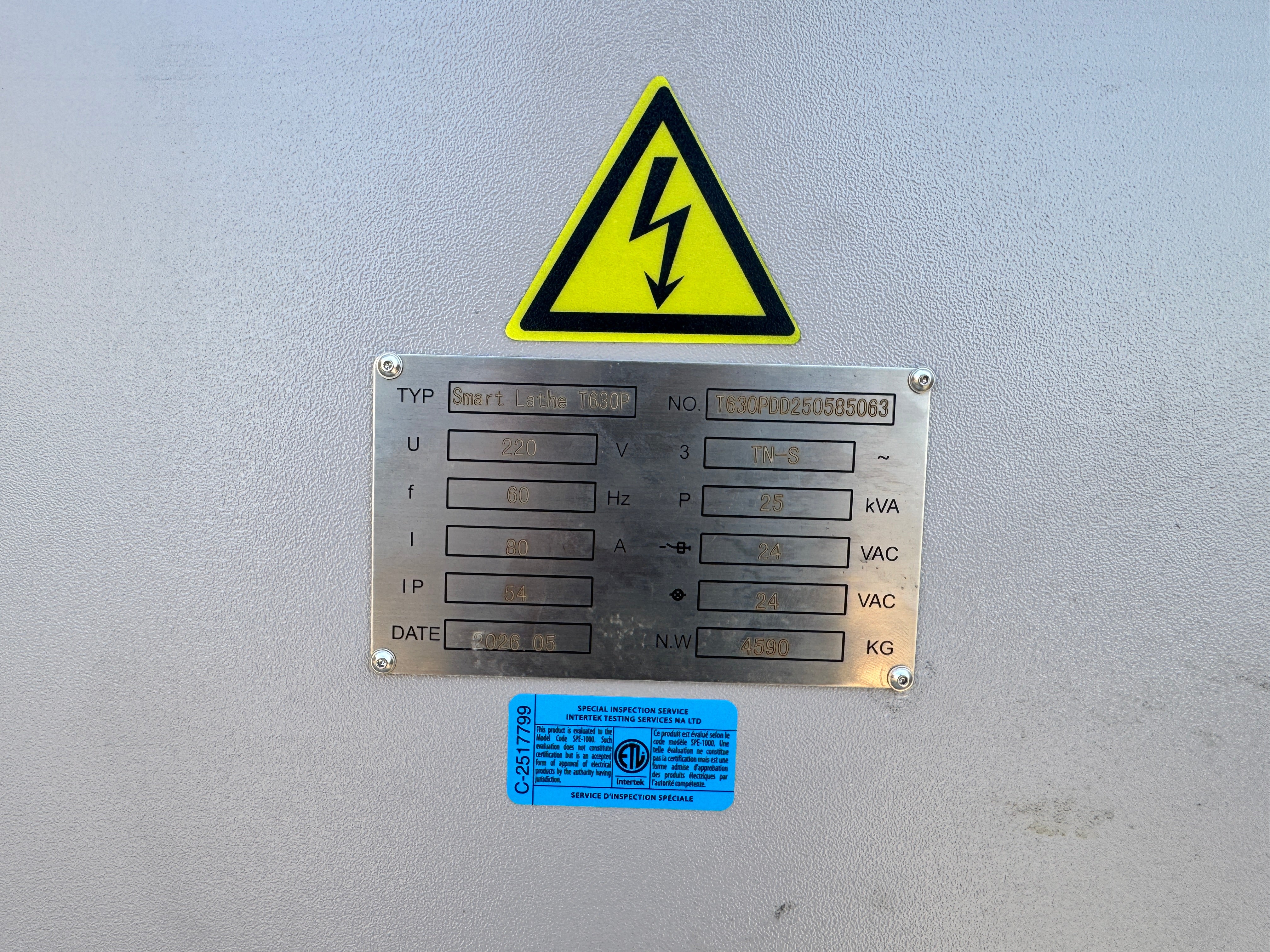

• Power requirement: 220V / 3 Phase / 80A
• Frequency: 50/60 Hz
• Protection class: IP54

Standard Features

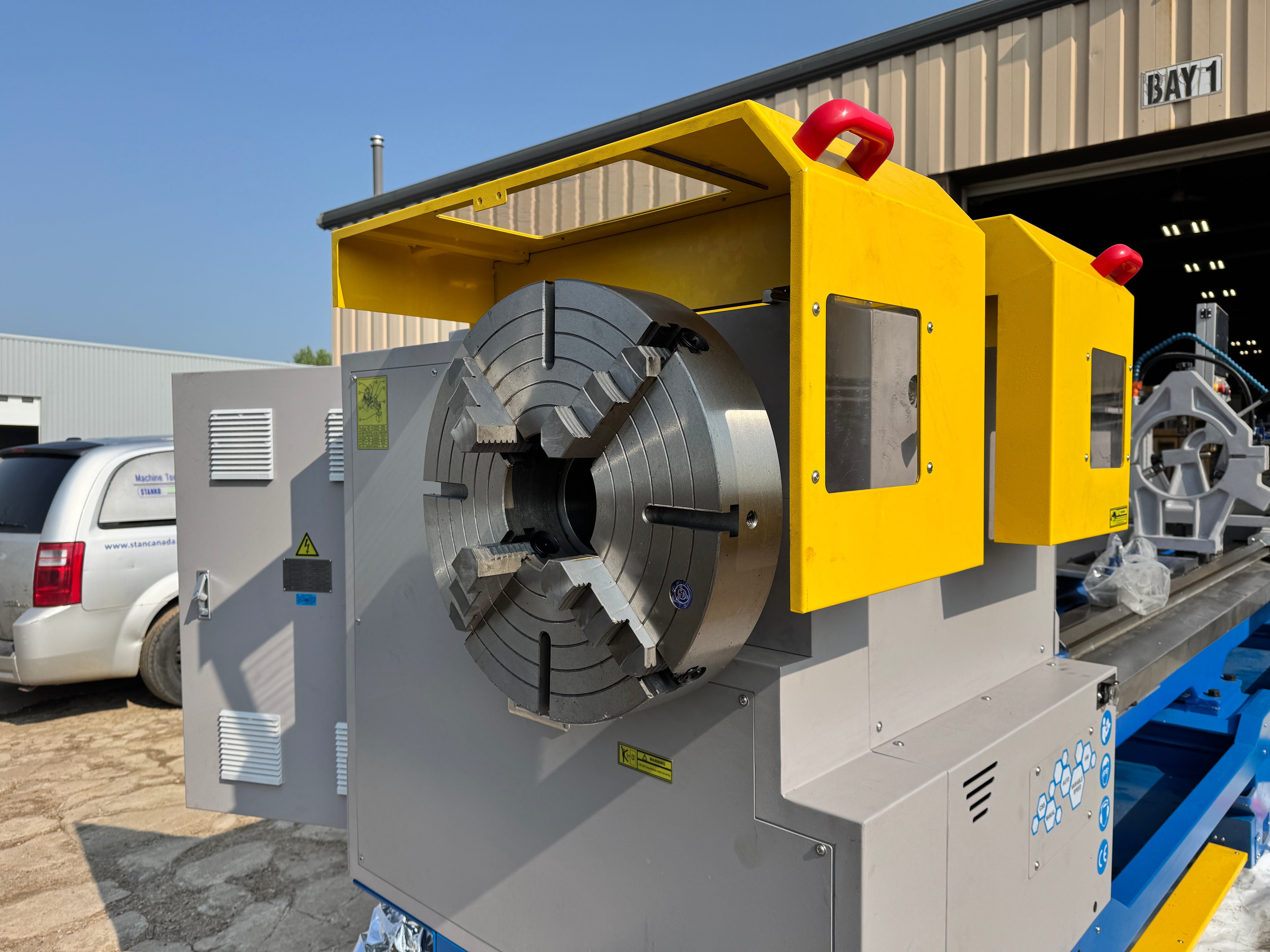

• 20" Independent 4 Jaw Front Chuck

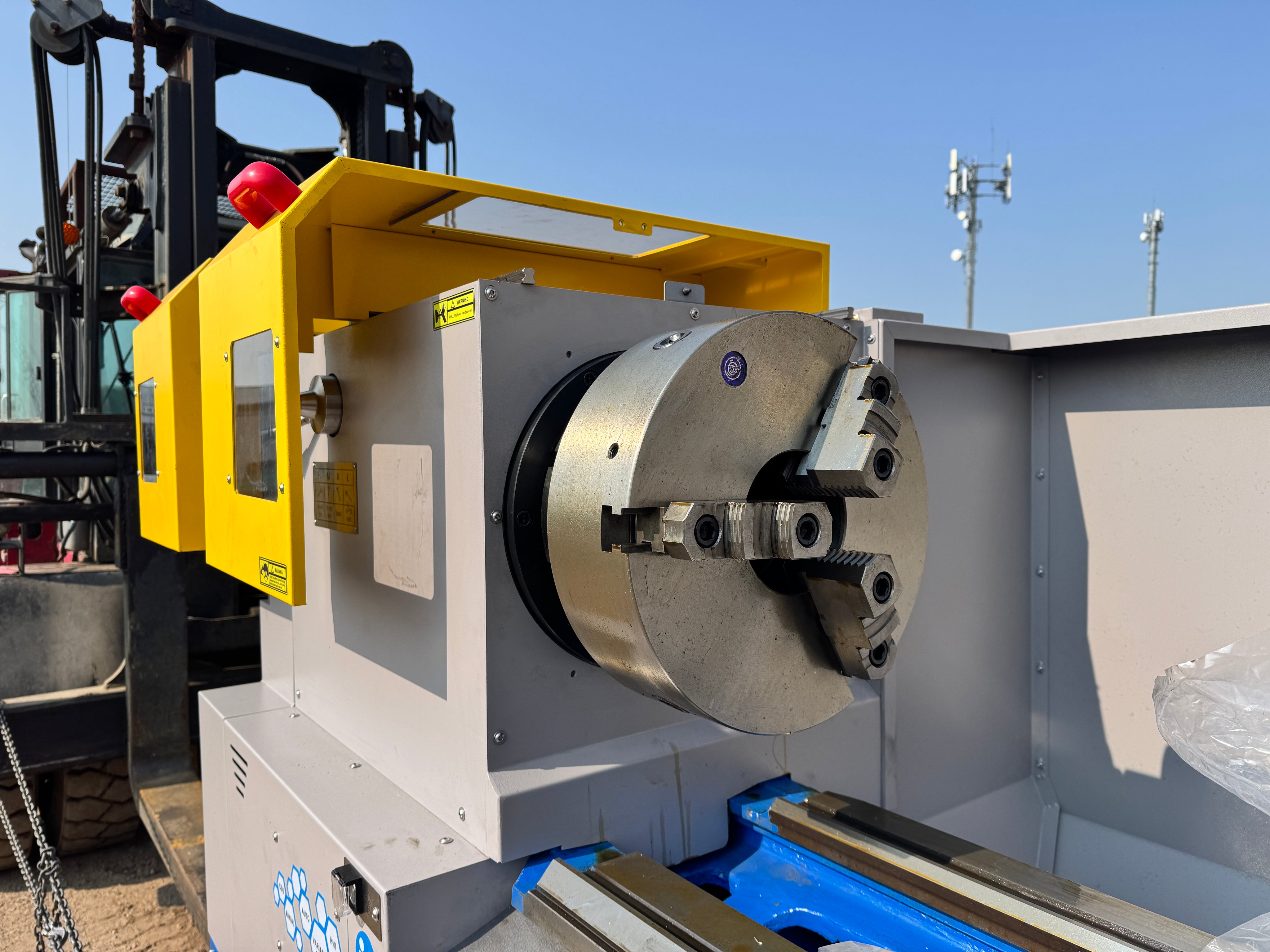

• 14" Rear 3 Jaw Chuck

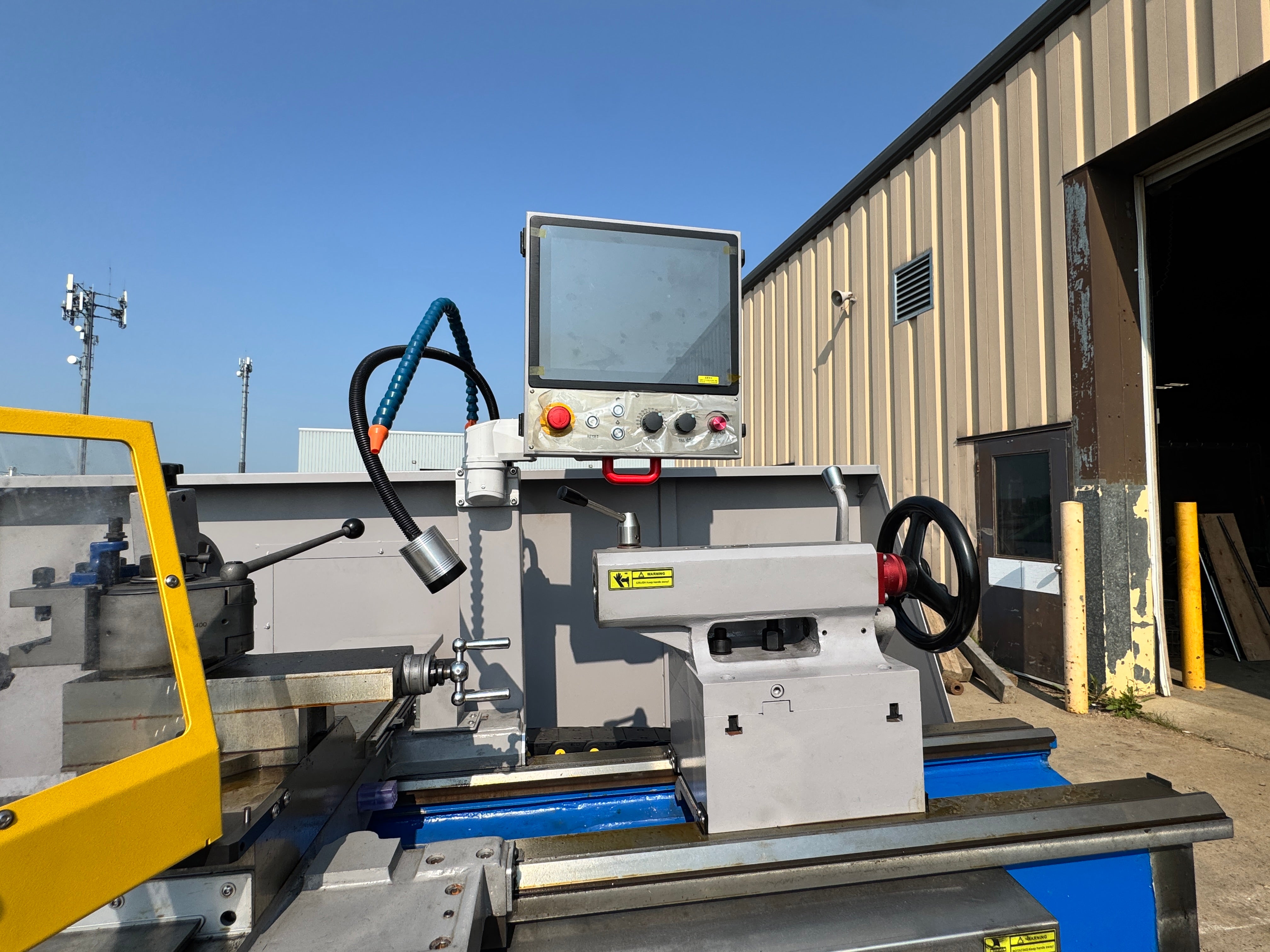

• 15" Smart Touch Screen HMI
• STANKO SMART LATHE CONTROL Gen.2
• Variable Spindle Speed Control
• Servo-Assisted Rapid Traverse (X/Z)
• Heavy Duty Quick Change Tool Post
• Large 140 mm (5.5") Spindle Bore
• LED Work Lamp
• Manual Lubrication System
• Full Rear Splash Guard

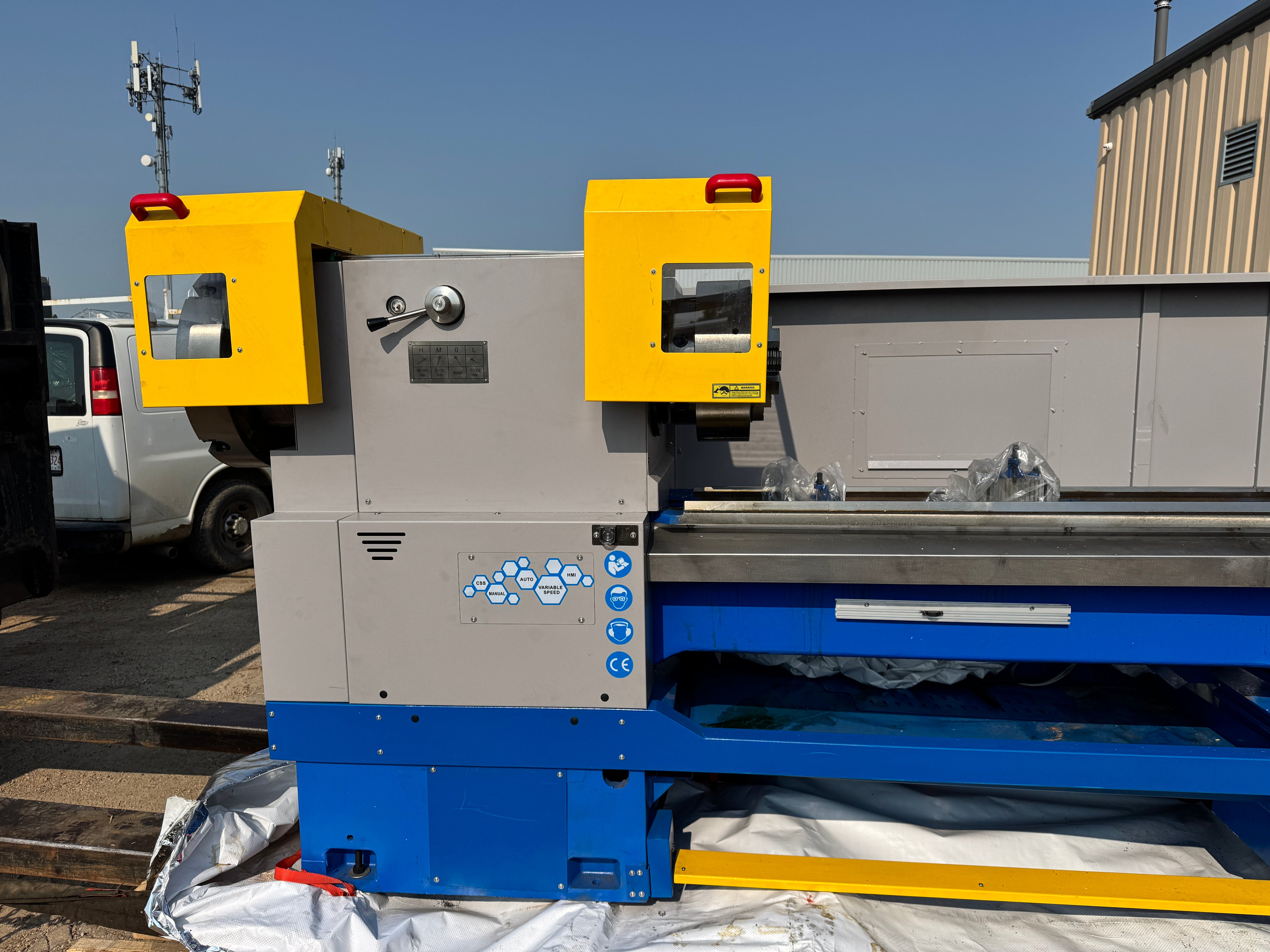

• Front & Rear Chuck Safety Guards with Safety Interlock
• Coolant System
• CSA / UL Electrical Components
• Emergency Stop System
• Industrial Heavy-Duty Cast Iron Bed

Optional Accessories

• Digital Readout (DRO)
• Hydraulic Steady Rest

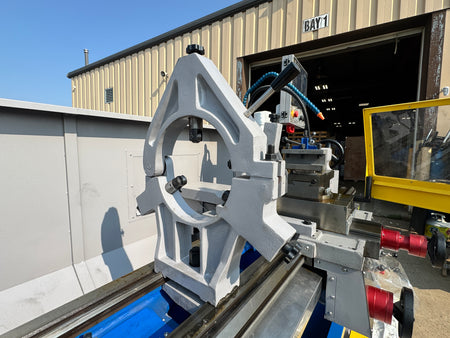

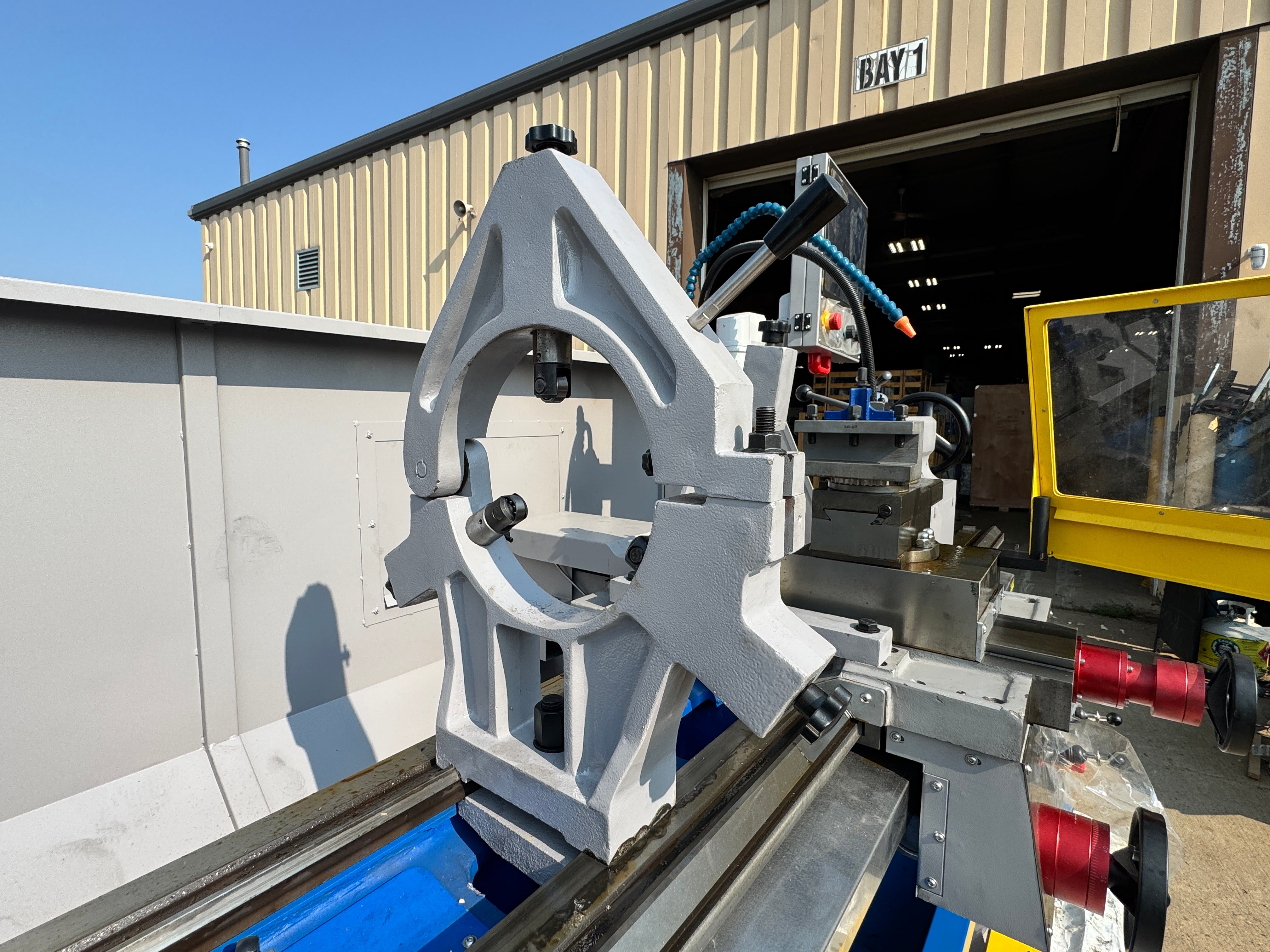

• Manual Steady Rest
• Follow Rest
• Live Center
• Carbide Tooling Package
• Additional Tool Holders
• Coolant Filtration System
• Tool Cabinet
• Installation & Operator Training
