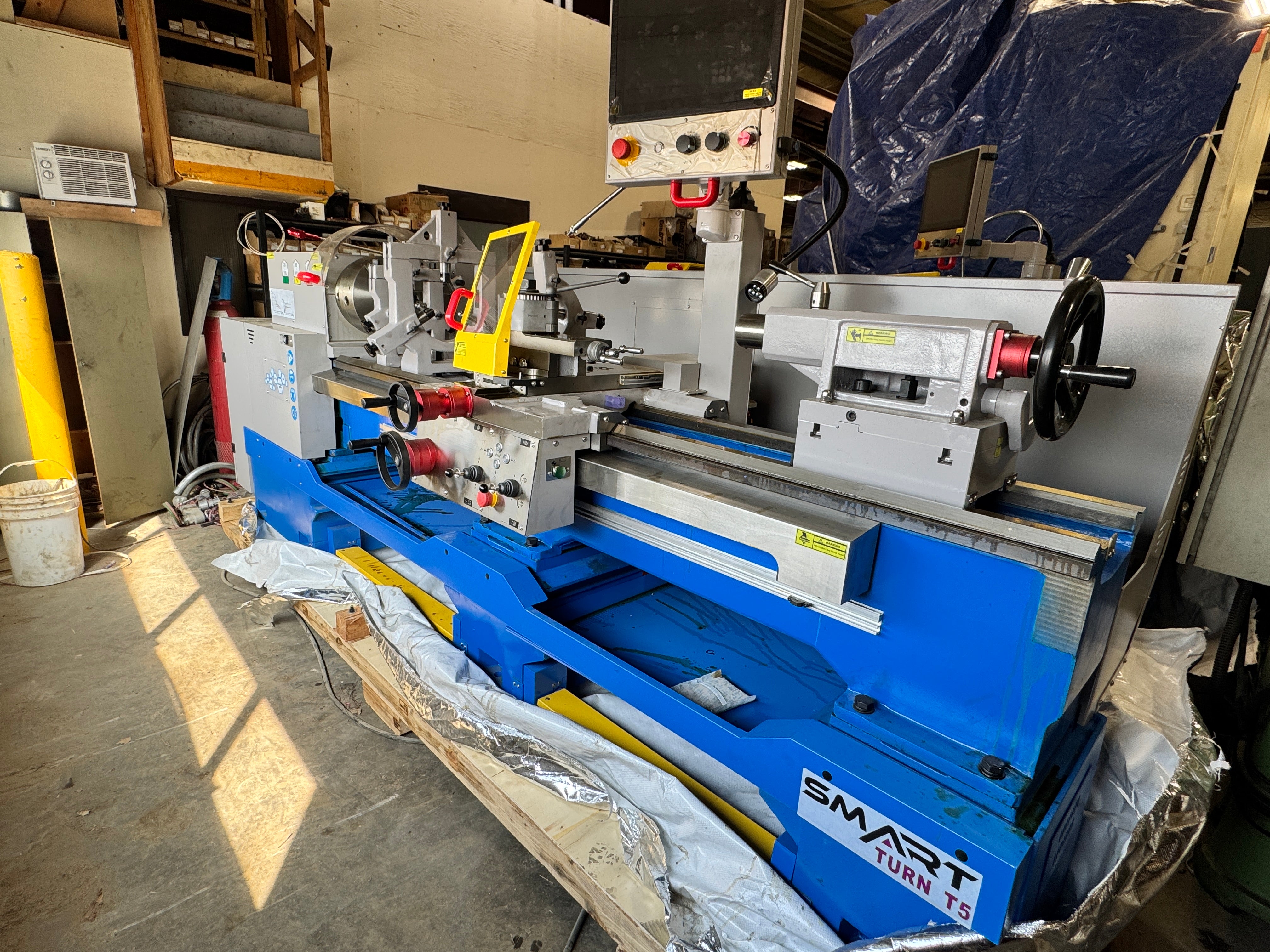

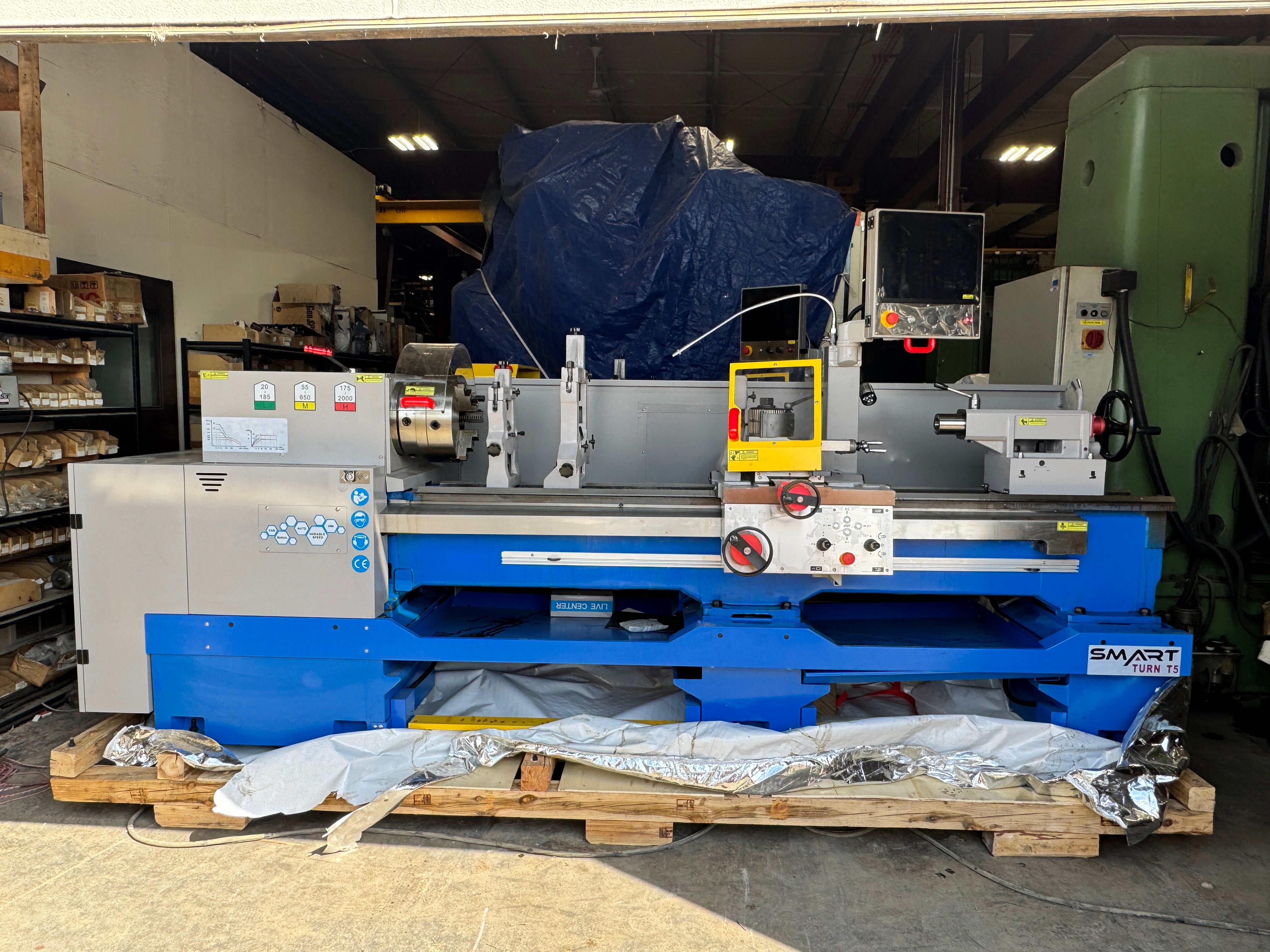

The STANKO Smart Lathe S2080T Generation 2 is an industrial smart engine lathe designed for heavy-duty turning, automatic threading, taper turning, grooving, and repair-shop production work. Equipped with a 15” touchscreen control system, servo-driven X/Z axes, precision ball screws, and STANKO Smart Lathe Control Gen.2, the S2080T combines the simplicity of a manual lathe with advanced smart automation.

Featuring a geared headstock with mechanical gearbox and a 15 kW spindle motor, the S2080T is designed for increased spindle torque and demanding machining applications. Built for machine shops, maintenance departments, oilfield service, heavy equipment repair, and industrial manufacturing, it delivers powerful cutting performance, precision machining, and efficient setup for repetitive turning operations without the complexity of a full CNC turning center.

Specifications

Capacity

Swing over bed: 500 mm
Swing over cross slide: 300 mm
Max. turning length: 2000 mm
Bed width: 400 mm

Spindle

Chuck size: 315 mm (12.5”)
Spindle speed range: 20 – 2000 RPM

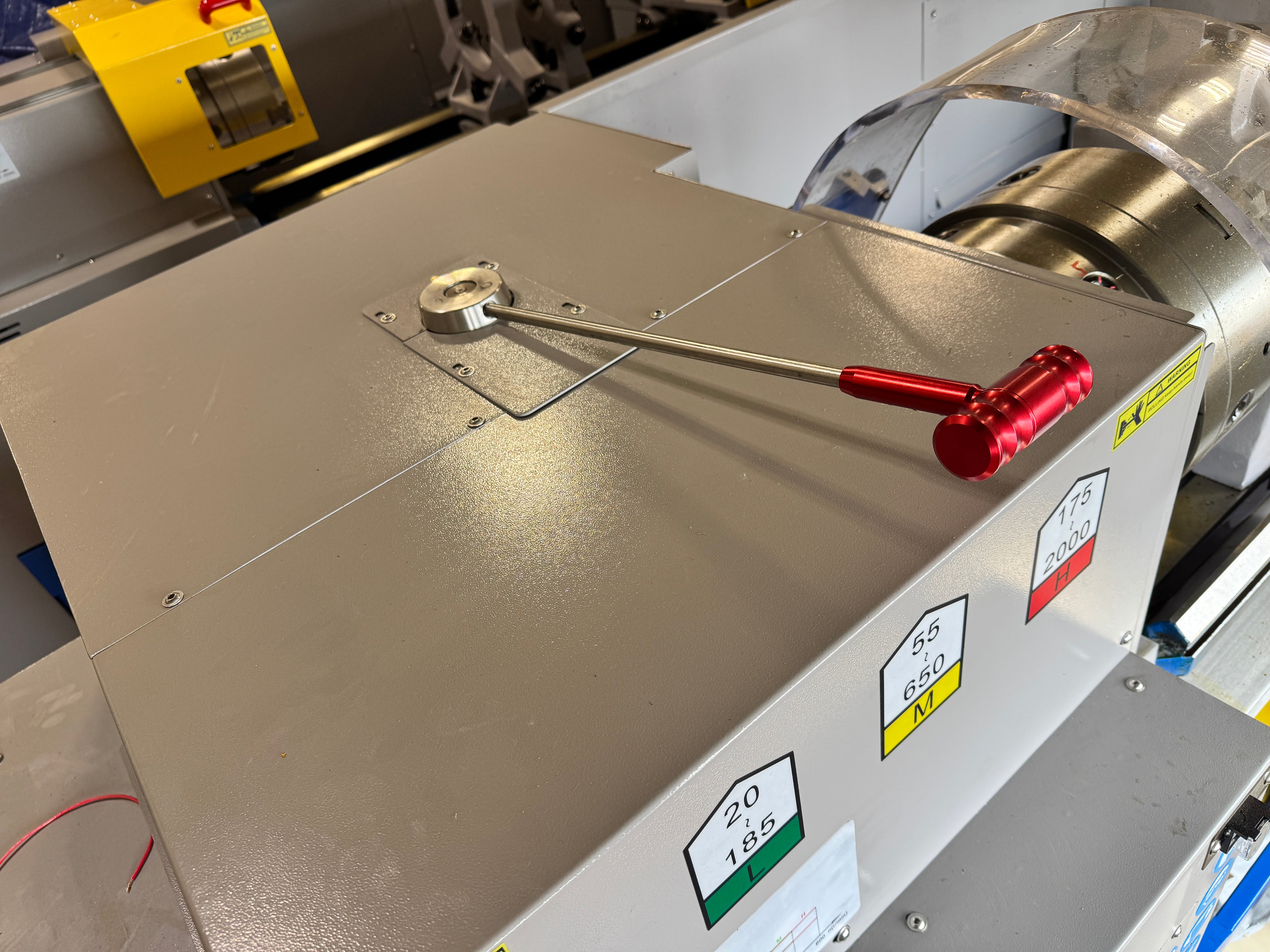

Headstock: Mechanical Gearbox
Spindle bore: 104 mm (4.1")
Spindle nose: A8

Carriage

Tool post travel: 140 mm
X-axis travel: 250 mm

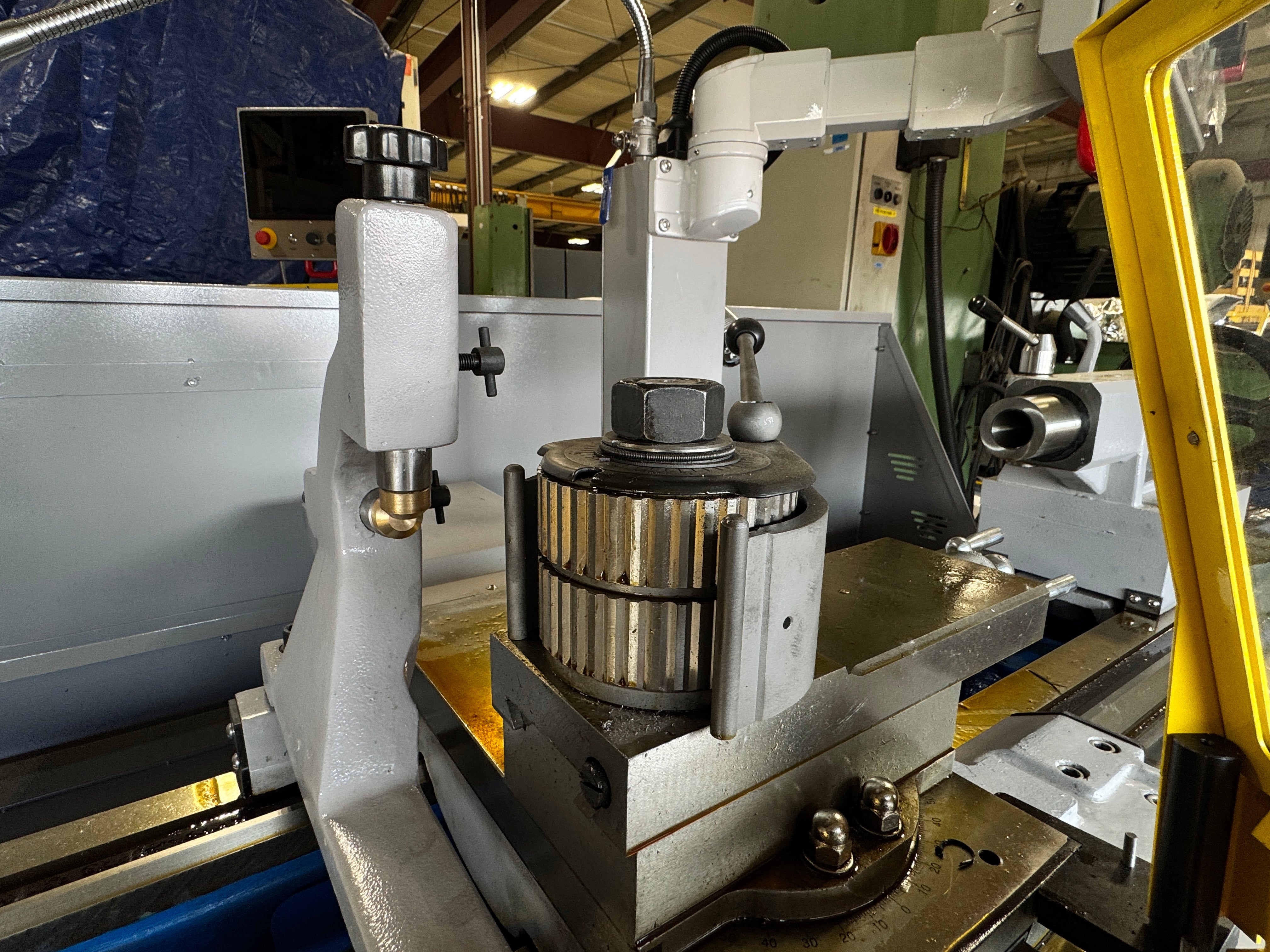

Tool Post

Quick change tool post
40 position tooling system
Tool holder size: 25 × 25 mm

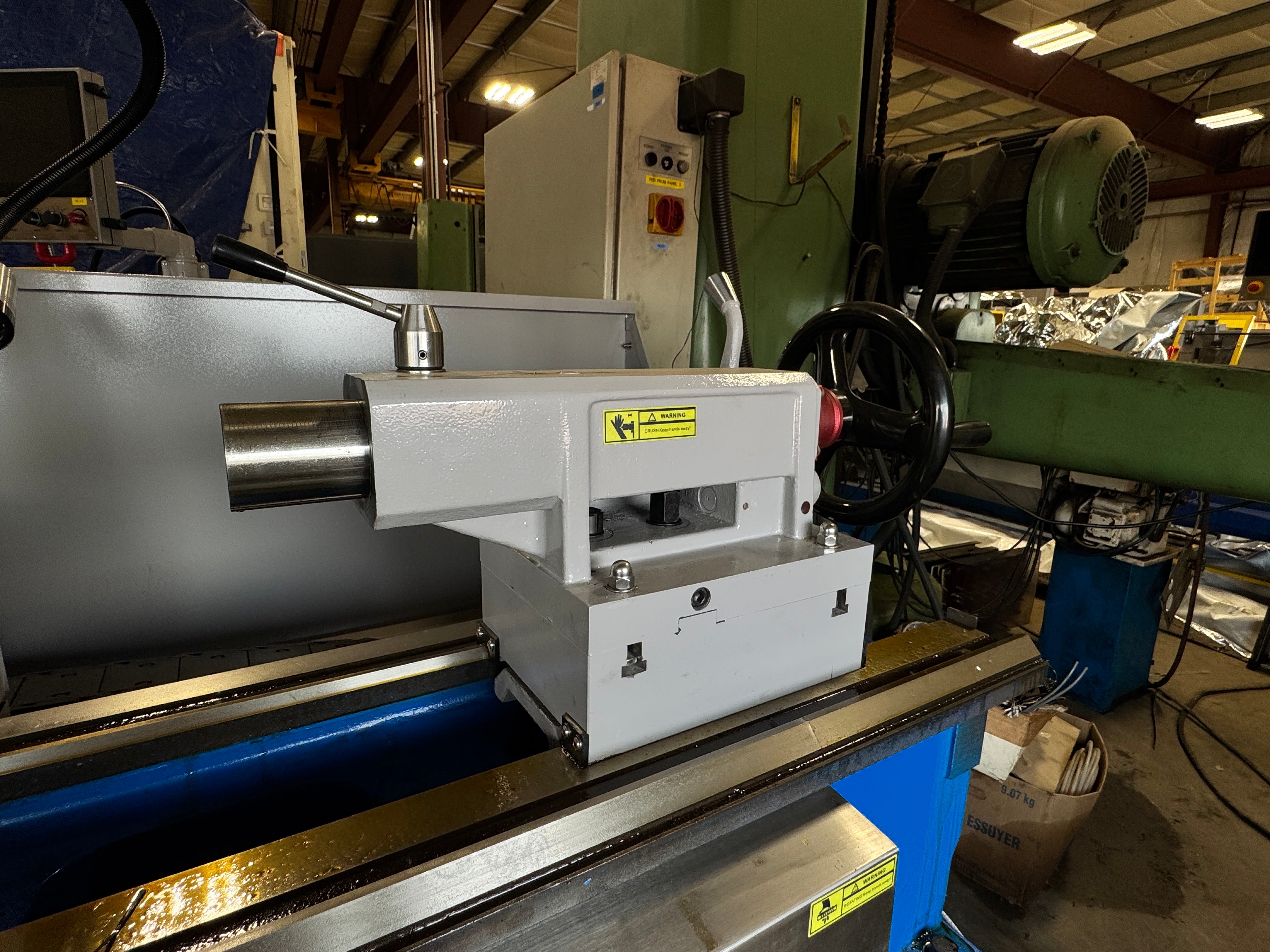

Tailstock

Tailstock type: Manual
Quill stroke: 150 mm
Quill diameter: 75 mm
Quill taper: MT5

Feed Rates

Longitudinal feed: 0.05 – 6.4 mm/rev
Cross feed: 0.025 – 3.2 mm/rev
Longitudinal feed: 0.002 – 0.242 in/rev
Cross feed: 0.001 – 0.121 in/rev
Rapid traverse X/Z: 2 / 4 m/min

Threading

Metric threads: 0.5 – 40 mm
Imperial threads: 1 – 80 TPI
Module threads: 0.25 – 20 MOD
Diametral pitch: 2 – 72 DP

Ball Screws

X-axis: Ø25 × 5 mm
Z-axis: Ø40 × 6 mm

Motor

Main motor: 15 kW
Coolant motor: 0.125 kW
X/Z servo motors: 1.5 / 2.3 kW

Torque

High-torque geared spindle drive
X/Z axis torque: 10 / 15 N·m

General

Machine dimensions: 1871 × 1200 × 1168 mm
Machine weight: 2880 kg

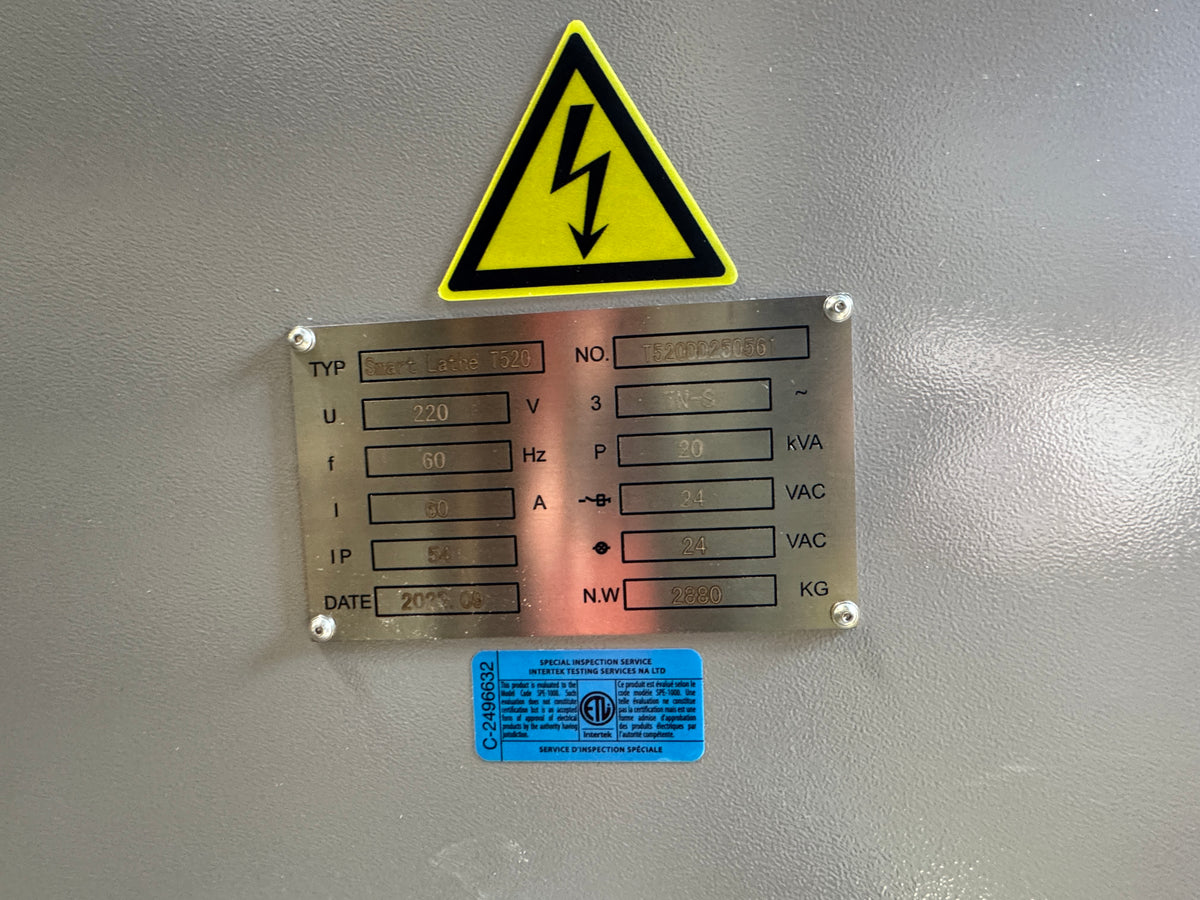

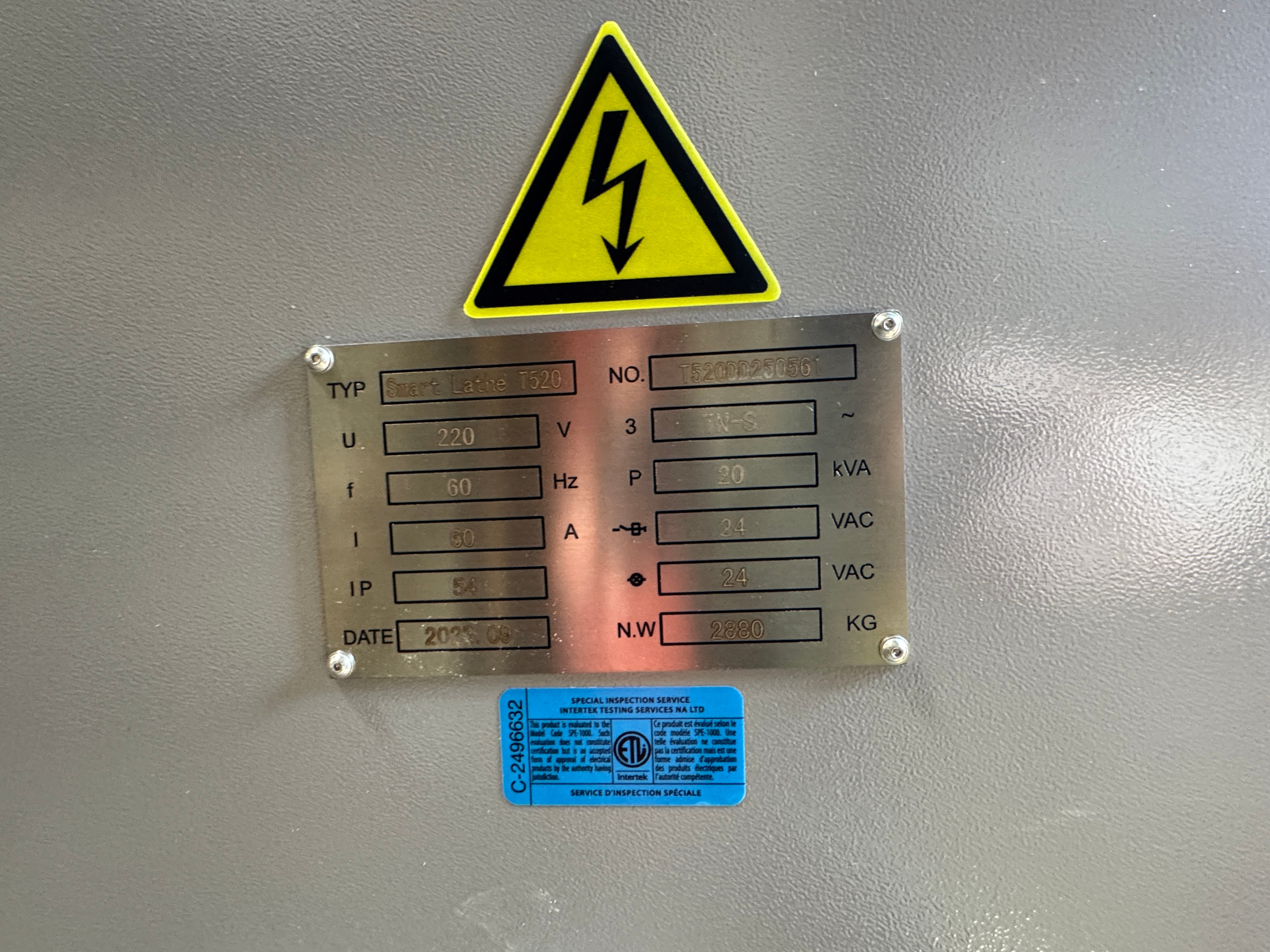

Installed power: 20 kVA
Power requirement: 220V / 3 Phase / 60A
Year of manufacture: 2023

Standard Features

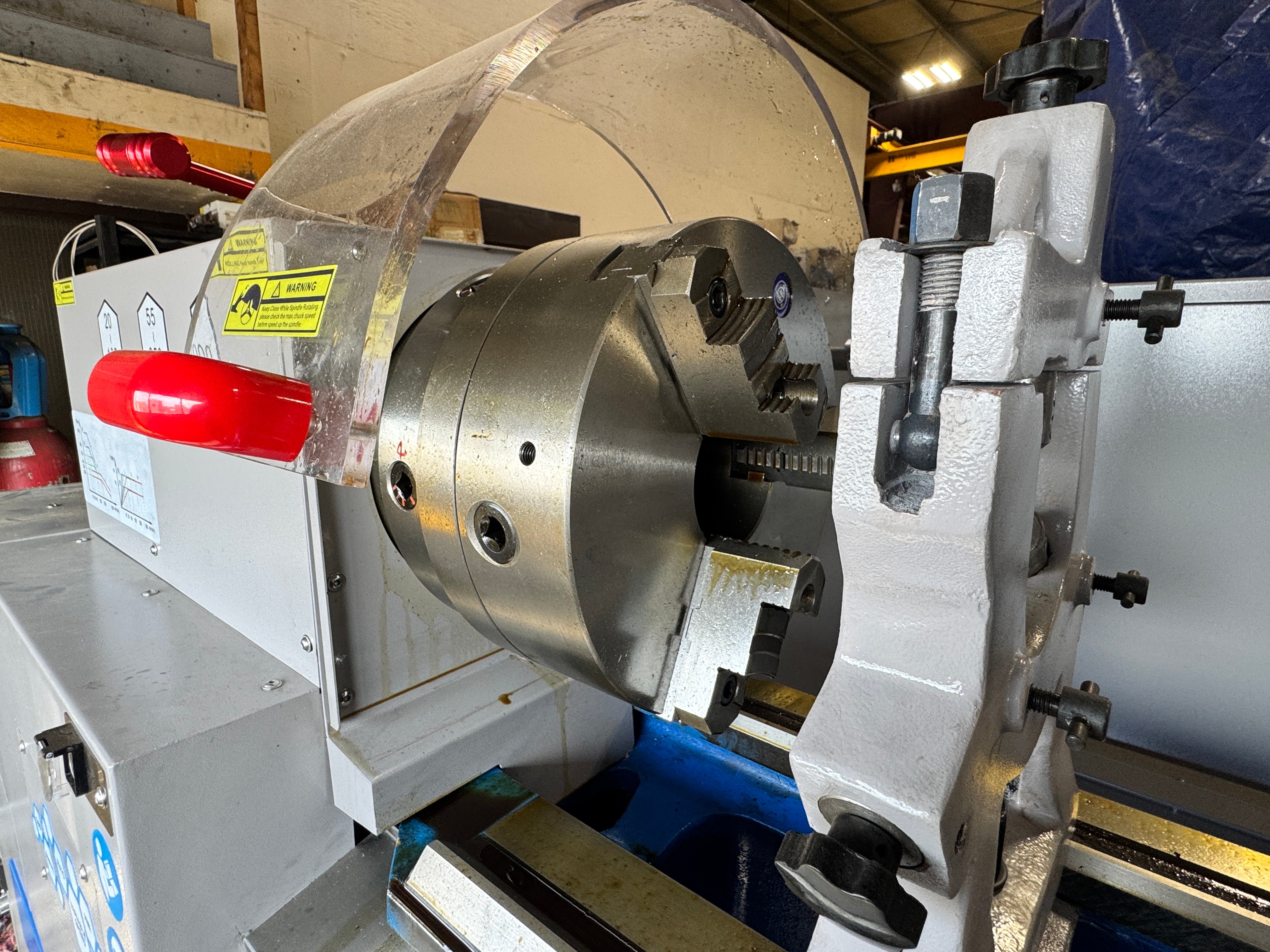

12.5” 315 mm 3 Jaw Chuck
15” Touch Screen LCD Control
STANKO SMART LATHE CONTROL Gen.2
Servo Driven X/Z Axes
Ball Screw X/Z System

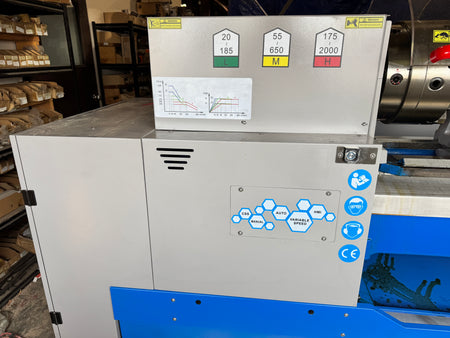

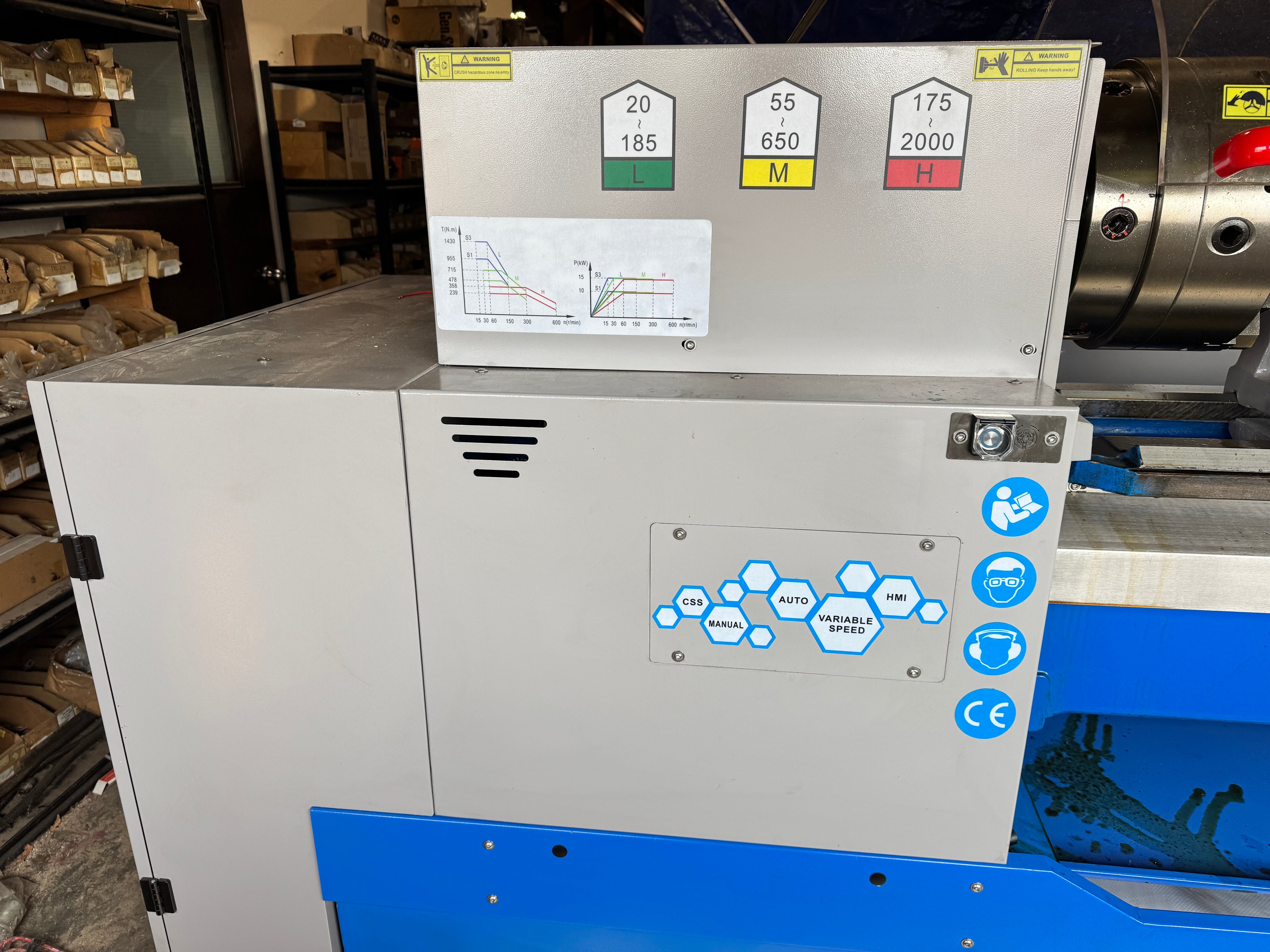

Mechanical Gearbox Headstock
Auto-Cycle OD / ID / Threading / Taper Turning / Radius / Groove / Shoulder
CSS Cutting Function
Coolant Pump
Auto Lubrication Pump
LED Work Lamp
Chip Collection Tray
Rear Splash Guard
Chuck Safety Cover with Disconnect Switch
Turret Safety Cover
UL / CSA Electrical Components

Optional Accessories

16” 4 Jaw Chuck
14” 4 Jaw Chuck
Big Steady Rest Ø125 – 250 mm
Small Steady Rest Ø20 – 125 mm
Follow Rest (20 – 80 mm)

United States Pricing

Contact for Current Pricing

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
