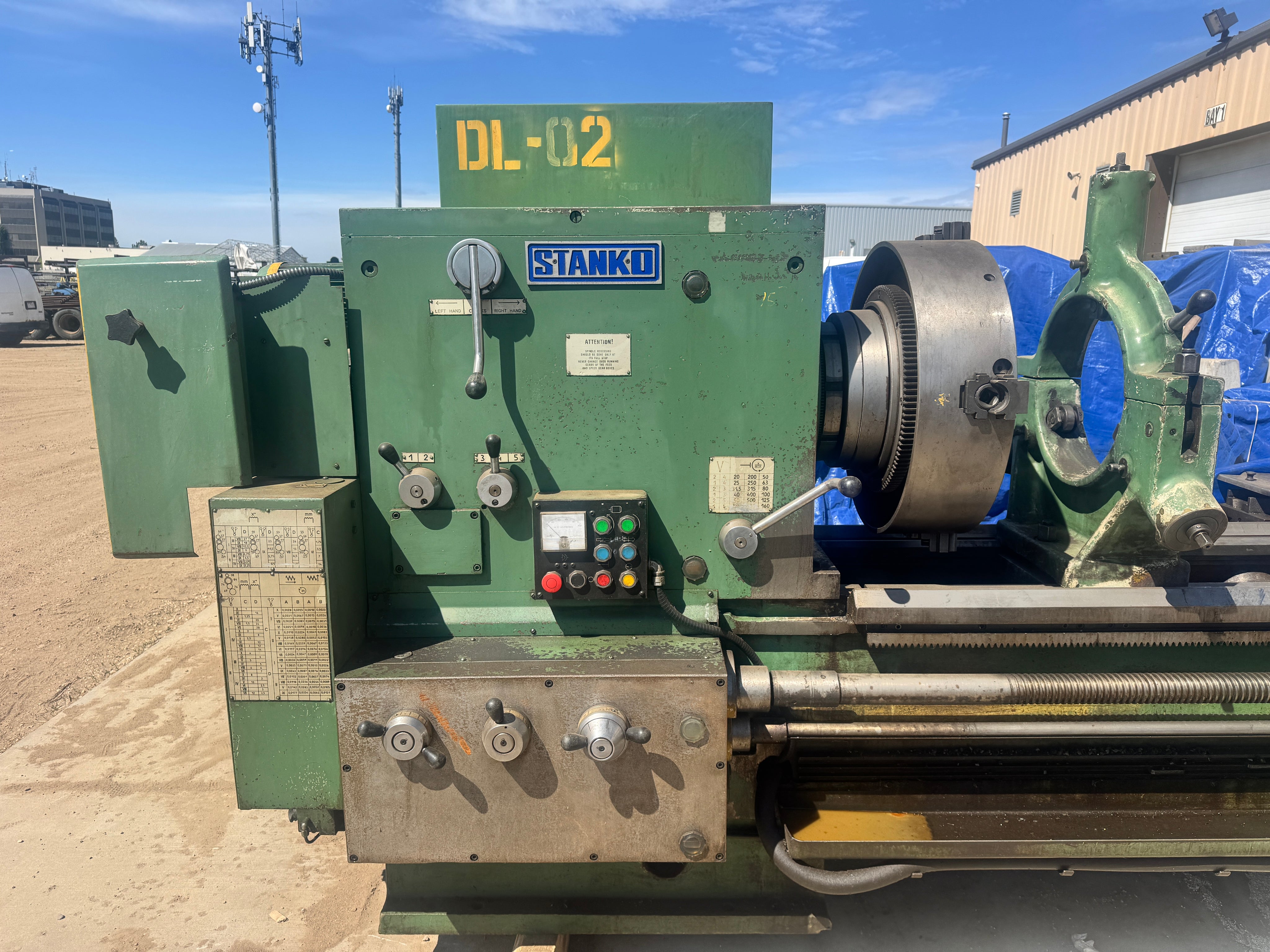

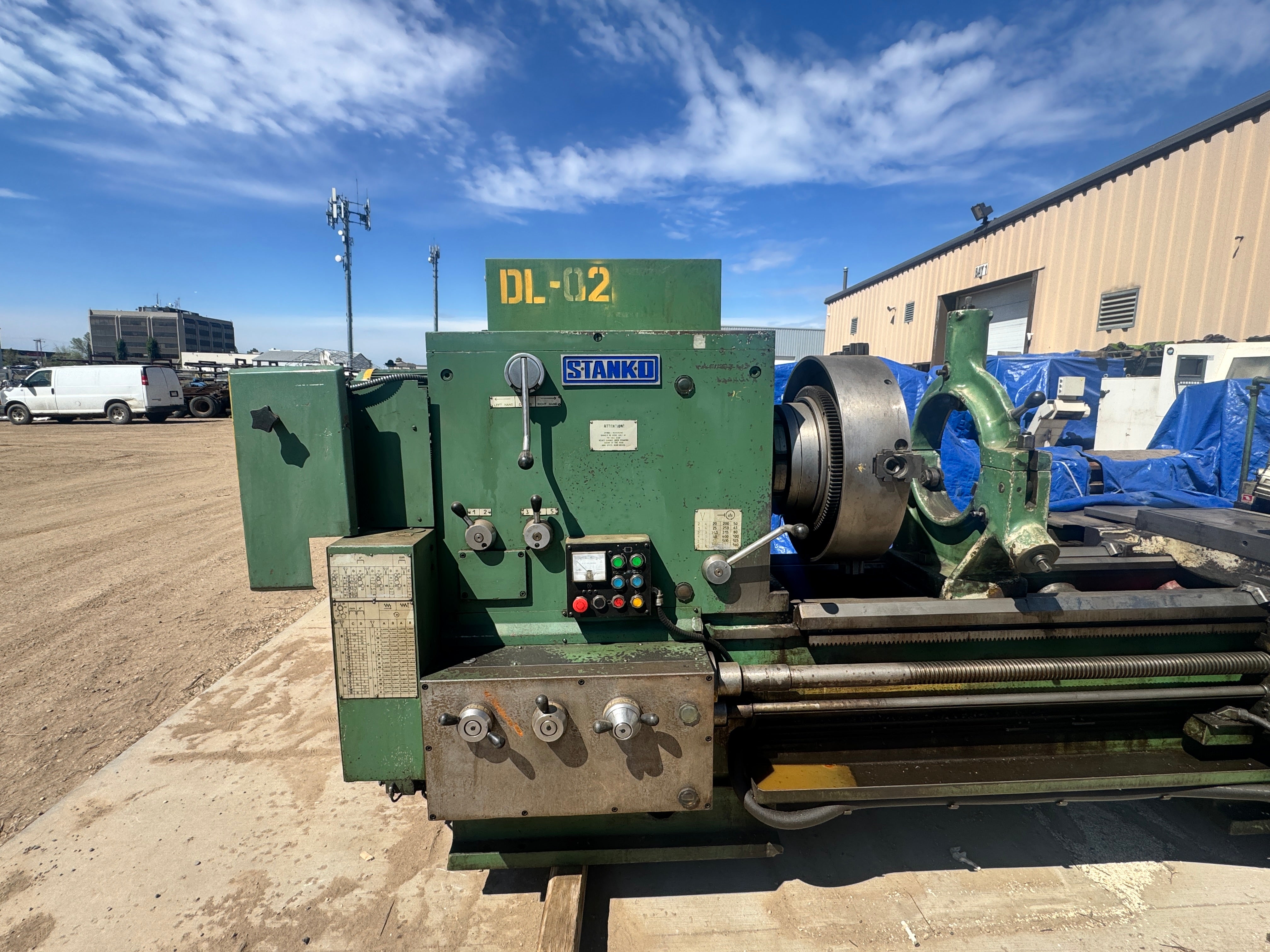

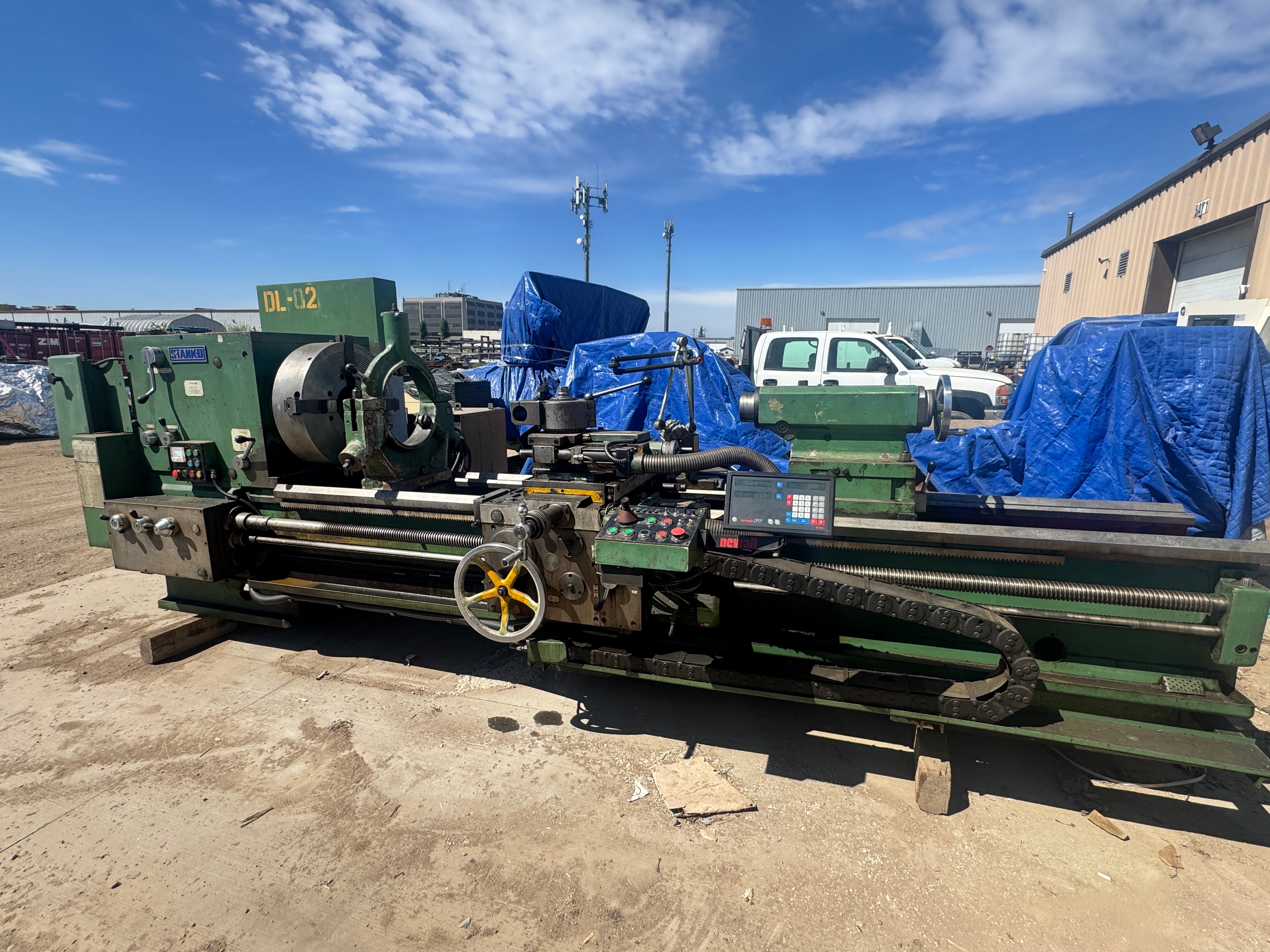

STANKO RT783-3 Heavy Duty Engine Lathe 32” x 112”

STANKO RT783-3 Heavy Duty Engine Lathe offers large capacity machining with a massive 7.85” spindle bore, 33” swing over bed, and 112” distance between centers. Equipped with a 25” 4-jaw independent chuck, Newall DP8 2-axis DRO, heavy duty quick change tool post, and steady rest, this machine is ideal for oilfield, mining, repair, fabrication, and heavy industrial applications.

STANKO RT783-3
Heavy Duty Engine Lathe

CAPACITY
Swing over bed: 33”
Distance between centers: 112”
Spindle bore: 7.87”
Swing over the carriage 19.29"
Max Workpiece weight  7700 lbs

CHUCK

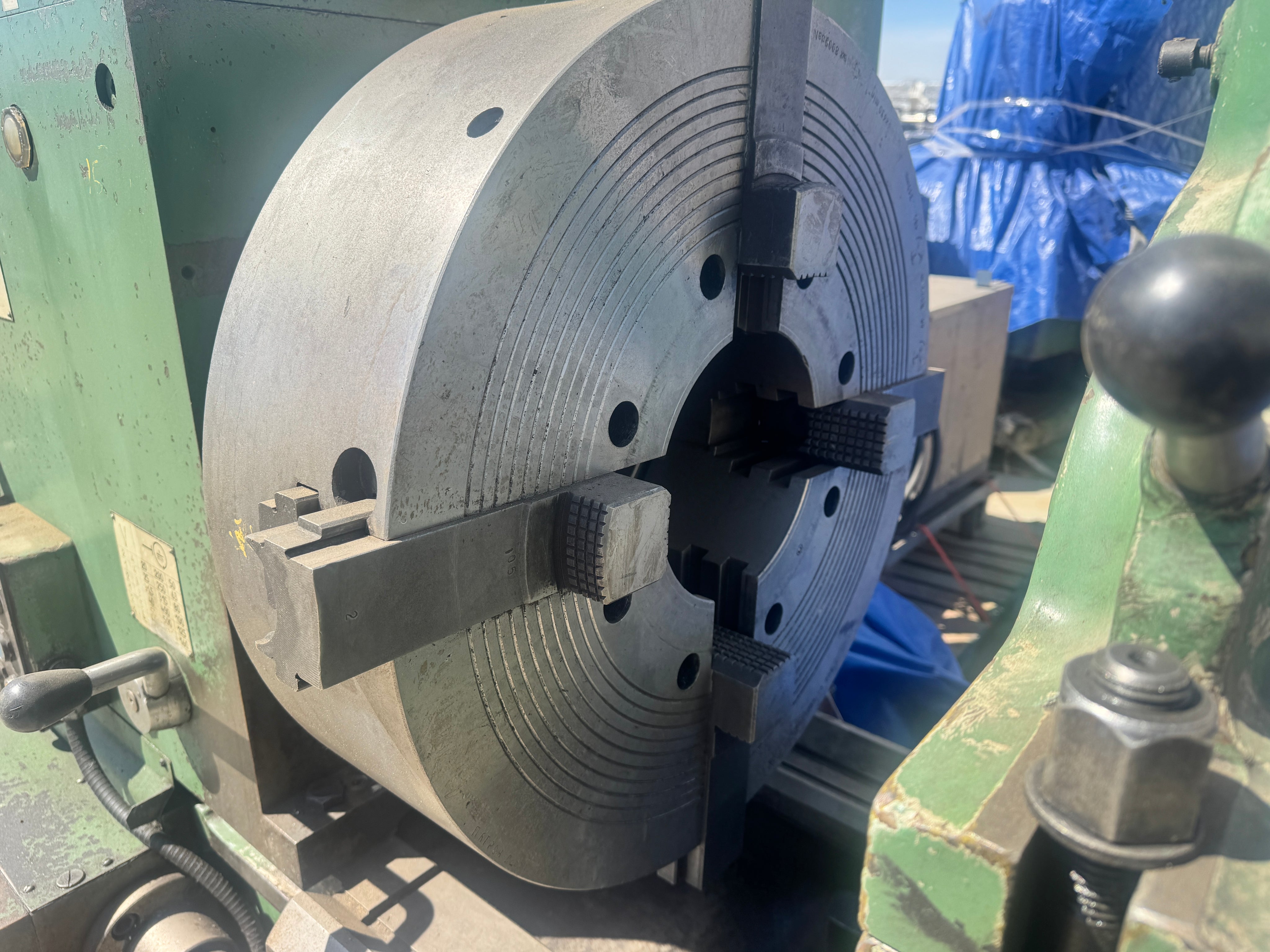

25” 4-Jaw Independent Chuck

SPINDLE SPEEDS
20 - 630 RPM

MAIN MOTOR
18.5 kW / Approx. 24.8 HP

Tailstock taper: MT6

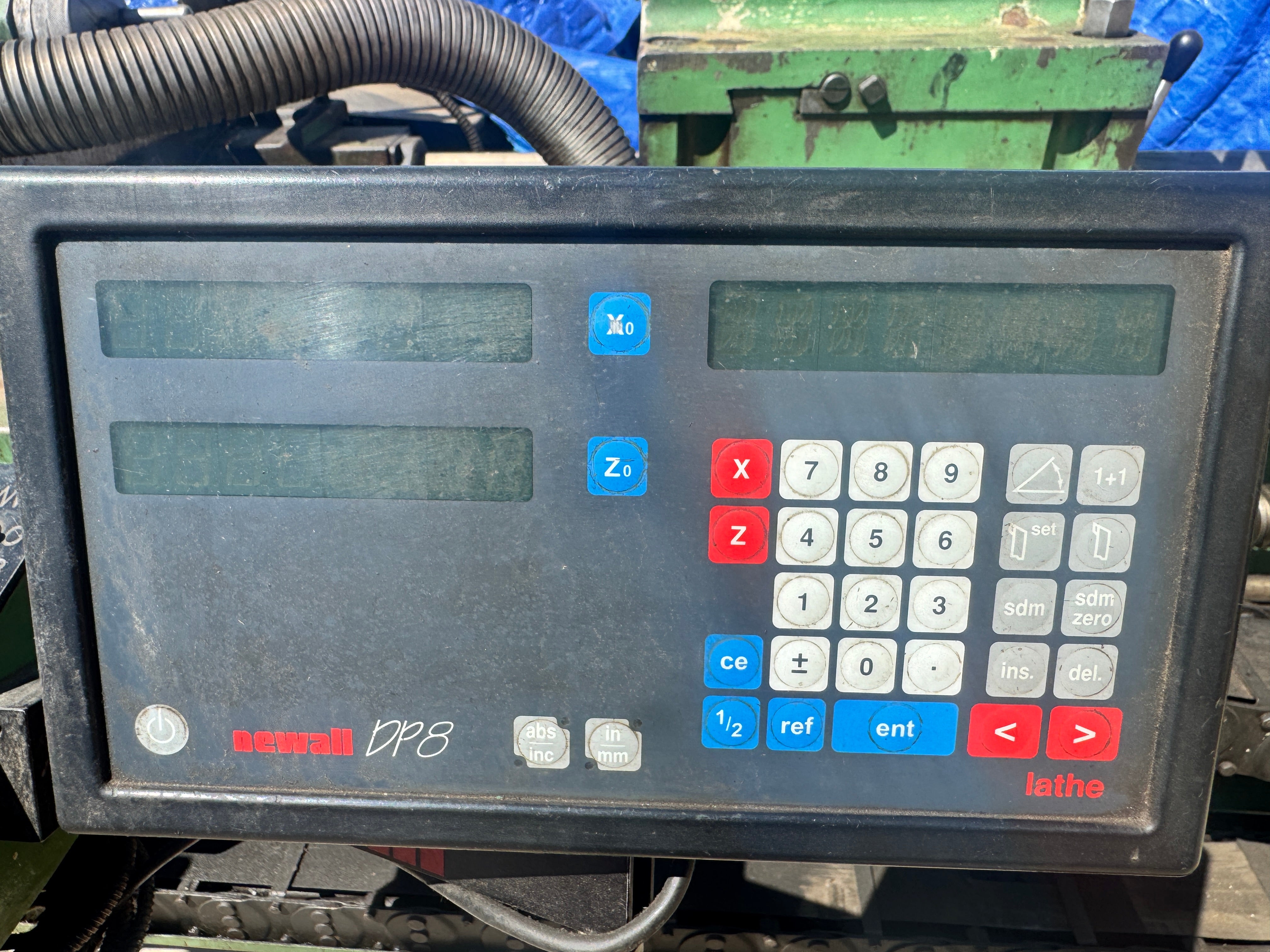

DRO

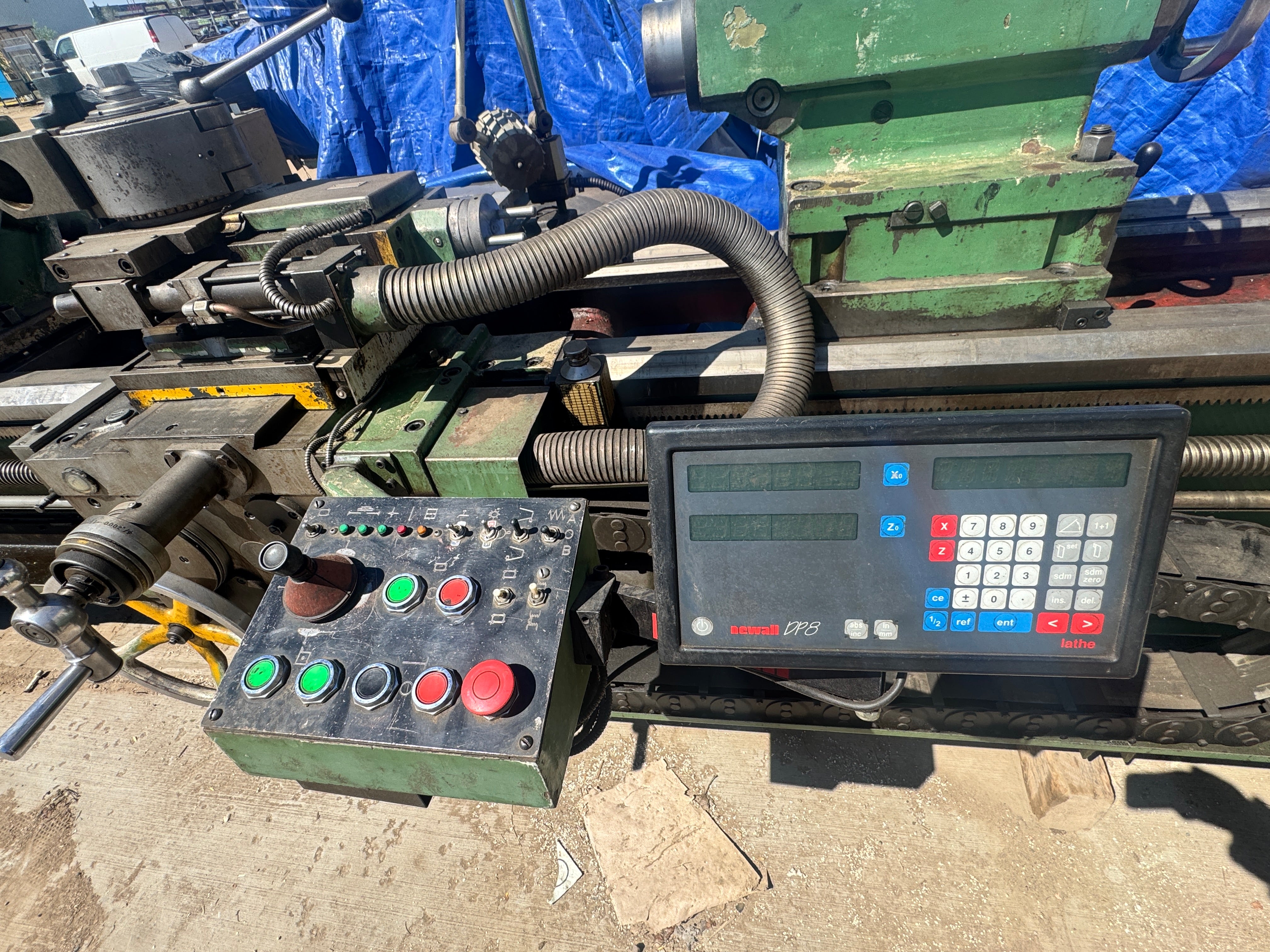

Newall DP8 2-Axis DRO (X & Z)

STEADY REST
15” Capacity

EQUIPPED WITH
Steady Rest

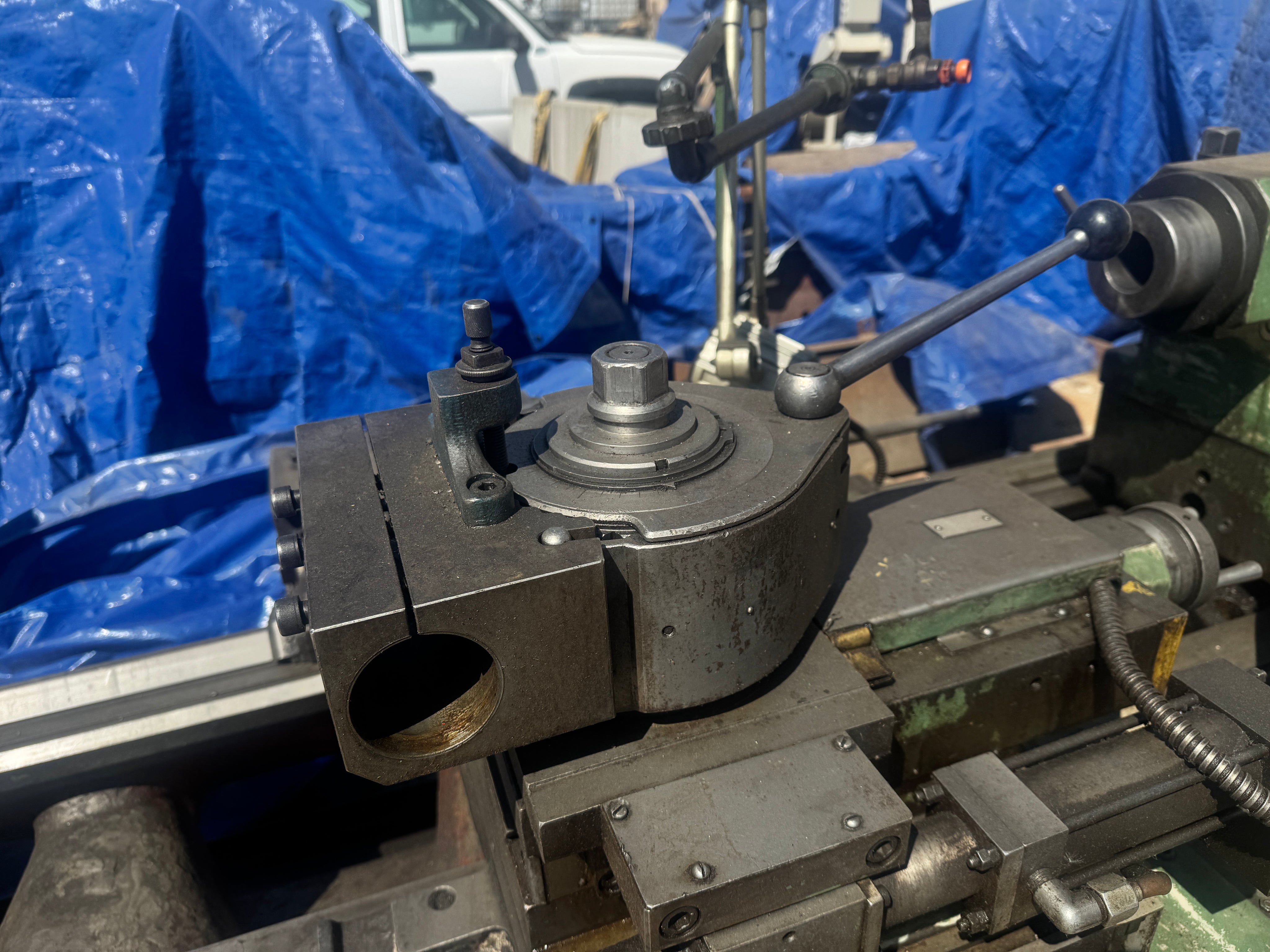

Heavy Duty Quick Change Tool Post

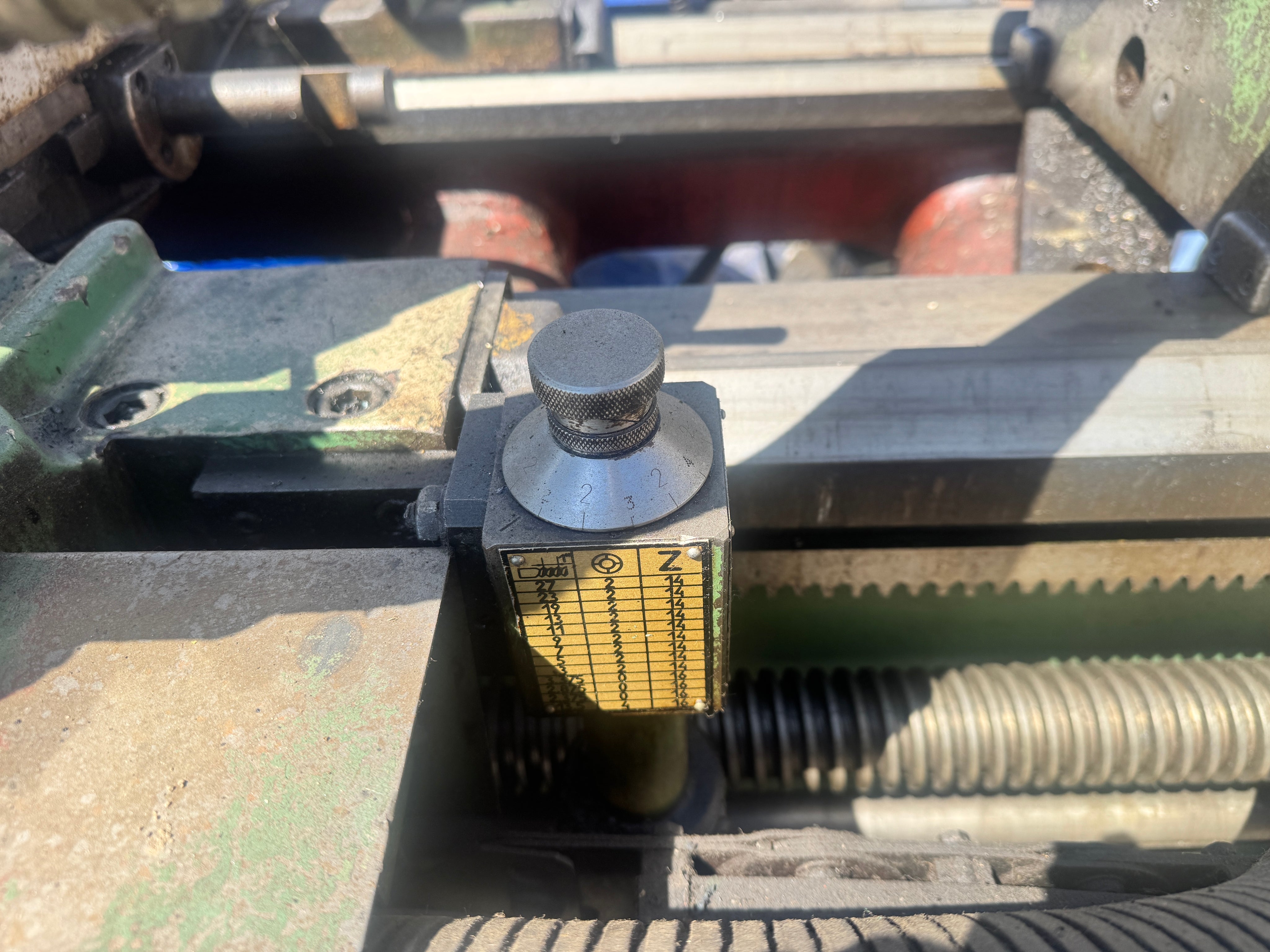

Threading Gearbox
Coolant System
Taper turning attachment


HYDRAULIC SYSTEM
Pump BG 12-41A
1.3 gal/min
30 bar
5.5 gal tank capacity

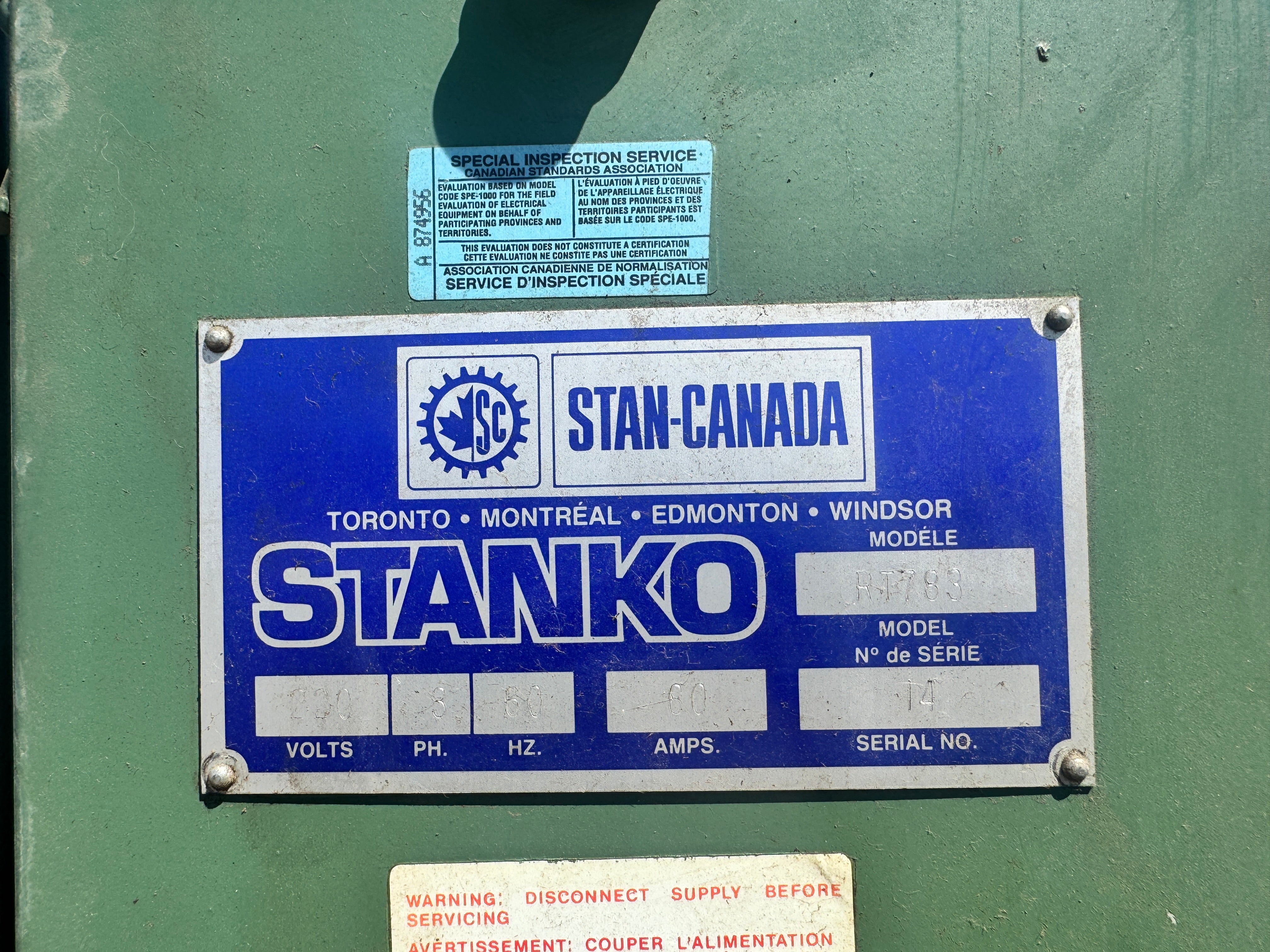

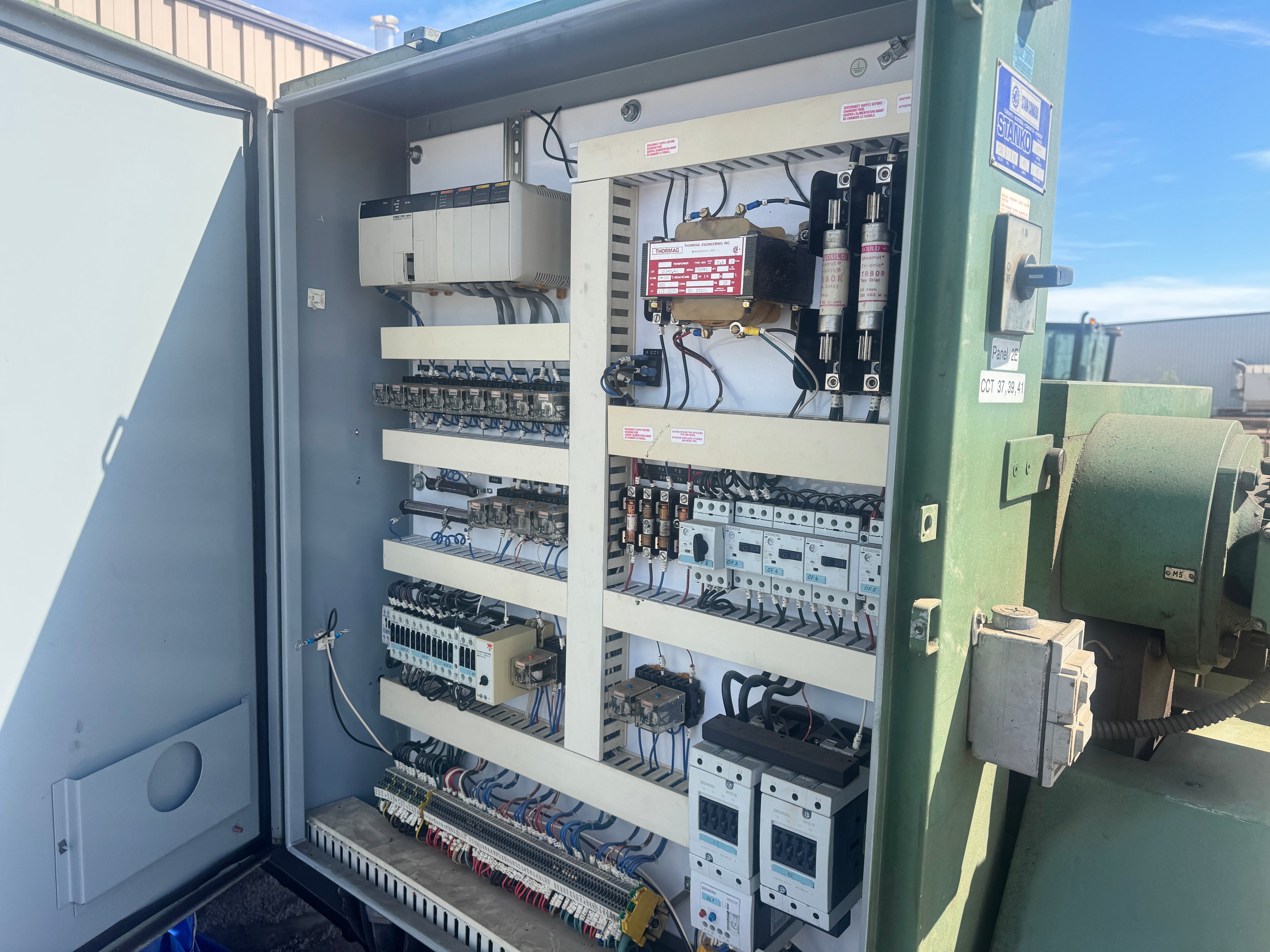

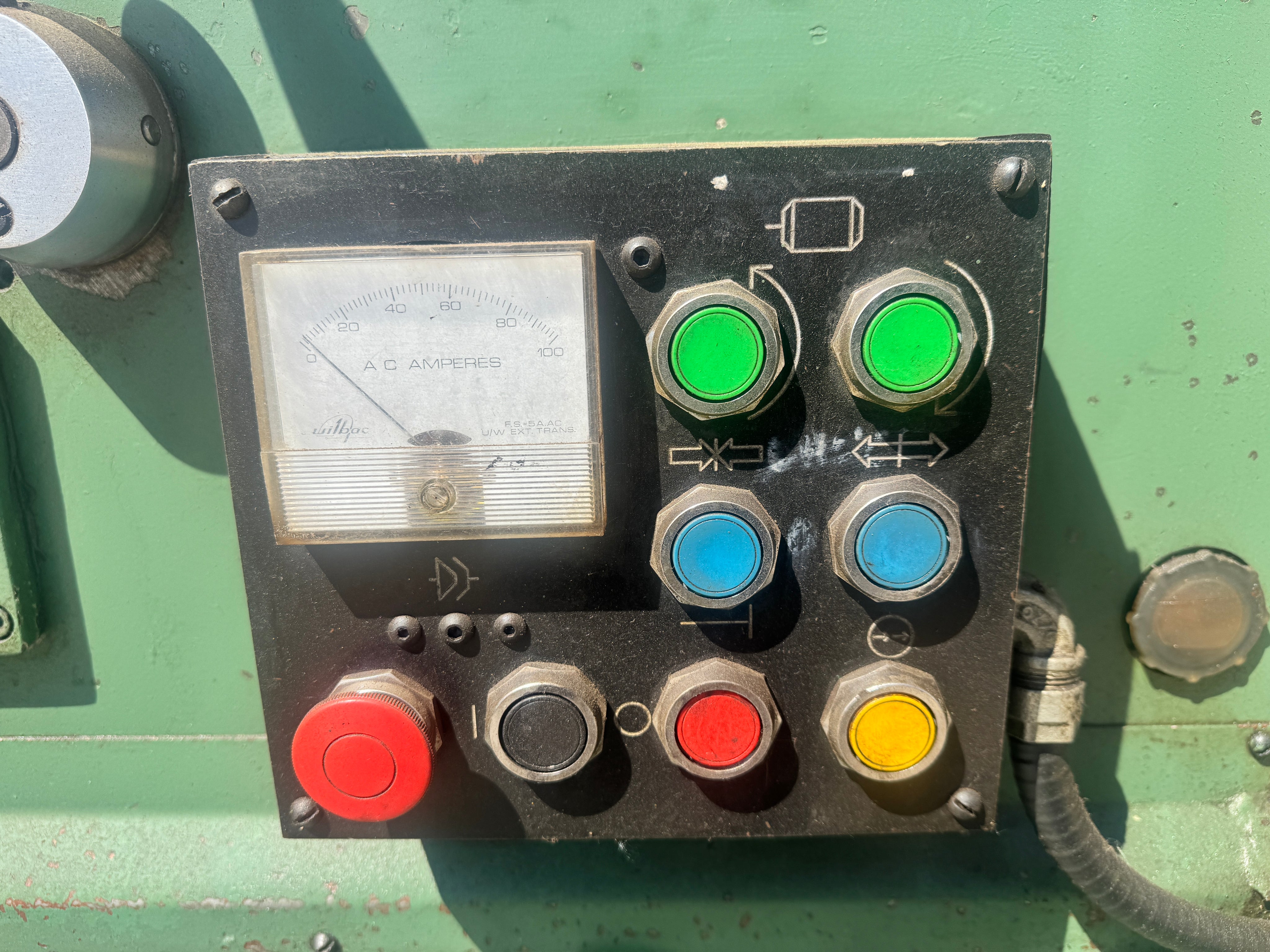

ELECTRICAL
220V / 3PH / 60Hz / 60A
CSA Inspection

MACHINE DIMENSIONS
L x W x H MM (in) 3975x1860x1550 (156.5 x 73.23 x 61.02)

MACHINE MASS: 8370 kg (18100 lbs)
