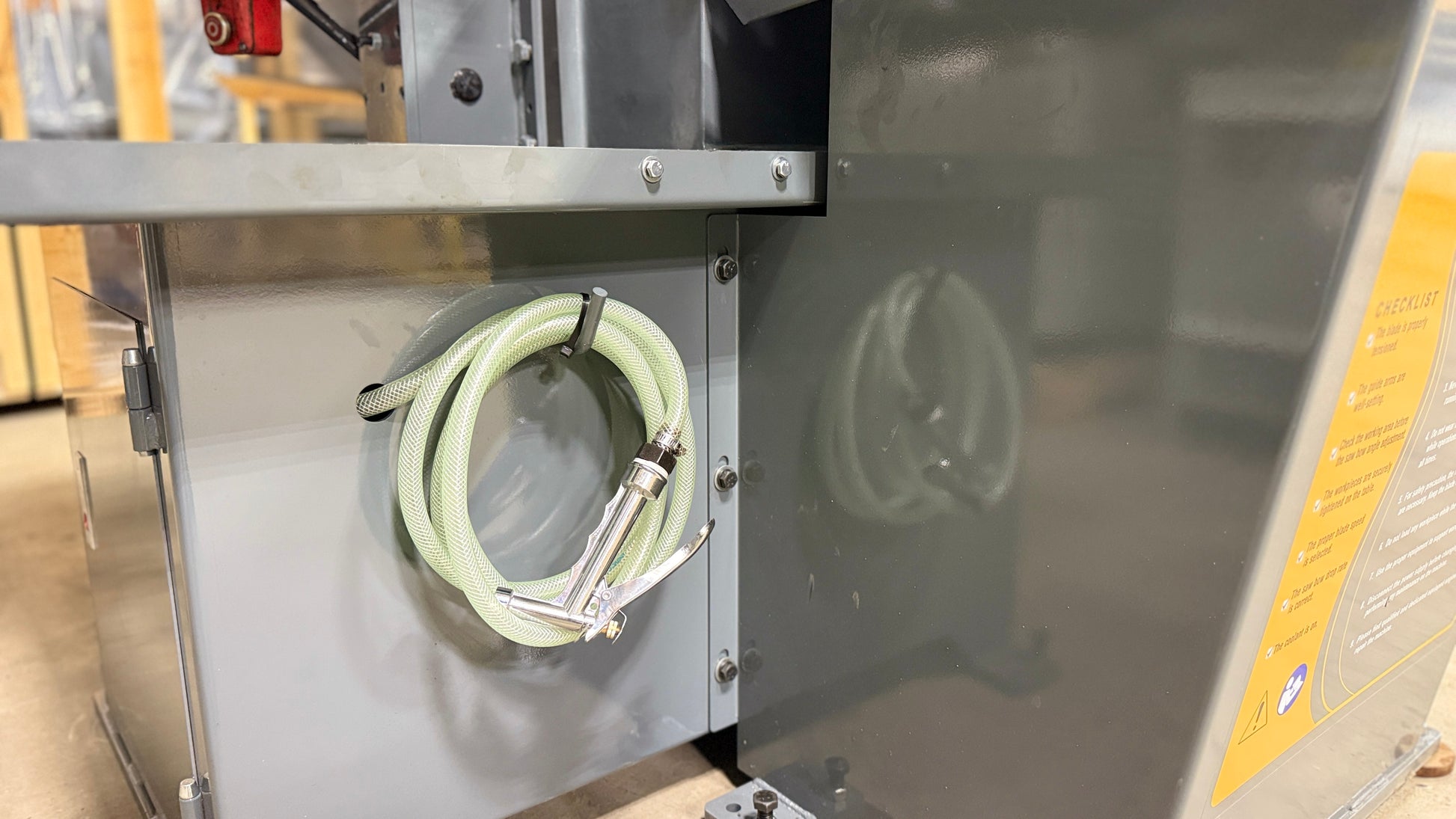

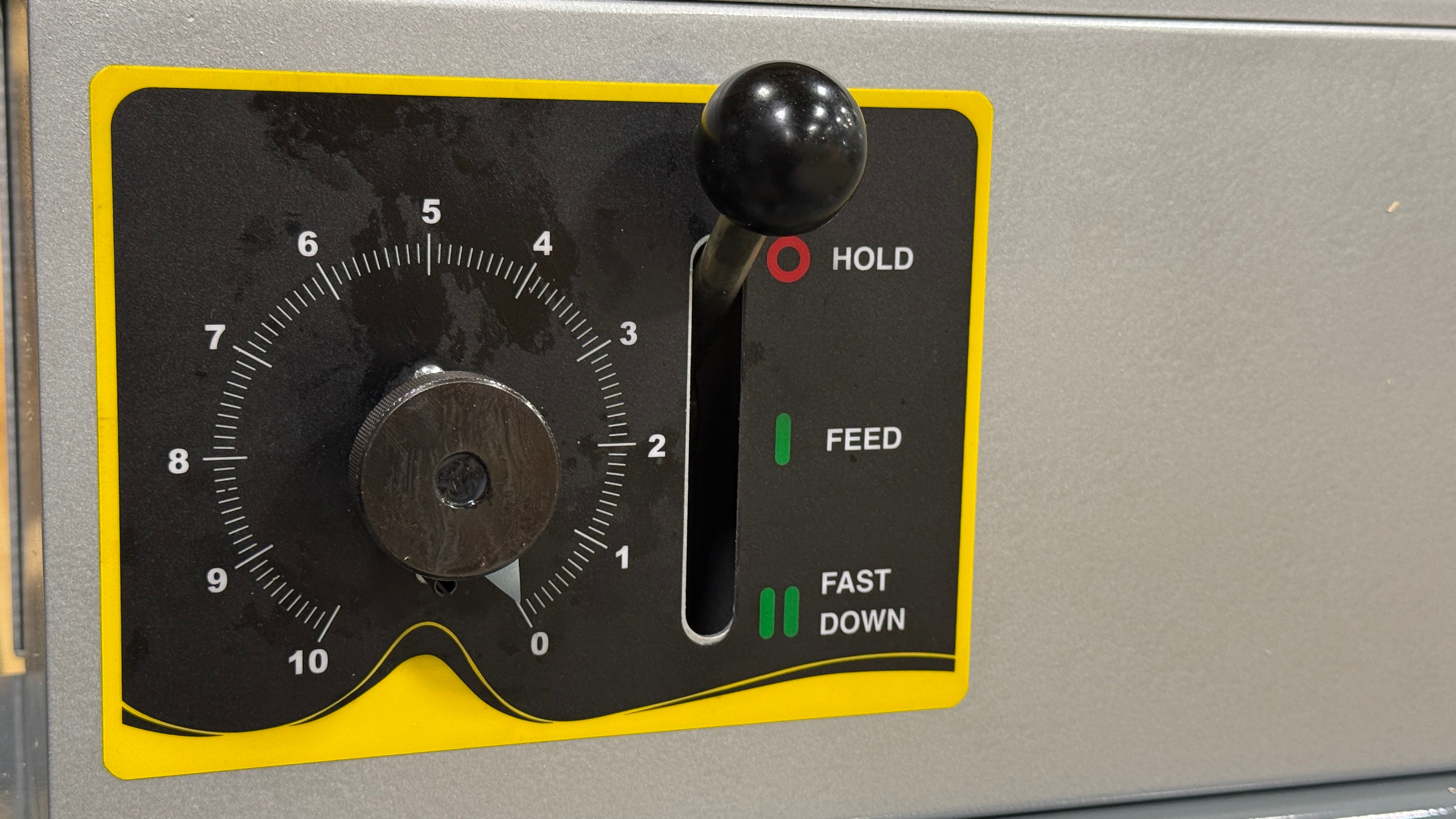

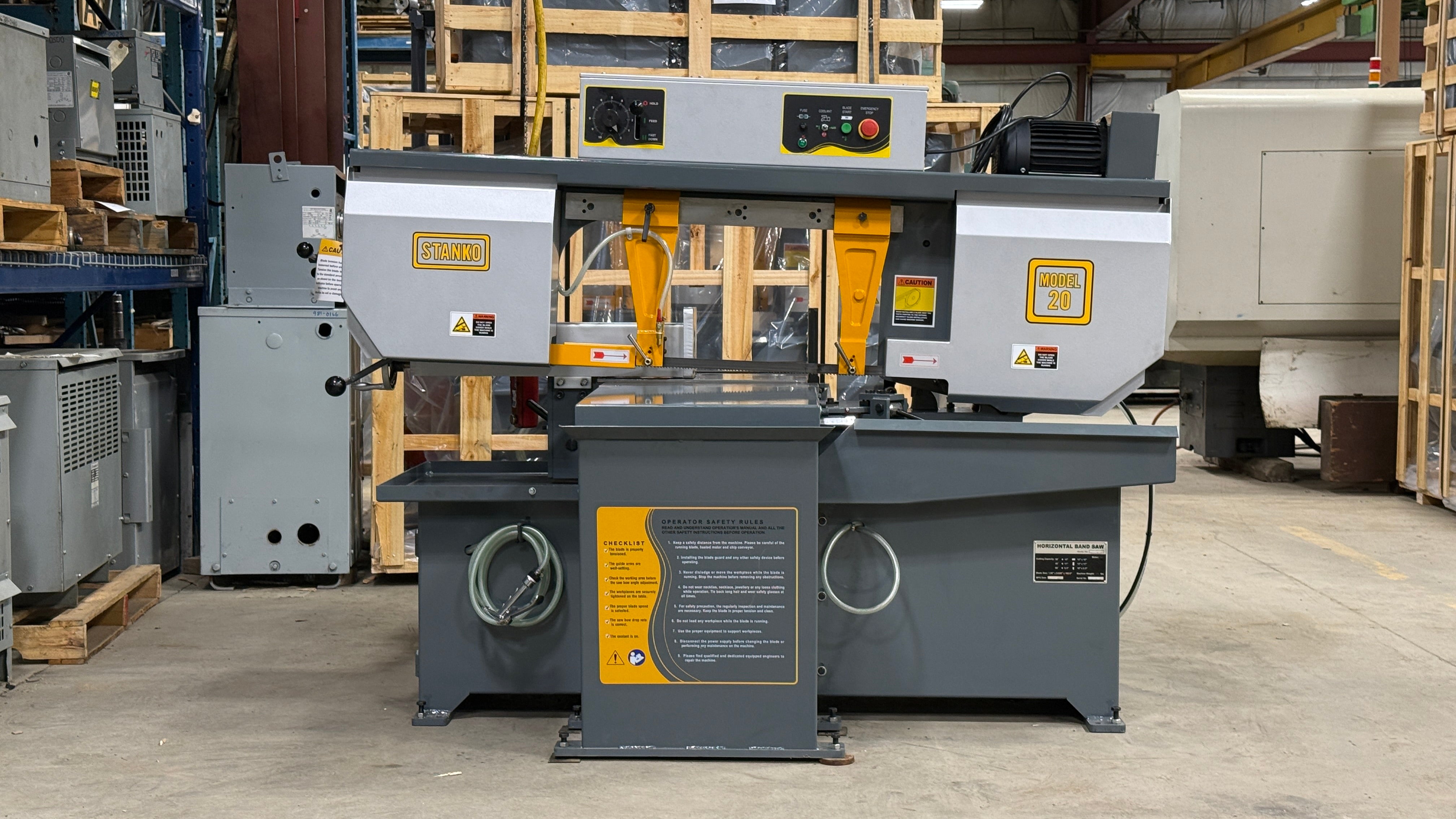

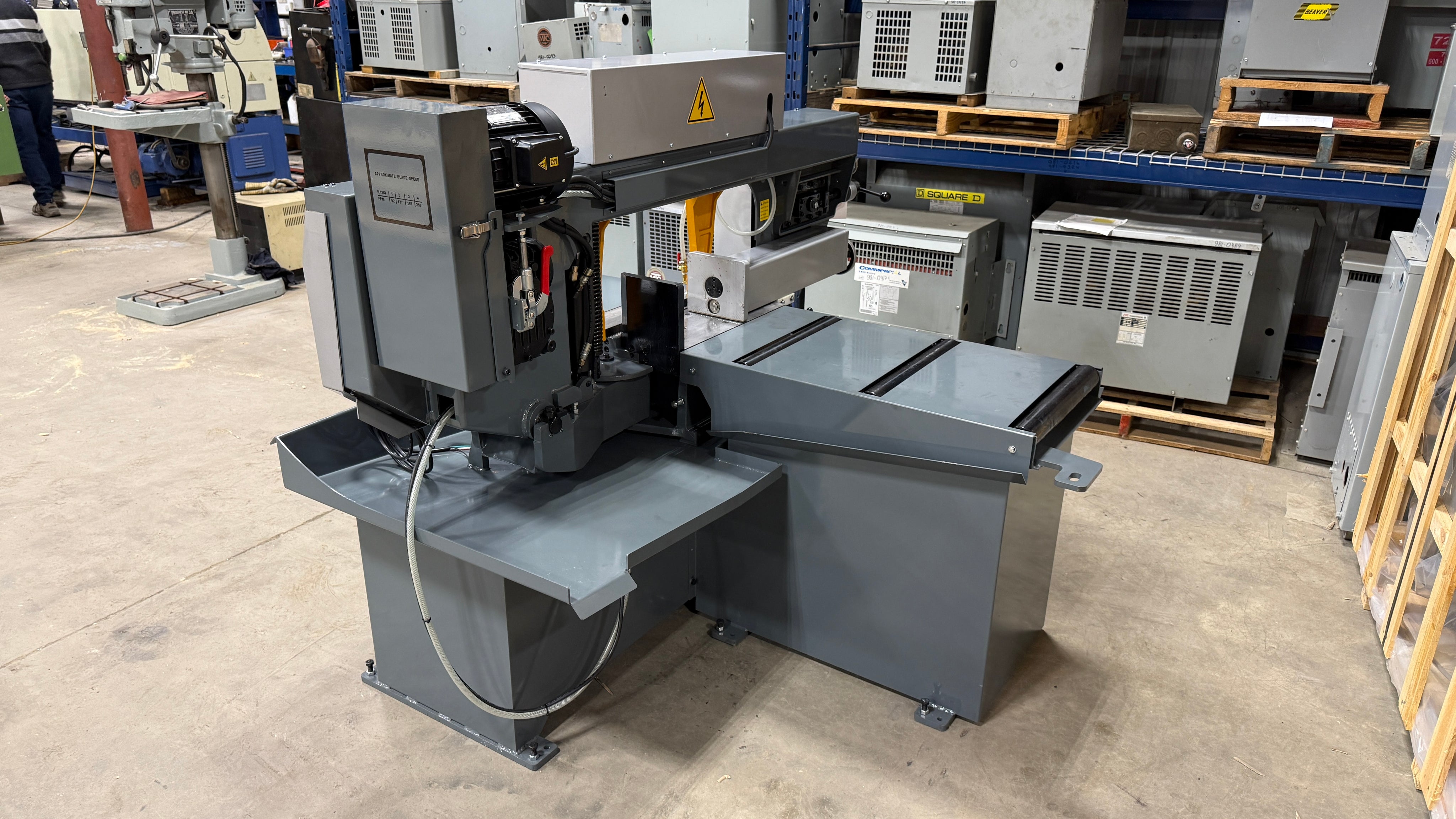

The STANKO Model 20 Horizontal Band Saw is a robust metal-cutting solution designed for precision and durability. It features a 13" x 18" cutting capacity at 90°, a swivel head for 45° and 60° mitre cuts, and four blade speeds ranging from 92 to 256 FPM. Equipped with a dual-voltage 1-phase or 3-phase motor option, it offers flexibility for different shop setups. With hydraulic downfeed control, coolant system, and heavy-duty frame, this saw ensures consistent and accurate performance in any fabrication environment.

Brand: STANKO
Model: Model 20

Capacity:

• 90° Round: 330 mm (13")

• 90° Rectangle: 330 × 450 mm (13" × 18")

• 45° Round: 280 mm (11")

• 45° Rectangle: 330 × 280 mm (13" × 11")

• 60° Round: 160 mm (6.3")

• 60° Rectangle: 250 × 160 mm (10" × 6.3")

Blade Size: 27 × 0.9 × 4130 mm (1.06" × 0.035" × 162.6")

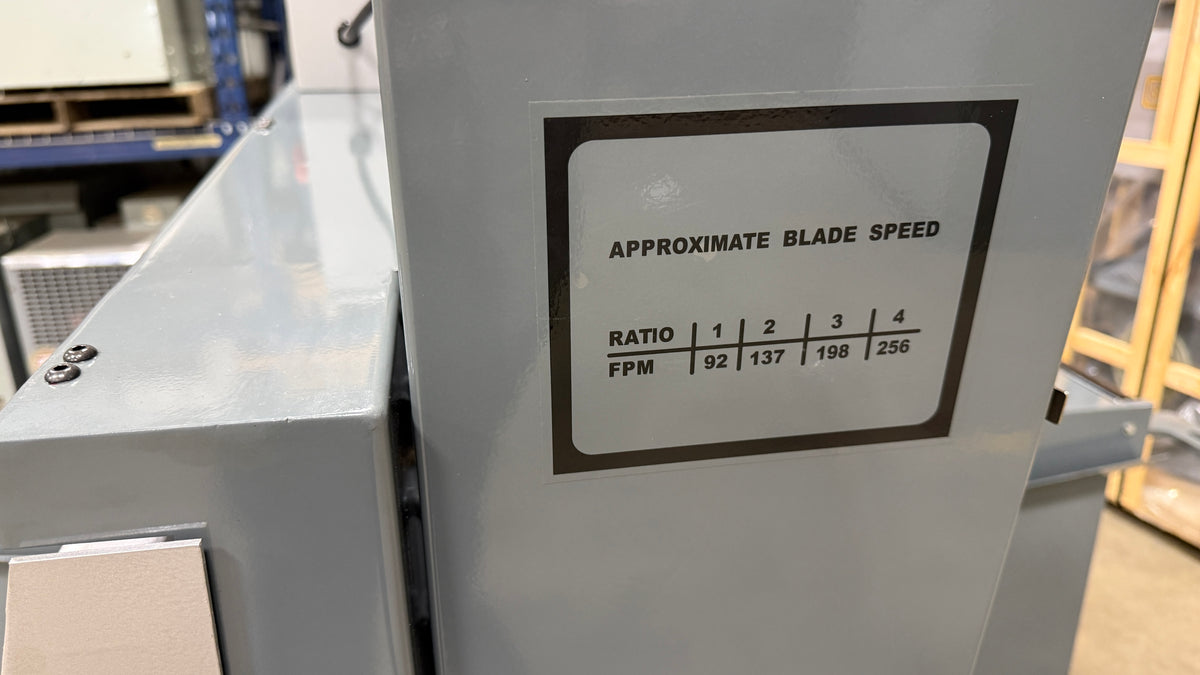

Blade Speed (FPM): 92 / 137 / 198 / 256
Blade Speed (MPM): 28 / 42 / 60 / 78

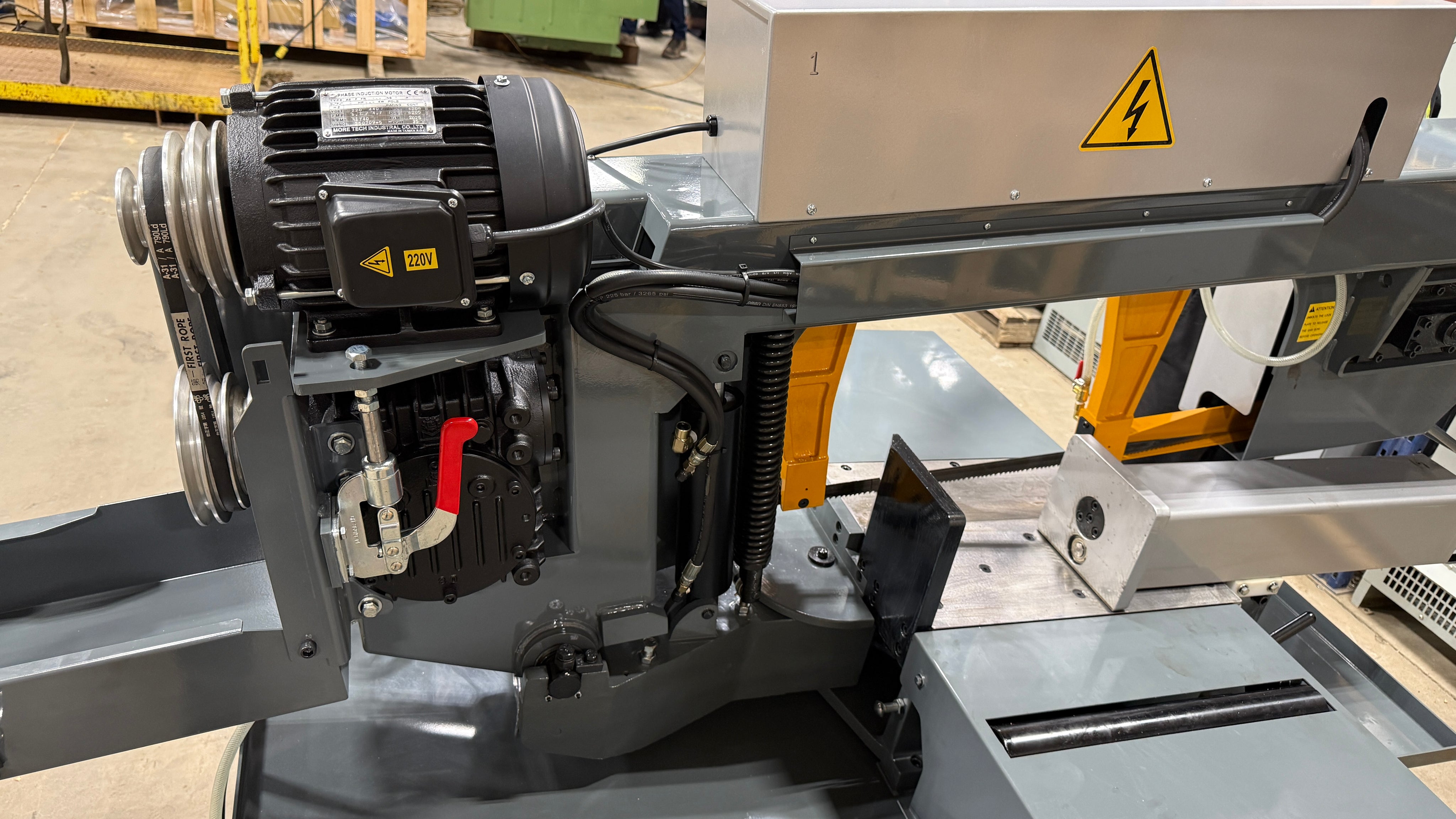

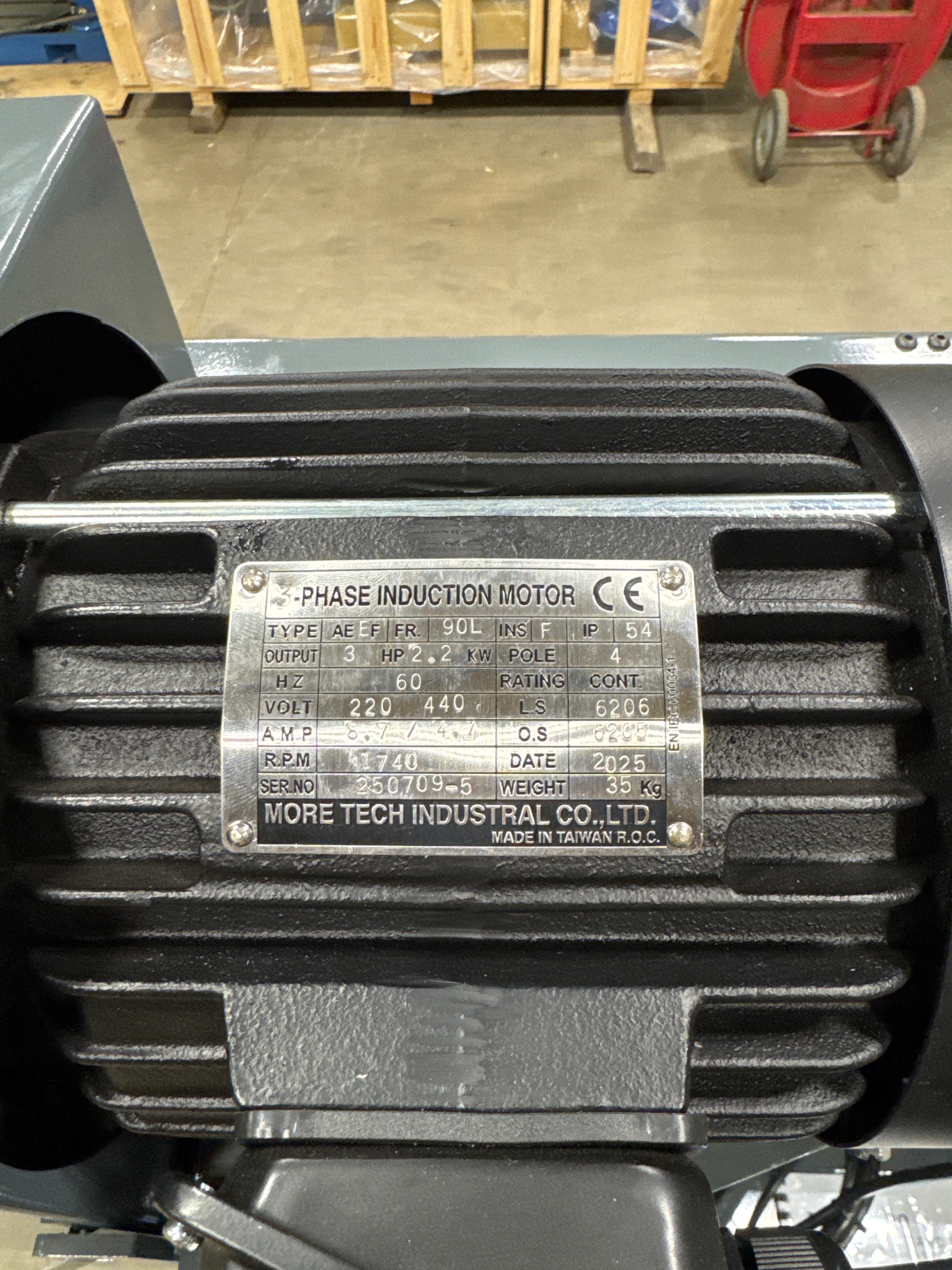

Motor:
3 PH – 3 HP (2.2 kW)
1 PH – 2.5 HP (1.8 kW)
Dual Voltage 1 & 3 Phase

Packing Size (L×W×H): 2110 × 940 × 2270 mm (83.1" × 37" × 90")
Net Weight: 850 kg (1870 lbs)
Gross Weight: 992 kg (2182 lbs)
SKU: 793.794.795.796.797.798
