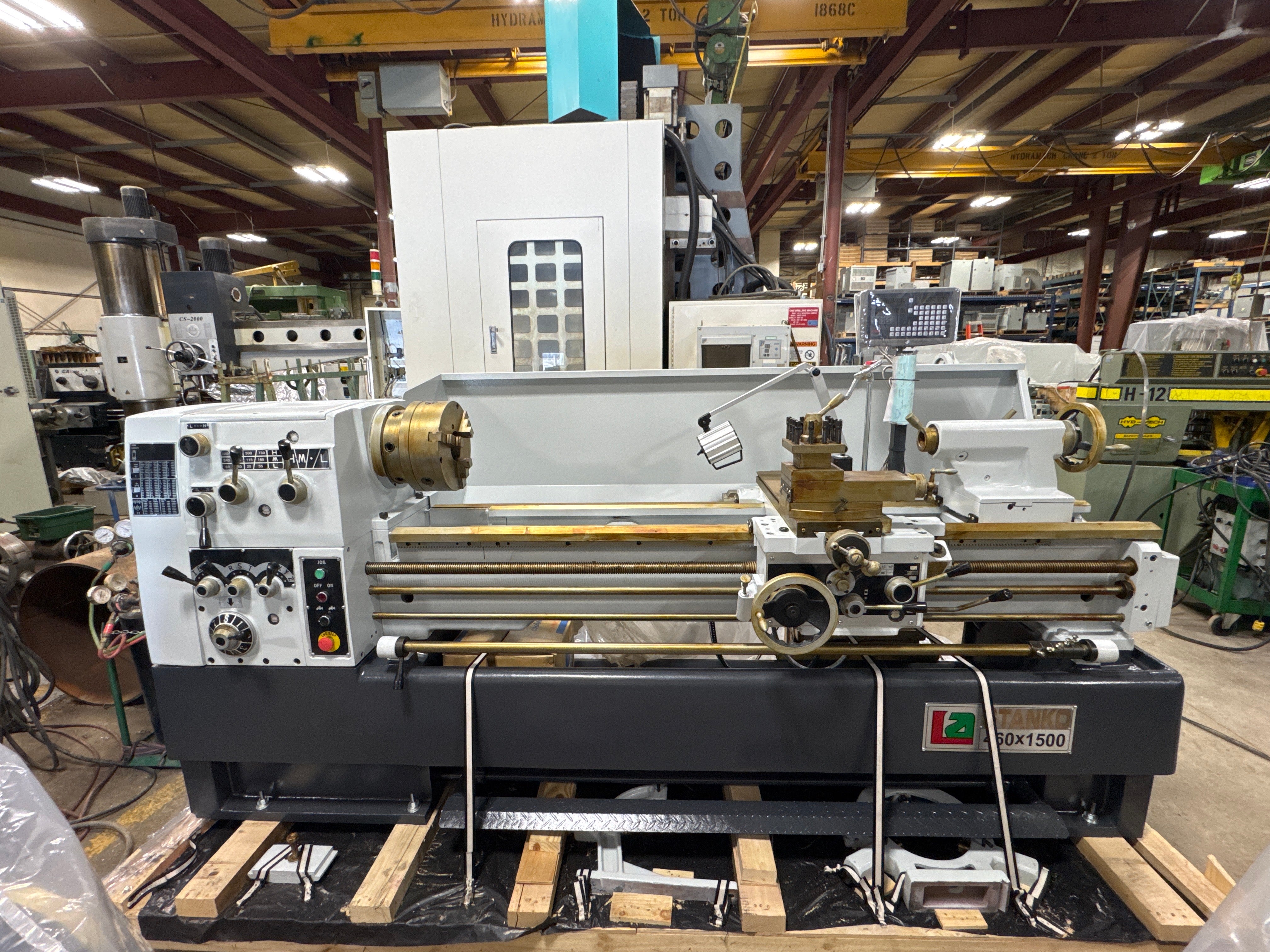

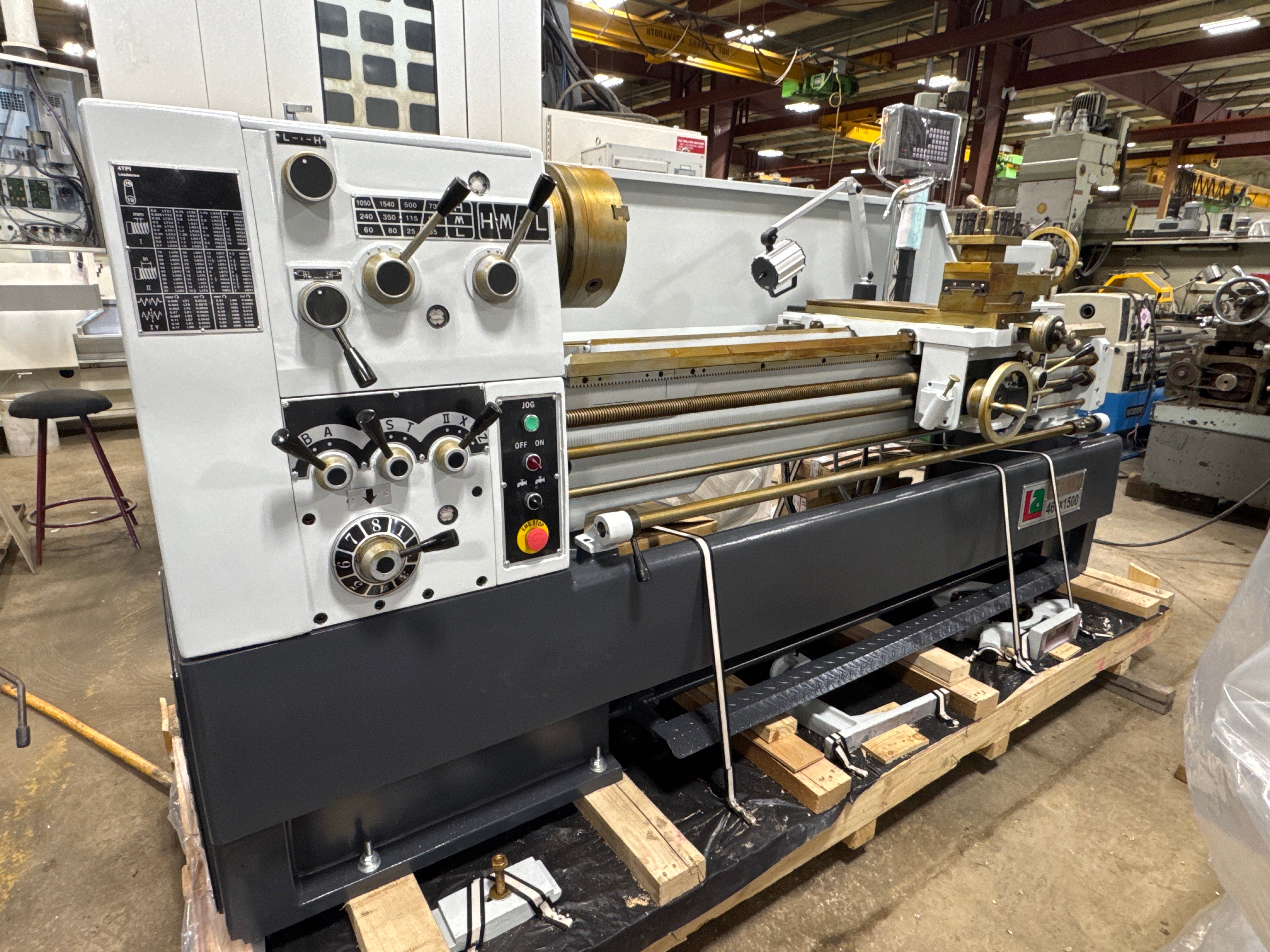

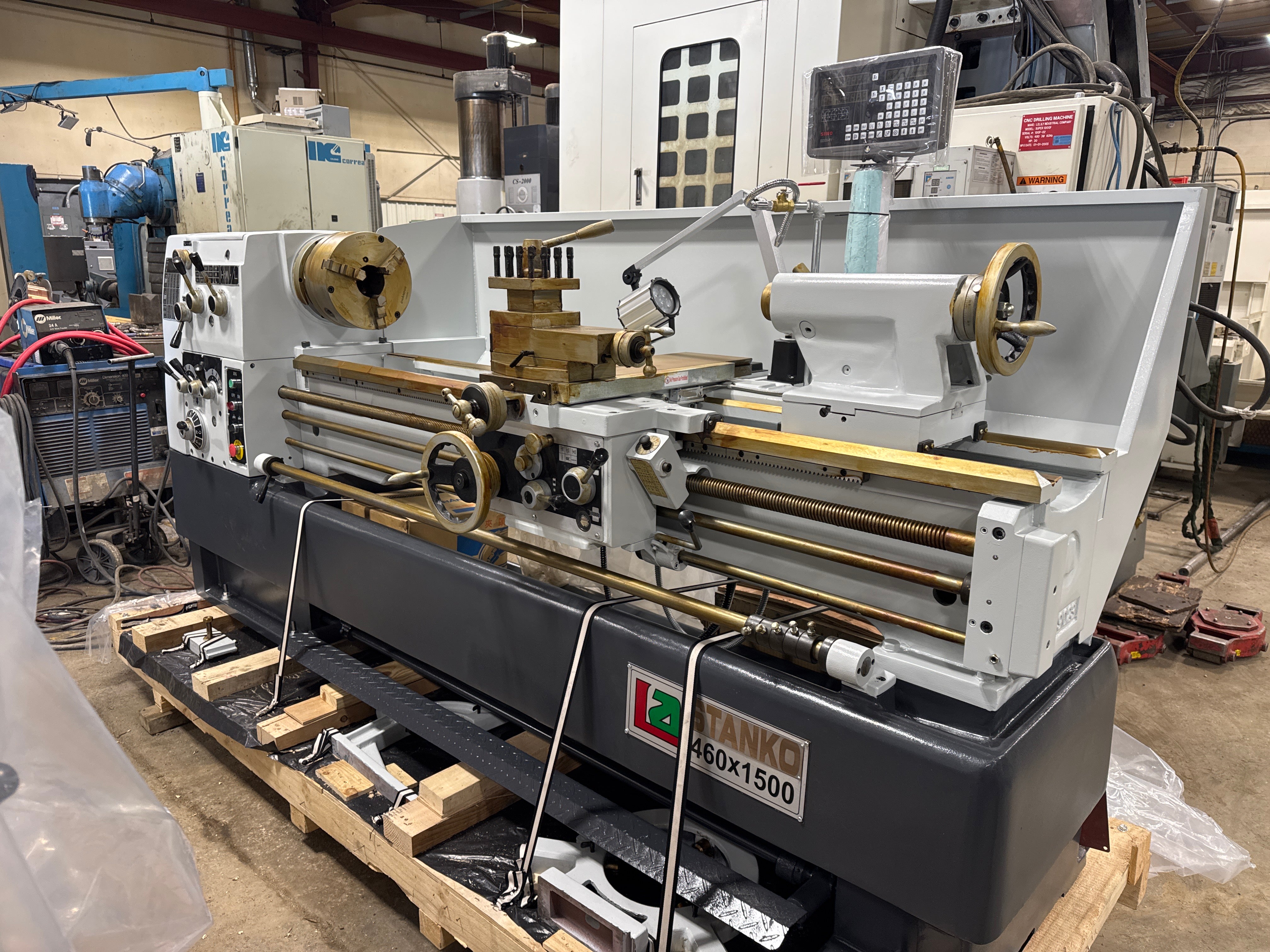

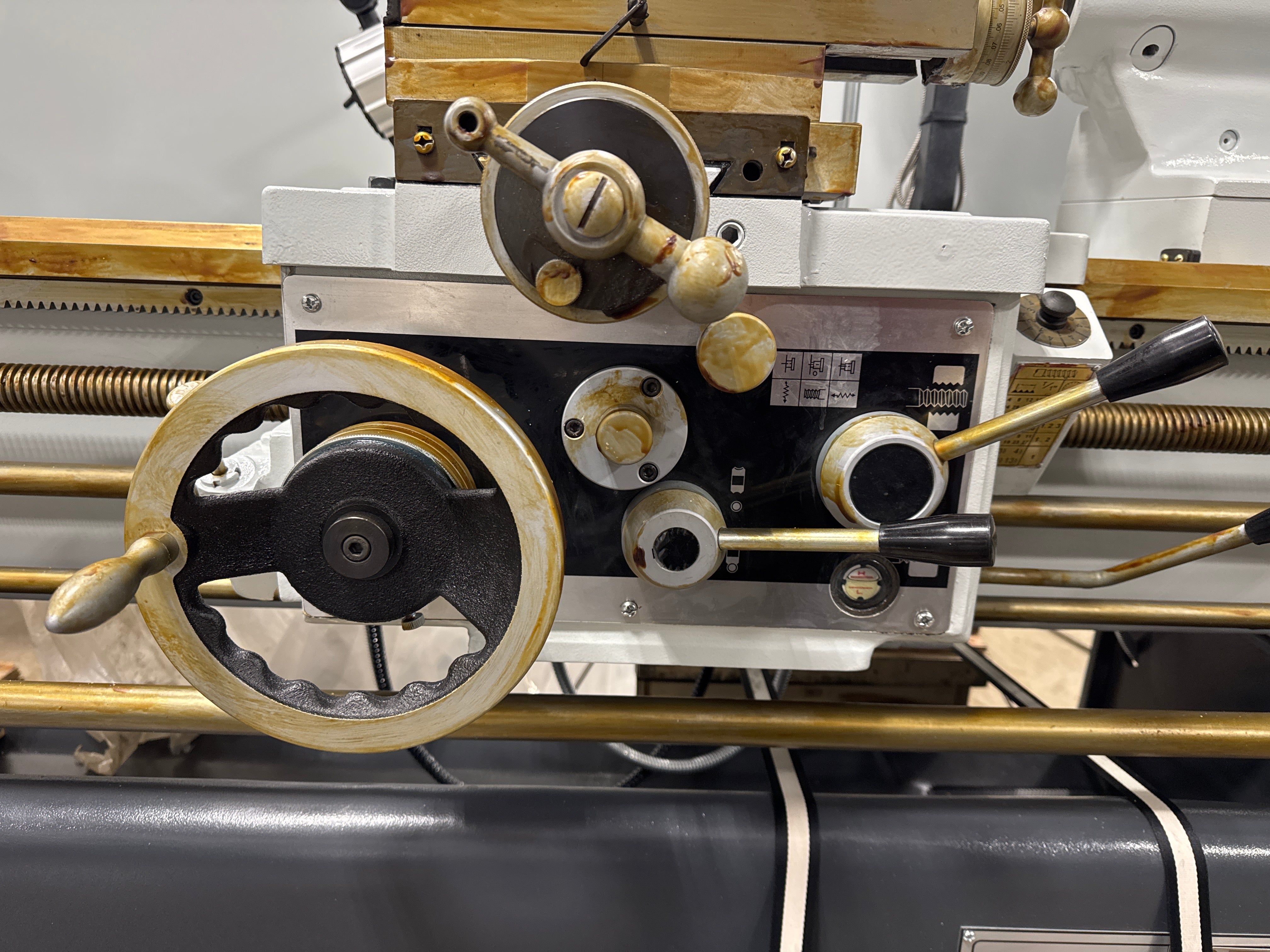

Stanko LA460 x 1500 Lathe

Stanko LA460 x 1500 engine lathe with 18” swing over bed and 1500 mm between centers. Equipped with a powerful 7.5HP motor, D1-6 spindle, wide threading range, and precision feed control. Machine includes 3-jaw chuck, 4-Way  tool post, taper turning attachment, coolant system, and full splash guard. Optional DRO (SINO SDS6-2V), 4-jaw chuck, steady rest, and follow rest available. Suitable for heavy-duty machining and accurate turning operations.

Specifications

• Brand: Stenko
• Model: LA460 x 1500
• Distance Between Centers: 1500 mm (59")
• Swing Over Bed: 18"
• Swing Over Cross Slide: 10-3/4"
• Swing in Gap: 24"
• Spindle Bore: 3.149"
• Spindle Nose: D1-6

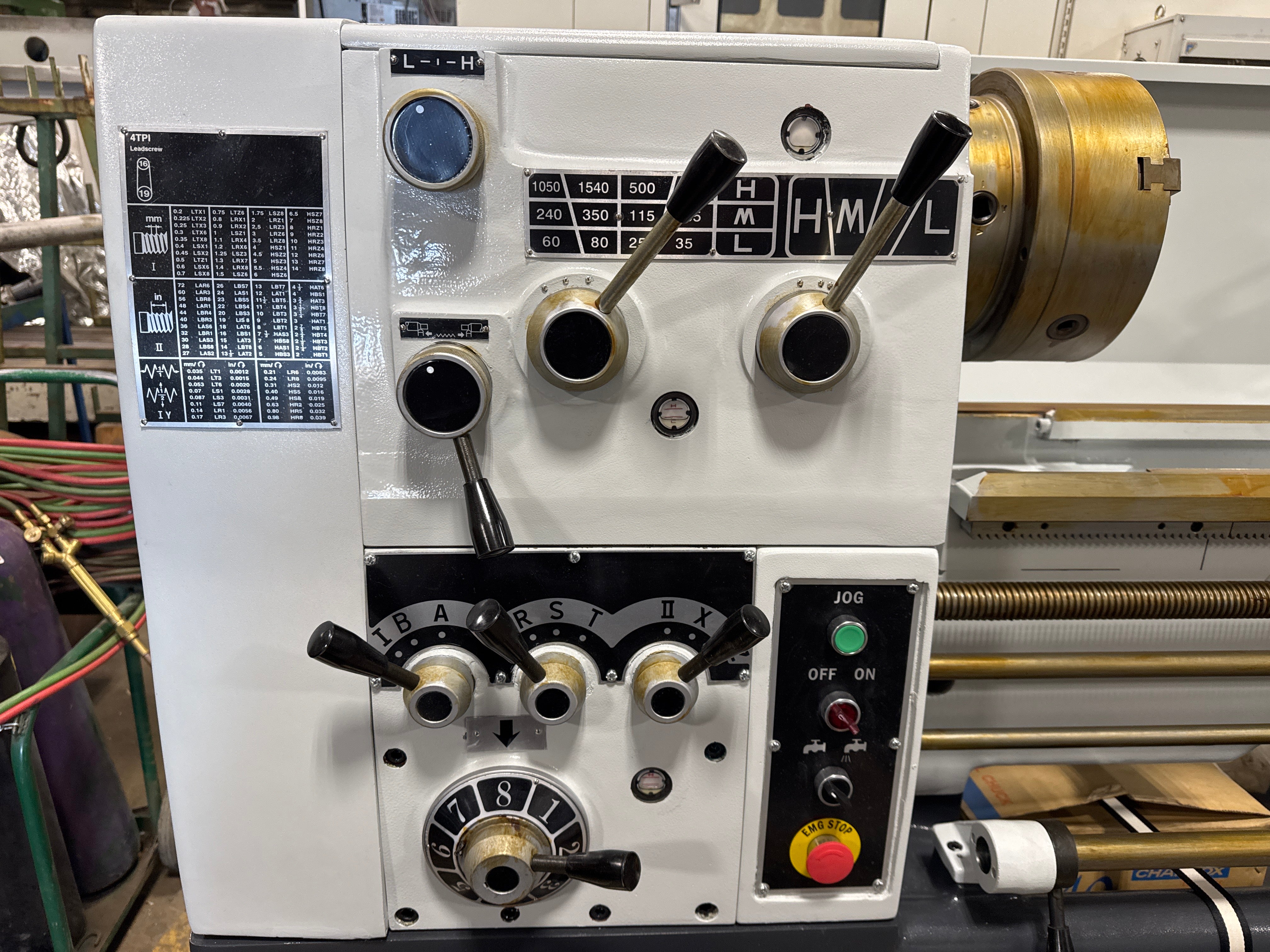

• Range of Spindle Speeds: 25 – 1540 RPM
• Inch Threads: (44) 2 – 72 TPI
• Metric Threads: (39) 0.2 – 14 mm
• Number of Feeds: 36
• Longitudinal Feeds: 0.0012" – 0.034"
• Cross Feeds: 1/2 of Longitudinal
• Bed Width: 14"
• Tailstock Taper: MT #5
• Tailstock Quill Diameter: 2-3/8"
• Tailstock Quill Travel: 6"
• Main Motor: 7.5 HP
• Coolant Pump: 1/8 HP

Equipment / Features

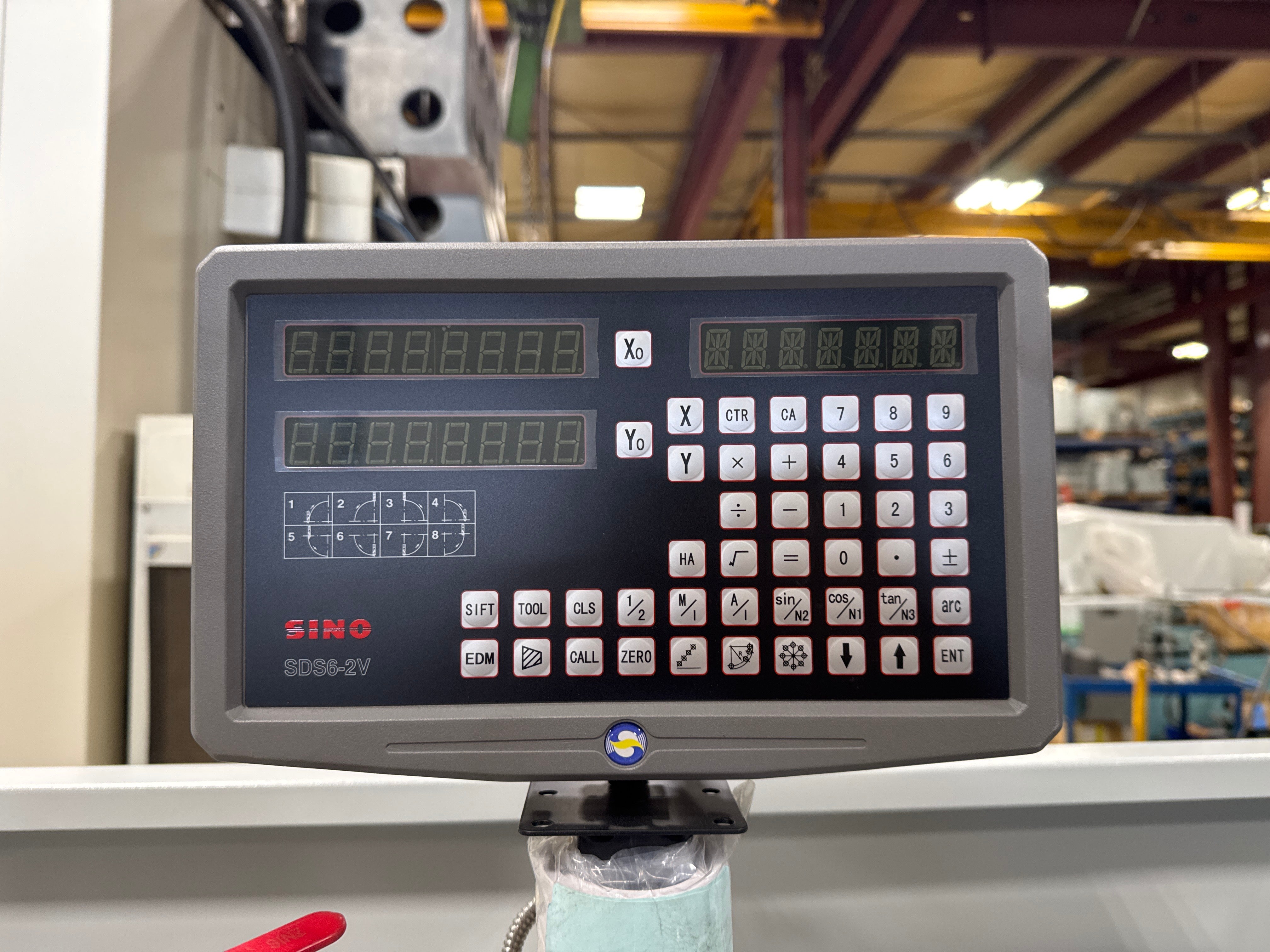

• DRO: SINO SDS6-2V

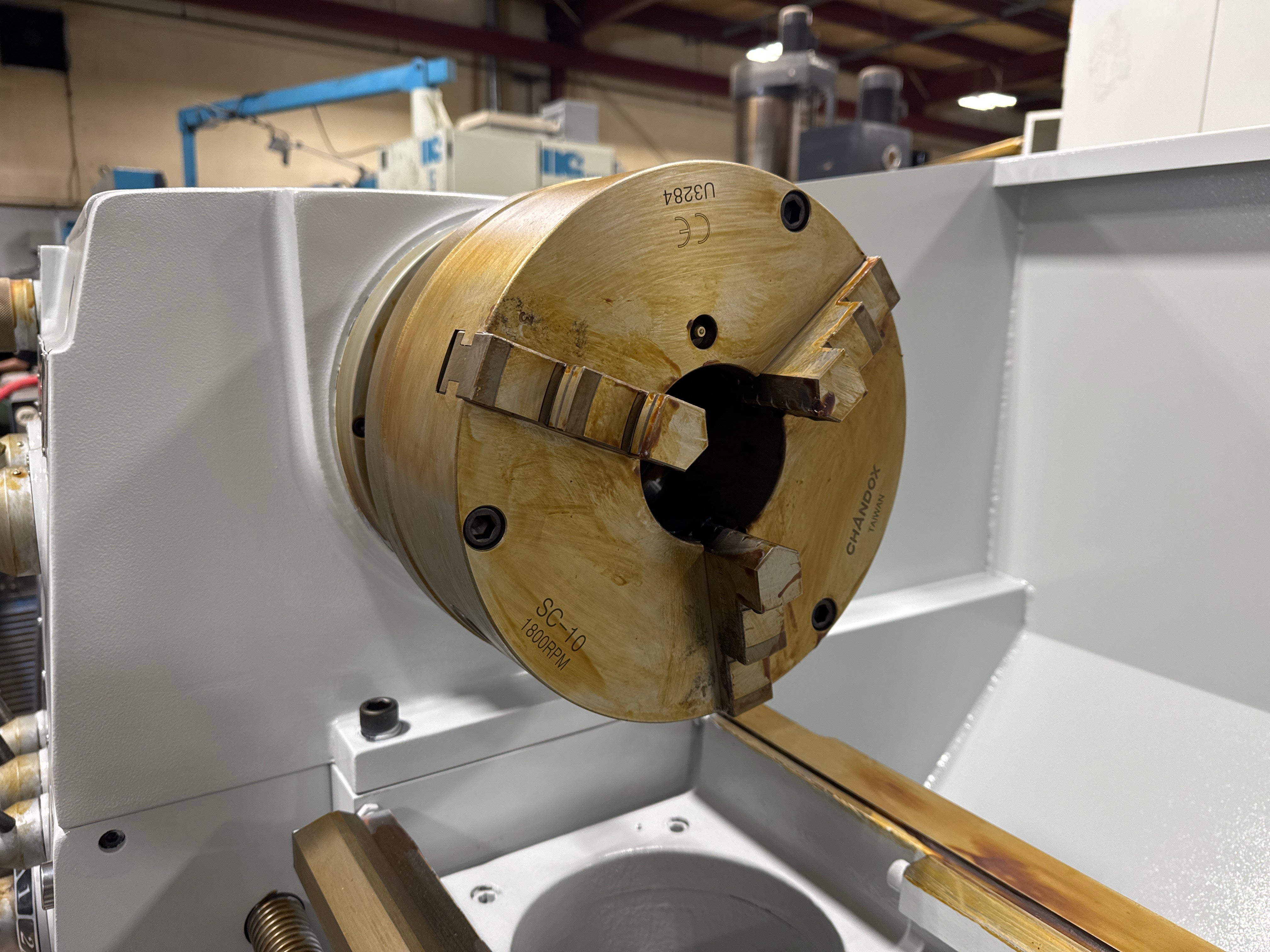

• Chuck Size: 10.75" 3-Jaw Chuck

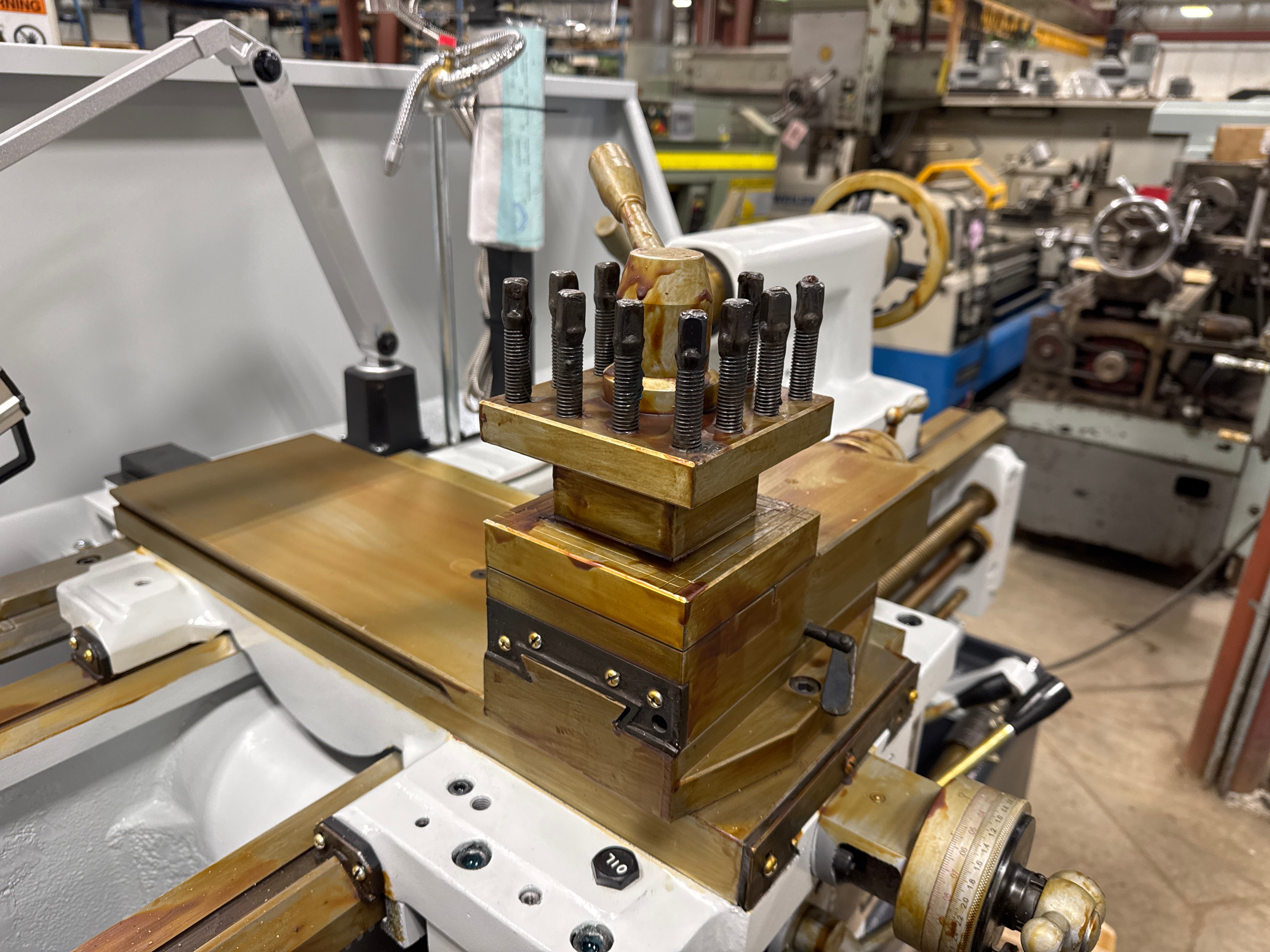

• Quick Change Tool Post
• Taper Turning Attachment
• Coolant System
• Full Splash Guard
• Leadscrew: 1-3/4" x 4 TPI




  Optional Features / Add-ons

  • DRO: SINO SDS6-2V — $2,950
  • 12" 4-Jaw Chuck
  • Steady Rest
  • Follow Rest

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
