Stanko 1N65 Manual Lathe

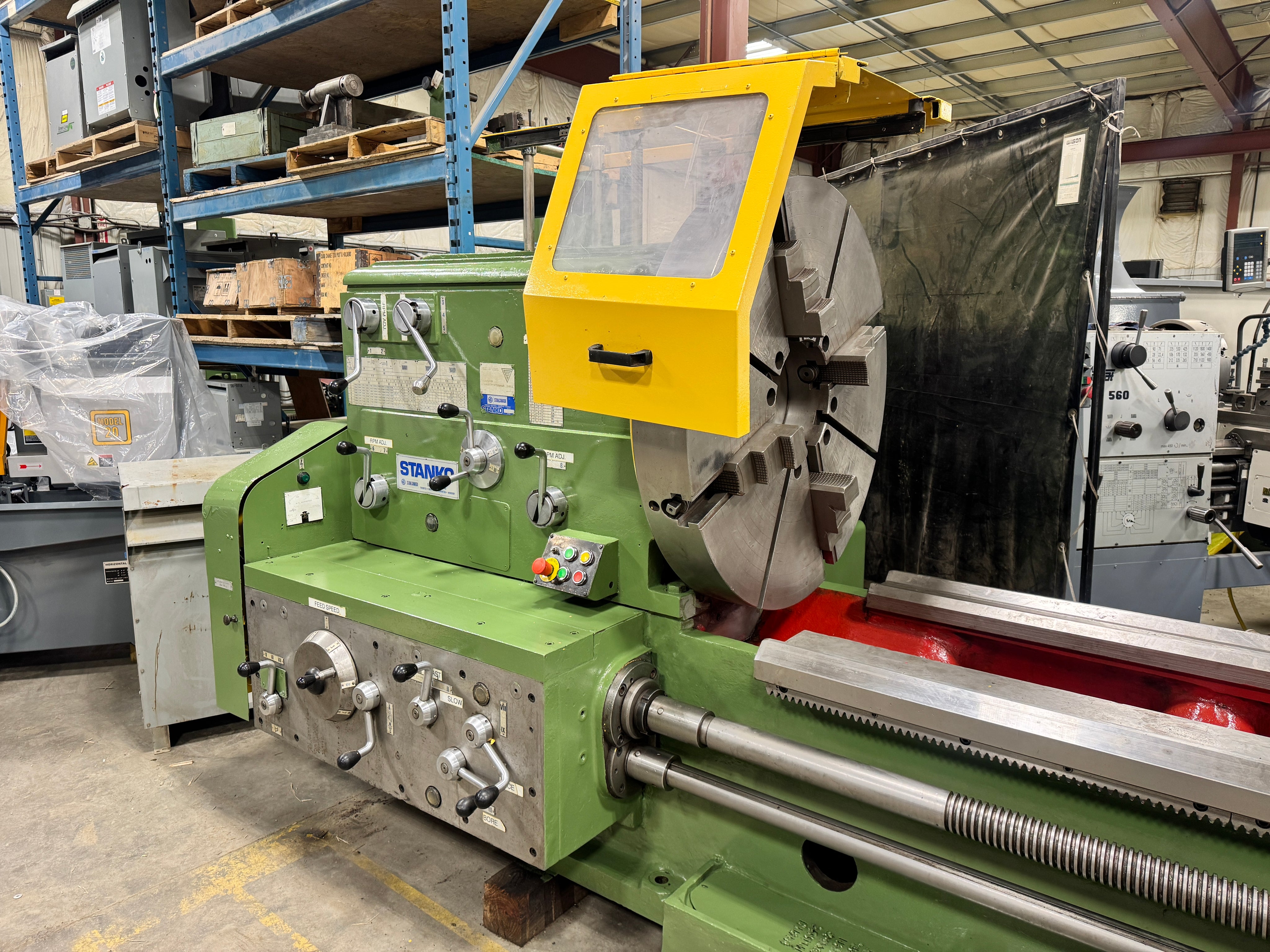

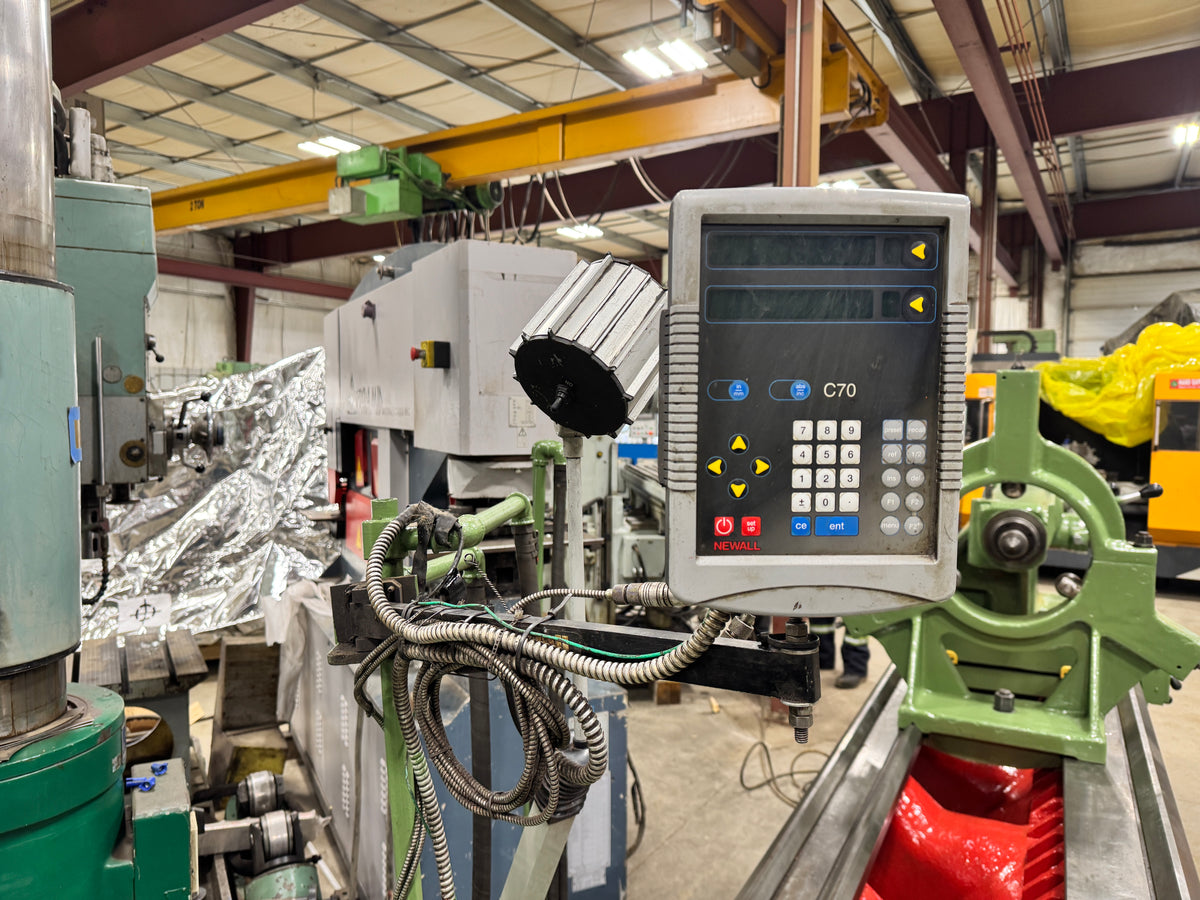

This heavy-duty used Stanko 1N65 manual lathe is ideal for large-scale turning applications. It features a robust spindle, wide bed, and reliable 2-axis DRO. With a 39.5" 4-jaw chuck and 5.25" spindle bore, it's built for serious metalworking in industrial environments.

Capacity

Swing over bed: 39.37" (1000 mm)
Swing over carriage: 25.59" (650 mm)
Distance between centers: 39.37" – 472.44" (1000 – 12000 mm)
Swing in gap: 55.12" (1400 mm)
Gap length: 15.35" (390 mm)
Maximum workpiece weight between centers: 17,637 – 22,046 lbs (8000 – 10000 kg)

Spindle

Spindle bore: 5.04" (128 mm)
Spindle nose: DIN 2-15M
Spindle taper: 5.51" (140 mm)
Spindle speed range: 5 – 500 RPM
Number of spindle speeds: 24

Tooling

Maximum tool size: 1.97" (50 mm)

Tailstock

Quill diameter: 7.09" – 8.46" (180 – 215 mm)
Quill travel: 7.87" – 11.81" (200 – 300 mm)
Quill taper: MT6

Threading

Metric threads: 1 – 96 mm
Whitworth threads: 24 – 0.25 TPI
Module threads: 0.5 – 24 MOD
Diametral Pitch threads: 96 – 1 DP

Feed Rates

Longitudinal feed: 0.06 – 2.42 mm/rev
Cross feed: 0.022 – 0.88 mm/rev
Tool slide feed: 0.022 – 0.88 mm/rev

Drive System

Main motor: 22 kW (29.5 HP)
Voltage: 208V

Accuracy

Diameter consistency: 16 μm (0.00064")
Longitudinal accuracy: 40 μm (0.0016")
Surface finish: Ra 2.5

Rapid Traverse

Longitudinal: 3000 mm/min
Cross: 1000 mm/min

Dimensions

Length: 161.42" – 598.82" (4100 – 15210 mm)
Width: 86.61" (2200 mm)
Height: 69.69" – 74.02" (1770 – 1880 mm)

Weight

Machine weight: 21,715 – 51,809 lbs (9850 – 23500 kg)

Specifications are provided as a guide only. Buyer must verify all details prior to purchase. STANKO Machine Tools Ltd. is not responsible for typographical or data entry errors.
