Machine Description

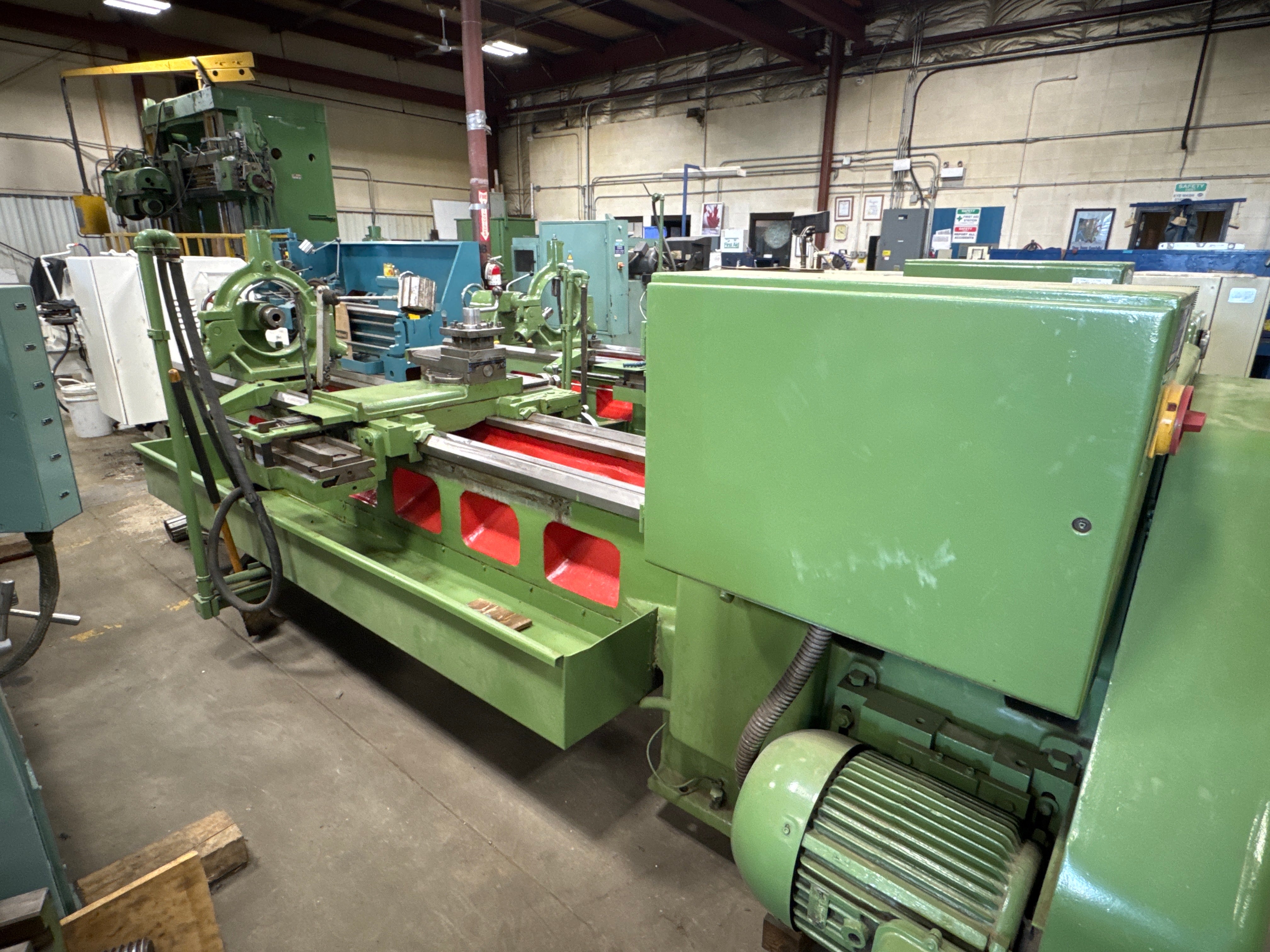

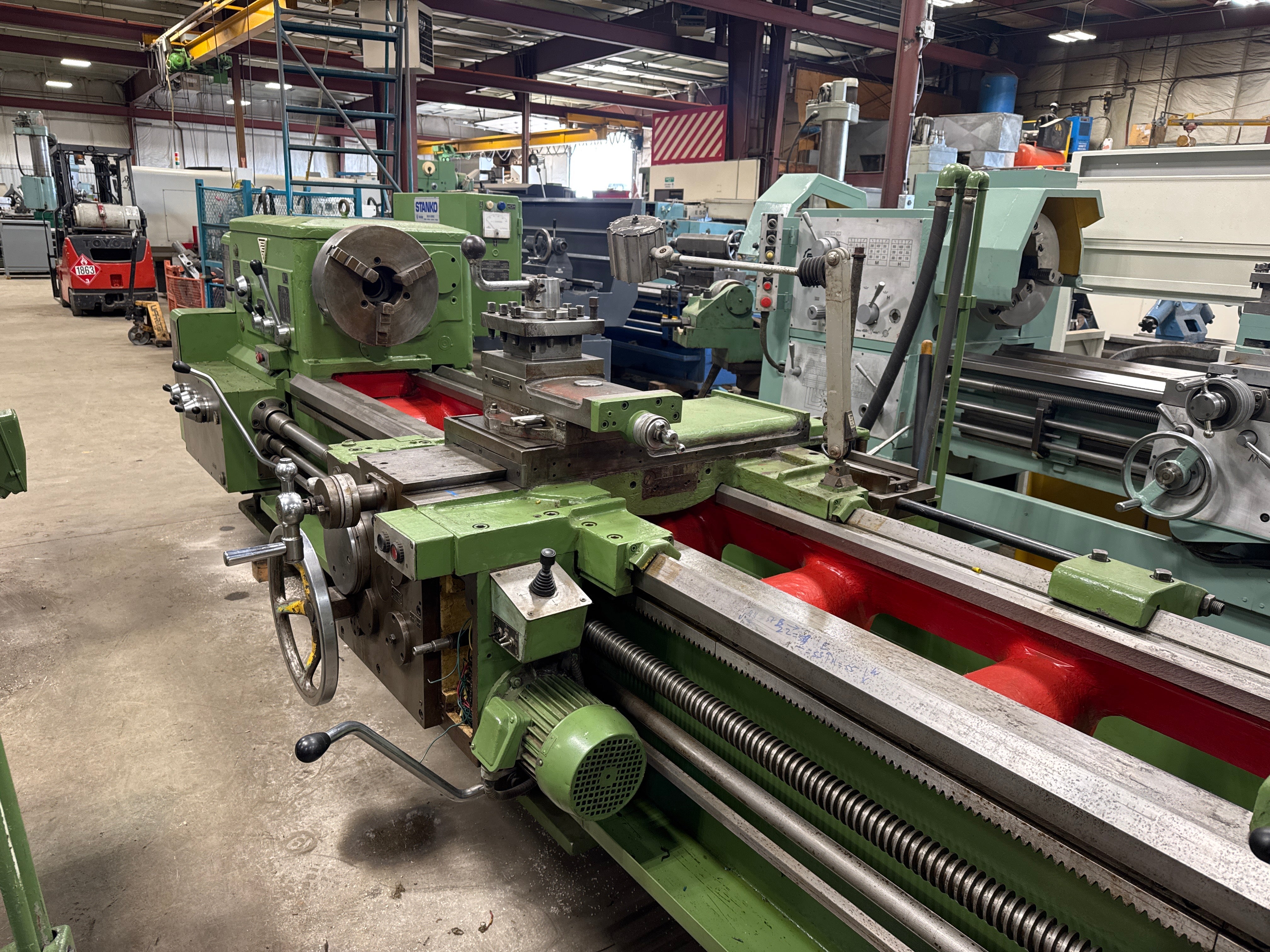

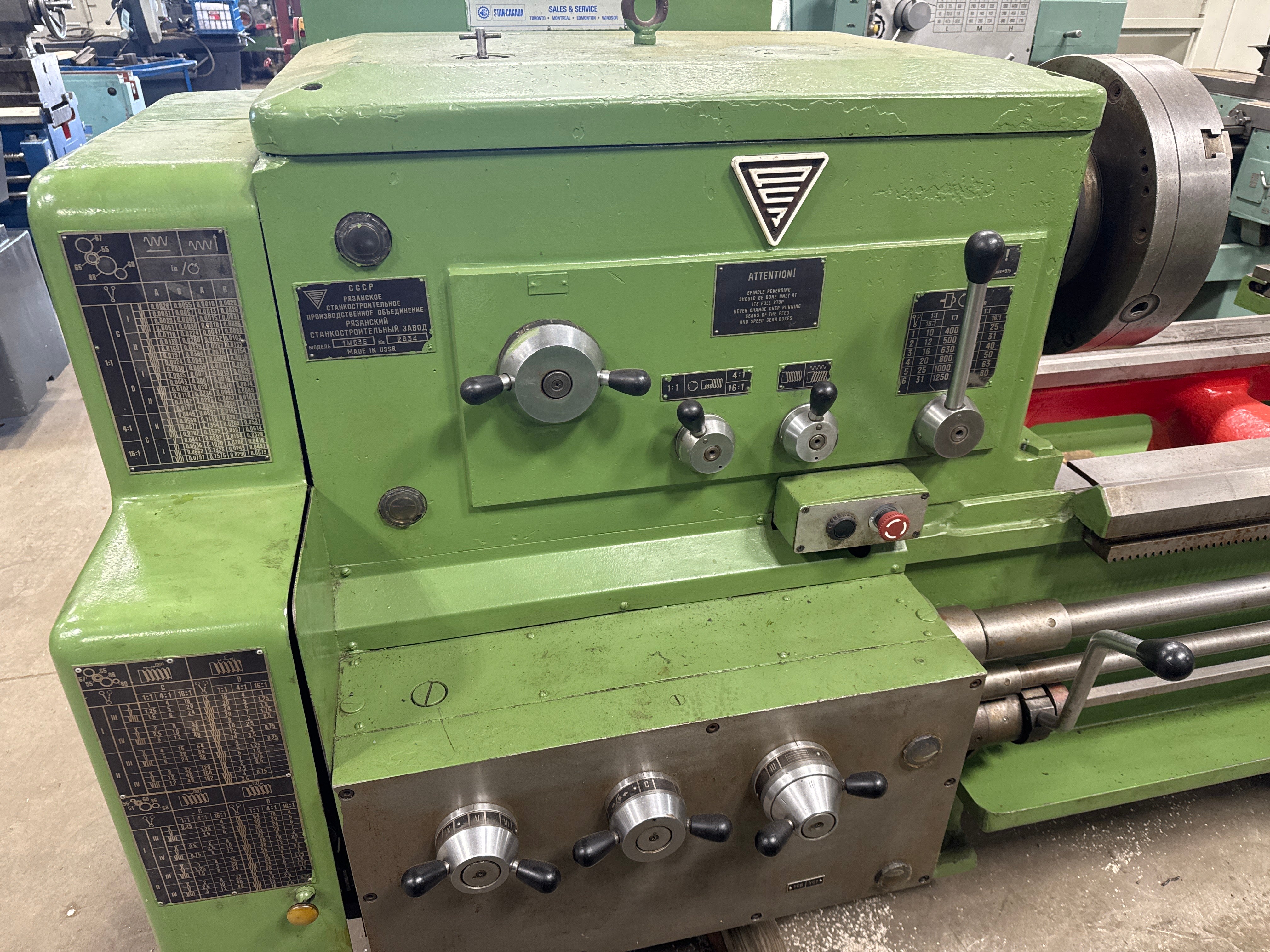

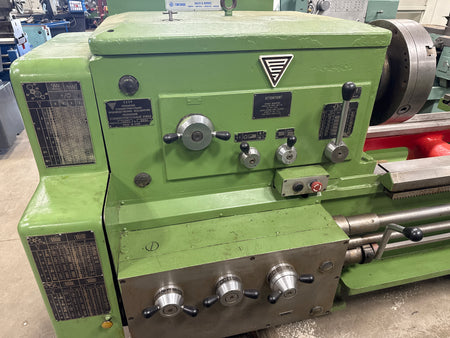

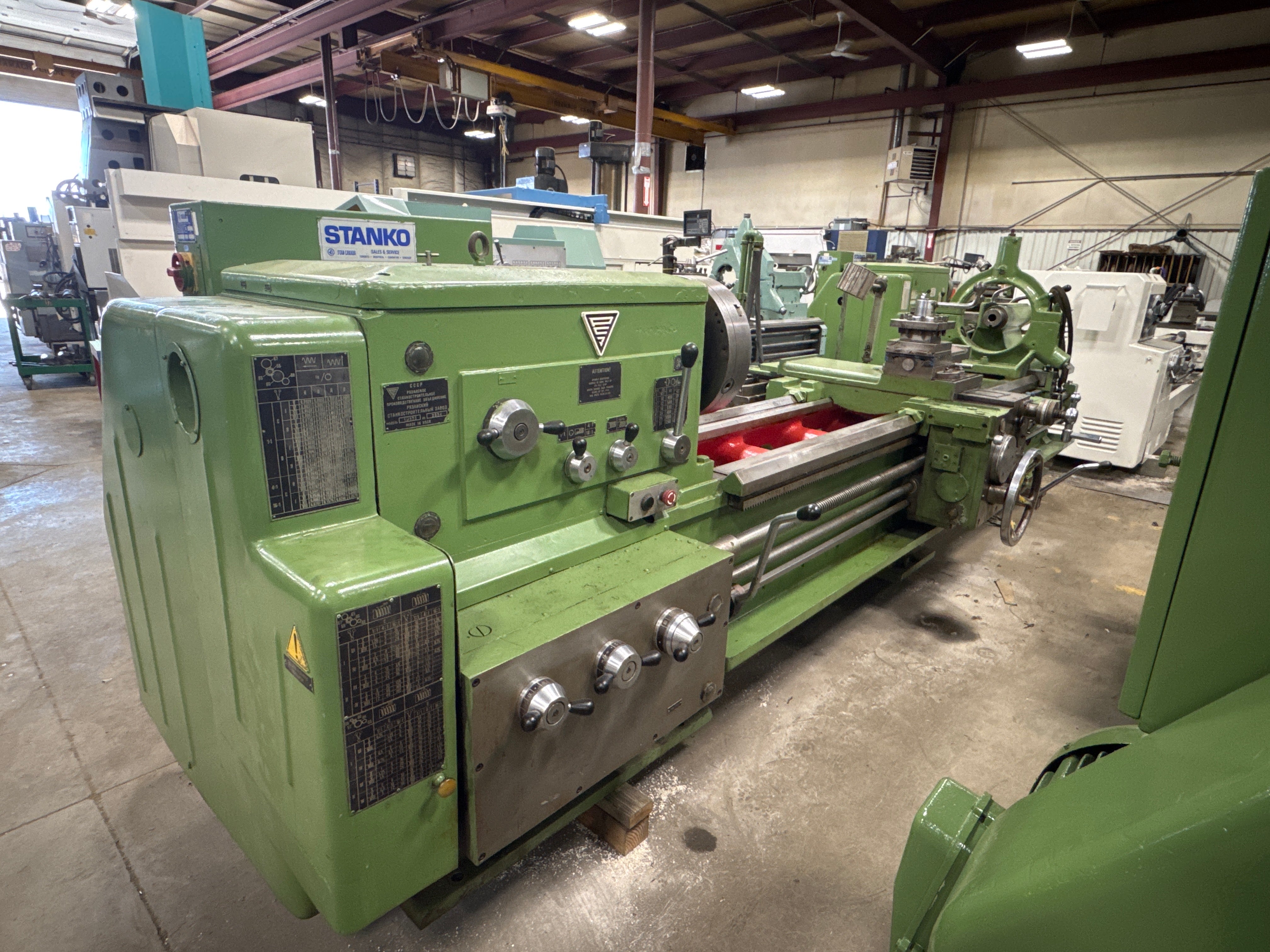

The Stanko 1M63B is a heavy-duty manual engine lathe designed for industrial machining of large shafts, rollers, and heavy components. With a 28" swing over the bed and 100" between centers, it offers generous capacity for long workpieces while maintaining solid rigidity. A 3-jaw chuck, 2-3/4" spindle bore, and steady rest support give strong holding power for demanding turning jobs. The machine is equipped with a Newall DP7 digital readout, taper attachment, rapid travel, and work lamp to support accurate, efficient operation on production or repair work. Built with robust Soviet-era castings and an approximate weight of 12,000 lb, this Stanko 1M63B engine lathe is well suited for heavy-duty metalworking and industrial machining in a busy shop environment.

Specification
Machine: Stanko Engine Lathe
Model / Type: 1M63B
Serial Number: 2634
Stock Number: ST 757

Capacity
Swing Over Bed: 28"
Distance Between Centers: 100"
Steady Rest Capacity: 16" diameter

Spindle
Spindle Speed Range: 10 – 1250 RPM
Spindle Bore: 2.75" (2-3/4")

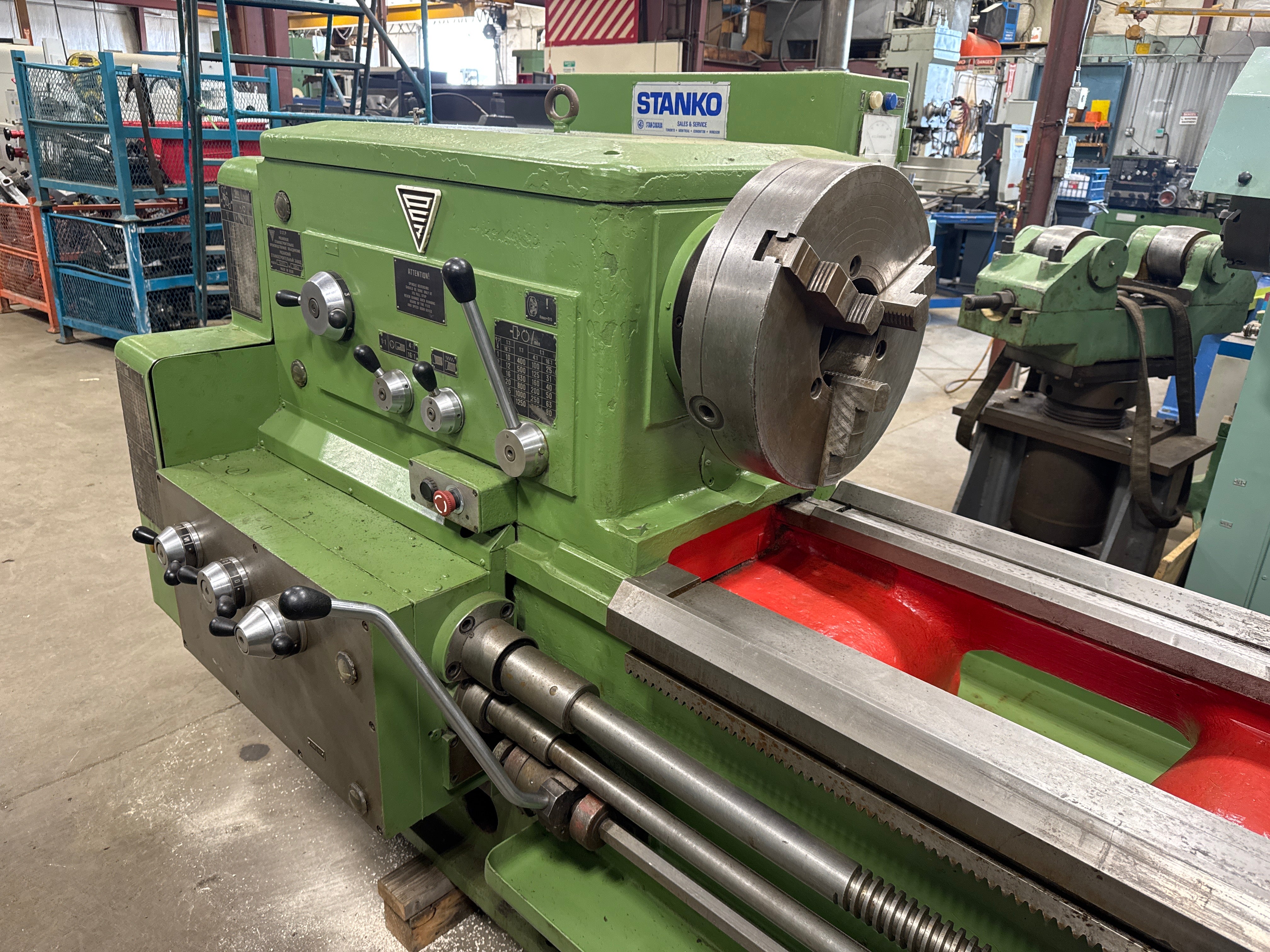

Chuck: 3-jaw chuck

Feeds / Threading
Lead Screw Pitch: 2 TPI

Tailstock
Tailstock Taper: MT5

Equipment / Features
Digital Readout: Newall DP7

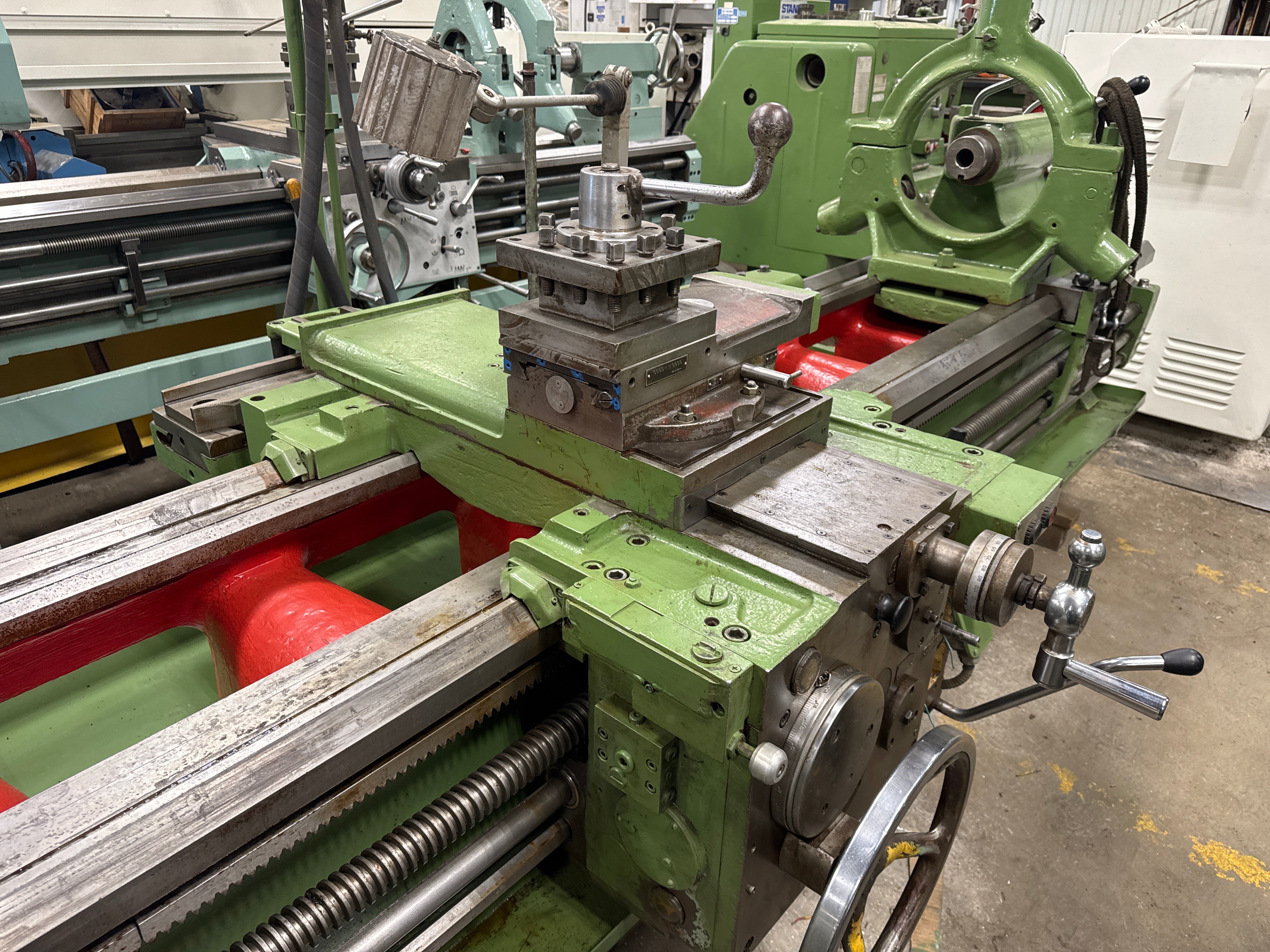

Tool Post: Square tool post

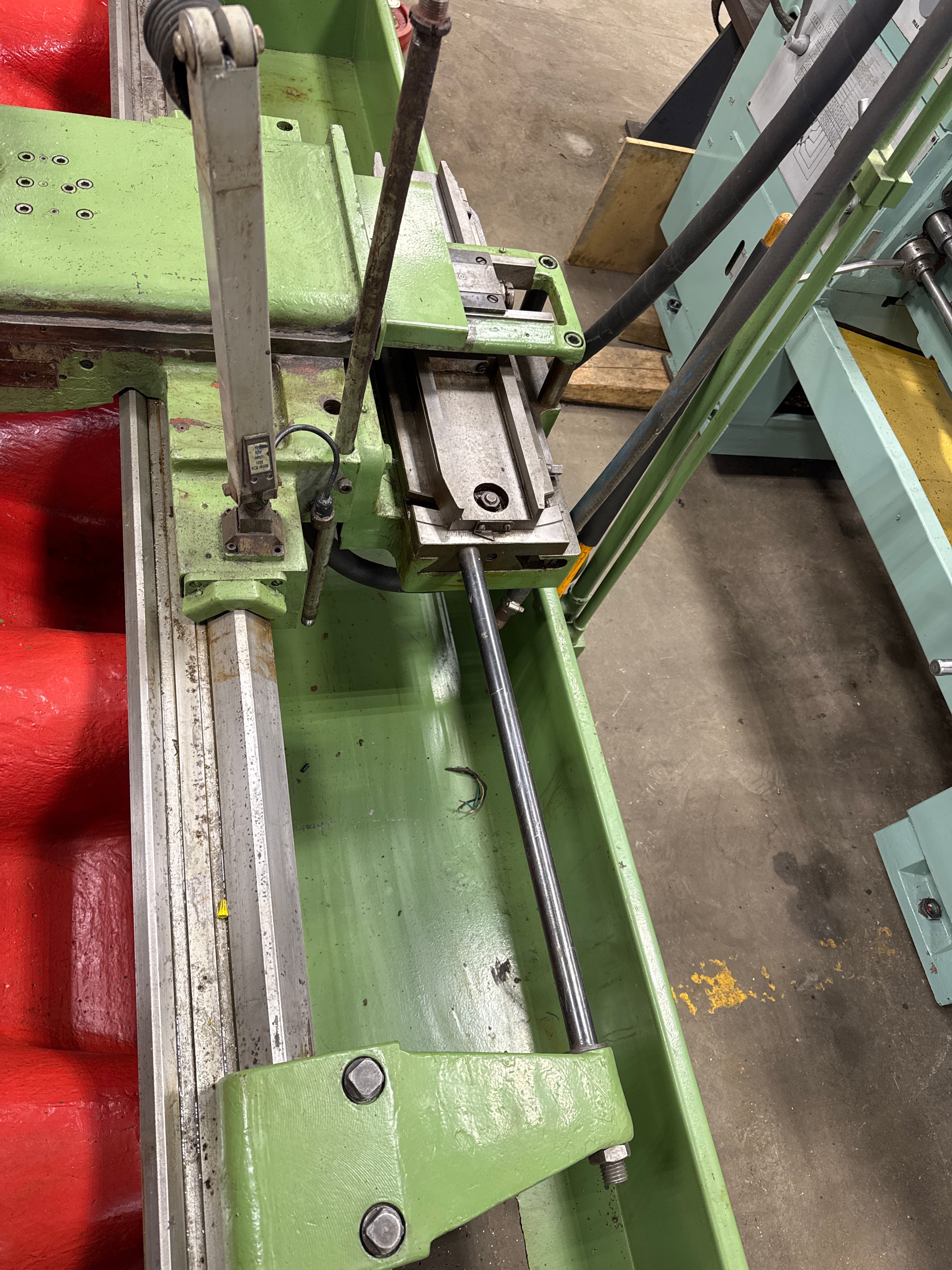

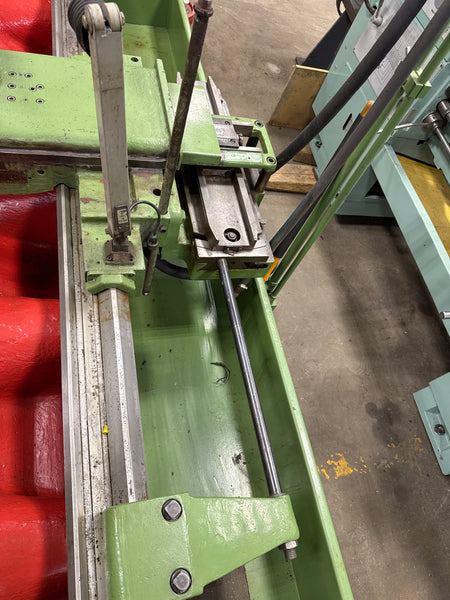

Taper Attachment: Yes
Rapid Travel: Yes
Steady Rest: Included, 16" capacity
Work Lamp: Yes

Dimensions & Weight
Overall Dimensions (L×W×H): 192" × 66" × 77"
Approximate Weight: 12,000 lb

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.

“Price for reference only. For an exact quote, contact us:
