Stanko 16K40 Engine Lathe – Fully Rebuilt 2026
Regular price
$69,990.00
Couldn't load pickup availability
Contact Us
Phone: 1(780) 434-0099
Email: Sales@stancanada.com
Email: Parts@stancanada.com

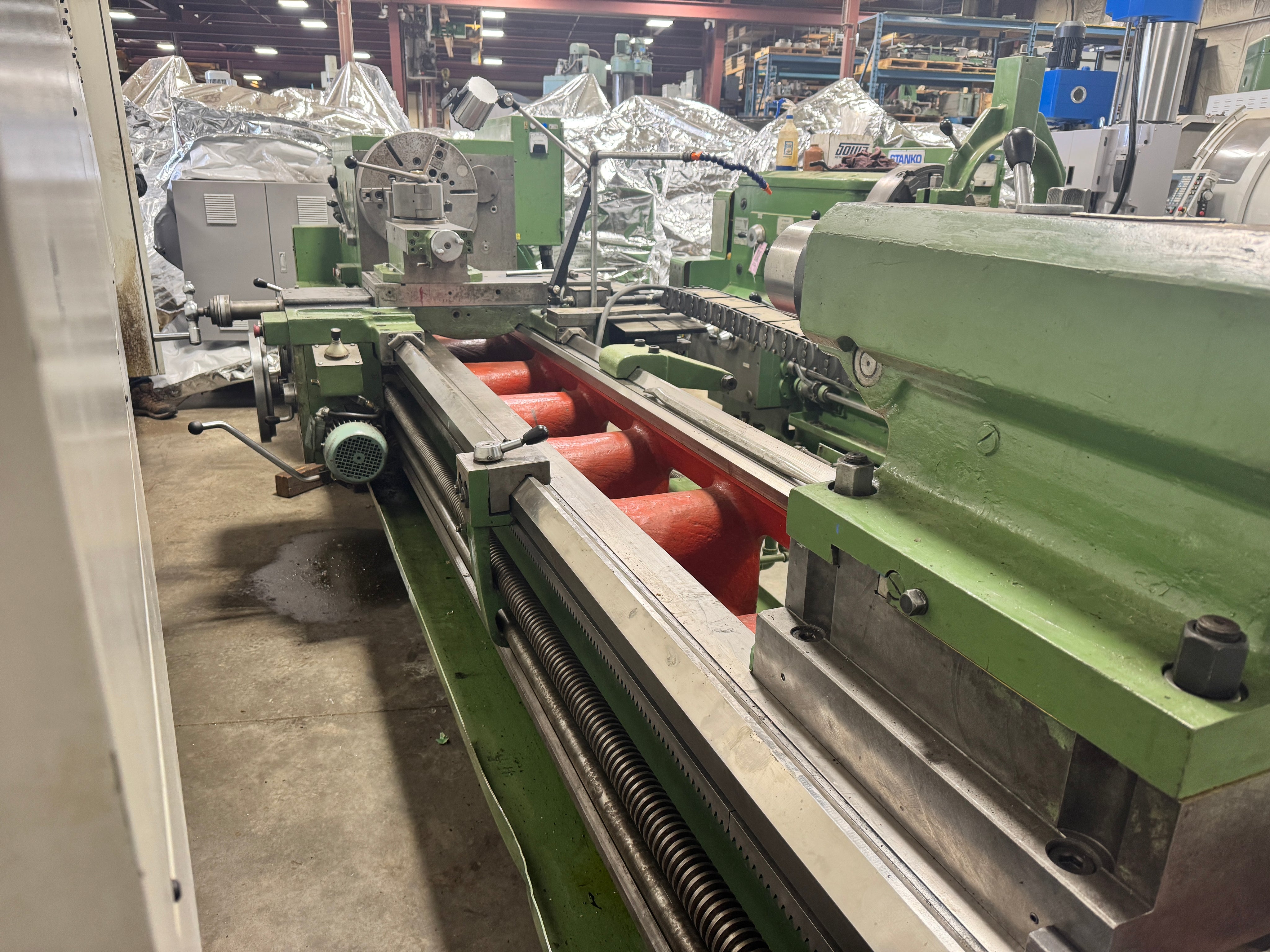

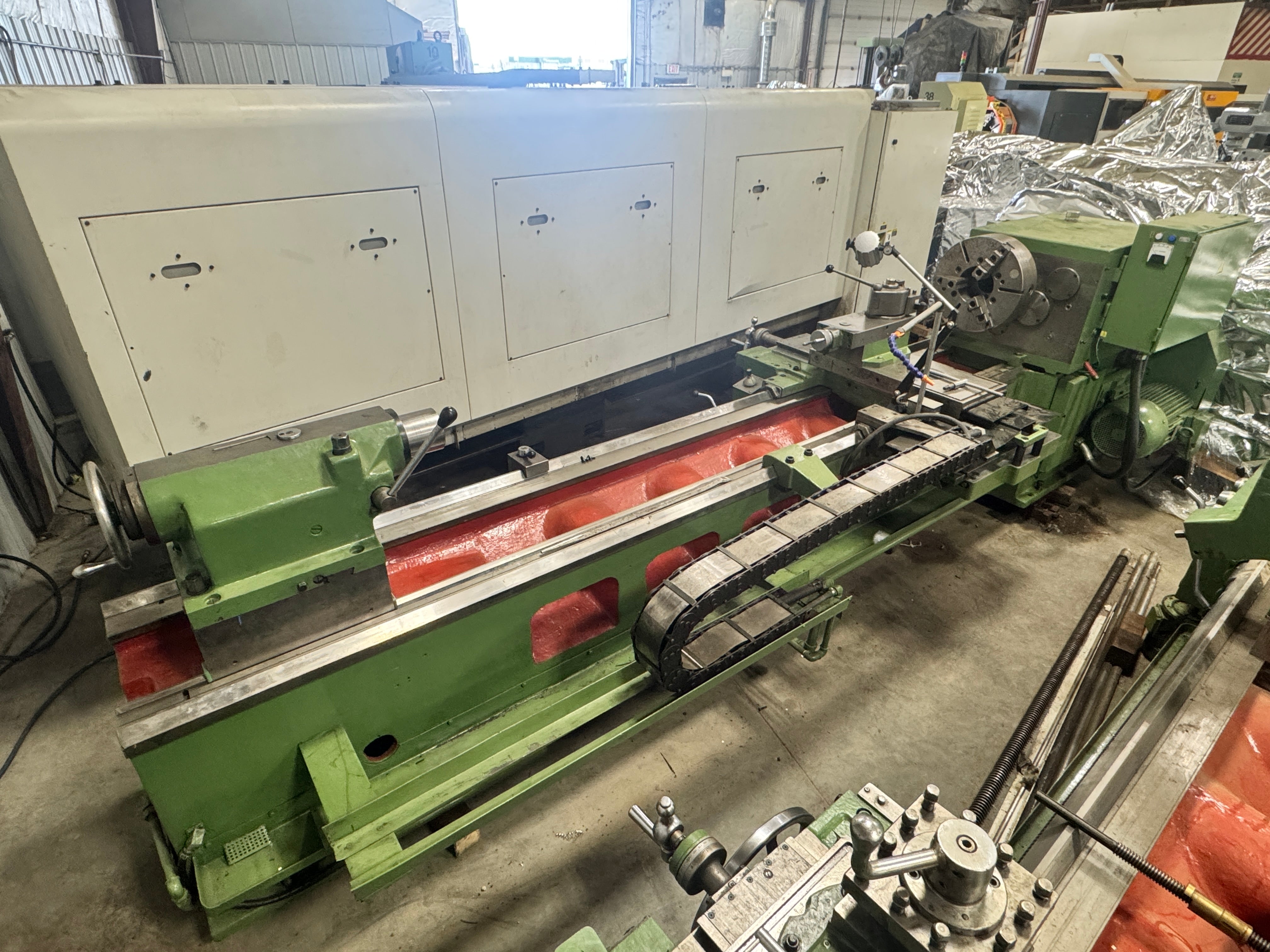

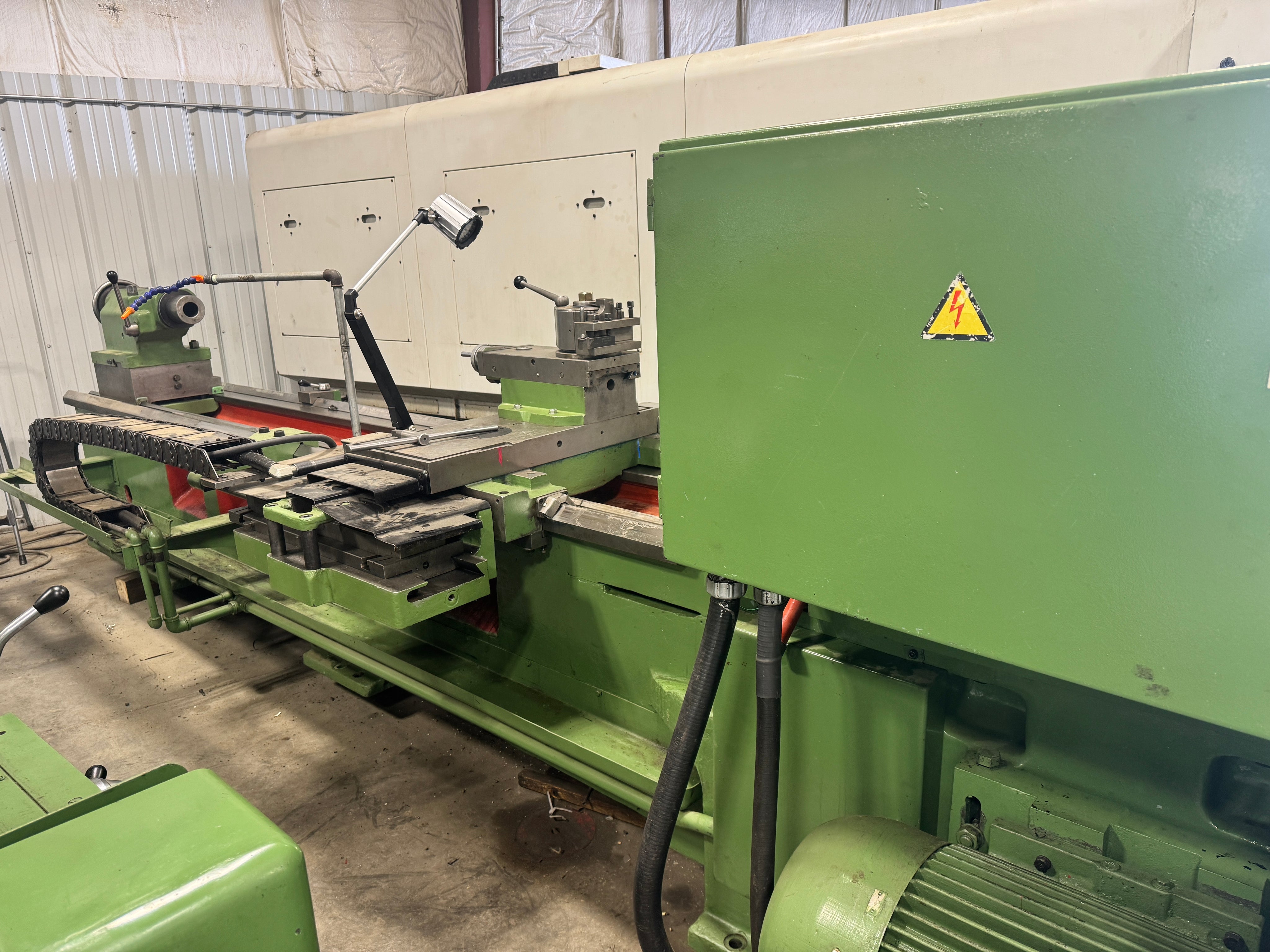

Fully rebuilt Stanko 16K40 engine lathe, restored in 2026 to like-new condition. Heavy-duty industrial machine designed for high rigidity, precision, and reliability. Equipped with an 18" 3-jaw chuck, large 36" swing, and 120" between centers, making it suitable for large workpieces. Features a 40-position quick change toolpost, taper attachment, and standard shop-ready configuration. Powered by 480V 3-phase electrical system. Ideal for production and heavy machining applications.

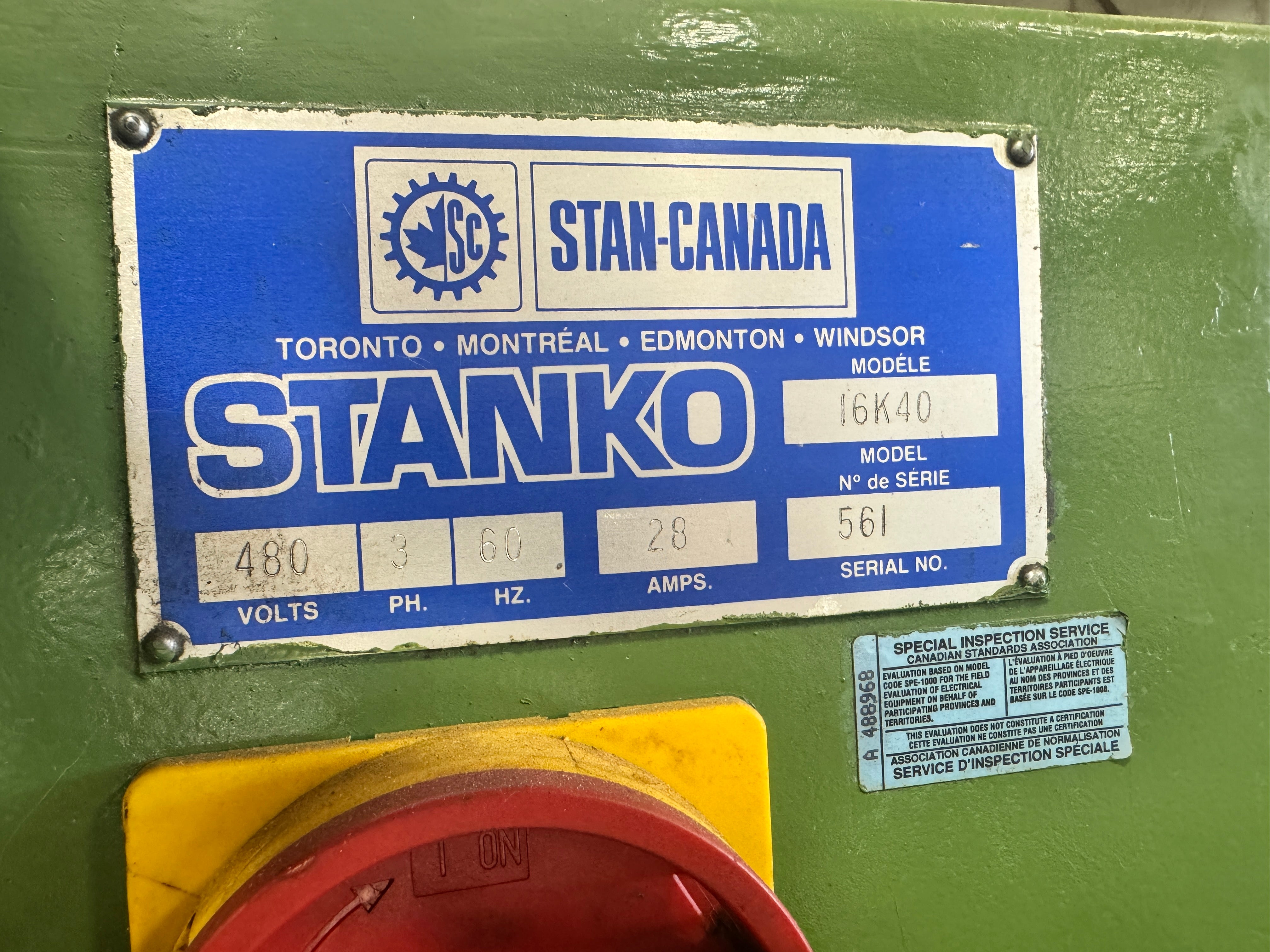

- Brand: Stanko (Stan-Canada)
- Model: 16K40-3000
- Serial: 561
- Condition: Fully rebuilt (2026)
- Swing Over Bed: 36"
- Gap: 6"
- Distance Between Centers: 120"
- Spindle Bore: 4.25"
- Spindle Speed: 1 – 1250 RPM

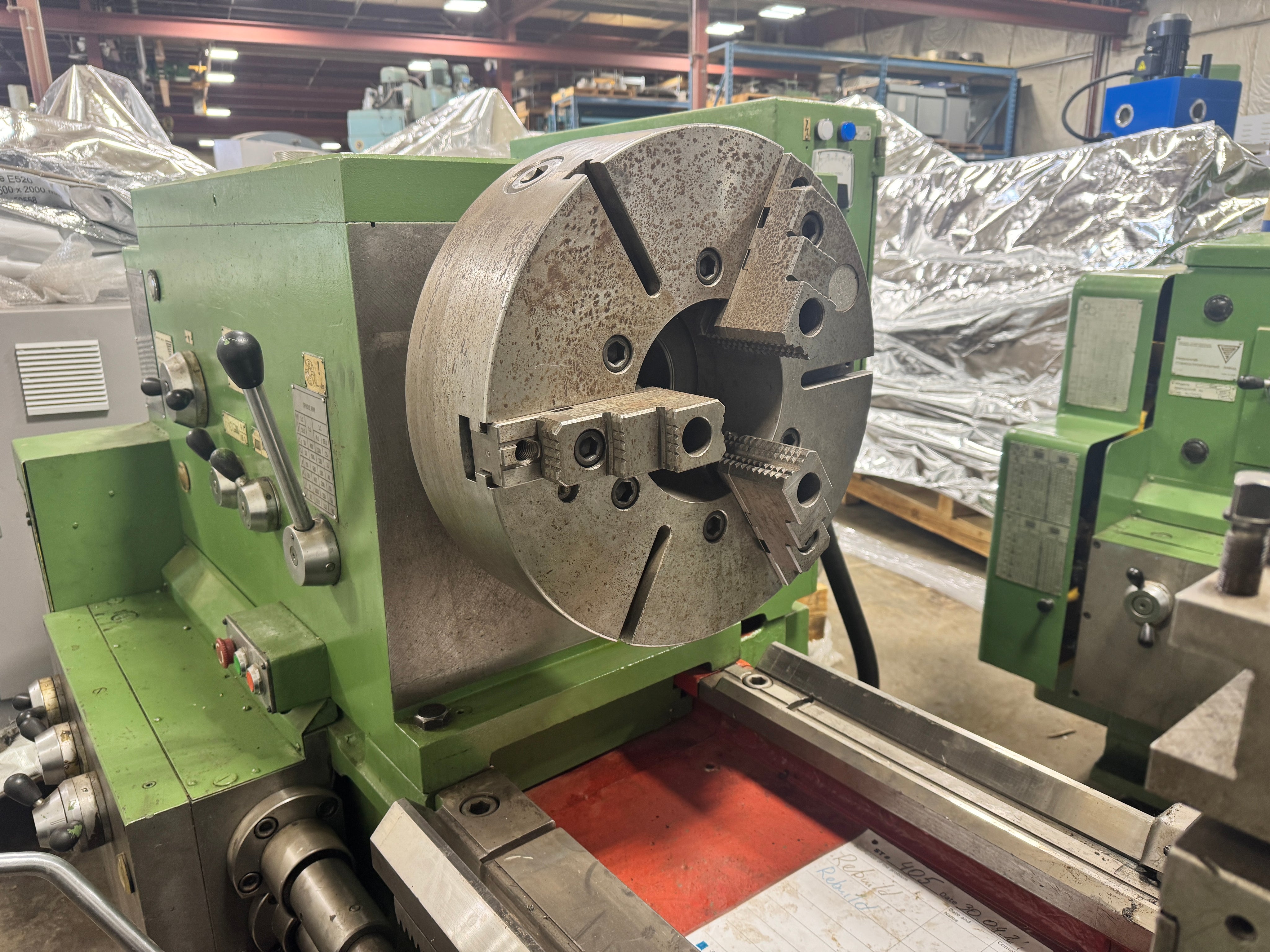

- Chuck: 18" 3-Jaw, 2-piece (7" bore)
- Thread: 2 TPI
- Main Motor: 25 HP
- Electrical: 480V / 3PH / 60Hz

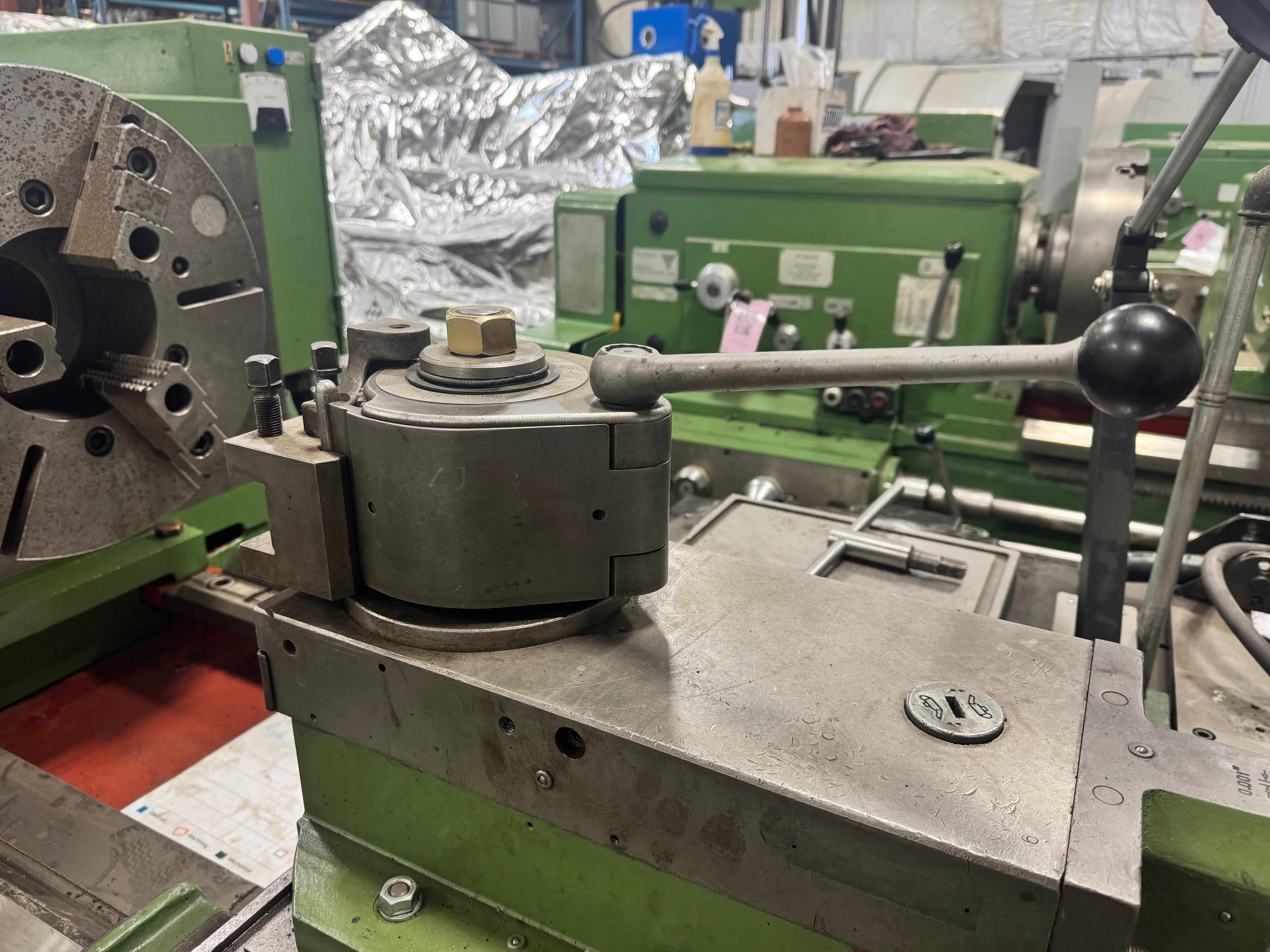

- Tool Post: HD 40 Position Quick Change Toolpost
- Tailstock Taper: MT5
- Max Diameter (over bed): 840 mm
- Max Diameter (over cross slide): 490 mm
- Max Spindle Torque: 6.3 kN·m
- Max Cutting Force (Pz): 20 kN
- Max Workpiece Weight (between centers): 4000 kg
- Steady Rest: 15.5"
- Thread Dial
- Rapid Feed: 2 Axis Joystick
- Taper Attachment
- Work Lamp
- Dimensions (L × W × H): Approx 190" × 77" × 70"
- Weight: Approx. 9,000 lbs
-
Stock Number: 842
Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
