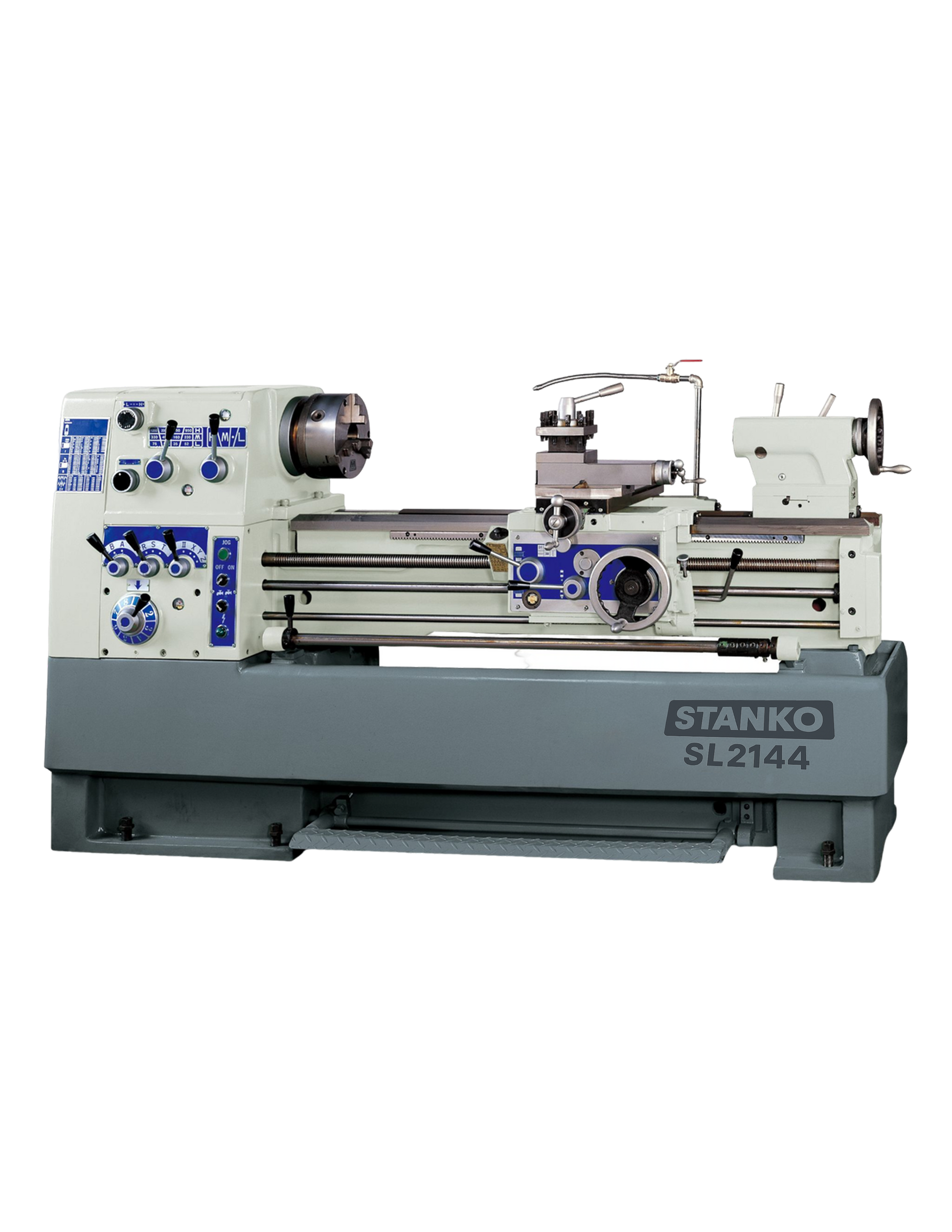

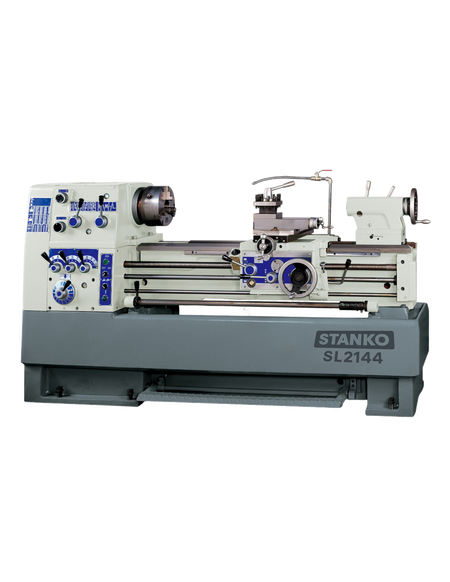

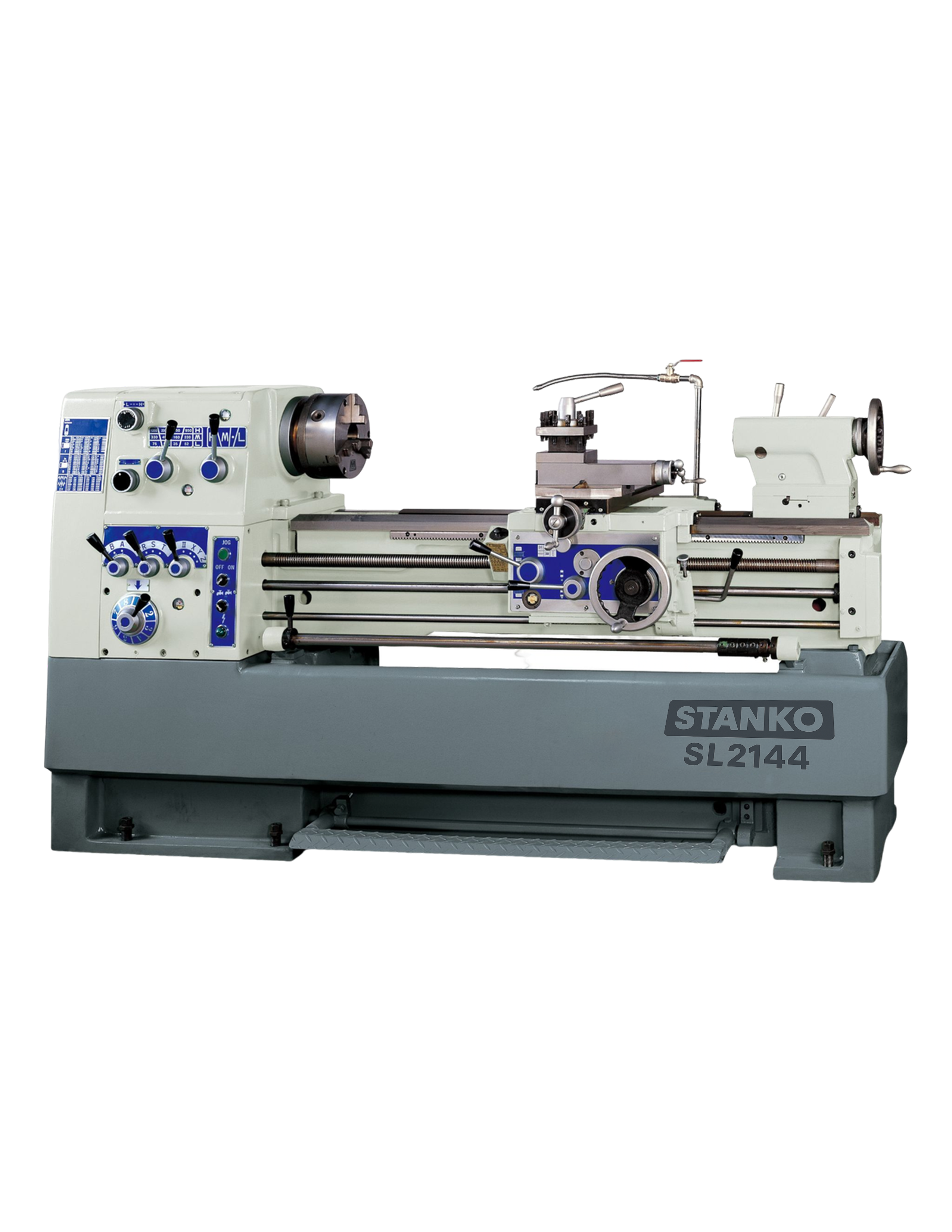

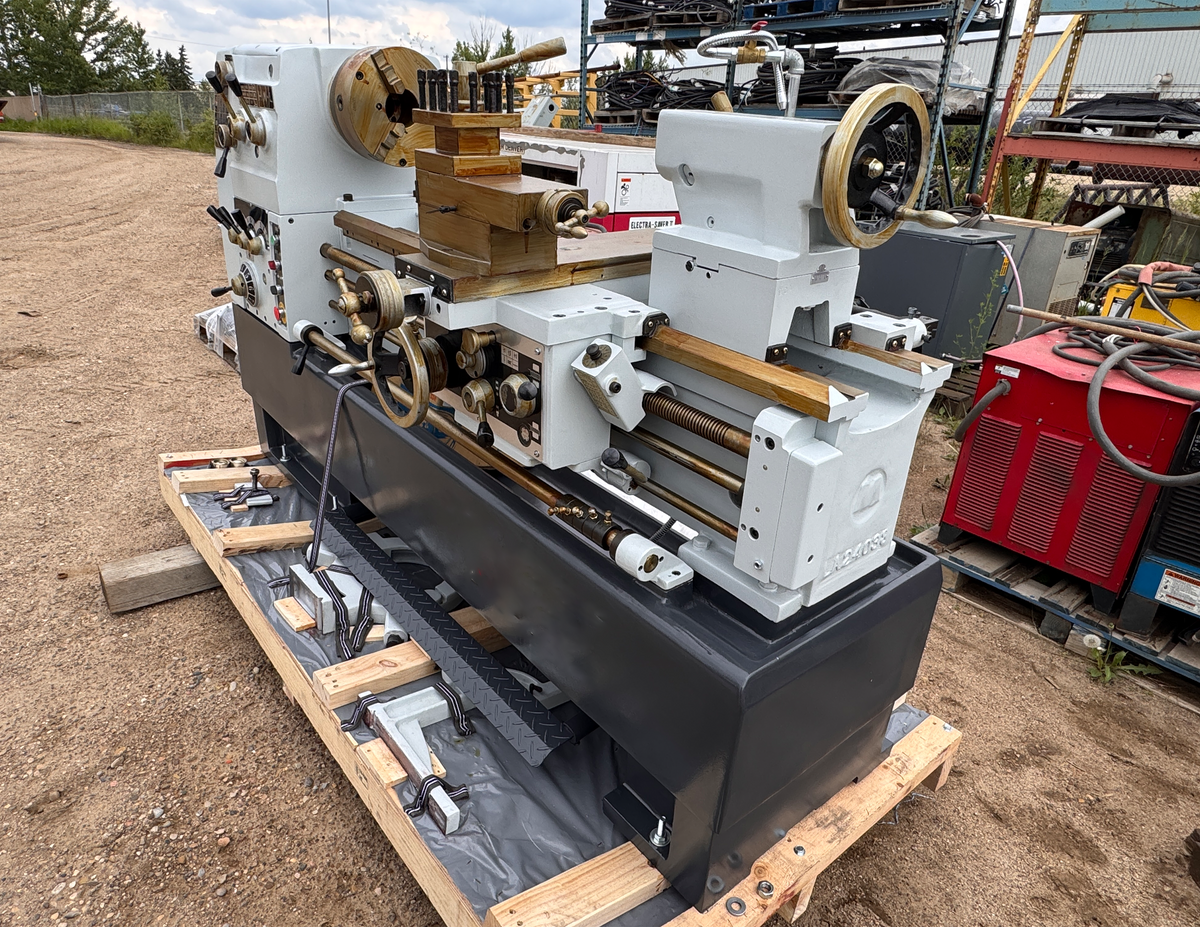

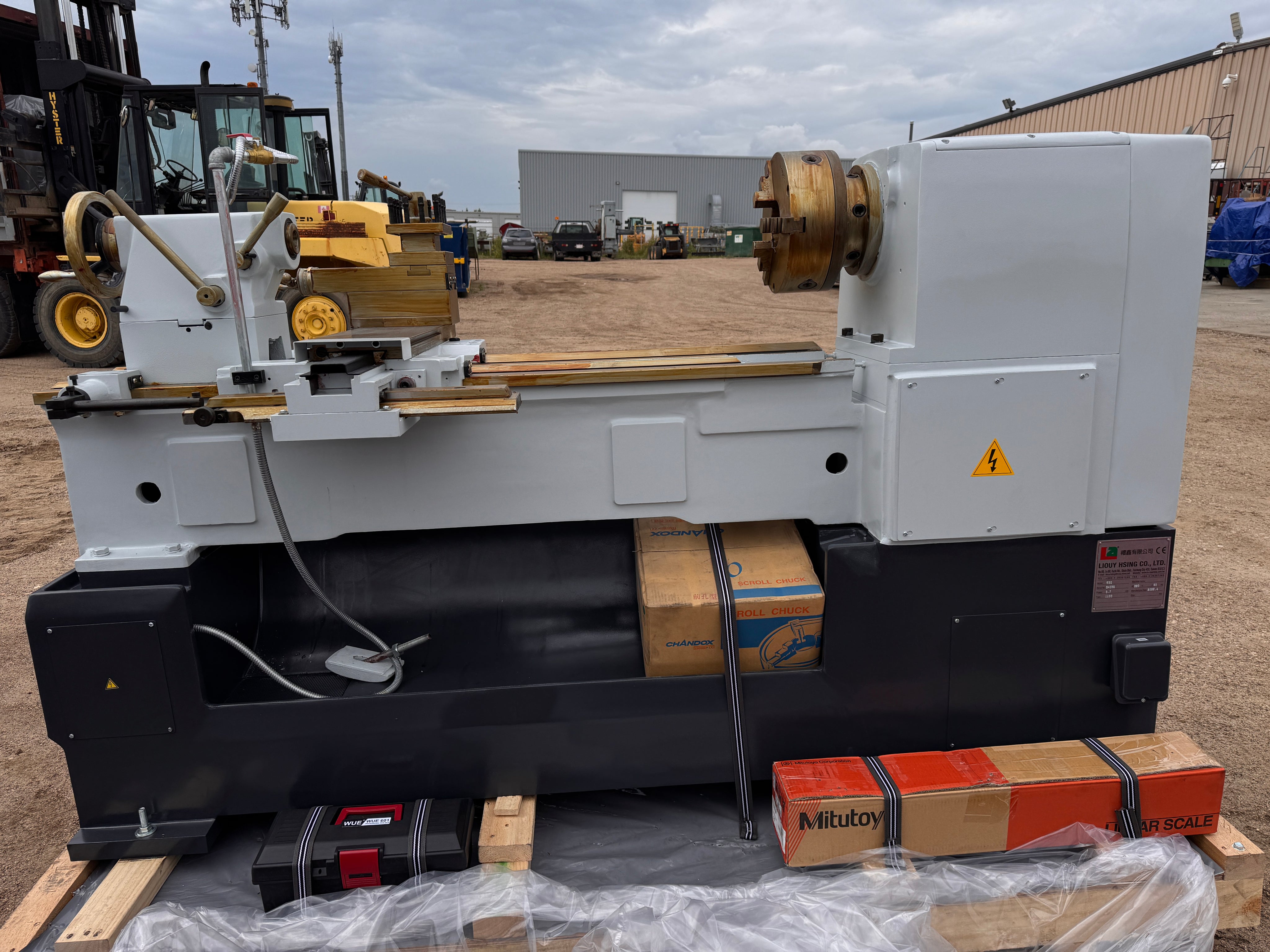

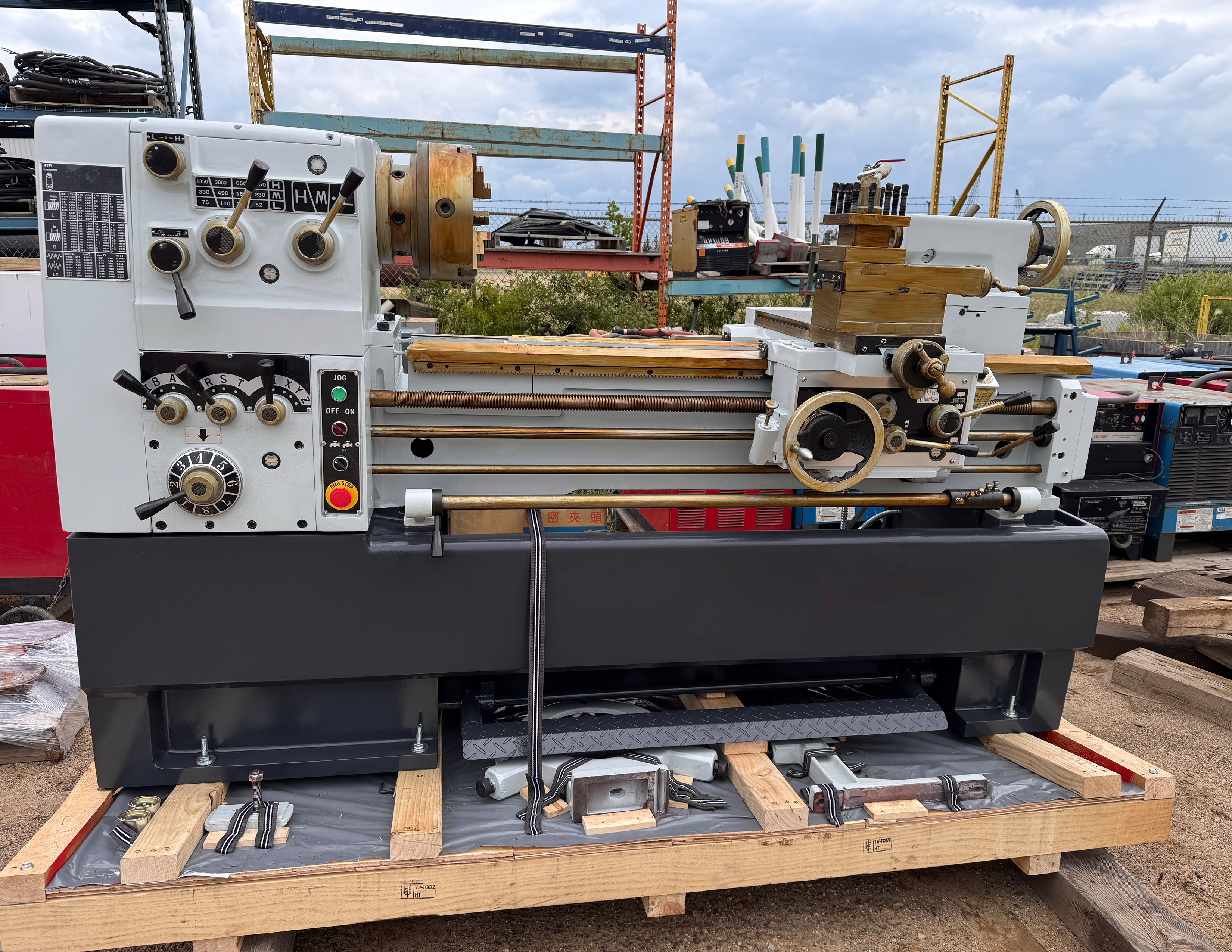

MANUAL LATHE SPECIFICATION

CAPACITY
Bed Width: 300 mm (12″)
Swing Over Bed: Ø512 mm (21″)
Swing Over Cross Slide: Ø372 mm (14 2/3″)
Swing in Gap: Ø710 mm (28″)
Gap Width in Front of Face Plate: 150 mm (5 7/8″)
Distance Between Centers: 1100 (44")
Center Height from Bed Bottom: 180 mm (7″)

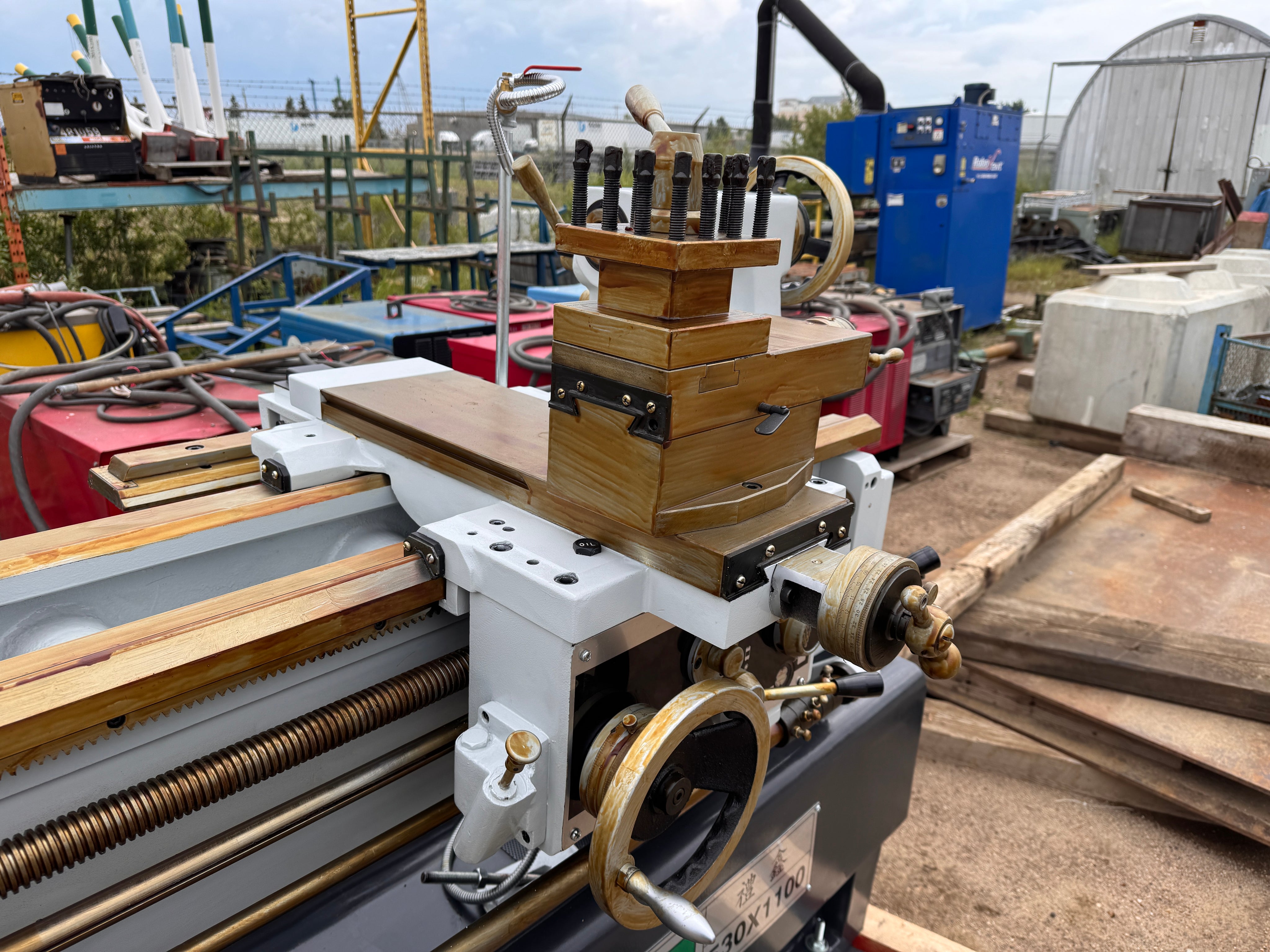

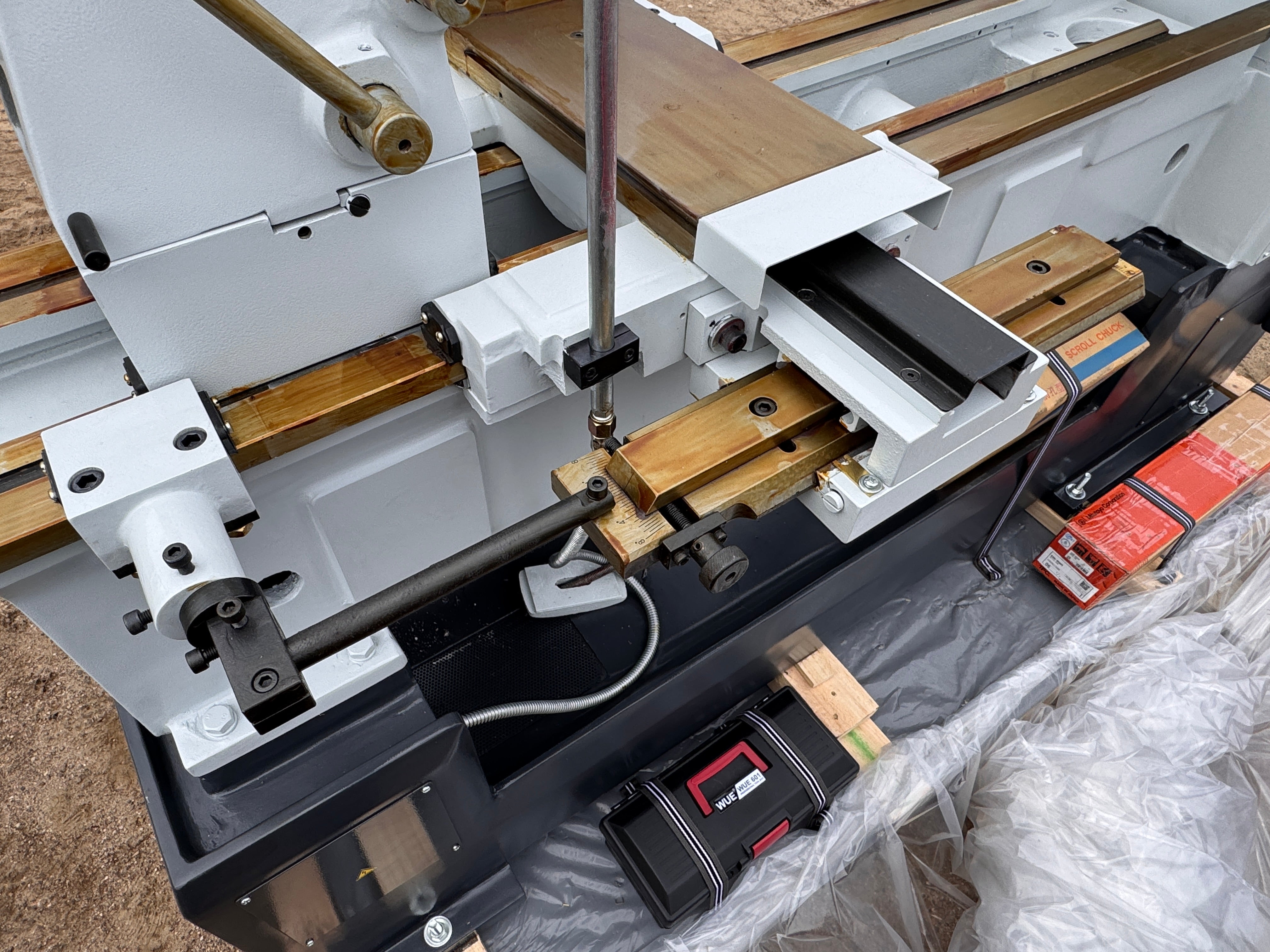

Total Travel of Top Slide: 120 mm (4 3/4″)

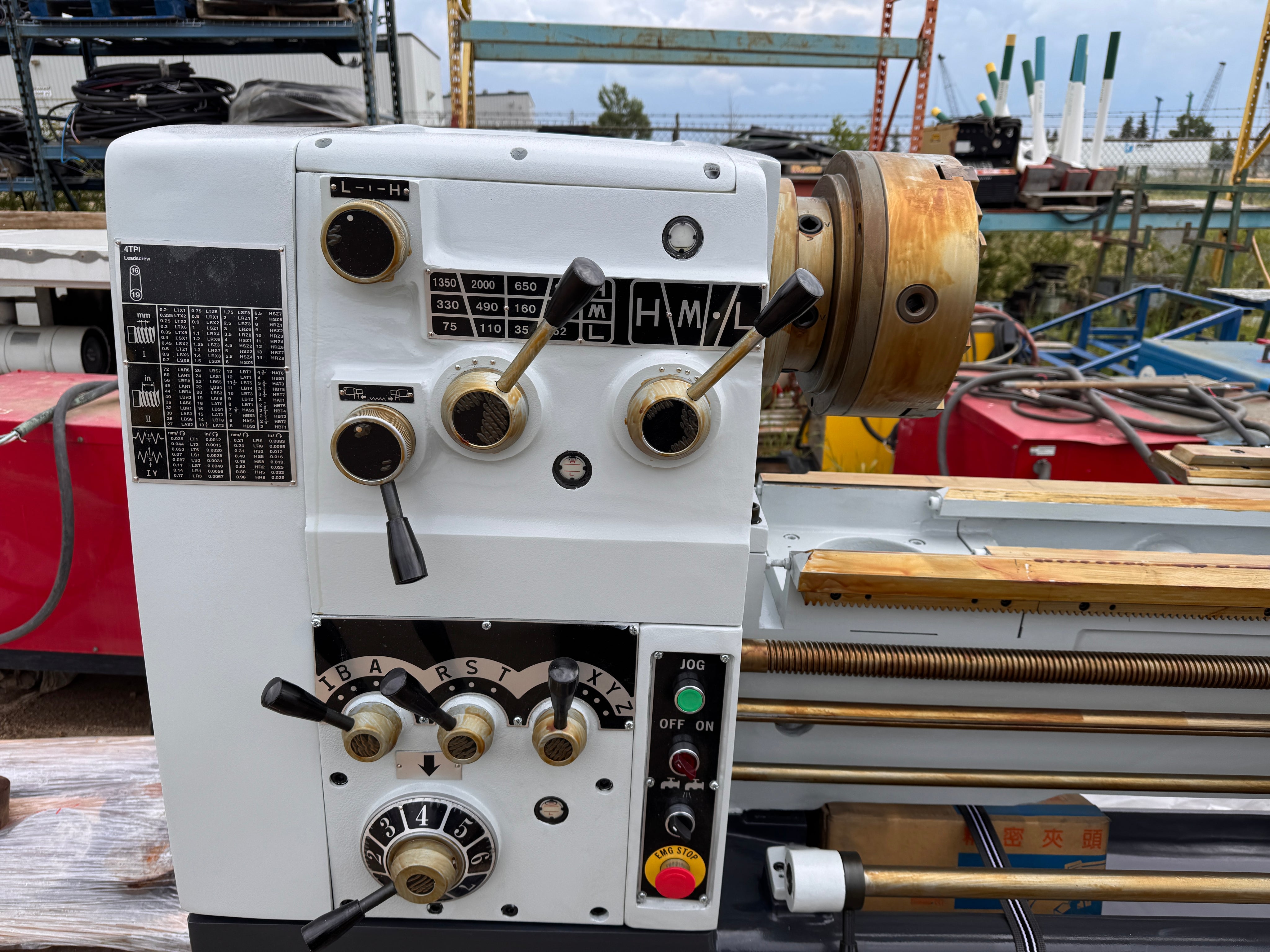

HEADSTOCK
Number of Spindle Speeds: 12 steps
Spindle Speed Range (rpm): 35, 55, 72, 110, 160, 230, 330, 490, 650, 950, 1350, 2000
Spindle Bore: Ø58 mm (Ø2 1/4″)
Spindle Nose Type: ASA A1-6 or D1-6
Spindle Taper (Bore & Center): MT No. 6 × No. 4

THREAD & FEED
Lead Screw Diameter and Pitch: 35 TPI or 6 mm
Inch Thread Range: 2–72 TPI (44 changes)
Metric Thread Range: 0.2–14 mm (39 changes)
Number of Feeds: 36 steps
Longitudinal Feed Range: 0.03–0.85 mm/rev
Cross Feed Range: 50% of longitudinal feed

TAILSTOCK
Quill Diameter: Ø60 mm (2 3/8″)
Quill Travel: 150 mm (6″)
Tailstock Taper: MT No. 4

MOTORS
Spindle Motor: 5 HP (optional 7.5 HP)
Coolant Pump Motor: 1/8 HP
Voltage: 220V

DIMENSIONS & WEIGHT
1600kg
2300x1000x1400
