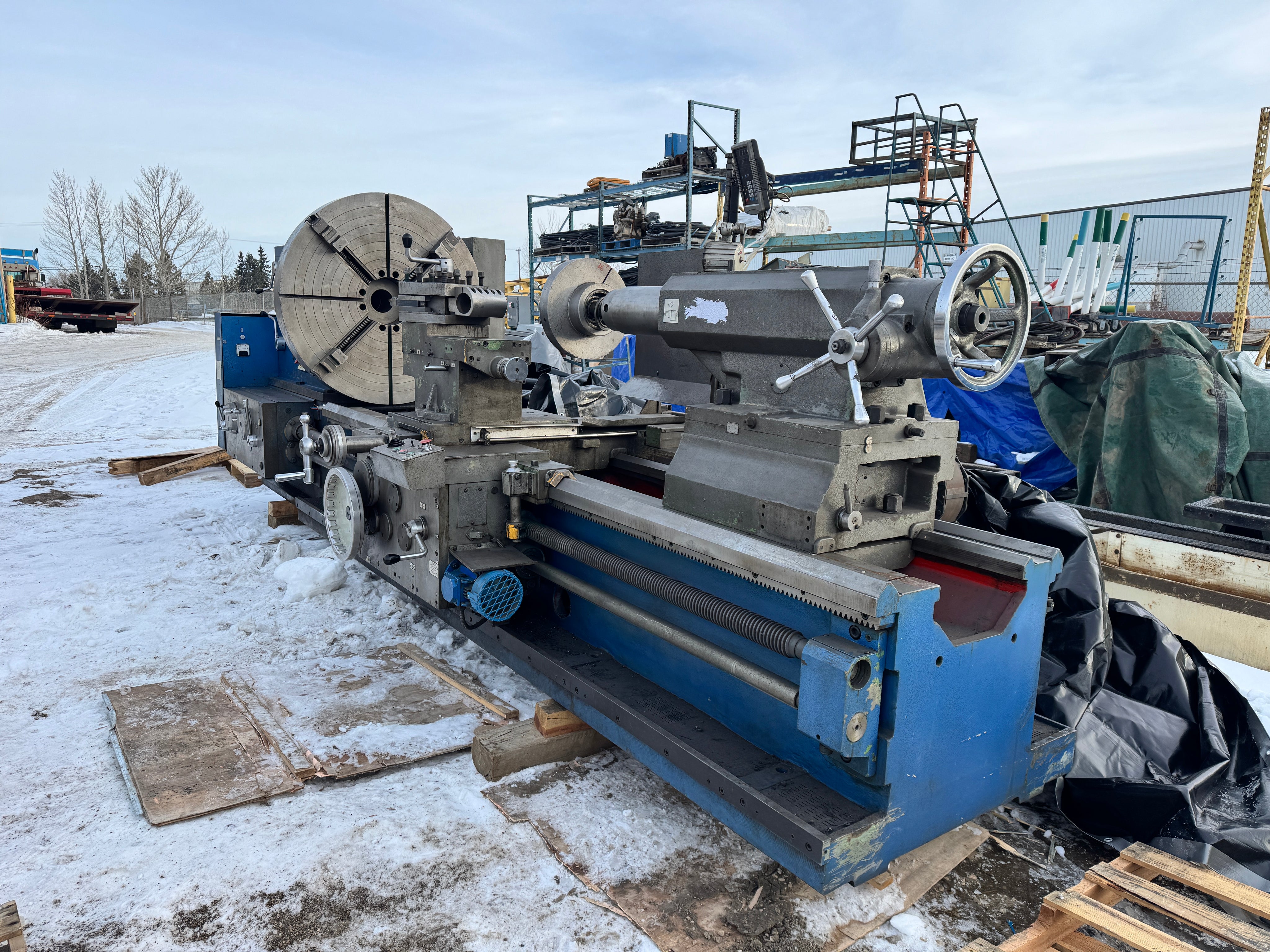

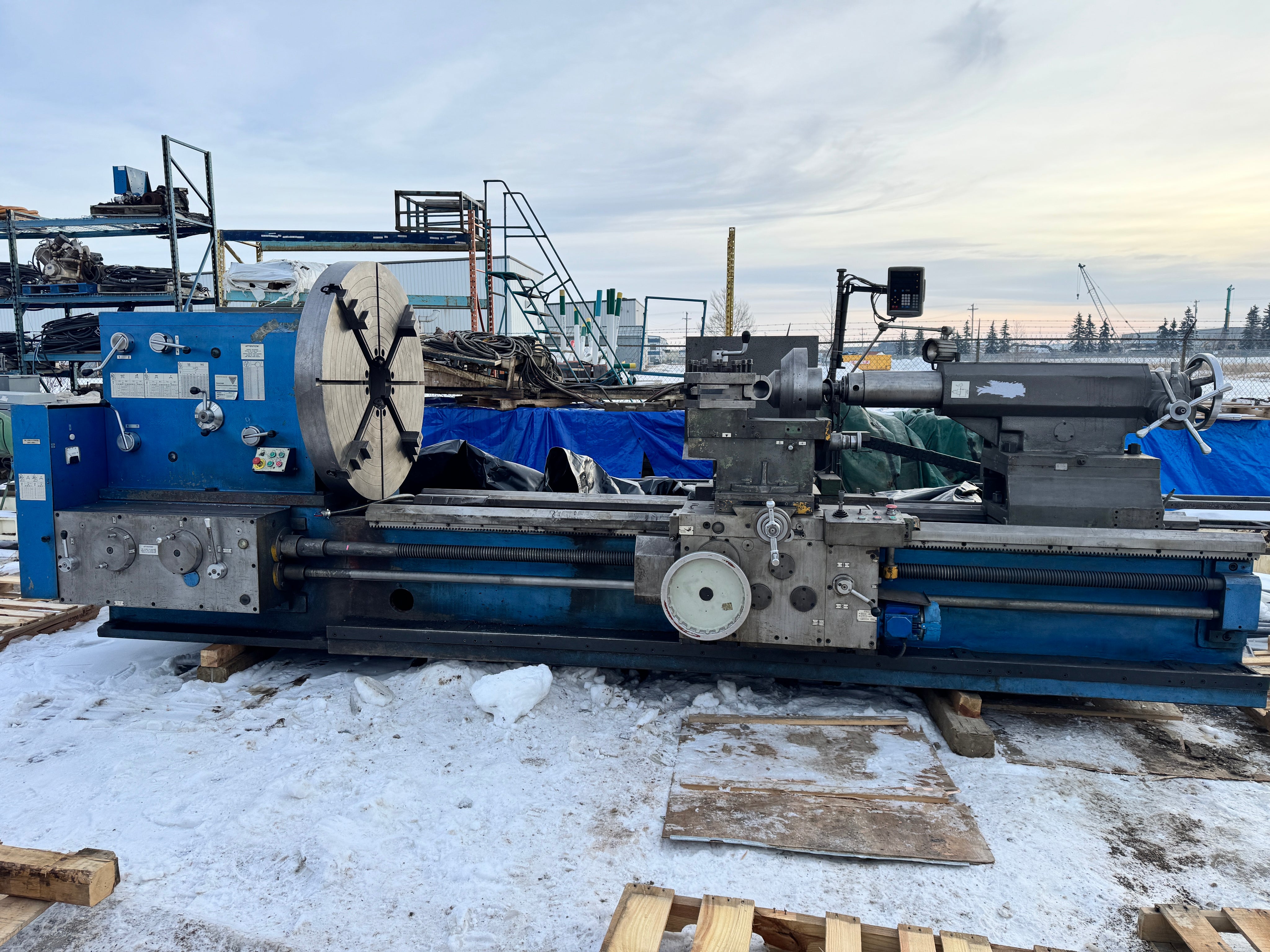

The Ryazan RT117 is a heavy-duty special engine lathe designed for demanding turning work on large, heavy components. A wide, solid single-piece box-type bed and two prismatic guideways give the machine excellent rigidity for heavy cuts, while separate guideways support the tailstock for long parts. The headstock uses hardened, ground alloy-steel gears with automatic lubrication, giving smooth running, good accuracy and a wide range of feeds and speeds.

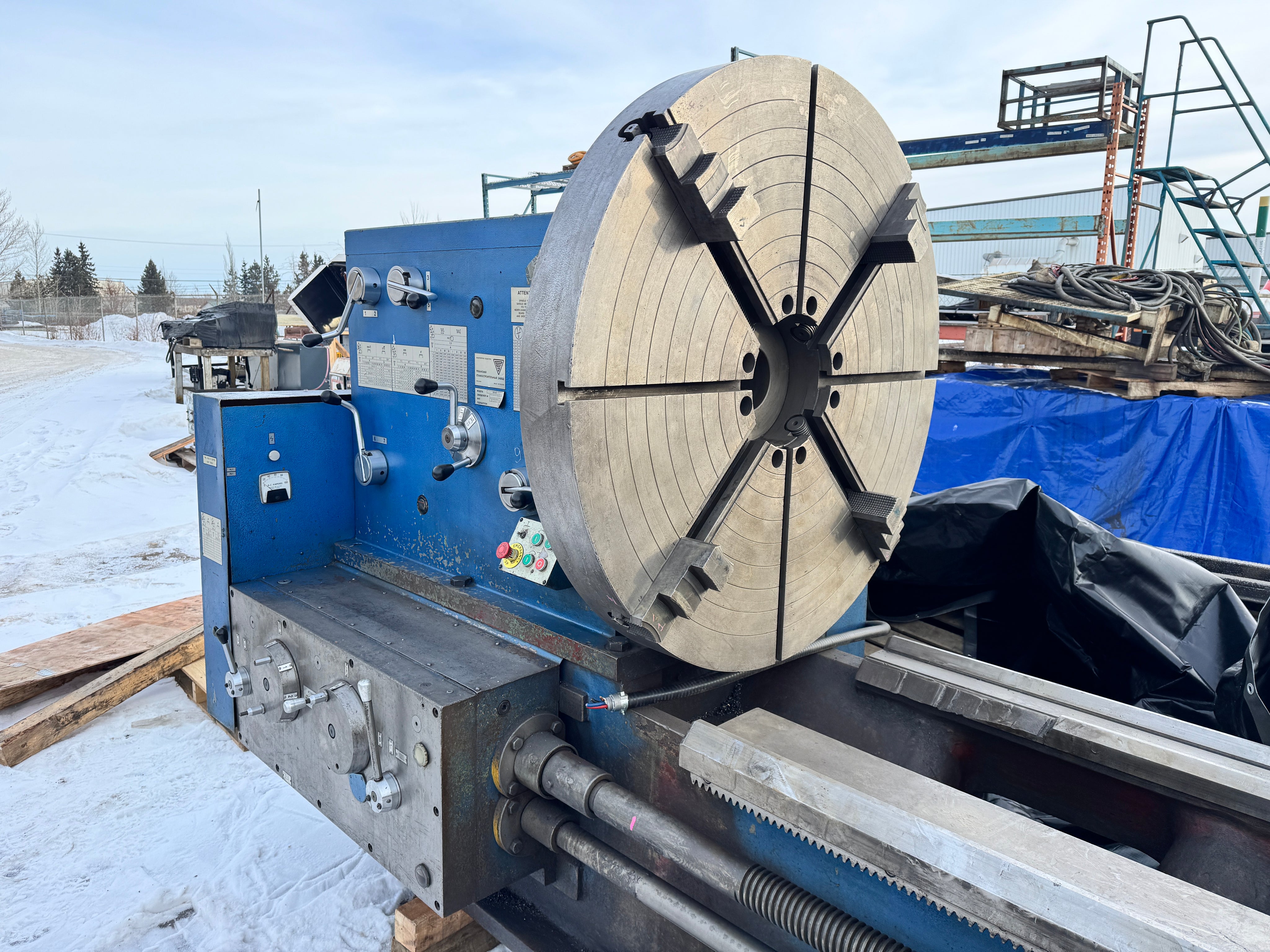

With a swing of 1200 mm (47.24") over the bed and 900 mm (35.43") over the carriage, plus a 49" faceplate and a 5.04" (128 mm) spindle bore, this lathe comfortably handles large-diameter workpieces and big shaft work. The power carriage system provides feeds and rapid traverses on the carriage, cross slide and compound, making setup and heavy turning efficient. Metric, inch, module and worm thread cutting are all supported through the built-in gearbox, so the machine suits a wide variety of jobs in repair and production shops.

Teflon-coated carriage ways reduce friction and wear, while an electromagnetic clutch provides quick, smooth spindle braking. This model is a popular choice in Canada for industrial machining, especially where large swing and strong torque at low spindle speeds are required.

Specification

Machine: Special Engine Lathe
Model / Type: Ryazan RT117

Capacity
Swing over bed: 1200 mm (47.24")
Swing over carriage: 900 mm (35.43")
Distance between centers / turning length: 3048 mm (120")
Faceplate / chuck diameter: 1245 mm (49")
Spindle bore diameter: 128 mm (5.04")

Spindle
Spindle speed range: 5 – 500 rpm
Number of spindle speeds: 22

Bed and ways
Bed type: Wide, solid single-piece box-shaped casting
Guideways: Two prismatic guideways with separate guideways for the tailstock
Max Weight of workpiece: 8000KG

Carriage and slides

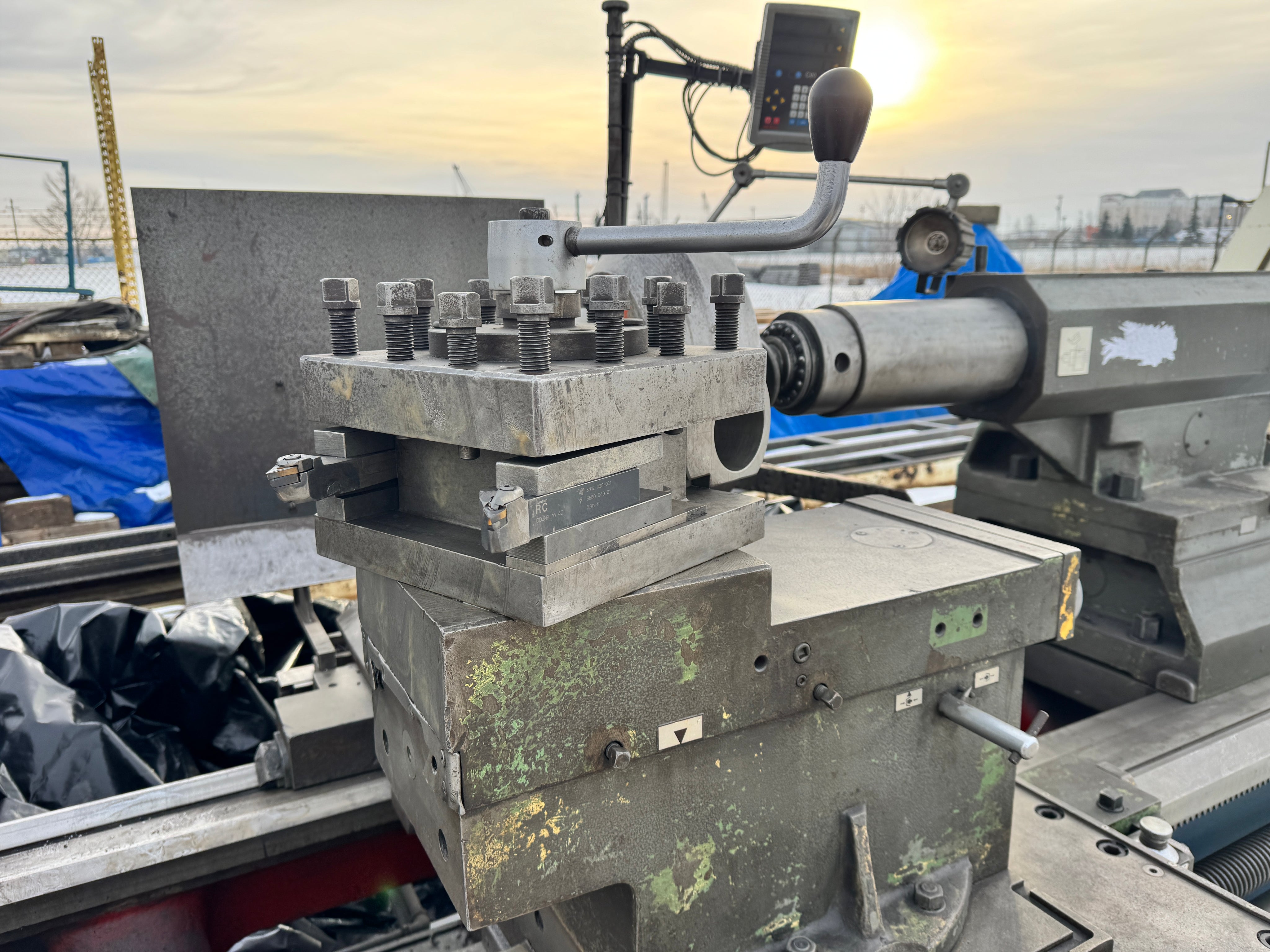

Carriage type: Heavy-duty carriage with power feeds
Feeds: Power feeds and rapid traverses on carriage, cross slide and compound
Way protection: Teflon-coated carriage ways for reduced friction and wear
Taper turning: Capable of taper turning in multiple modes

Threading

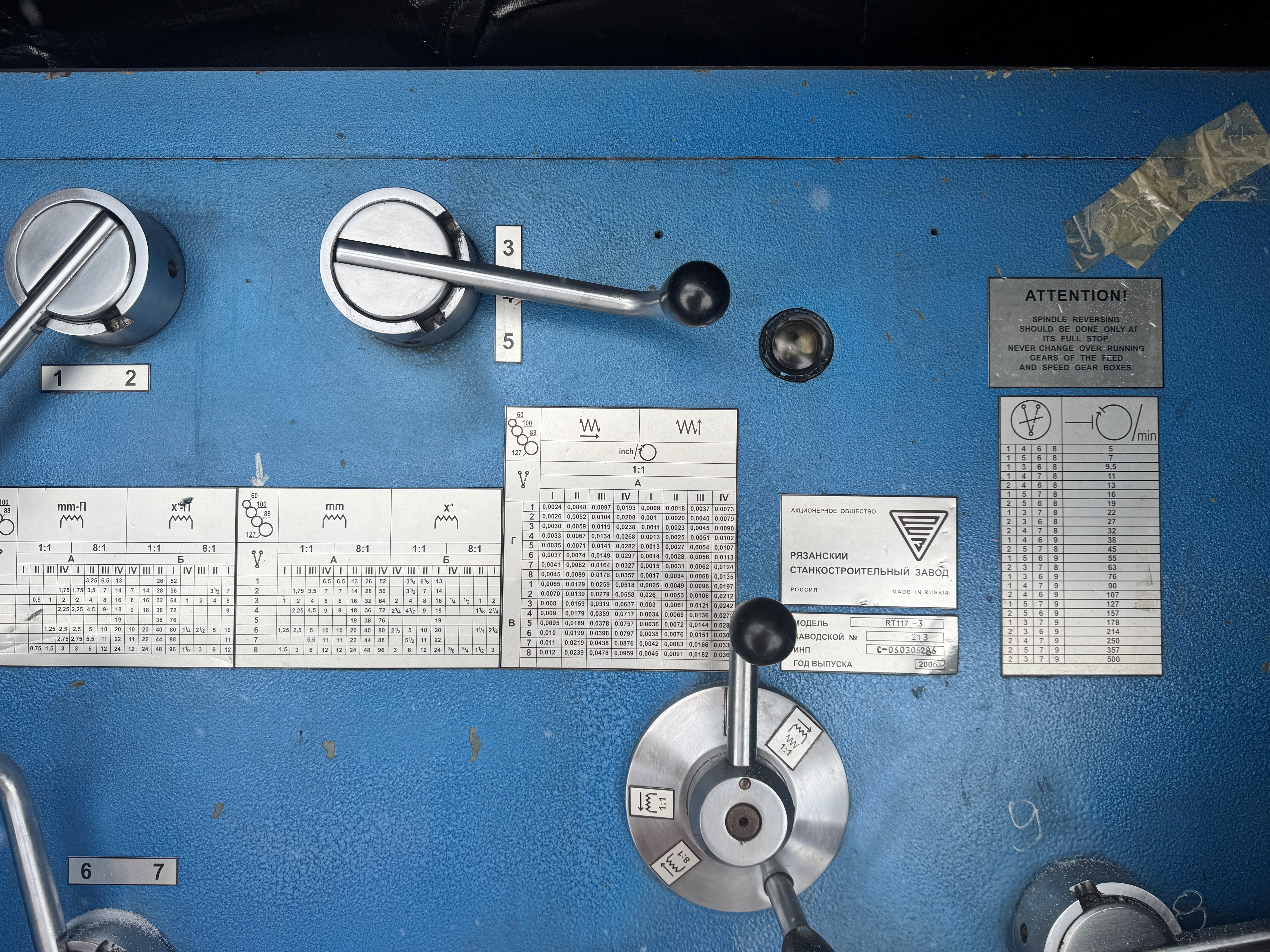

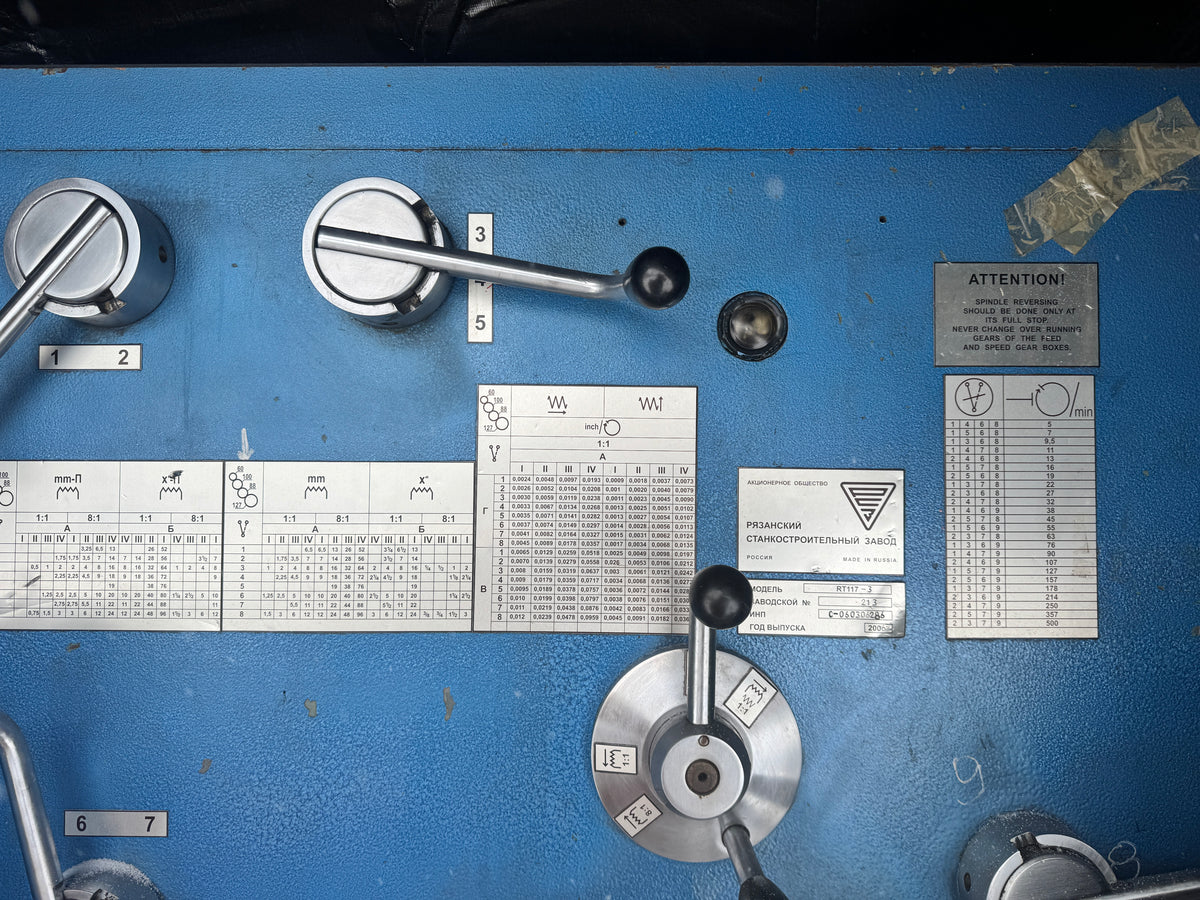

Thread types: Metric, inch, module and worm pitches (via built-in gearbox)

Headstock and drive
Headstock: Geared headstock with hardened and ground alloy-steel gears
Spindle braking: Electromagnetic clutch for rapid, smooth spindle stopping

Coolant
Coolant system: Coolant tank and pump built into the bed

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
