Description

The RK Machinery RTP-100 is a heavy-duty roll-in table hydraulic press designed for large workpieces, fabrication applications, straightening, forming, stamping, and industrial production environments. Engineered with a powered movable table and movable workhead, this press provides exceptional flexibility and ease of positioning during demanding pressing operations.

Featuring 100 tons of pressing force, hydraulic power-lift head adjustment, adjustable stroke control, and fingertip ram activation control, the RTP-100 delivers precise and efficient operation for fabrication shops, maintenance facilities, and industrial manufacturing operations.

Its rigid frame construction, movable worktable system, and optional safety accessories make it ideal for high-capacity pressing applications requiring versatility and operator control.

Standard Features

Powered movable table for easy loading and positioning
Powered movable workhead for off-center work
Hydraulic power-lift vertical head adjustment
Fingertip cylinder activation control

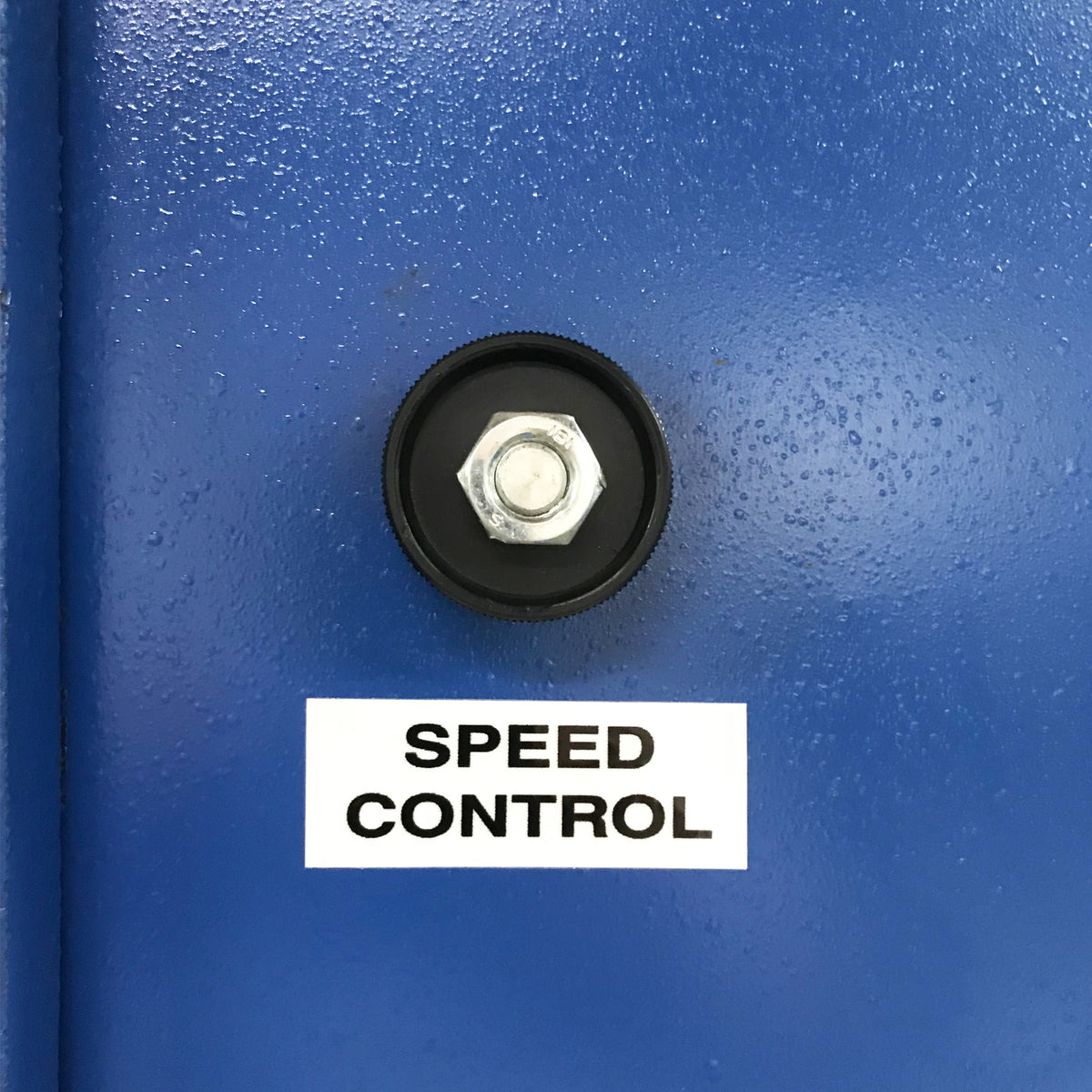

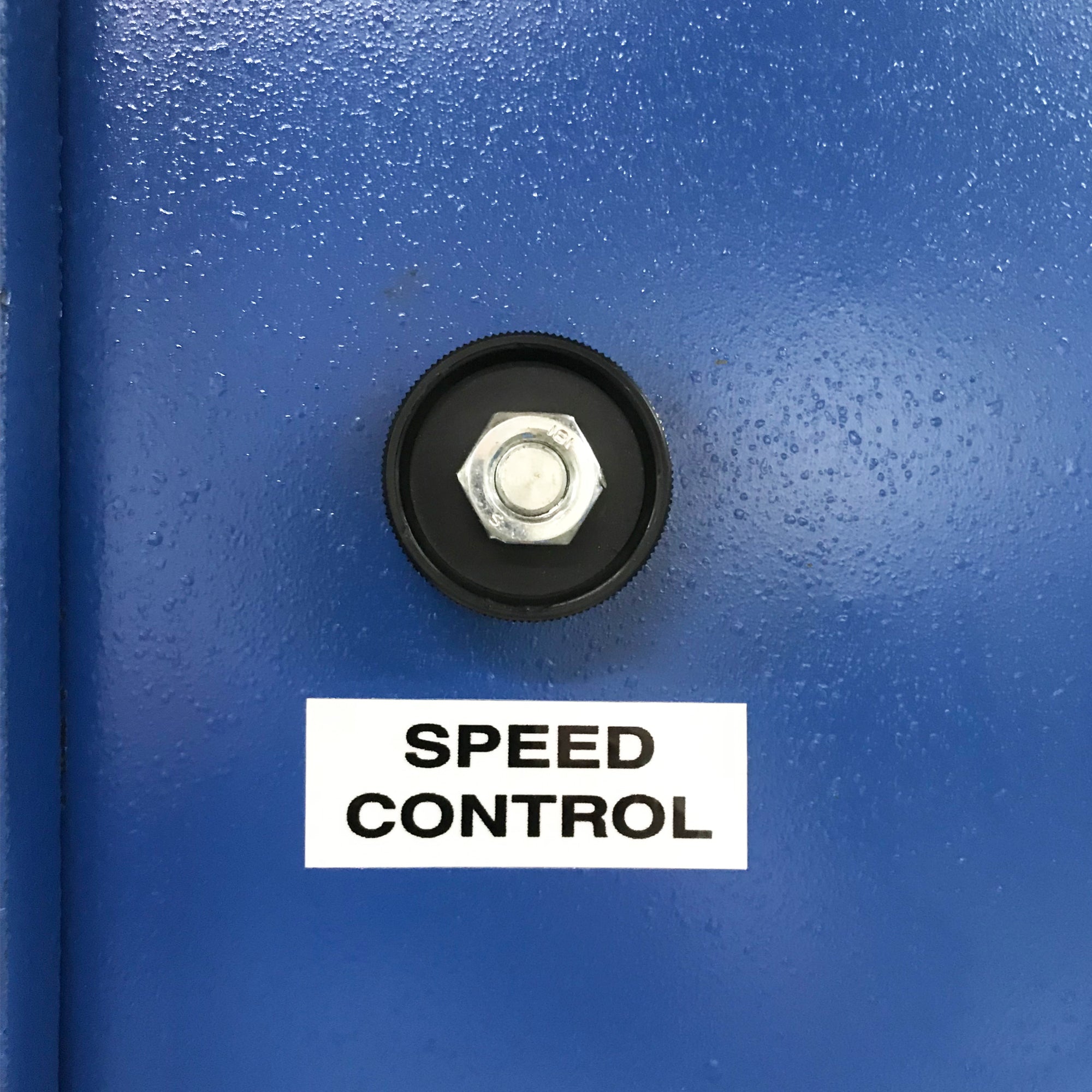

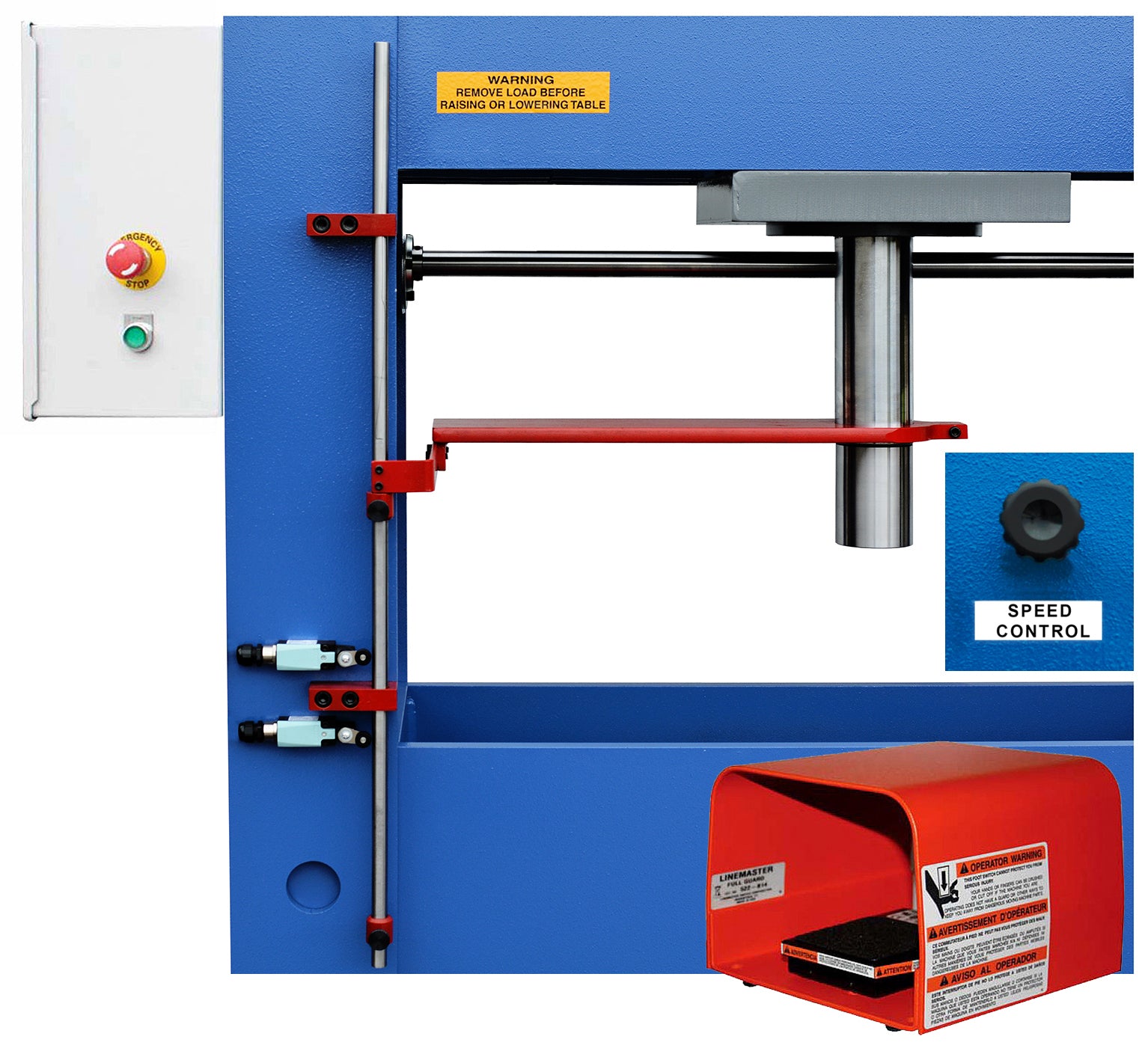

Adjustable ram speed control
Pressure regulator system
Heavy-duty hydraulic construction
Precision-guided ram operation
Industrial electrical control system
Heavy-duty steel frame construction

Available Options

Matched V-block set

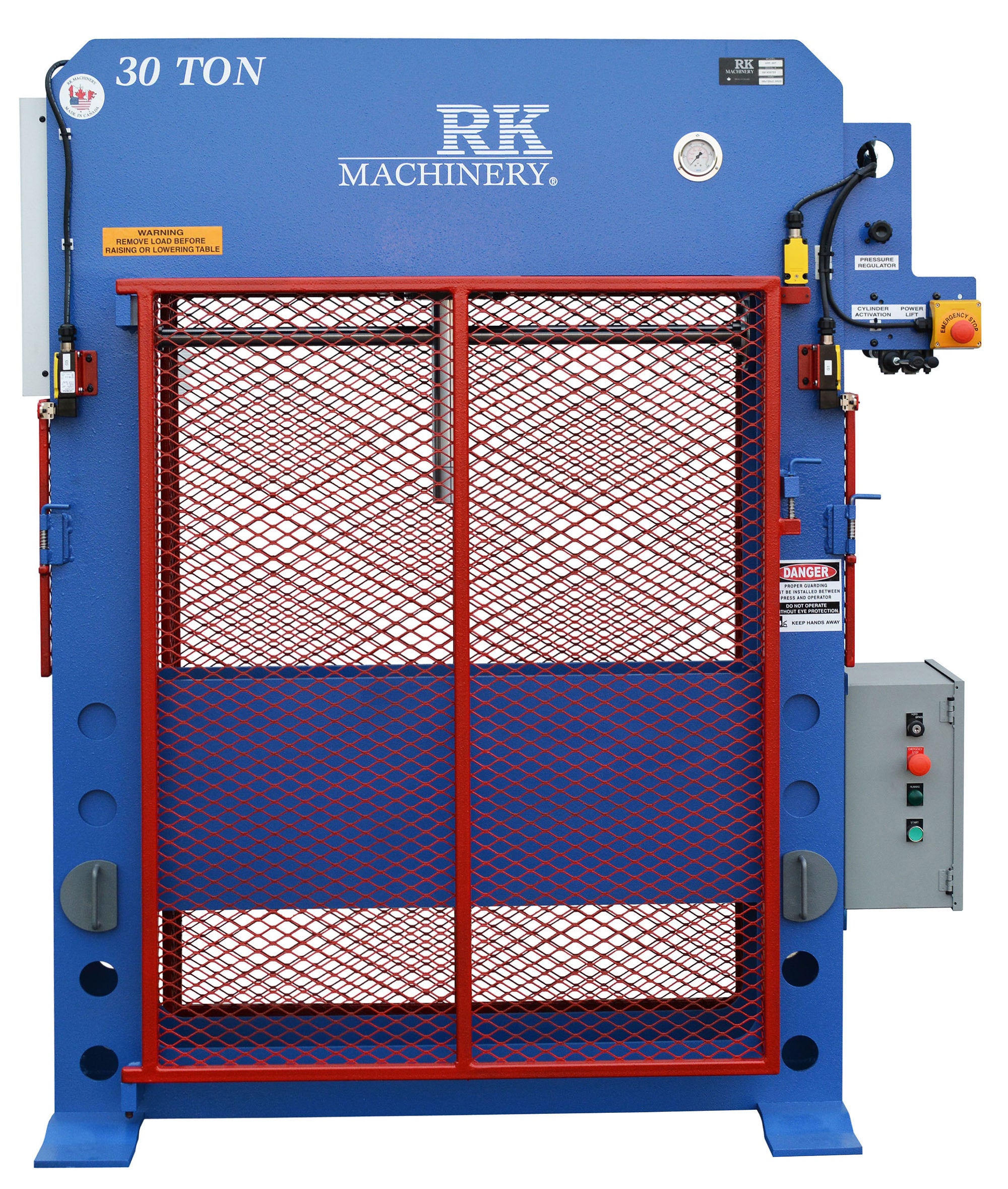

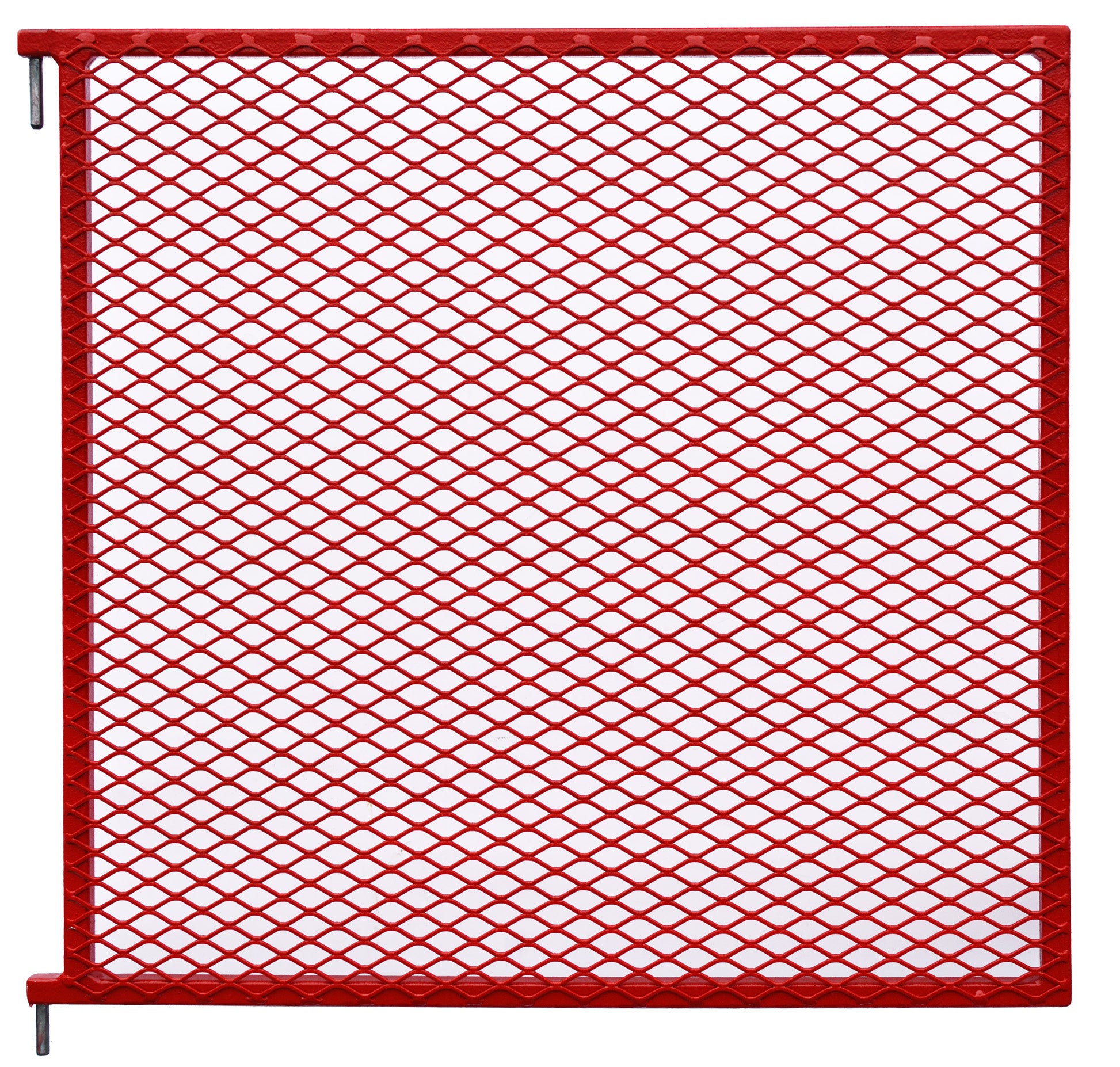

Front safety guard

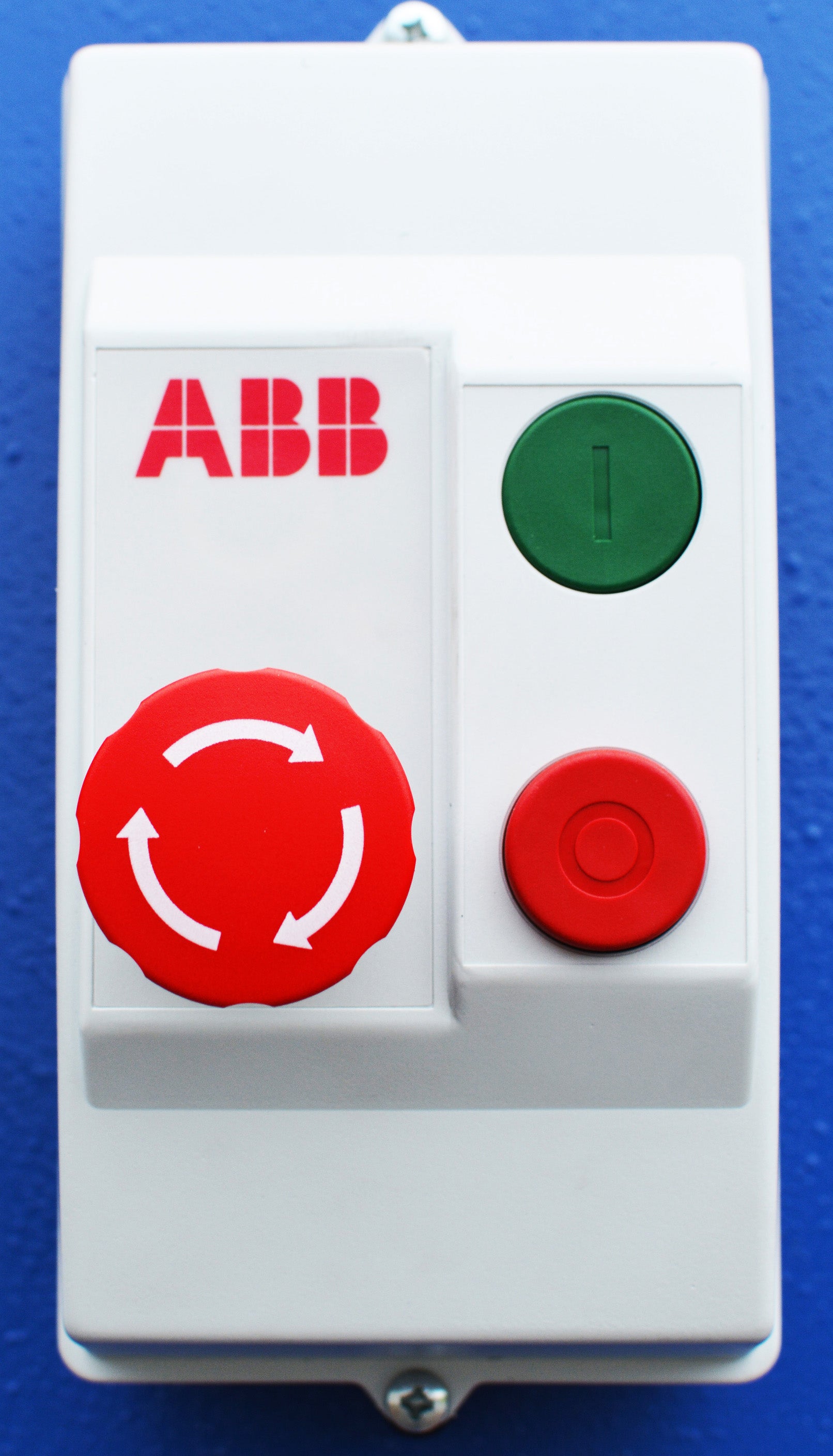

Start/stop station with emergency stop

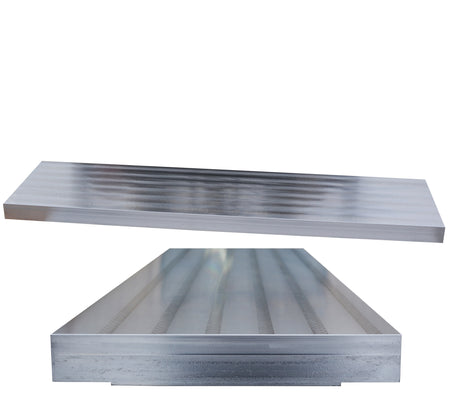

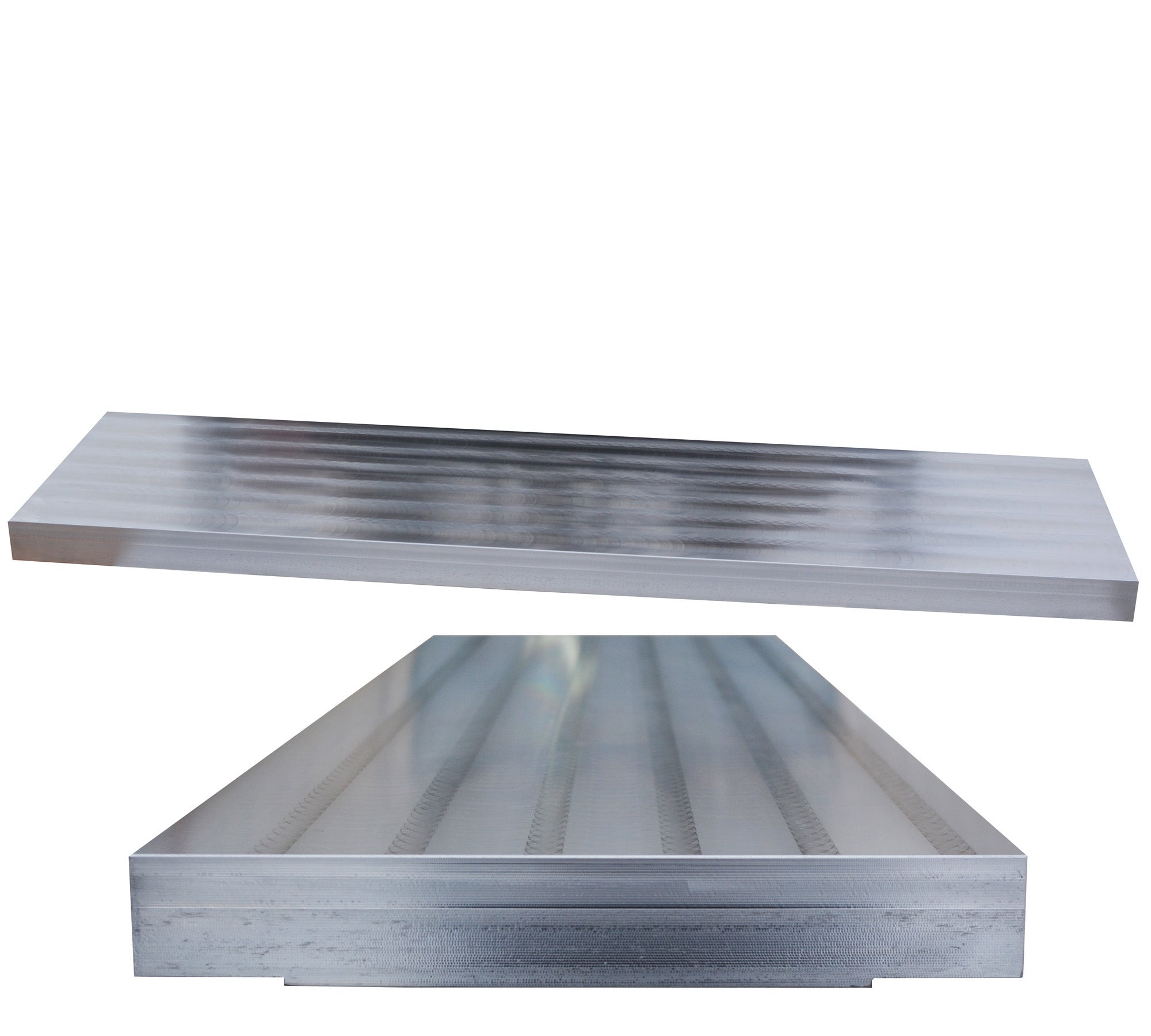

Pressing plate

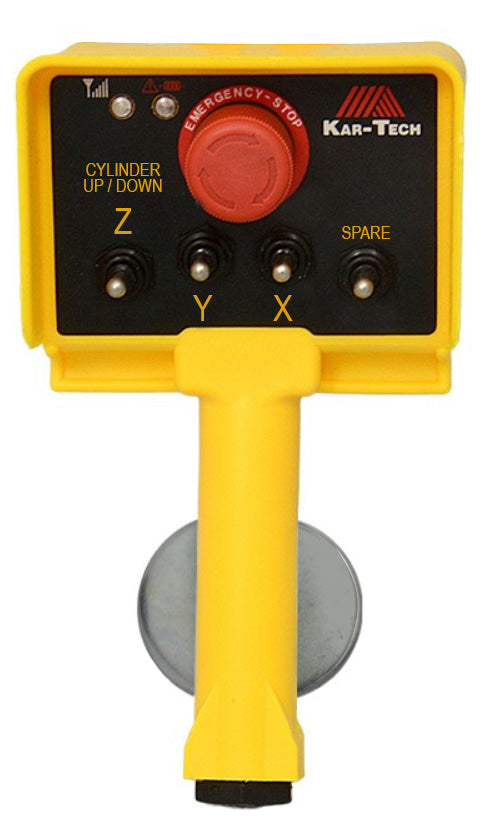

Wireless remote control system

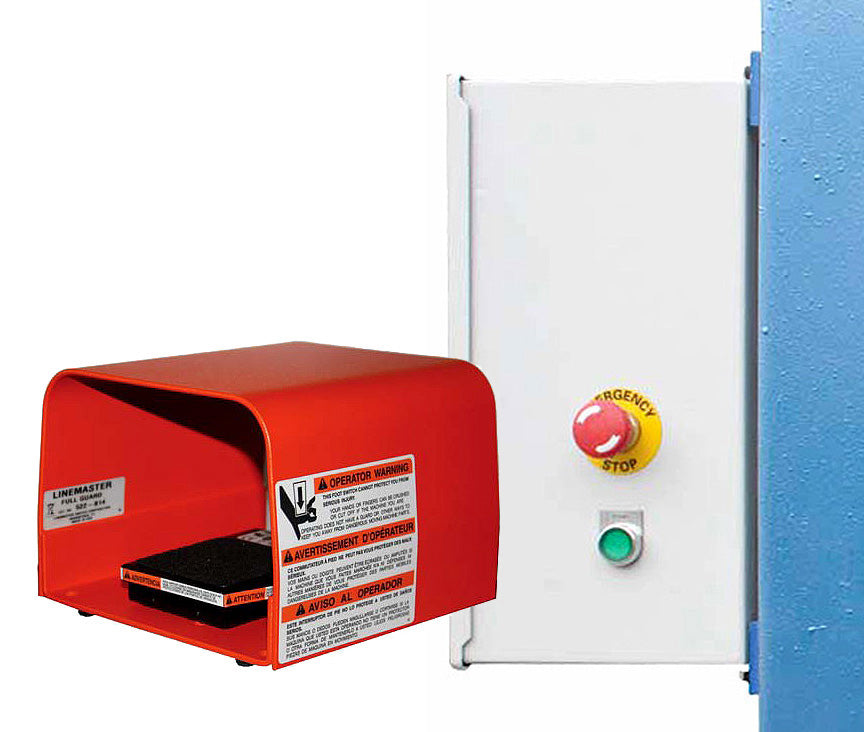

Foot pedal operation

Specifications

Model: RK Machinery RTP-100
Type: Roll-In Table Hydraulic Press

Capacity
Maximum Pressing Force: 100 Tons

Motor
Main Motor: 10 HP 3 Phase

Cylinder
Cylinder Bore: 9"
Rod Diameter: 4"
Stroke: 16"

Ram Speed
Press Speed: 19 IPM
Return Speed: 24 IPM

Travel
Horizontal Travel: 21.75"
Vertical Travel: 23.25"

Working Area
Pressing Width: 48"
Daylight Opening: 32.3"

Dimensions
Overall Height: 95.75"
Front to Back: 57.5"
Table Depth: 30"

Electrical
Voltage: 230V / 460V / 575V

Weight
Machine Weight: 5,000 lbs

Shipping Dimensions (L x W x H)
68" x 80" x 100"
