Description

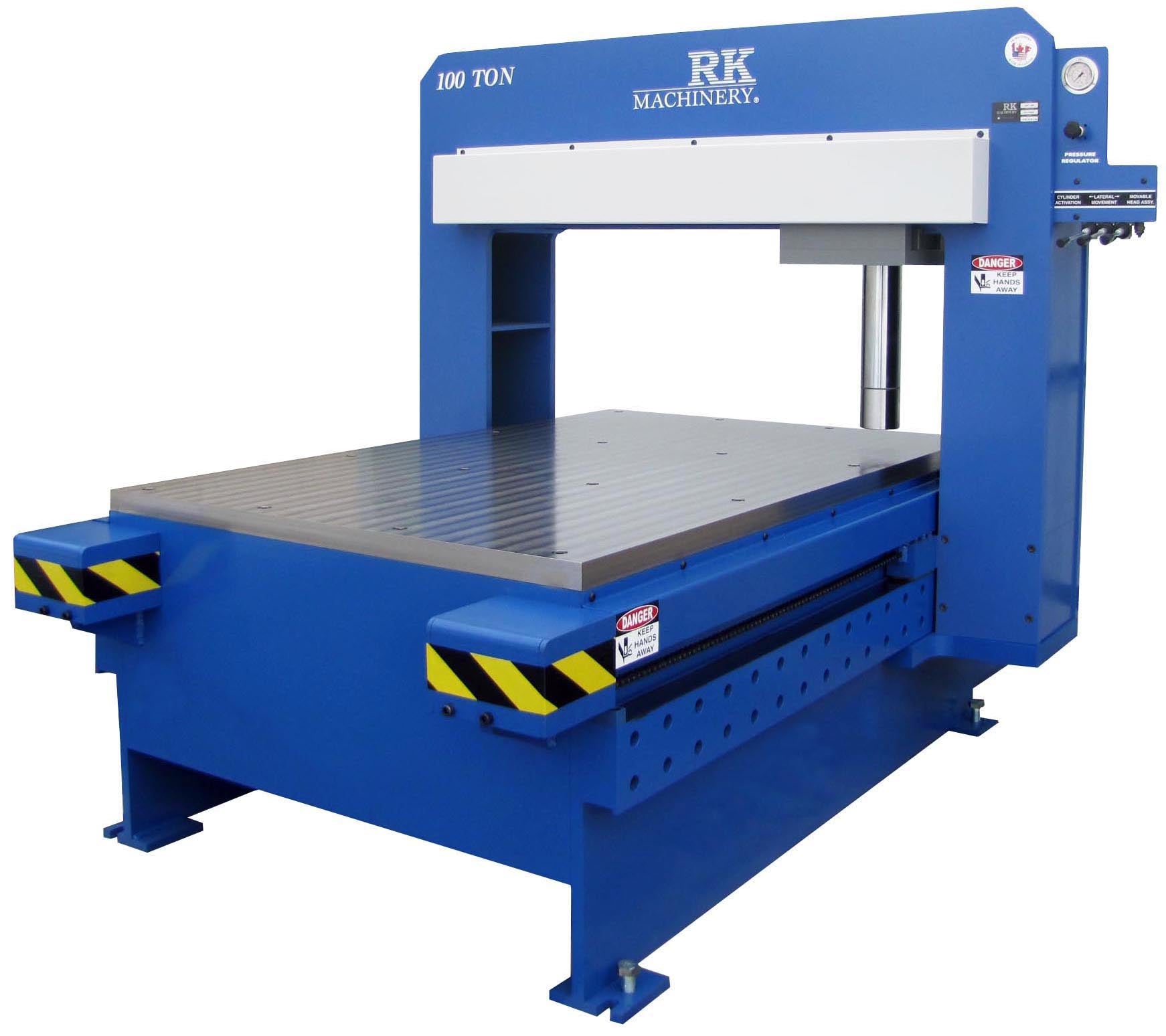

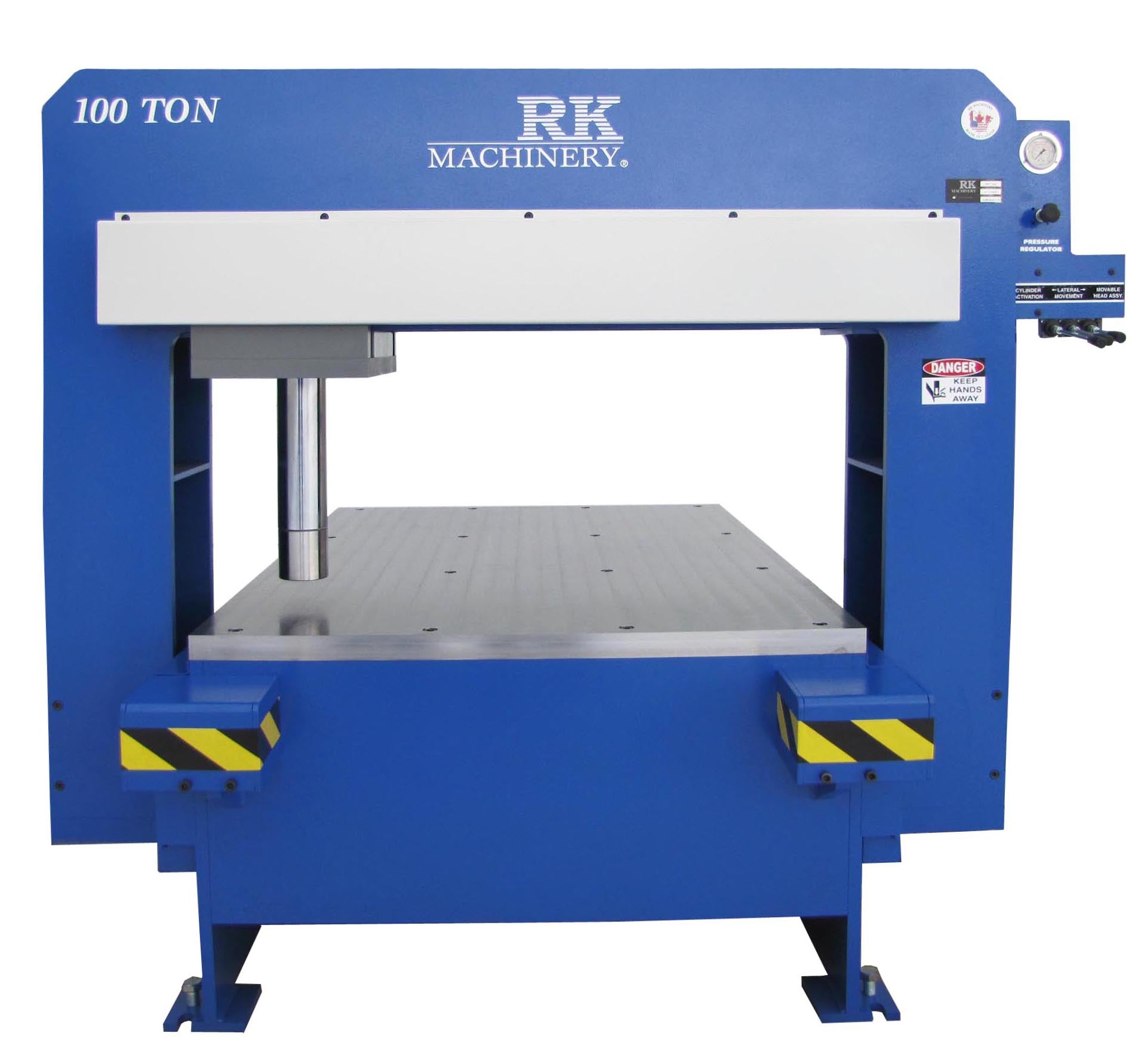

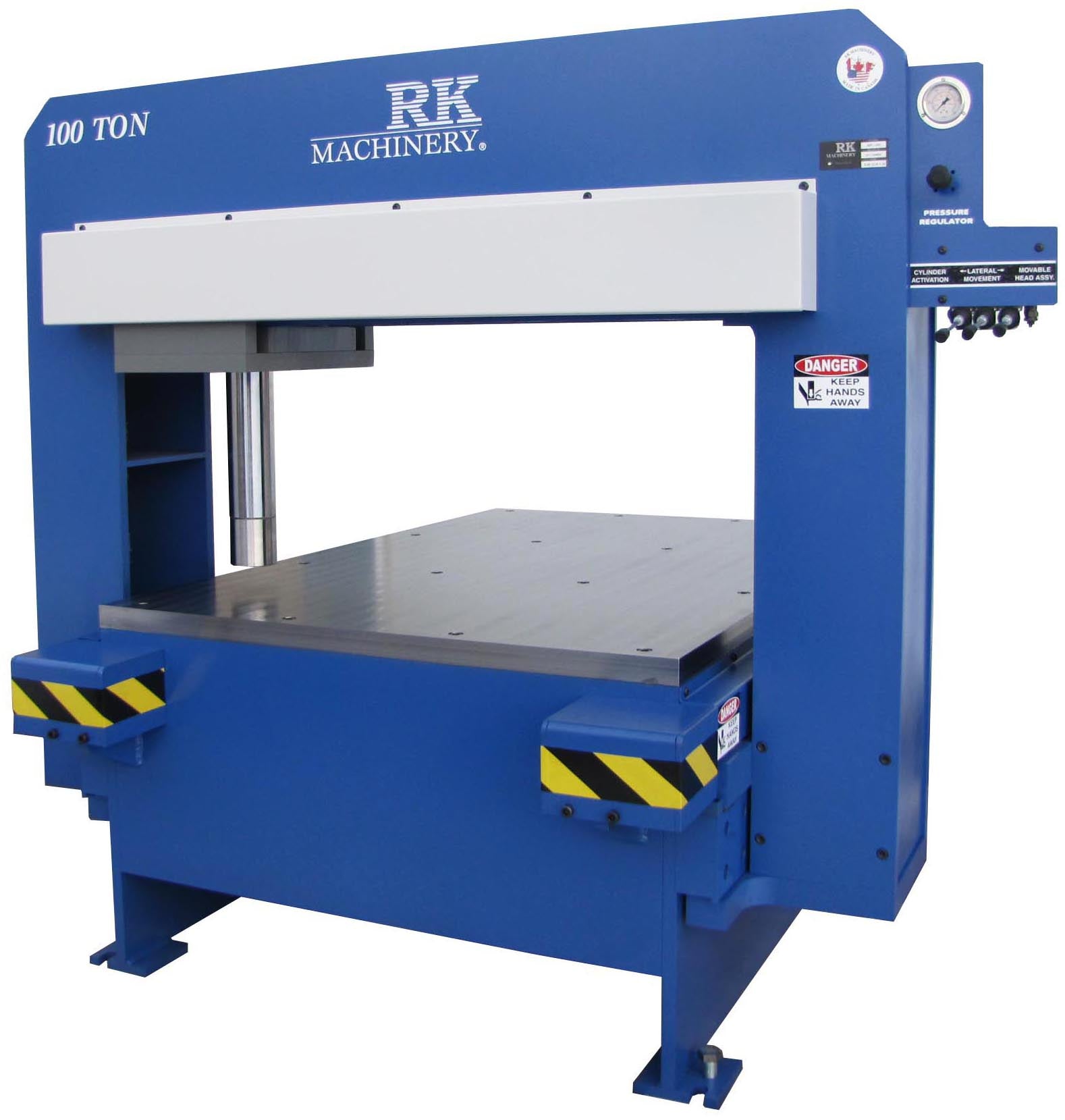

The RK Machinery GSP-100 is a heavy-duty gantry straightening press designed for large-scale straightening, forming, and correction applications. Built for industrial fabrication environments, this hydraulic press features a powered movable workhead and a large precision-machined table for handling oversized workpieces with excellent positioning flexibility.

With 100 tons of pressing force, adjustable pressure control, fingertip hydraulic activation, and lateral movable head assembly, the GSP-100 is ideal for structural steel work, fabrication shops, heavy equipment repair, and industrial straightening applications.

The low-pressure hydraulic system helps maintain reduced oil temperatures for improved efficiency and dependable long-term operation in demanding industrial environments.

Standard Features

Powered movable workhead for off-center pressing applications

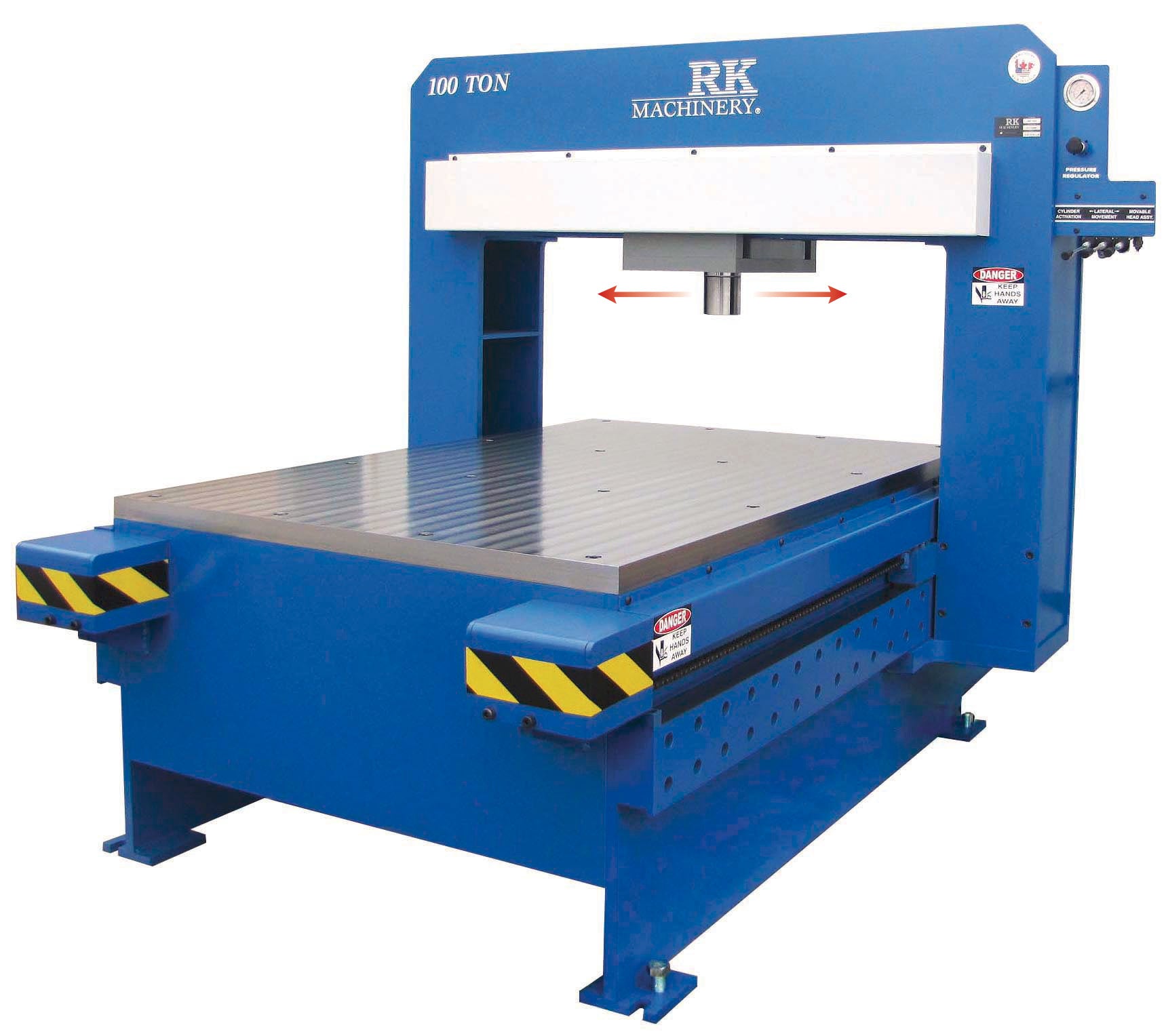

Movable cylinder positioning from left to right and front to back

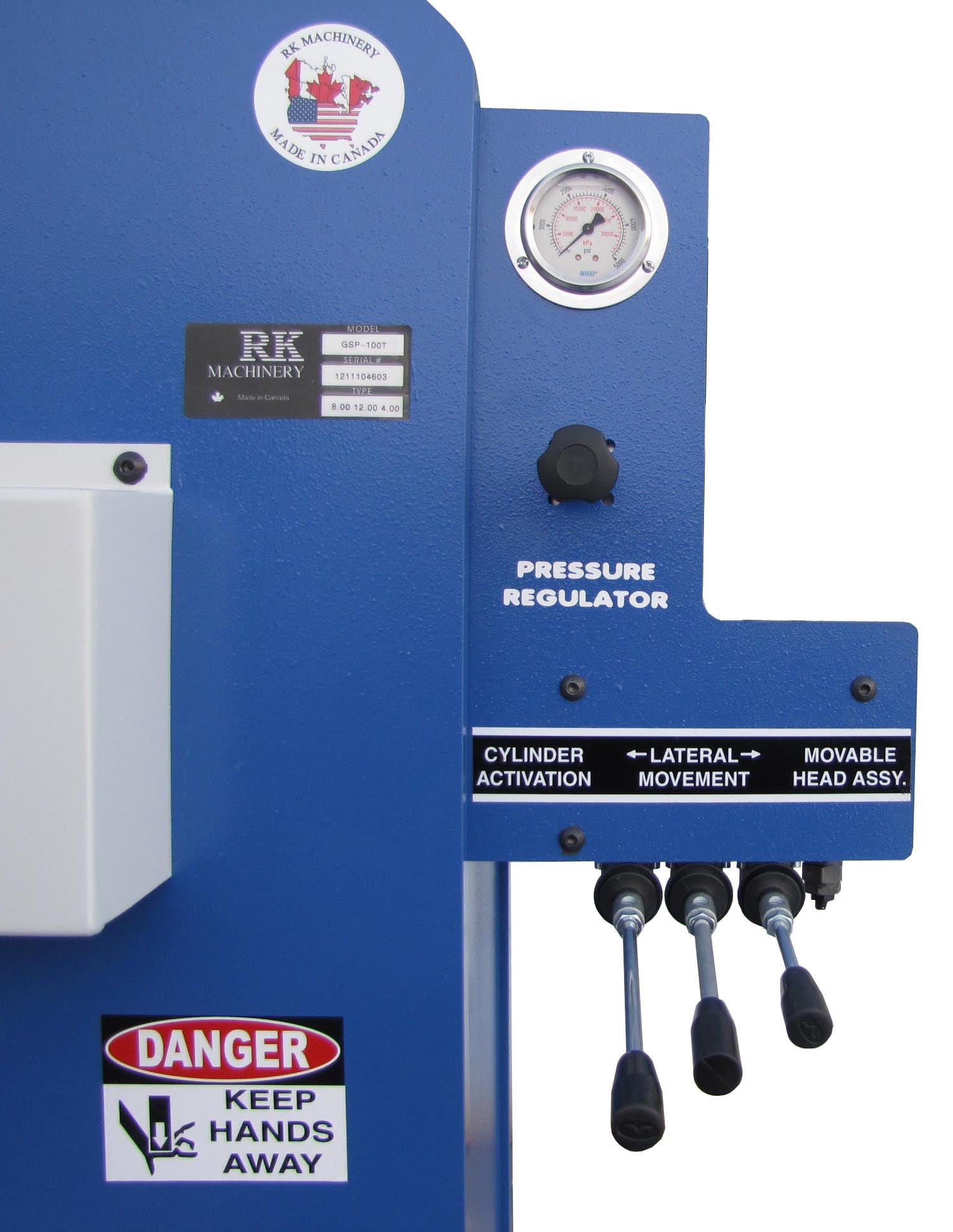

Fingertip hydraulic cylinder activation control
Adjustable pressure regulator system

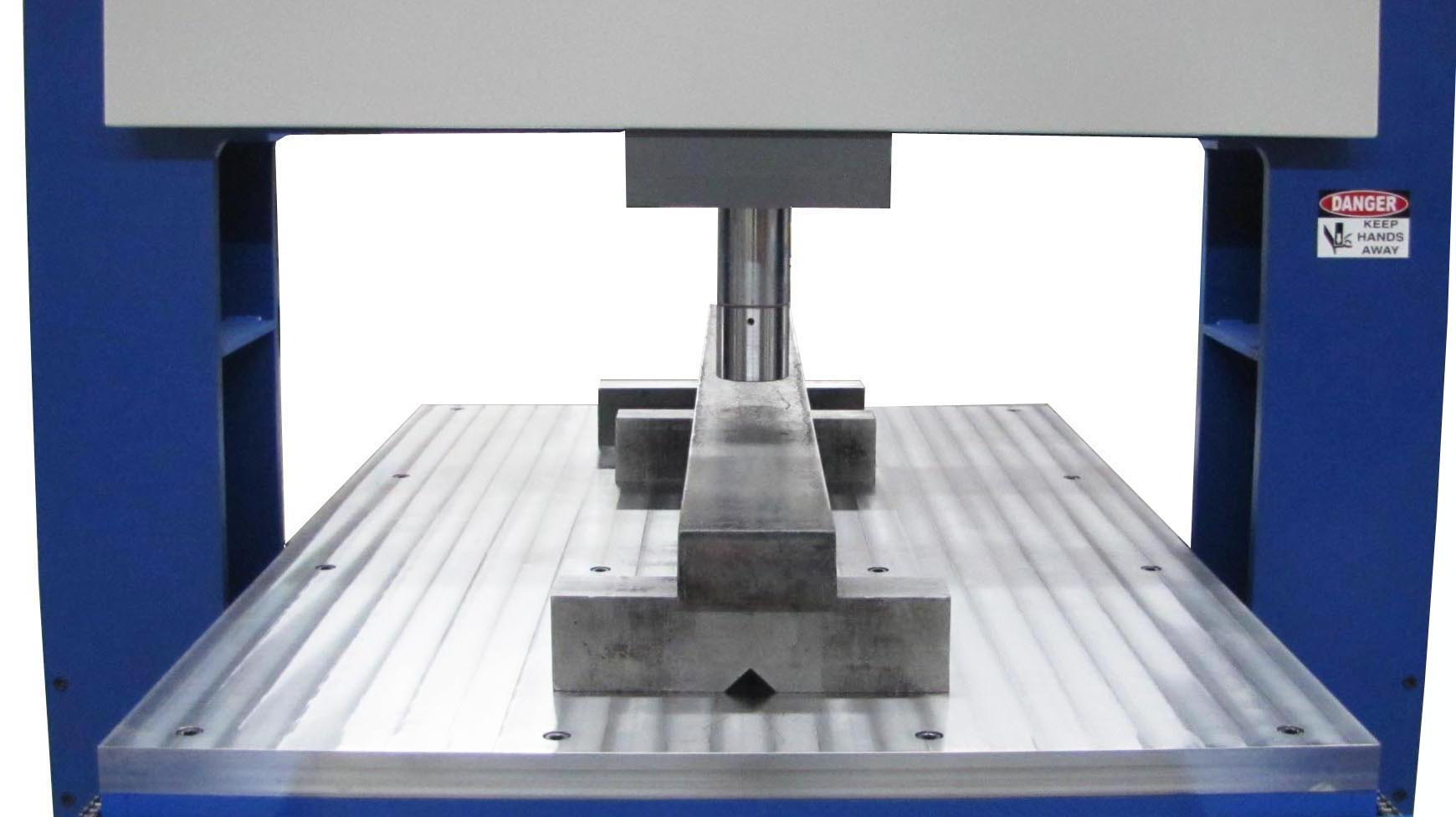

Flat ram nose adaptable for multiple applications
Low-pressure hydraulic system for improved efficiency
Heavy-duty steel gantry frame construction
Precision-machined work table
Industrial hydraulic components available throughout North America
Hydraulic movable head assembly

Optional Features

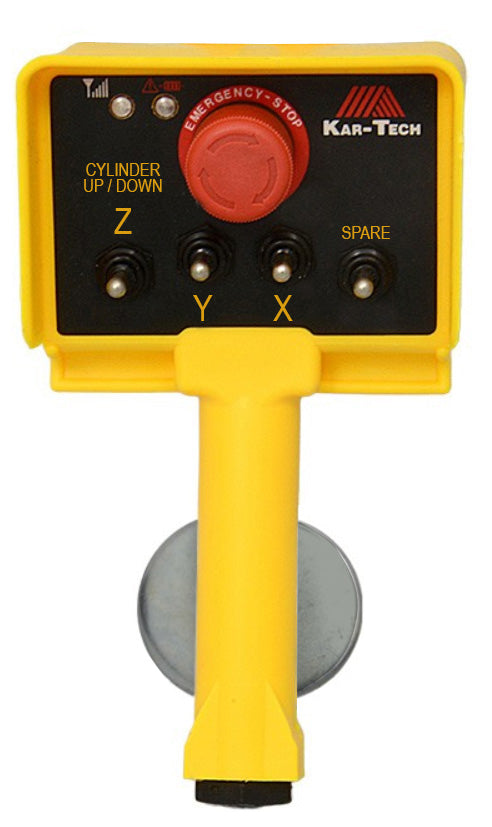

Wireless handheld remote control
Variable speed control on all axes
Enhanced operator mobility around the press

Specifications

Model: RK Machinery GSP-100 48
Type: Gantry Straightening Press

Capacity
Maximum Pressing Force: 100 Tons

Power
Main Motor: 5 HP
Electrical: 3 Phase 480V

Table
Table Size: 48" x 96"

Cylinder
Cylinder Bore: 9"
Stroke: 16"

Ram Speed
Advance Speed: 24 IPM
Press Speed: 6 IPM
Return Speed: 31 IPM

Dimensions
Shipping Dimensions (L x W x H): 88" x 112" x 80"

Weight
Machine Weight: 12,000 lbs
