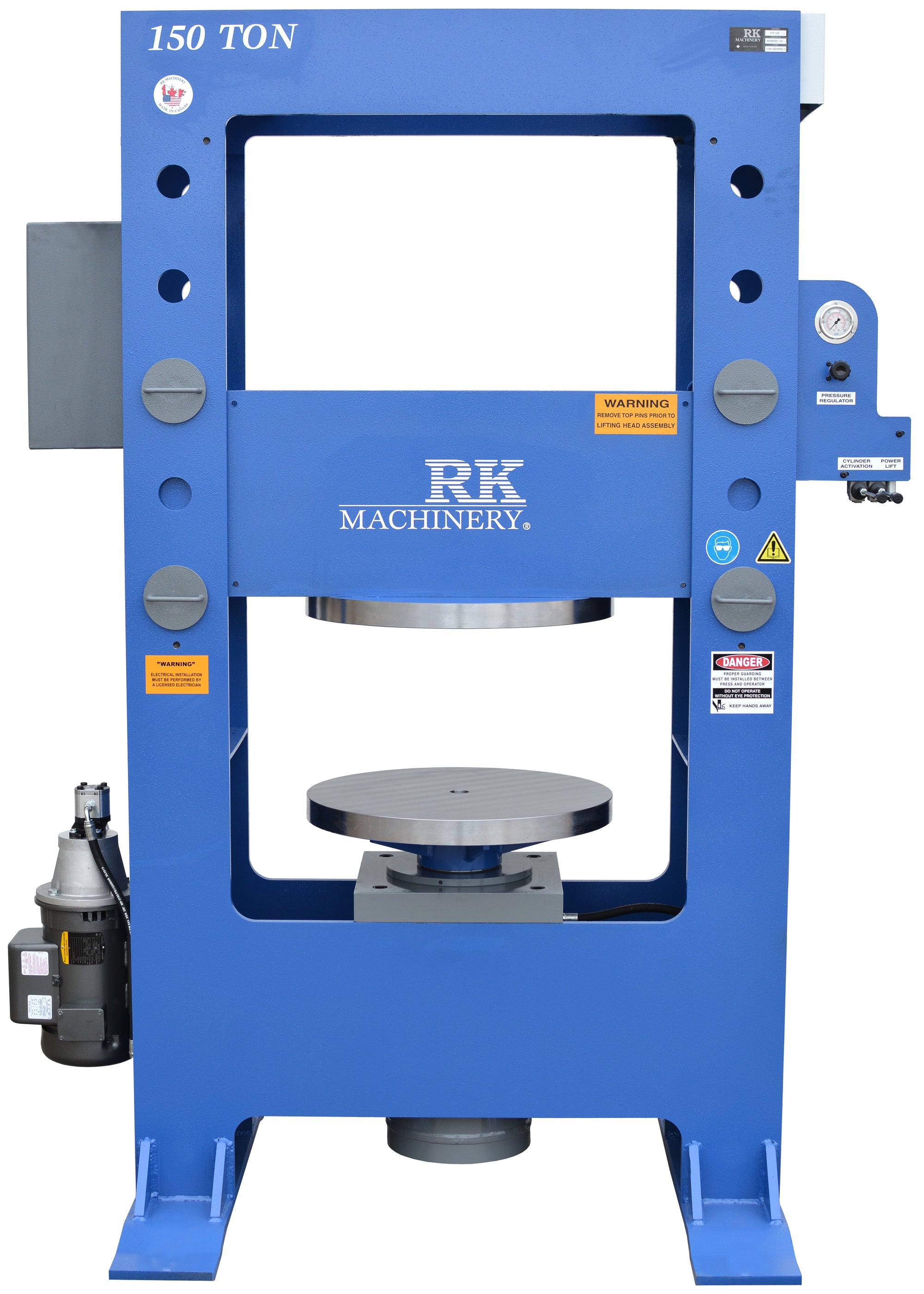

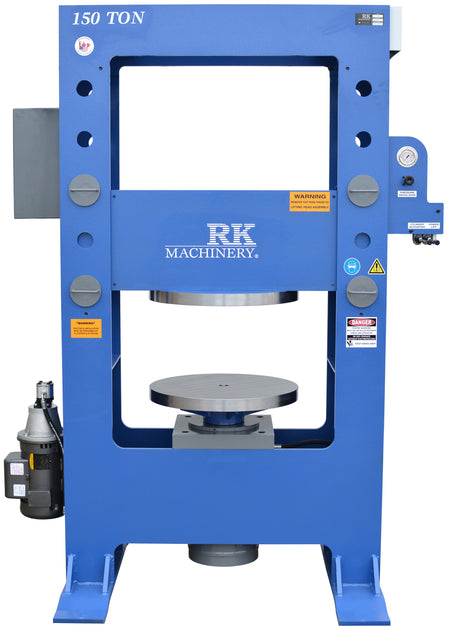

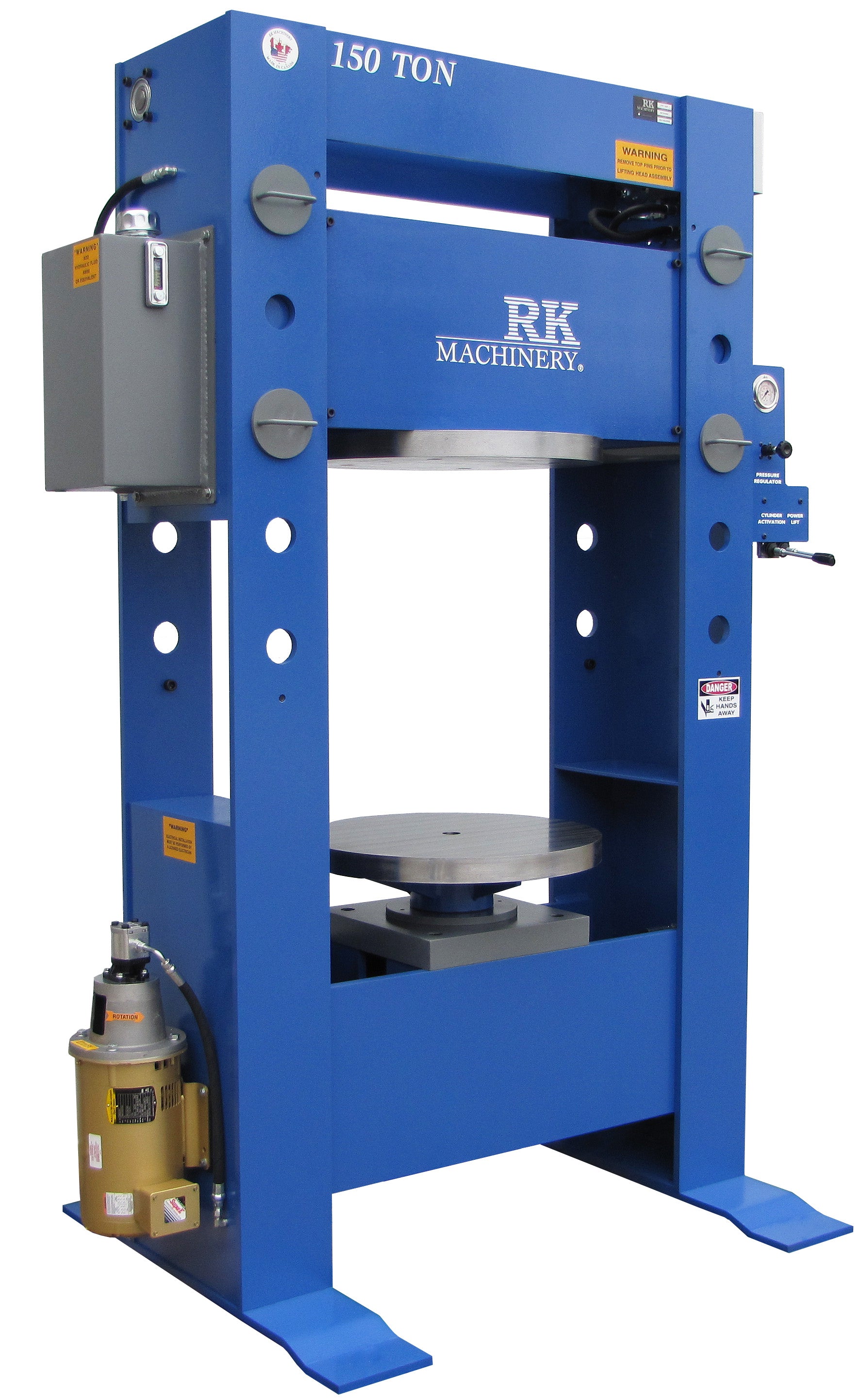

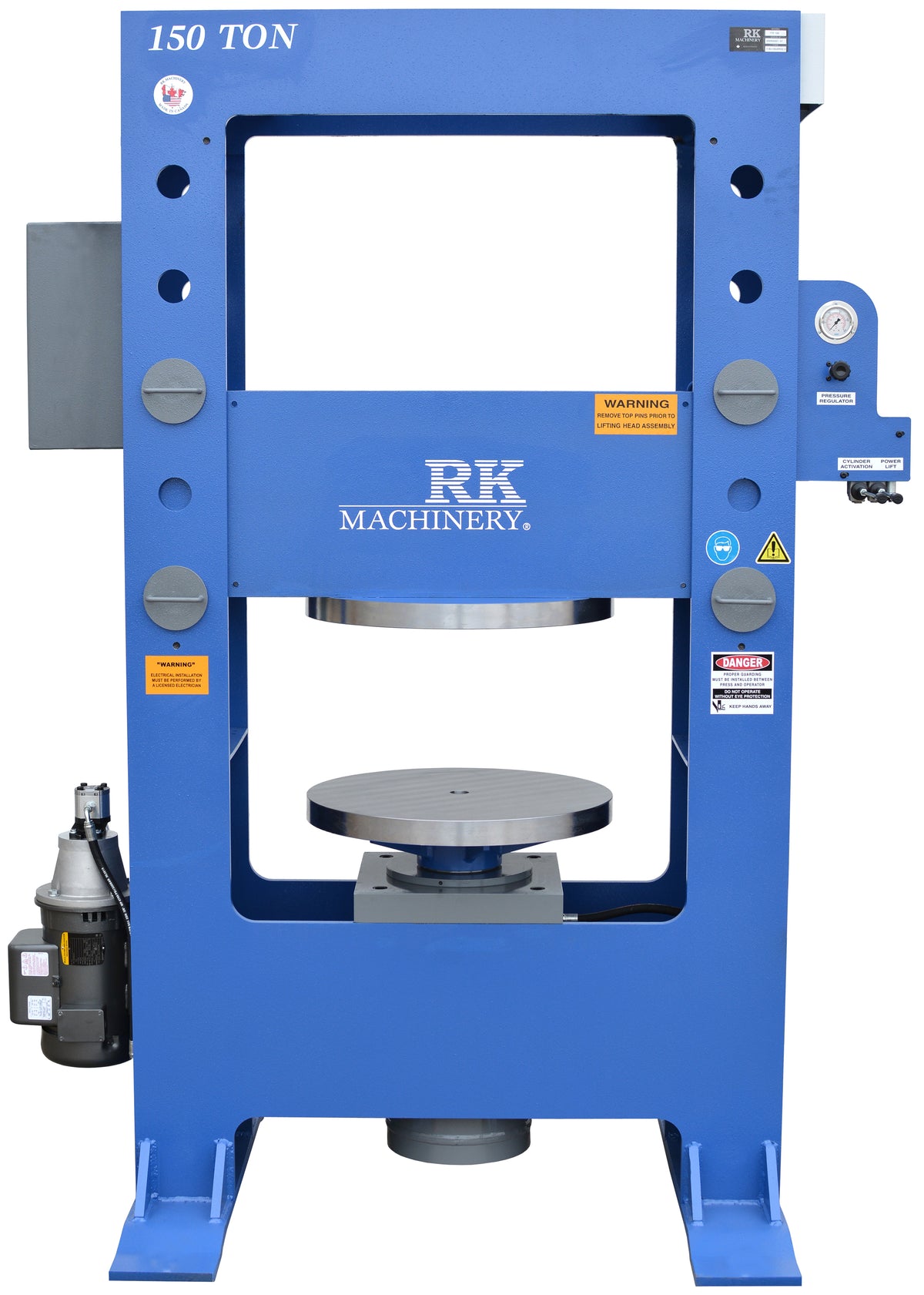

RK Machinery FTP-150 Forklift Tire Press

The RK Machinery FTP-150 is a heavy-duty forklift tire press designed for industrial tire installation and removal applications. Built for durability and safe operation, this hydraulic press delivers reliable performance for forklift maintenance facilities, tire service operations, and industrial repair shops.

Featuring 150 tons of pressing force, a large cylinder rod for improved platen stability, hydraulic power-lift head adjustment, and precision fingertip ram control, the FTP-150 provides efficient and controlled pressing performance for demanding tire service applications.

Its heavy-duty frame construction, low-pressure hydraulic system, and large-capacity hydraulic reservoir make it ideal for continuous industrial use while maintaining smooth and reliable operation.

Standard Features

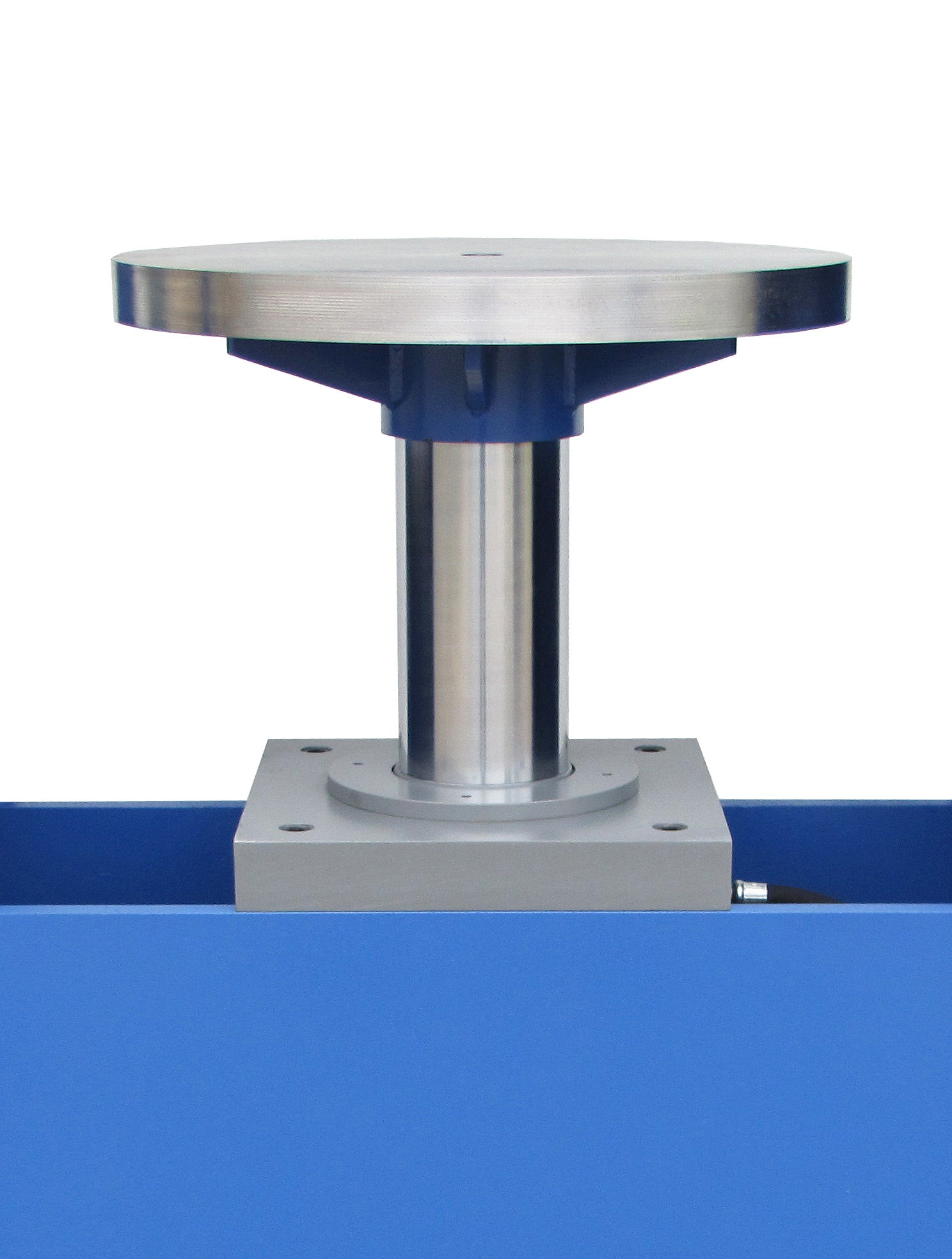

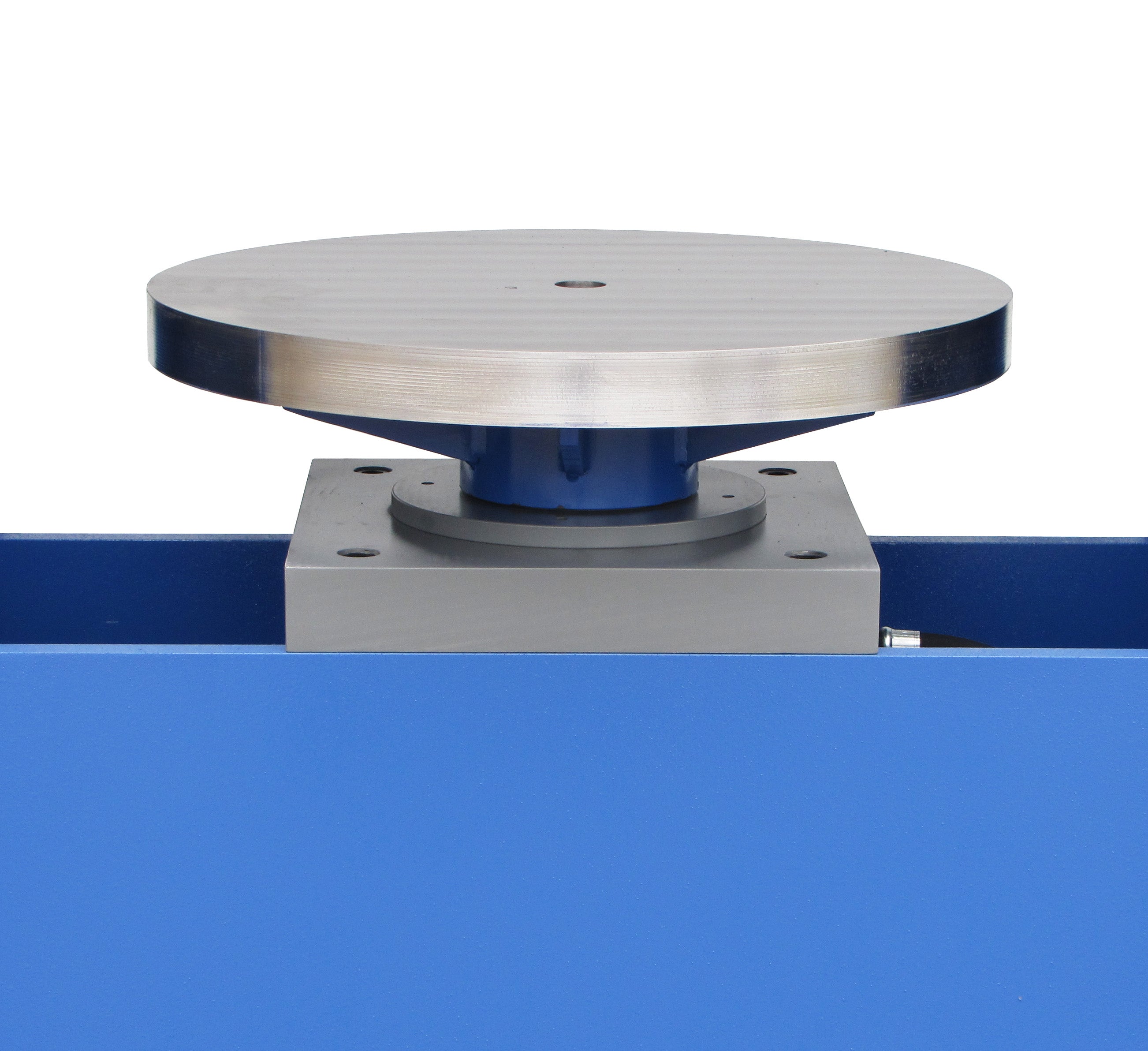

Large cylinder rod for improved platen stability
Low-pressure hydraulic system for reduced oil temperatures
Double-acting hydraulic cylinder
Hydraulic power-lift vertical head adjustment

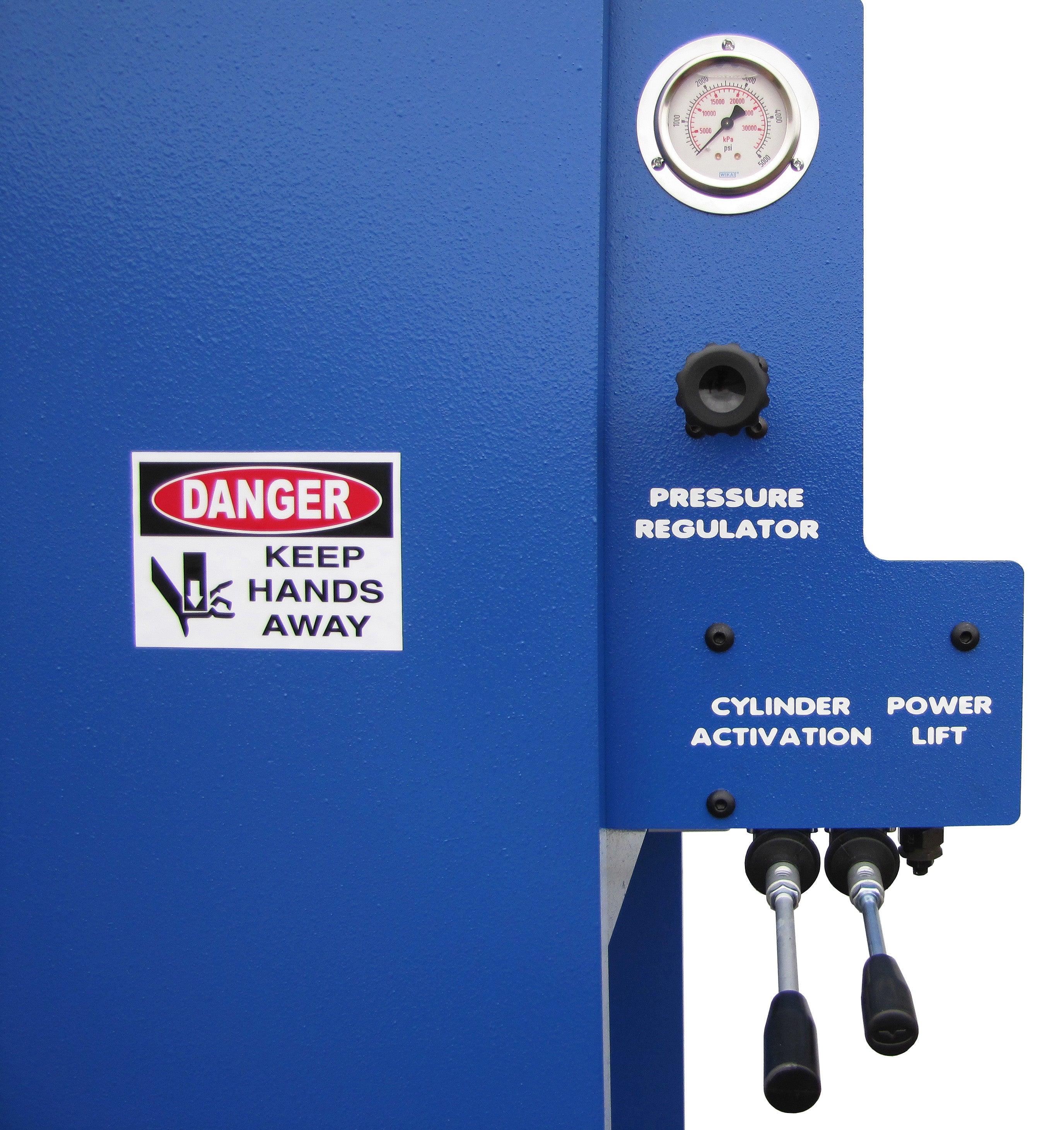

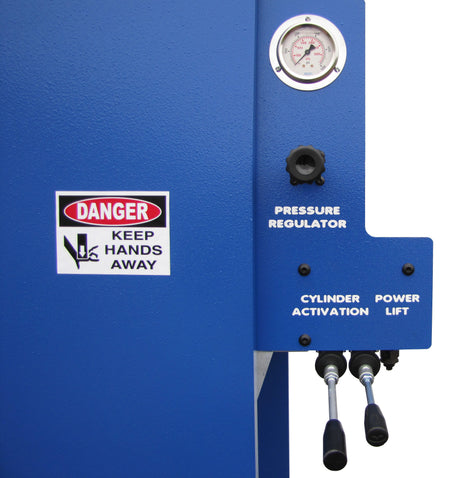

Fingertip cylinder activation control
Adjustable ram speed control
Pressure regulator system
6-gallon hydraulic oil reservoir
Heavy-duty industrial hydraulic system
Rigid steel frame construction

Available Options

Front safety guard
Start/stop station with emergency stop
Industrial side lighting system
Heavy-duty pressing plates

Specifications

Model: RK Machinery FTP-150 STD
Type: Forklift Tire Press

Capacity
Maximum Pressing Force: 150 Tons

Motor
Main Motor: 5 HP 230V Single Phase
Optional Upgrade: 10 HP 3 Phase

Cylinder
Cylinder Bore: 11"
Cylinder Stroke: 12"
Rod Diameter: 6"

Ram Speed
Press Speed: 6 IPM
Return Speed: 8 IPM

Optional High-Speed Hydraulic Package
Press Speed: 12 IPM
Return Speed: 15 IPM

Dimensions
Shipping Dimensions (L x W x H): 60" x 80" x 103"

Weight
Machine Weight: 3,200 lbs

Electrical
Standard voltages available upon request
