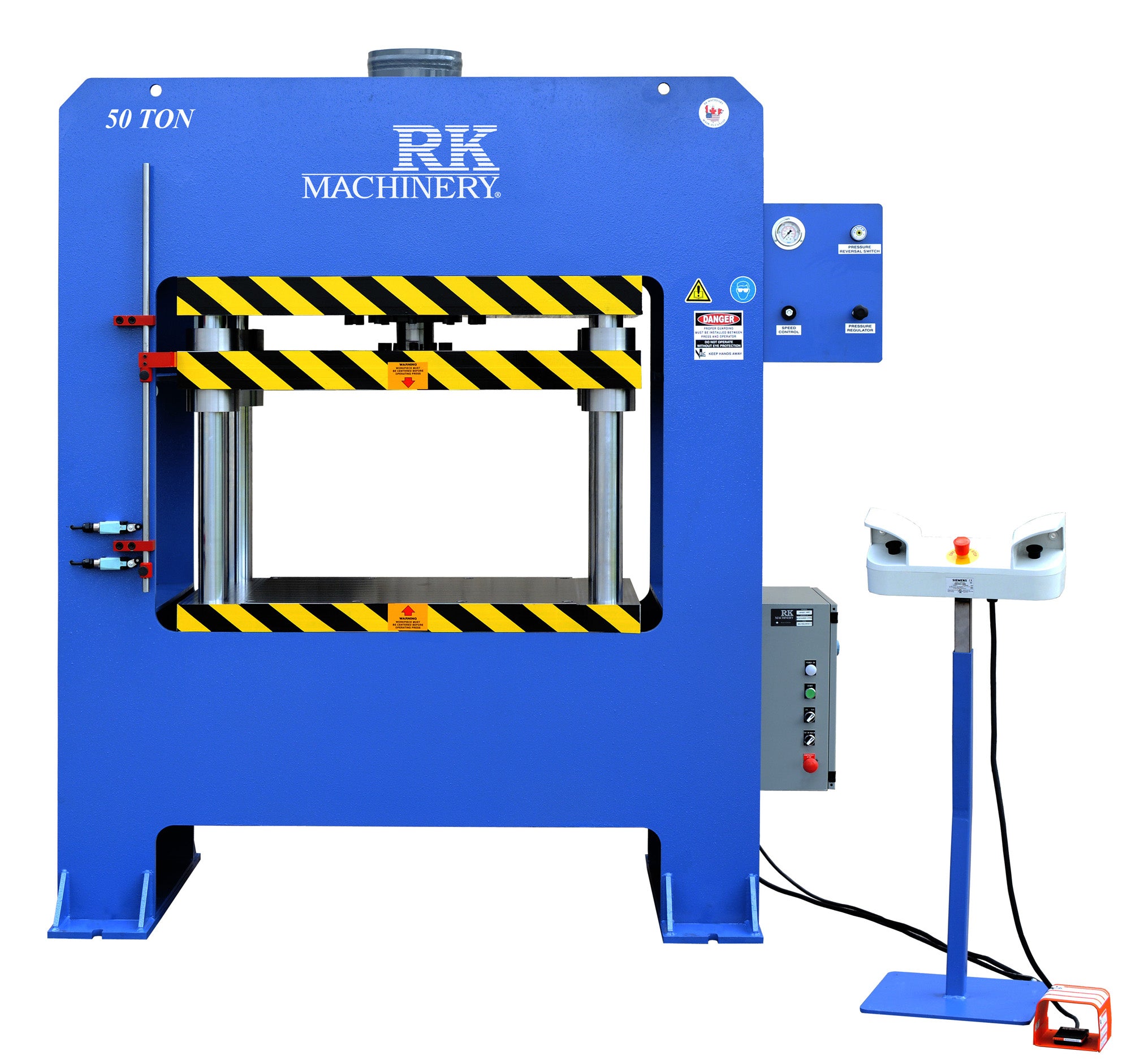

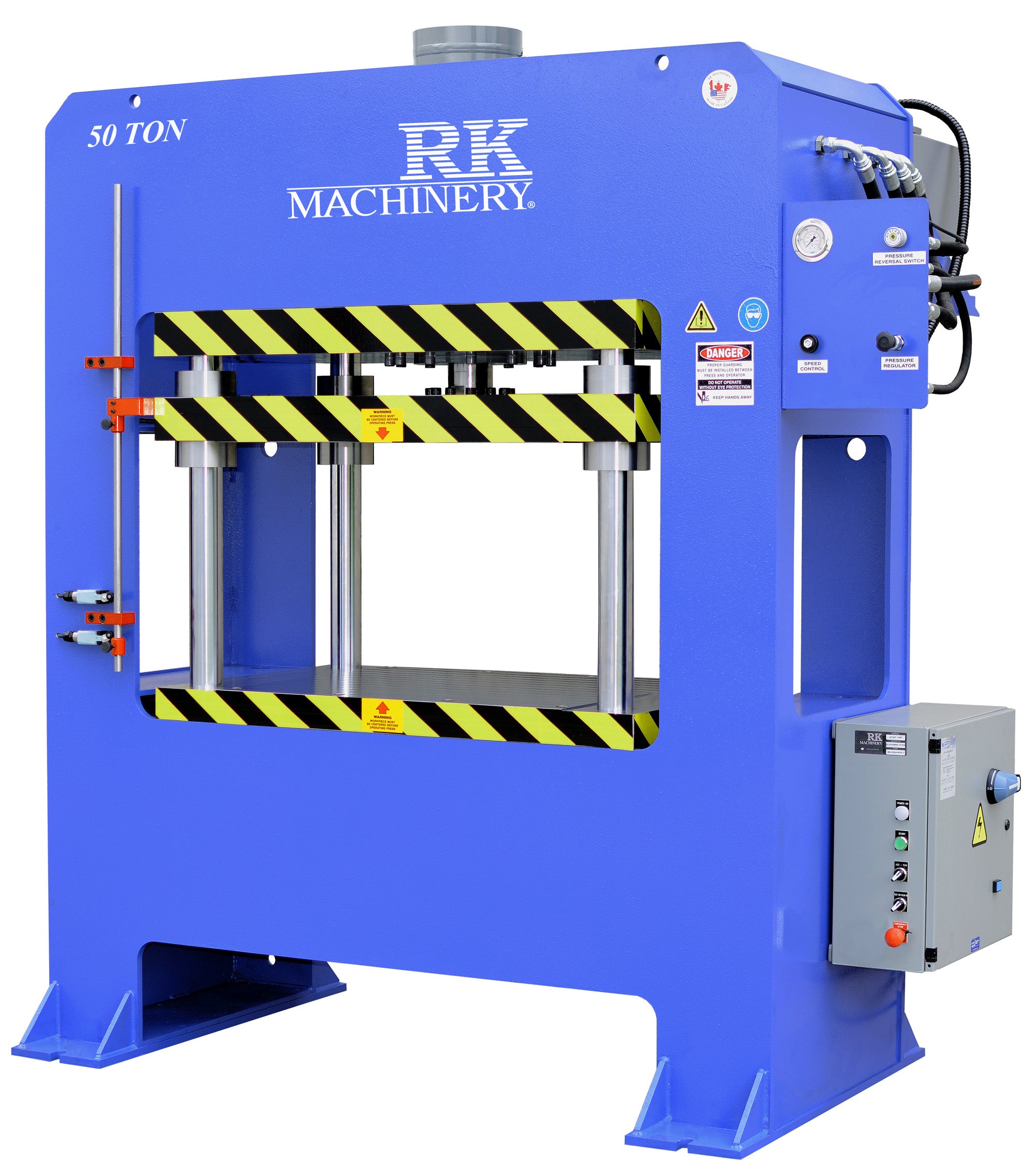

RK Machinery FP-50 Four Post Hydraulic Press

The RK Machinery FP-50 is a heavy-duty four post hydraulic press designed for industrial forming, pressing, stamping, straightening, and assembly applications. Built with a rigid steel frame and precision-ground chrome posts, this press delivers reliable performance and consistent hydraulic operation for demanding production environments.

Featuring 50 tons of pressing force, adjustable stroke control, pressure regulation, and dual control operation, the FP-50 is ideal for fabrication shops, manufacturing facilities, maintenance departments, and industrial production operations.

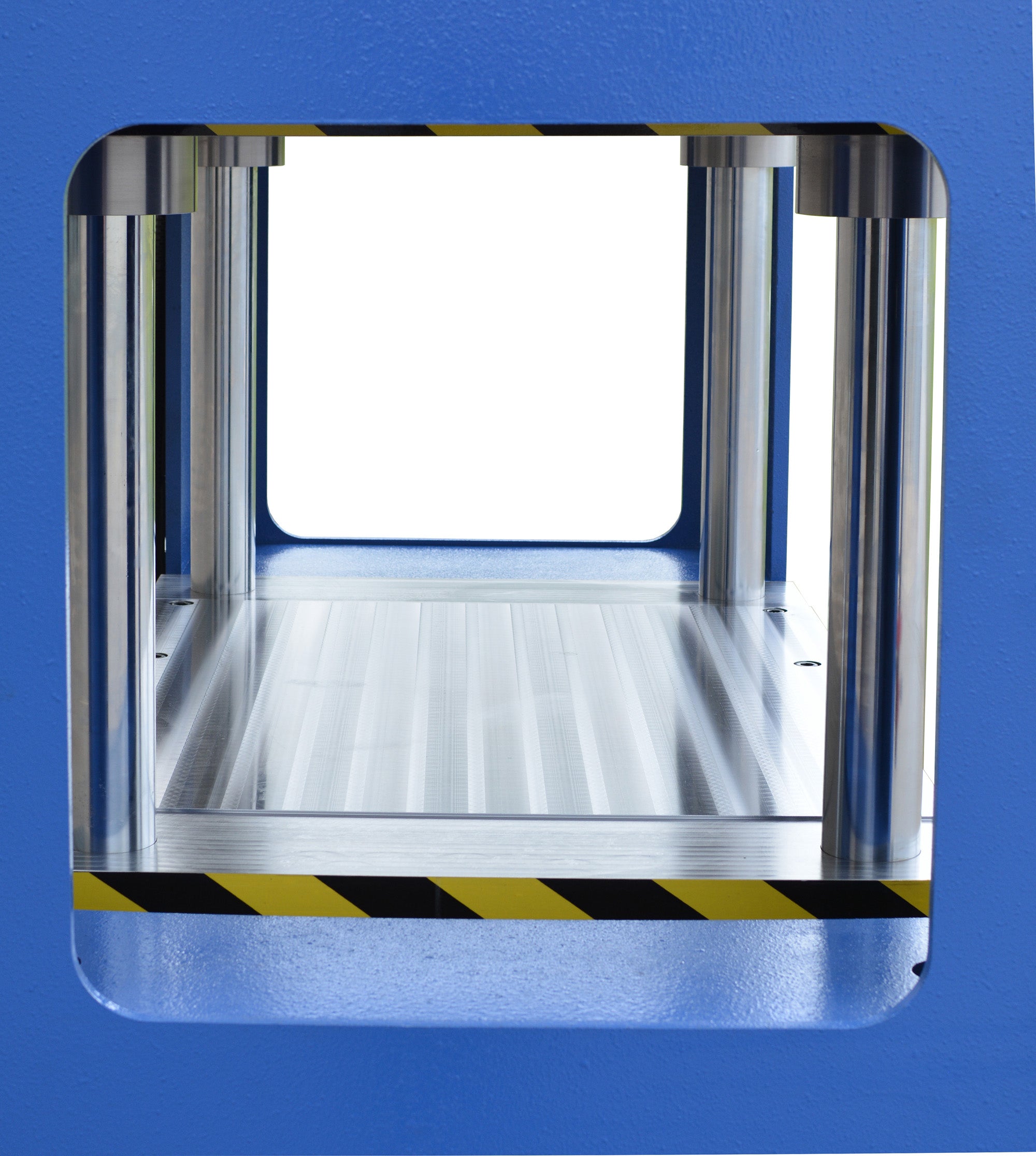

Its open-sided design allows for improved accessibility while the precision-guided ram system ensures accurate and repeatable pressing performance.

Standard Features

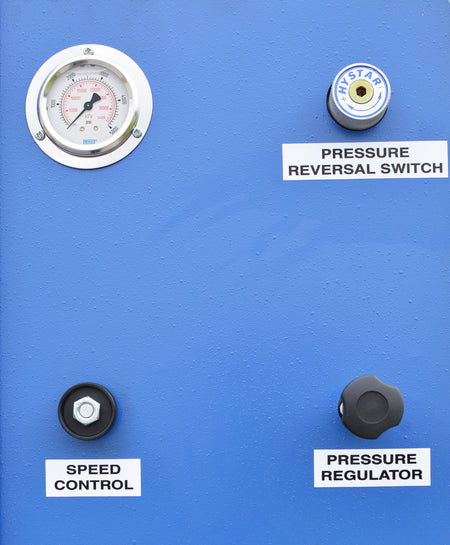

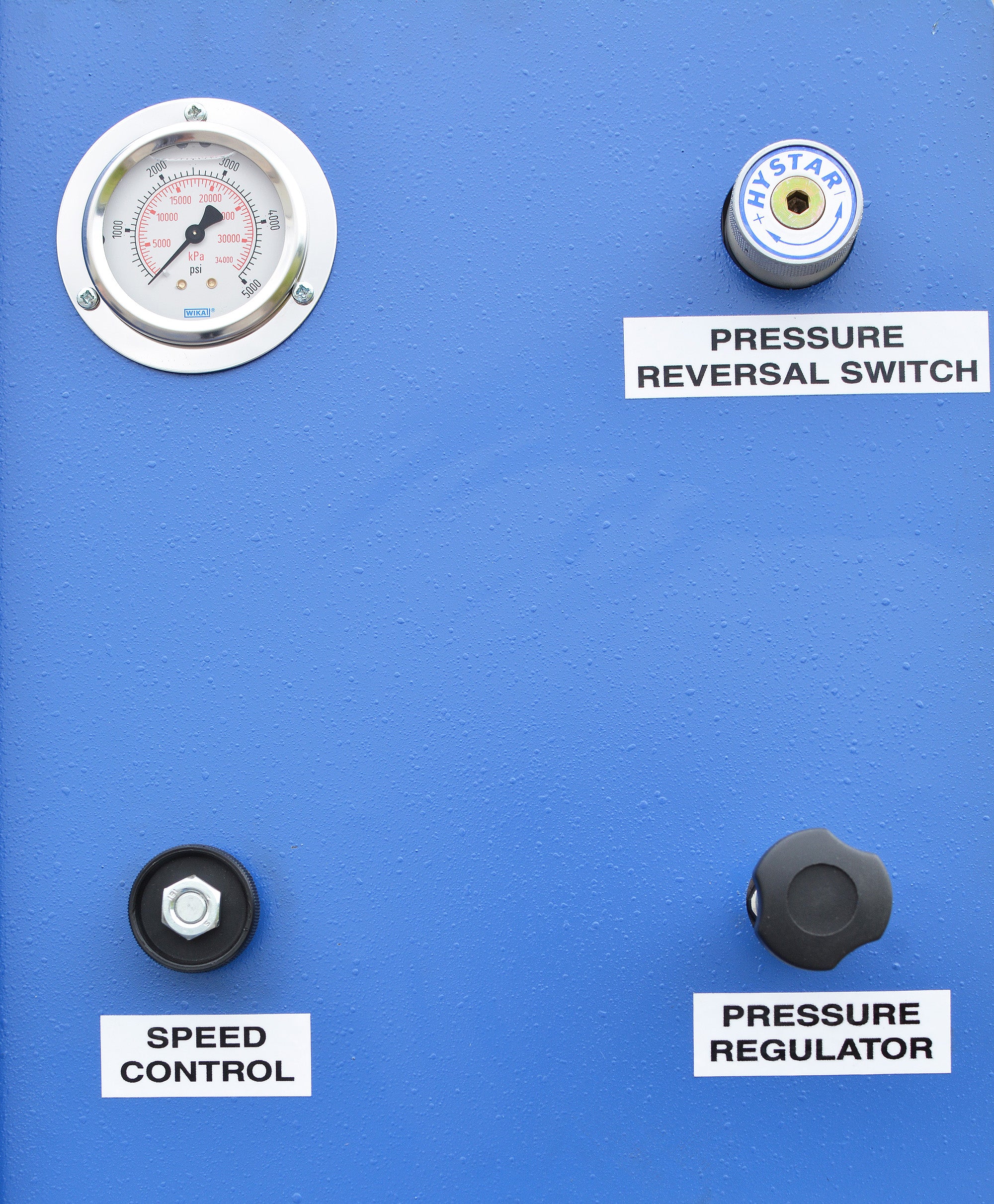

Pressure gauge
Pressure regulator
Adjustable speed control
Adjustable stroke control
Pressure reversal switch
Ram guided by 4 precision-ground chrome rods
Jog mode for setup operations
Dual control operation

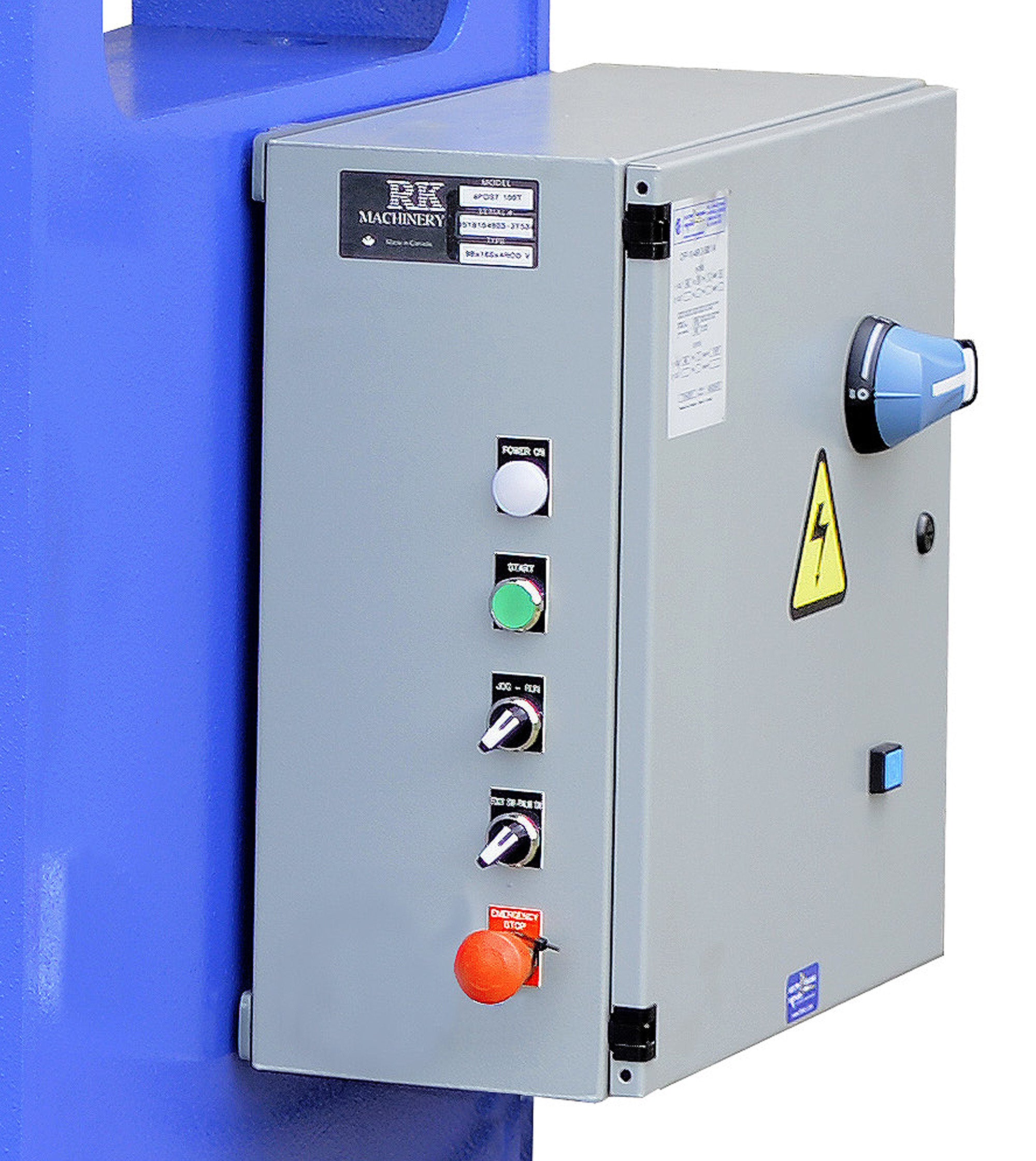

PLC programmable control system

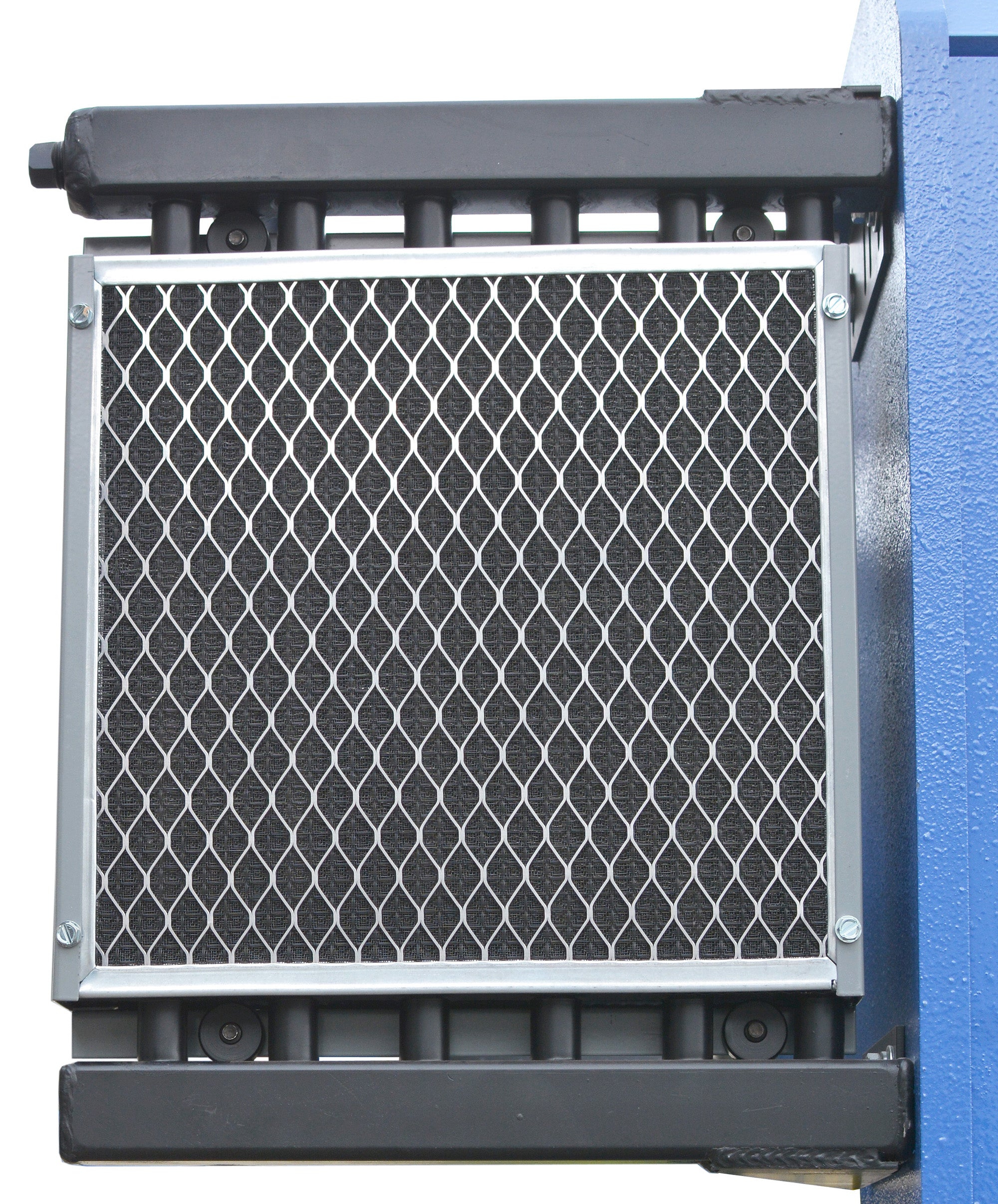

Industrial air-cooled oil cooler
Heavy-duty hydraulic system
Moveable pedestal with dual electric palm buttons and emergency stop
Foot pedal operation

Specifications

Model: RK Machinery FP-50
Type: Four Post Hydraulic Press

Capacity
Maximum Pressing Force: 50 Tons

Speed
Approach Speed: 140 IPM
Press Speed: 17 IPM
Return Speed: 210 IPM

Pressing Area
Table Surface (Left to Right): 34"
Table Surface (Front to Back): 30"

Stroke & Daylight
Maximum Stroke: 15"
Daylight Opening: 22"

Dimensions
Floor to Table: 33.5"
Overall Height: 92"
Overall Width: 71.5"
Front to Back: 56.5"

Upper Platen Surface
Left to Right: 34"
Front to Back: 30"

Motor
Main Motor: 10 HP @ 1750 RPM

Electrical
Voltage: 230V / 460V / 575V

Weight
Machine Weight: 9,200 lbs
