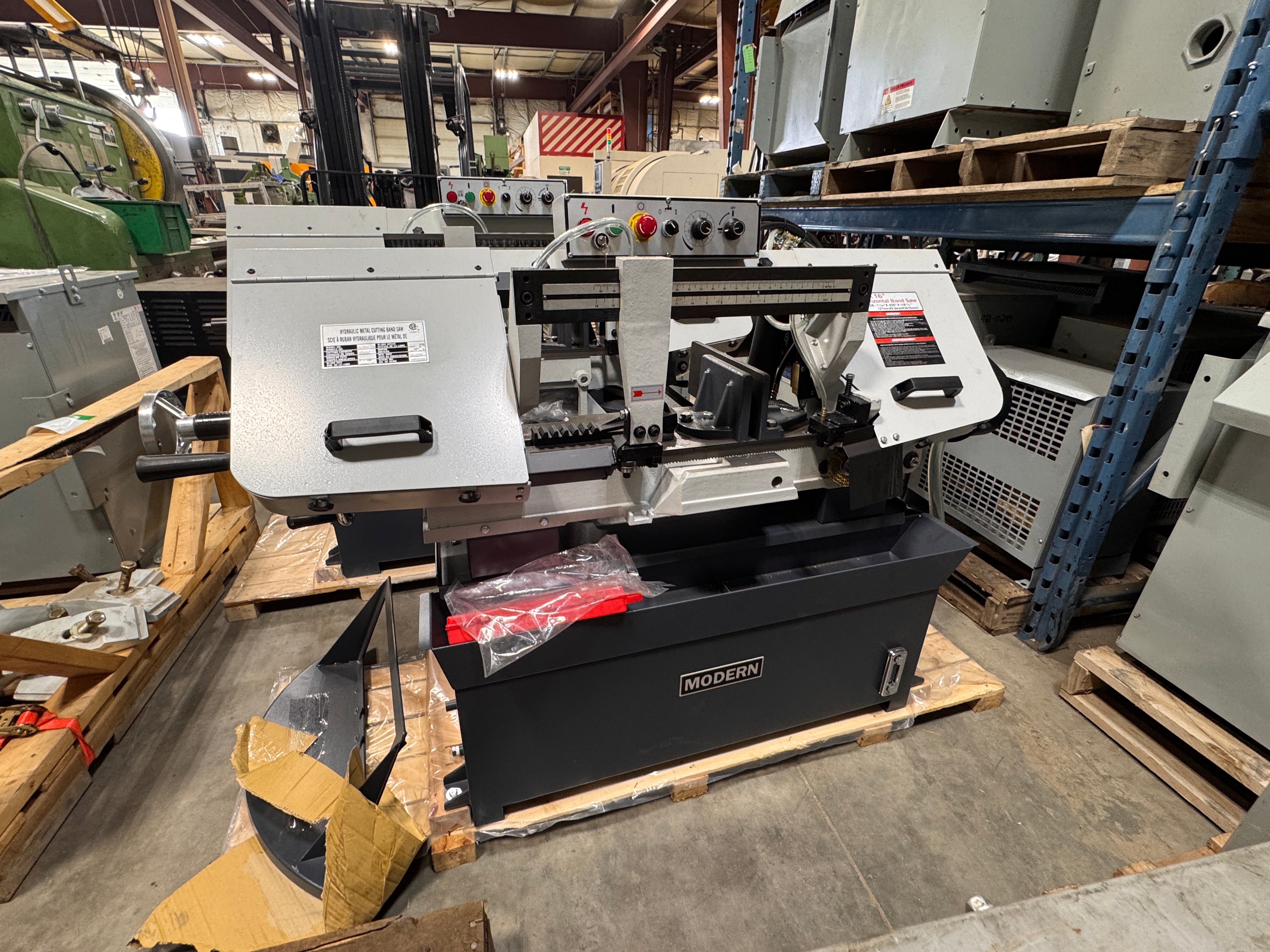

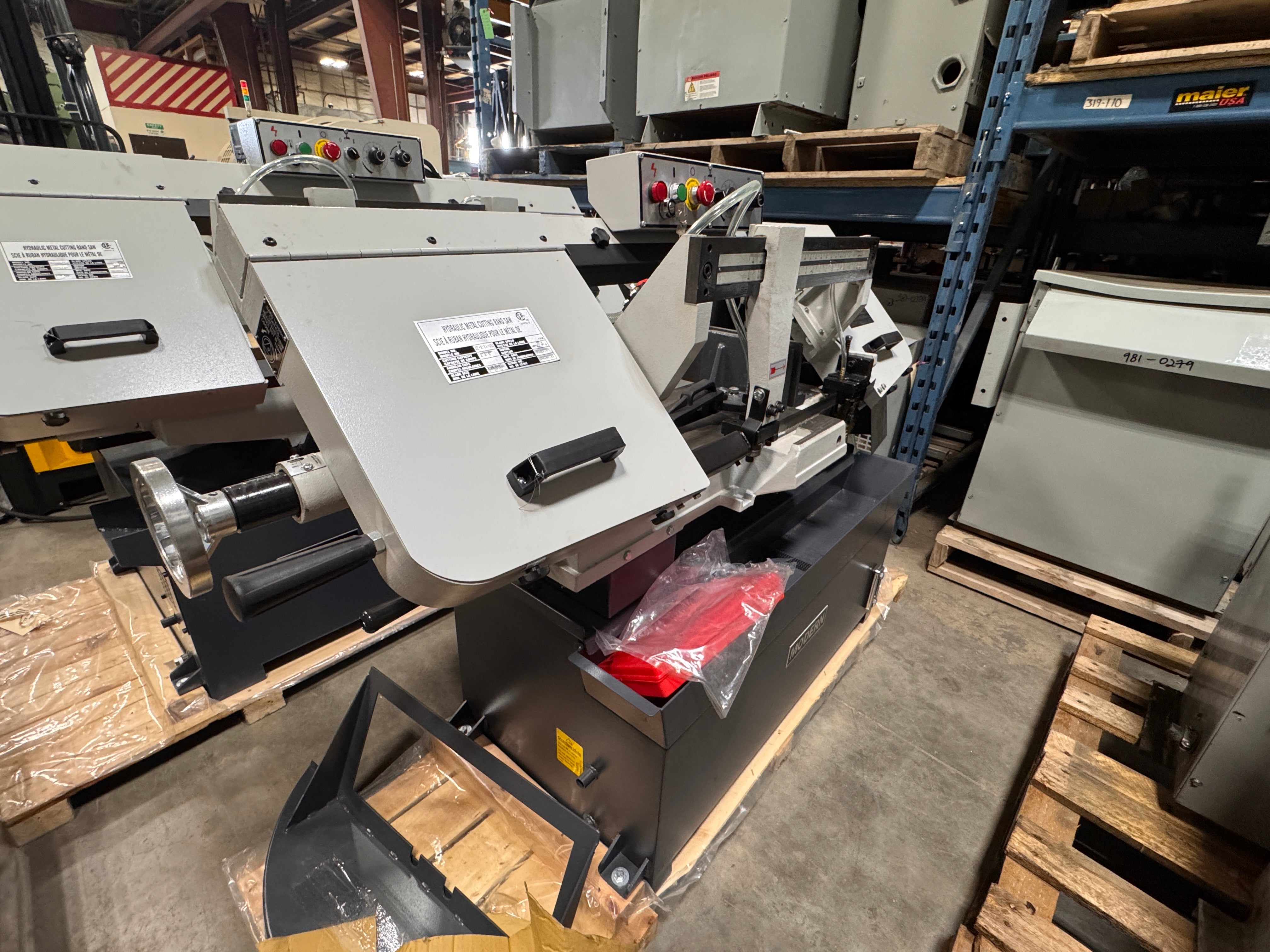

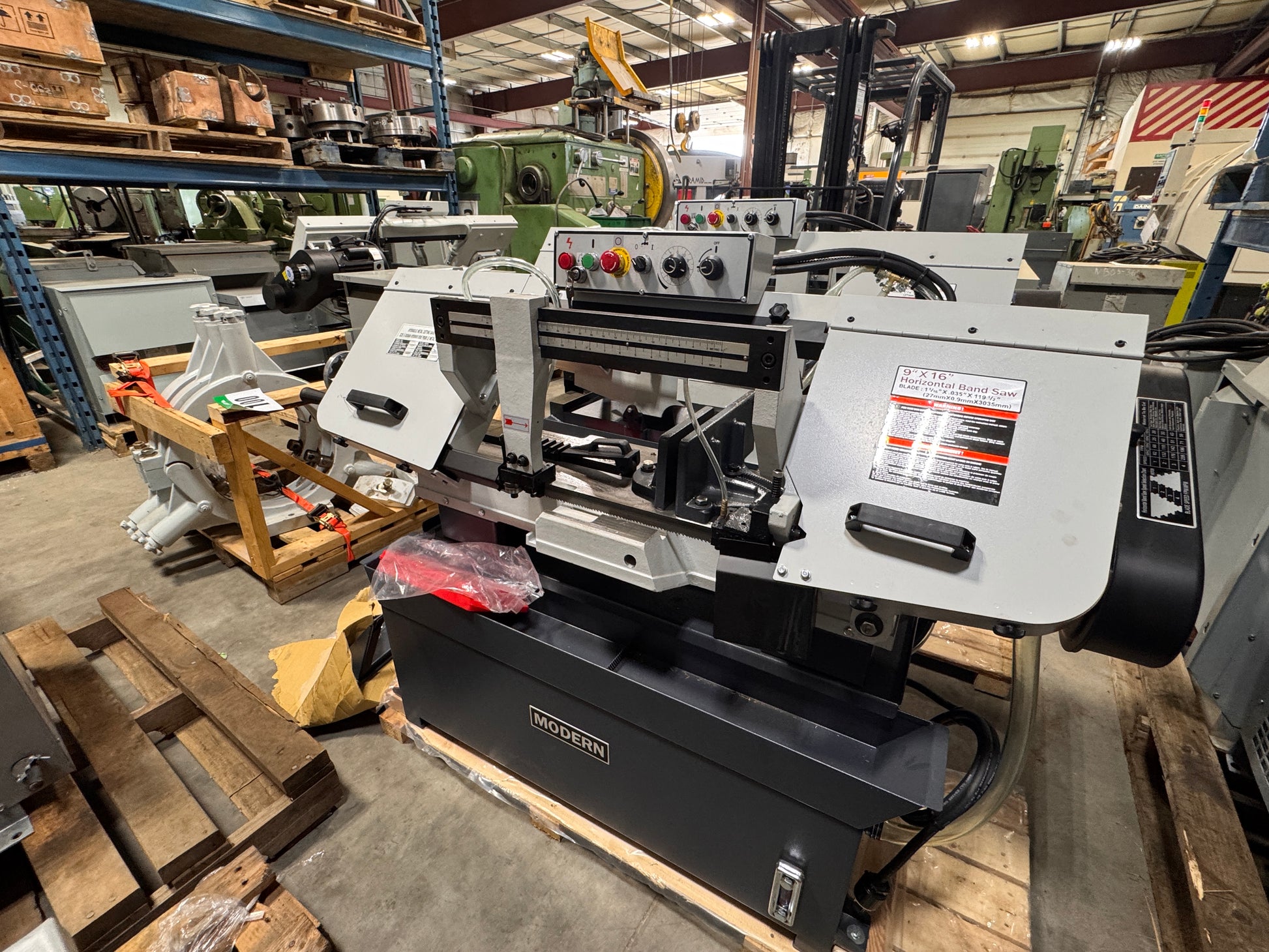

The Modern UE-916A-QS Hydraulic Horizontal Band Saw offers a large 9" × 16" cutting capacity, reliable hydraulic feed, and variable blade speeds for precision cutting of steel and other metals. Built for durability and accuracy, this saw is an excellent choice for industrial workshops and fabrication shops requiring high-performance equipment.

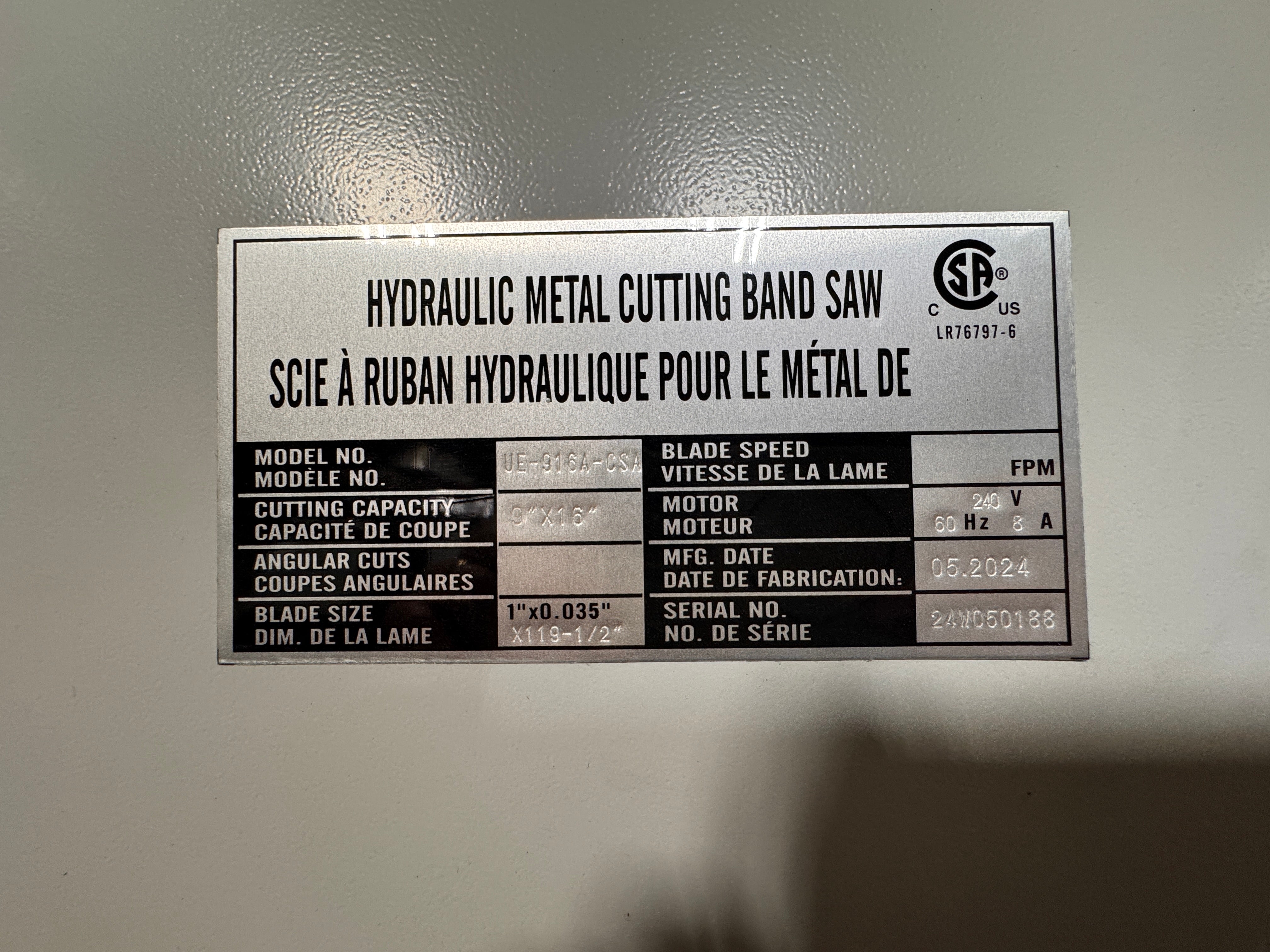

Brand/Model: 9" × 16" Horizontal Band Saw
Type: Semi-Automatic Horizontal Bandsaw
Motor:
60 Hz: 1½ HP, 1725 RPM (1 Phase)
50 Hz: 1½ HP, 1430 RPM (3 Phase)

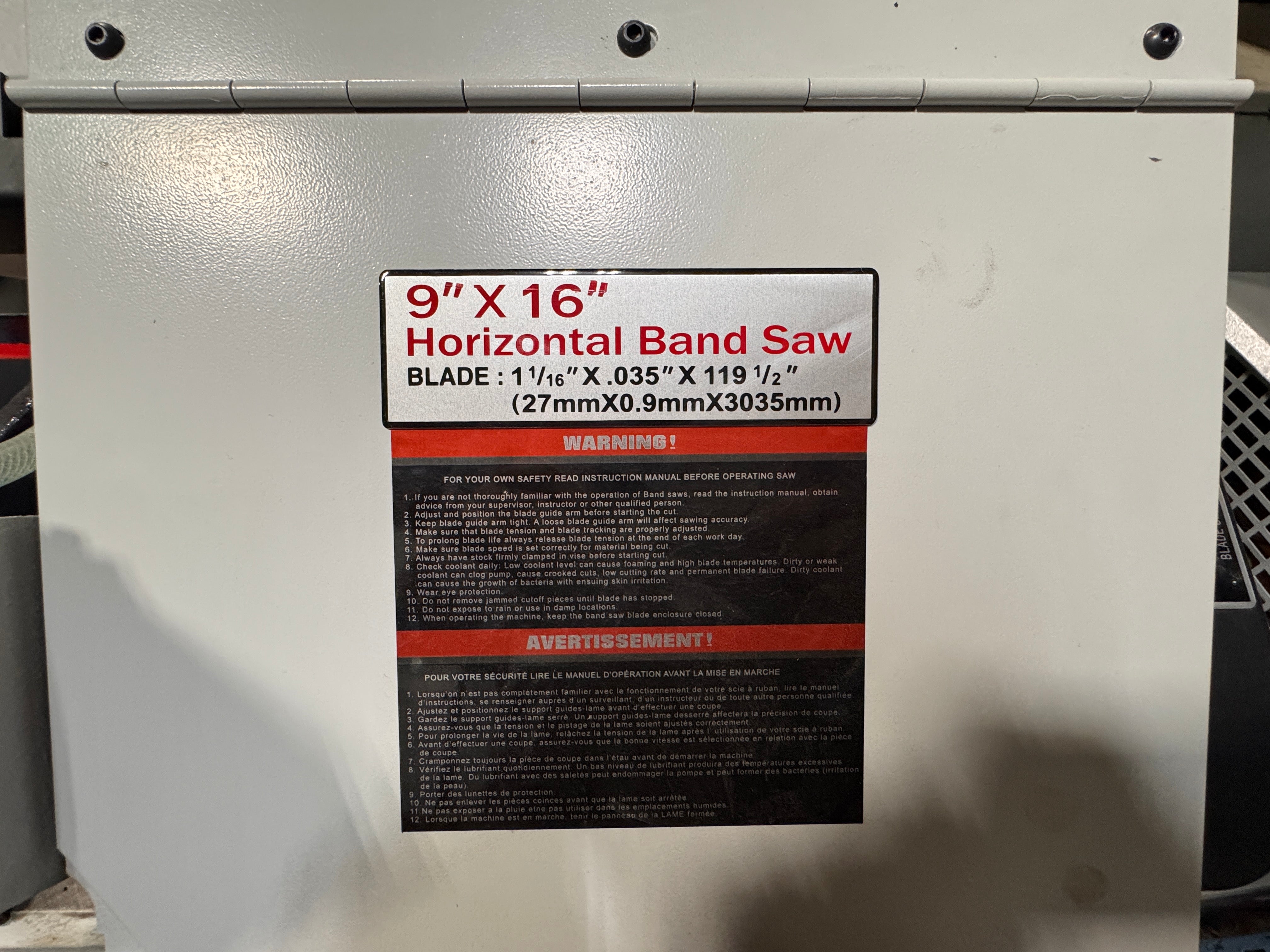

Blade: 1" × 0.032" × 119½" (27 mm × 0.9 mm × 3035 mm)
Blade Wheels: 13" (330 mm) diameter

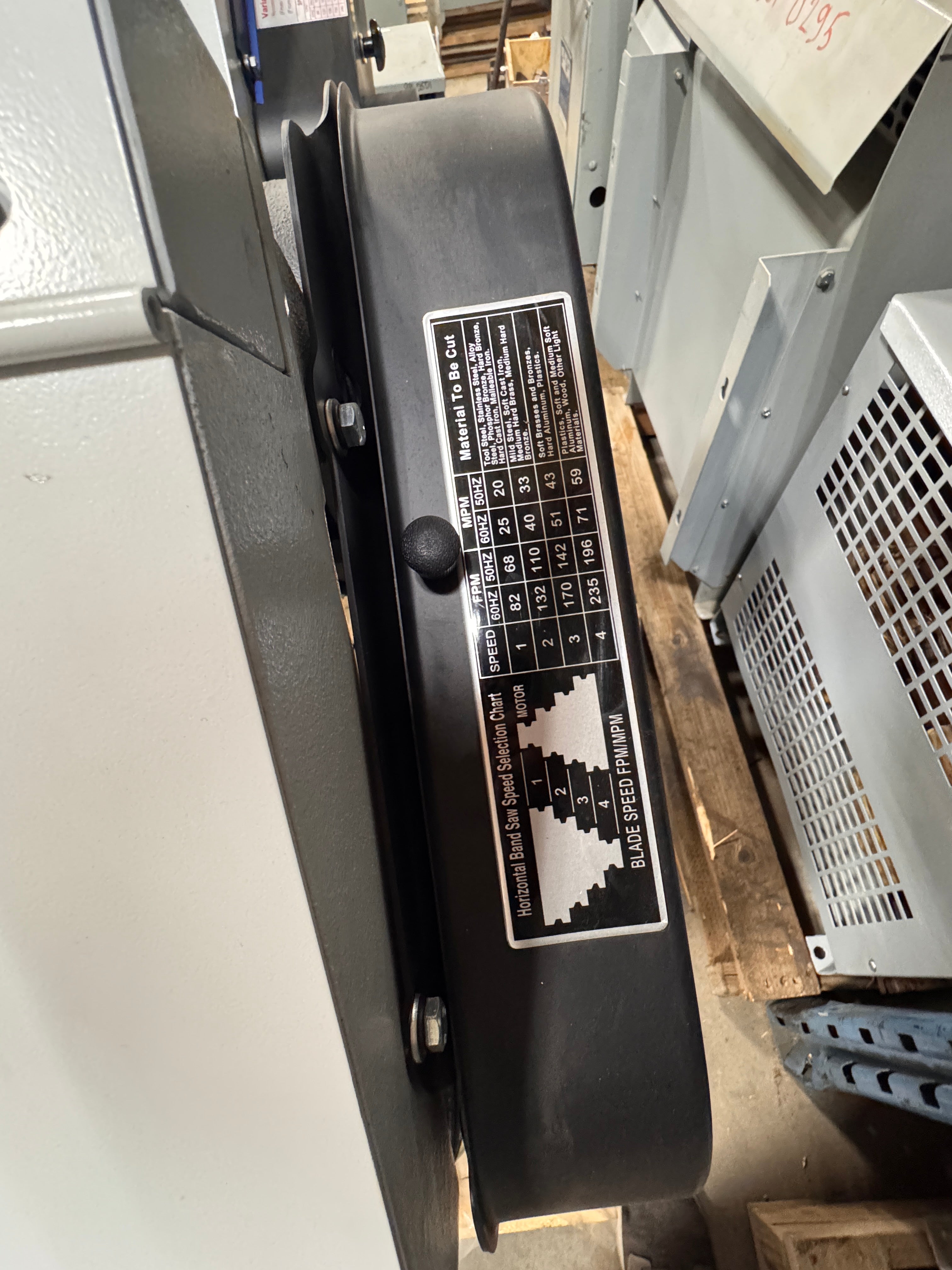

Speeds:
60 Hz: 82, 132, 170, 235 FPM
50 Hz: 68, 110, 142, 196 FPM
Capacity:
90° Round: 9"
90° Rectangle: 9" × 13½"
90° Square: 1½" × 16"
45° Round: 6½"
45° Rectangle: 9" × 6½"
Dimensions: L67" × W30"
Shipping Weight: 625 lbs (285 kg)
