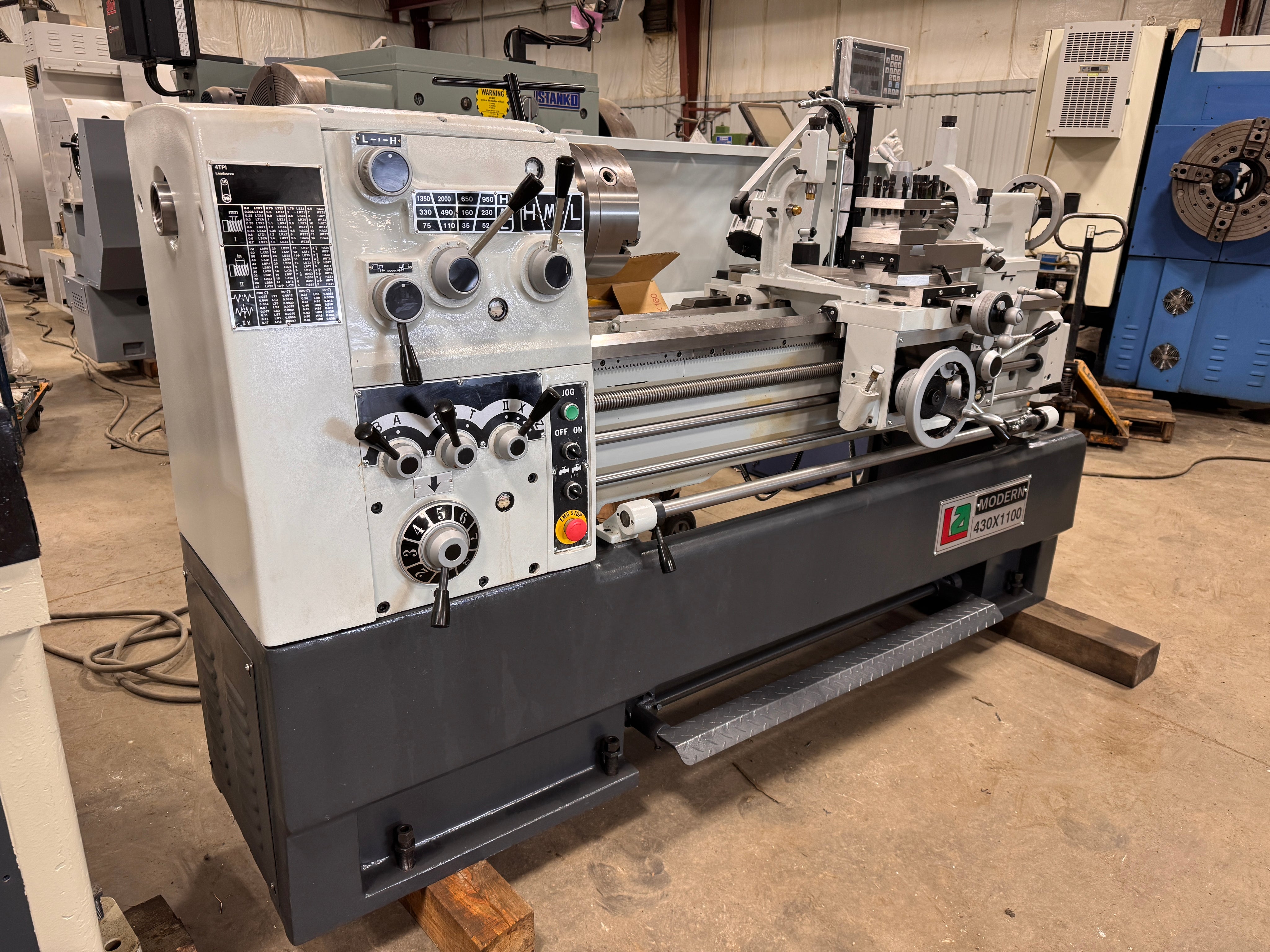

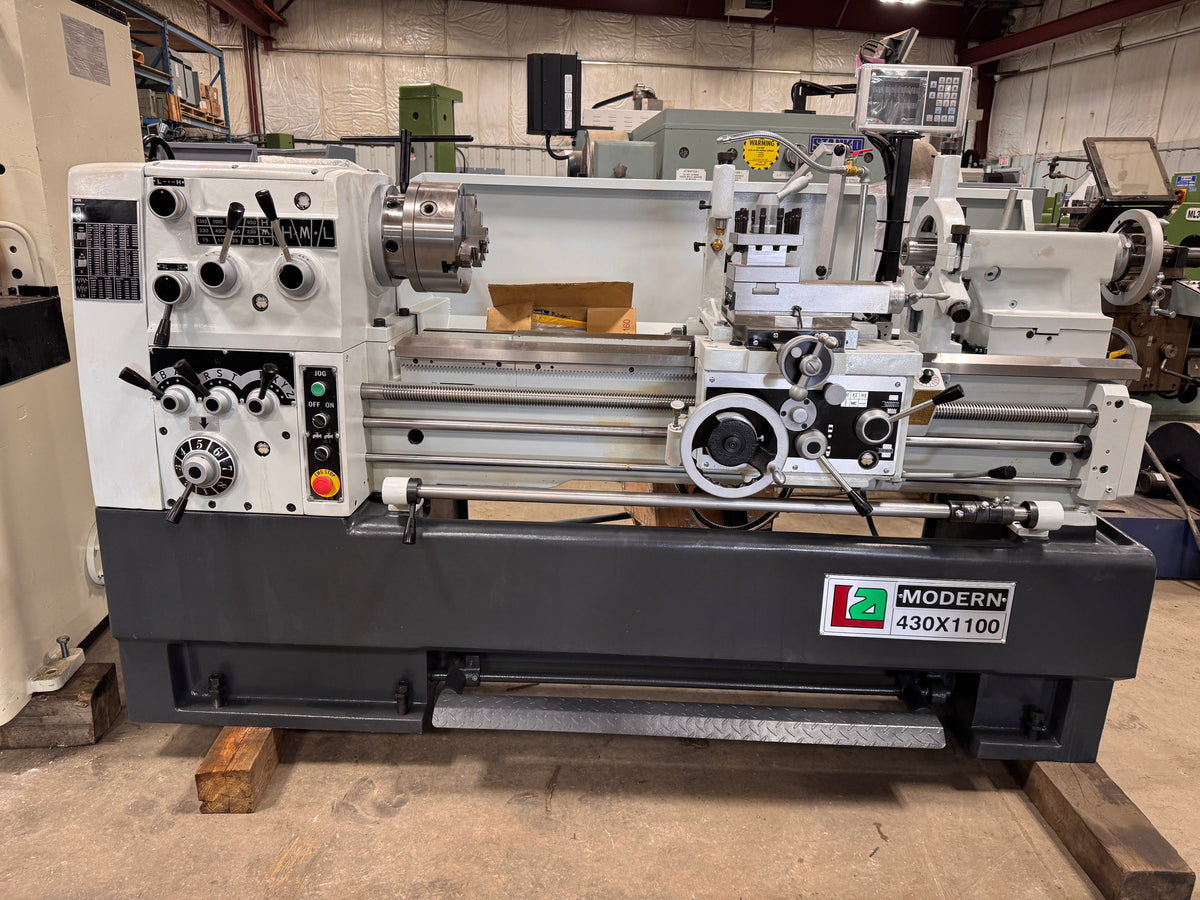

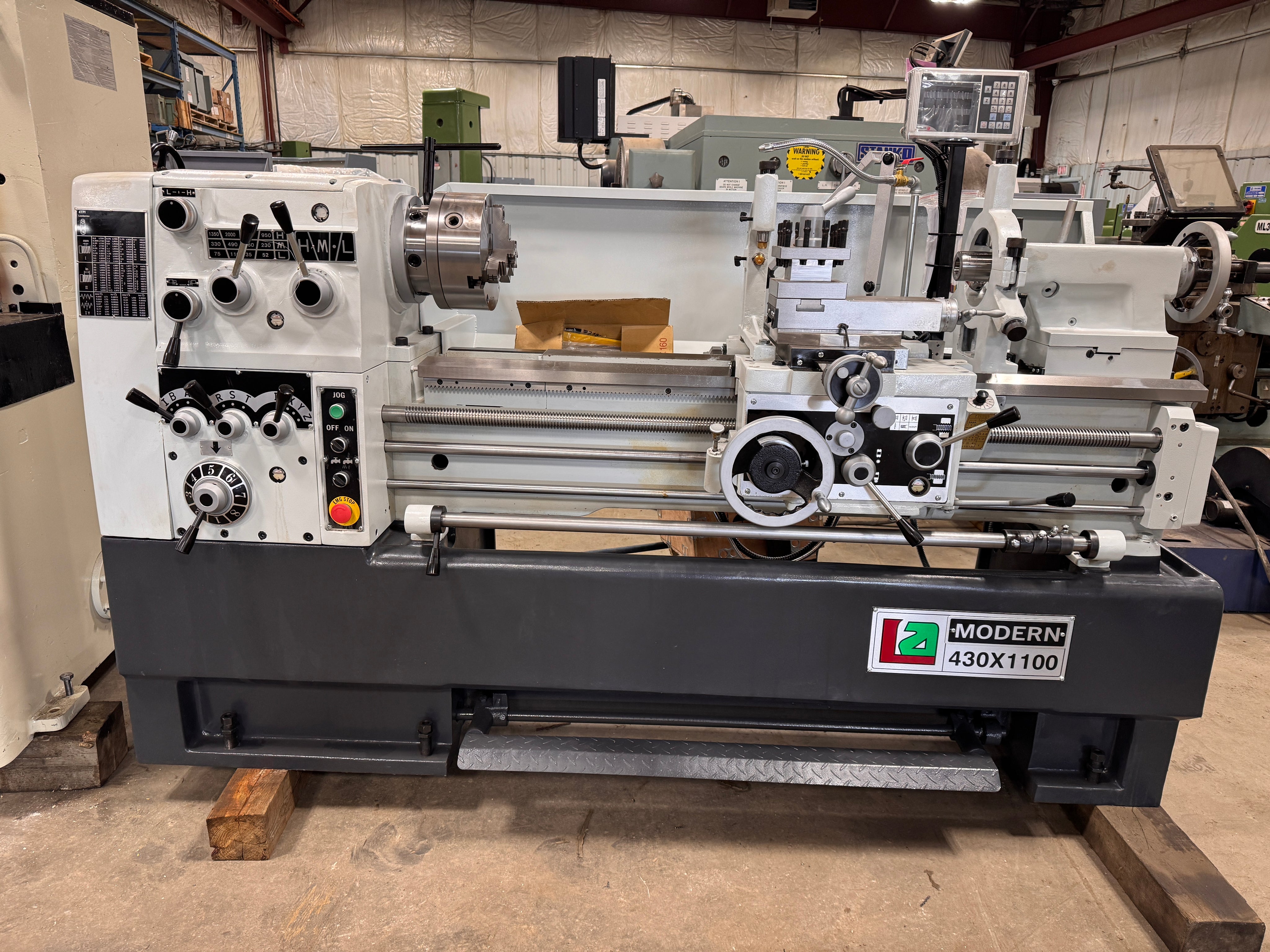

Stanko 17×44 Precision Lathe

The Stanko 17×44 is a heavy-duty precision engine lathe designed for machining, repair, and general turning operations. With a 17″ swing over bed and 44″ distance between centers, this machine provides excellent rigidity and accuracy for demanding shop work. A 2″ spindle bore and wide speed range (35–2000 RPM) make it versatile for threading, turning, and production machining.

This model is equipped with a D1-6 camlock spindle nose, hardened bedways, and a 7.5 HP motor, making it suitable for both light finishing jobs and heavy stock removal.

Brand: Stanko

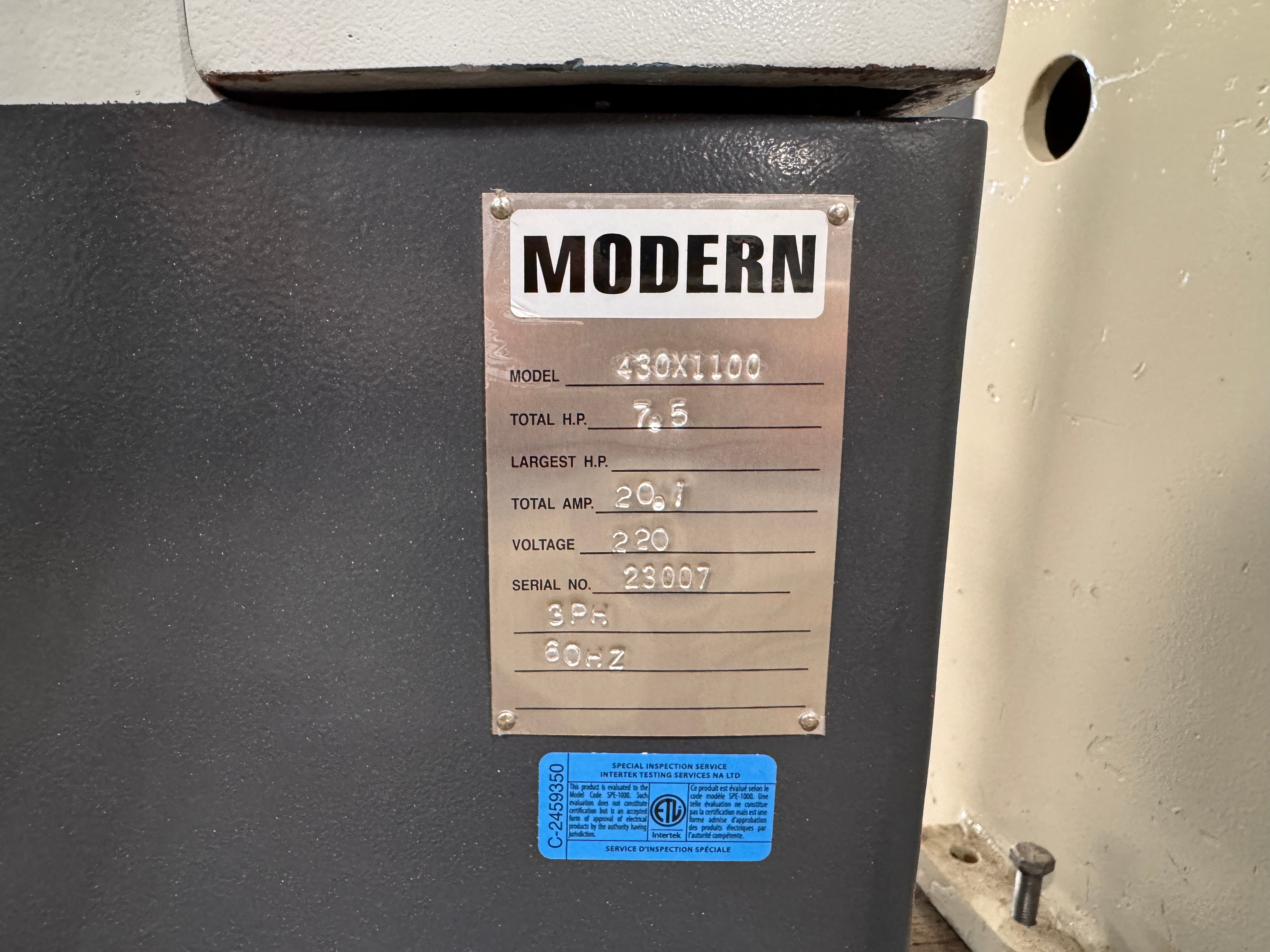

Model: 17×44 (LA-430×1100)
Swing Over Bed: 17″ (430 mm)
Swing Over Cross Slide: 10.2″ (260 mm)
Swing in Gap: 24.8″ (630 mm)
Distance Between Centers: 44″ (1100 mm)
Spindle Bore: 2″ (52 mm)

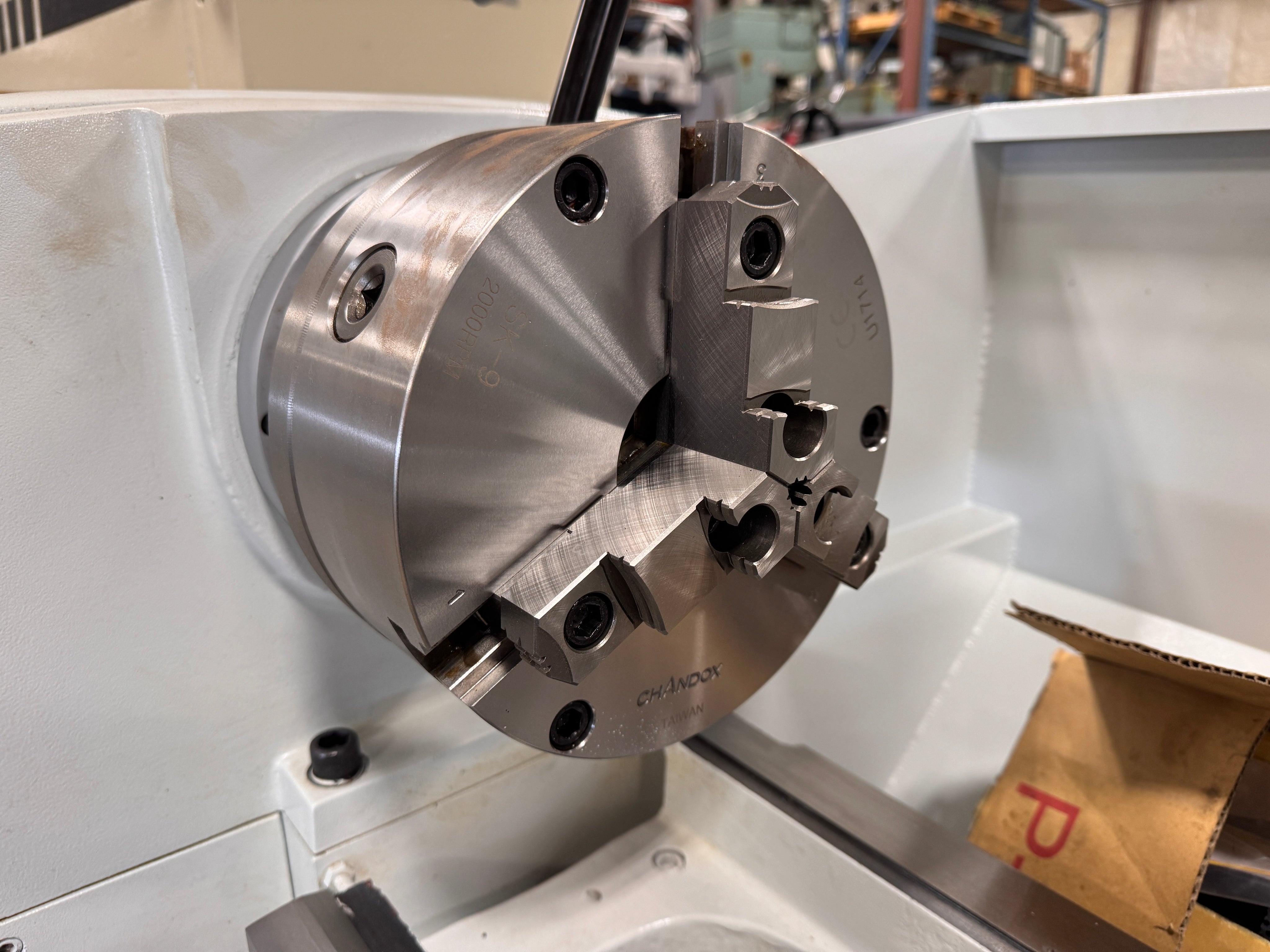

Spindle Nose: D1-6 Camlock
Spindle Speeds: 18 steps, 35–2000 RPM
Motor: 7.5 HP

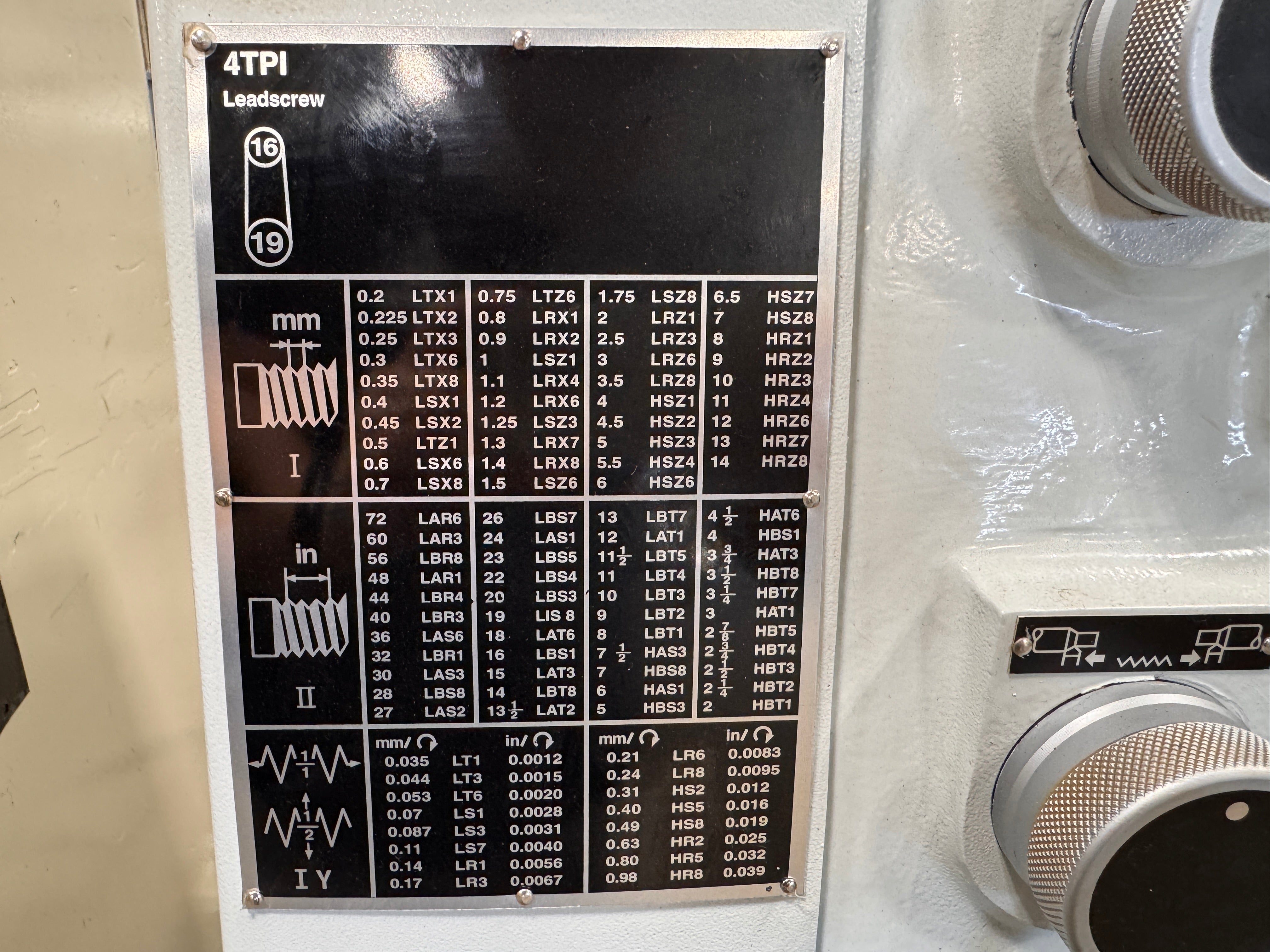

Threads Inch: 45 (2–72 TPI)
Threads Metric: 39 (0.2–14 mm)
Feeds Longitudinal: 0.0015–0.040 IPR (39 ranges)
Feeds Cross: 0.00075–0.020 IPR (39 ranges)
Compound Travel: 5.1″ (130 mm)
Cross Slide Travel: 9.4″ (240 mm)
Tailstock Quill Travel: 6.1″ (155 mm)
Tailstock Quill Diameter: 2.5″ (63.5 mm)
Tailstock Taper: MT #4
Bed Width: 11.8″ (300 mm)
Overall Dimensions: ~92″ × 37″ × 48″
Weight: ~4,400 lbs

We also stock other sizes in the same series, including:

• SL2144 – 21″ swing × 44″ centers

• SL26120 – 26″ swing × 120″ centers

Whether you need a compact precision machine or a large-capacity engine lathe, Stanko lathes are built to perform in industrial environments.
