Specifications

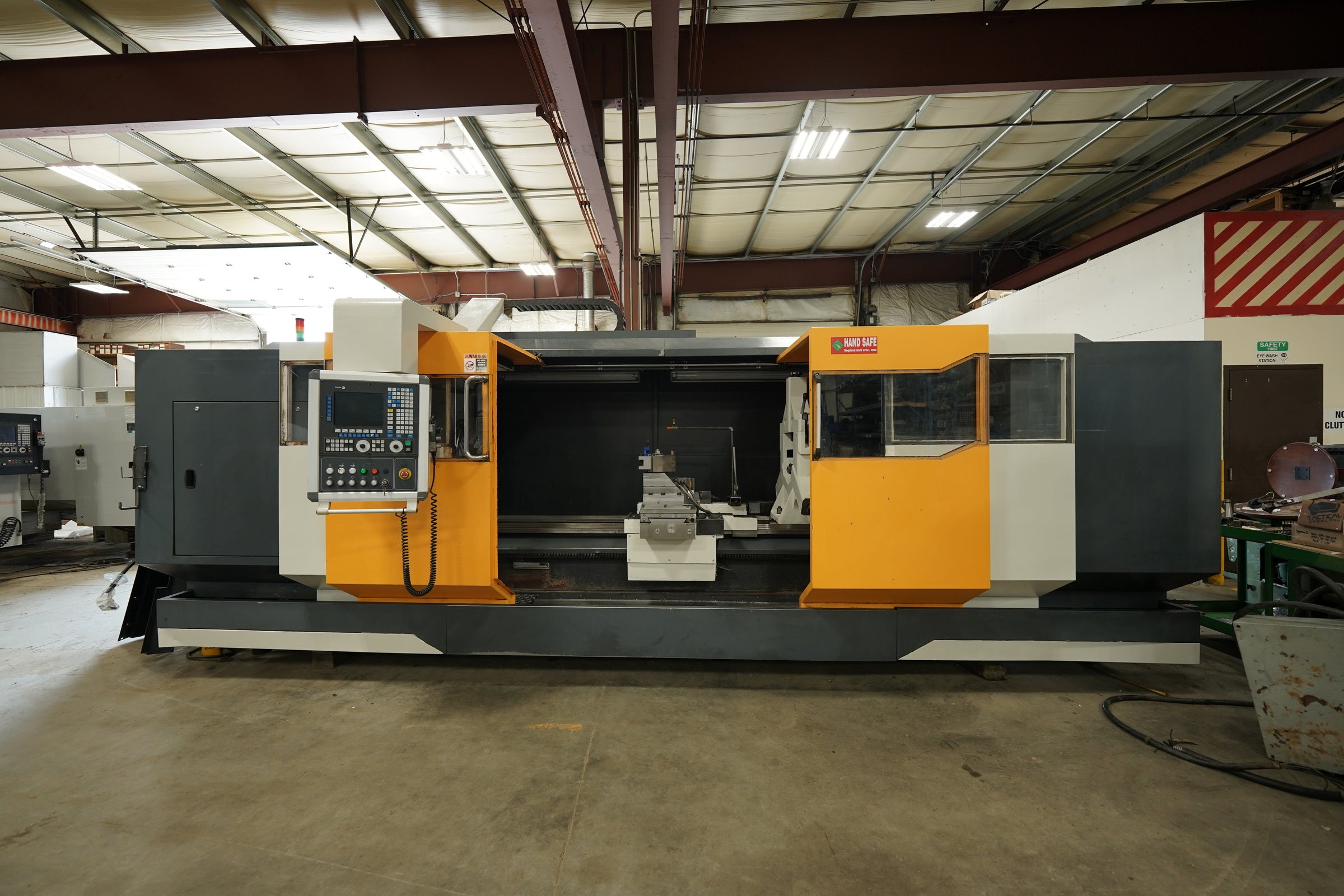

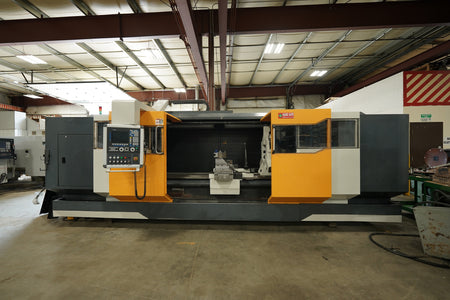

• Model: Maxcut MLNC-9/32120
• Control: Fagor 8055 Control
• Swing over bed: 33"
• Distance between centers: 120"
• Swing over cross slide: 17.50"
• Max. cutting diameter: 32"
• Max cutting length: 110"
• Bar cap.: 9"
• Bed Width: 23.6"
• Load Cap. between centers: 5,511 lbs
• Bedway: 24"
• Steady Rest Cap.: 1.60" - 14"
• Backsplash guard with travelling door
• Heavy Duty Structure Frame: 14,000 lbs
• Chip Conveyor
• Travel X: 16.5"
• Travel Z: 110.23"
• Spindle: 60 - 800 RPM
• Spindle Bore: 9.48"
• Spindle Motor: 30 HP
• Spindle Mount: A2-15
• Chuck: 25" - 4 Jaw Master (Bison)
• Feedrate X: 3 M/min
• Feedrate Z: 6 M/min
• Voltage: 400v
• Tailstock Taper: MT5
• Quill Stroke: 9.84"
• Quill Diameter: 3.93"
• Machine Dimension: 222.5" x 87.5" x 72"
• Machine Weight: 16,540 lbs

ST: 623
