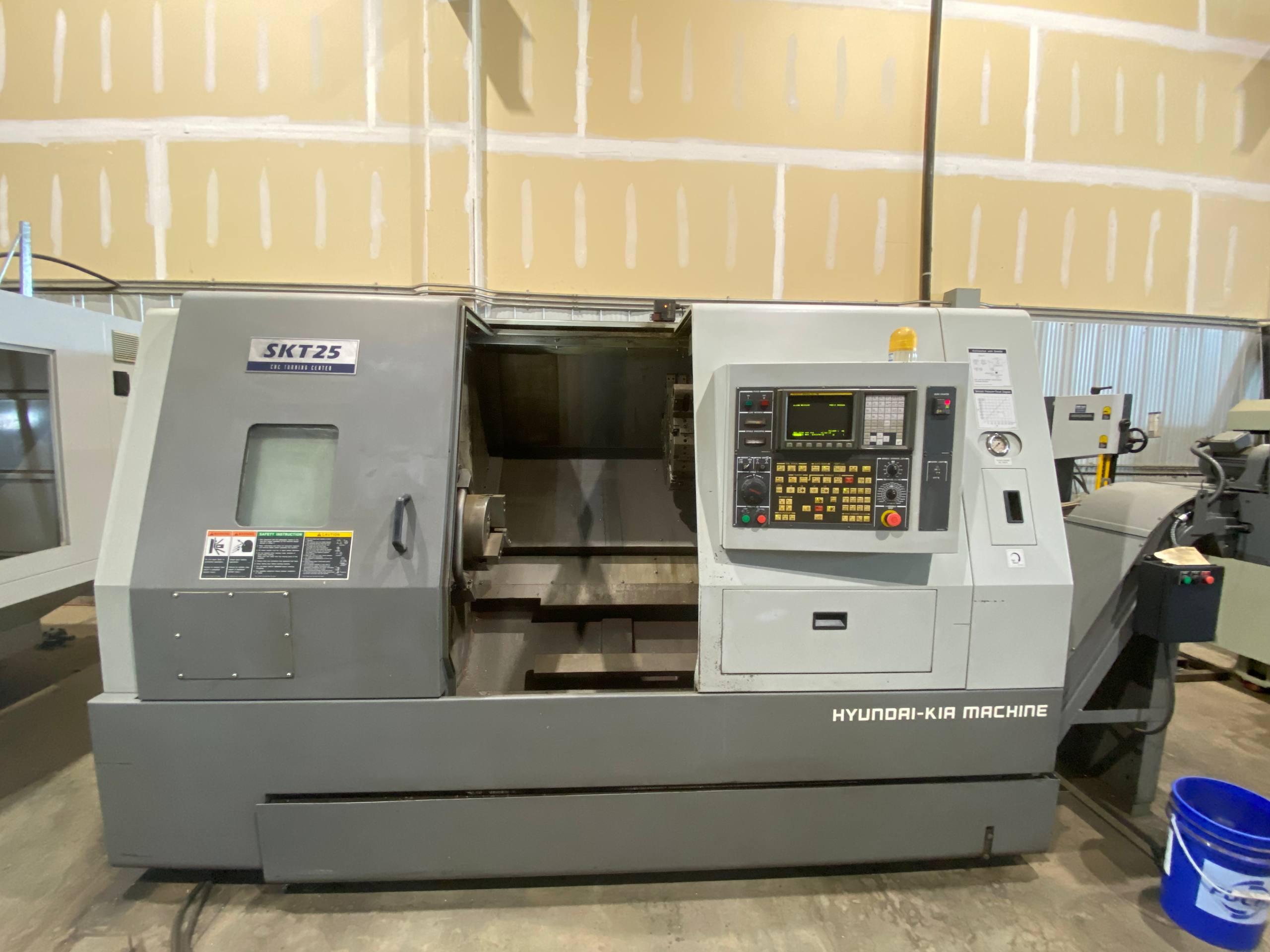

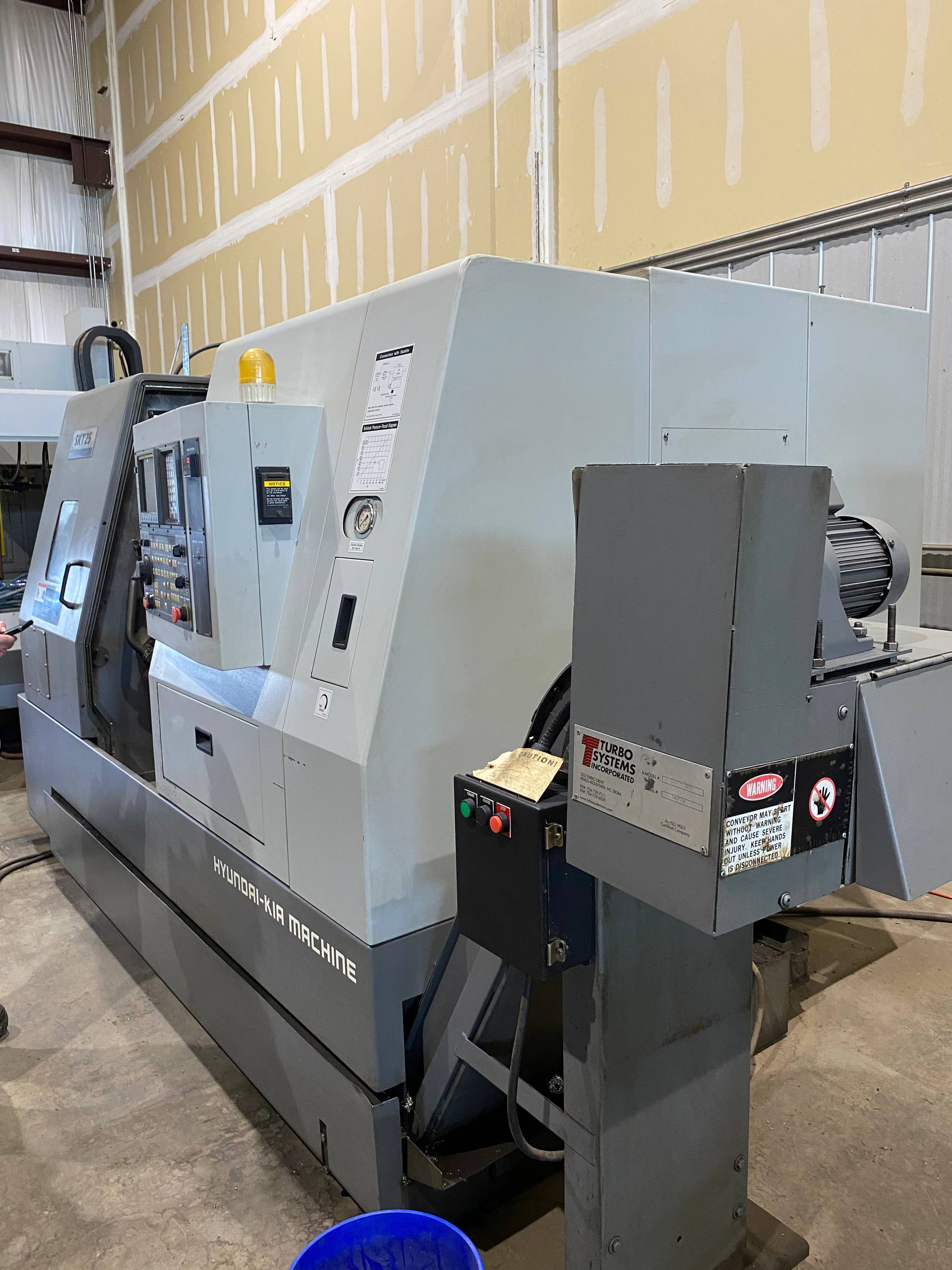

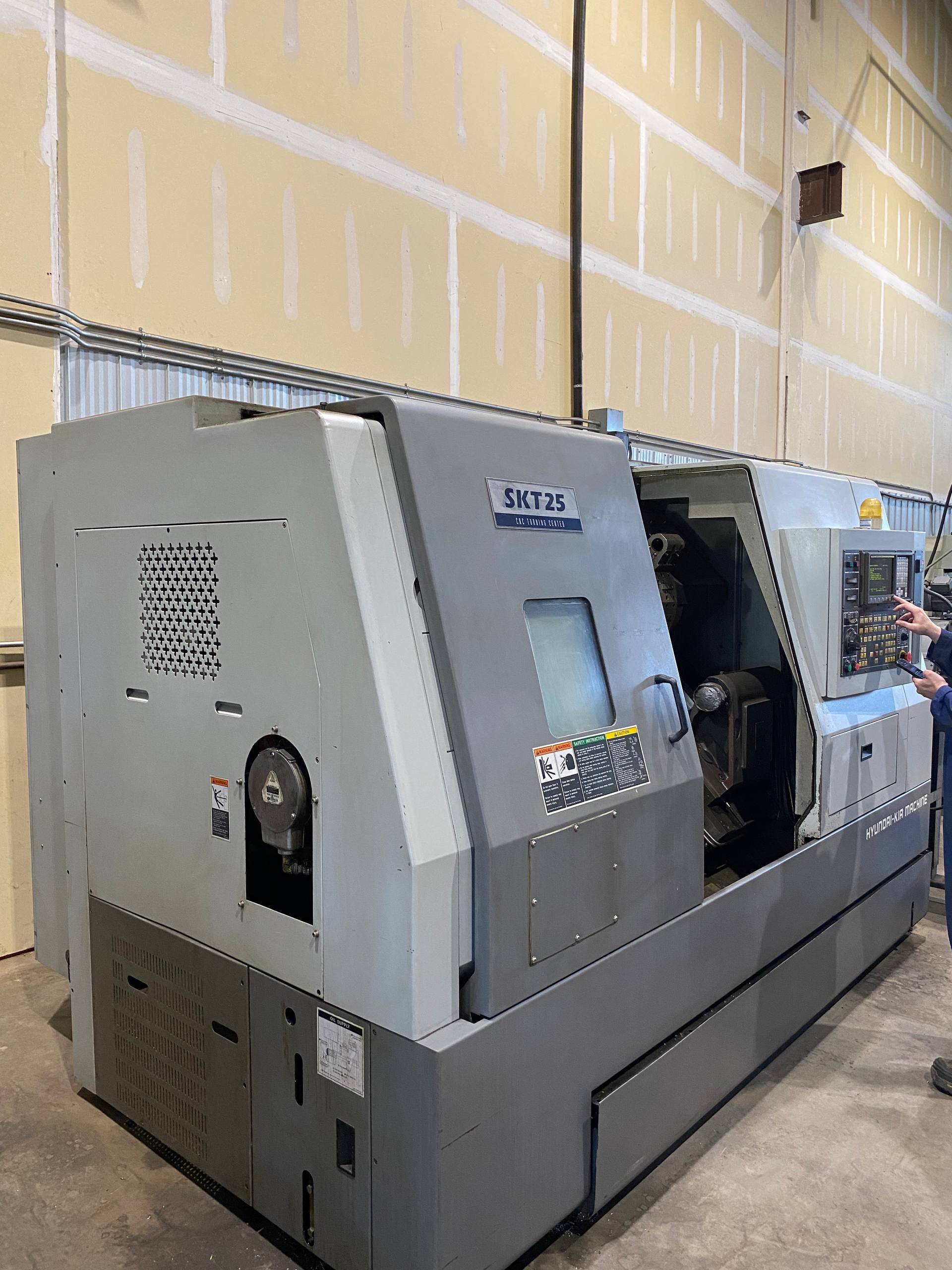

HYUNDAI-KIA SKT-25 CNC Turning Center

DESCRIPTION

HYUNDAI-KIA SKT-25 CNC Turning Center equipped with FANUC Series 0i-TB CNC control. Features a Kitagawa hydraulic 3-jaw chuck, 12-station indexing turret, and hydraulic tailstock. Manufactured in 2005.

HYUNDAI-KIA SKT-25 CNC Turning Center is a 2-axis CNC horizontal turning center manufactured in 2005. Equipped with FANUC Series 0i-TB CNC control, Kitagawa hydraulic 3-jaw chuck, 12-station indexing turret, and hydraulic tailstock. The machine has a maximum turning diameter of 500 mm (19.68") and maximum turning length of 720 mm (28.3").

SPECIFICATIONS

HYUNDAI-KIA SKT-25
CNC Turning Center

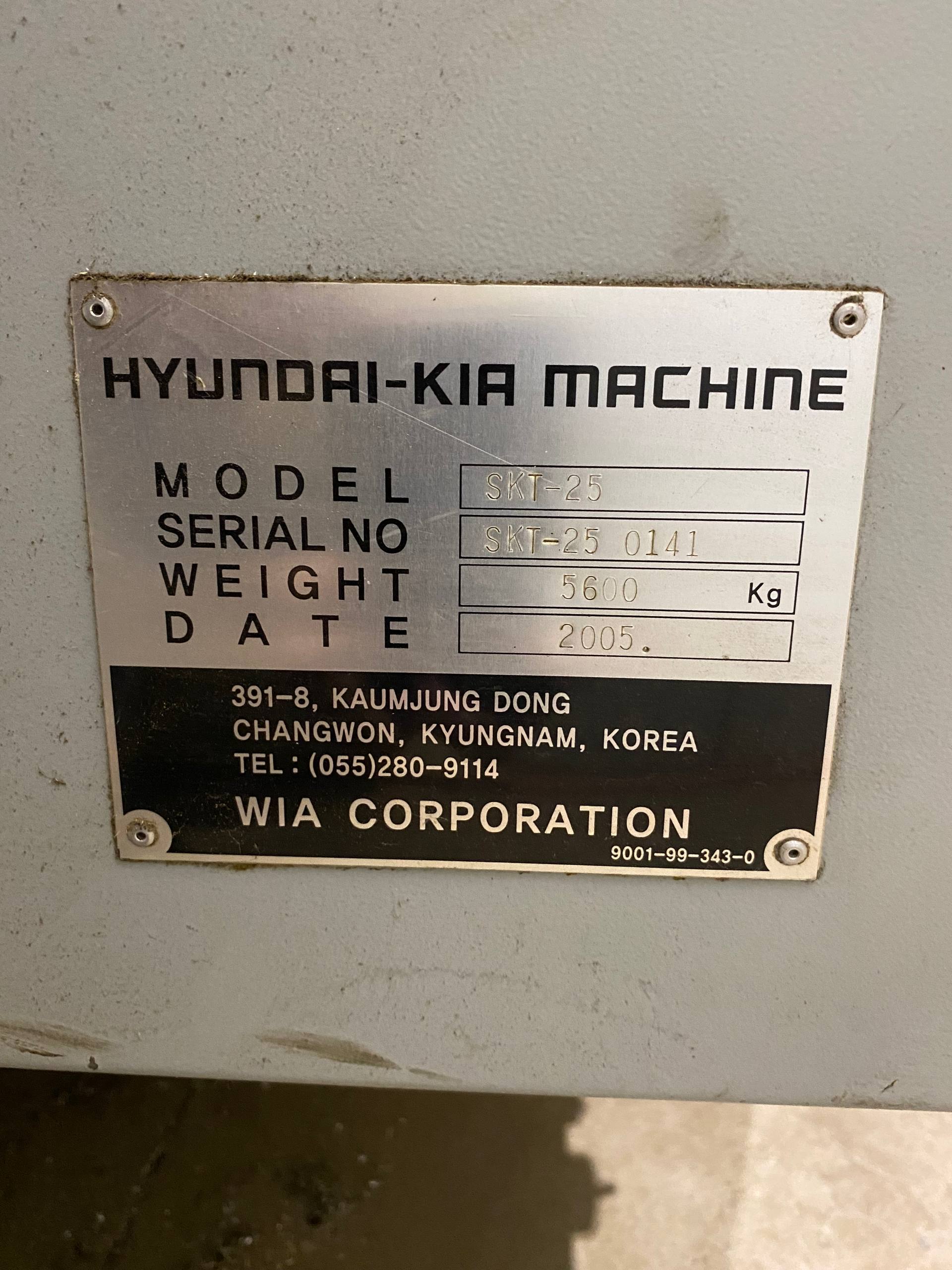

Serial Number: SKT-25 0141
Year: 2005

CAPACITY
Maximum Turning Diameter: 500 mm (19.68")
Maximum Turning Length: 720 mm (28.3")
Bar Capacity: 76 mm (3.0")
X-Axis Travel: 250–290 mm (9.84–11.4")
Z-Axis Travel: 750 mm (29.5")

SPINDLE
Spindle Nose: A2-8
Maximum Spindle Speed: 3,600 RPM
Main Spindle Motor: 22 kW / 30 HP

CHUCK

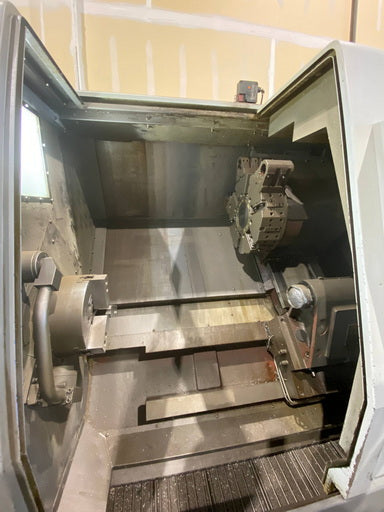

Kitagawa Hydraulic 3-Jaw Chuck

TURRET
12-Station Indexing Turret

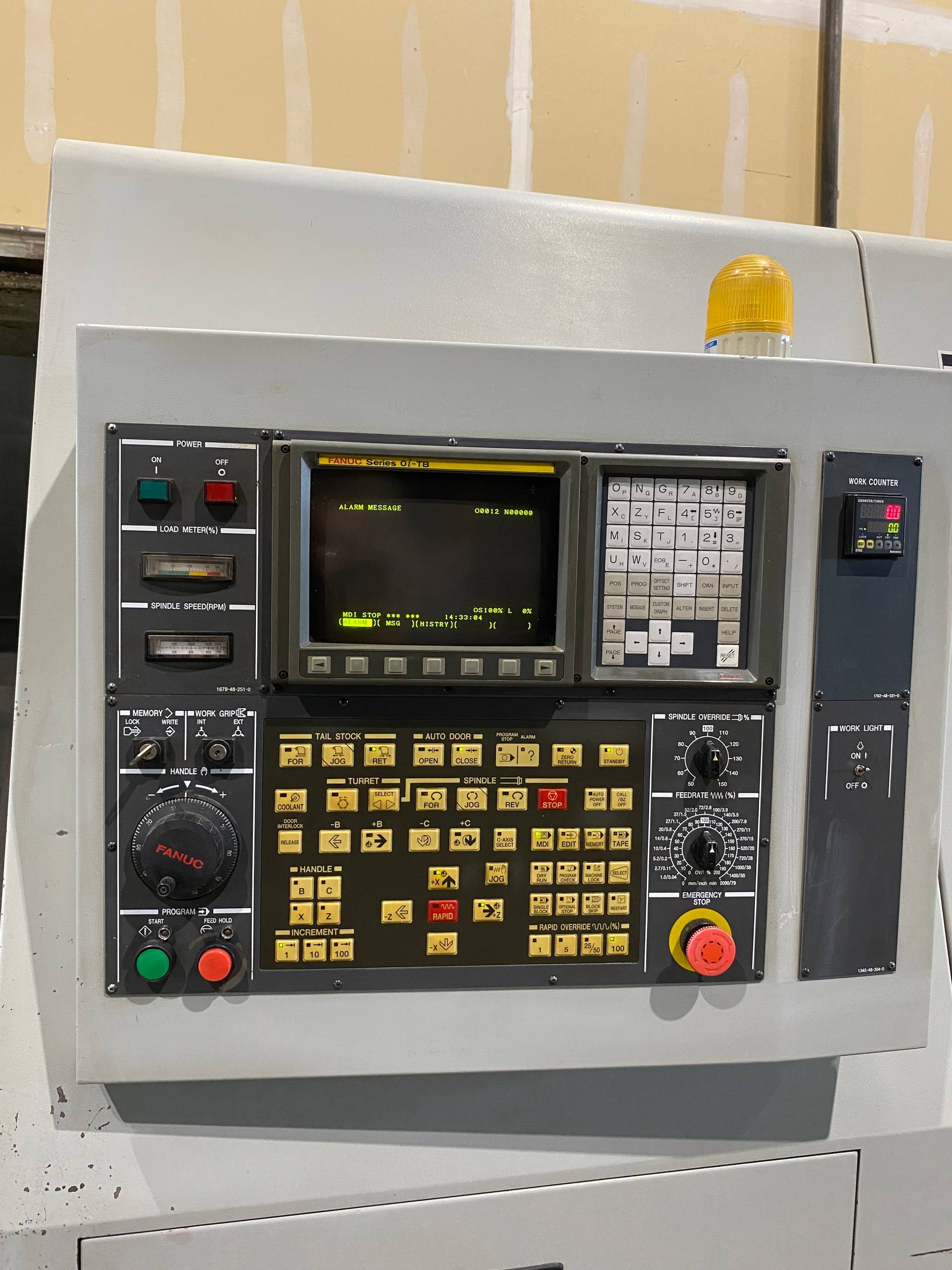

CNC CONTROL

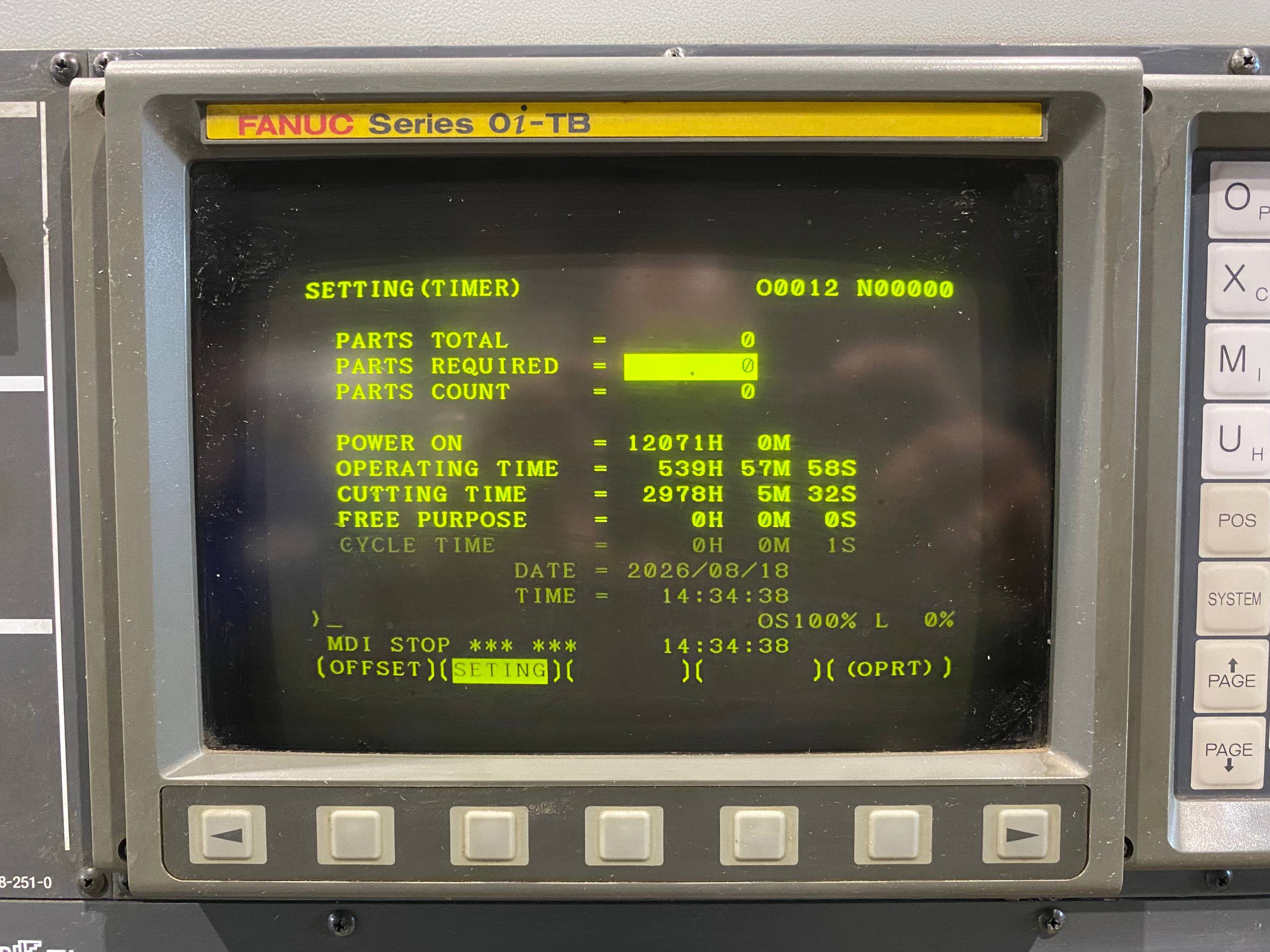

FANUC Series 0i-TB

TAILSTOCK
Hydraulic Tailstock

LIVE TOOLING / Y-AXIS
Live Tooling: No
Y-Axis: No

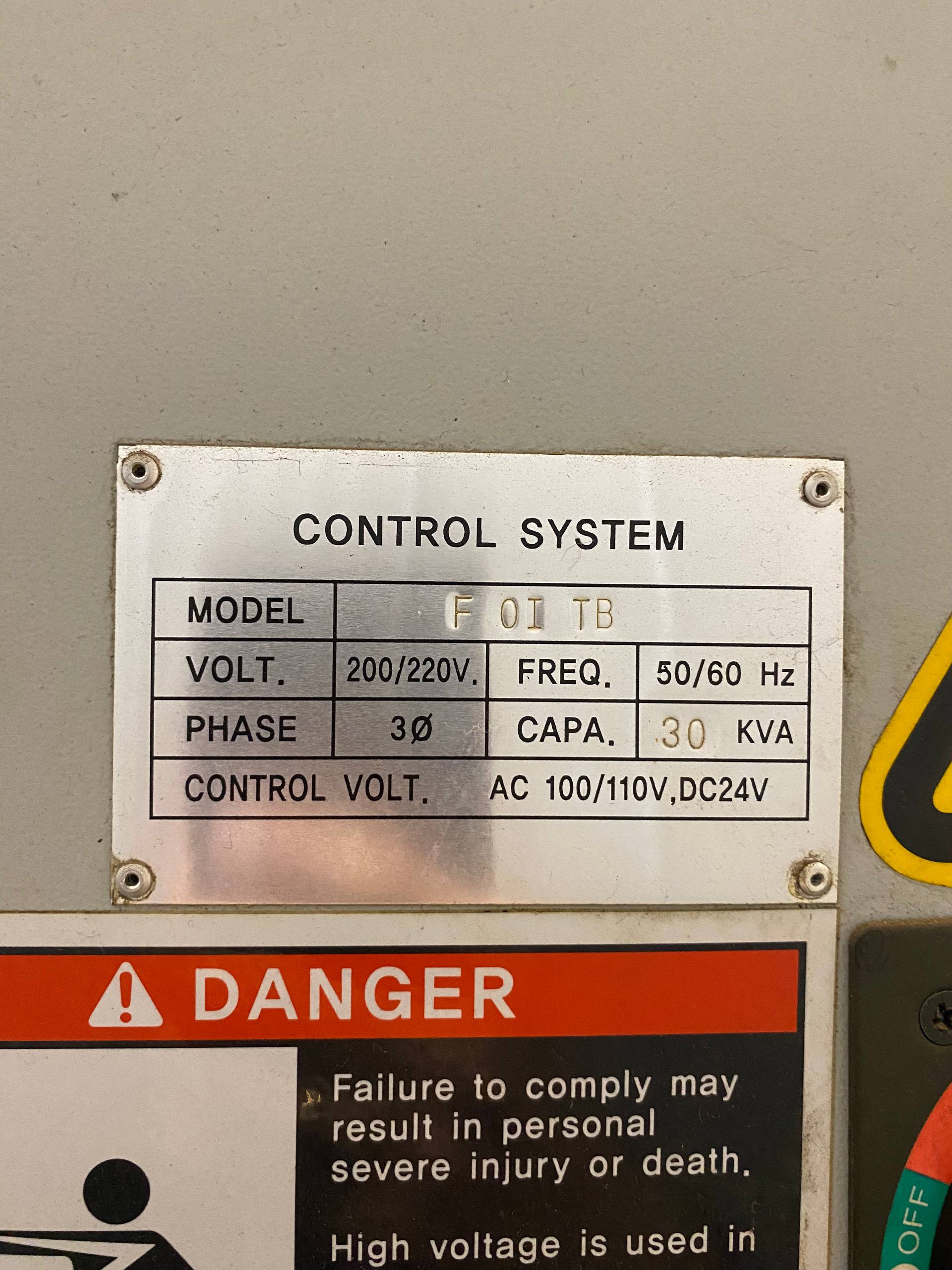

ELECTRICAL
Input Voltage: 200/220V AC
Phase: 3 PH
Frequency: 50/60 Hz
Electrical Capacity: 30 kVA
Control Voltage: AC 100/110V; DC 24V

MACHINE WEIGHT
5,600 kg (12,346 lbs)
