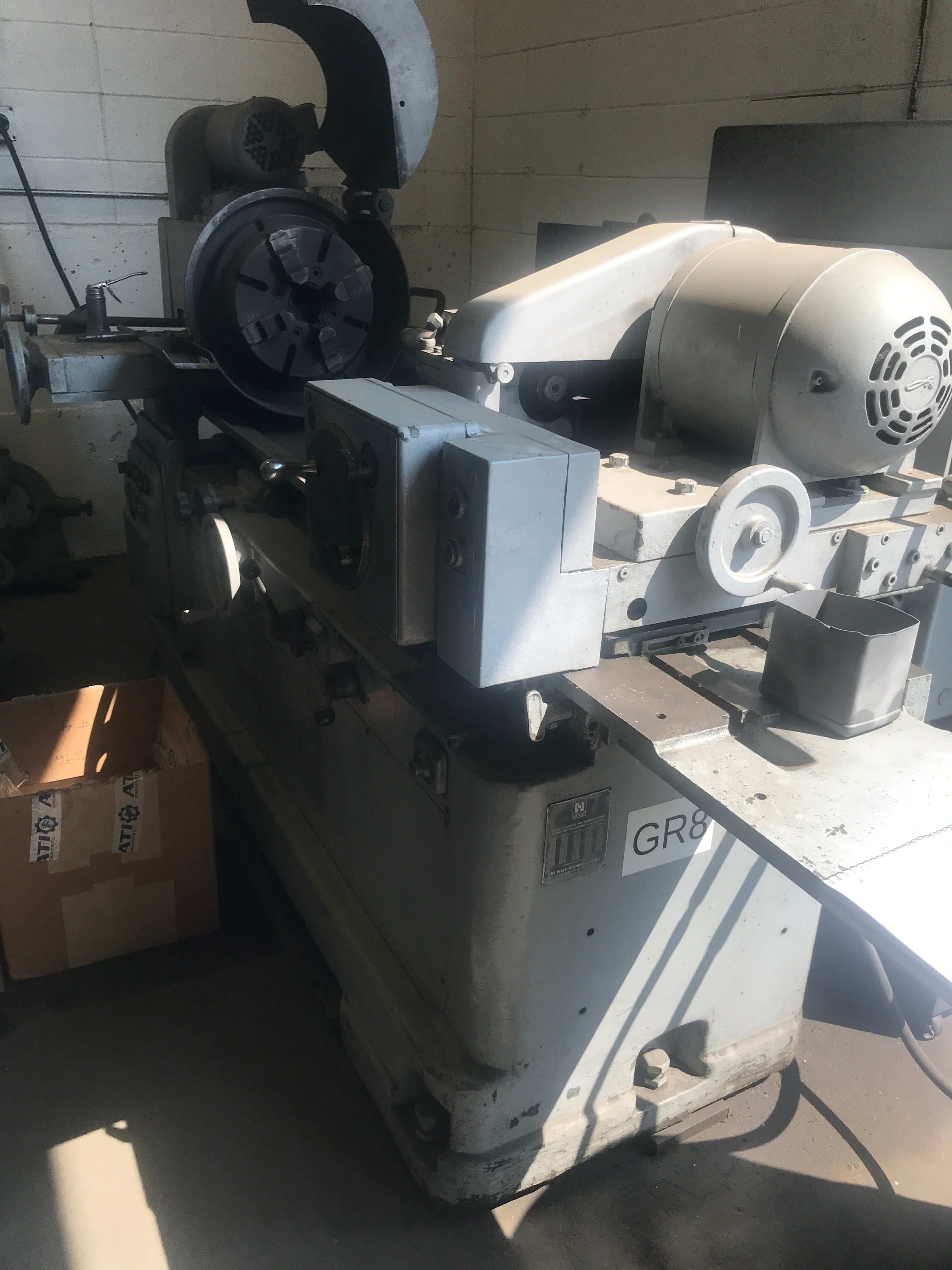

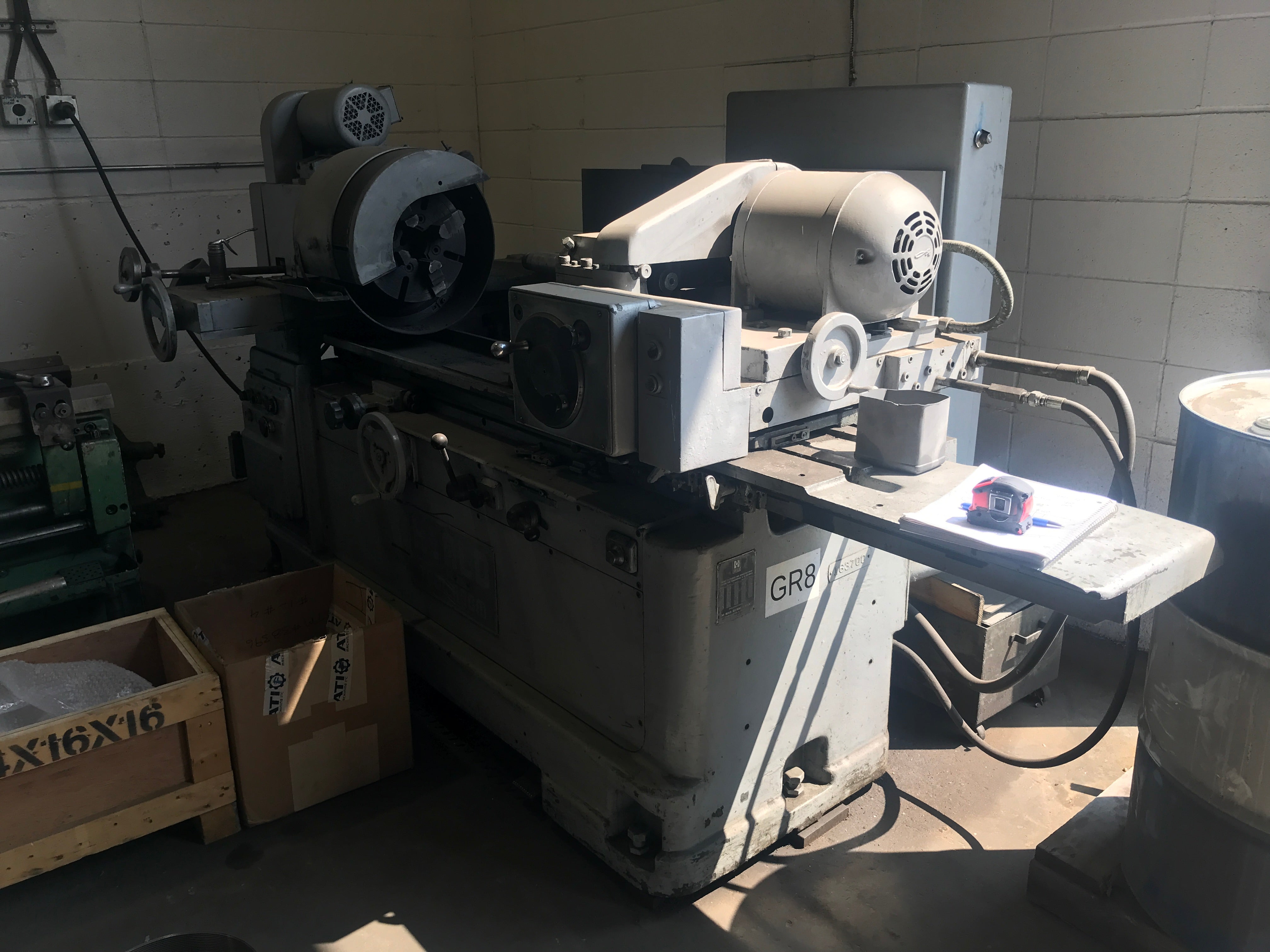

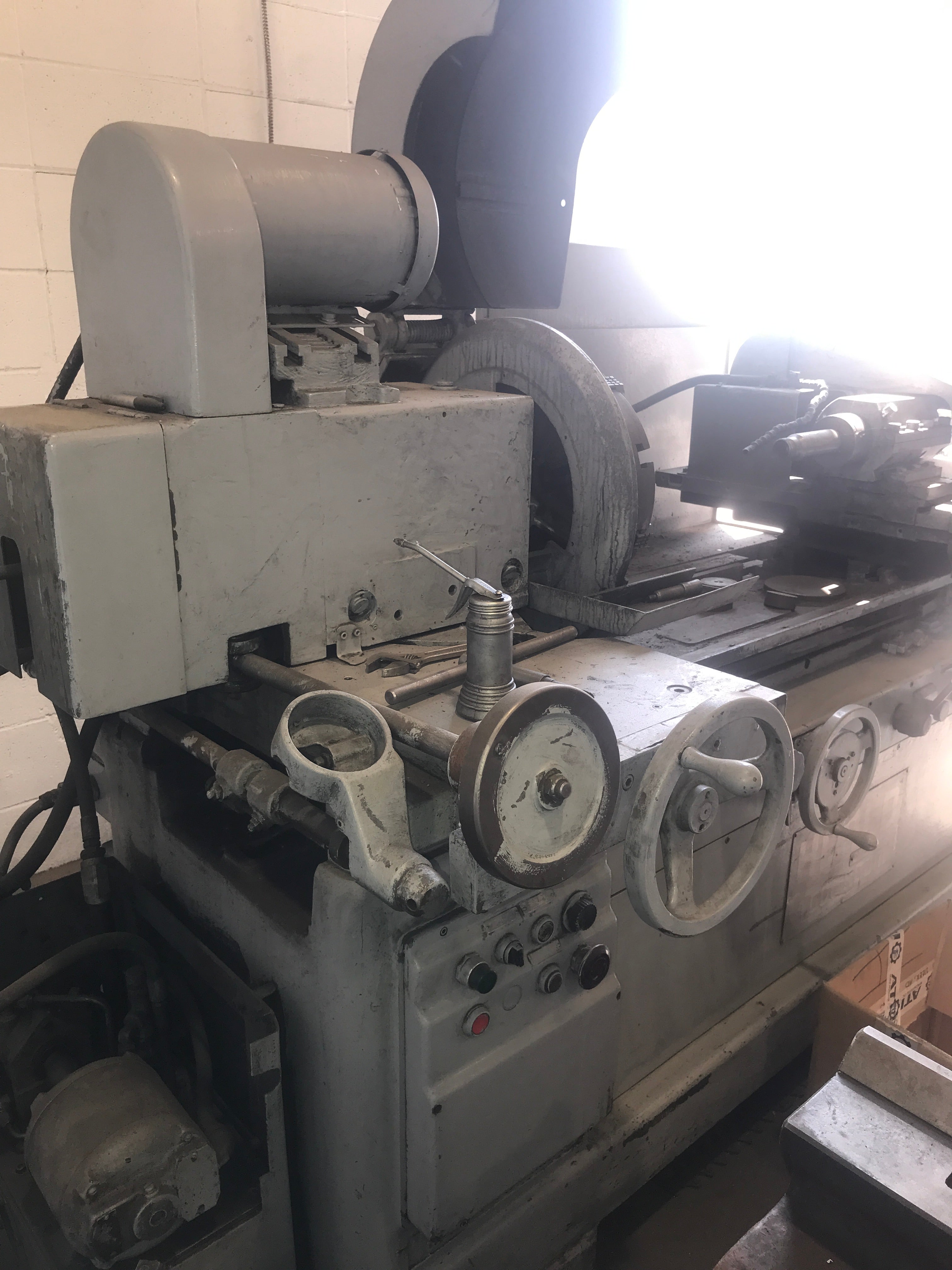

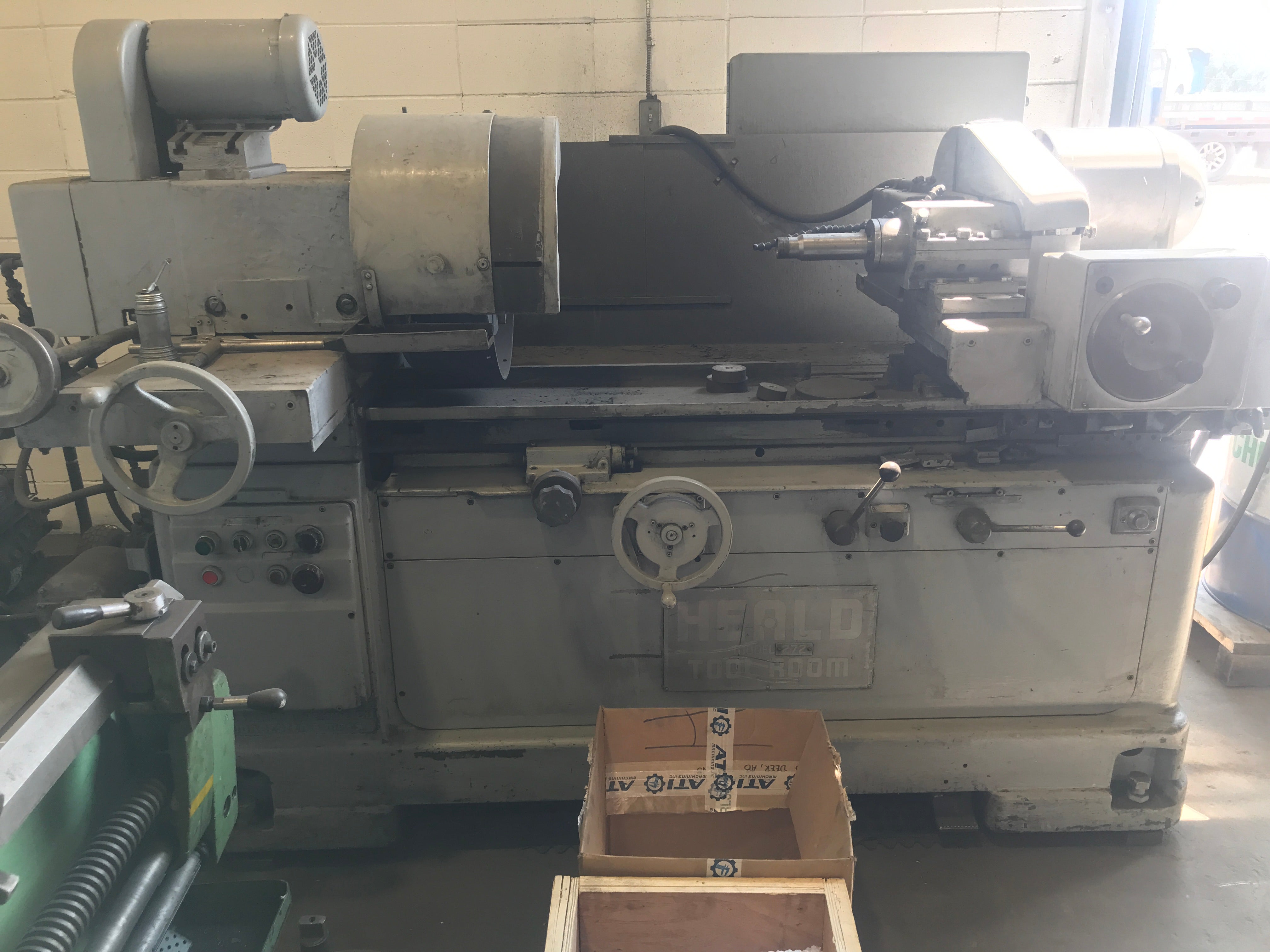

Heald Tool Room Cylindrical Grinder – Specifications

Model Heald Tool Room Grinder
Swing Over Table 14" (estimated)
Distance Between Centers 30" to 36" (approximate)
Grinding Wheel Diameter ~14" (approximate)

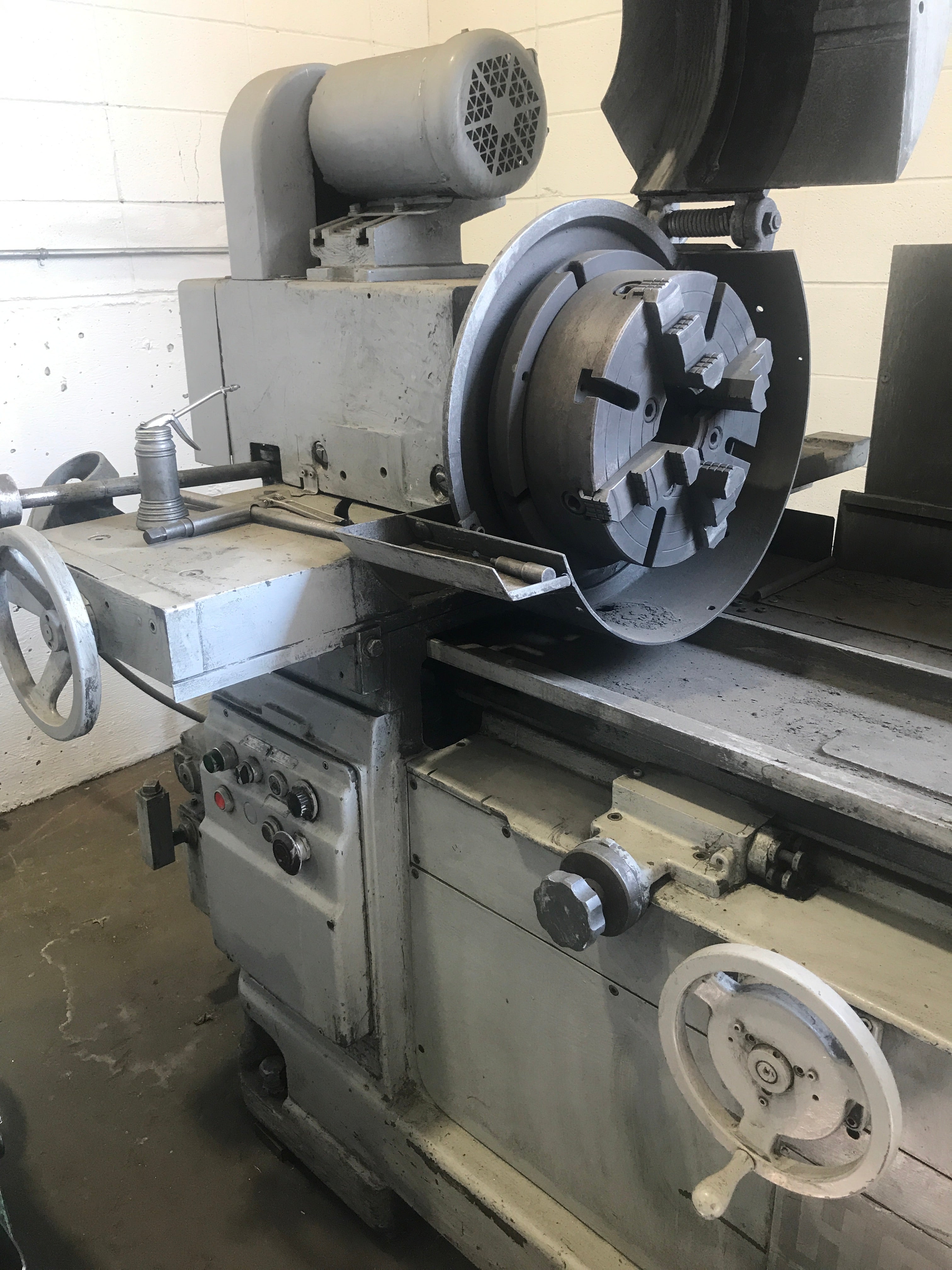

Workhead Chuck 4-jaw, approx. 10" diameter

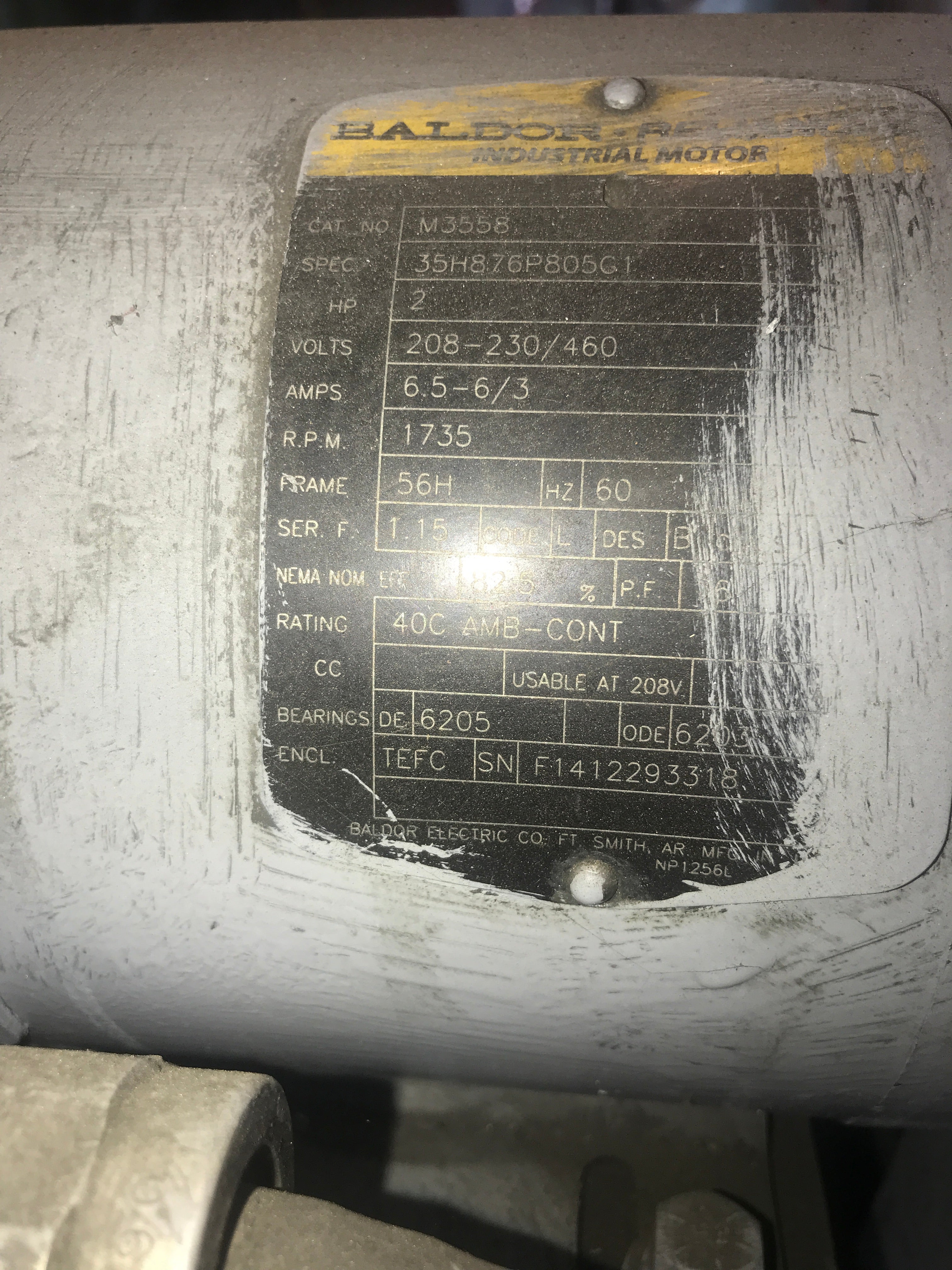

Workhead Motor 2 HP Baldor Motor
Workhead Motor Speed 1735 RPM
Motor Voltage 208–230/460V, 3 Phase

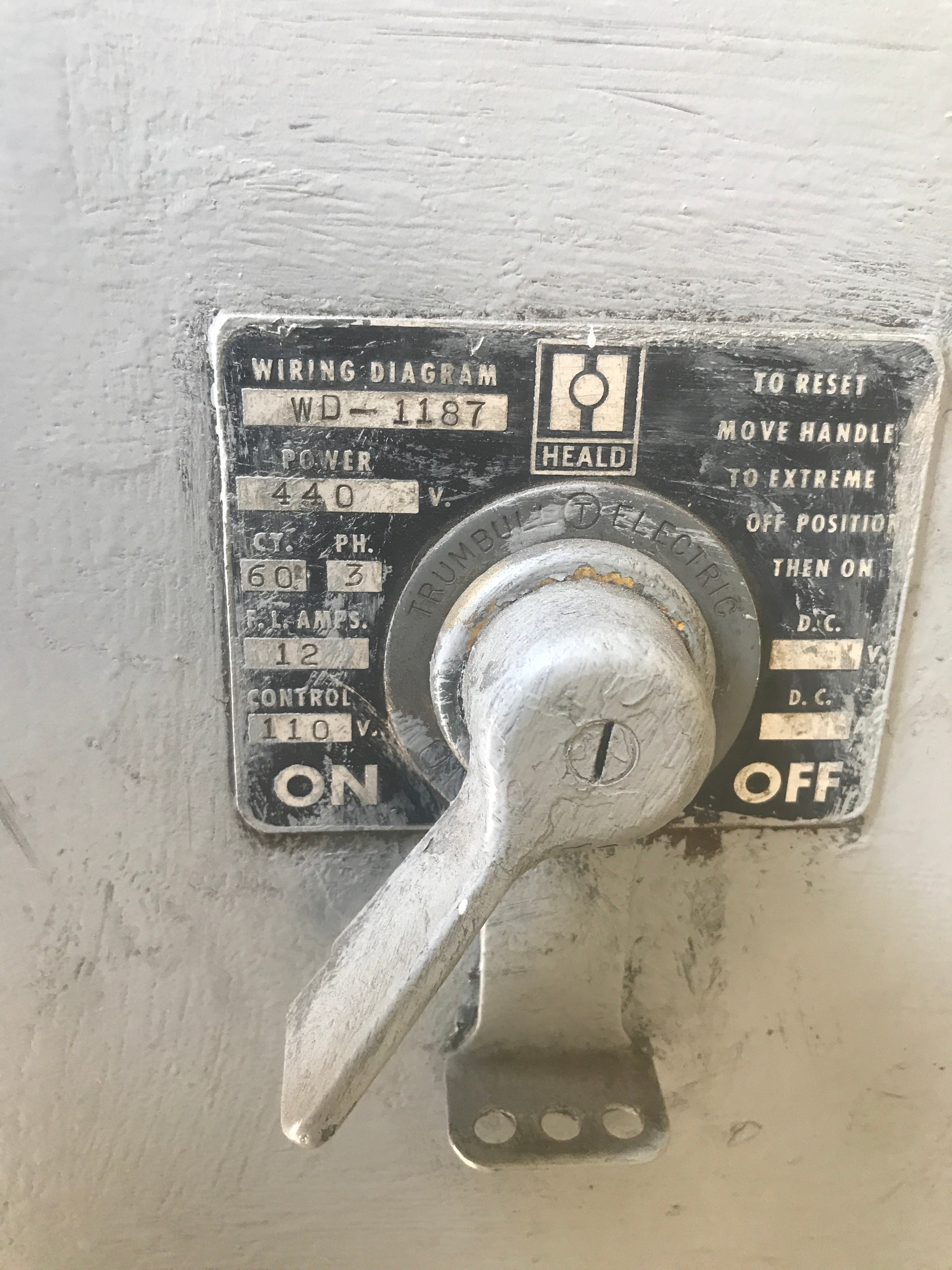

Control Voltage 110V
Power Requirement 440V, 3 Phase, 60 Hz
Amperage 6.5–3 A
Bed Type V and flat ways
Table Travel Appears manual with fine hand-feed and automatic feed knobs

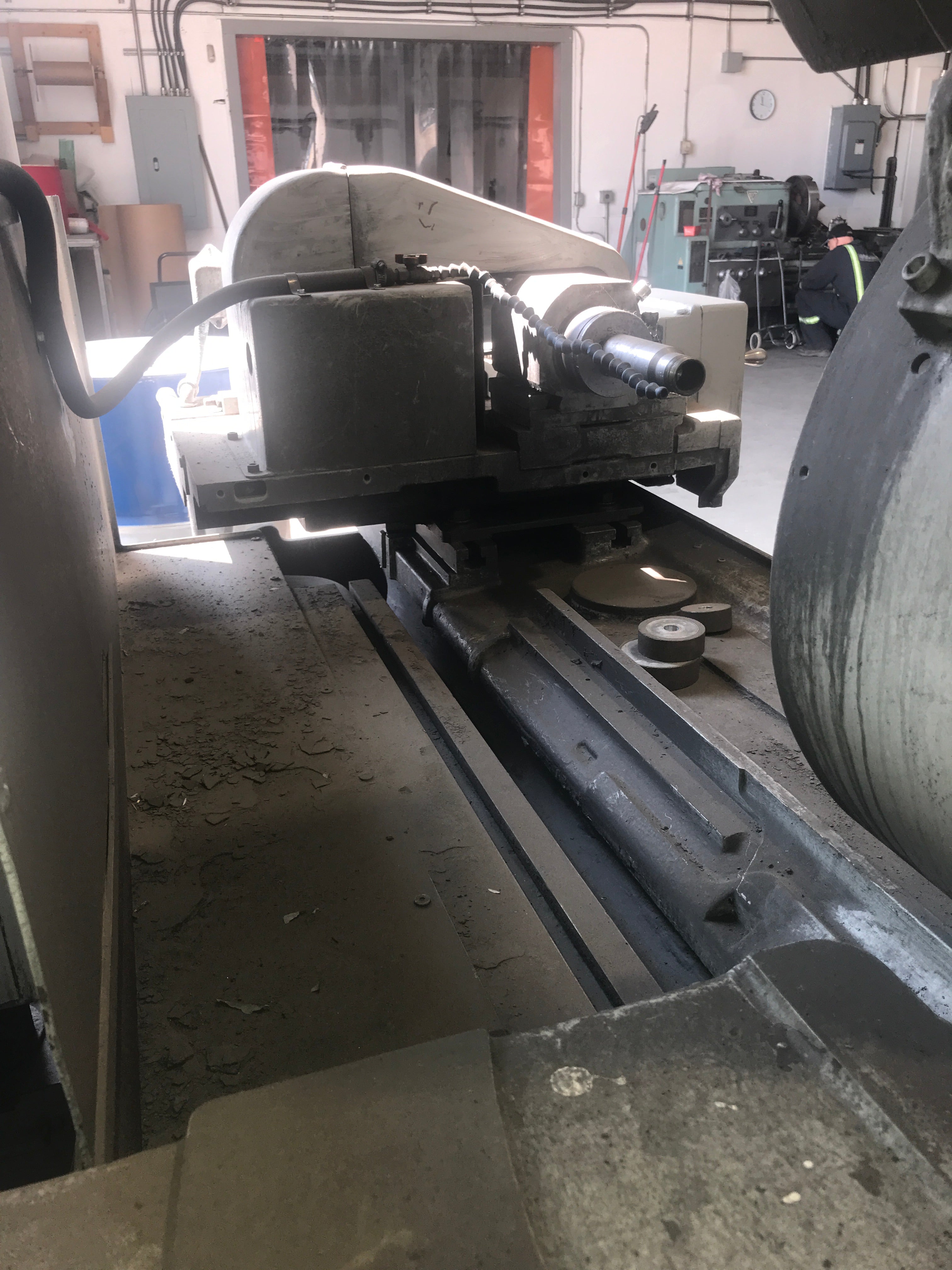

Tailstock Type Fixed quill, manually advanced
Coolant System Not visible, possibly manual or external
Construction Heavy-duty cast base
Approx. Machine Footprint 72" L x 40" W (estimated)
