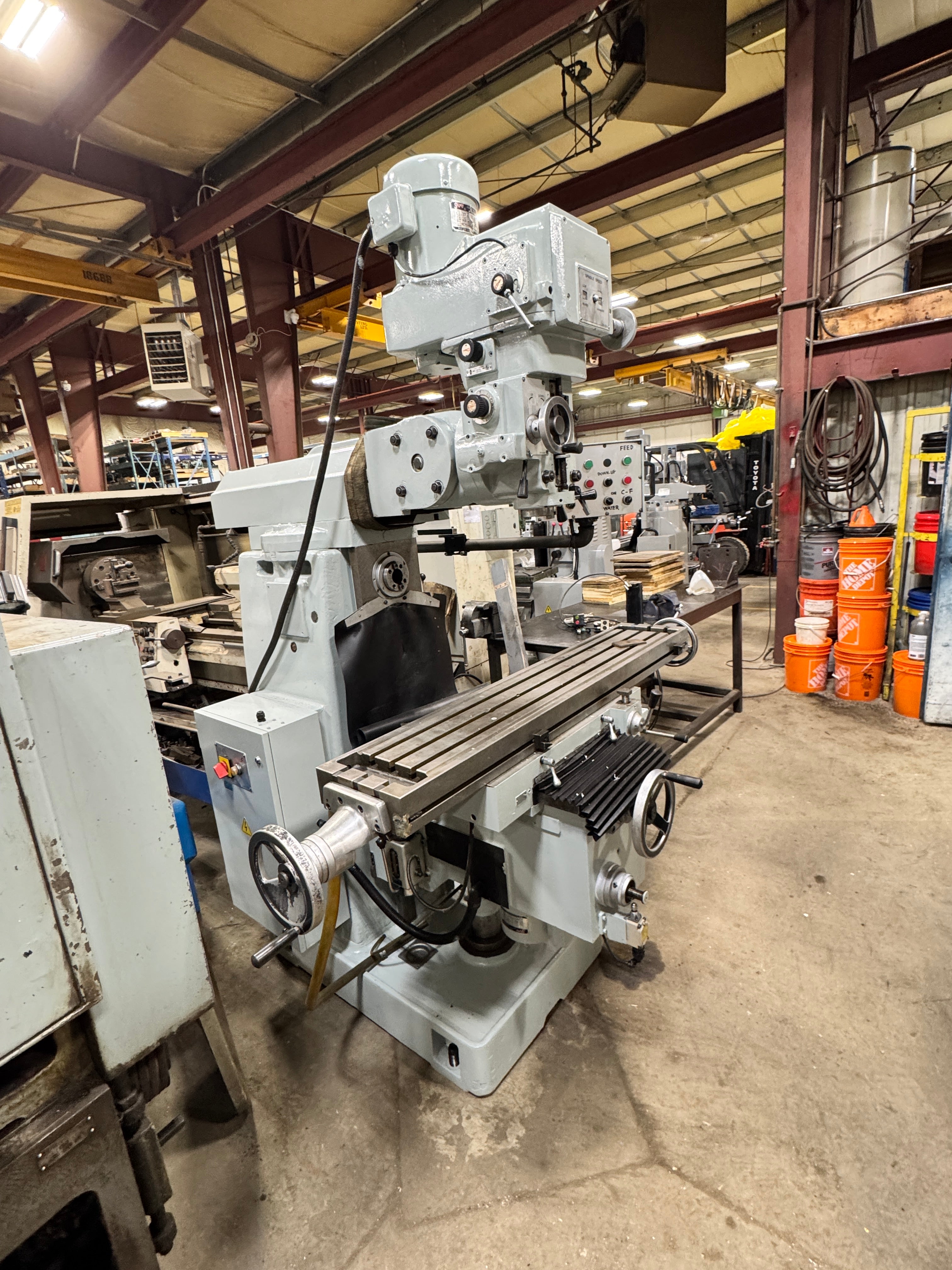

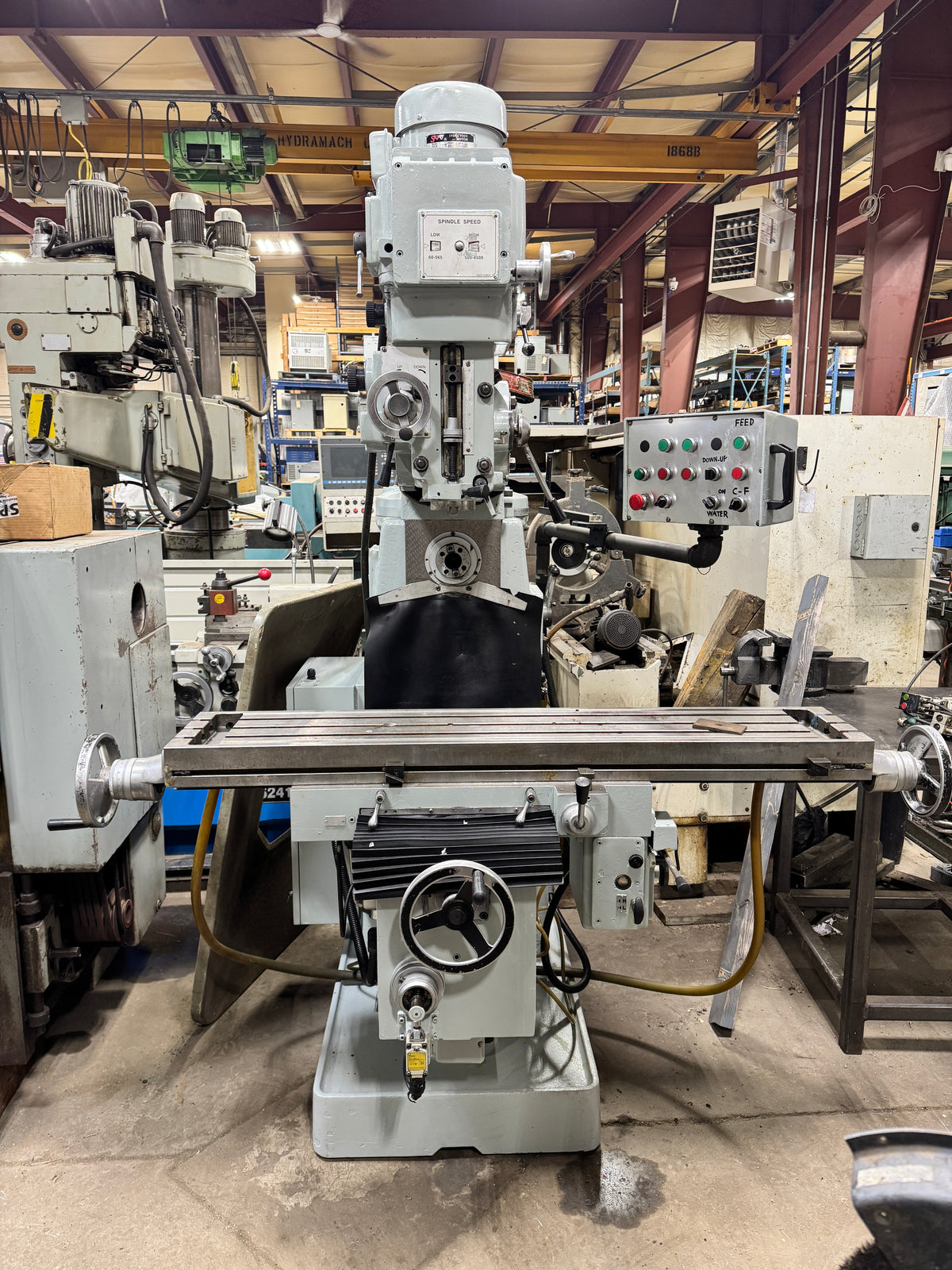

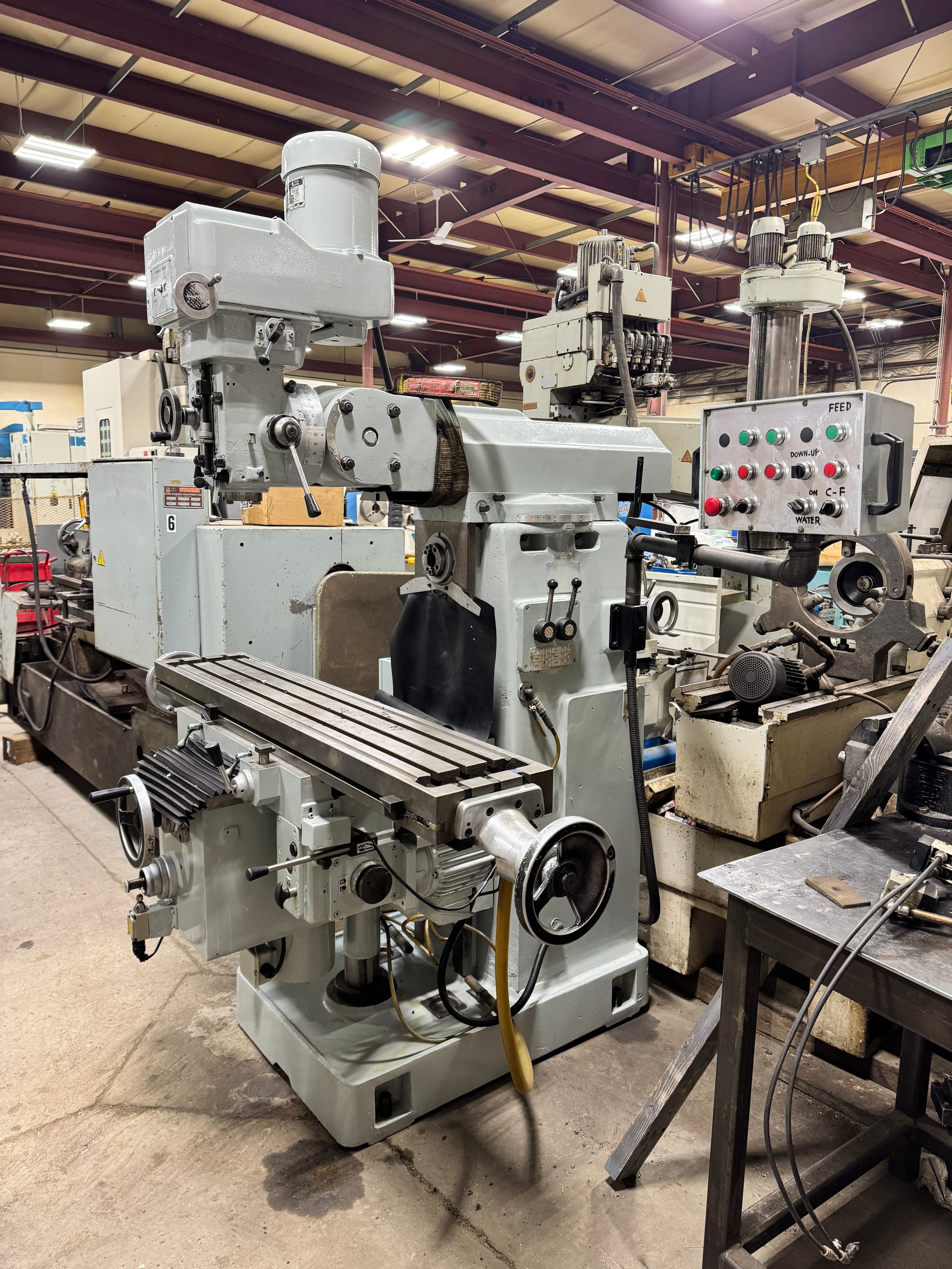

FIRST LC-20VHS is a heavy duty universal vertical/horizontal turret milling machine equipped with NT40 tapers on both spindles. A variable-speed vertical head with low and high ranges from 60 up to 4500 rpm covers heavy roughing through fine drilling and finishing applications. The machine features a geared feed system mounted on the knee with high/low selection and feed dial control, driven by an auxiliary three-phase induction motor.

The horizontal spindle is integrated into the column and allows arbor milling operations in addition to standard vertical milling. An integrated coolant system and front-mounted pushbutton control panel provide convenient machine operation for shop or production use.

Specification

Machine: FIRST Universal Vertical / Horizontal Milling Machine
Model / Type: LC-20VHS Turret Mill
Mfg / Serial No.: 10501035

Spindle system

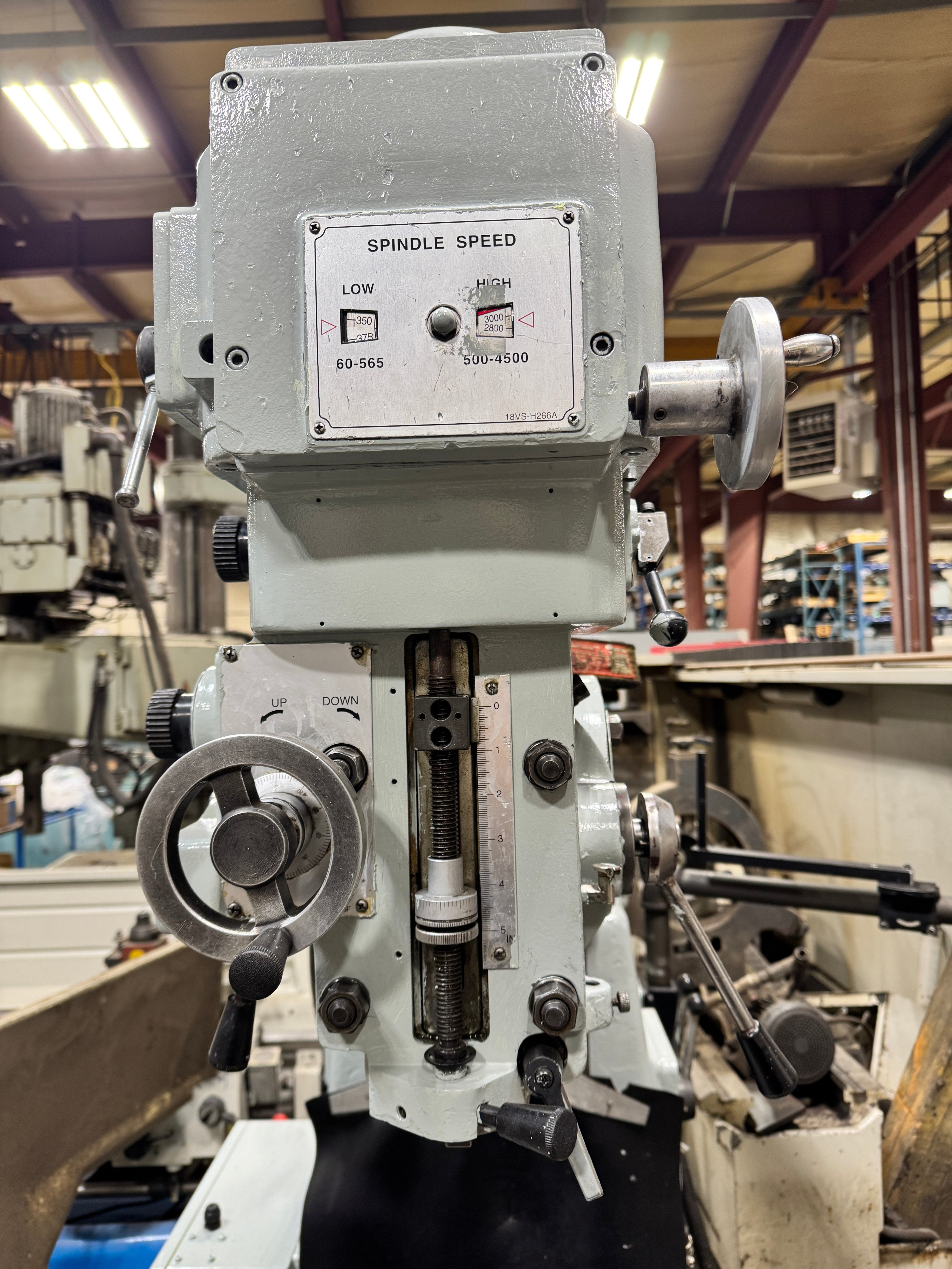

Vertical spindle configuration: Turret-type variable-speed head with low / high range
Vertical spindle speed range, low: 60–565 rpm
Vertical spindle speed range, high: 500–4500 rpm
Vertical spindle taper: NT40

Horizontal spindle: Integrated horizontal spindle in column
Horizontal spindle taper: NT40

Table
Table size: 56" x 10"

Feed system and controls

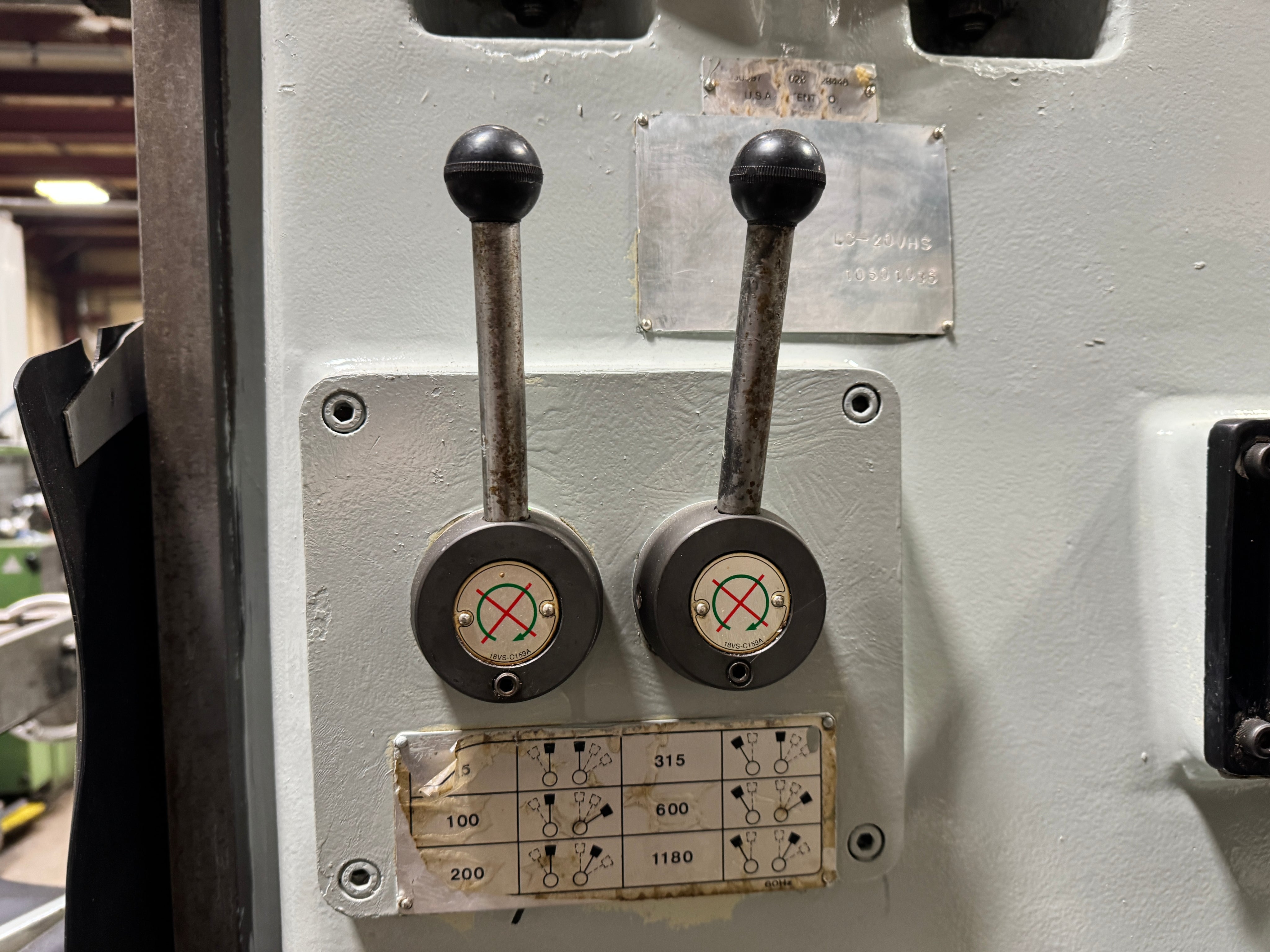

Geared feed unit mounted on knee
High / Low feed selector
Multi-step feed dial

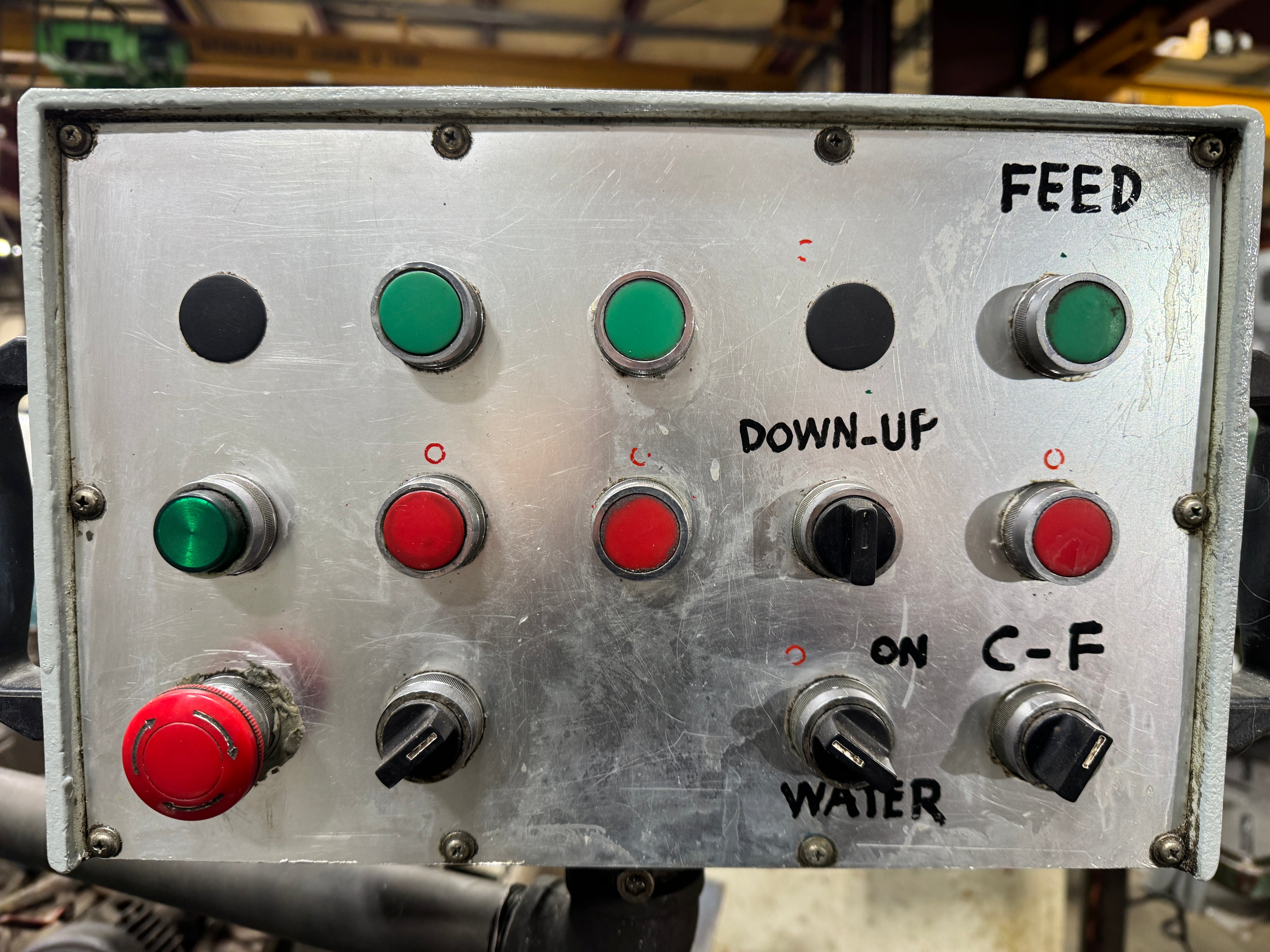

Front-mounted pushbutton control panel for spindle, feed and coolant functions
Emergency stop button
Coolant ON / OFF selector

Motors

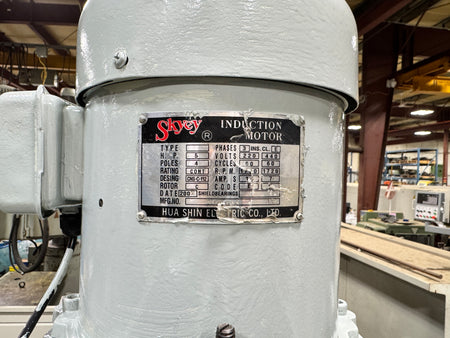

Auxiliary induction motor (feed system drive)
Brand: Skvey / Hua Shin Electric Co. Ltd.
Power: 1.5 HP
Phases: 3
Voltage: 220 / 440 V
Frequency: 60 Hz
Speed: 1200 rpm
Duty: Continuous
Insulation class: E

Other equipment and features

Universal vertical / horizontal milling configuration
Manual quill feed with fine feed handwheel
Coolant system with hose at spindle area
Large cast base for rigidity and stability

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
