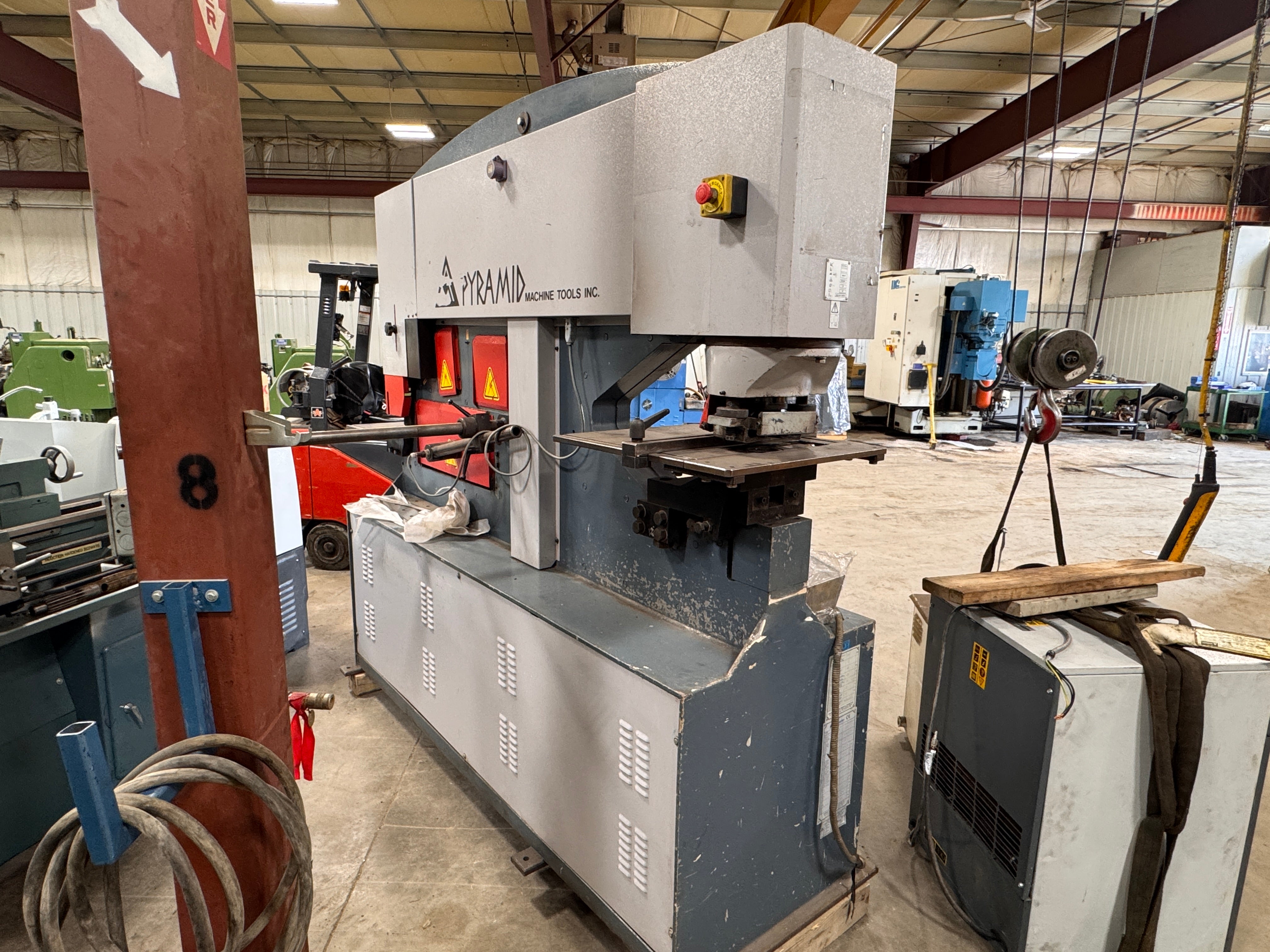

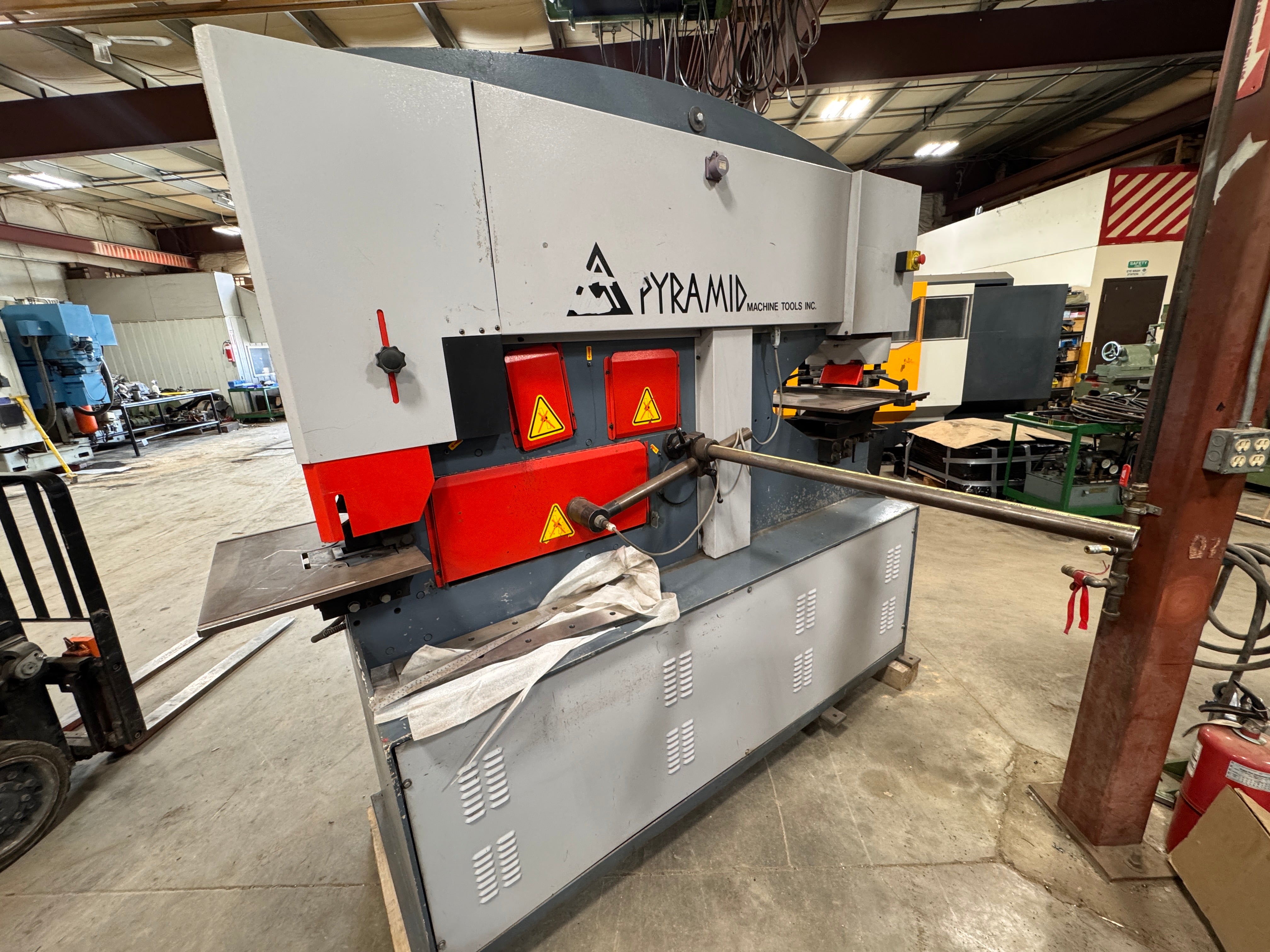

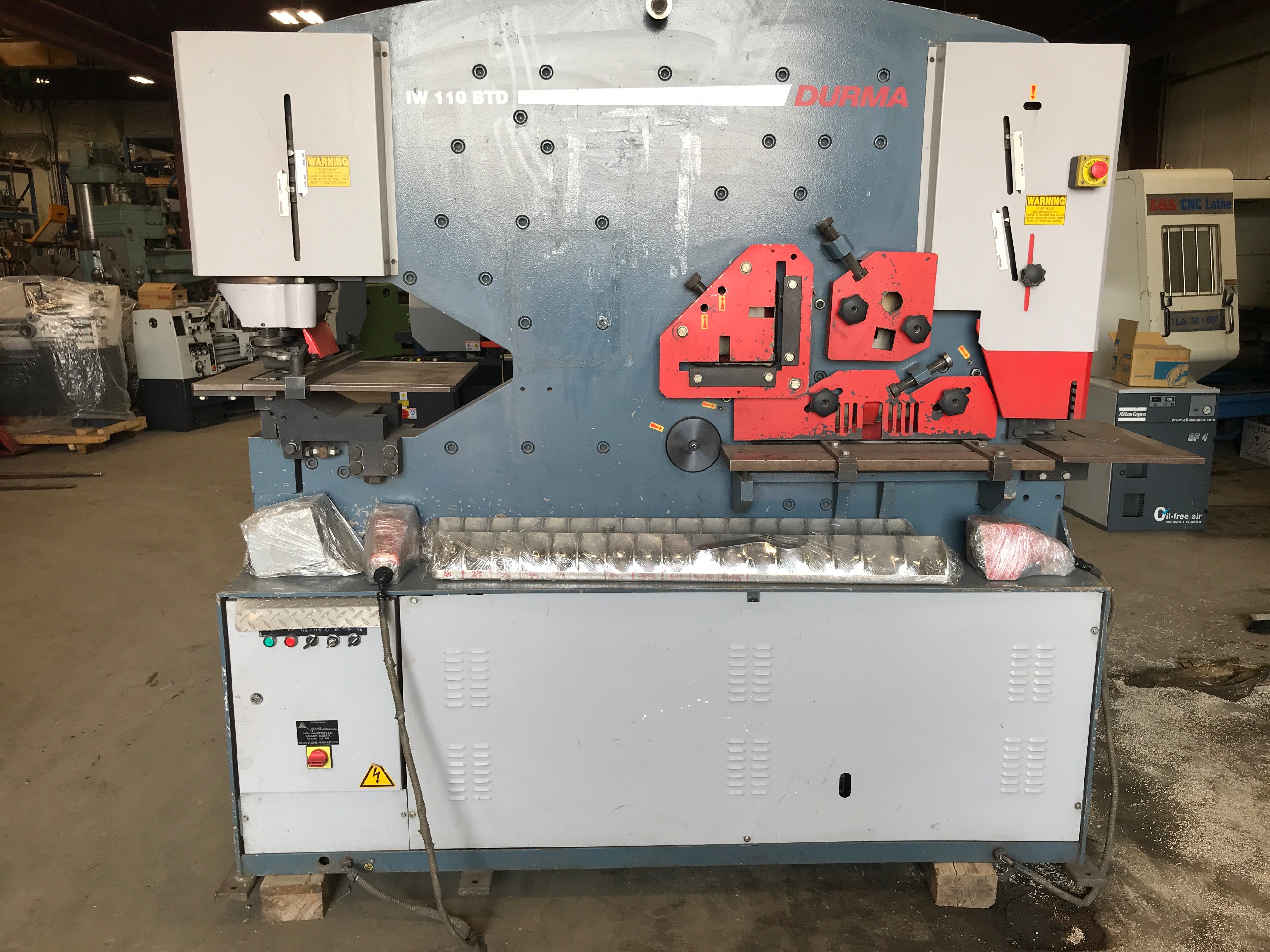

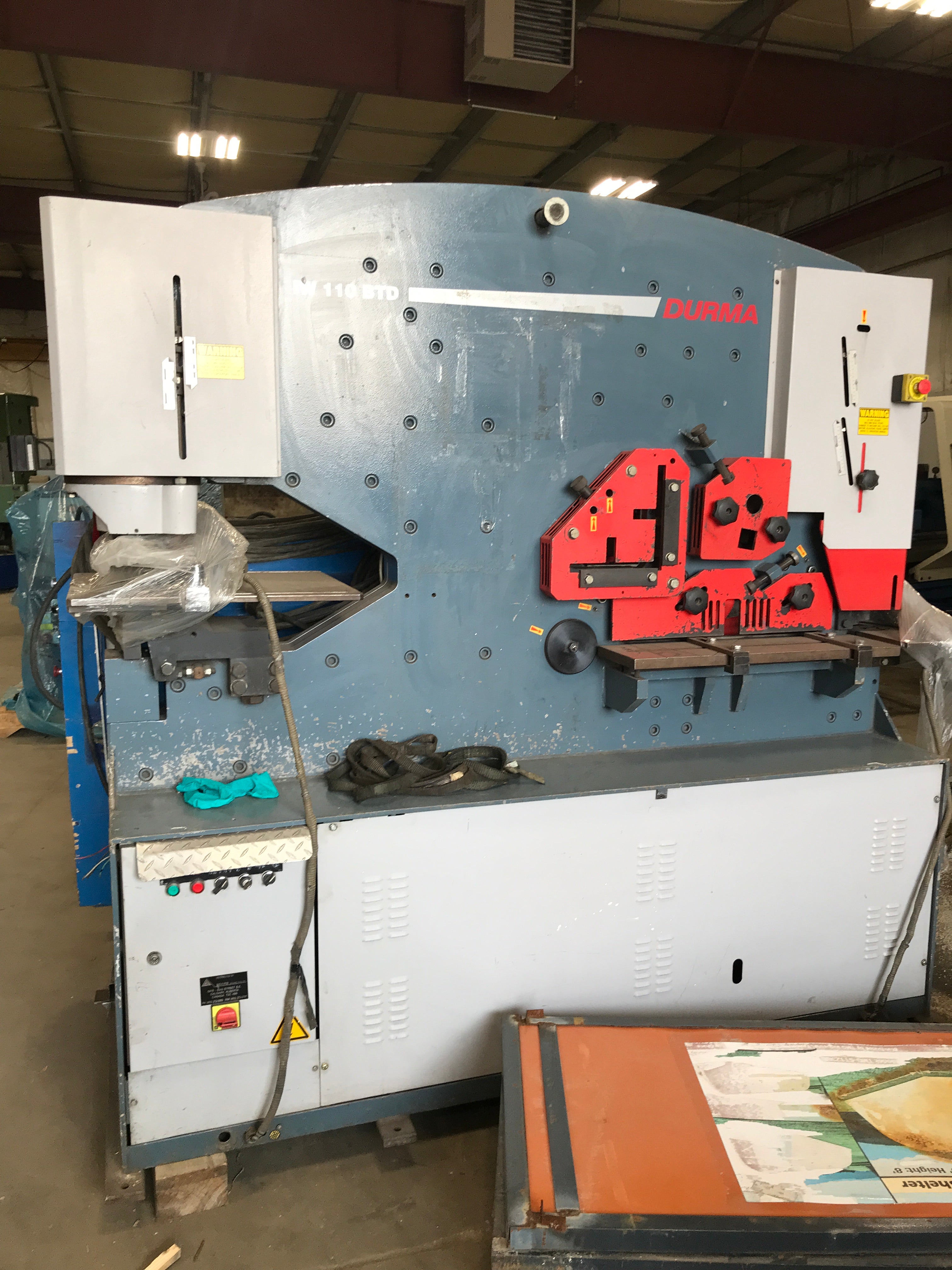

SPECIFICATIONS

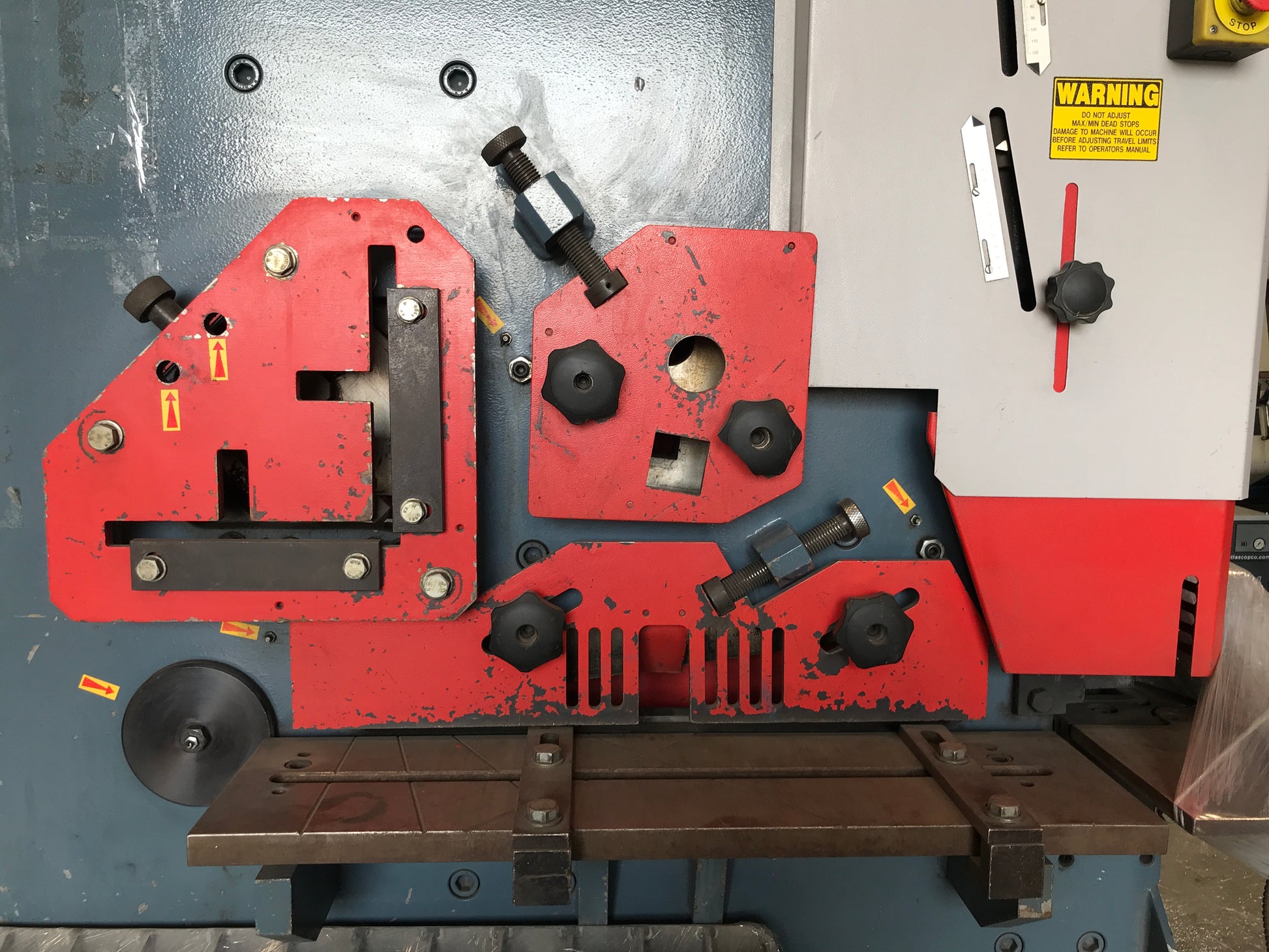

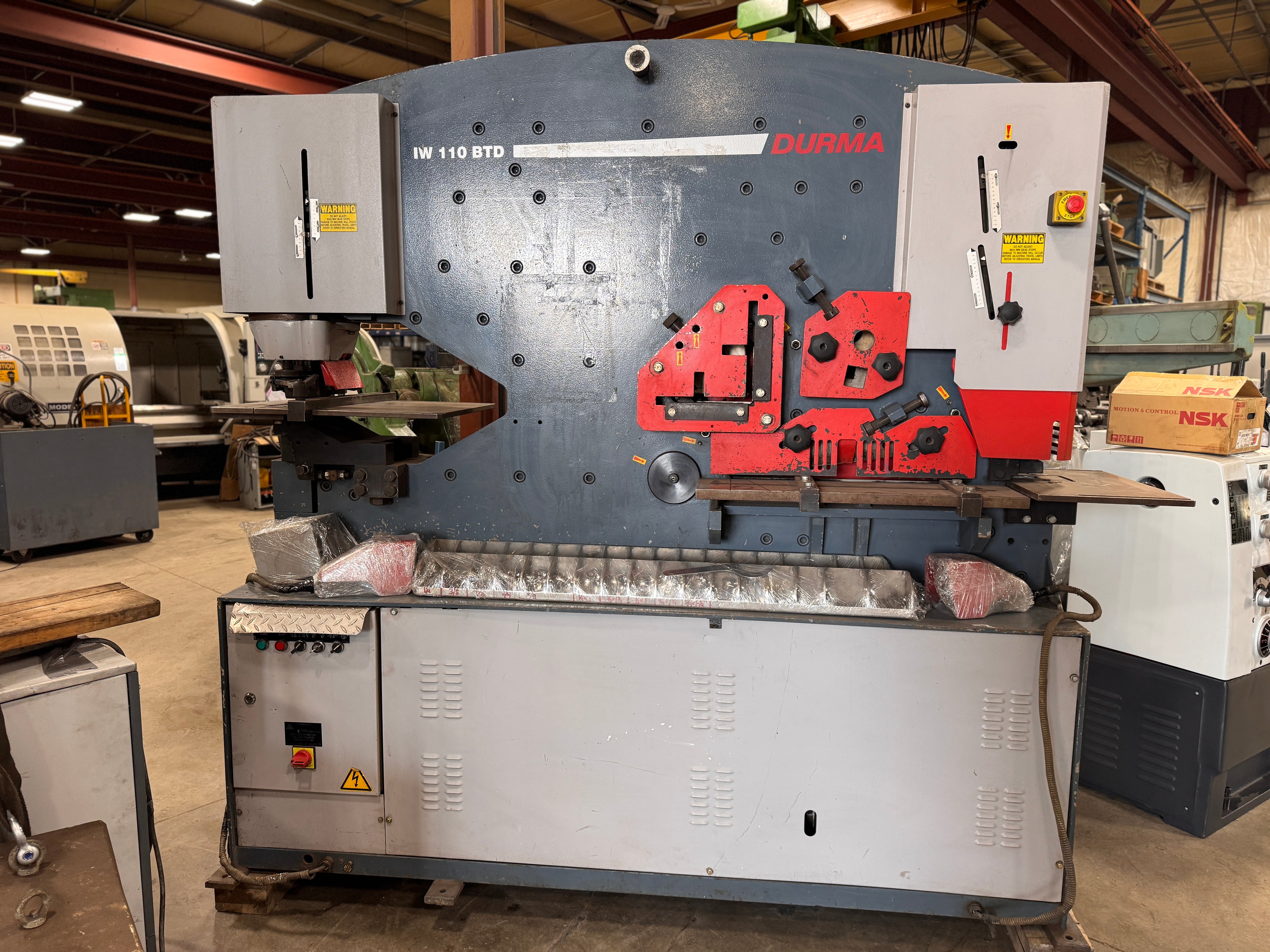

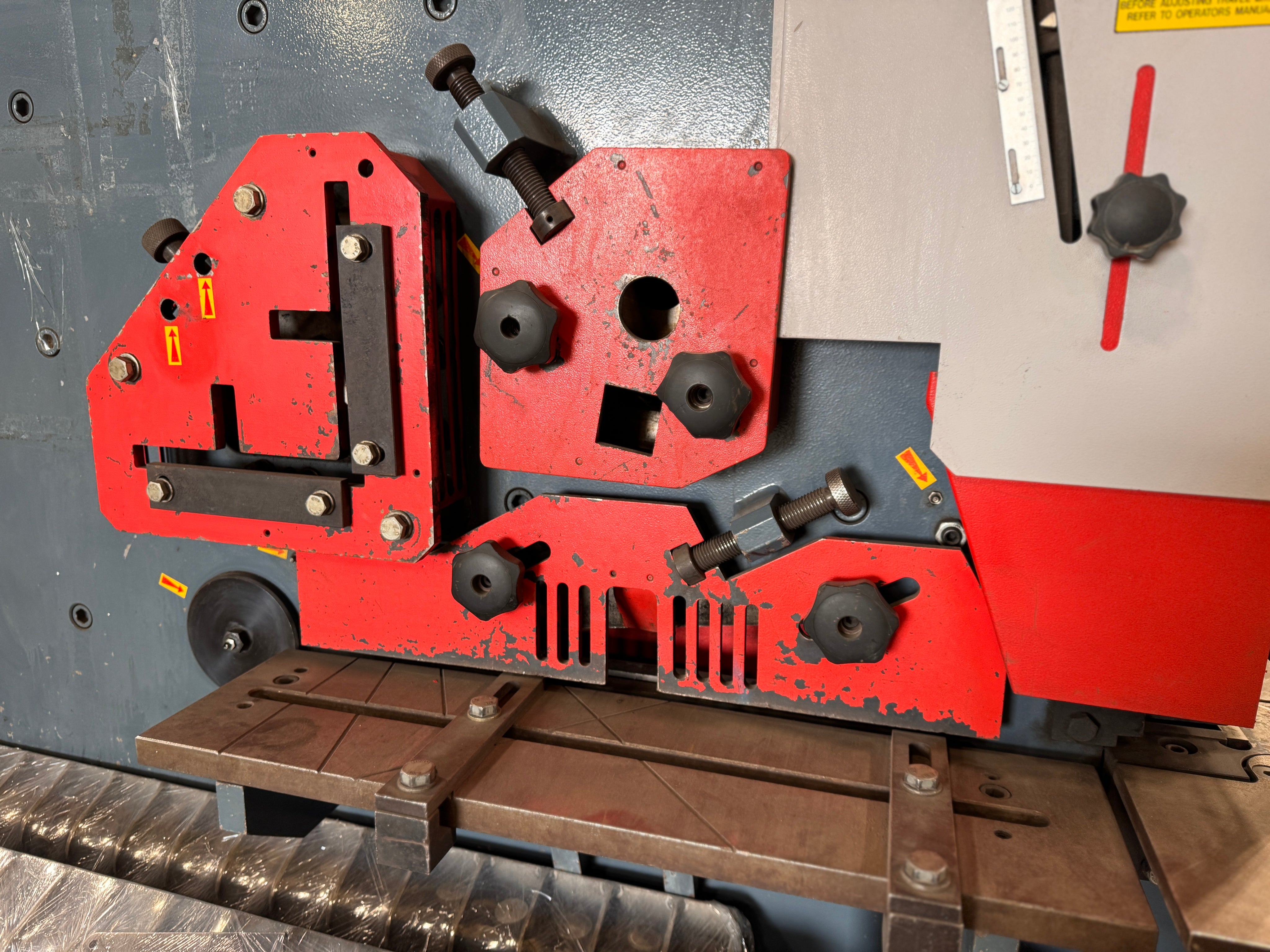

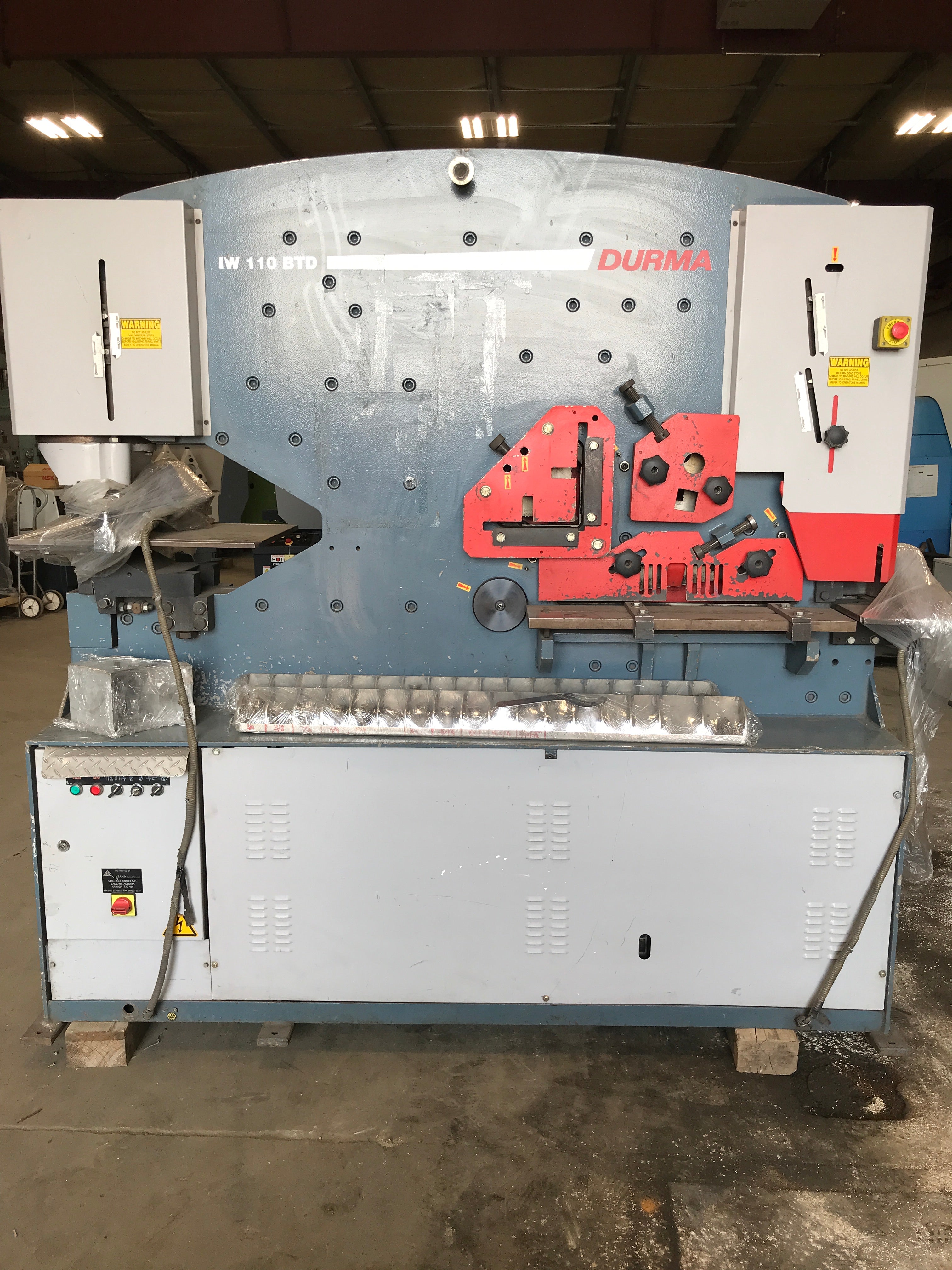

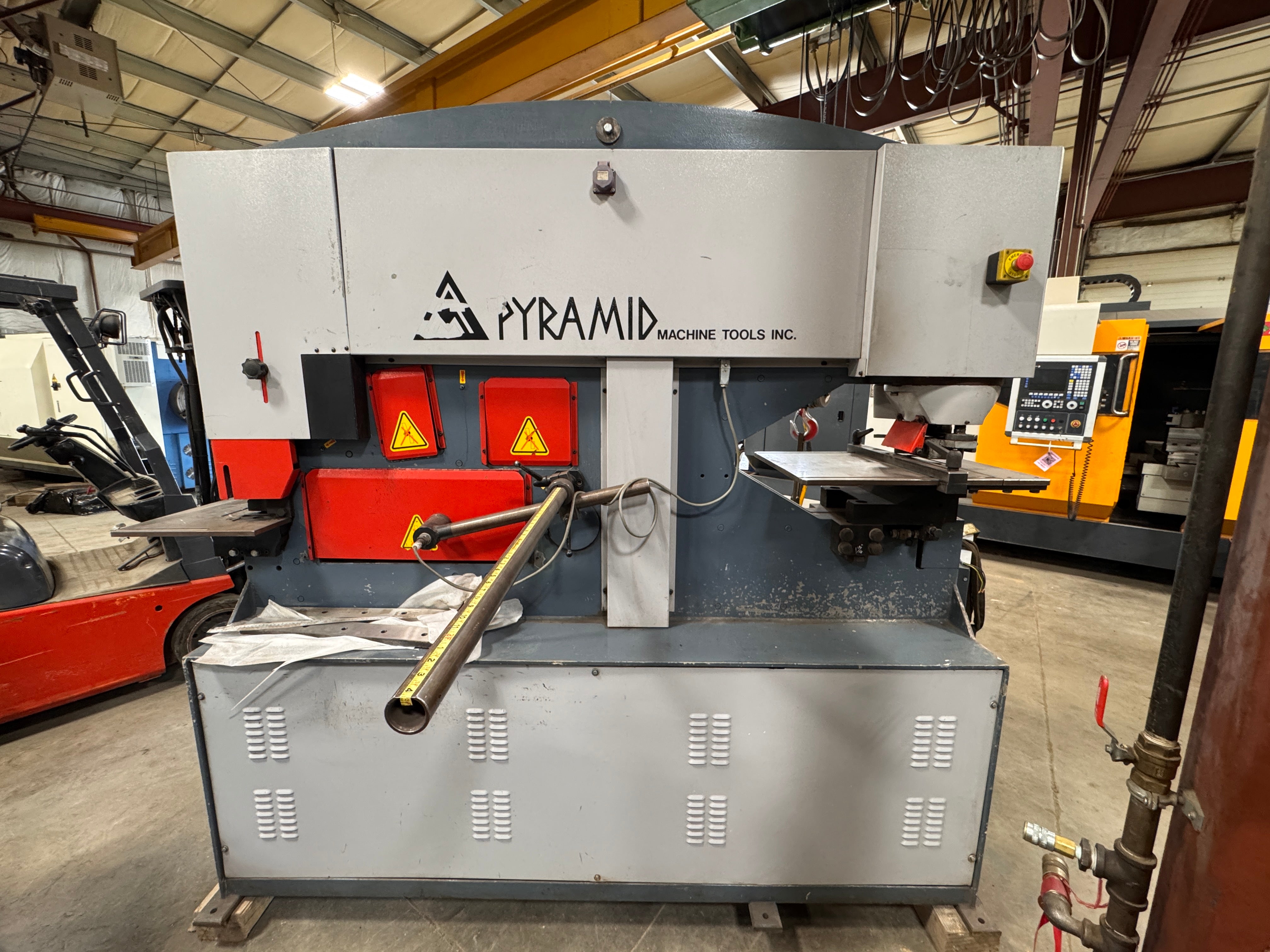

 Five working stations: Punch, flat shear, angle shear, bar shear, notching

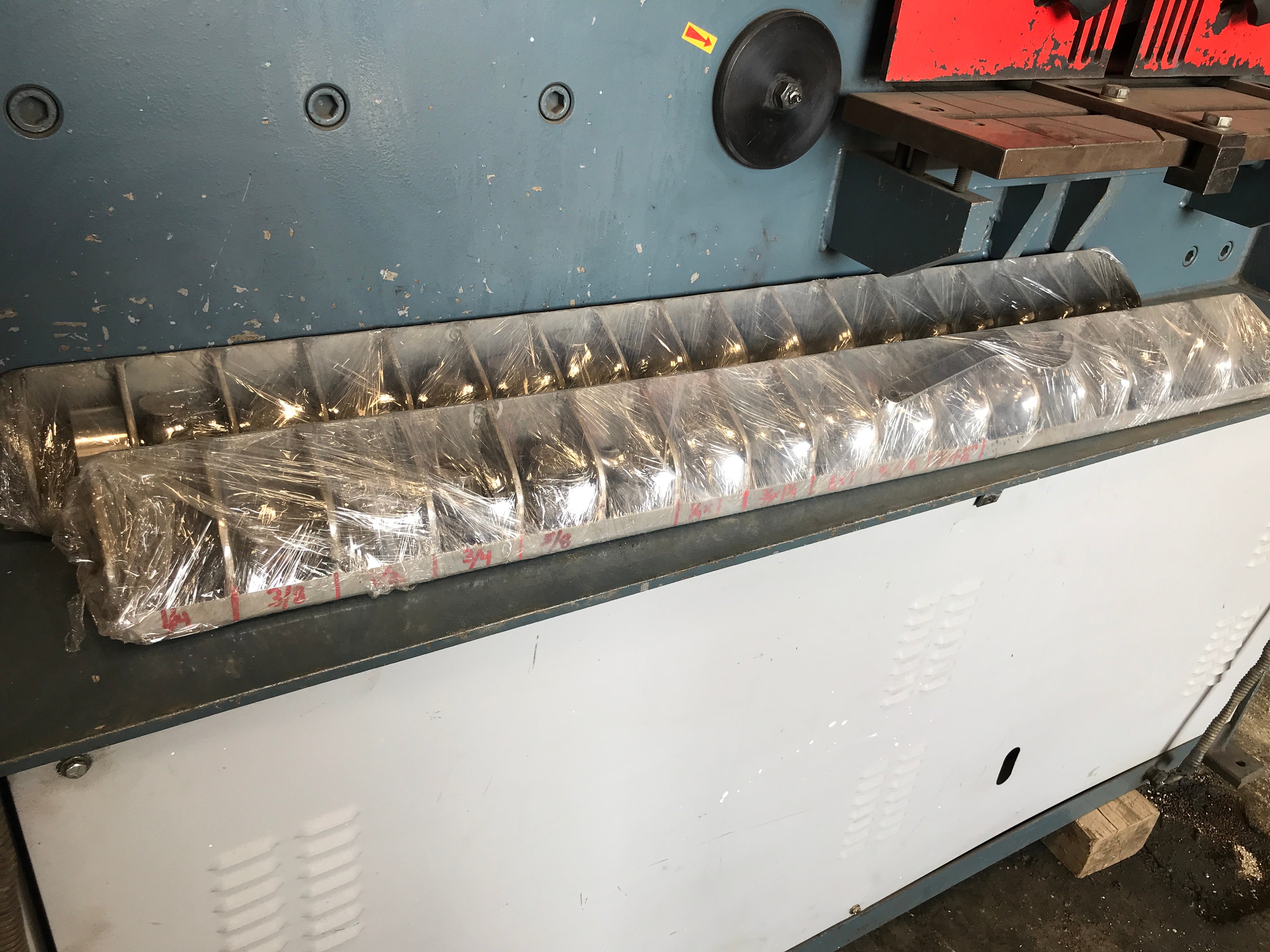

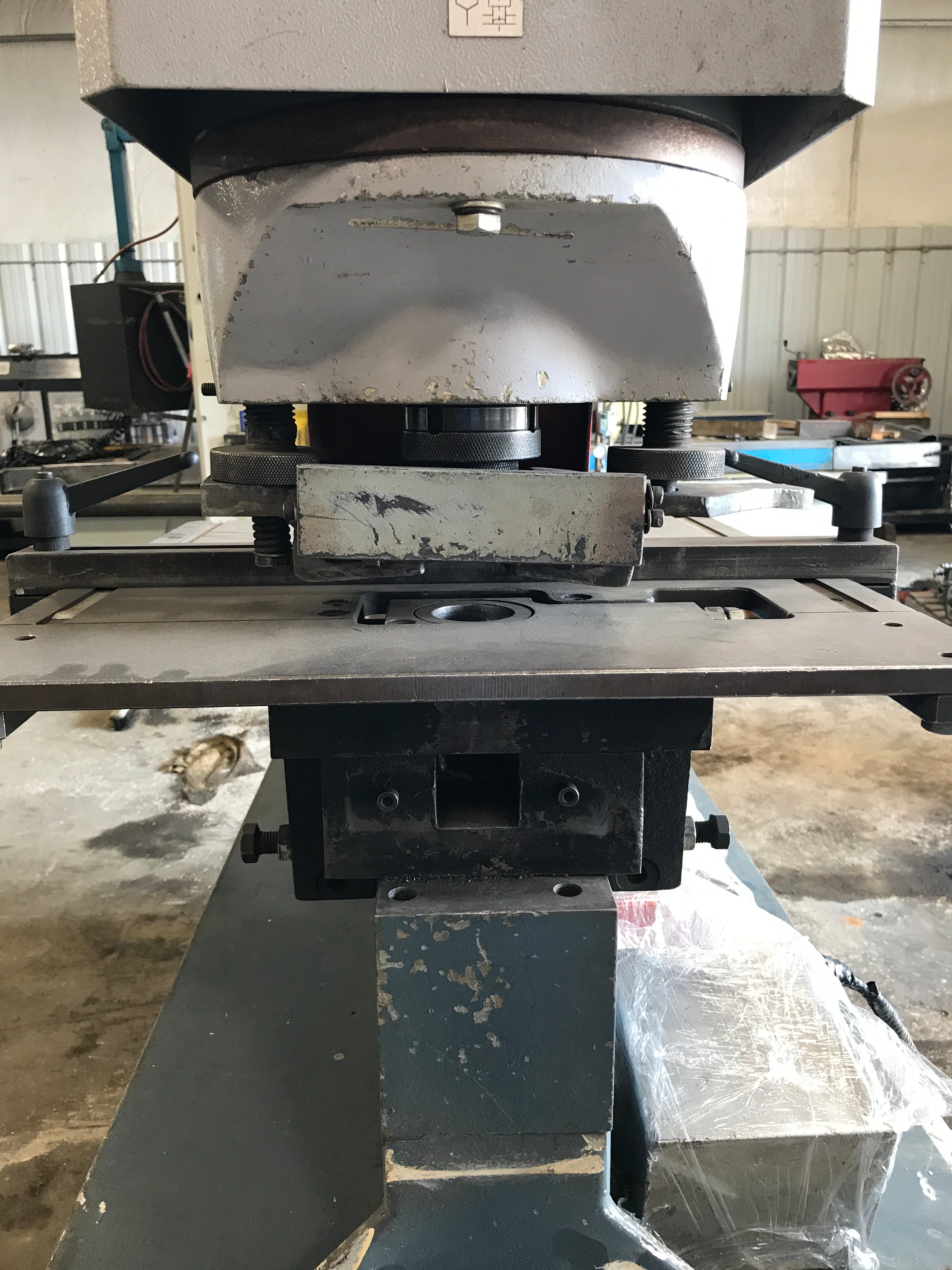

 Quick-change tooling with punch & die holders (up to 40 mm punch)

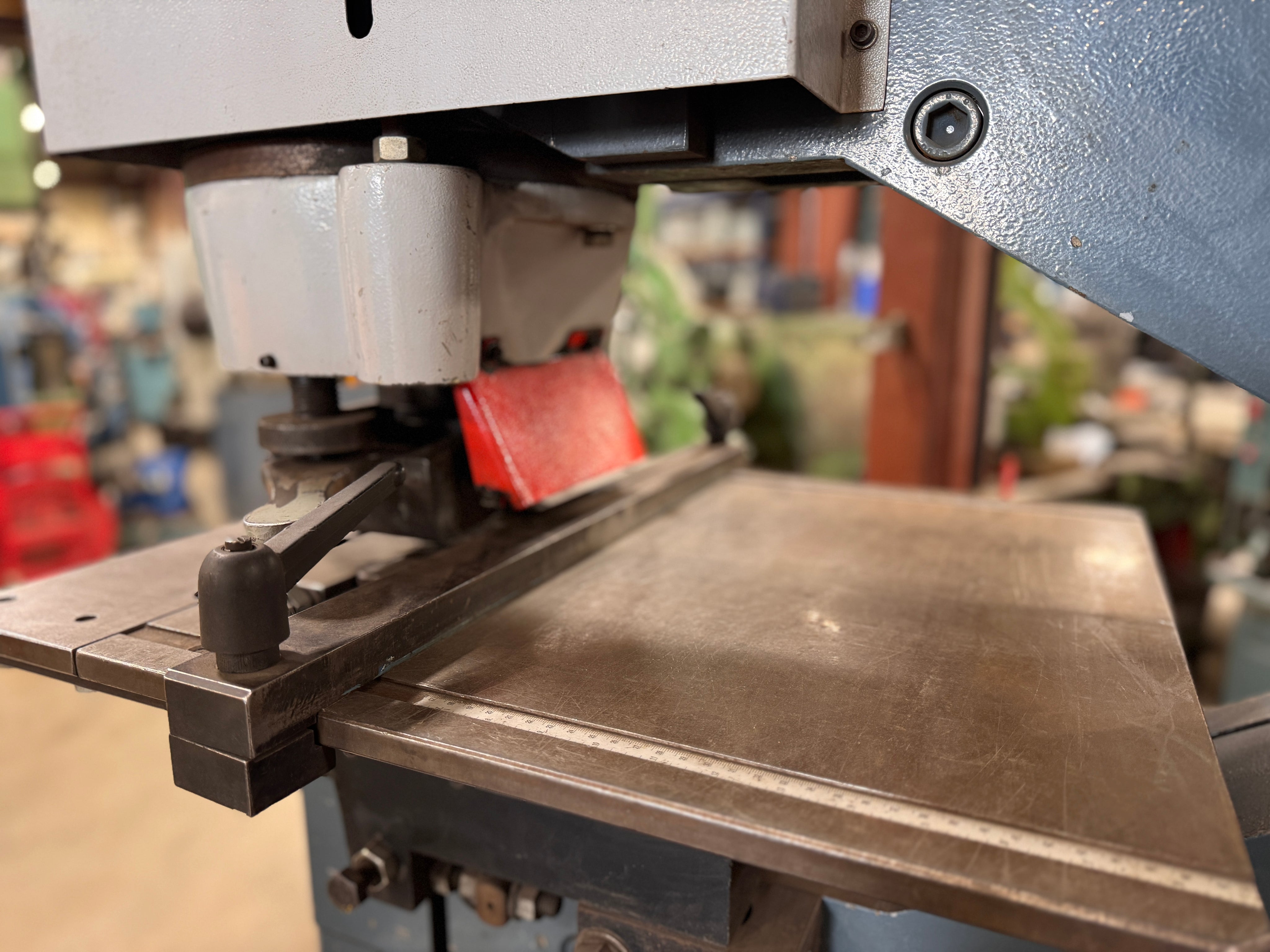

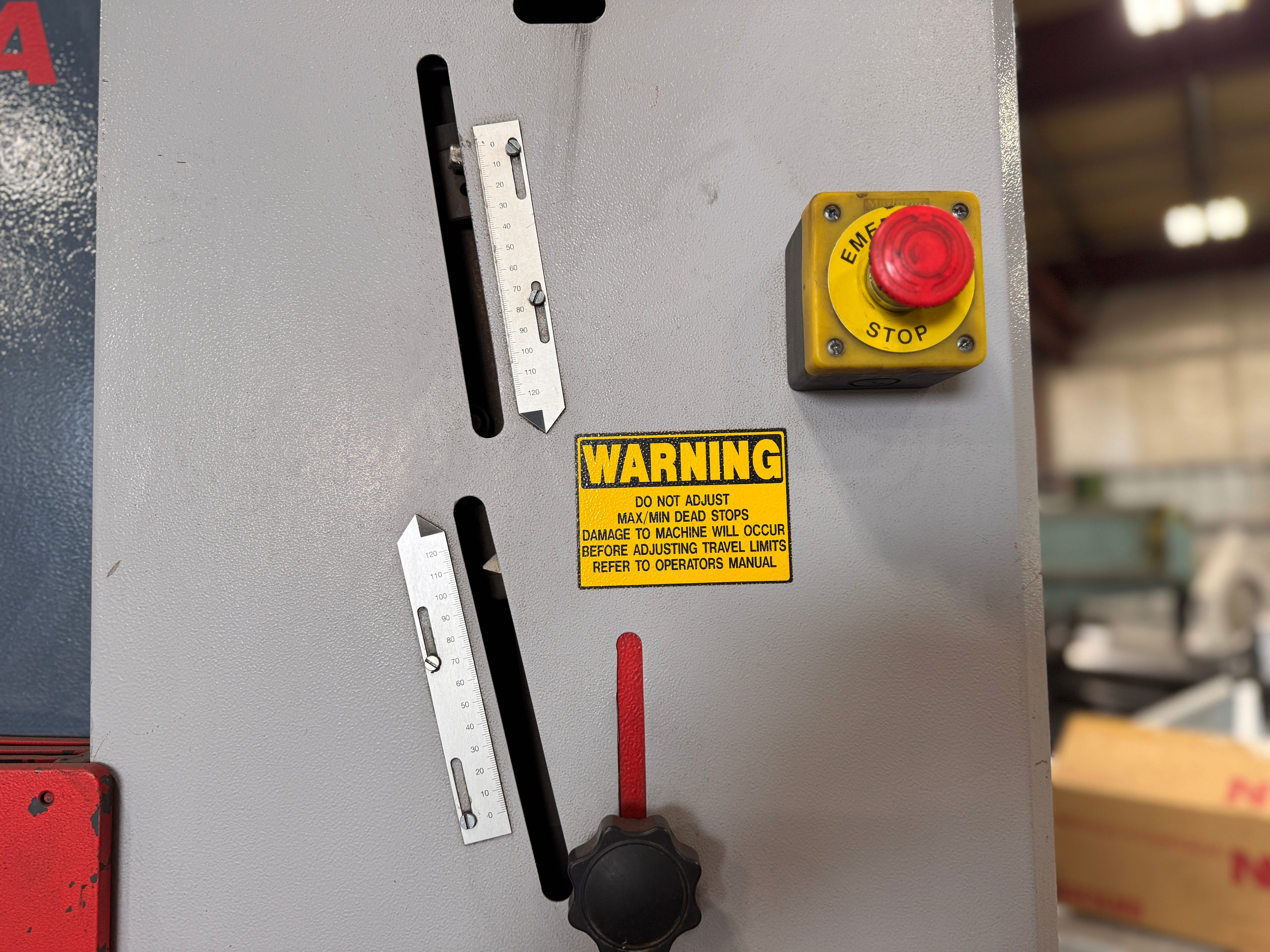

 Swing-away stripper and coordinate gauge stops at punch station for repeatability
 Adjustable hold-downs and support tables across stations for safety and accuracy

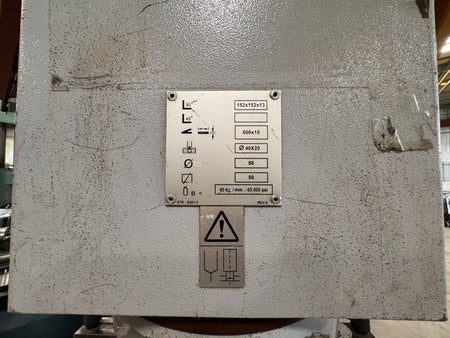

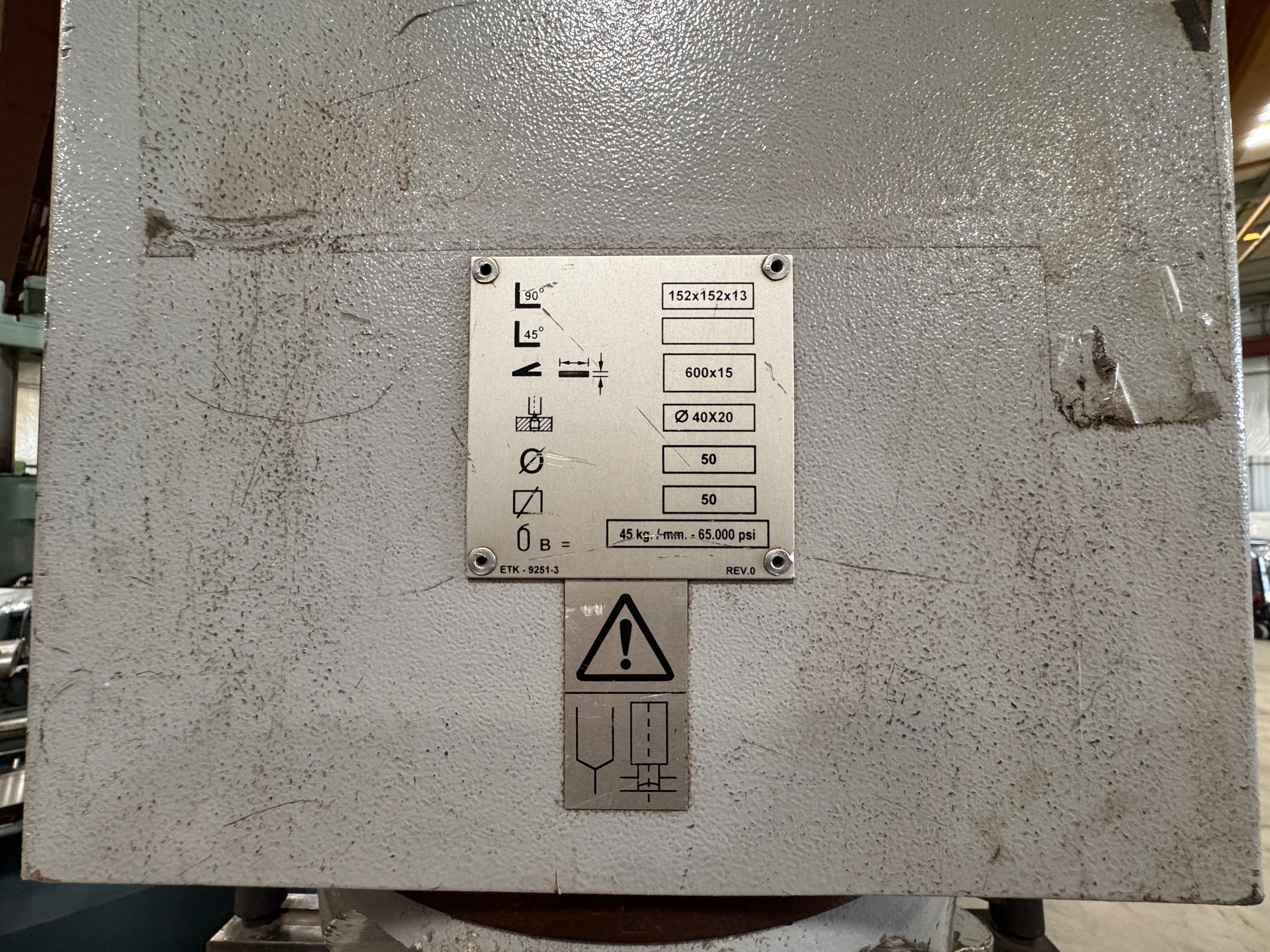

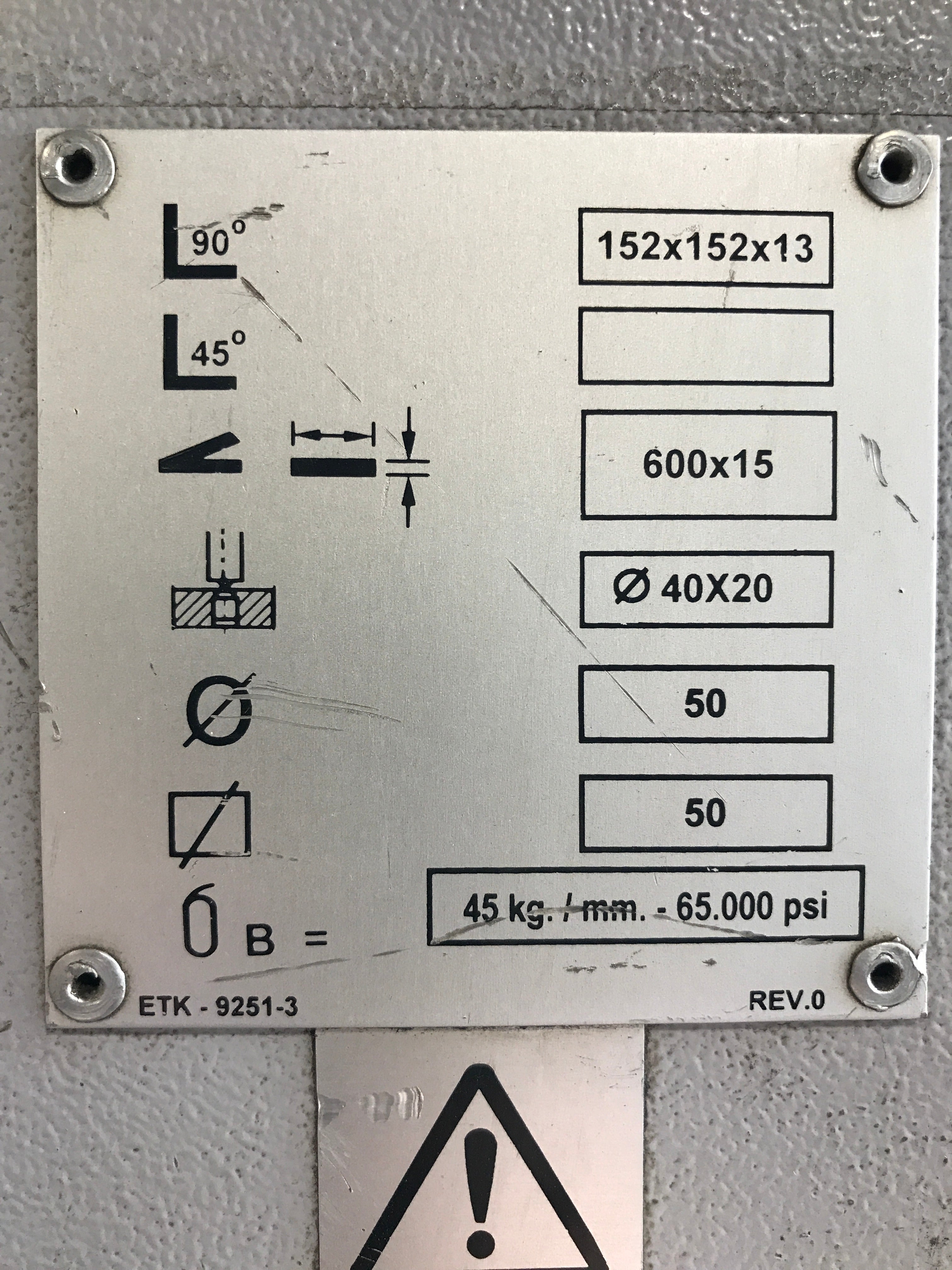

 1. Punch: approx. 1½″ × ¾″
 2. Bar shear: 2″ round, 2″ square

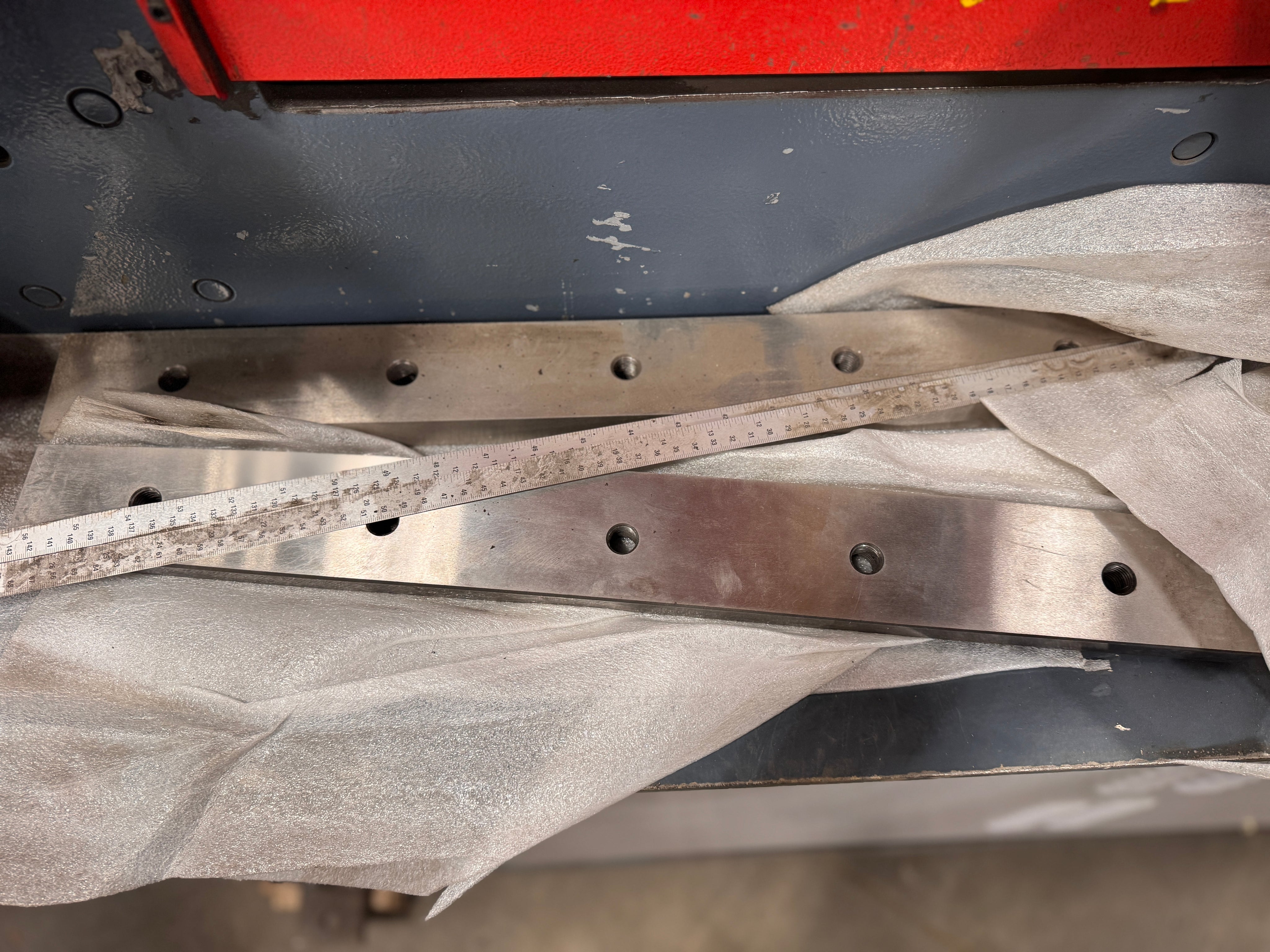

 3. Plate shear: approx. 23″ × ⅝″

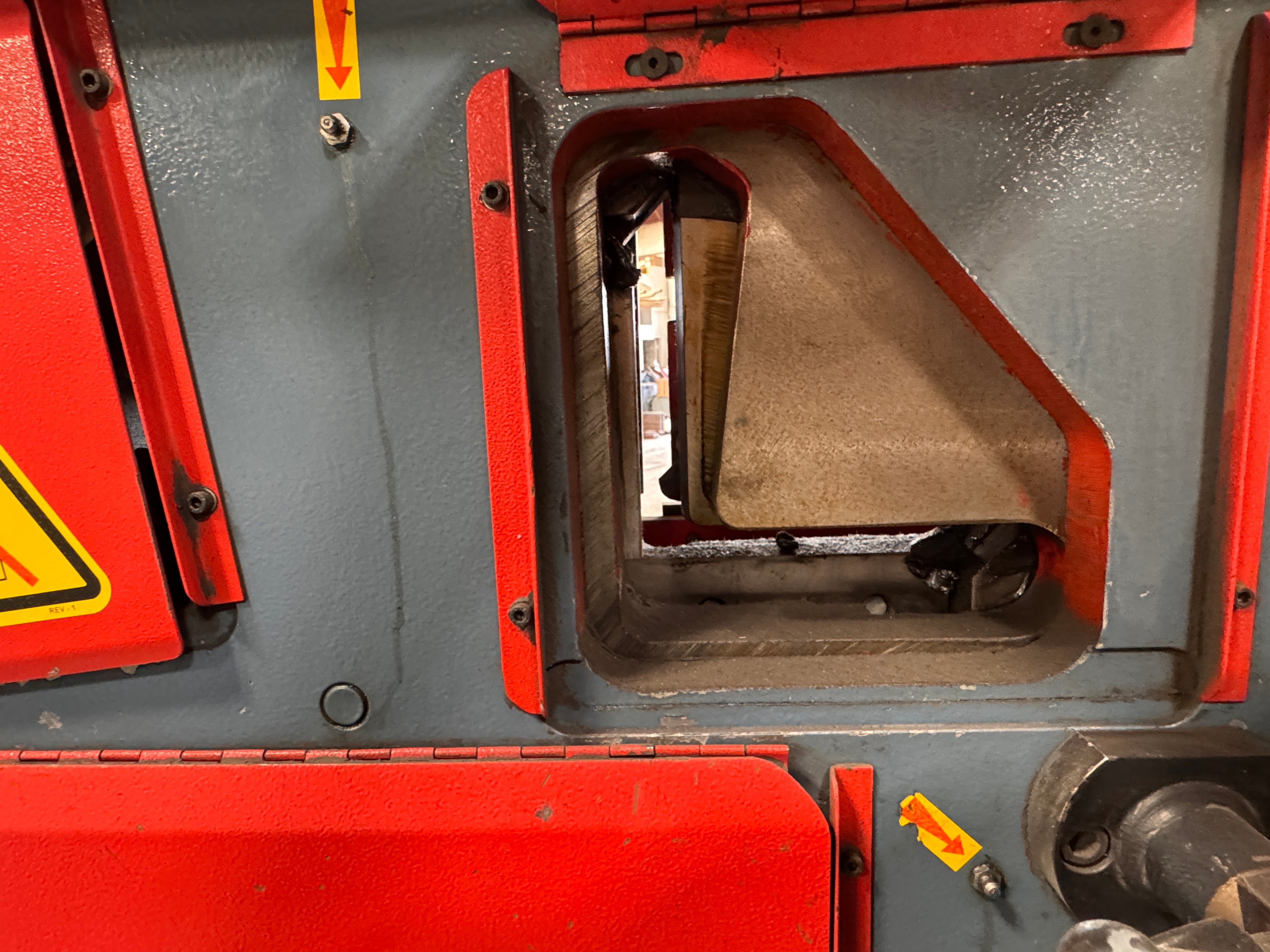

 4. Angle shear: 6″ × 6″ × ½″

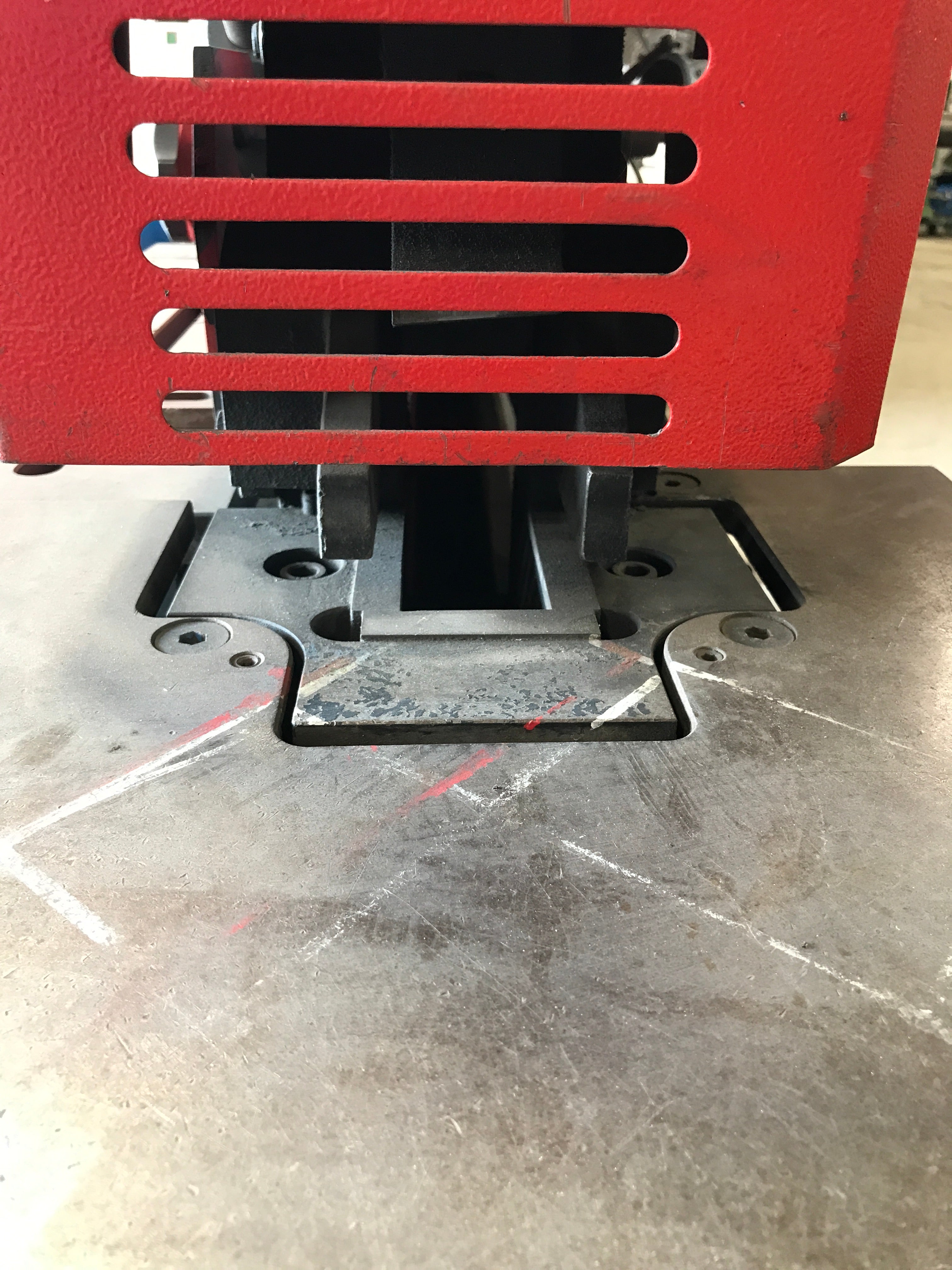

 5. Notcher: approx. 4″ × 2″
 Capacity: 110 Tons
 Weight: ~3750 kg
 Dimensions: ~2250 mm X 2560mm X 700 (HxLxW)
