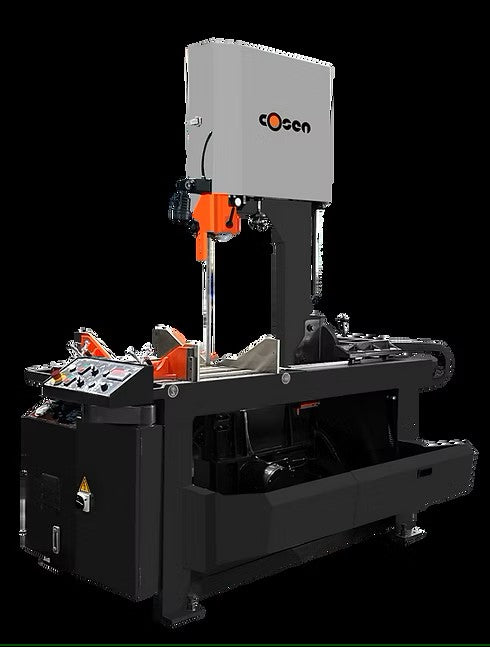

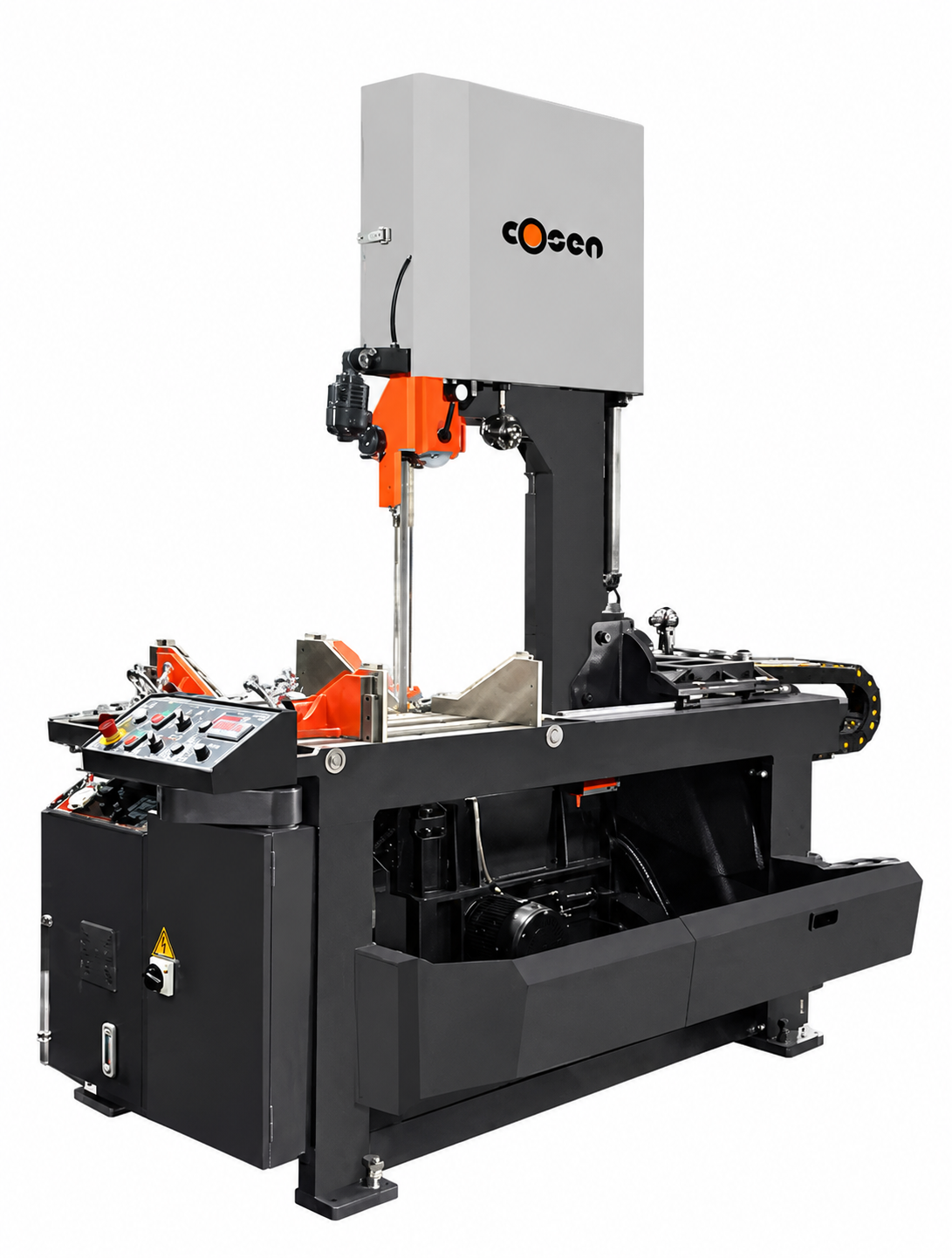

COSEN Vertical Mitre Band Saw V-1822

The COSEN Vertical Mitre Band Saw is designed for precise and efficient metal cutting in fabrication, structural steel, and industrial production environments. Built with a rigid frame and versatile mitre cutting capability, this machine provides reliable performance for a wide range of cutting applications.

Featuring dual-direction mitre cutting, variable blade speed control, and a powerful 5 HP blade motor, this vertical band saw is ideal for shops requiring flexibility, accuracy, and heavy-duty cutting performance.

Its durable construction and hydraulic system make it suitable for continuous industrial operation while maintaining clean and consistent cuts.

Specifications

Model: COSEN Vertical Mitre Band Saw
Type: Vertical Mitre Band Saw

Capacity Angles
0° / 45° Left / 60° Left / 45° Right / 60° Right

Capacity (0° Blade Cant)
18" x 22"
18" x 15.15"
18" x 9.76"
18" x 14.84"
18" x 9.21"

Capacity (5° Blade Cant)
18" x 20.15"
18" x 13.46"
18" x 8.66"
18" x 13.18"
18" x 8.38"

Blade
Blade Speed: Variable Speed
Blade Size: 15' 5" x 1.25" x .042"

Motor
Blade Motor: 5 HP
Coolant Motor: 1/8 HP

Tank Capacity
Coolant Tank Capacity: 11.88 gal
Hydraulic Tank Capacity: 2.24 gal

Dimensions & Weight
Workbed Height: 37.4"
Machine Weight: 2,480 lbs
Floorspace (L x W x H): 108.9" x 106.2" x 95"
