BALDOR Explosion-Proof Motor

Regular price $11,000.00

Contact Us

Phone: 1(780) 434-0099
Email: Sales@stancanada.com

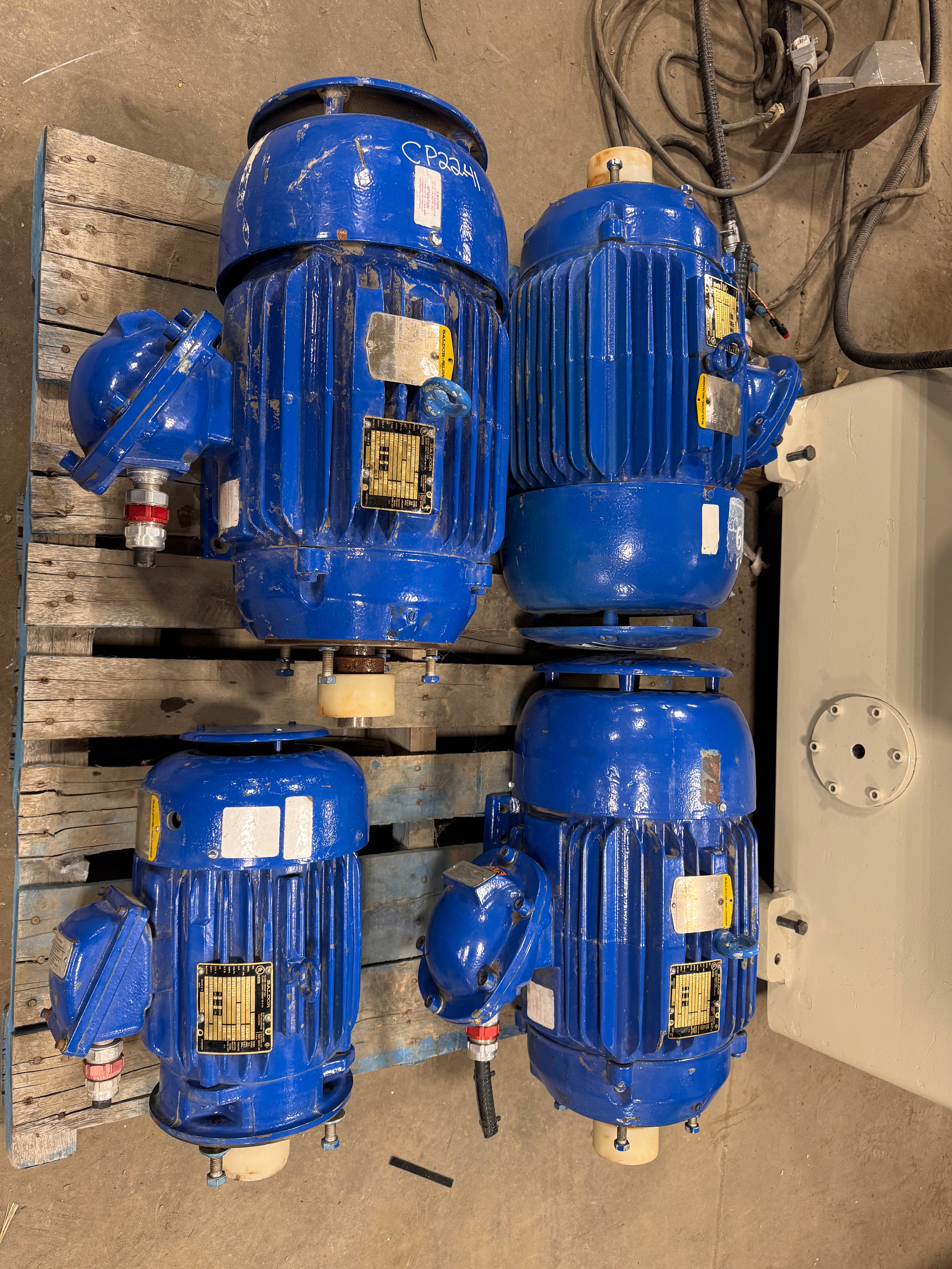

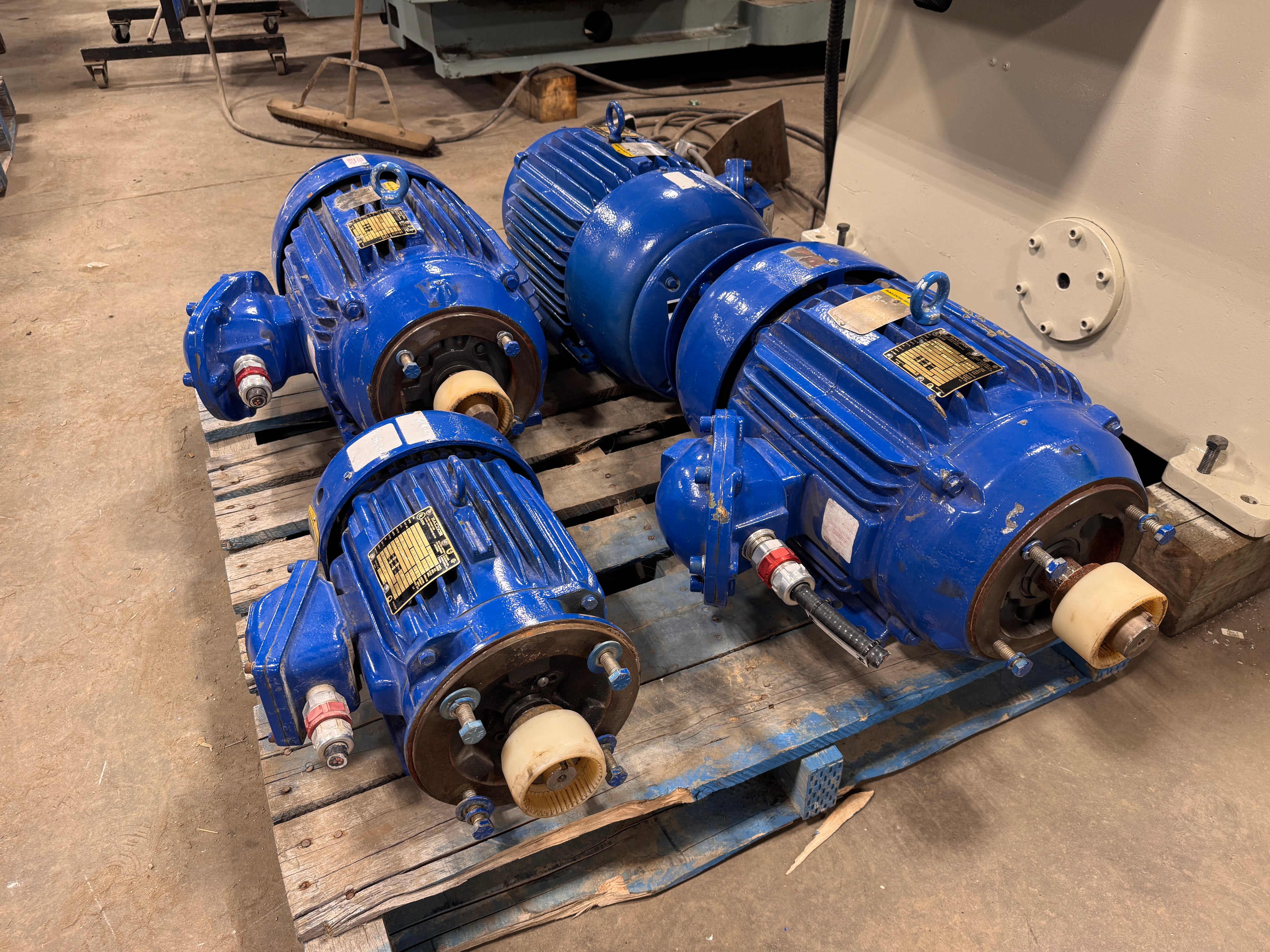

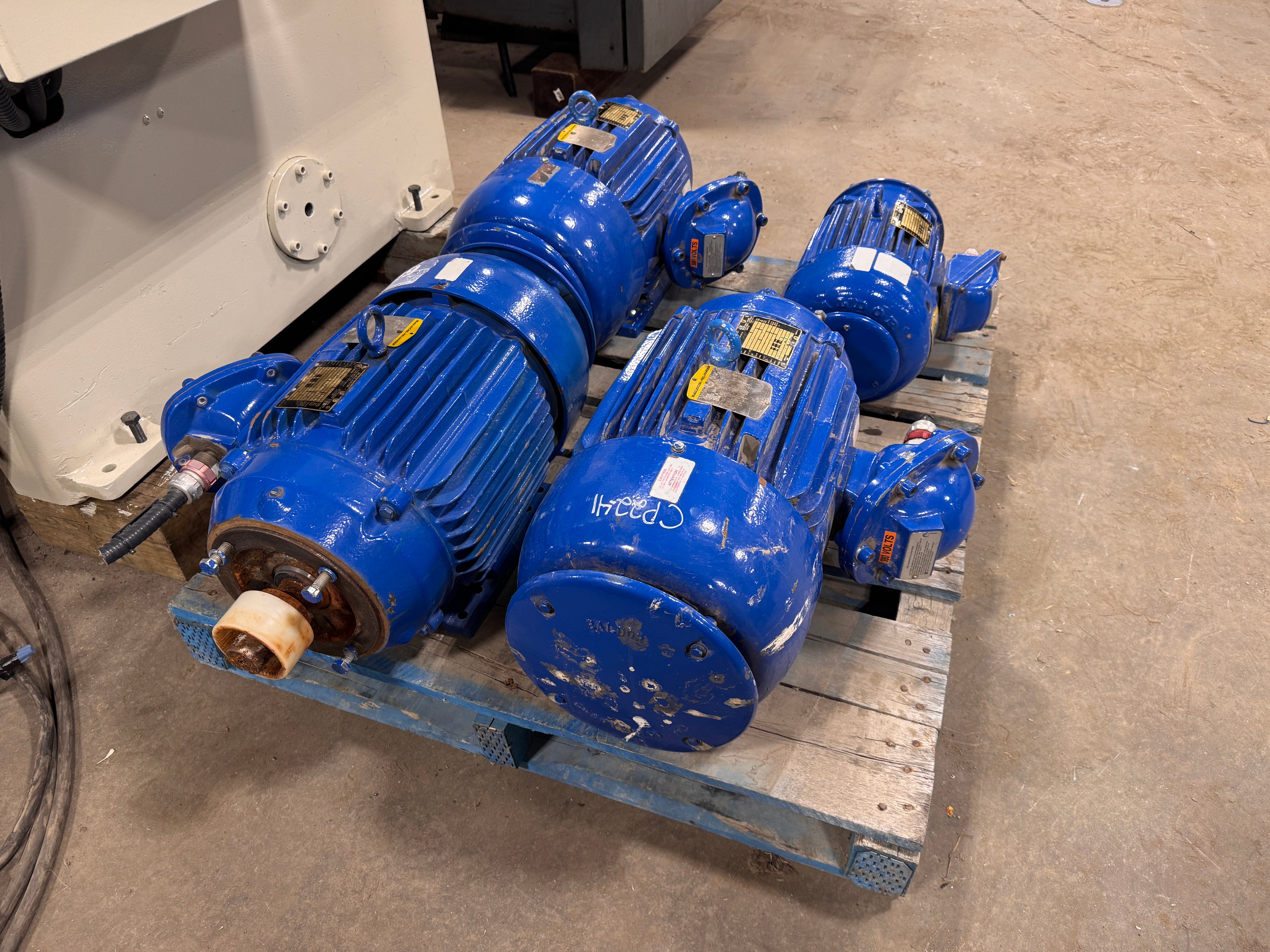

A group of BALDOR electric motors designed for use in hazardous environments (Class I, Group C&D, Zone 1, Group IIB & IIA). Below are the specifications for two of them, based on the visible nameplates:

These motors are used in heavy industrial equipment, especially in environments where vapors or gases may be present (e.g., petrochemical, paint and coatings, pharmaceutical industries). Typical applications include pumps, compressors, or fans.

Offer: $10,000 USD for all motors
Includes:
Three (3) BALDOR 15 HP explosion-proof motors – $3,000 each
One (1) BALDOR 5 HP explosion-proof motor – $2,000

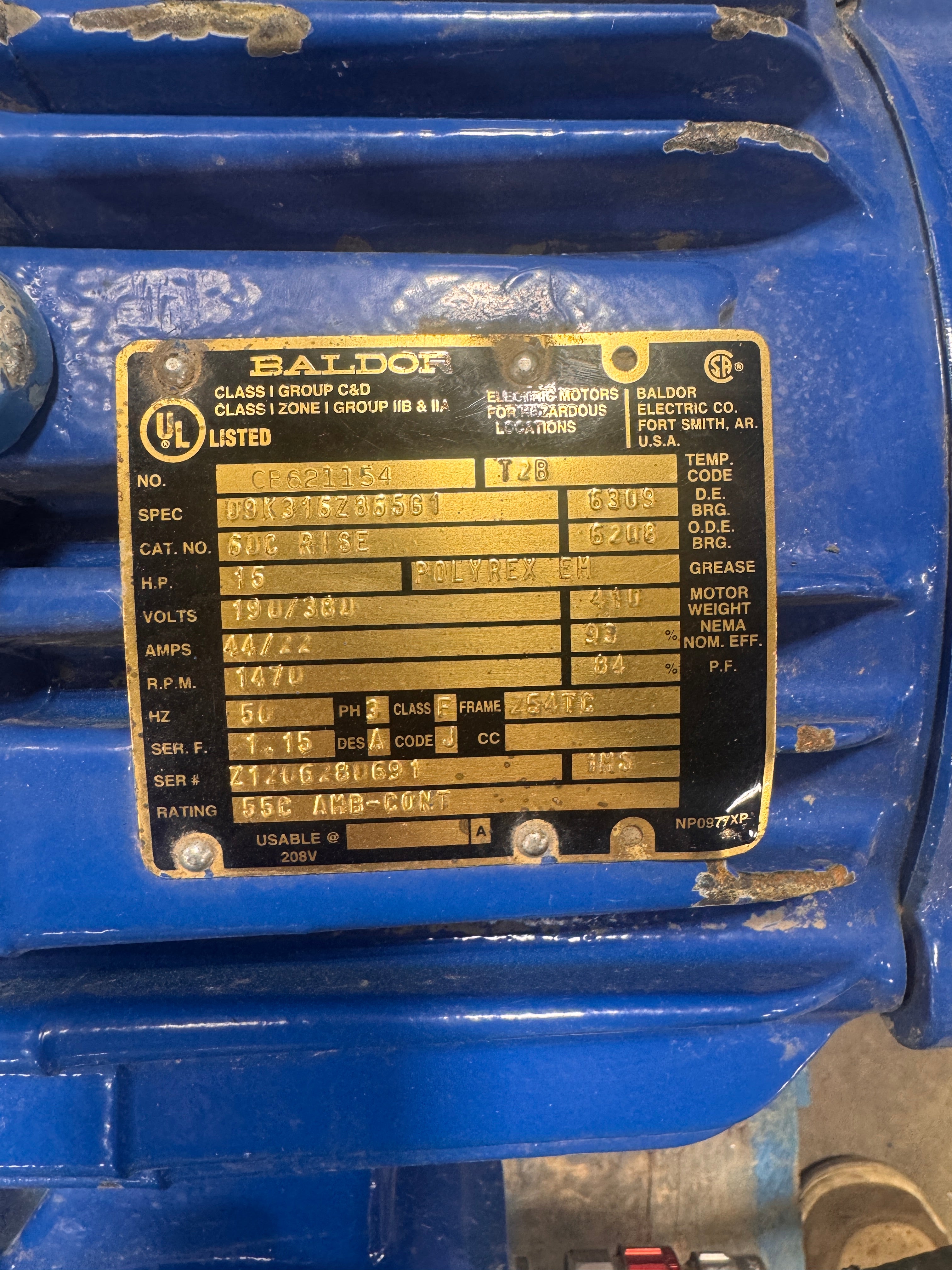

BALDOR Explosion-Proof Motor – CE621154
Horsepower (HP): 15
Voltage: 190 / 380 V
Amperage: 44 / 22 A
Frequency: 50 Hz
RPM: 1470
Phase: 3 PH
Frame: ZS4TC
Insulation Class: F
Service Factor: 1.15
Efficiency (NEMA Nominal): 93%
Power Factor (P.F.): 84%
Temperature Code: T2B
Bearings (DE / ODE): 6309 / 6208
Grease Type: Polyrex EM
Motor Weight: 410 lbs
Serial No : Z1206280691
                : Z1206280711
                : Z1206280696
Rating: 556 AMB-CONT
Usable at: 208 V

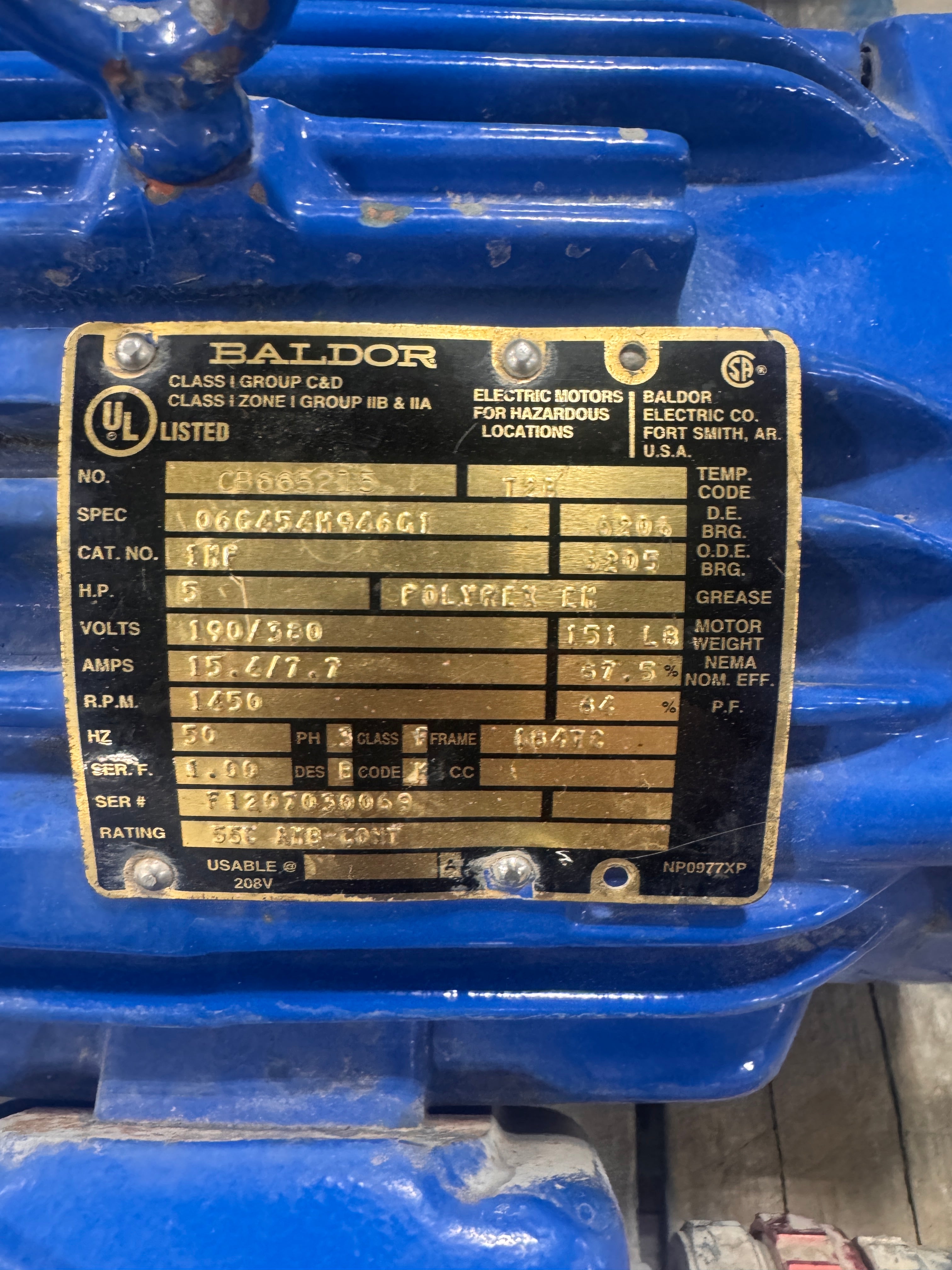

 BALDOR Explosion-Proof Motor – CB8632P5
Horsepower (HP): 5
Voltage: 190 / 380 V
Amperage: 15.4 / 7.7 A
Frequency: 50 Hz
RPM: 1450
Phase: 3 PH
Frame: 184TC
Insulation Class: F
Service Factor: 1.00
Efficiency (NEMA Nominal): 86%
Power Factor (P.F.): 66%
Temperature Code: T2B
Bearings (DE / ODE): 6206 / 6205
Grease Type: Polyrex EM
Motor Weight: 151 lbs
Spec No.: 06G454H946G1
Serial No.: F1207030069
Rating: 556 HMB-CONT
Usable at: 208 V
