ACRA AM2V Vertical Milling Machine w/ 3-Axis DRO – Taiwan Mil

ACRA AM2V Vertical Turret Milling Machine in good working condition. Taiwan-built machine equipped with a variable speed milling head, R8 spindle, and 3-axis DRO. Features a 9” x 49” table with generous travels, making it suitable for toolroom, fabrication, maintenance, and general machining applications.

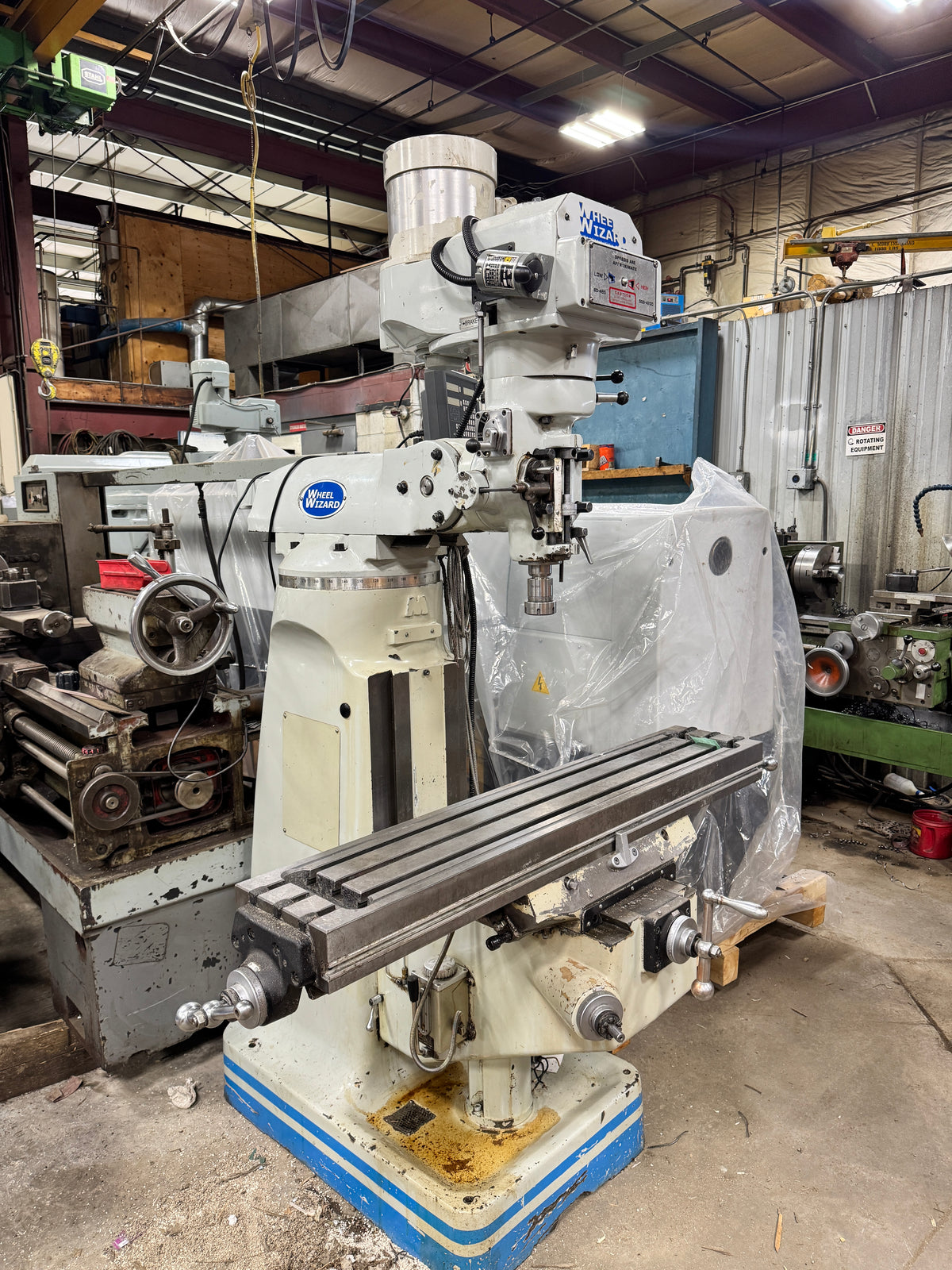

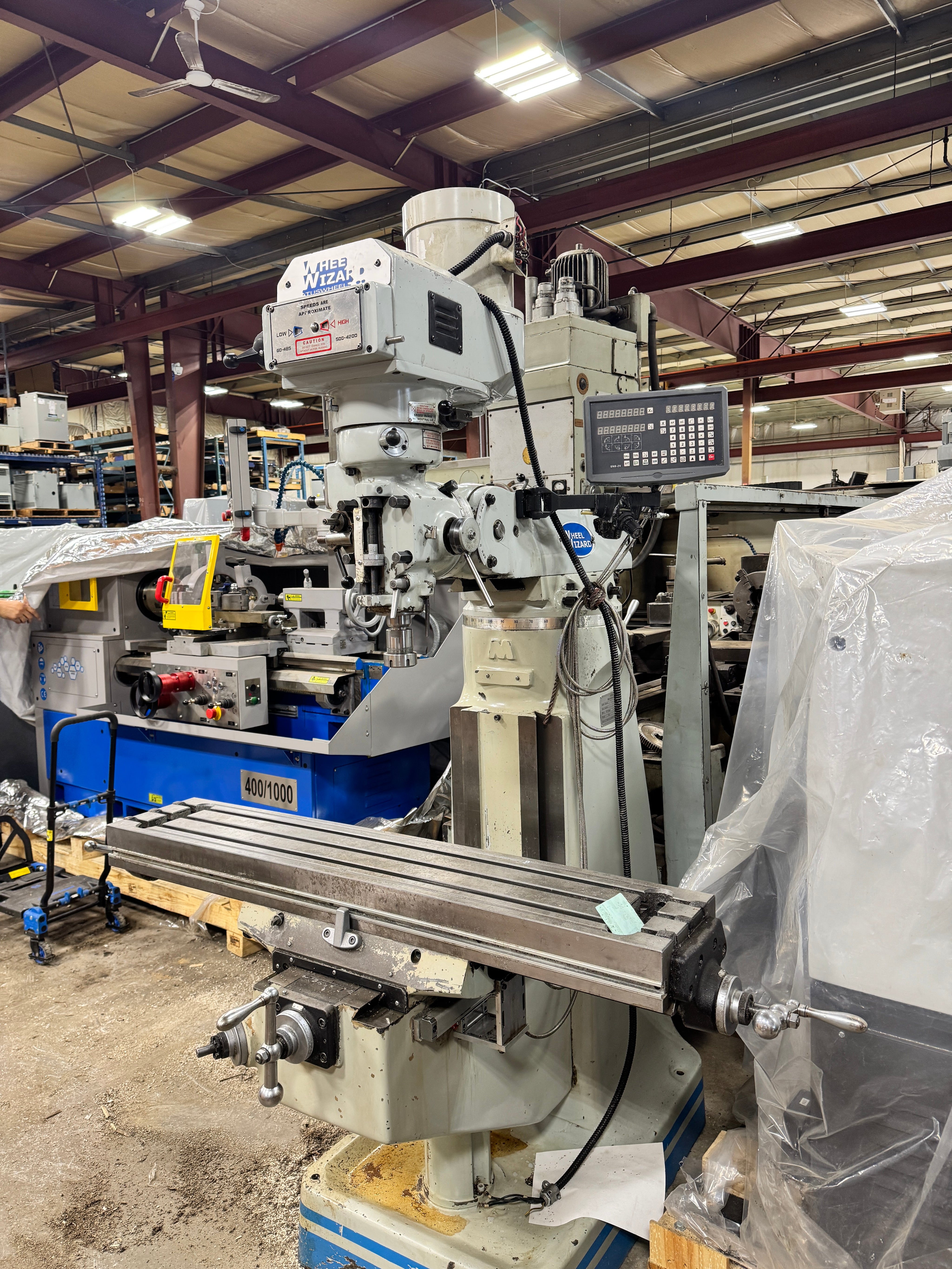

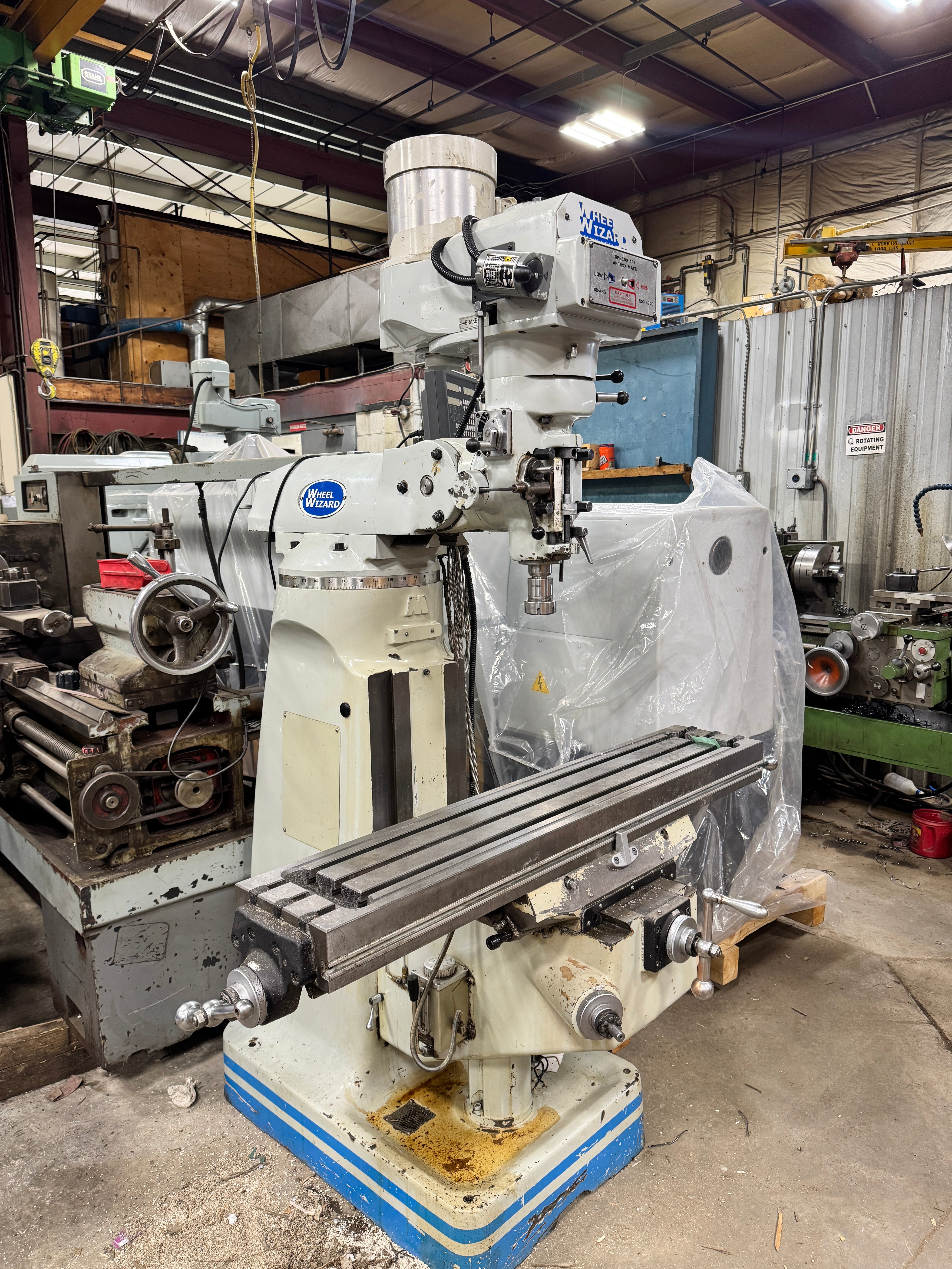

ACRA AM2V Vertical Turret Milling Machine

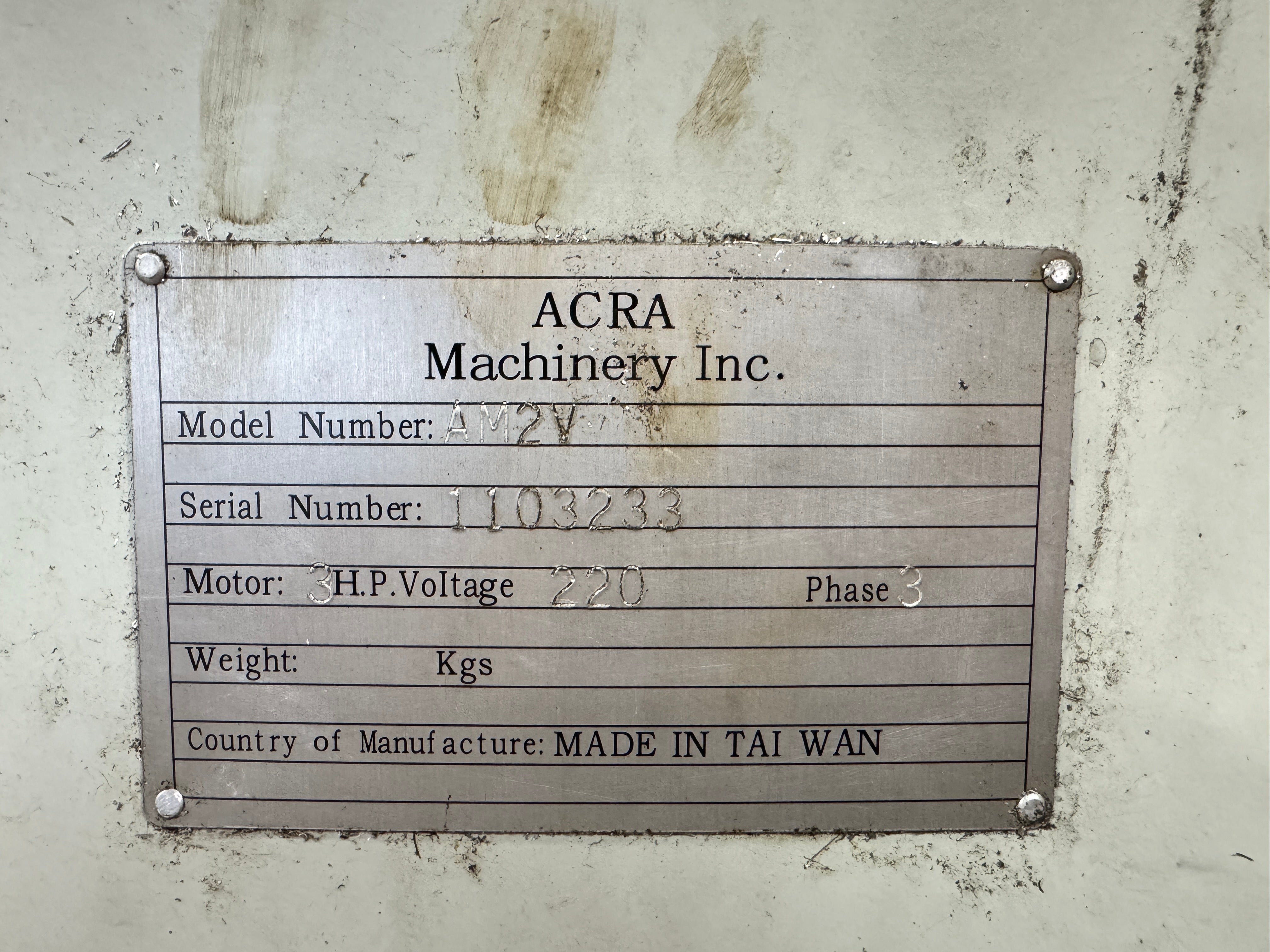

Manufacturer: ACRA Machinery Inc.
Model: AM2V
Type: Vertical Turret Milling Machine
Country of Manufacture: Taiwan
Serial Number: 1103233

Electrical
Motor: 3 HP
Voltage: 220V
Phase: 3 Phase

Spindle

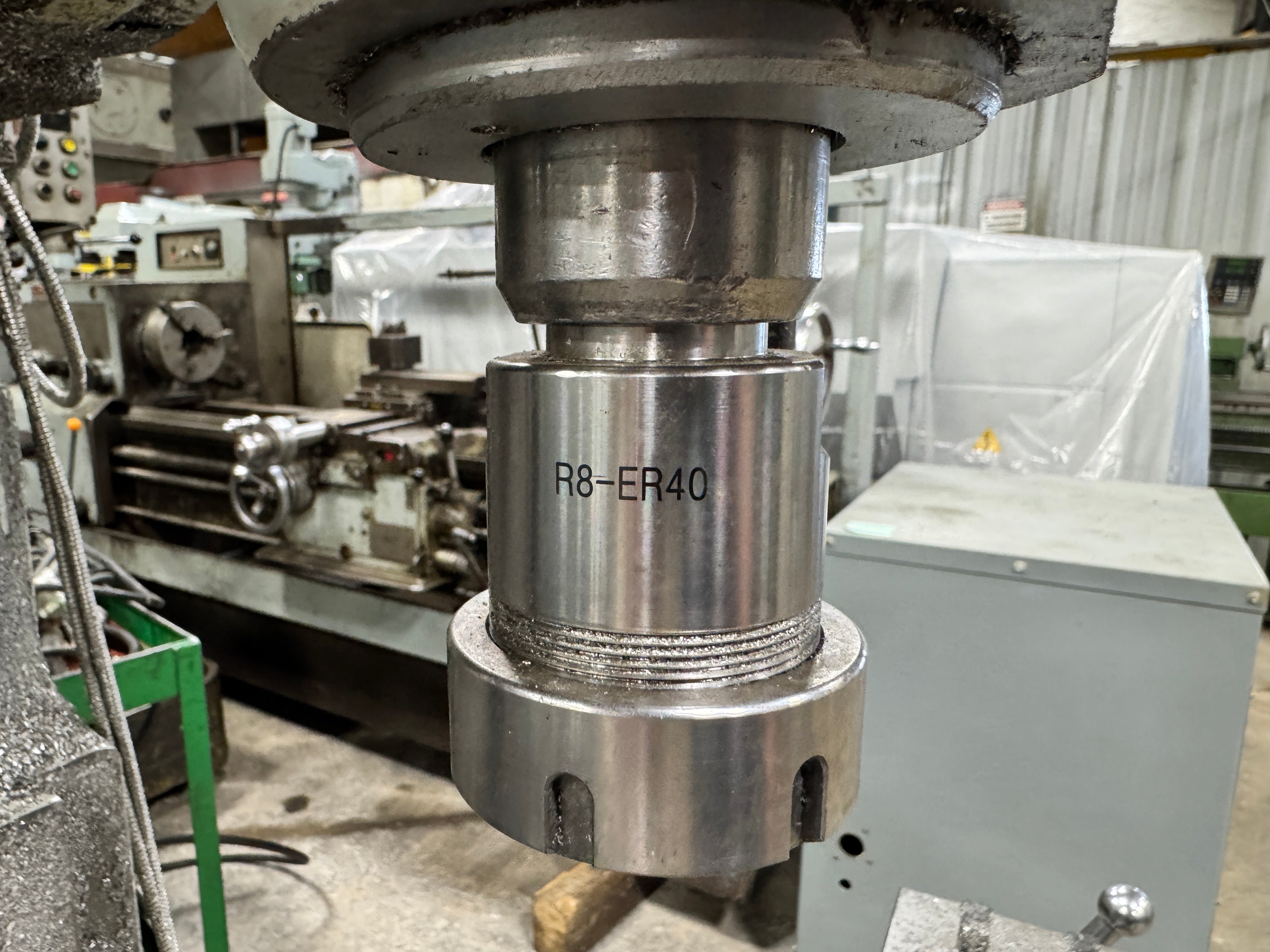

Spindle Taper: R8

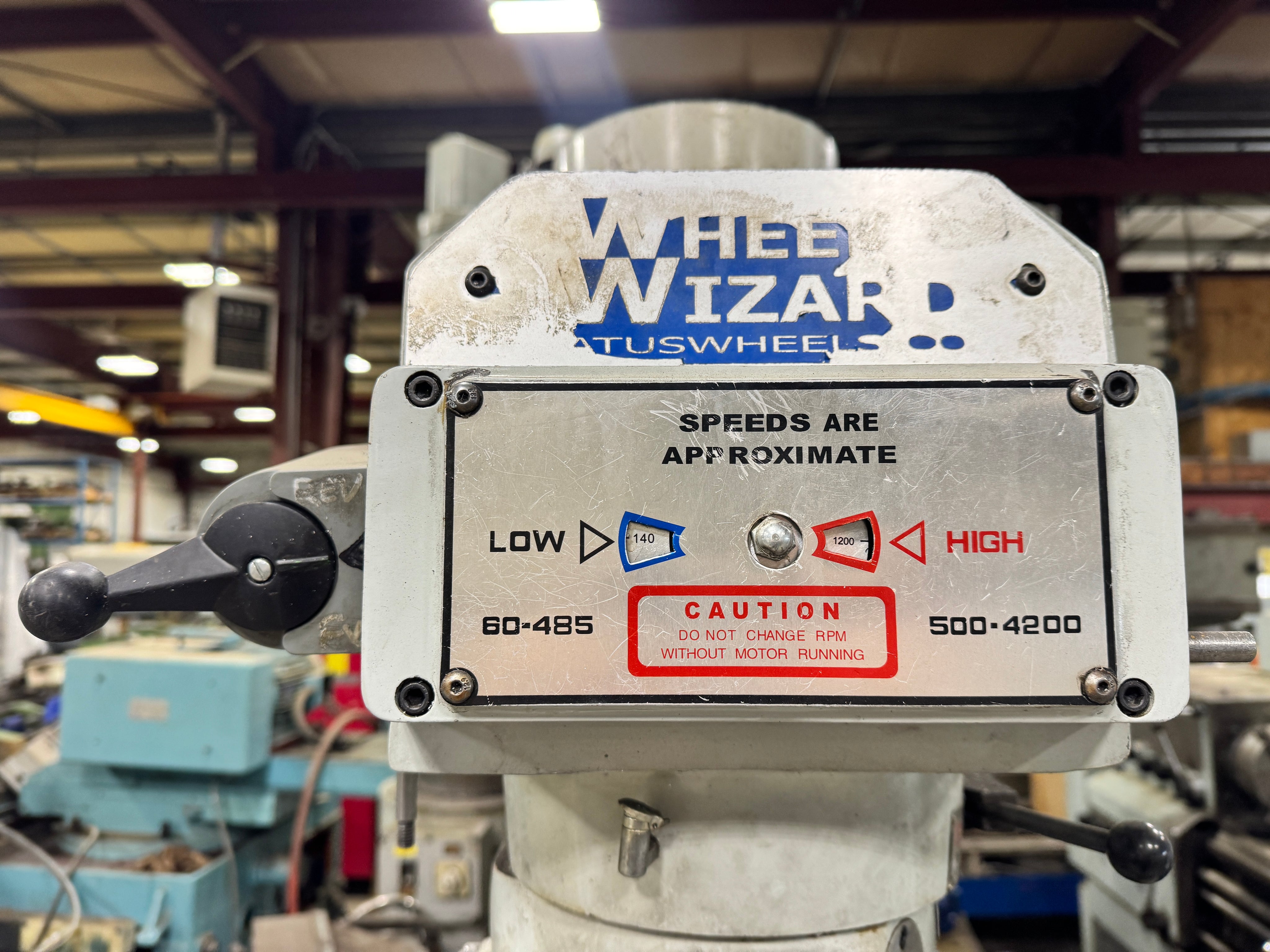

Variable Speed Head
Spindle Speed Range:
Low Range: 60 – 485 RPM
High Range: 500 – 4200 RPM

Table & Travels
Table Size: 9" x 49"
X-Axis Travel: 35-1/2"
Y-Axis Travel: 12-1/2"
Knee Travel: 16"
Quill Travel: 5"
Ram Travel: 12-1/4"

Features
Variable Speed Milling Head
Turret Ram Design

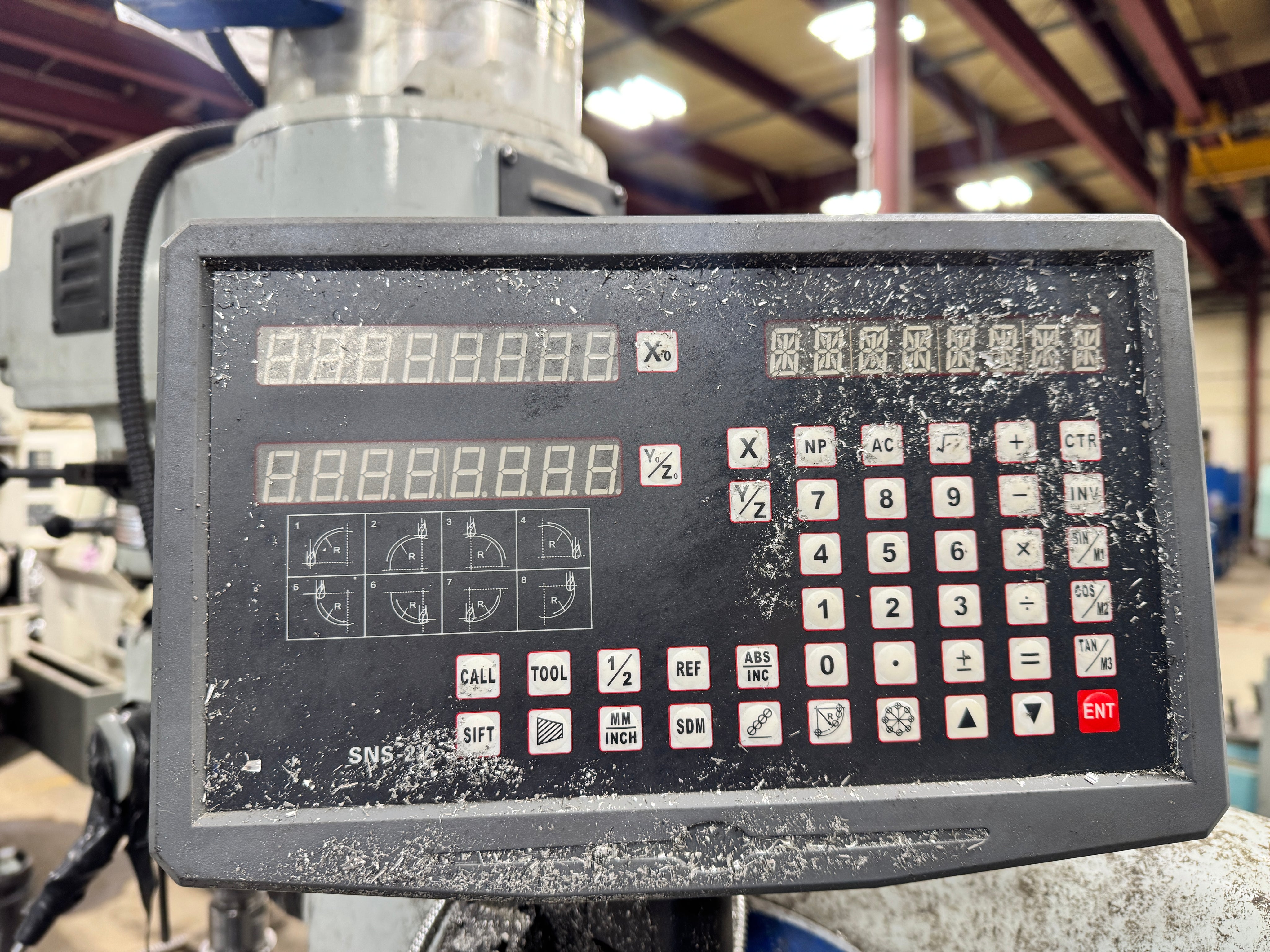

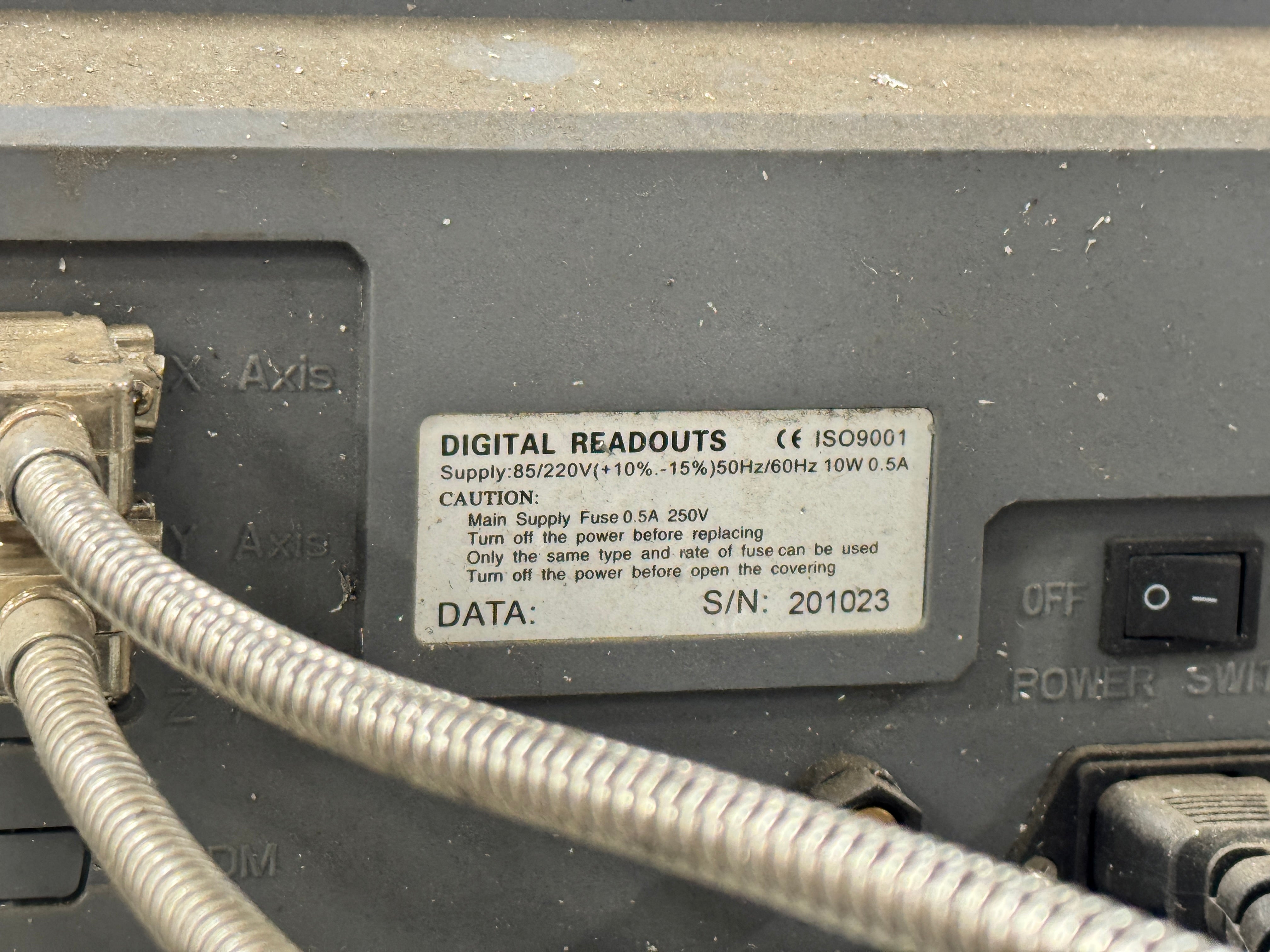

2-Axis Digital Readout (DRO)
Head Tilt & Swivel

Approximate Weight
Approx. 2200 lbs

Note
Table size and travels are based on standard published ACRA AM2V specifications and should be verified by physical inspection.
