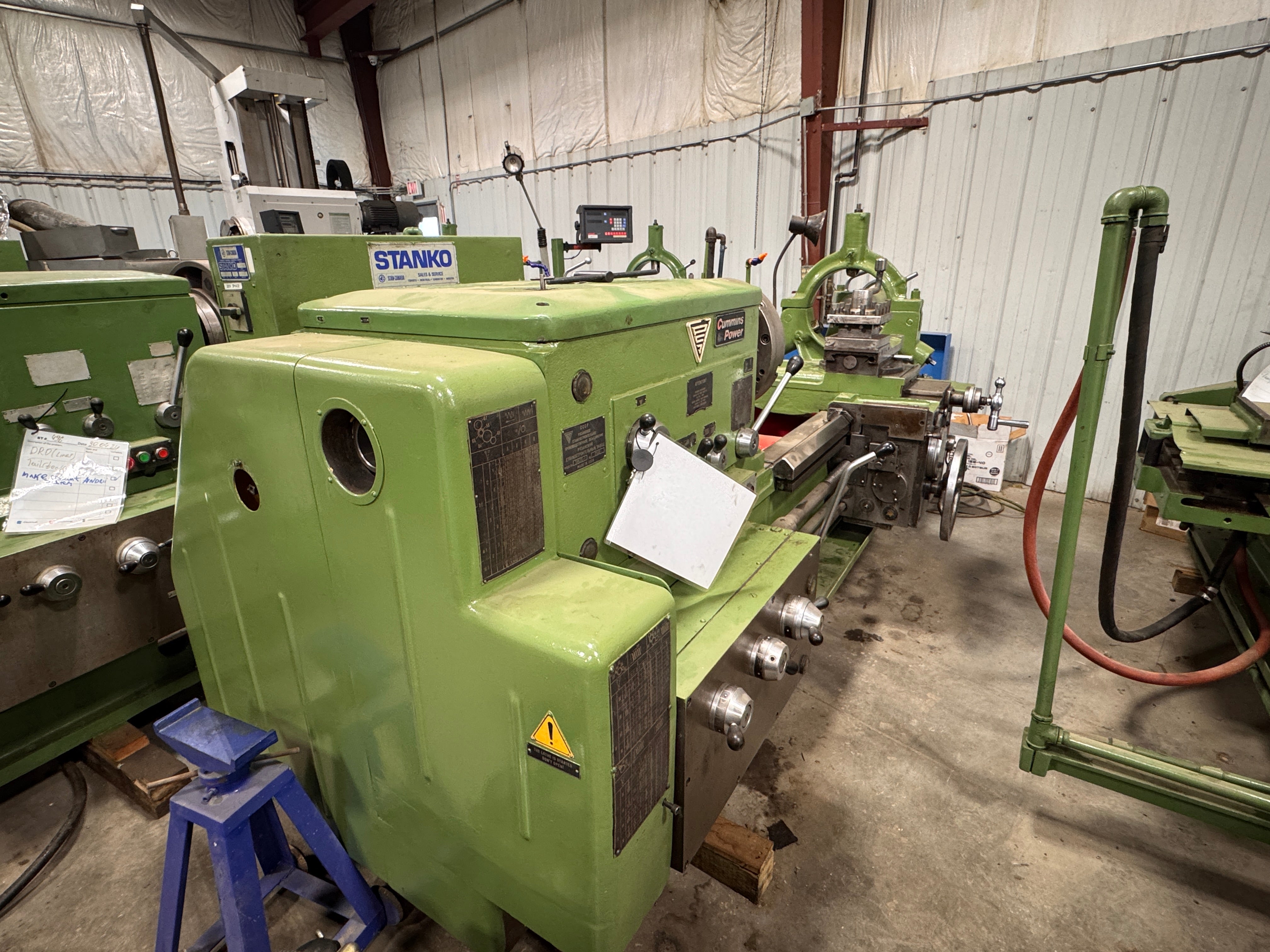

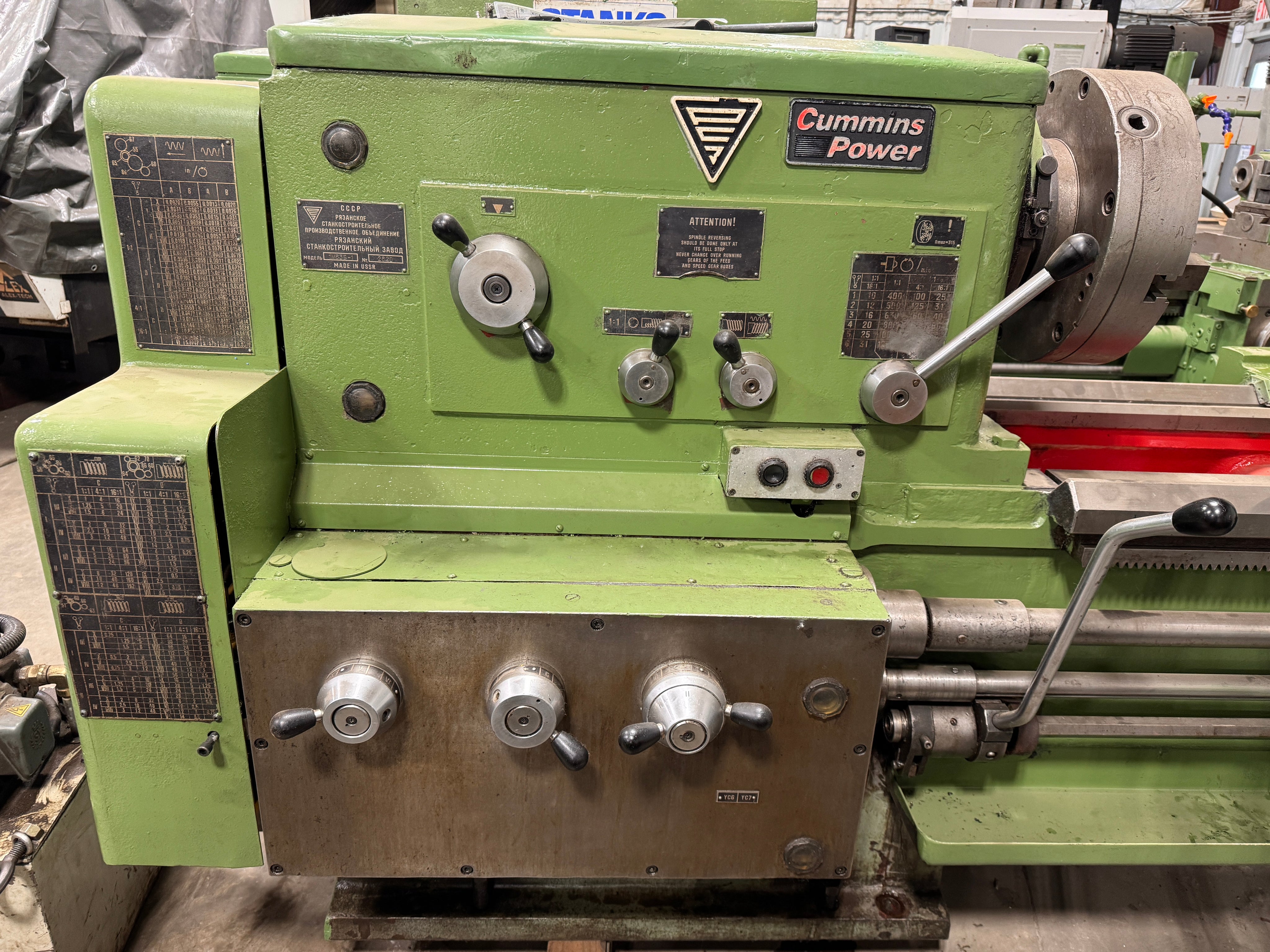

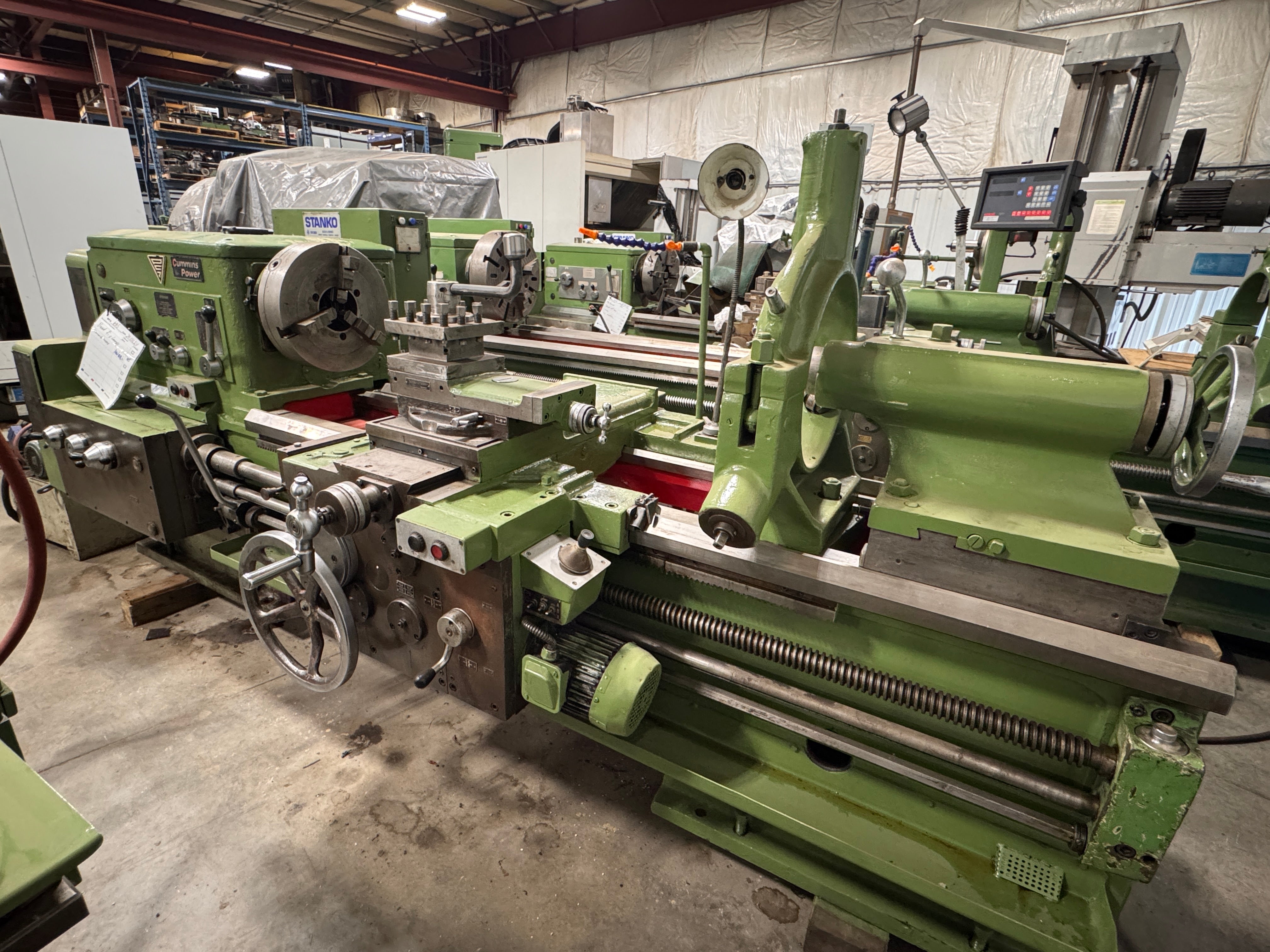

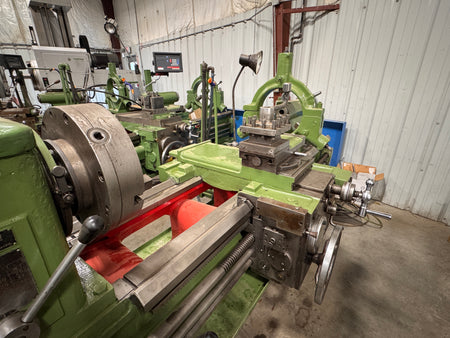

The 1M63-B1 is a robust industrial lathe built for serious metalworking. With a 28" swing and 60" centers, this machine features a 2-3/4" spindle bore, rapid travel, MT5 tailstock, and steady rest for large, precise turning jobs.

Specifications

Model: 1M63-B1

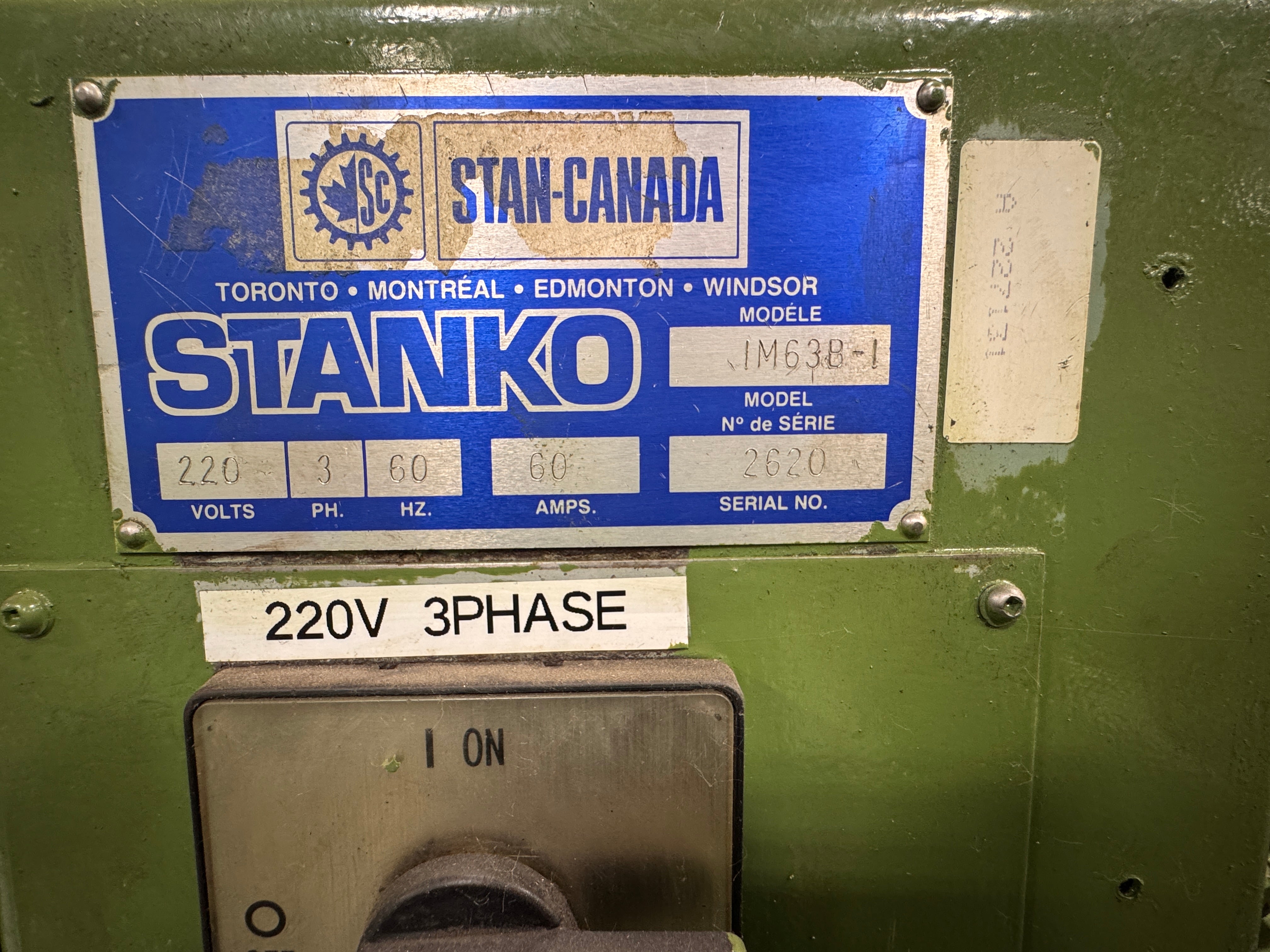

Serial: 2620
Spindle Speed: 10-1250 RPM
Swing: 28"
Distance: 60"

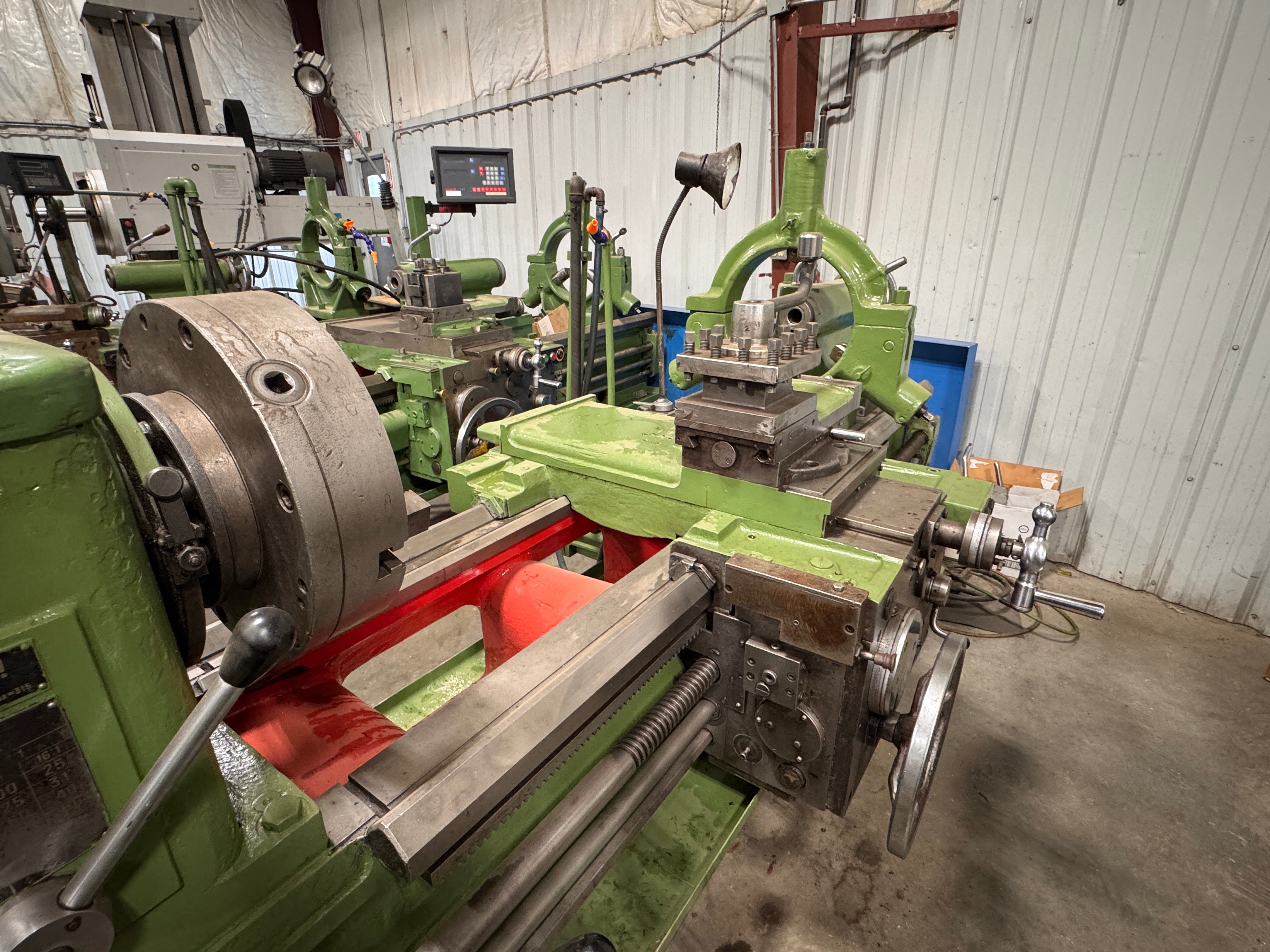

Chuck: 16" - 3 Jaw
Spindle Bore: 2 3/4"

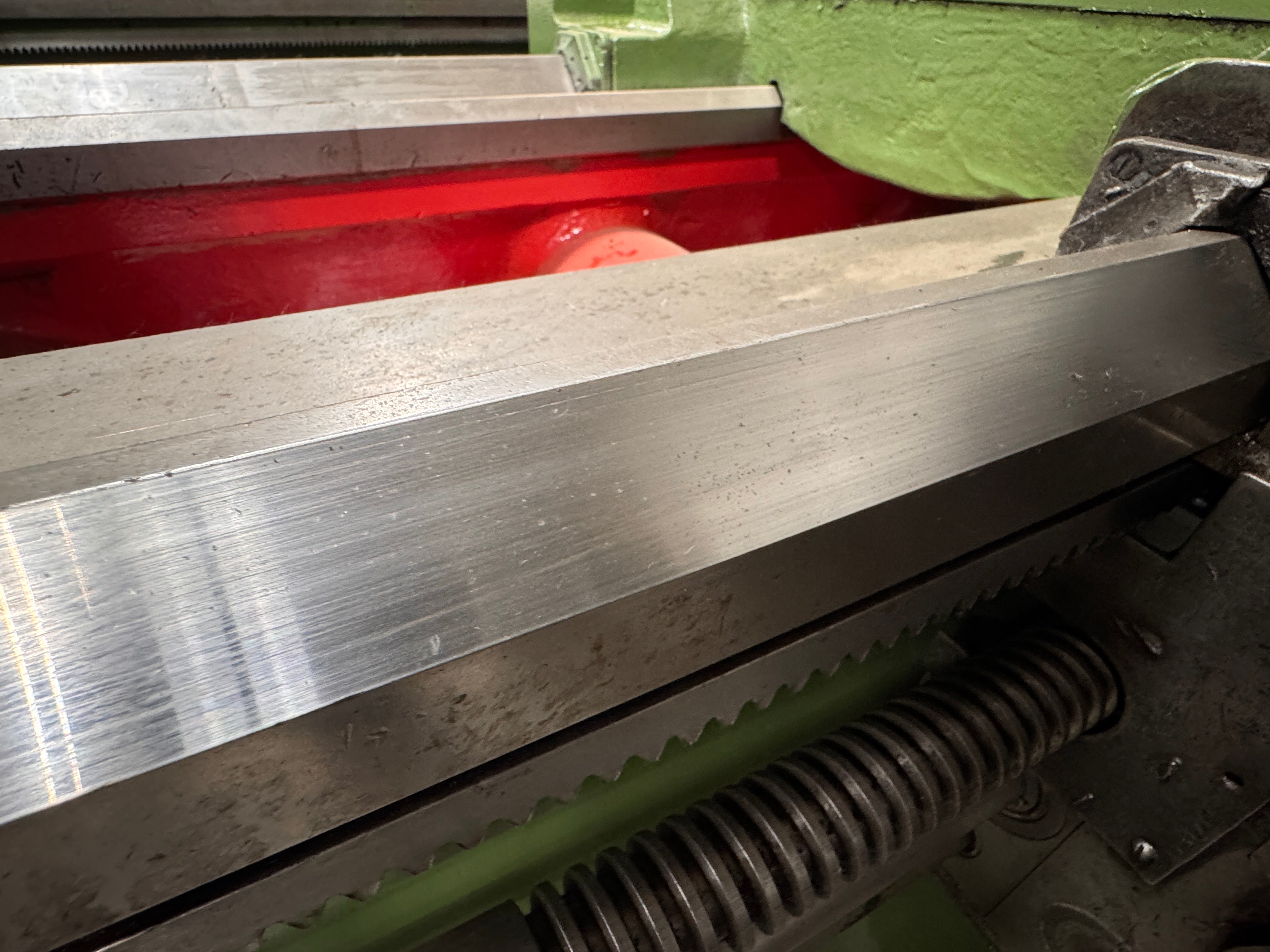

Leadscrew: 2 TPI
Tailstock: MT5

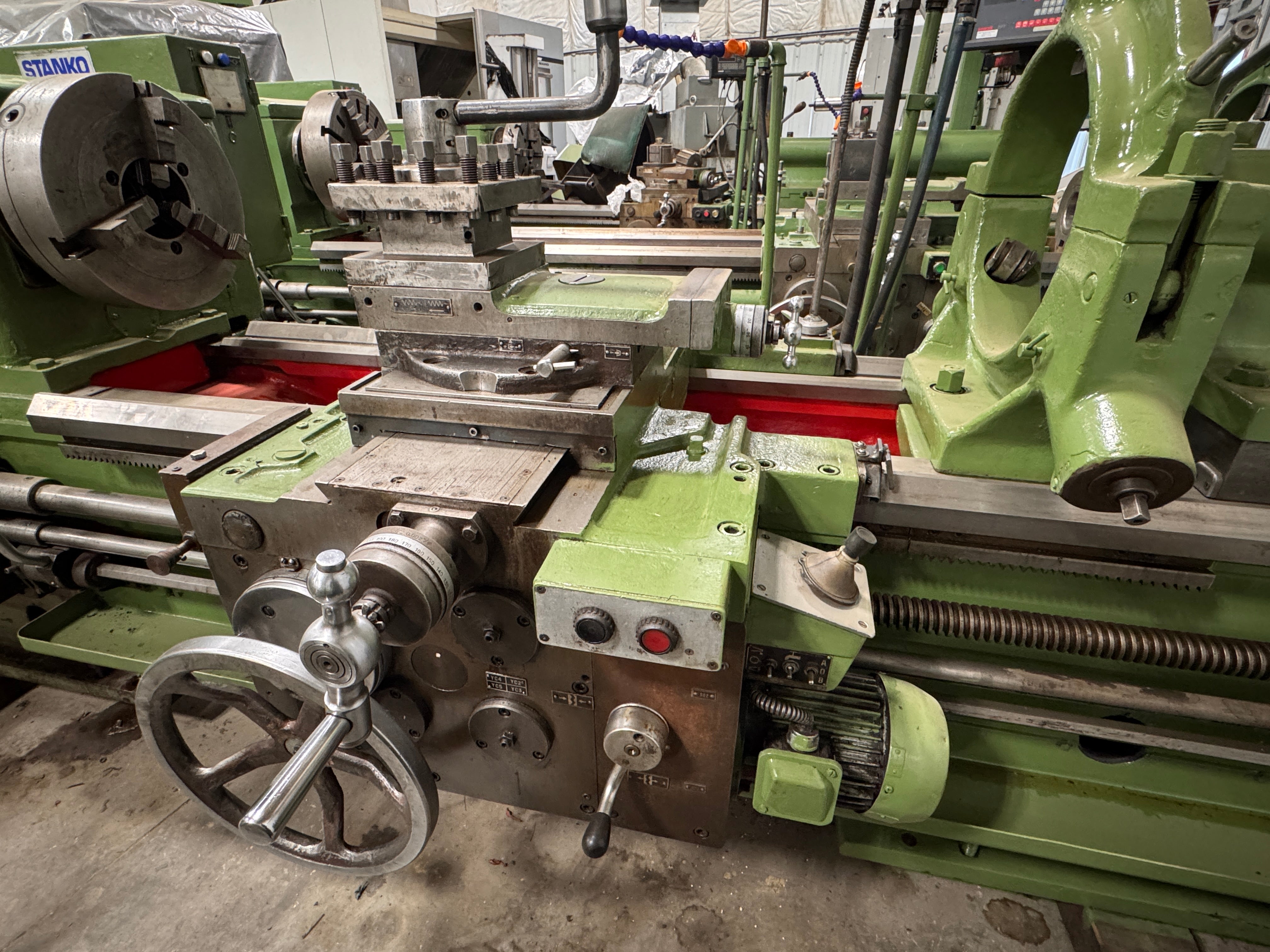

Toolpost: Square
Rapid Travel: Yes

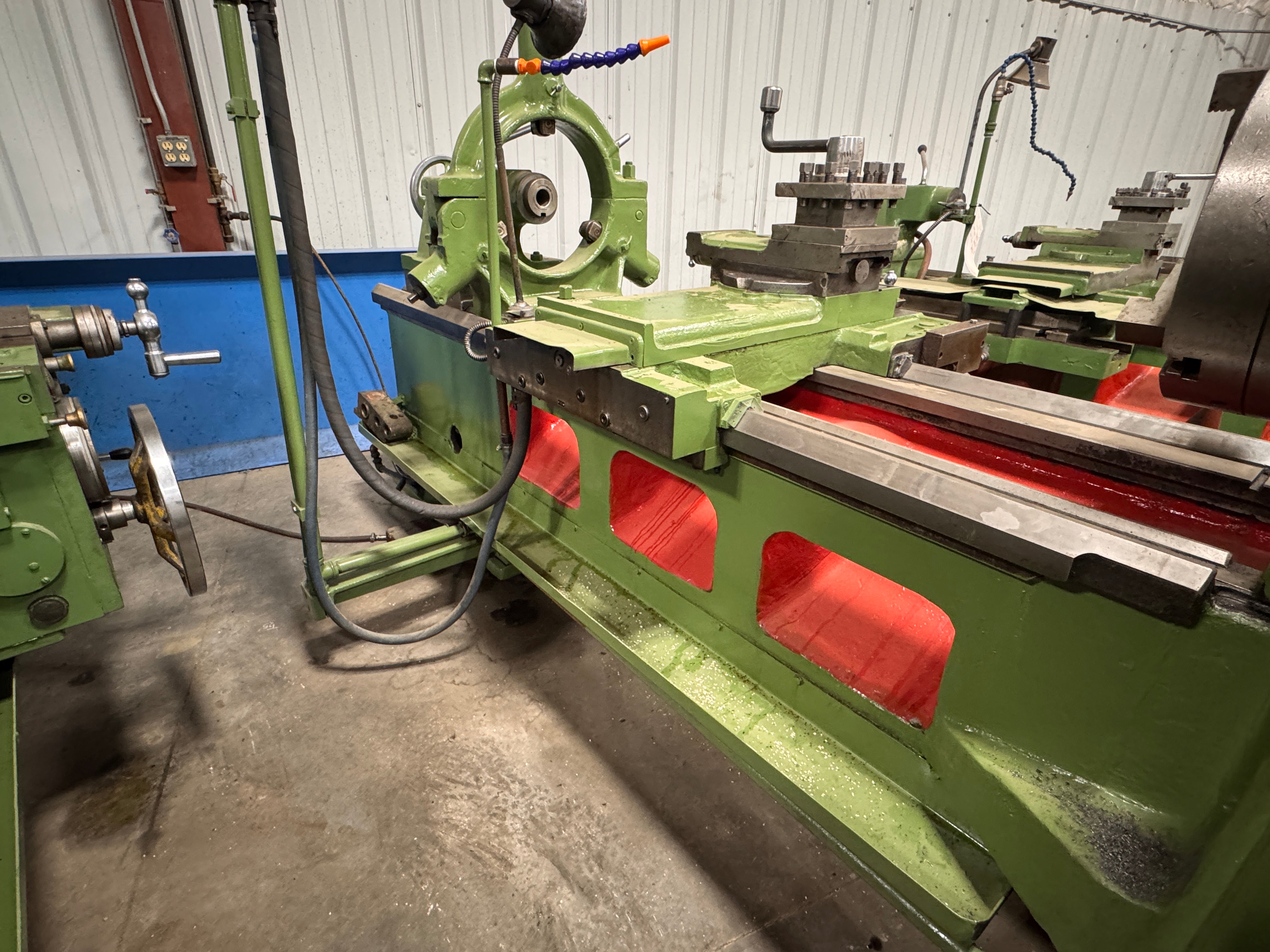

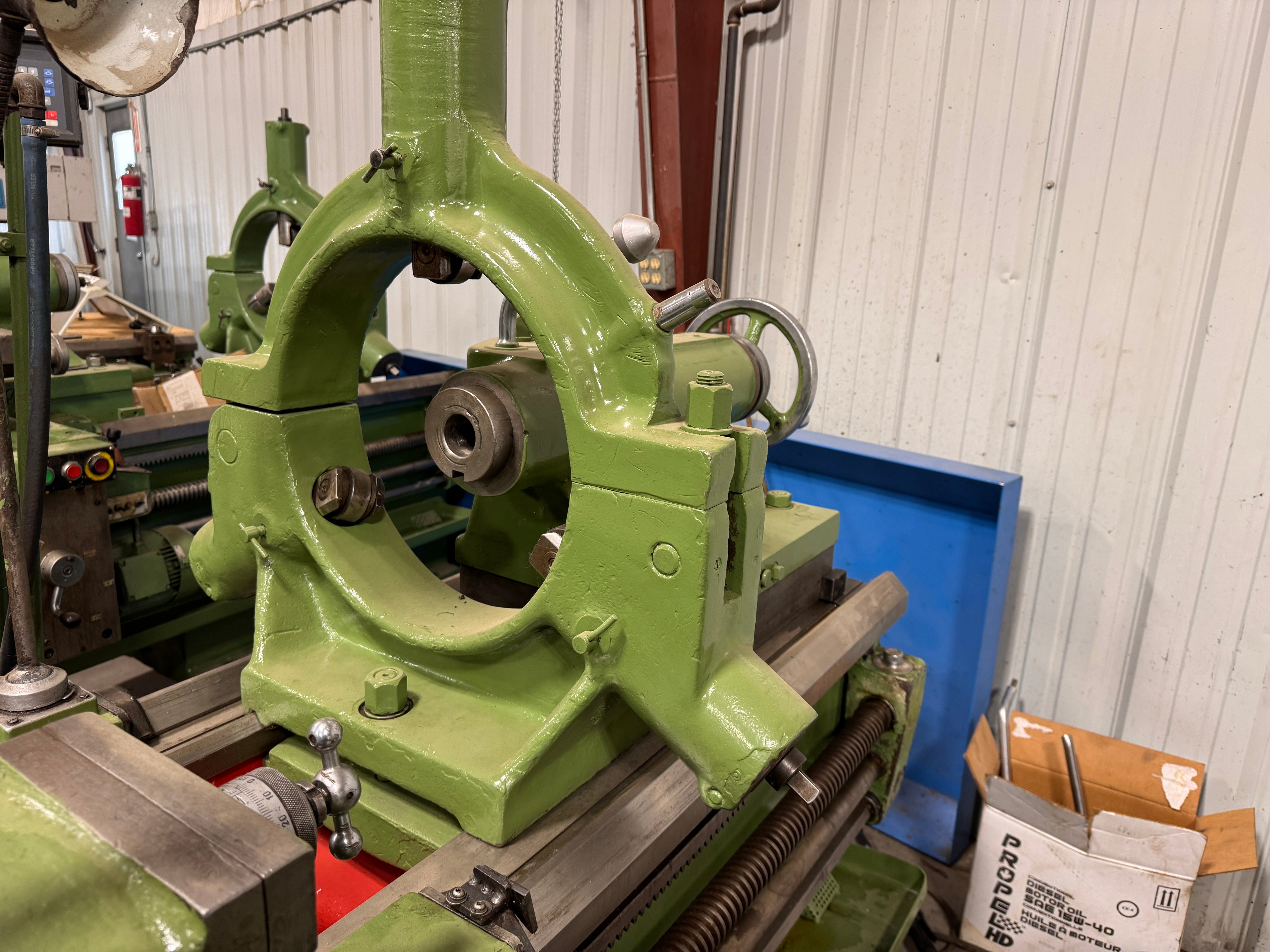

Steady Rest
Work Lamp
Power: 220V, 3p, 60hz
Dimensions 70"H x 65"W x 150" L
Weight: 8,000 lbs
