Machine Description

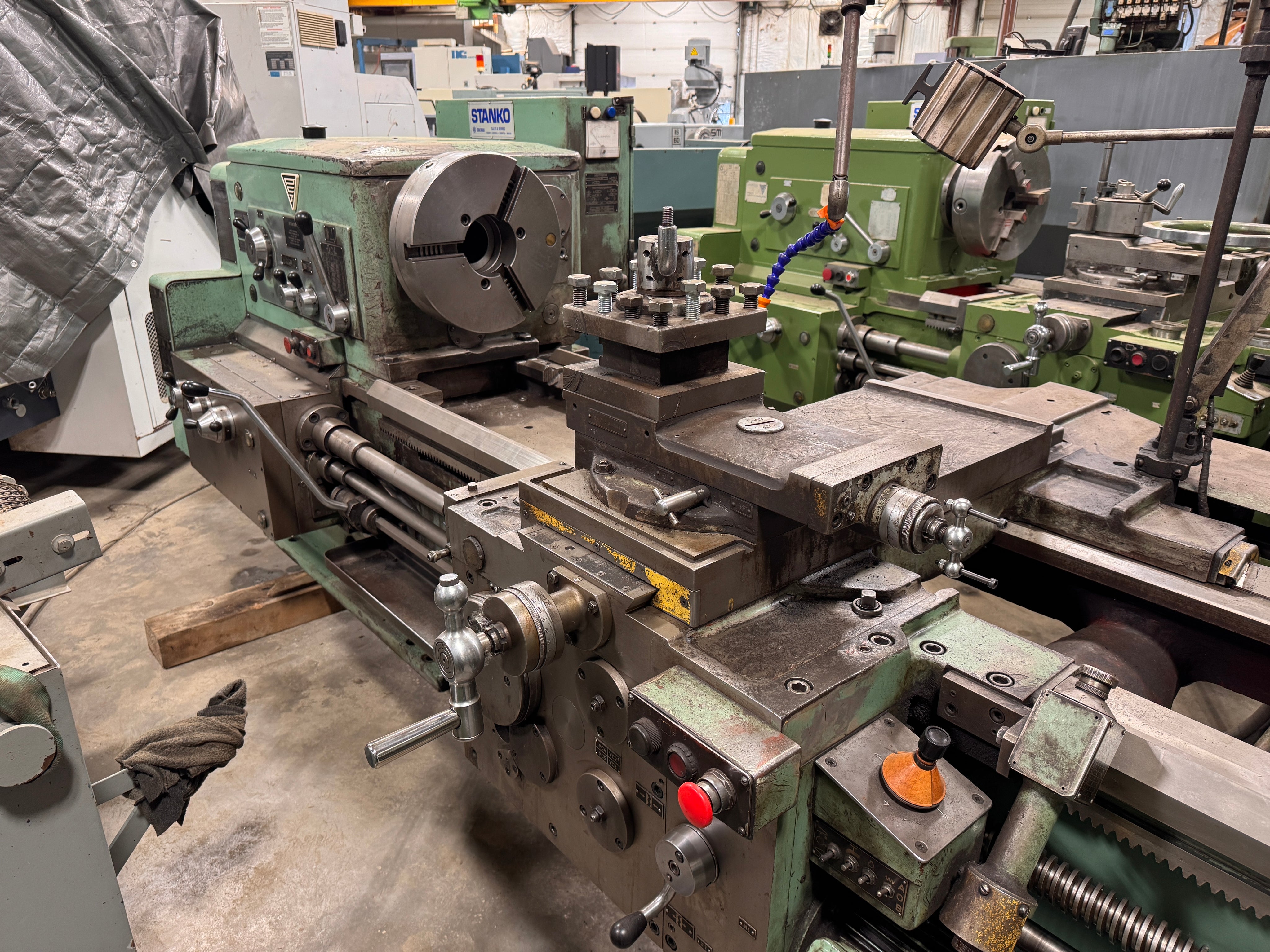

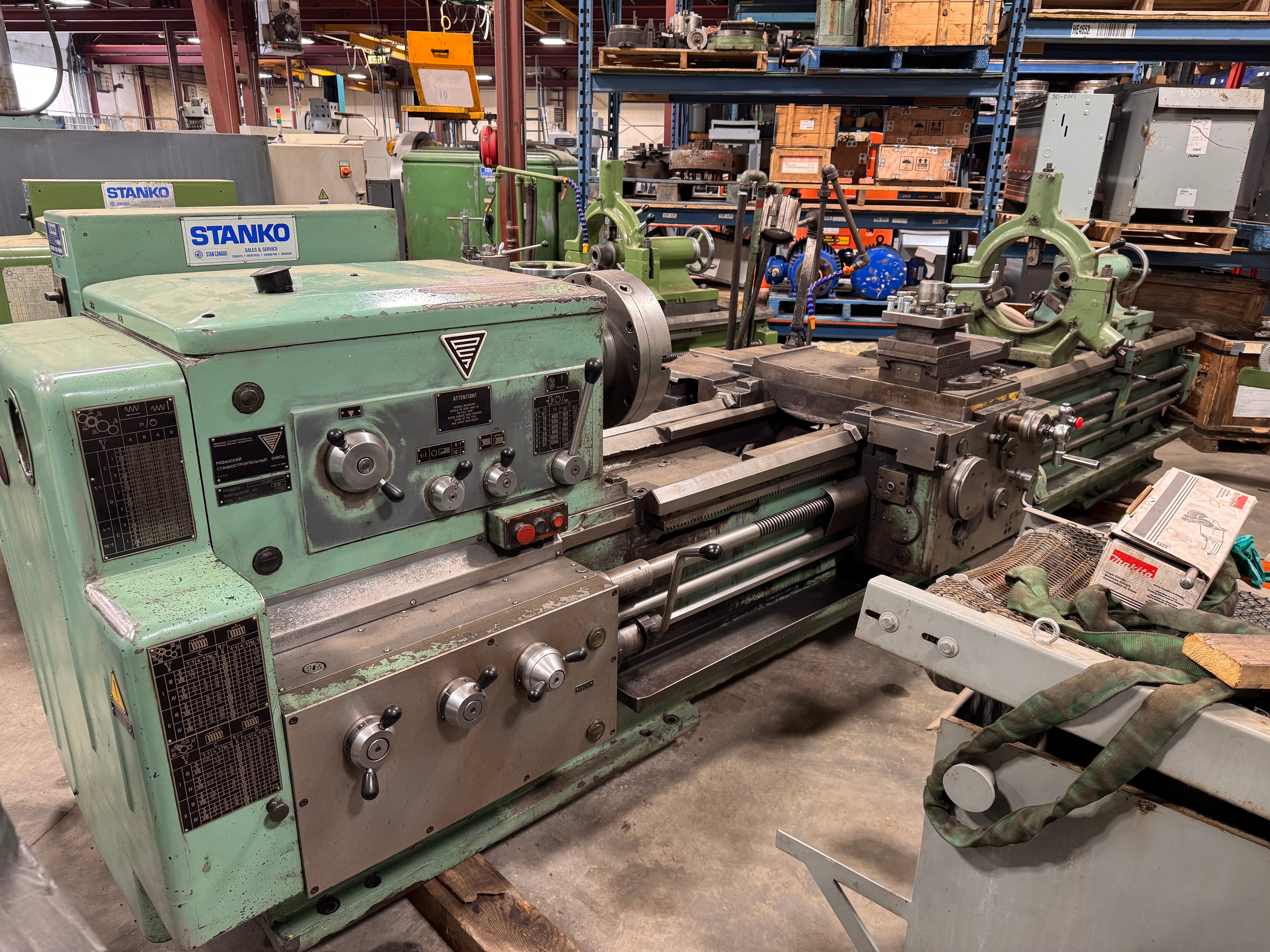

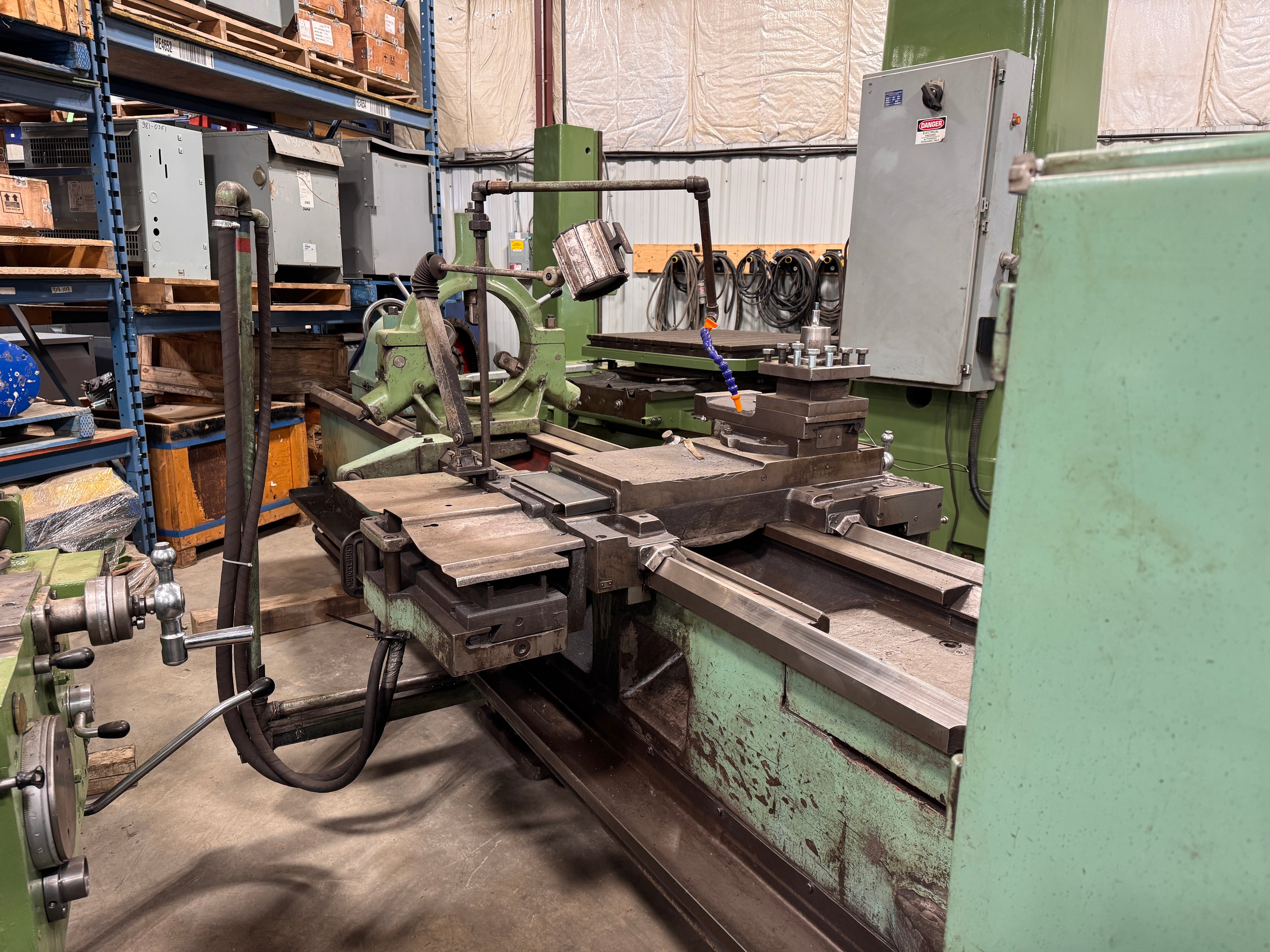

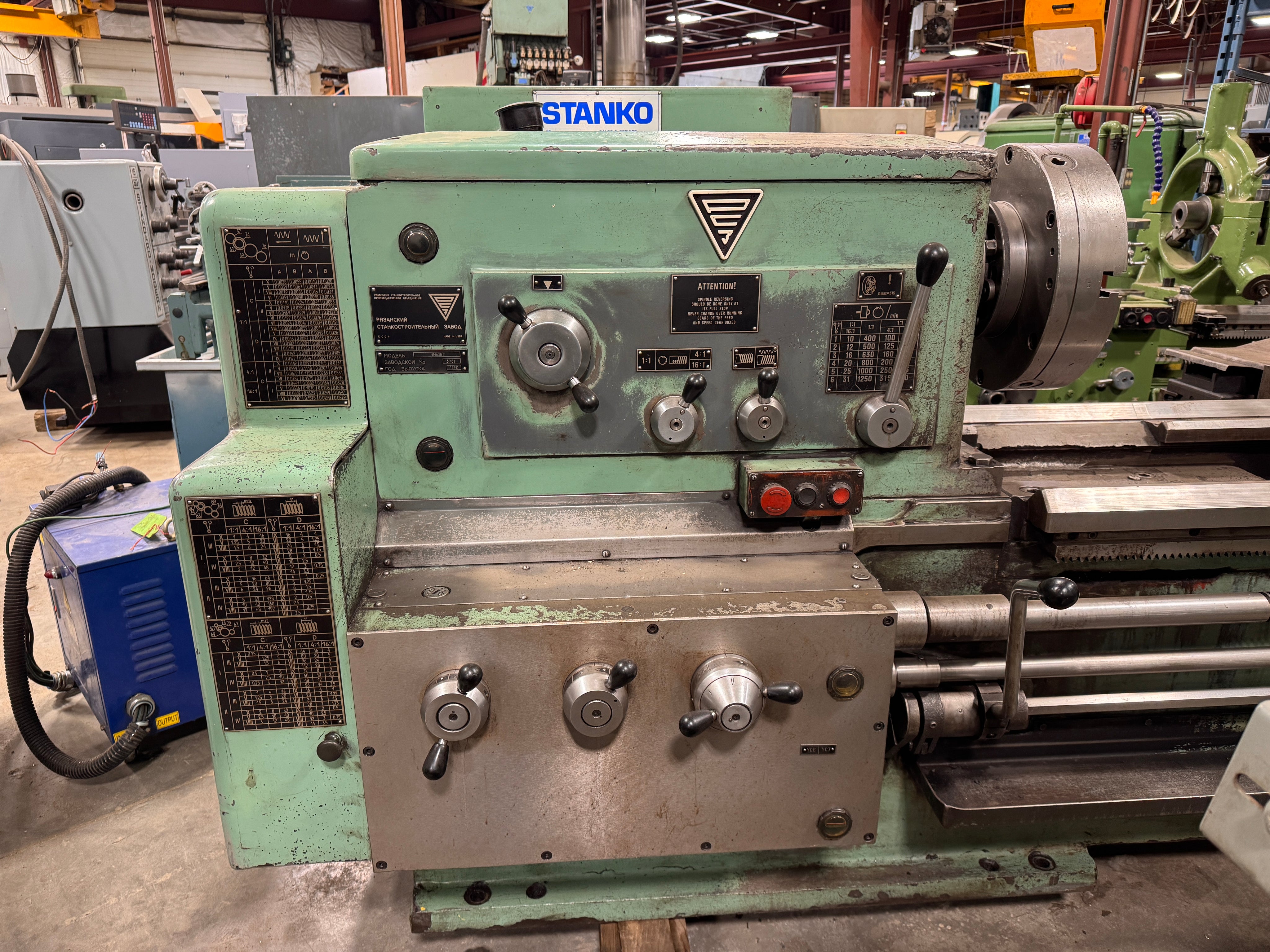

The Stanko 1M63B is a heavy-duty engine lathe built for precision turning and long-bed capacity work. With 28" swing over the bed and 120" between centers, it handles large shafts and industrial components with ease. A 22 HP main motor and wide 10–1250 rpm speed range give strong cutting performance across roughing and finishing operations. This model is a popular choice in Canada for industrial machining. Equipped with rapid travel, quick-change toolpost, taper attachment, and steady rest, it offers a solid combination of power, rigidity, and versatility for demanding shop environments.

Specification
Machine: Stanko engine lathe
Model / Type: 1M63B
Serial No.: 3761

Swing over bed: 28" (711 mm)
Distance between centers: 120" (3048 mm)
Spindle bore: 3-1/4" (82.6 mm)

Spindle speed range: 10–1250 rpm
Main motor: 22 HP (16.4 kW)
Leadscrew pitch: 2 TPI
Tailstock taper: MT5

Chuck: 16" 3-jaw, solid

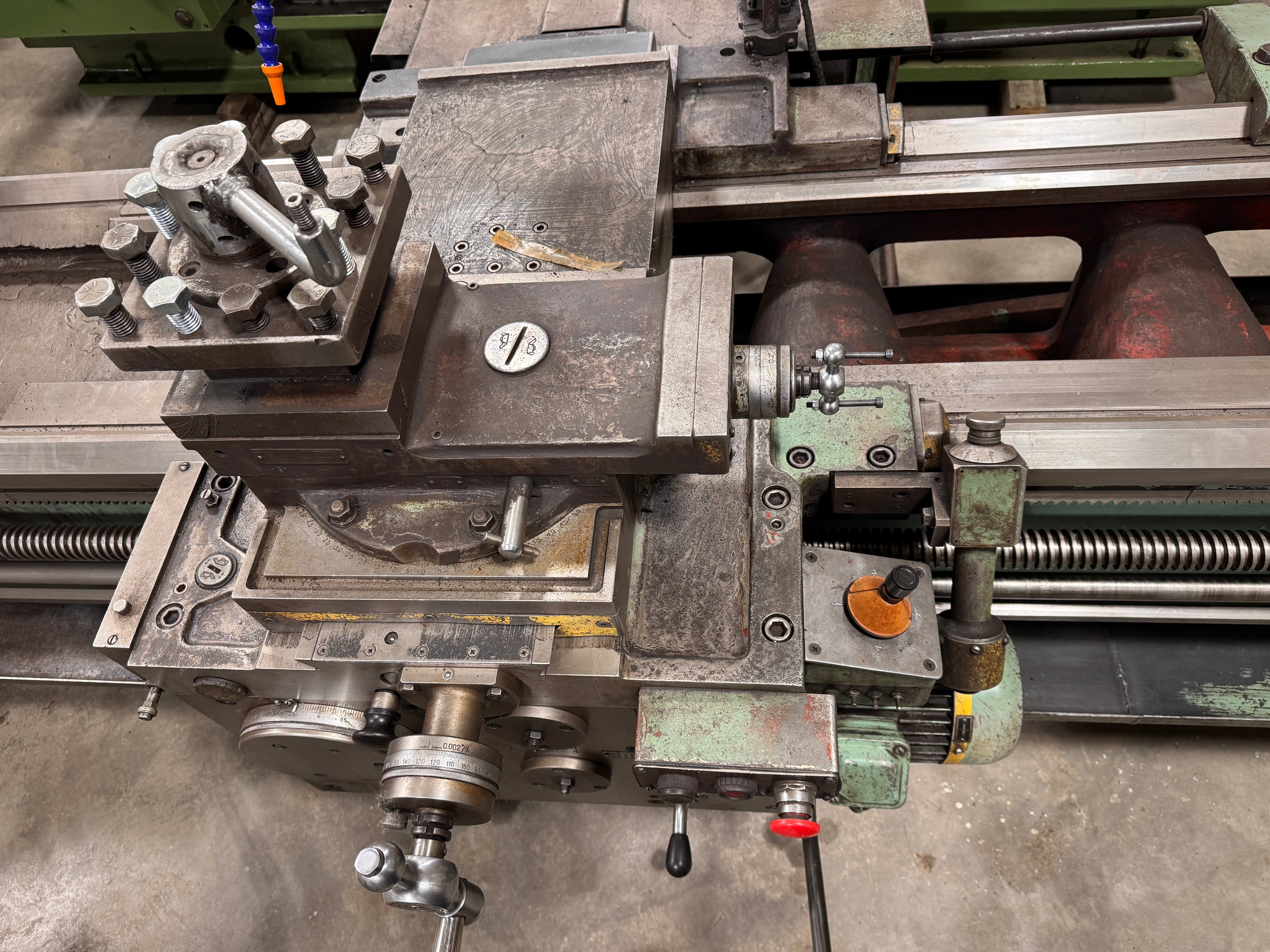

Toolpost: included
Thread dial: included
Rapid travel: included

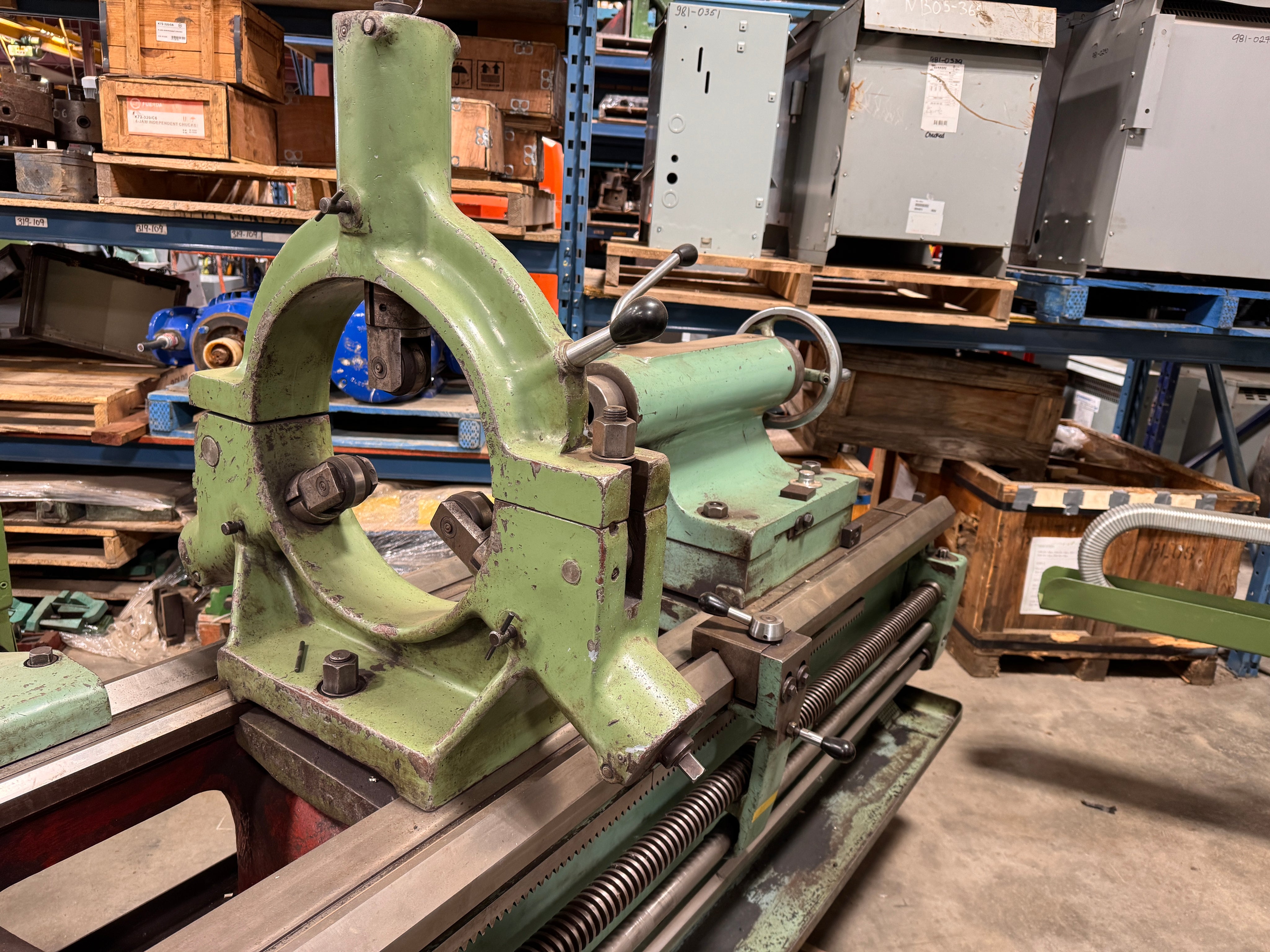

Steady rest: included

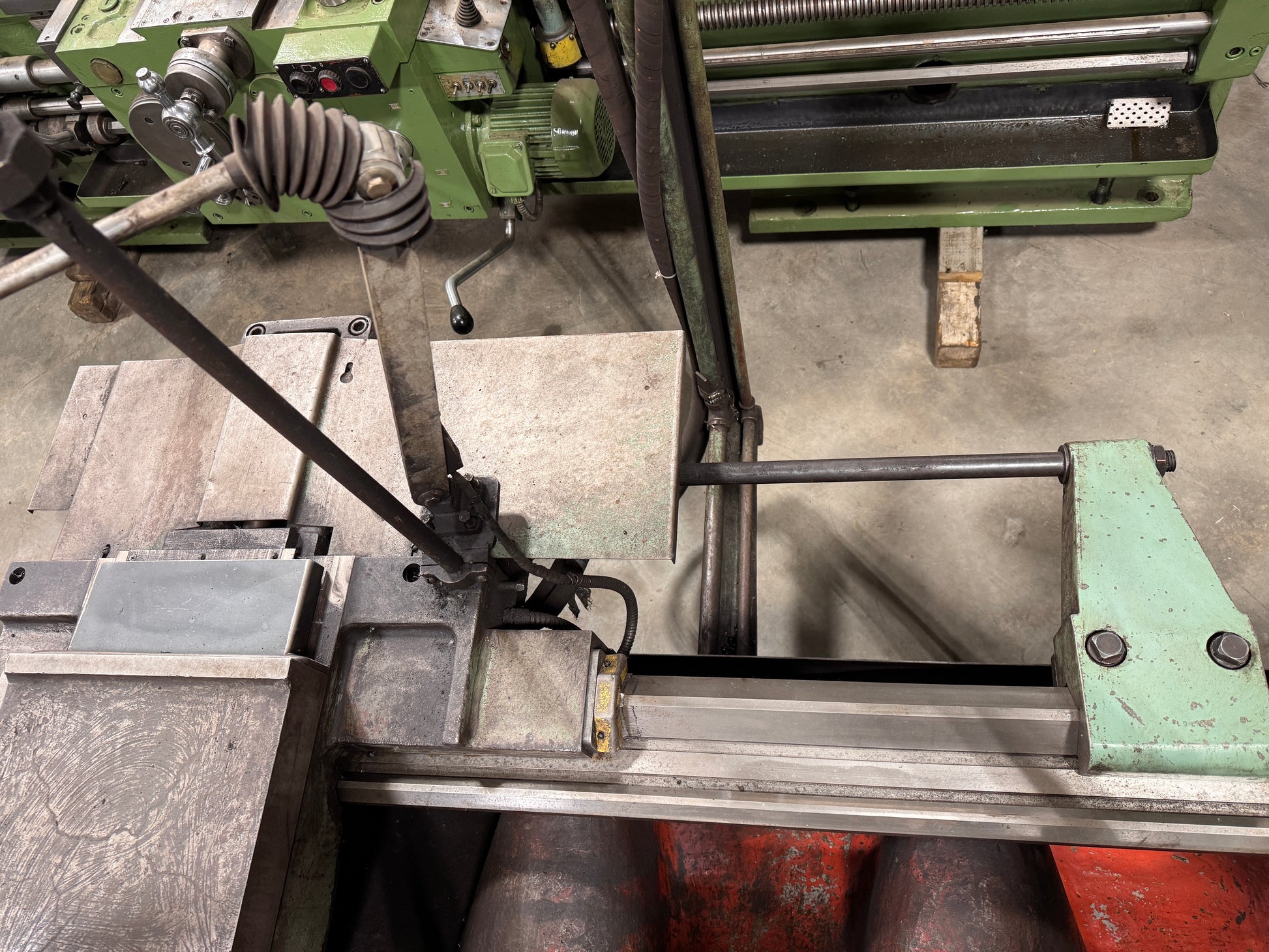

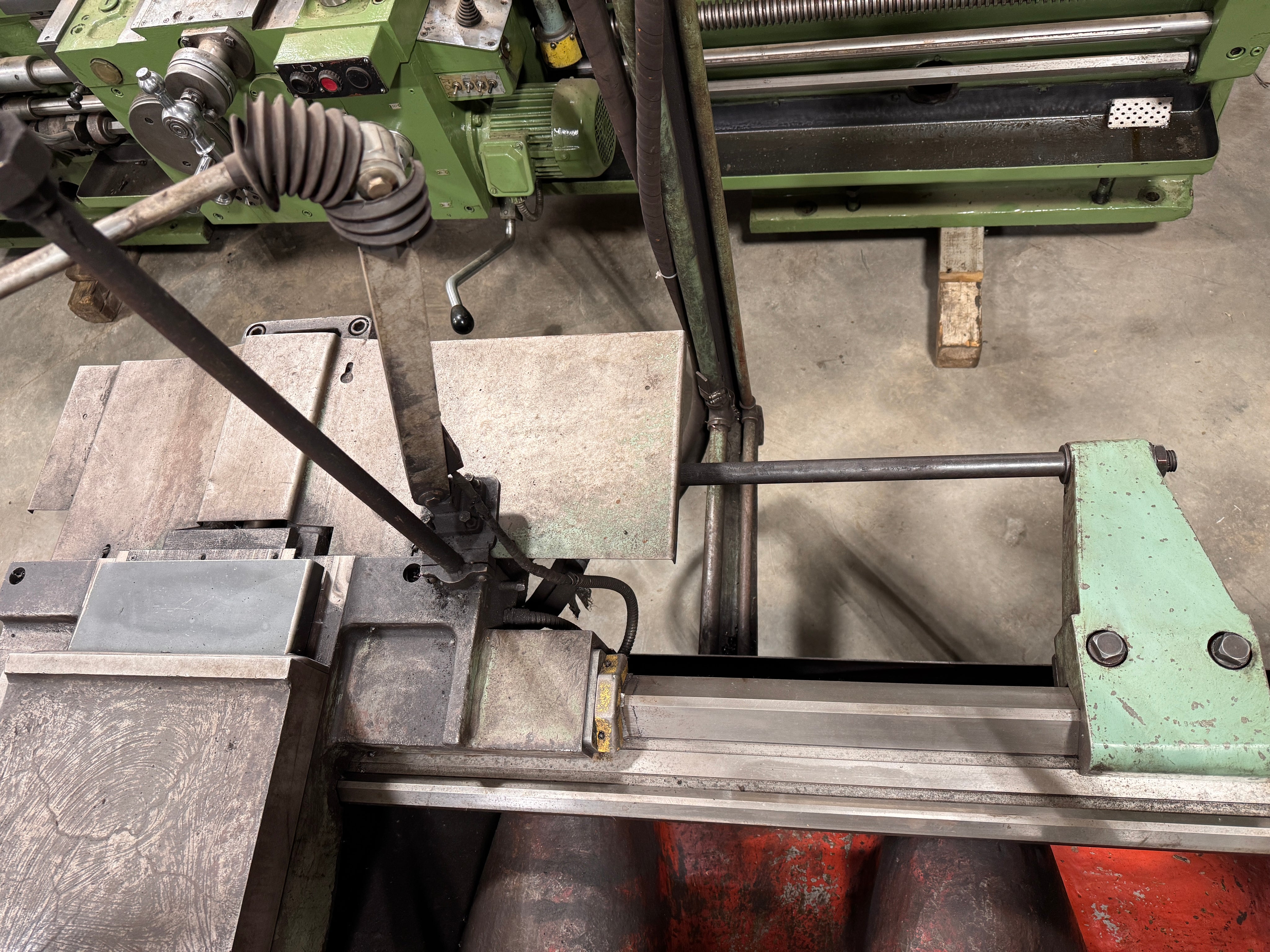

Taper attachment: included

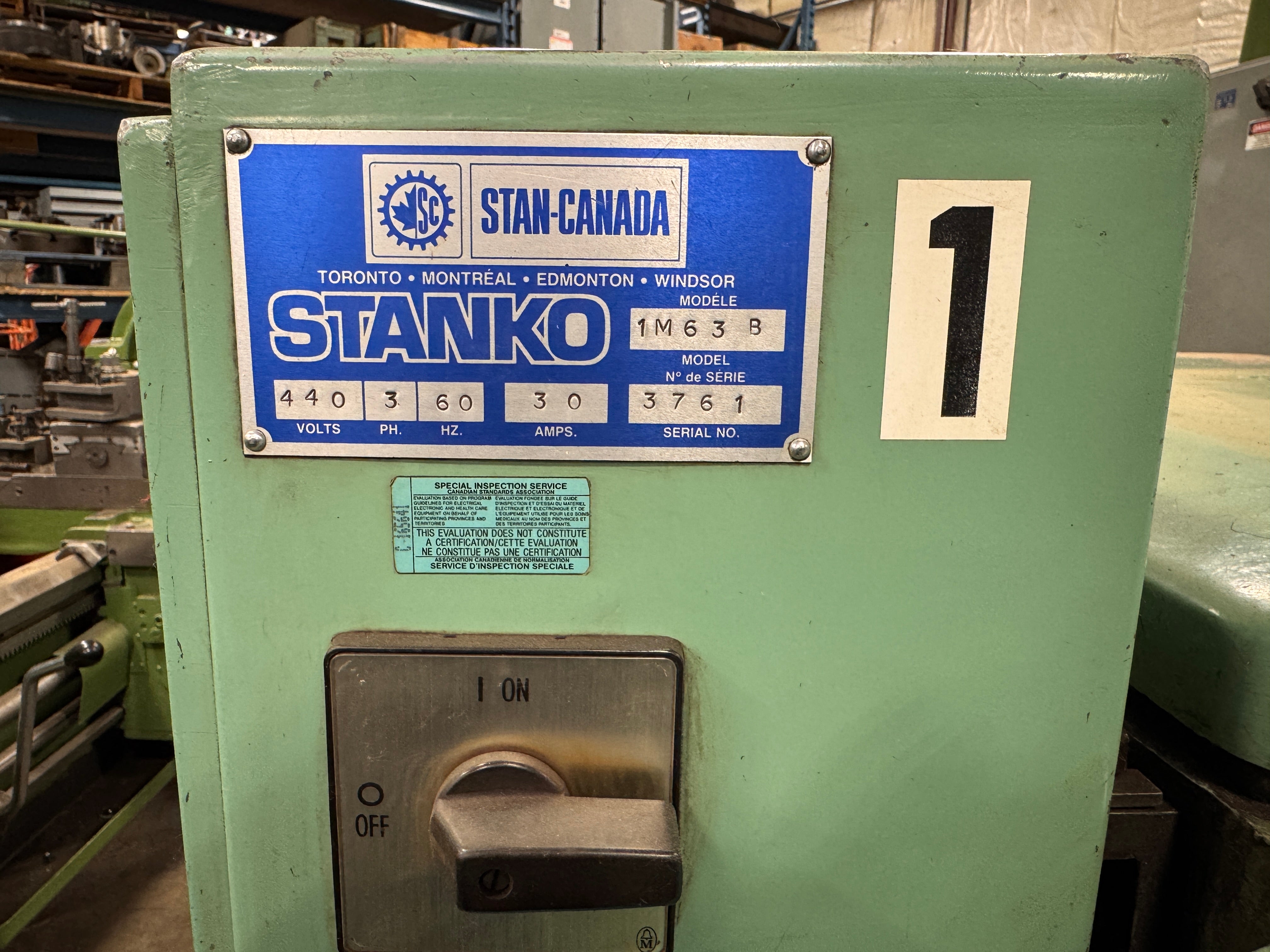

Electrical supply: 440 V, 3-phase, 60 Hz, 30 A

Approximate machine weight: 10,000 lb (4536 kg)
Overall dimensions (H × W × L): 65" × 75" × 205"
(1651 × 1905 × 5207 mm)

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
