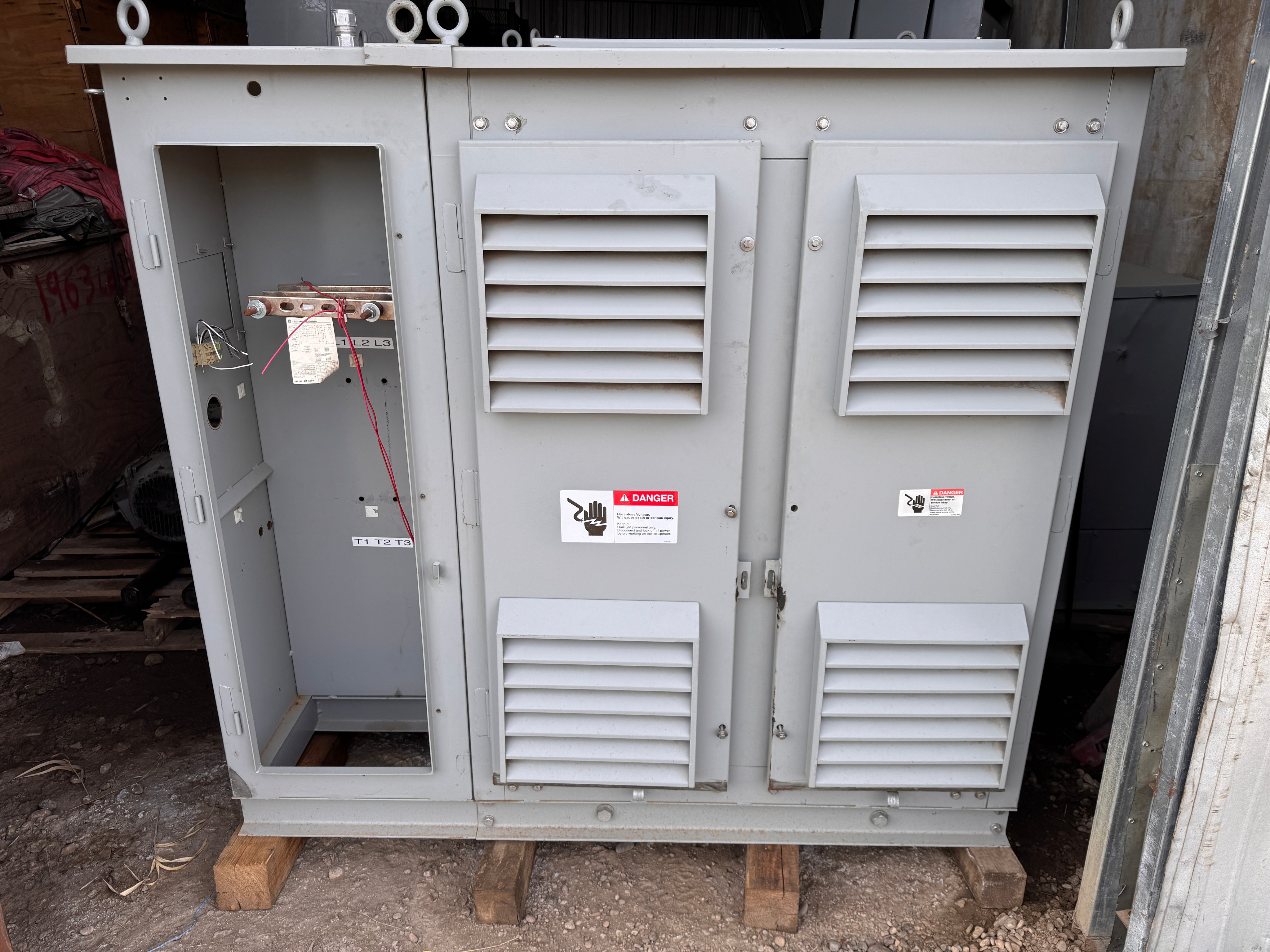

112.5 KVA 2494Y/1440V to 380V Isolation Transformer

Regular price $19,500.00

Contact Us

Phone: 1(780) 434-0099
Email: Sales@stancanada.com

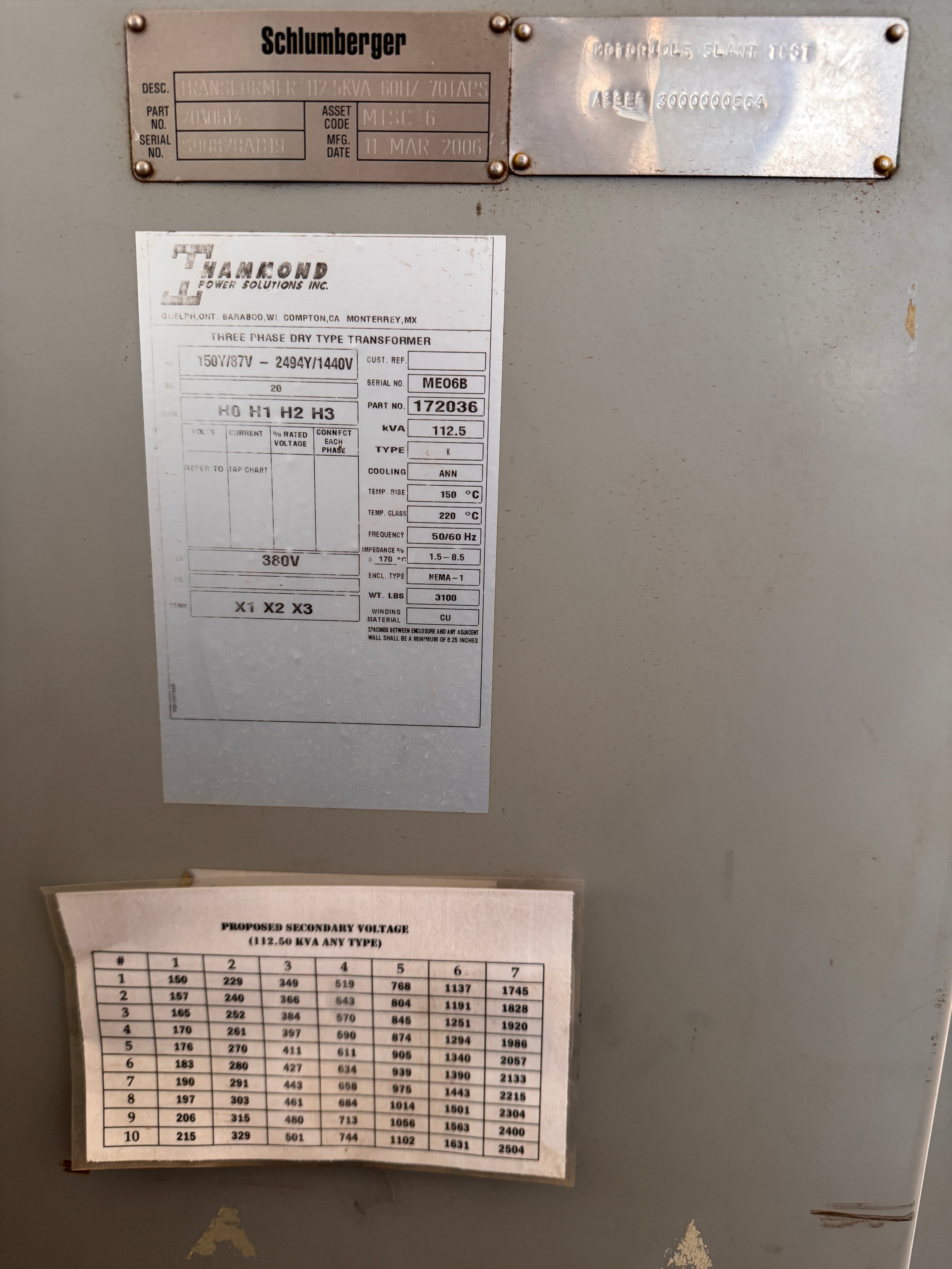

Brand: Hammond Power Solutions Inc.
Model / Part Number: ME06B / 172036
Serial Number: ME06B
KVA: 112.5
Primary Voltage: 2494Y/1440V  (номинал: 150V / 87V)
Secondary Voltage: 380V
Phase: 3 Ph
Type: Isolation
Temperature Rise: 150°C
Insulation Class: 220°C
Impedance @ 170°C: 1.5% – 8.5%
Frequency: 50 / 60 Hz
Enclosure Type: NEMA-1
Weight: 3100 lbs (1406 kg)
Size: 64x61x64
Primary: H0 H1 H2 H3
Secondary: X1 X2 X3
