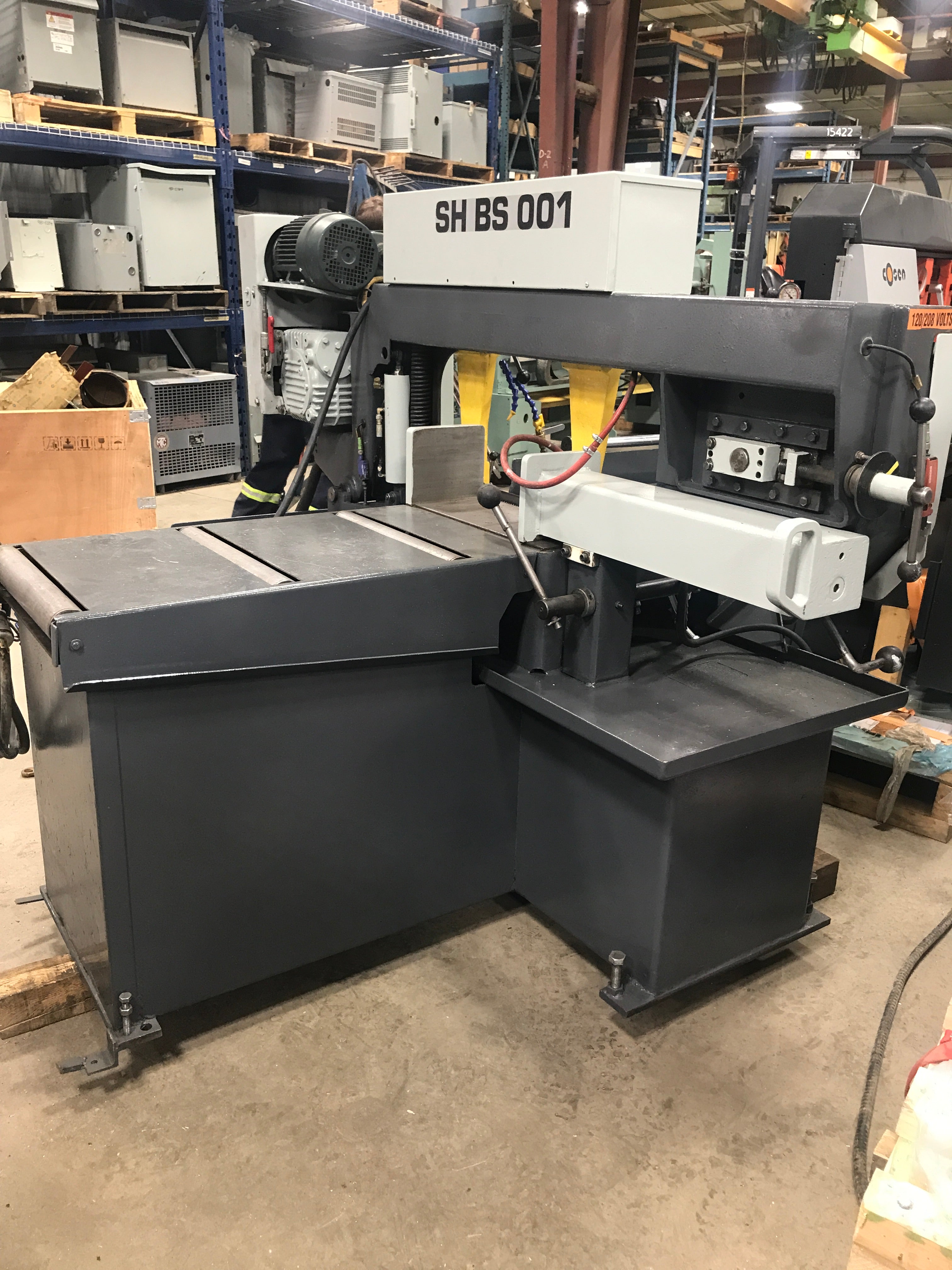

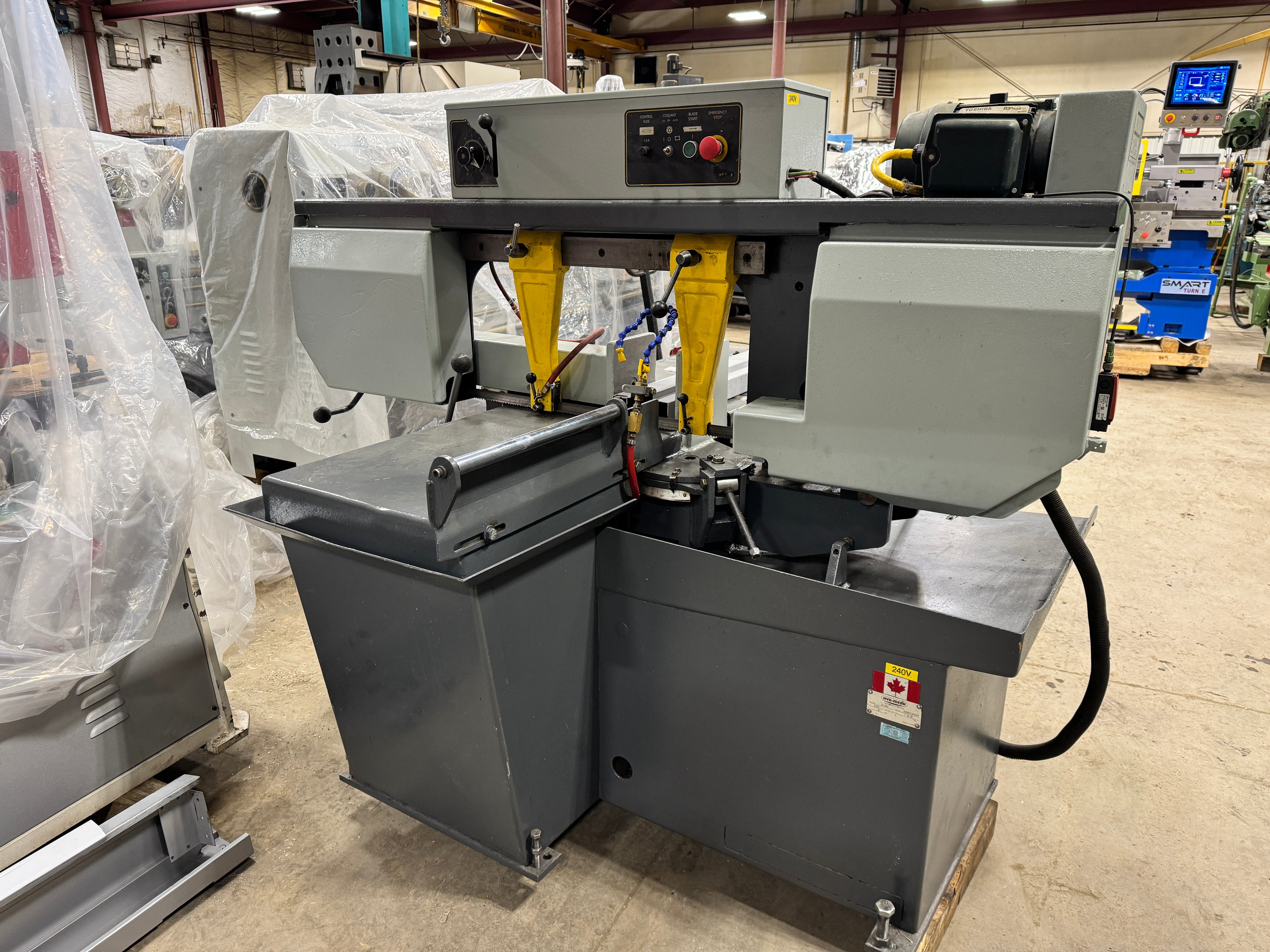

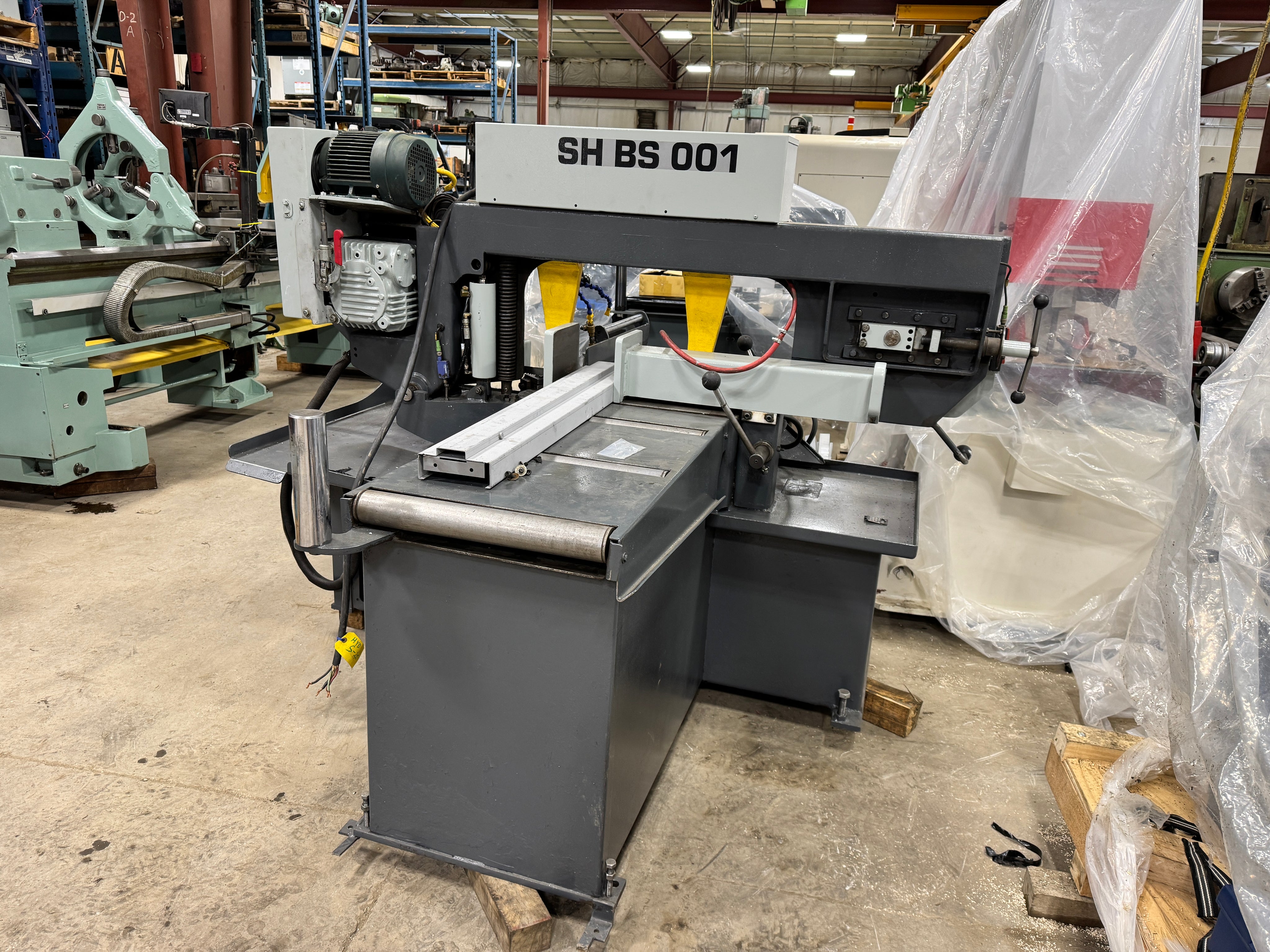

Hyd-Mech S-20 Bandsaw

The Hyd-Mech S-20 Series I is a reliable horizontal bandsaw designed for accurate and efficient metal cutting. Featuring a 13" round capacity and variable blade speeds up to 370 FPM, this machine is well-suited for fabrication shops and industrial applications. Its heavy-duty construction, 2 HP drive motor, and high load capacity ensure consistent performance and durability in demanding environments.

Specifications

• Type: Horizontal Bandsaw
• Blade Size: 13'6" x 1" x 0.032"
• Blade Speed: 90 – 370 FPM
• Blade Wheel Diameter: 16"
• Capacity (Rectangular): 13" x 18"
• Capacity (Round): 13"
• Capacity at 45°: 12" (round) | 10" x 10" (rectangular)
• Blade Drive Motor: 2 HP
• Table Height: 31"
• Maximum Work Load: 5,000 lbs
• Overall Dimensions: 90" x 90" x 60"
• Weight: 2,750 lbs

Electrical:

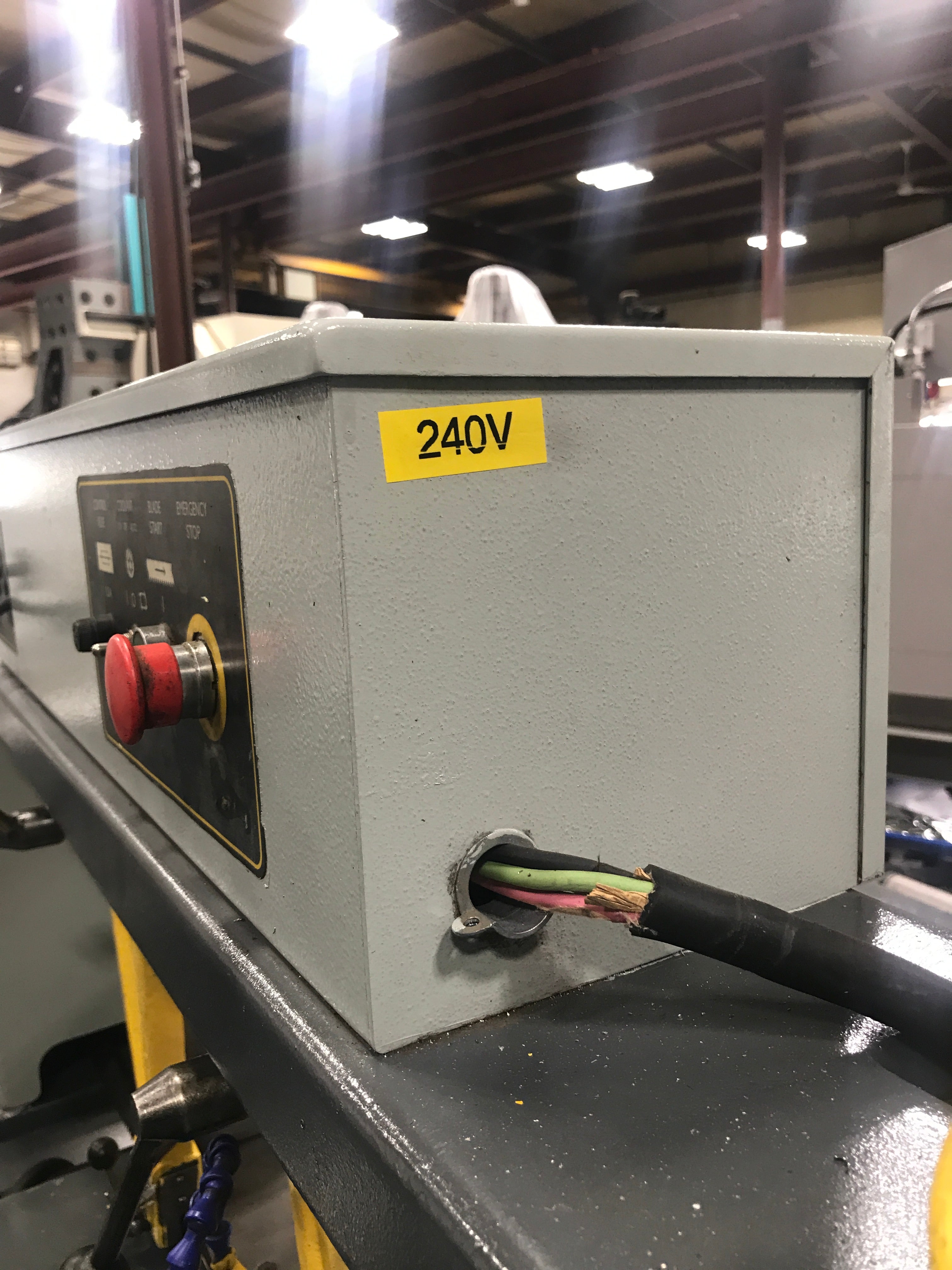

• 240V / 3 Phase / 60 Hz
• Full Load Amps: 6.5 A

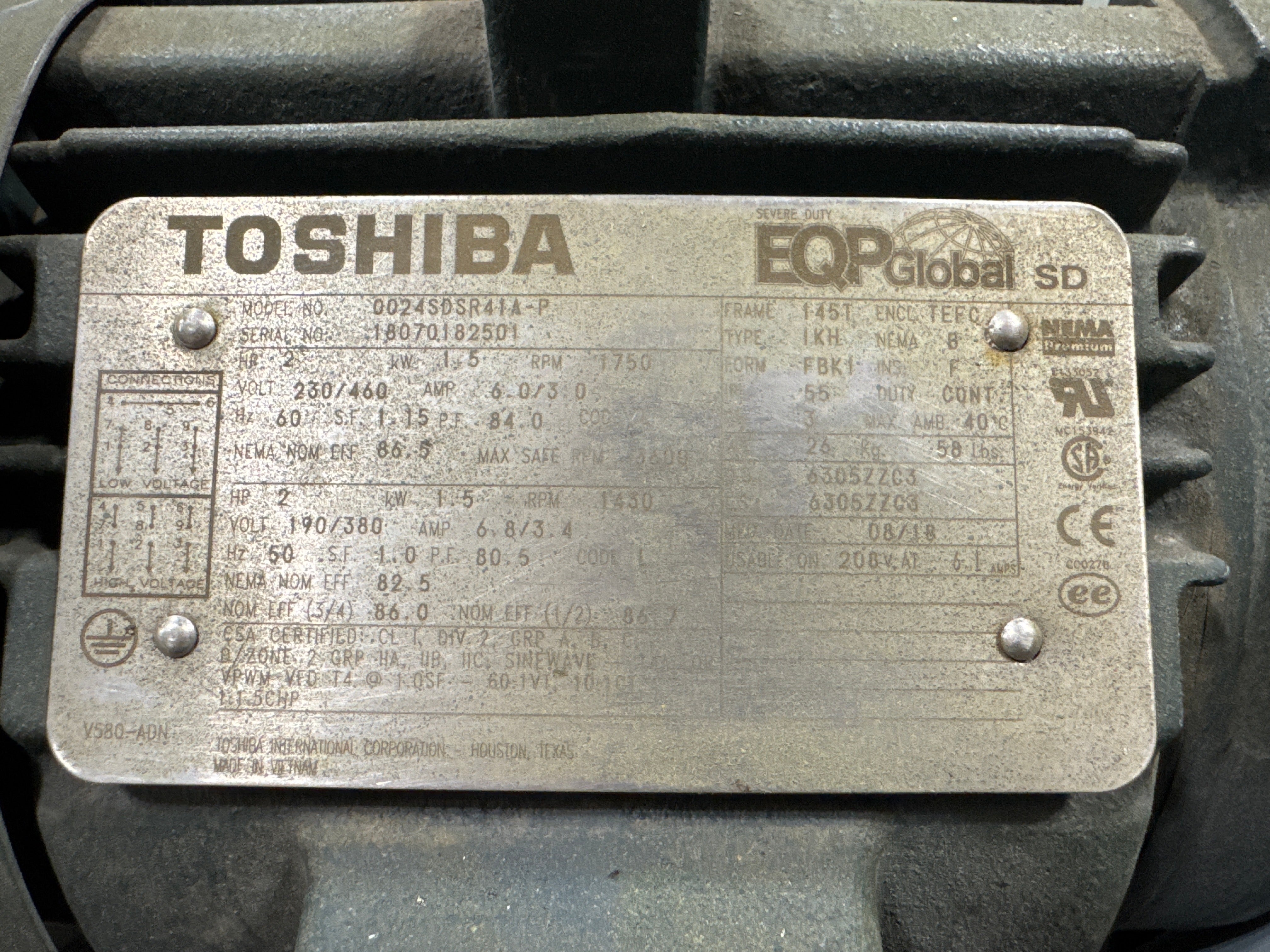

• Motor (Toshiba): 230/460V, 3PH, ~6.0 / 3.0 A, 1750 RPM

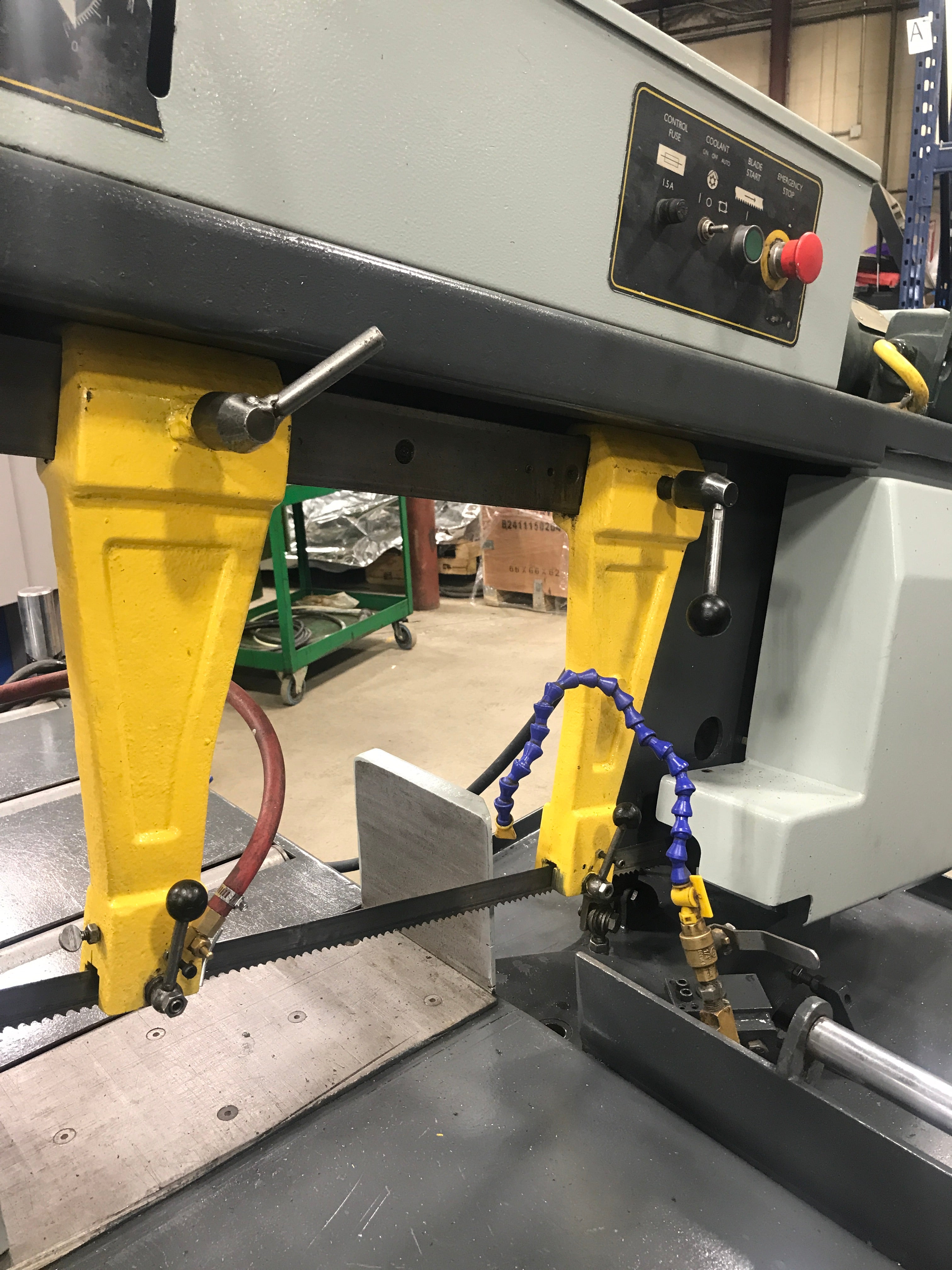

• Coolant System:

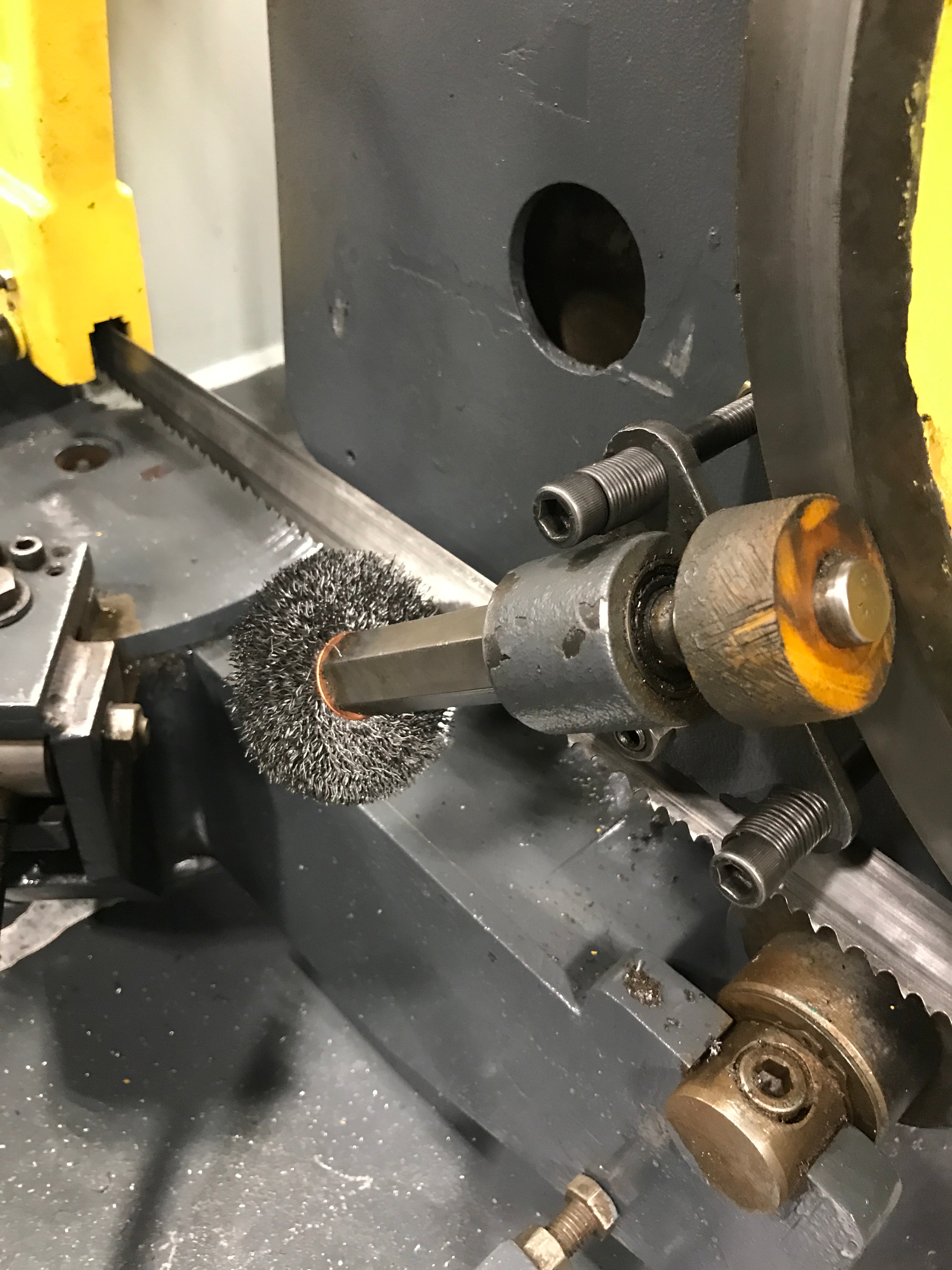

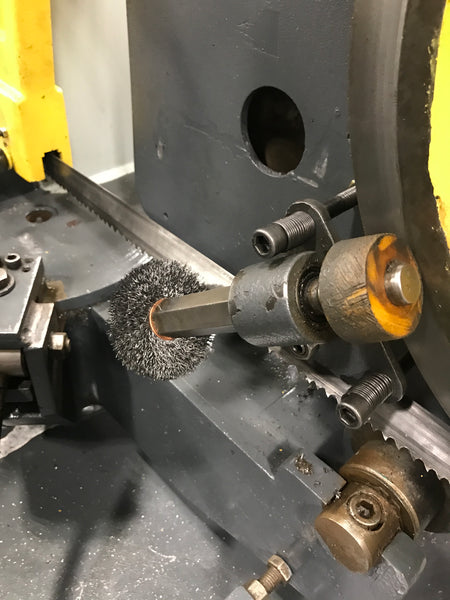

• Blade Brush System:

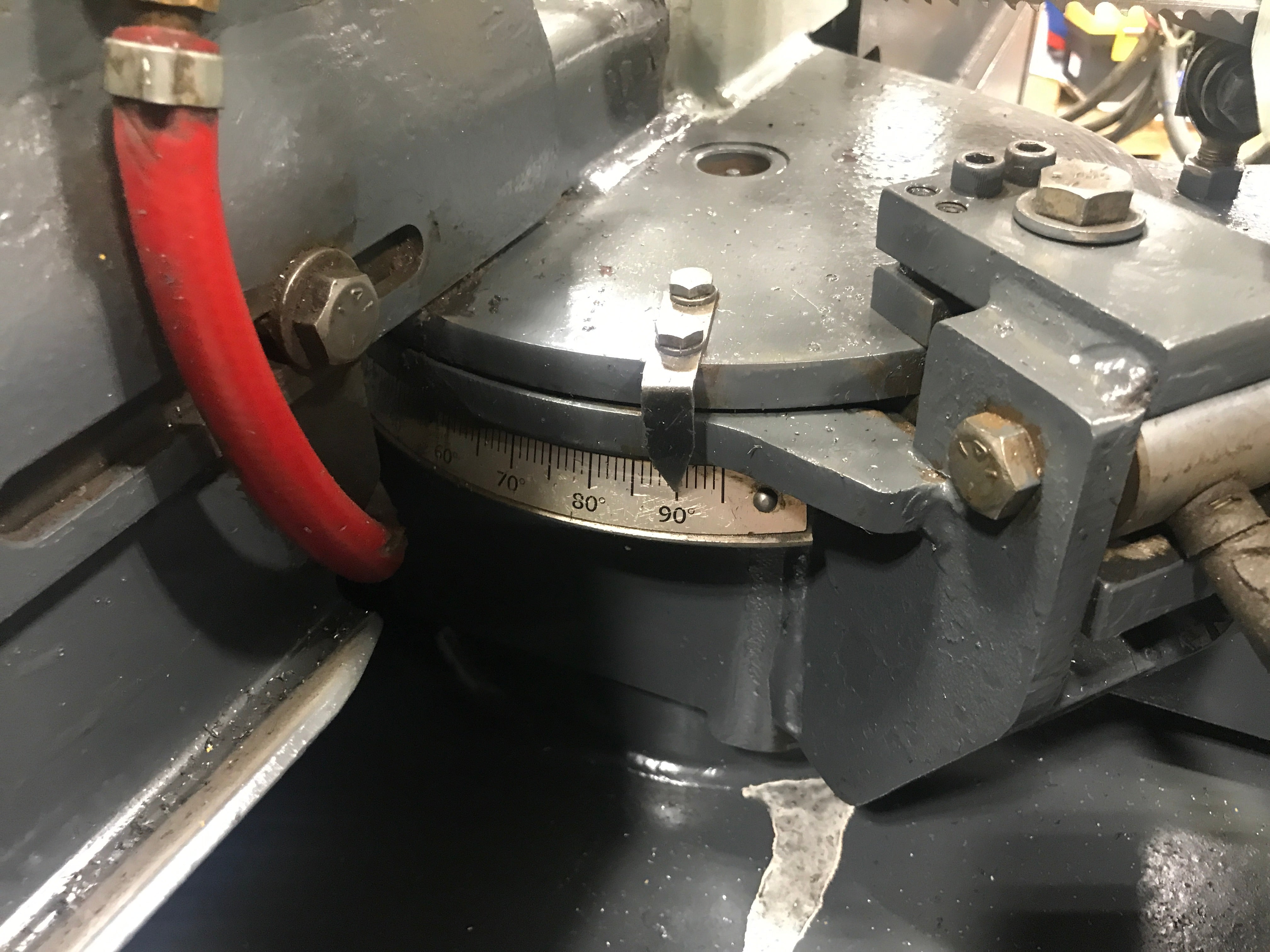

• Mitering: Manual angle adjustment

  Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors
